KÄYTTÖOHJE UA65AU8100G SAMSUNG
4
| 55AU8***55UA8*** | 48.5 inches(1232.1 mm)(123.21 cm) | 27.9 inches(708.8 mm)(70.88 cm) | 1.0 inches(25.7 mm)(2.57 cm) | 29.4 inches(747.8 mm)(74.78 cm) | 30.4 inches(772.8 mm)(77.28 cm) | 9.0 inches(228.8 mm)(22.88 cm) | 54.6 inches(138 cm) | 34.2 lbs(15.5 kg) | 35.7 lbs(16.2 kg) |
| 60AU8***60UA8*** | 53.3 inches(1353.0 mm)(135.30 cm) | 30.6 inches(776.8 mm)(77.68 cm) | 1.0 inches(25.7 mm)(2.57 cm) | 32.1 inches(816.1 mm)(81.61 cm) | 33.1 inches(841.1 mm)(84.11 cm) | 11.1 inches(281.8 mm)(28.18 cm) | 60.1 inches(152 cm) | 41.0 lbs(18.6 kg) | 43.0 lbs(19.5 kg) |
| 65AU8***65UA8*** | 57.1 inches(1450.9 mm)(145.09 cm) | 32.7 inches(831.8 mm)(83.18 cm) | 1.0 inches(25.7 mm)(2.57 cm) | 34.3 inches(871.0 mm)(87.10 cm) | 35.3 inches(896.0 mm)(89.60 cm) | 11.1 inches(281.8 mm)(28.18 cm) | 64.5 inches(163 cm) | 46.1 lbs(20.9 kg) | 48.1 lbs(21.8 kg) |
| 70AU8***70UA8*** | 62.0 inches(1575.9 mm)(157.59 cm) | 34.6 inches(877.7 mm)(87.77 cm) | 1.0 inches(26.6 mm)(2.66 cm) | 36.3 inches(923.0 mm)(92.30 cm) | 37.3 inches(948.0 mm)(94.80 cm) | 13.4 inches(340.4 mm)(34.04 cm) | 69.5 inches(176 cm) | 60.4 lbs(27.4 kg) | 63.1 lbs(28.6 kg) |
*:0\~9,A\~Z


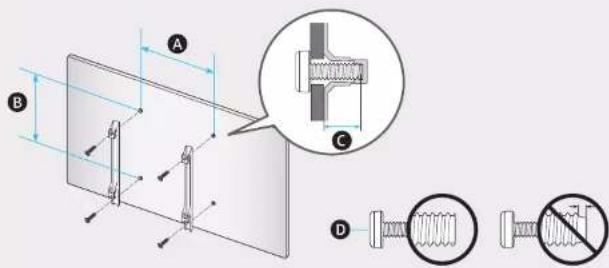

Technical diagram showing mechanical assembly with labeled components A, B, C, and D, including a magnified inset view of a threaded component.| VESA A x B m) (mm) x 4 | C | D | |
| 55AUB***55UA8*** | 200 x 200 | 11-13 M8 | |
| 60AUB***60UA8*** | 400 x 300 | ||
| 65AUB***65UA8*** | |||
| 70AUB***70UA8*** |
^* :0\~9,A\~Z
SAMSUNG
QUICK SETUP GUIDE
GUIDE D'INSTALLATION RAPIDE
GUÍA RÁPIDA DE CONFIGURACIÓN
GUIA RÁPIDO DE INSTALAÇÃO
KURZANLEITUNG ZUR KONFIGURATION
GUIDA DI INSTALLAZIONE RAPIDA
BN68-15315A-01
55"
▶
60"
70"


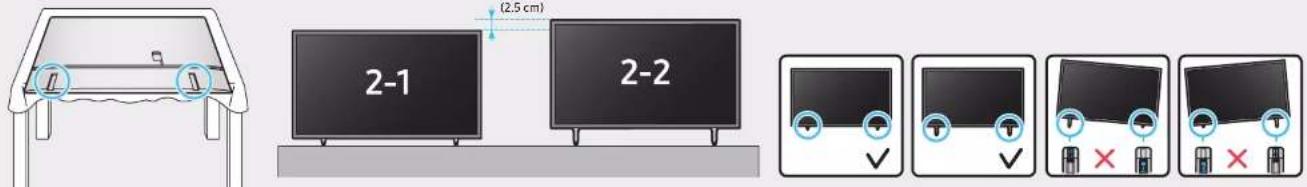

(2.5 cm) 2-1 2-22-1


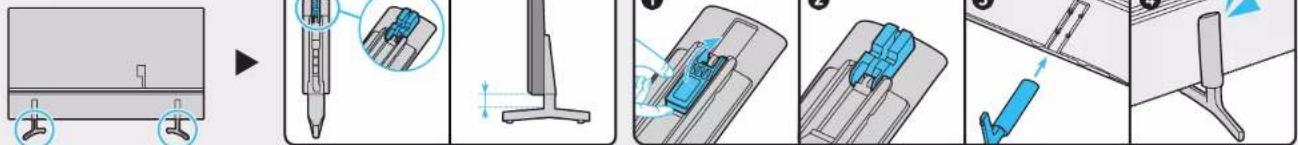

Diagram illustrating a mechanical assembly process with labeled parts and directional arrows indicating steps.2-2
3

