KÄYTTÖOHJE UN65AU9000P SAMSUNG
5
| UN55AU9*** | 48.5 inches(1232.9 mm)(123.29 cm) | 27.9 inches(709.2 mm)(70.92 cm) | 1.0 inches(25.7 mm)(2.57 cm) | 30.5 inches(774.1 mm)(77.41 cm) | 9.8 inches(249.1 mm)(24.91 cm) | 54.6 inches(138 cm) | 34.2 lbs(15.5 kg) | 35.7 lbs(16.2 kg) |
| UN65AU9*** | 57.2 inches(1451.7 mm)(145.17 cm) | 32.8 inches(832.2 mm)(83.22 cm) | 1.0 inches(25.7 mm)(2.57 cm) | 35.3 inches(897.5 mm)(89.75 cm) | 11.4 inches(290.2 mm)(29.02 cm) | 64.5 inches(163 cm) | 46.1 lbs(20.9 kg) | 47.8 lbs(21.7 kg) |
^* :0-9,A-Z


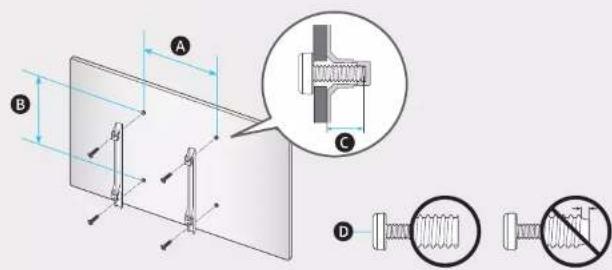

Technical diagram showing mechanical assembly with labeled components A, B, C, and D, including a magnified inset of a bolt detail view.| VESA A x E m) (mm) x 4 | C | D | |
| UN55AU9*** 200 x 200 | 11-13 M8 | ||
| UN65AU9*** 400 x 300 |
*:0\~9,A\~Z
SAMSUNG
QUICK SETUP GUIDE GUIDE D'INSTALLATION RAPIDE GUÍA RÁPIDA DE CONFIGURACIÓN GUIA RÁPIDO DE INSTALAÇÃO
BN68-11606F-01
55"
▶
65"


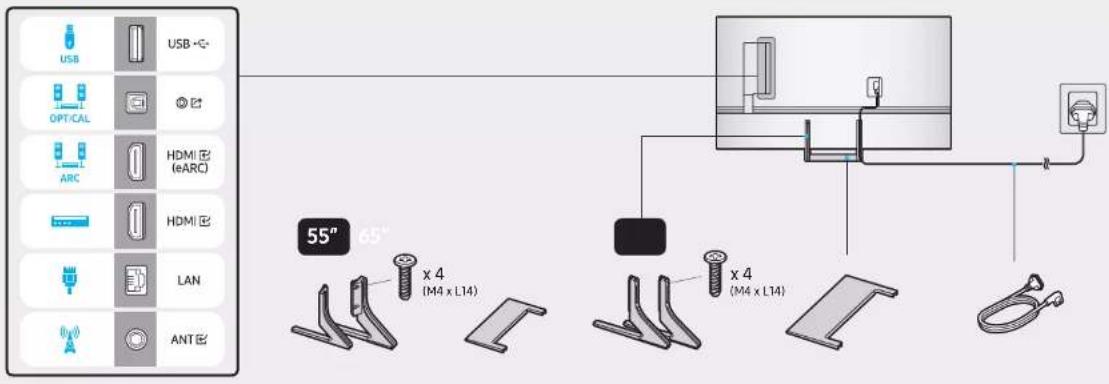

USB OPT/CAL ARC HDMI (eARC) HDMI LAN ANTE 55" 65" x 4 (M4 x L14) x 4 (M4 x L14)
1
2
2

