KÄYTTÖOHJE PC8 Piranha

COMPUTER DESK ASSEMBLY INSTRUCTIONS

Thank you for choosing to purchase from Piranha Furniture We trust everything is as expected, however if there are ANY issues at all or you have further questions, please don't hesitate to email us and we will resolve the matter as quickly as possible:

United Kingdom: [e-mail]

Rest of EU: [e-mail]

You can contact us through our website www.piranhafurniture.com where you will also find our full range of products.

Please read the assembly instructions carefully before the installation

Retain all packaging as, if required, goods must be returned packed in the original cartons.

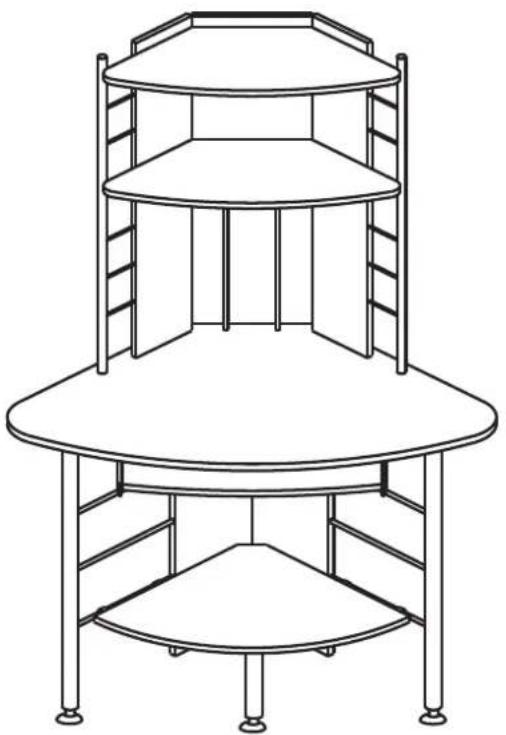

Line drawing of a multi-tiered cylindrical table with vertical supports and curved legs (no text or symbols)

TWO PEOPLE REQUIRED

MODEL PC8

General Care:

Keep furniture out of direct sunlight. Use mats and coasters to protect surfaces.

Do not place hot or wet items directly onto unprotected surfaces.

Cleaning:

Wipe surfaces with a clean damp (not wet) cloth then dry with a clean lint free cotton cloth.

Glass surfaces may be polished with window or other glass cleaning liquids.

1	2	3	4
5	6	7	8
9	10	11
13	14	15	16
17	18

PART	QTY.	ITEM
A	2	6X35MM
B	4	4X4 MM
C	4	6X12 MM
D	20	4X14MM
E	19	6X40 MM

PART	QTY.	ITEM

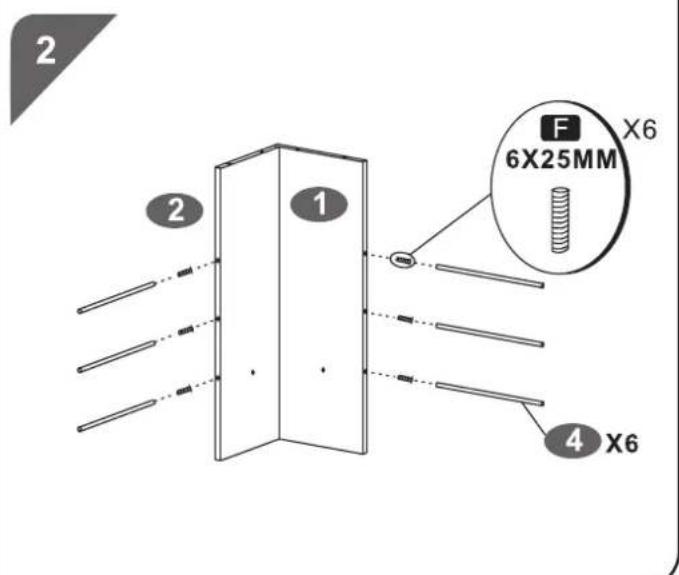

F	6	6X25MM
G	16	6X50 MM
H	19	15 MM
I	10	10 MM
	1

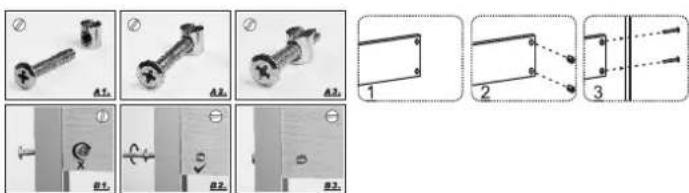

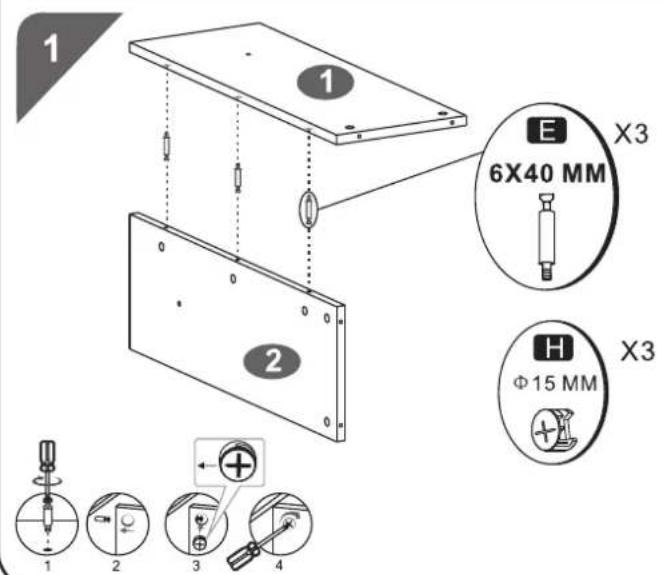

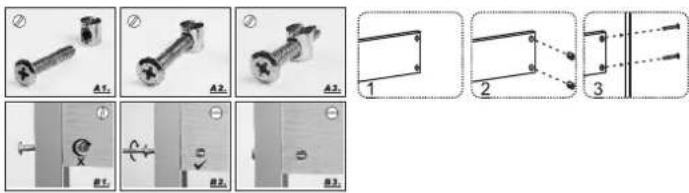

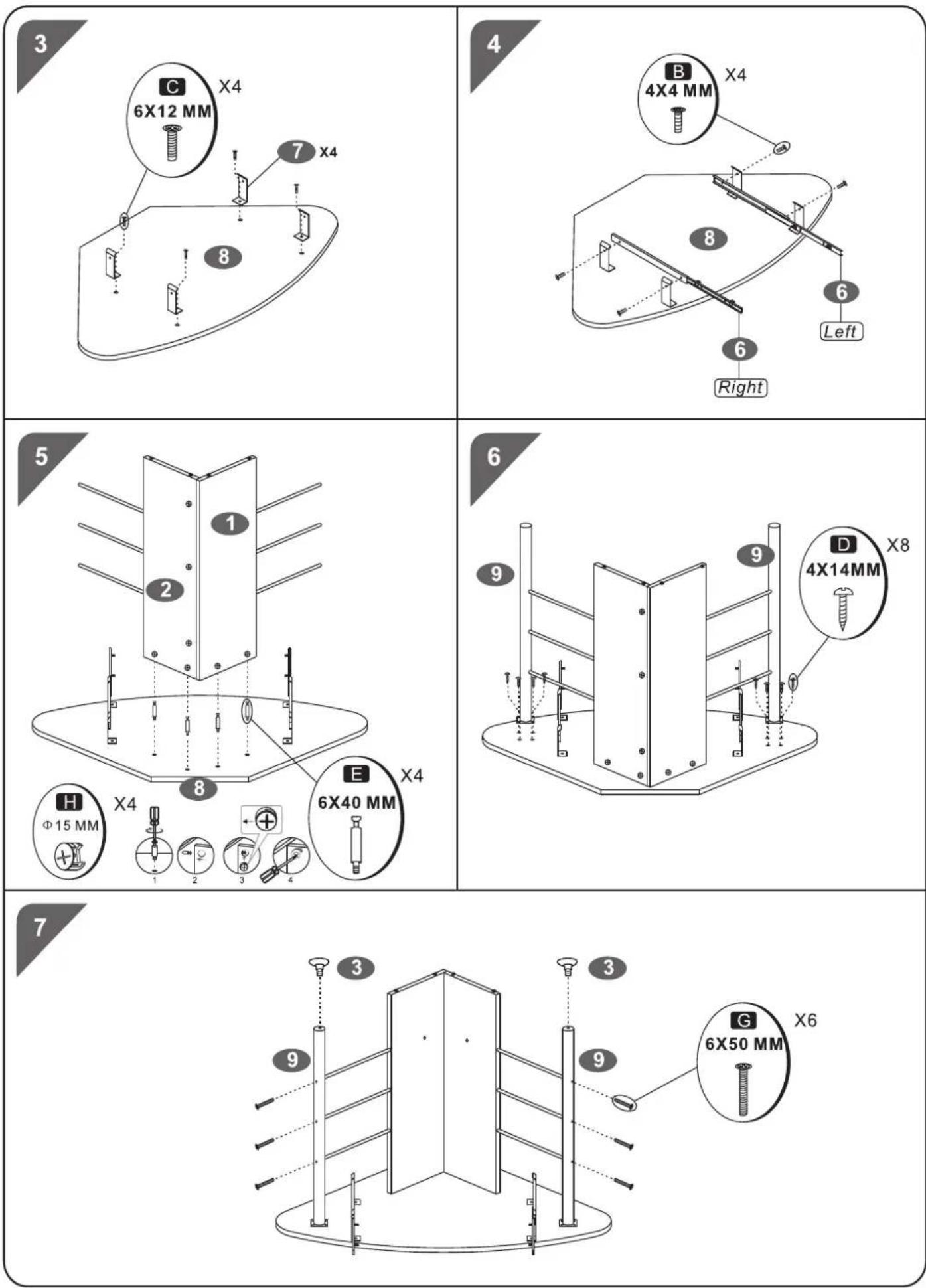

6X40MM BOLT INSTALLATION AS BELOW:

Rotate connecting piece if found in position illustrated above

Correct orientation to receive bolts

A4.

8

12

13

14

15

Line drawing of a multi-tiered vertical shelf or cabinet structure with no text or symbols

Diagram of a mechanical or architectural structure with a central triangular component and vertical supports, showing no text or symbols.

Line drawing of a multi-tiered cylindrical table with vertical supports and a central shelf (no text or symbols)
