KASUTUSJUHEND FF6BBI7IFADA Accucold

Accucold FF6BBI7IFADA - 1

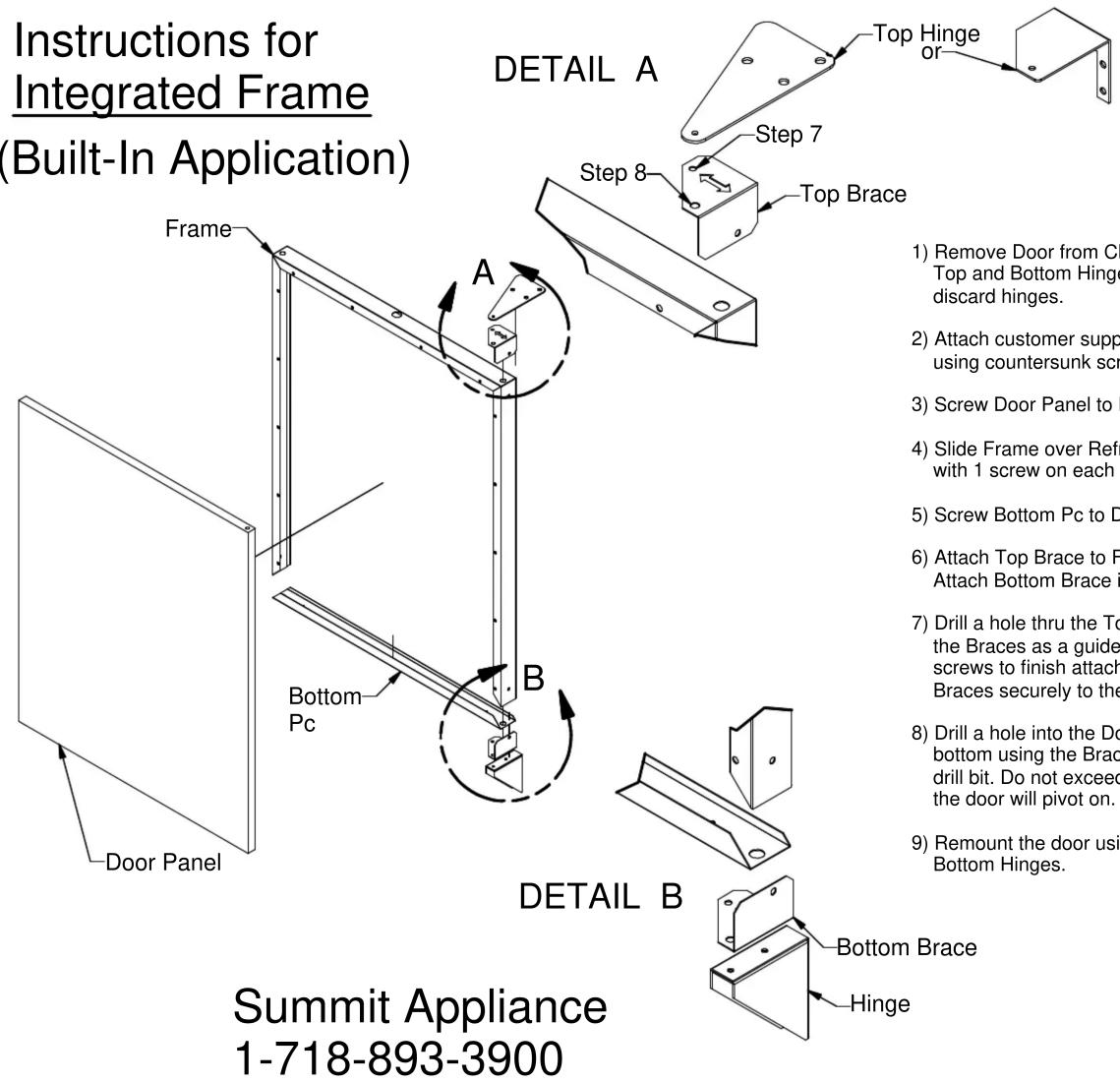

text_image Instructions for Integrated Frame (Built-In Application) DETAIL A Step 7 Top Hinge or Step 8 Top Brace Frame A Bottom Pc B DOOR PANEL DETAIL B Summit Appliance 1-718-893-3900 1) Remove Door from Ch Top and Bottom Hinge discard hinges. 2) Attach customer supp using countersunk scr. 3) Screw Door Panel to R 4) Slide Frame over Refr with 1 screw on each s 5) Screw Bottom Pc to D 6) Attach Top Brace to F Attach Bottom Brace i 7) Drill a hole thru the To the Braces as a guide screws to finish attach Braces securely to the 8) Drill a hole into the Do bottom using the Brac drill bit. Do not exceed the door will pivot on. 9) Remount the door using Bottom Hinges.

1) Remove Door from Chassis by removing Top and Bottom Hinges. Keep screws, discard hinges.

2) Attach customer supplied handle to Door Panel using countersunk screws.

3) Screw Door Panel to Frame.

4) Slide Frame over Refrigerator door and attach with 1 screw on each side, center of door.

5) Screw Bottom Pc to Door.

6) Attach Top Brace to Frame with 1 screw on side. Attach Bottom Brace in the same manner.

7) Drill a hole thru the Top and Bottom Frame using the Braces as a guide with a 5/32" drill bit. Install screws to finish attaching the Top and Bottom Braces securely to the Frame.

8) Drill a hole into the Door Panel from the top and bottom using the Braces as a guide with a 1/4" drill bit. Do not exceed 5/8". This is the hole that the door will pivot on.

9) Remount the door using the supplied Top and Bottom Hinges.
