Pigtail Cable
TL-ANT24PT
Features:
- Easy to install and use
• Manufactured using 50cm Low Loss CFD-200 cable that provides a higher performance cable with excellent flexibility
• N Male to RP-SMA Male connector, applicable in most of connections between the wireless AP/Router and antenna - 50cm low loss CFD-200 cable


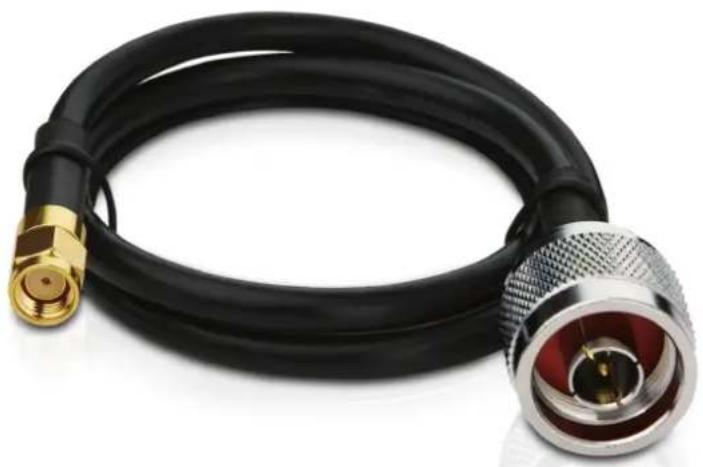

Coiled black and silver RF connector with gold connectors (no text or symbols visible)Description:
The TL-ANT24PT pigtail cable is ideal for flexible connection between rigid outdoor cable and wireless access points/routers. It is very easy to use; no configuration or installation software required.
Specifications:
Frequency
Impedance
Insertion Loss
VSWR (MAX.)
Connector Type
Operating Temp
Storage Temp
DC\~3GHz
50Ω Nominal
0.8 dB
1.5:1 Max.
N Male to RP-SMA Male
-10℃\~+60℃
-40℃\~+80℃

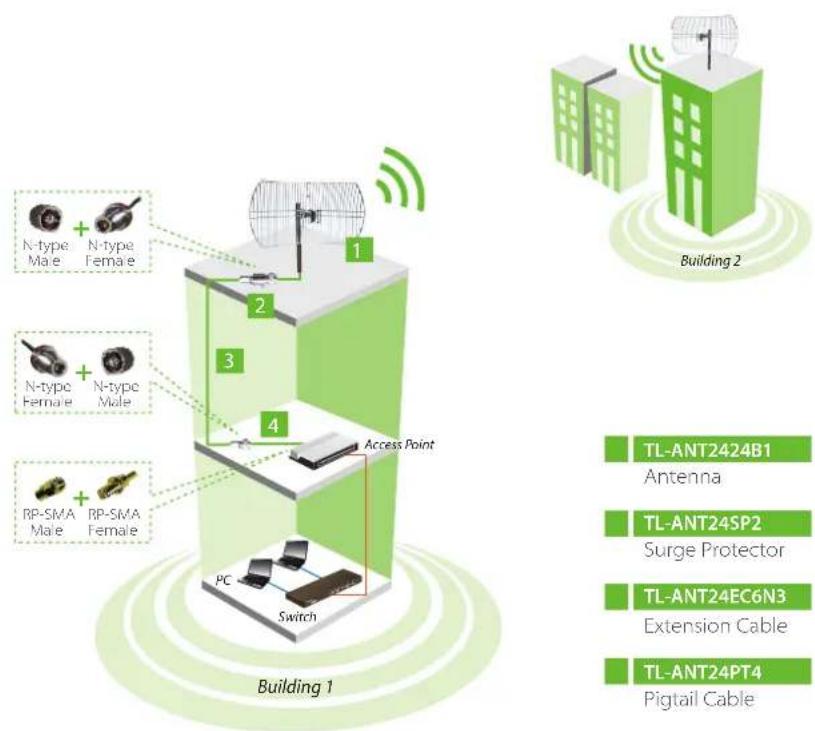

- Diagram:
Outdoor Point to Point Application
Simple and Convenient Installation with Excellent Transmission Range
Package:
- Pigtail Cable
TL-ANT24PT
