KASUTUSJUHEND AD540 Mac Tools

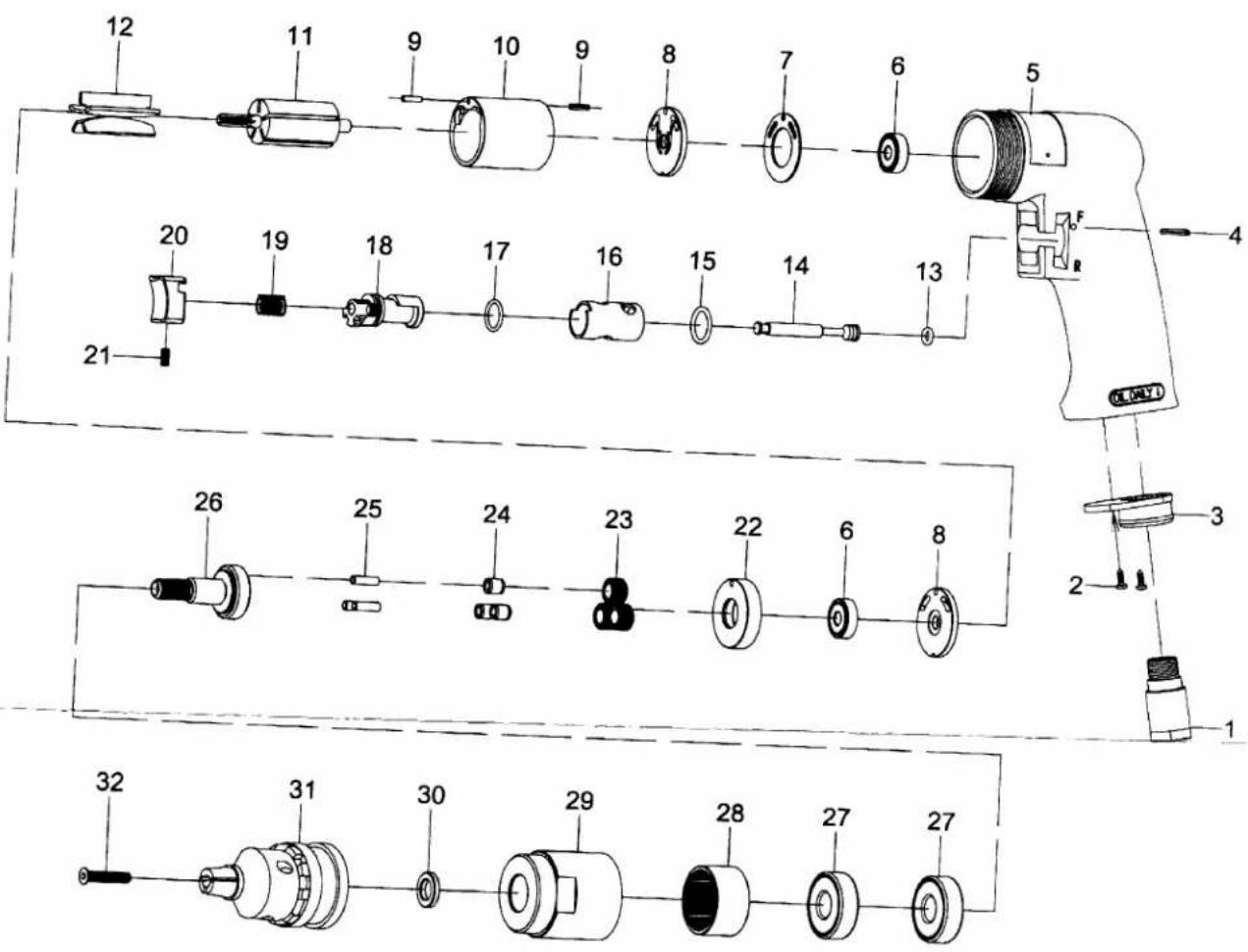

PARTS BREAKDOWN FOR 3/8" REVERSIBLE AIR DRILL-MODEL AD540
| Index No. | Parts No. | Description | Index No. | Parts No. | Description |
| 1 | AD54001 | Air Inlet | 17 | AD54017 | O-Ring (∅12*∅1.6) |
| 2 | AD54002 | Screw (2) (M3*8L) | 18 | AD54018 | Reverse Lever |
| 3 | AD54003 | Exhaust Diffuser | 19 | AD54019 | Valve Spring |
| 4 | AD54004 | Spring Pin (∅2.5*24L) | 20 | AD54020 | Trigger |
| 5 | AD54005 | Motor Housing | 21 | AD54021 | Set Screw (M4*8L) |
| 6 | AD54006 | Ball Bearing (2) (626ZZ) | 22 | AD54022 | Spacer |
| 7 | AD54007 | Motor Gasket | 23 | AD54023 | Planet Gear (3) |
| 8 | AD54008 | End Plate (2) | 24 | AD54024 | Bushing (3) |
| 9 | AD54009 | Spring Pin (2) (∅2.5*10L) | 25 | AD54025 | Pin (3) (∅4*13.8L) |
| 10 | AD54010 | Cylinder | 26 | AD54026 | Work Spindle |
| 11 | AD54011 | Rotor | 27 | AD54027 | Ball Bearing (2) (6201Z) |
| 12 | AD54012 | Rotor Blades (5) | 28 | AD54028 | Internal Gear |
| 13 | AD54013 | O-Ring (∅4.8*∅1.9) | 29 | AD54029 | Clamp Nut |
| 14 | AD54014 | Valve Stem | 30 | AD54030 | Washer |
| 15 | AD54015 | O-Ring (∅13.8*∅2) | 31 | AD54031 | Key Chuck (3/8") |
| 16 | AD54016 | Reverse Bushing | 32 | AD54032 | Screw (M5*20L) |
