KASUTUSJUHEND SE-65351 Sven
USER'S MANUAL
COPYRIGHT
© 2014. SVENPTE. LTD. Version 1.0 (V 1.0).
This Manual and information contained in it are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
NOTICE OF RESPONSIBILITY RESTRICTION
Despite the exerted efforts to make this Manual more exact, some discrepancies may occur. The information of this Manual is given on “as is” terms. The author and the publisher do not bear any liability to a person or an organization for loss or damages, which have arisen from the information contained in the given Manual.
PURPOSE
SE-65351 two-gang unit: grounding-type socket with protection shutters + double switch is designed for electrical circuits switching.
FEATURES
• Non-flammable ABS plastic case
- Protection shutters against ingress of foreign objects
- Possibility to control two light sources
- Mountable on various surfaces: wood, plasterboard, plastic, etc.
• Enhanced design of cable terminals
- Wires can be put in from any side
- Compact size
SAFE OPERATION RULES
- Items should be installed and connected by qualified specialists only.
- Items should be connected according to the connection diagram given on the item backside.
- Avoid the item overload for its damage. The peak acceptable current value of the load is indicated on its backside.
- Avoid ingress of foreign objects inside the item case.
TECHNICAL SPECIFICATIONS
| Dimensions, mm | 120 × 65 |
| Peak current, A | 16 (socket), 10 (switch) |
| Peak voltage, V | 250 |
| Color | white |
Notes:
- Technical specifications given in this table are supplemental information and cannot give occasion to claims.
- Technical specifications are subject to change without notice due to the improvement of SVEN production.


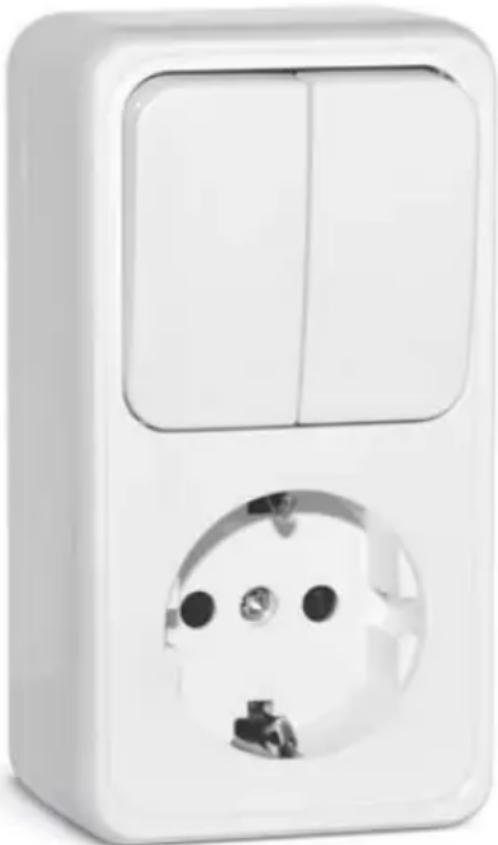

White electrical outlet switch with a circular socket (no text or symbols visible)Модель: SE-65351
Импортер в России: ООО «СКАНДИТРЕЛ»,
111024, РФ, г. Москва, ул. Авиамоторная, д. 65, стр. 1.
Уполномоченная организация в России: ООО «РТ-Ф»,
105082, г. Москва, ул. Фридриха Энгельса, д. 75, стр. 5.
Условия гарантийного обслуживания смотрите
в гарантийном талоне или на сайте www.sven.fi
Гарантийный срок: 12 мес.
Срок службы: 5 лет.
Производитель: «СВЕН ПТЕ. Лимитед»,
176 Джу Чиат Роуд, № 02-02, Сингапур, 427447.
Произведено под контролем «Свен Скандинавия
Лимитед», 48310, Финляндия, Котка,
Котолахдентие, 15. Сделано в Китае.
Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road,
Nº 02-02, Singapore, 427447. Produced under the
control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie,
Kotka, Finland, 48310. Made in China.
® Registered Trademark of Oy SVEN
Scandinavia Ltd. Finland.
