KASUTUSJUHEND Jace JAC-10507-SG Crystorama

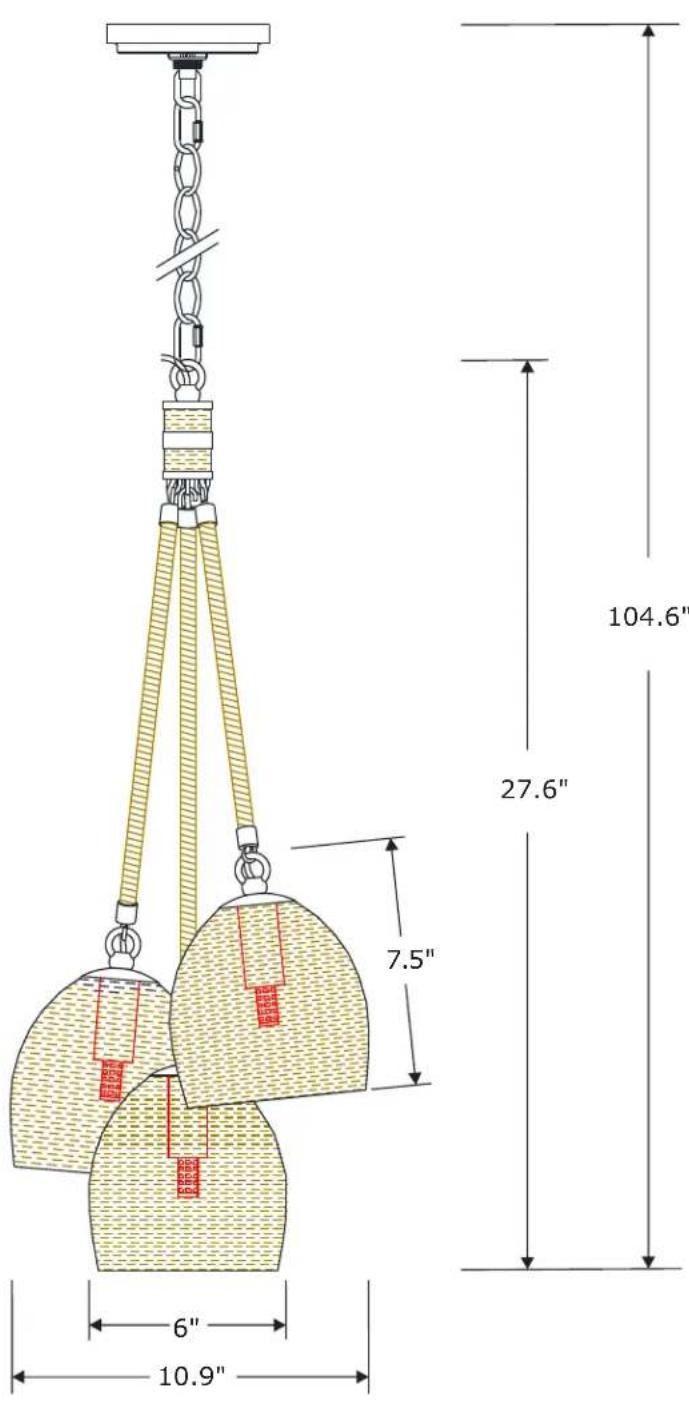

ASSEMBLY INSTRUCTION MODEL # JAC-10507-SG
All electrical components must be
installed by a licensed electrician
in accordance with the National
Electric Code and the appropriate
local electrical codes.
You will need 3 -LED G9 Bulb
3.5 Watts Max (Included)
USE LED BULBS FOR EXTENDED USE
THIS FIXTURE IS DAMP RATED
How to Install
- Take one rod and attach one end to the top of the frame and the other end onto the distributor box. Repeat for the other two rods.
- Decide the preferred hanging height and choose the correct chain length needed.
- Install the mounting strap onto the outlet box.
- Raise the fixture up to the ceiling, and do the wire connections. Secure the canopy to the ceiling with the collar ring.
- Install the bulb.

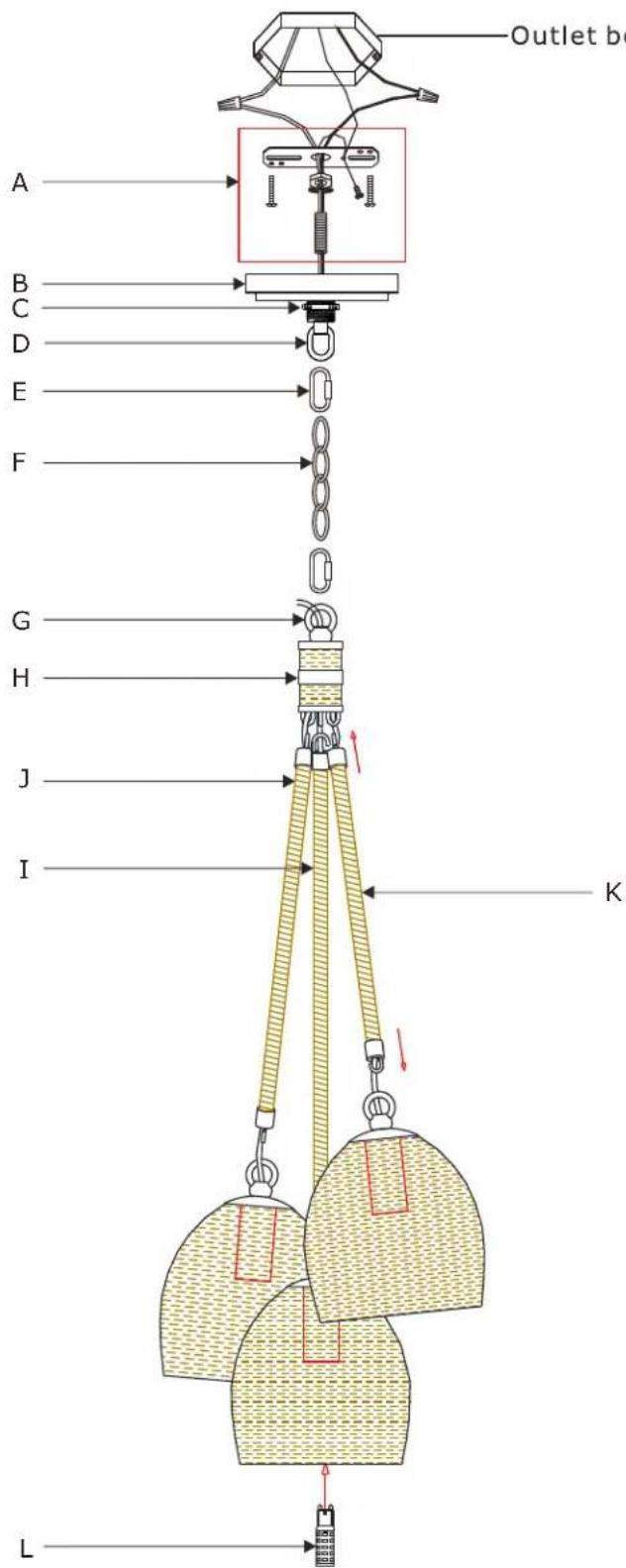

Part Number
A. (1) - Mounting Hardware
B. (1) - Canopy(W4.92",H0.87") #XRE10502SGCAN4.92IN
C. (1) - Collar Ring
D. (1) - Collar Loop
E. (2) - Quick Link(4mm)
F. (1) - Hanging Chain(72",3.2mm) #XRE10502SGCHA3.2MM
G.(1) - Fixture Loop
H.(1) - Distributor box
I. (1) - Long Rod #XRE10507SGROD15IN
J. (1) - Medium Rod #XRE10507SGROD12IN
K.(1) - Short Rod #XRE10507SGROD9IN
LED G9 BulbL. (3) -
