KASUTUSJUHEND PS 18DR Extron

PS 18DR Installation Guide

The Extron PS 18DR DIN Rail Adapter enables a user to mount an eighth-rack Extron device to a standard 35 mm DIN rail, with a depth of 7.5 mm or greater. The adapter includes a DIN rail clip attached to a mounting plate, and the necessary screws to mount the device.

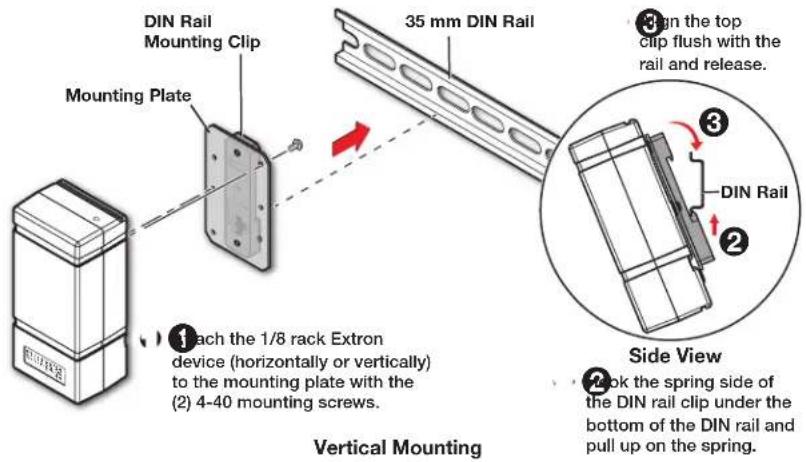

DIN Rail Mounting Clip Mounting Plate 35 mm DIN Rail 3 DIN Rail 3 DIN Rail 2 1 each the 1/8 rack Extron device (horizontally or vertically) to the mounting plate with the (2) 4-40 mounting screws. Side View 2 1 took the spring side of the DIN rail clip under the bottom of the DIN rail and pull up on the spring. Vertical Mounting

NOTE: To remove the PS 18DR from the rack, push upward on the clip, pull the top of the clip off the rail, and move the entire clip down, away from the rail.

PS 18DR Installation Guide, Continued

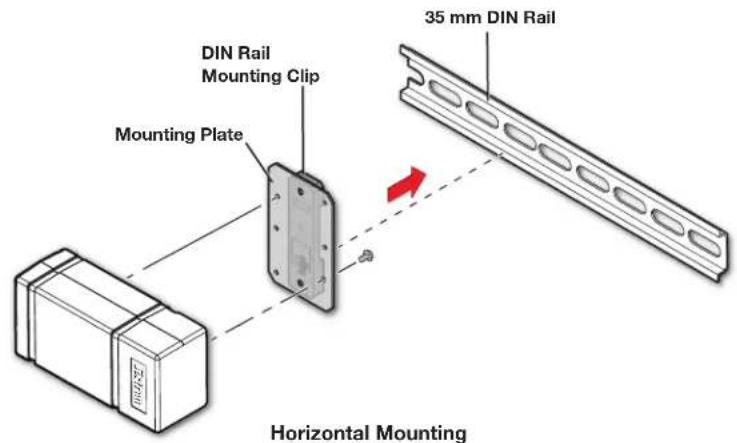

35 mm DIN Rail DIN Rail Mounting Clip Mounting Plate Horizontal Mounting

NOTE: The eighth-rack desktop power supply can be mounted on the rack adapter either horizontally or vertically. If mounted vertically, clip on the DIN rail with the power cable toward the floor.
