INSTRUCTION MANUAL
LED BACKLIT RECESSED PANEL
WARRANTY
TECHNICAL DATA
| MODEL# | UWATTS | SHAPE | LUMENS | BEAM ANGLE | IP RATING | CBI | BODY TYPE | TOTAL CURRENT | INPUT VOLTAGE | LIFE SPAN | ON/OFF CYCLE | DIMENSION (LXWH) | |
| VT-61033 | 270.0KΩ/150mm(40mm, 25mm) | BOUND | 3W | 330LM | Sphere 360° | IP20 | >80 | PLASTIC | 26mA | AC:220~24050/60Hz | 0 | 70.2x28.4mm | |
| SOLARE | 72.4x72.28.2mm | ||||||||||||
| VT-61066 | 270.0KΩ/150mm(40mm, 25mm) | BOUND | 6W | 660LM | Sphere 360° | IP20 | >80 | PLASTIC | 36mA | AC:220~24050/60Hz | 20000H | >16000 | 120.5x28.4mm |
| SOLARE | 120.5x28.4mm | ||||||||||||
| VT-5'012 | 270.0KΩ/150mm(40mm, 25mm) | BOUND | 10W | 1200LM | Sphere 360° | IP20 | >80 | PLASTIC | 7mA | AC:220~24050/60Hz | 20000H | >16000 | 70.8x28.4mm |
| SOLARE | 70.8x28.4mm | ||||||||||||
| VT-5'018 | 270.0KΩ/150mm(40mm, 25mm) | BOUND | 18W | 1850LM | Sphere 360° | IP20 | >80 | PLASTIC | 103mA | AC:220~24050/60Hz | 20000H | >16000 | 720.8x28.9mm |
| SOLARE | 1980LM | 20.4x20.428.8mm | |||||||||||
| VT-61024 | 270.0KΩ/150mm(40mm, 25mm) | BOUND | 24W | 2500LM | Sphere 360° | IP20 | >80 | PLASTIC | 100mA | AC:220~24050/60Hz | 20000H | >16000 | 29x29.9mm |
| SOLARE | 2600LM | 26x29.6mm |
This product contains a light source of energy efficiency class
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best. The warranty is valid for 5 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. The products are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This product is warranted for manufacturing defects only.
WARNING
- Please make sure to turn off the power before starting the installation.
• Installation must be performed by a certified person. - For Indoor use only
- The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
- If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
- Method of attachment of the cable or cord such that any replacement can only be made by the manufacturer, his service agent or similar qualified person.
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
This marking indicates that this product should not be disposed of with other household wastes.
Caution, risk of electric shock.
ATTENTION!
Do not look directly at LED light beam. Product can only be supplied by rated voltage or voltage within the range provided. It's forbidden to use the product with damaged protective cover. Product must not be used in unfavorable conditions, e.g., dust, water, moisture, vibrations, explosive air atmosphere, fumes, or chemical fumes, etc. In the area of strong electromagnetic interference, the functioning of the product may be disrupted.
USAGE GUIDELINES/MAINTENANCE
Any maintenance work must be performed when the power supply is cut off and the product has cooled down. Clean only with soft and dry cloths. Do not use chemical detergents. Do not cover the product. Ensure free air access. Product may heat up to a higher temperature.
MOUNTING
Read the manual before mounting. Mounting should be performed by a qualified electrician. Exercise caution. Product has a protective contact terminal. Failure to connect the protective lead may lead to electric shock. Mounting diagram: see pictures. Check for proper mechanical fastening and connection to electrical power prior to first use.

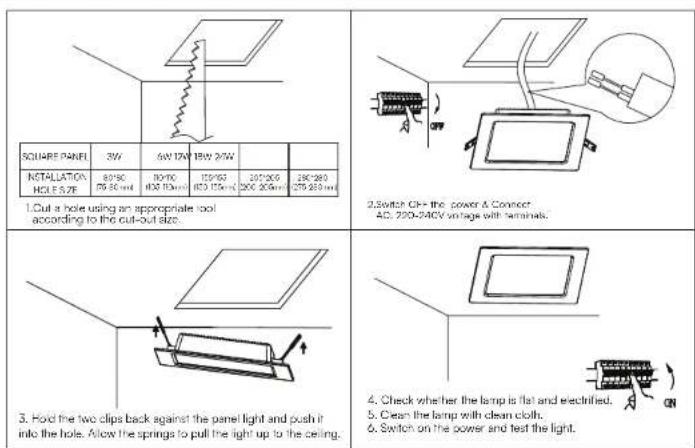

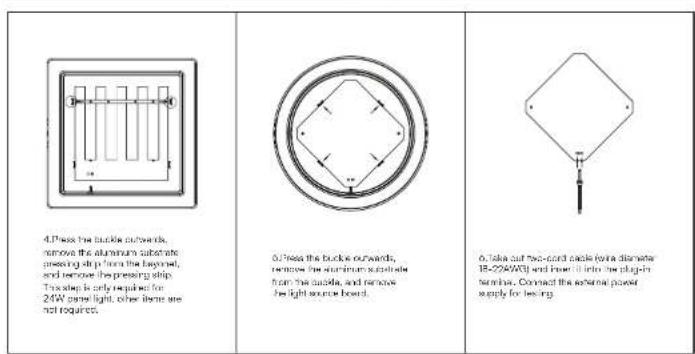

RECESSED PANEL INSTALLATION DIAGRAM


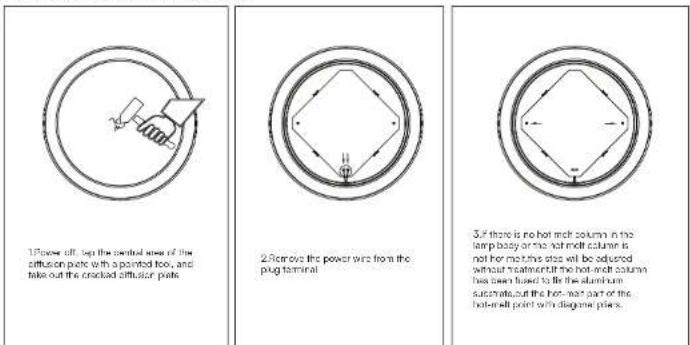

DISASSEMBLY DIAGRAM
(For Market surveillance team only)
RoHS
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: SUPPORT@V-TAC.EU FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS. V-TAC EUROPE LTD. BULGARIA. PLOVDIV 4000, BUL.L.KARAVELOW 9B
