IKEA ÄPPLARYD 105.062.64 - Diivan

ÄPPLARYD 105.062.64 - Diivan IKEA - Tasuta kasutusjuhend

Leidke seadme juhend tasuta ÄPPLARYD 105.062.64 IKEA PDF-formaadis.

📄 52 lehekülge Eesti ET ⬇ Laadi alla 💬 AI küsimus
Notice IKEA ÄPPLARYD 105.062.64 - page 1
1 / 52
Pick your language and provide your email: we'll send you a specifically translated version.

Kasutajate küsimused teemal ÄPPLARYD 105.062.64 IKEA

0 küsimus selle seadme kohta. Vastake nendele, mida teate, või esitage oma.

Esita uus küsimus selle seadme kohta

E-post jääb privaatsuseks: seda kasutatakse ainult selleks, et teavitada teid, kui keegi vastab teie küsimusele.

Veel pole küsimusi. Olge esimene, kes küsib.

Laadige alla juhend oma Diivan PDF-formaadis tasuta! Leidke oma juhend ÄPPLARYD 105.062.64 - IKEA ja võtke oma elektrooniline seade uuesti kätte. Sellel lehel on avaldatud kõik teie seadme kasutamiseks vajalikud dokumendid. ÄPPLARYD 105.062.64 kaubamärgi IKEA.

KASUTUSJUHEND ÄPPLARYD 105.062.64 IKEA

ÄPPLARYD

IKEA ÄPPLARYD 105.062.64 - ÄPPLARYD - 1

Diagram showing a person pointing at a screwdriver with an exclamation mark, likely illustrating a warning or error.

Illustration showing two figures with a pencil and a crossed-out cross symbol, possibly representing a comparison or comparison scenario.

IKEA ÄPPLARYD 105.062.64 - ÄPPLARYD - 4

natural_image Two line drawings showing a bird perched on a platform and a bird crossed out with a diagonal line (no text or symbols)

Illustration showing two scenes: one with a person thinking and the other with a person holding a IKEA device, both depicting different work or planning contexts.

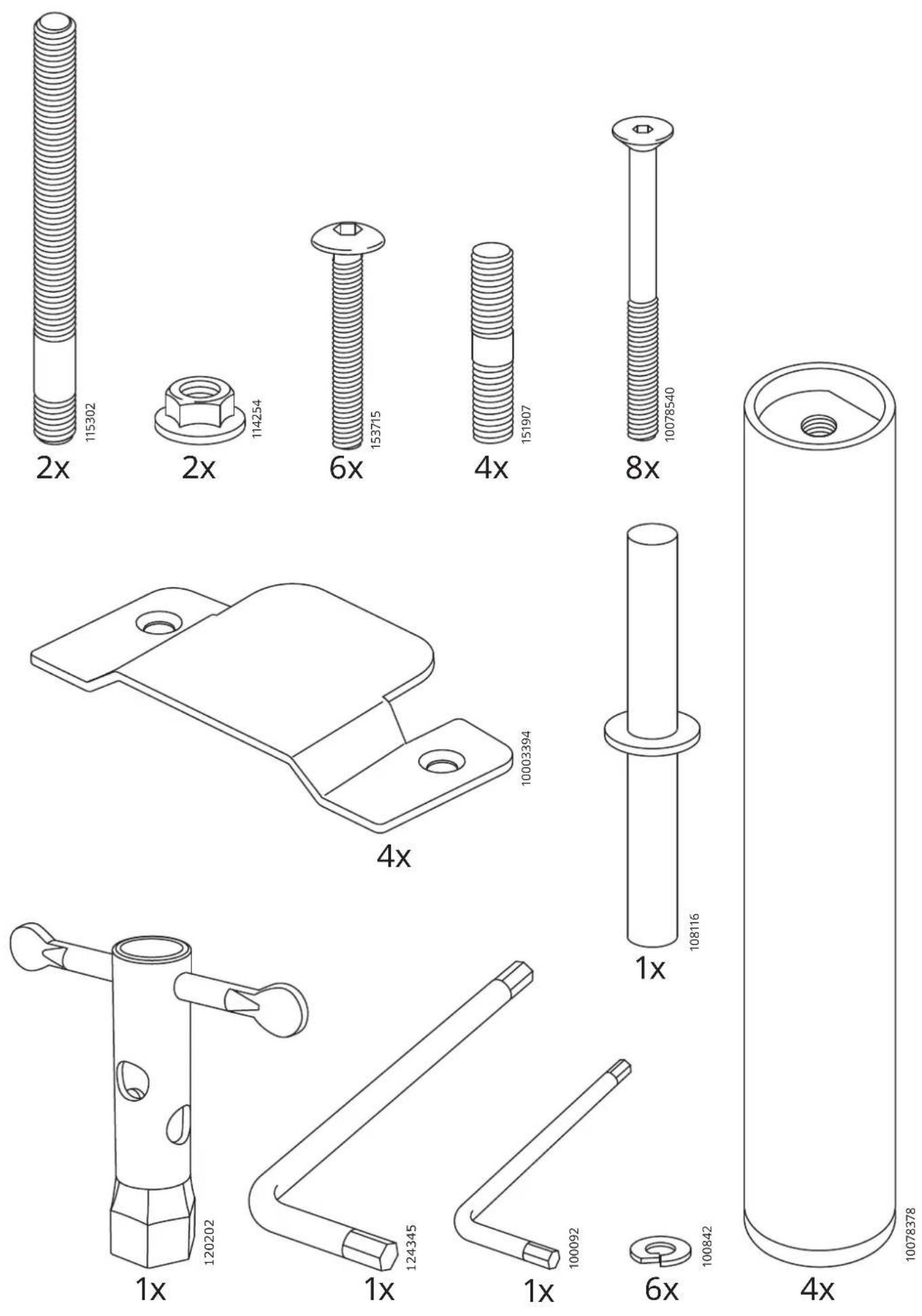

IKEA ÄPPLARYD 105.062.64 - ÄPPLARYD - 6

i
ÄPPLARYD

IKEA ÄPPLARYD 105.062.64 - ÄPPLARYD - 8

natural_image Line drawing of a mechanical lever with a 2x ratio label (no text or symbols beyond the label)

IKEA ÄPPLARYD 105.062.64 - ÄPPLARYD - 9

IKEA ÄPPLARYD 105.062.64 - ÄPPLARYD - 10

IKEA ÄPPLARYD 105.062.64 - ÄPPLARYD - 11

natural_image Two types of threaded fasteners with visible screw holes, no text or symbols present

IKEA ÄPPLARYD 105.062.64 - ÄPPLARYD - 12

natural_image Technical line drawing of a bolt with threaded body and hexagonal head (no text or symbols)

115302 4x2x4x6x4x 142752

IKEA ÄPPLARYD 105.062.64 - ÄPPLARYD - 14

natural_image Simple line drawing of a cylindrical object with a hexagonal top and side profile, labeled '4x' below (no text or symbols on the object itself)

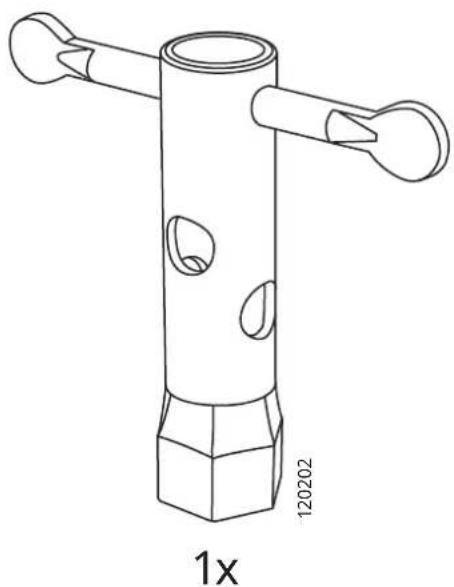

IKEA ÄPPLARYD 105.062.64 - ÄPPLARYD - 15

natural_image Technical line drawing of a mechanical component with two protruding ports and a hexagonal base, labeled '1x' (no text or symbols on the diagram itself)

1x 124345 6x 100842

1
IKEA ÄPPLARYD 105.062.64 - ÄPPLARYD - 17

natural_image Line drawing of a bed with a seat and legs, showing a downward arrow indicating compression or compression (no text or symbols)

2x 115302

2

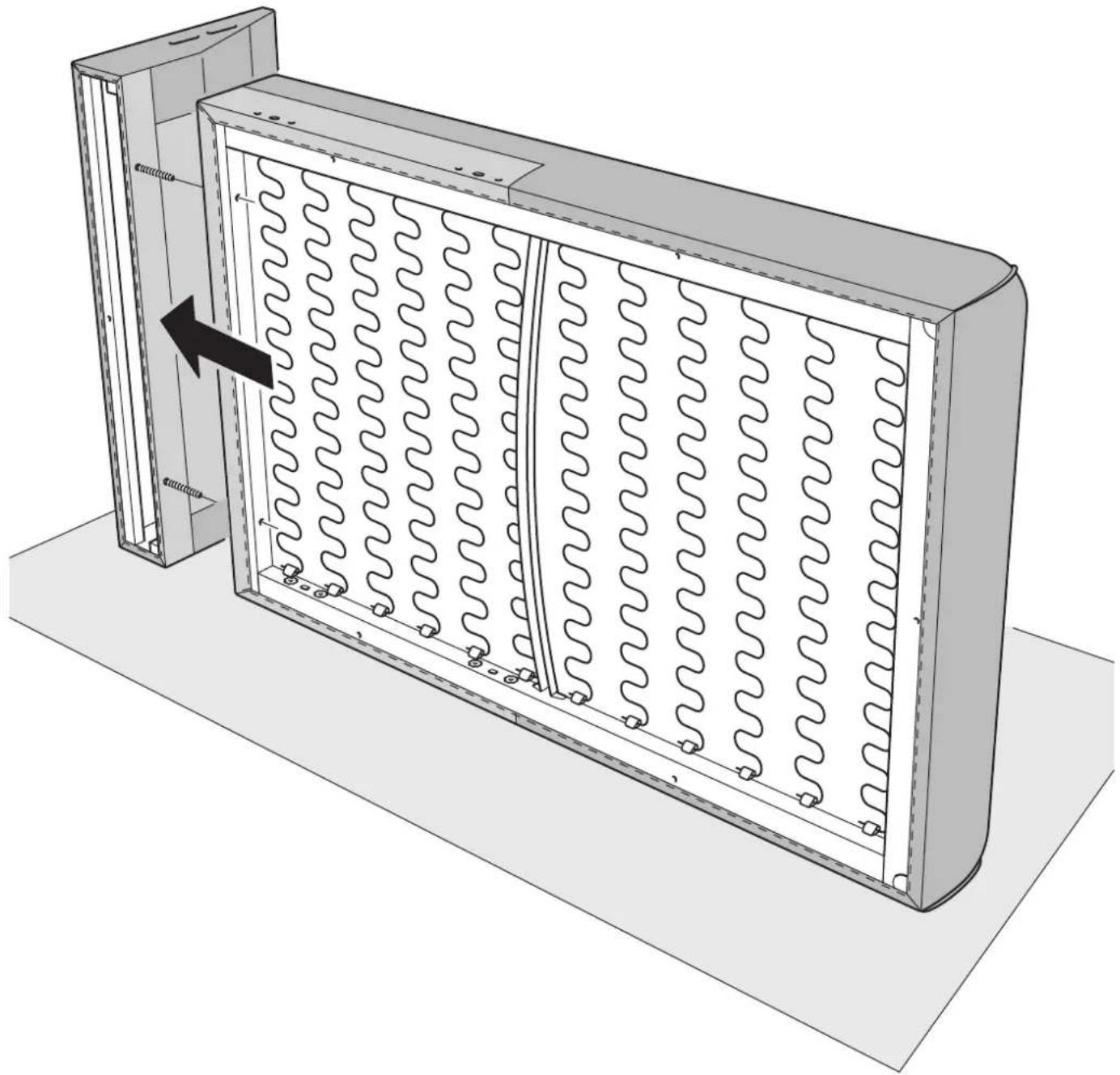

IKEA ÄPPLARYD 105.062.64 - ÄPPLARYD - 19

natural_image Technical illustration of a heat exchanger or cooling unit with coiled spring and cooling fins (no text or symbols)

3

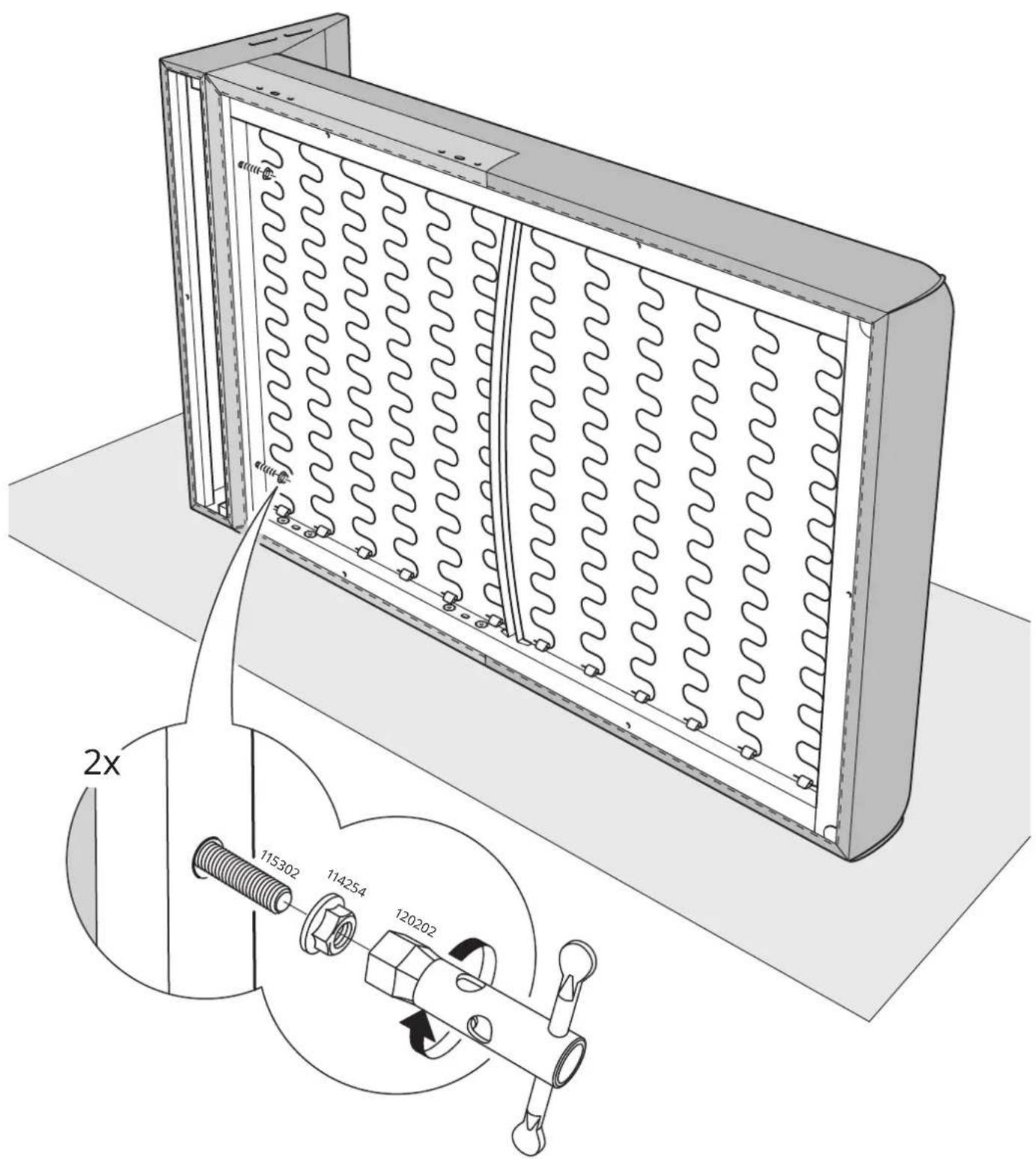

2x 115302 114254 120202

4 i 6x

5 6x 124345 153715 100842

6

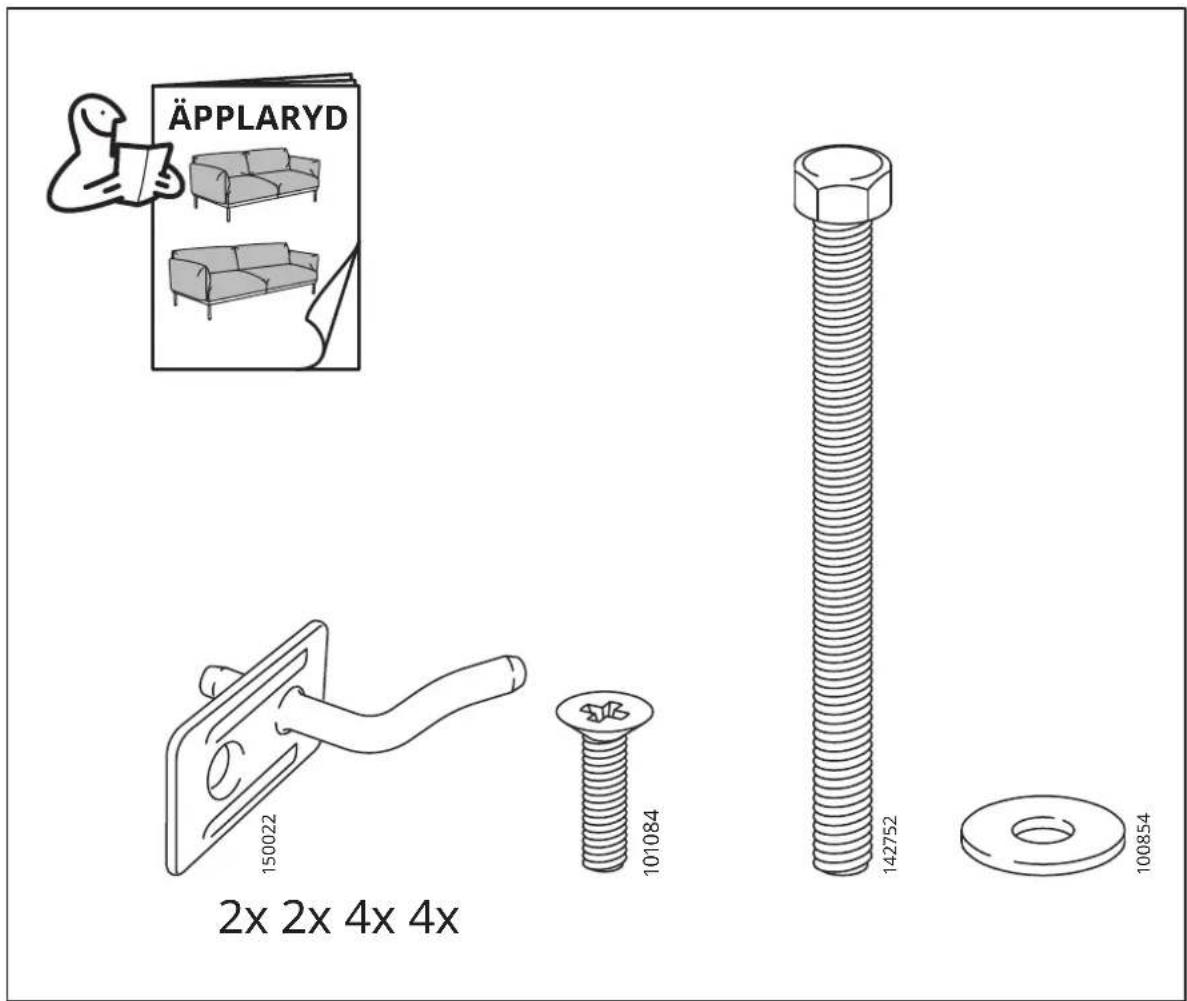

ÄPPLARYD 150022 2x 2x 4x 4x 101084 142752 100854

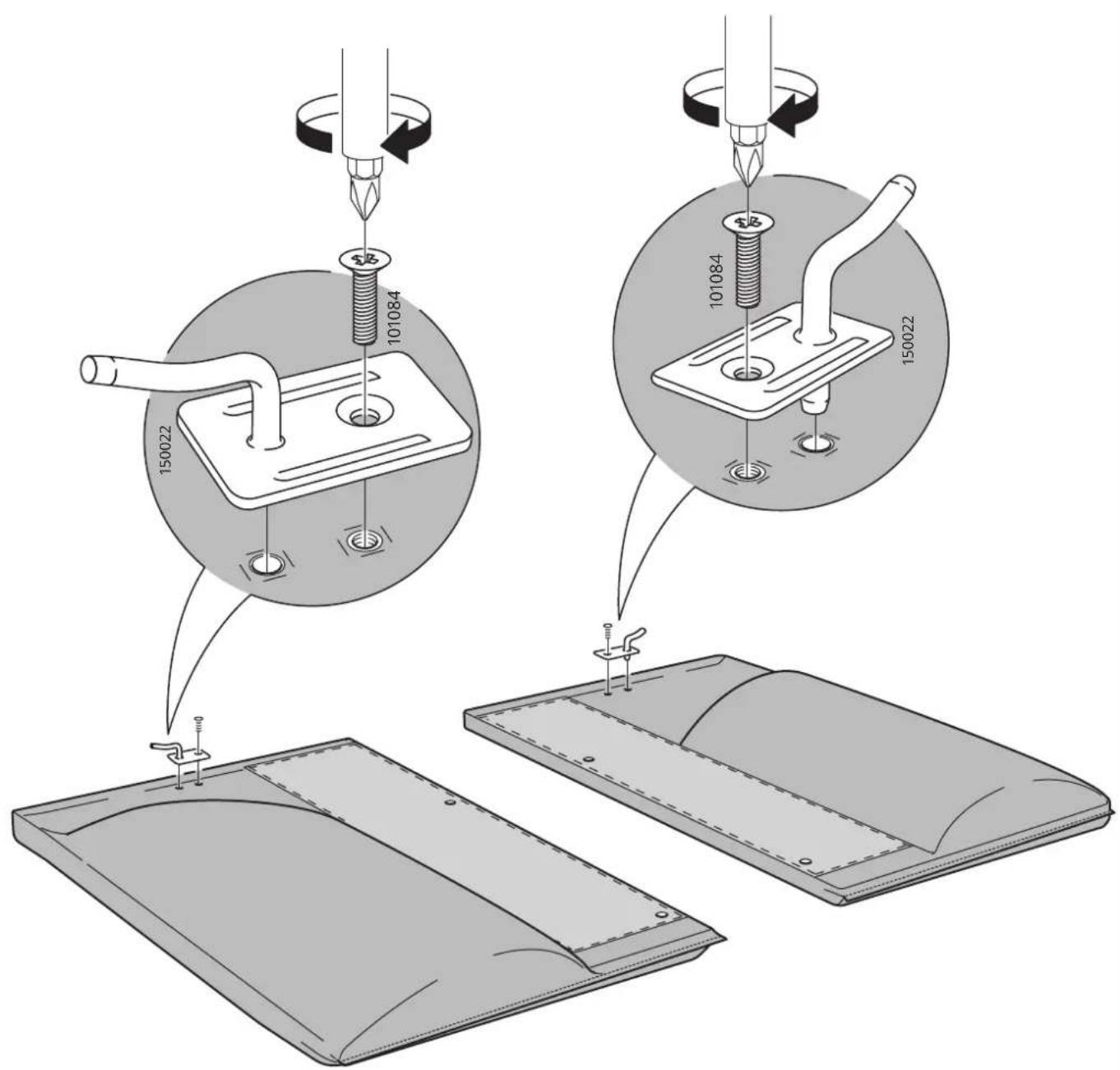

Technical diagram illustrating a mechanical assembly process with labeled parts and directional arrows indicating motion or assembly steps.

IKEA ÄPPLARYD 105.062.64 - ÄPPLARYD - 25

natural_image Illustration of a two-panel sofa showing front and side views with fabric and seat details, plus a hand holding a 31-degree angle detail (no text or symbols on the furniture itself)

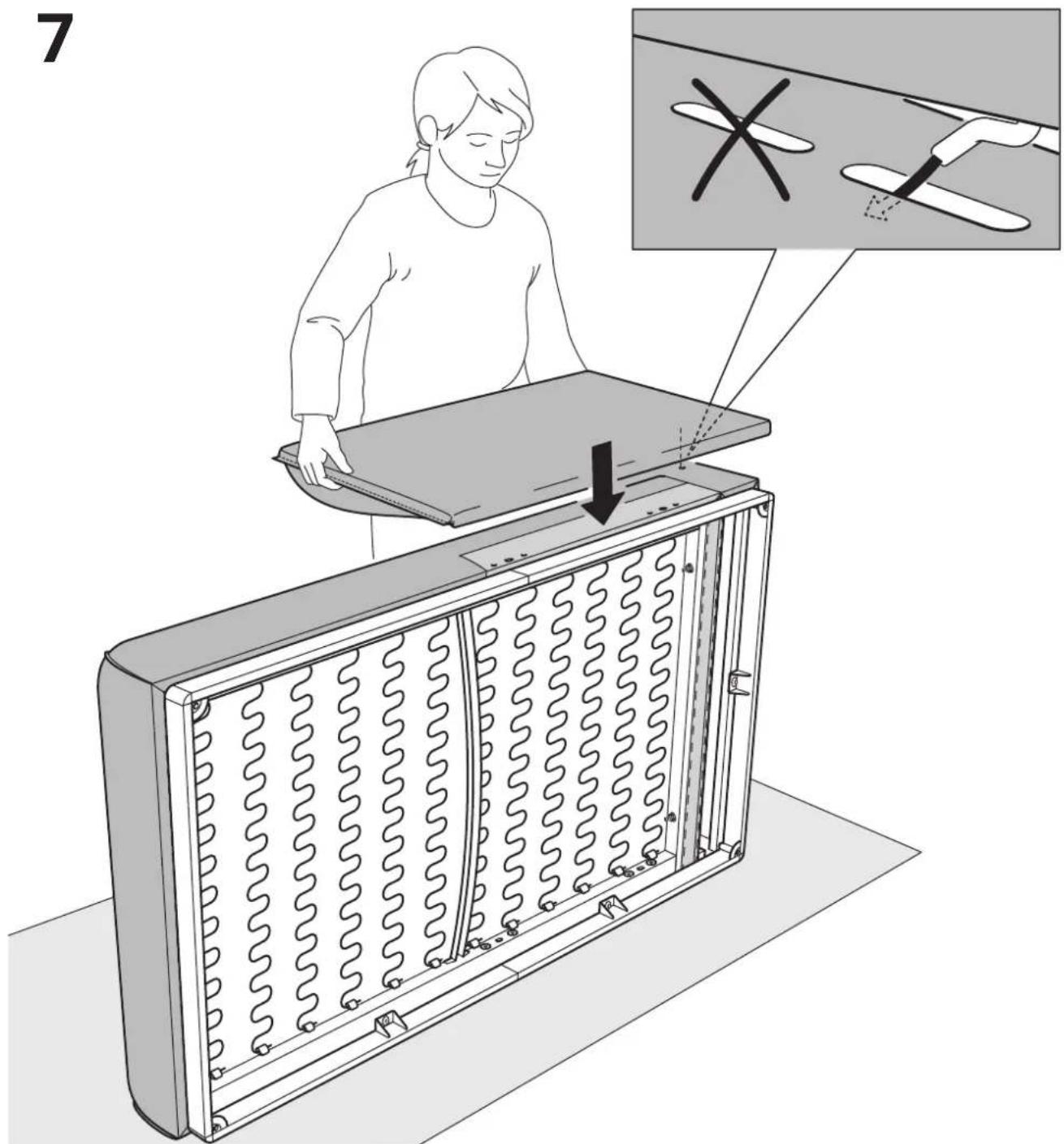

7

Diagram illustrating a person using a spring-loaded machine to adjust or adjust equipment, with instructional annotations in Chinese.

8

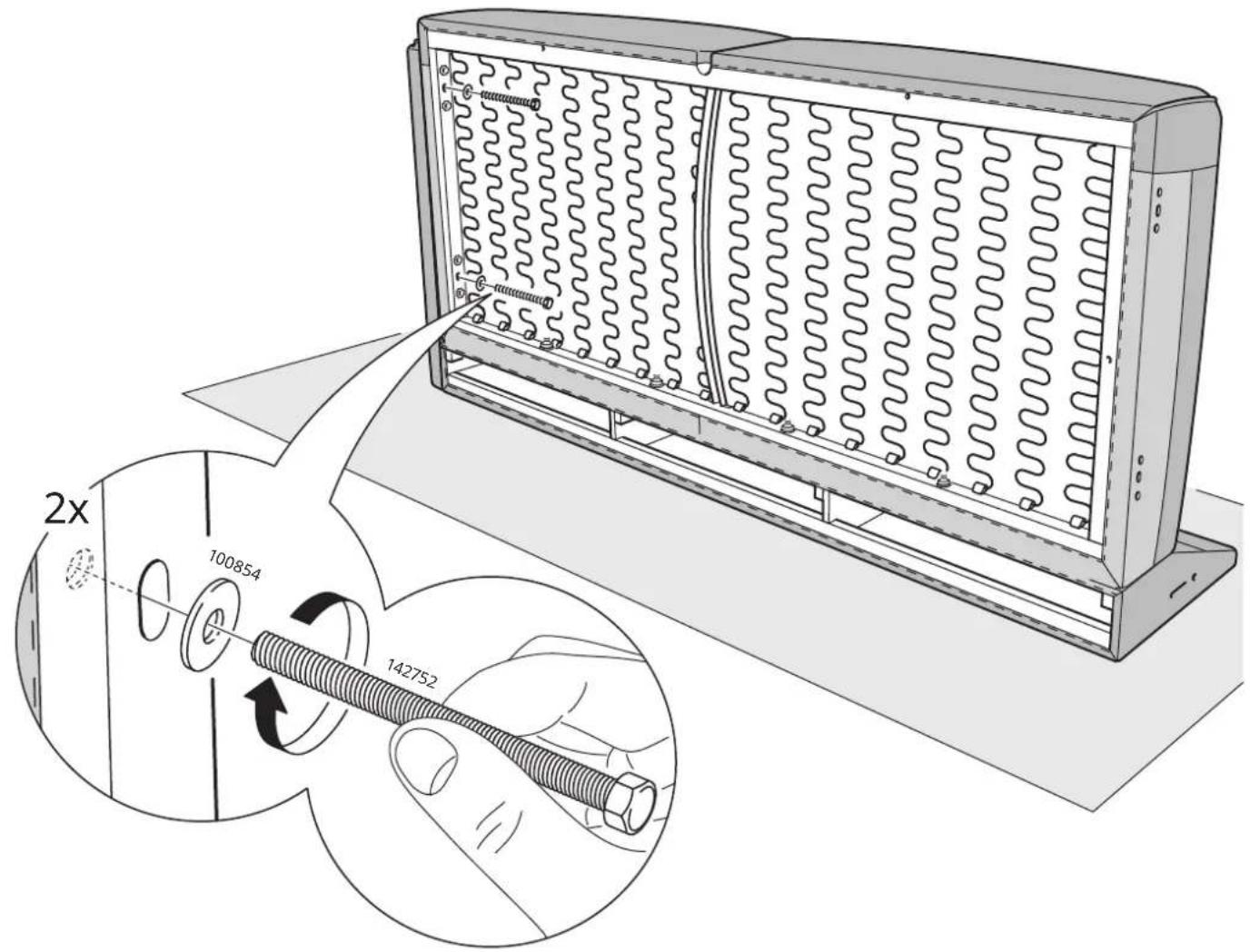

2x 100854 142752

9

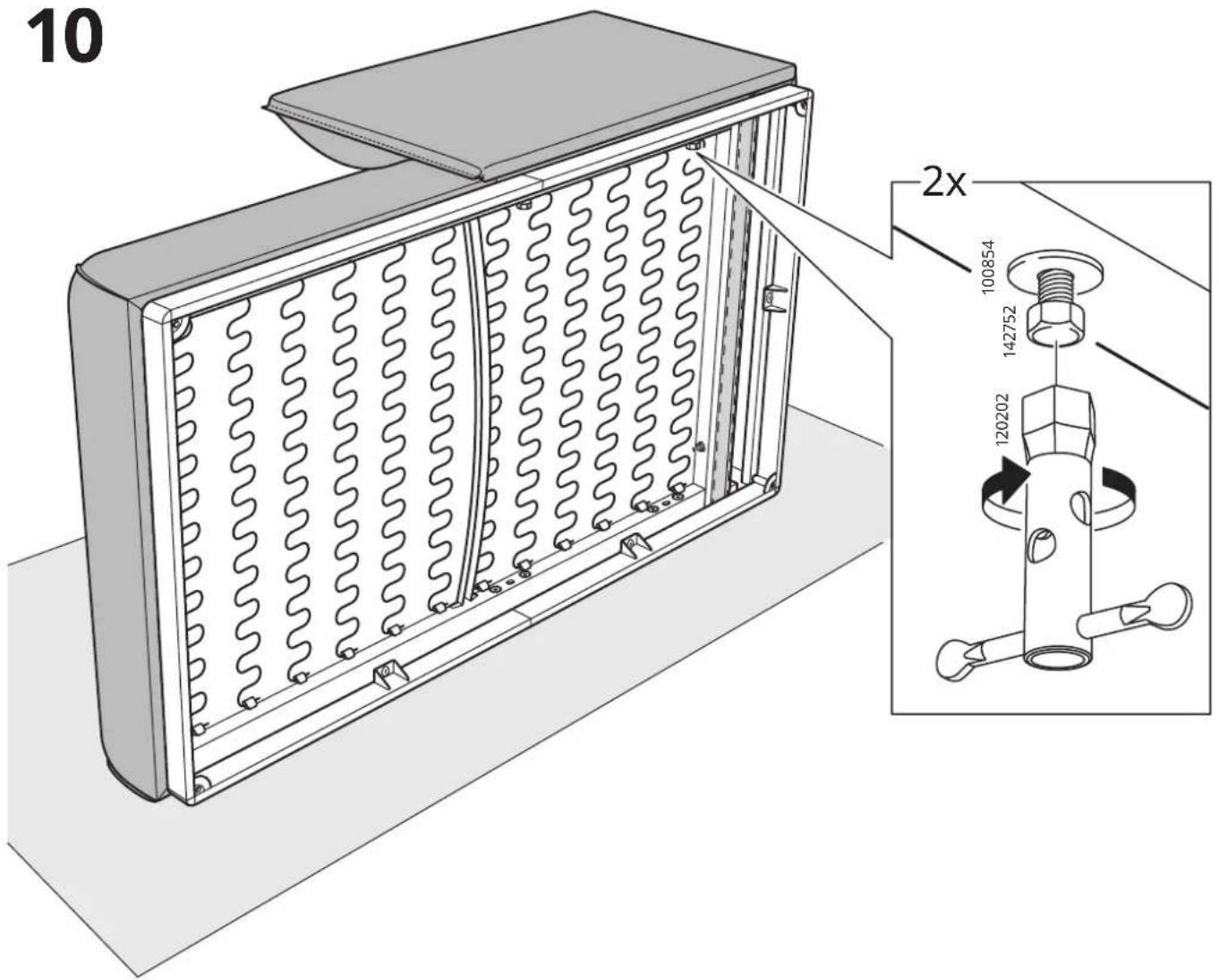

2x 100854 142752 120202

10

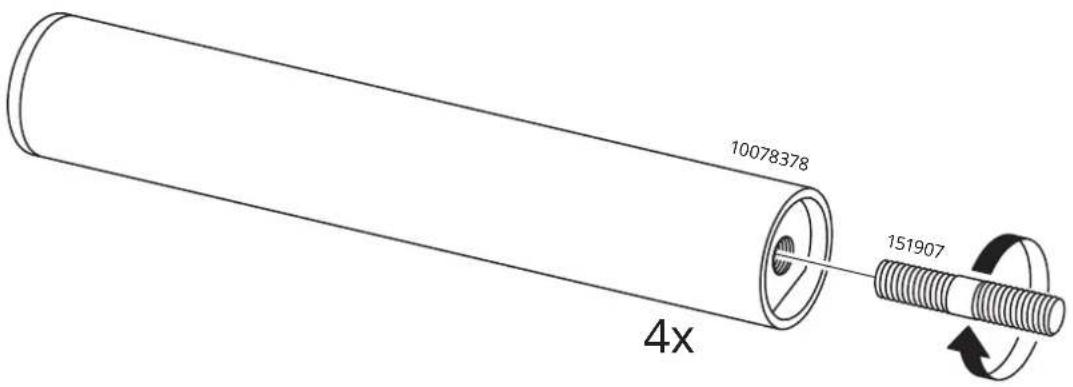

10078378 4x 151907

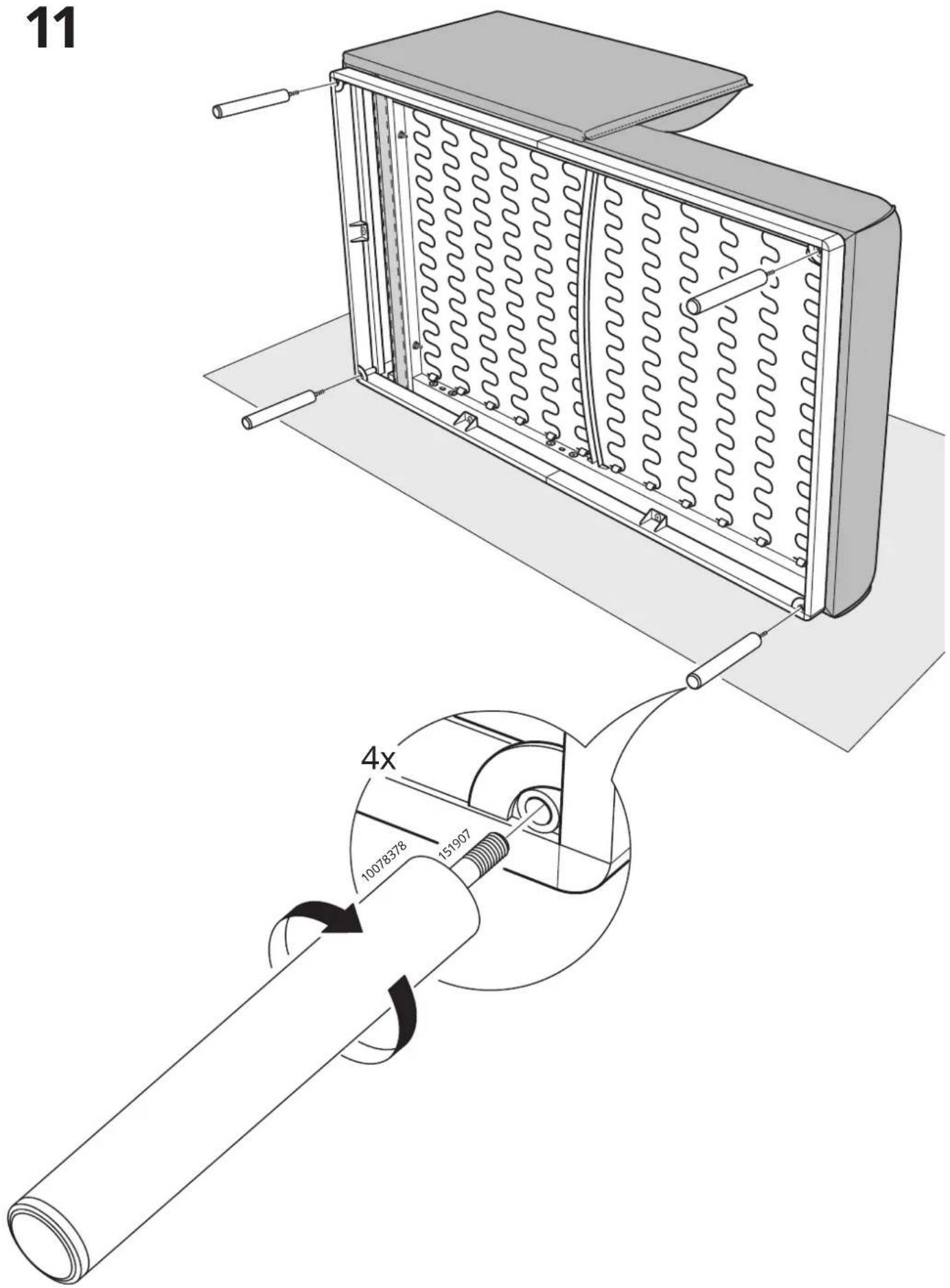

11 4x 10078378 151907

IKEA ÄPPLARYD 105.062.64 - ÄPPLARYD - 32

13
IKEA ÄPPLARYD 105.062.64 - ÄPPLARYD - 33

natural_image Line drawing of a two-seater sofa with seat covers, shown in perspective view (no text or symbols)

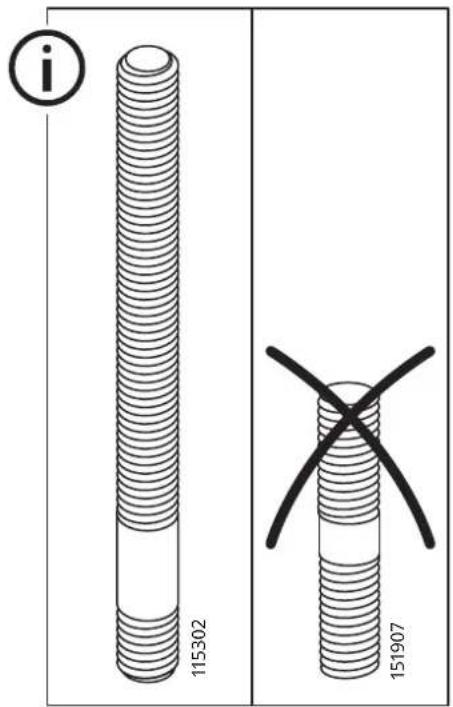

i 115302 151907

4x 115302 115302 151907

14

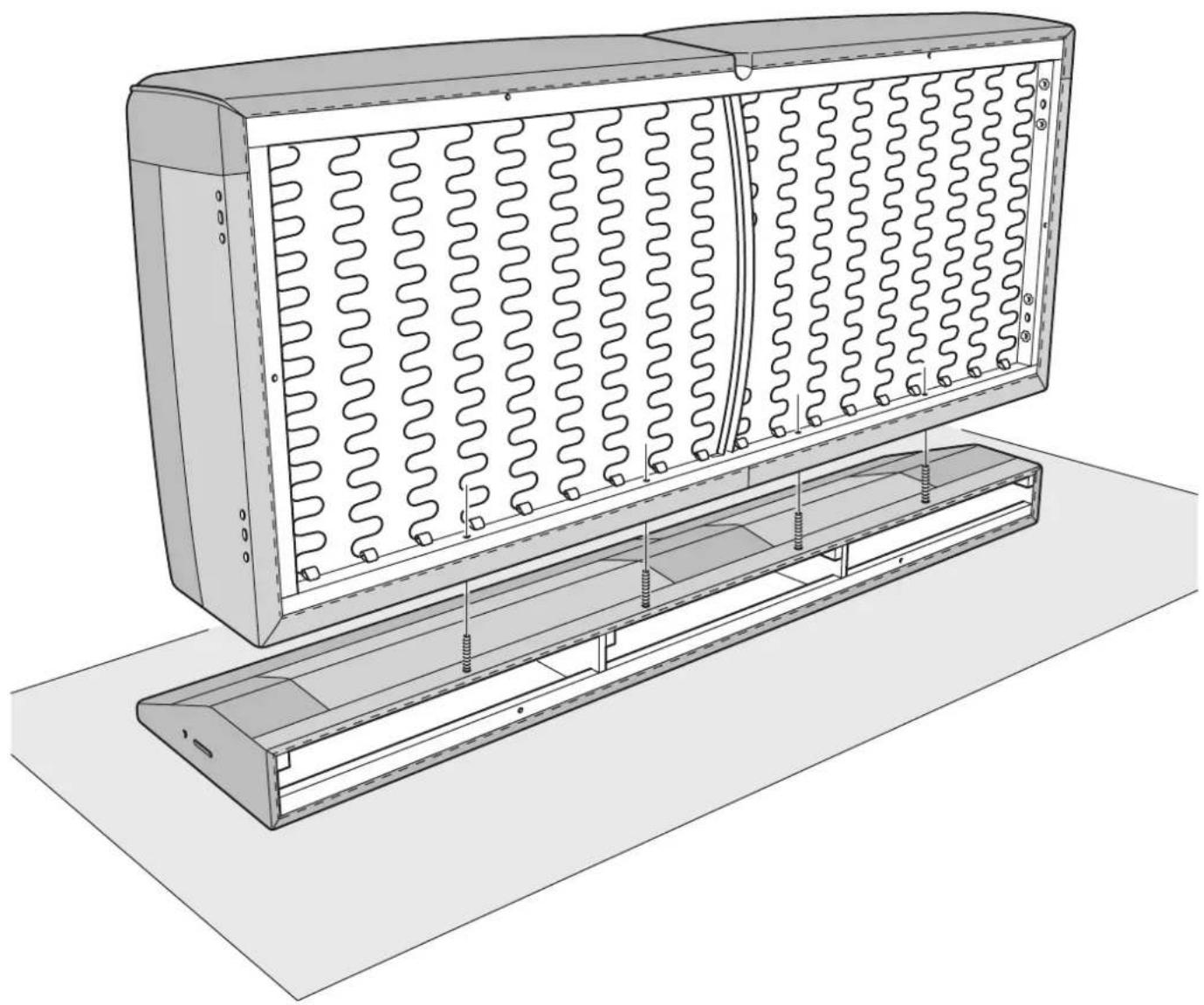

IKEA ÄPPLARYD 105.062.64 - 14 - 1

natural_image Technical line drawing of a multi-chamber air conditioner unit with coiled spring panels and cooling fins (no text or symbols)

15

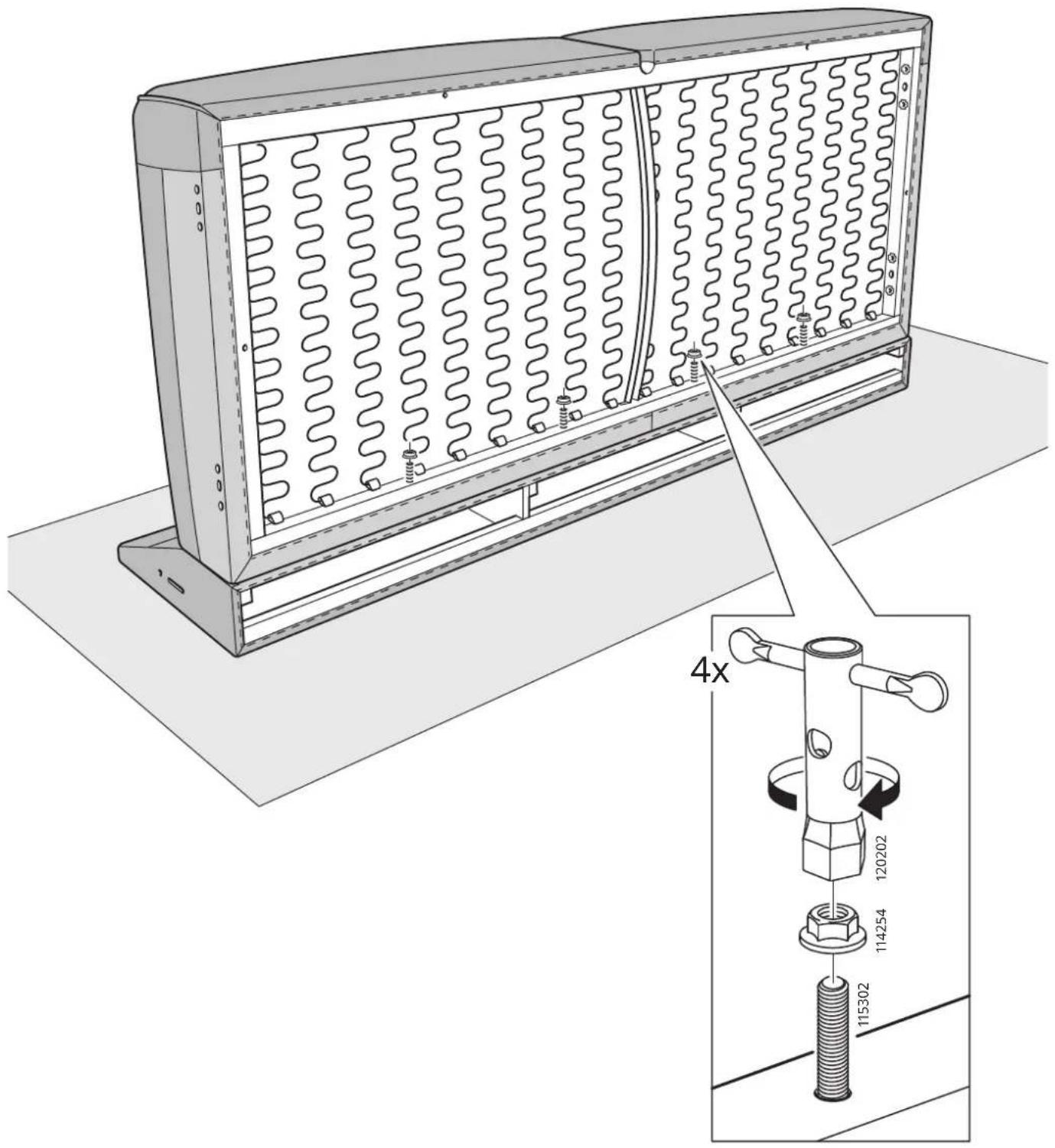

Technical diagram of a heat exchanger unit with spring-loaded housing and internal components, including a 4x magnified view of the component assembly.

16 i

17
Technical diagram of a mechanical device with spring-loaded housing and a magnified inset showing a 2x ratio adjustment mechanism.

18
2x 120202 142752 100854

19
Technical diagram showing two workers assembling a coiled heating element with directional arrows and a 6x ratio label

i 6x

20
Technical diagram showing a person assembling a rack-mounted device with labeled parts and a magnified inset highlighting a 6x speed adjustment mechanism.

21
10078378 4x 151907

22
Technical diagram of a heat exchanger with labeled components and a magnified view showing internal structure and rotation direction.

23 2x 10078540 10003394 100092 10078540 100092 i

Diagram illustrating two different types of switch or switch mechanism, with labeled parts and directional arrows indicating action or selection.

24
4

108116

25
Illustration showing a person installing or adjusting a back panel on a two-panel sofa, with magnified views highlighting the 2x ratio and component details.

26

IKEA ÄPPLARYD 105.062.64 - 26 - 1

natural_image Line drawing of a two-seater sofa with three covers and three pillows, showing seat structure and seating arrangement (no text or symbols)

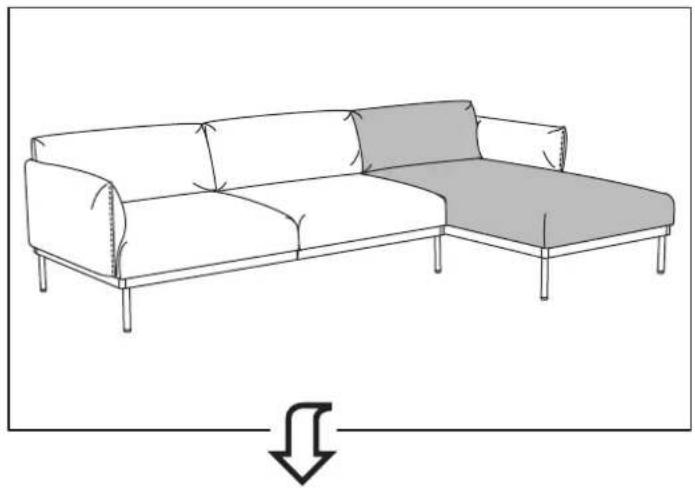

IKEA ÄPPLARYD 105.062.64 - 26 - 2

natural_image Line drawing of a two-seater sofa with one side shaded gray, showing seat and backrest (no text or symbols)

IKEA ÄPPLARYD 105.062.64 - 26 - 3

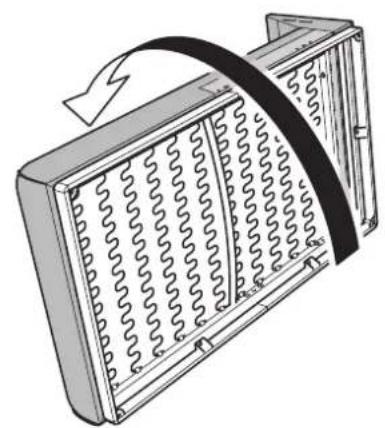

natural_image Illustration of a mechanical device with coiled spring-like components and a curved arrow indicating rotation (no text or symbols)

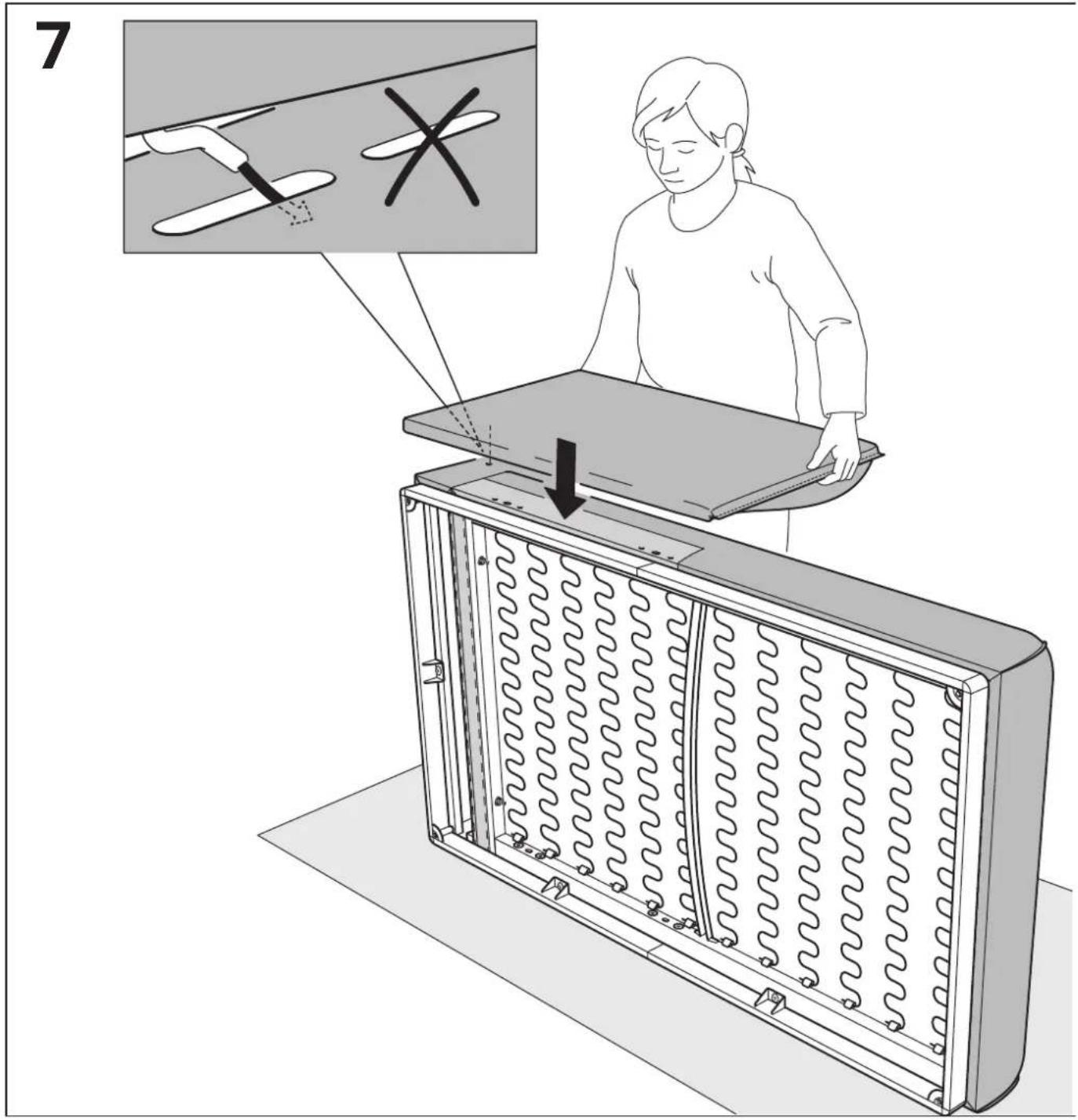

7

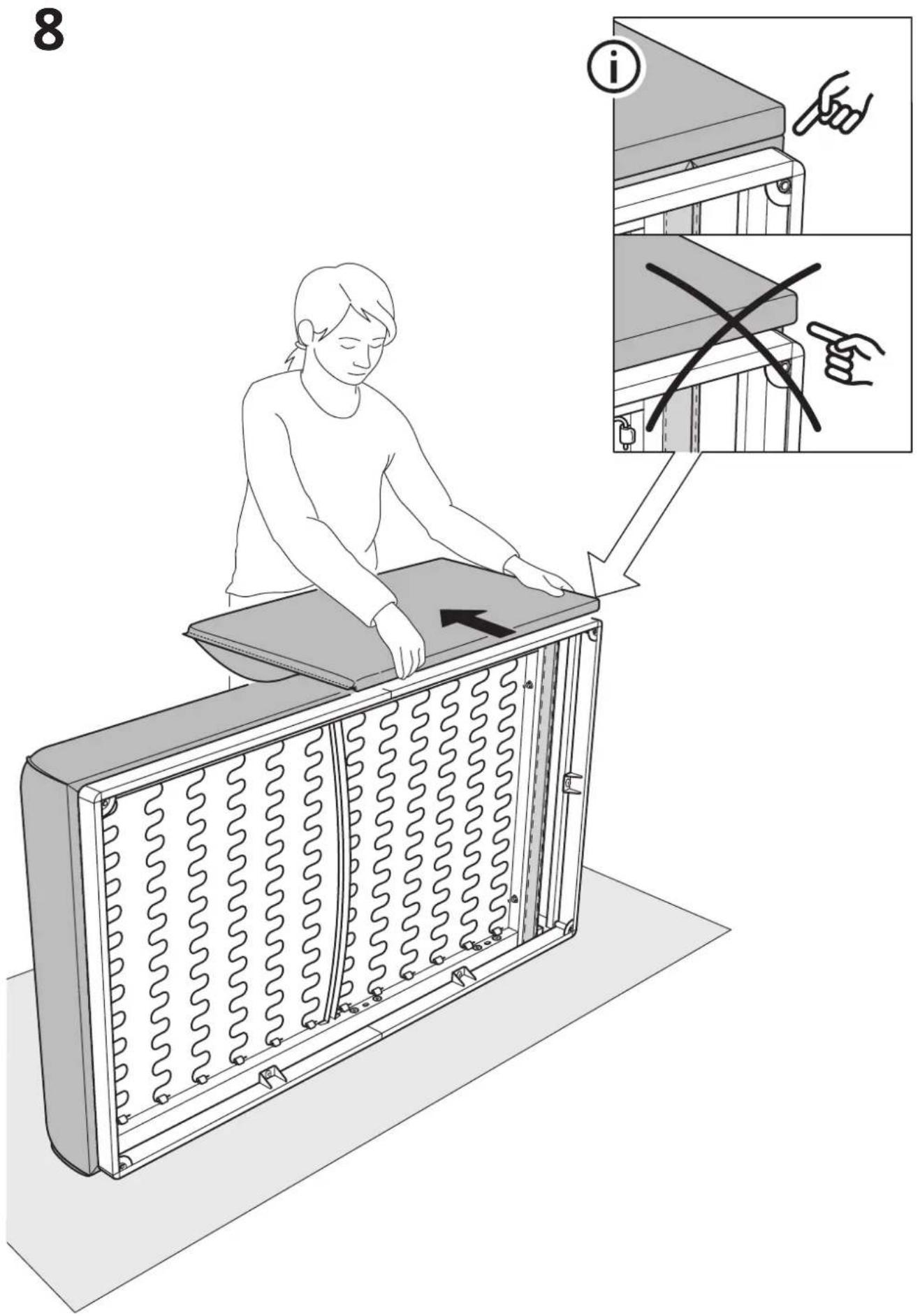

8 i ×

9

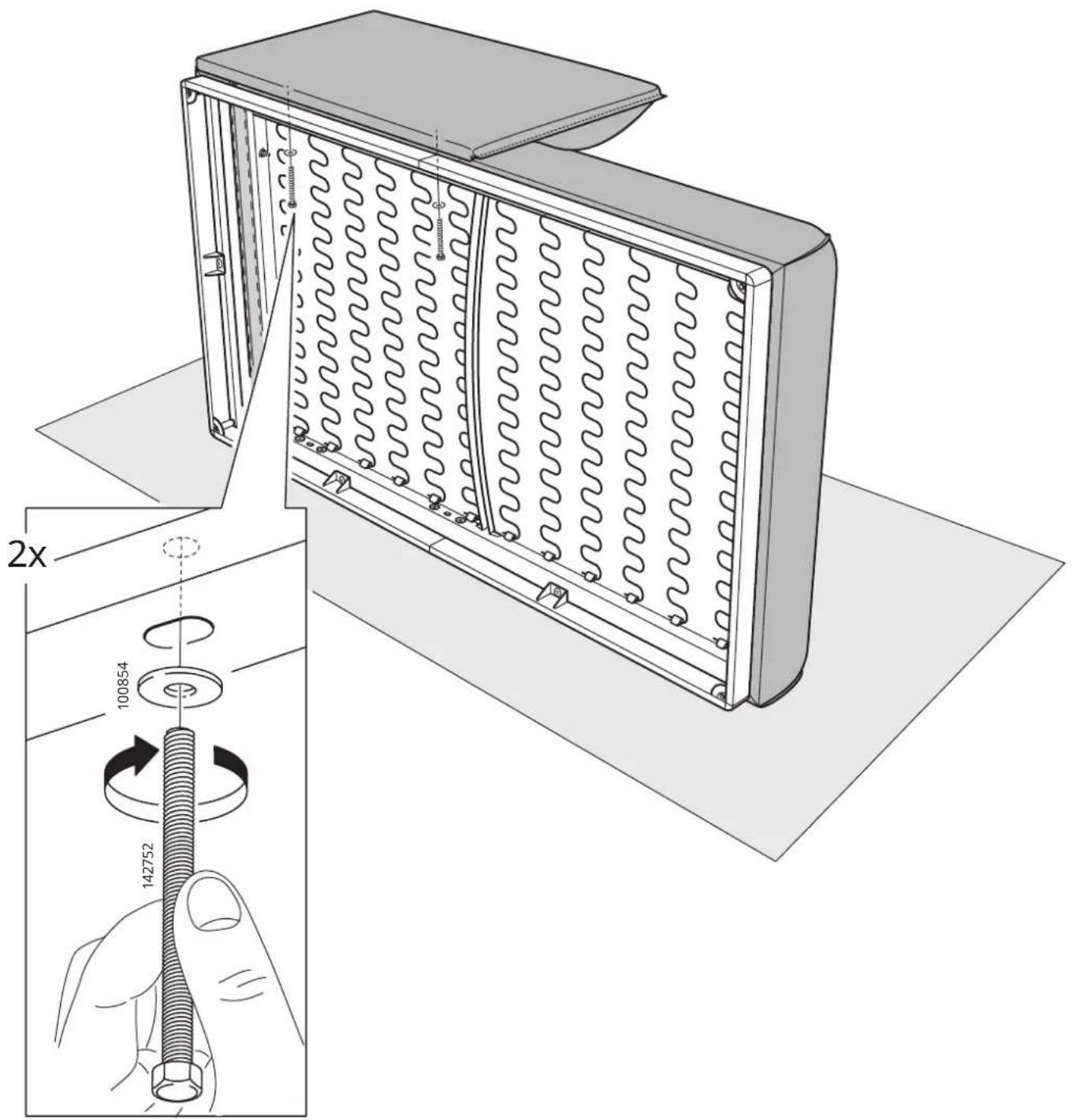

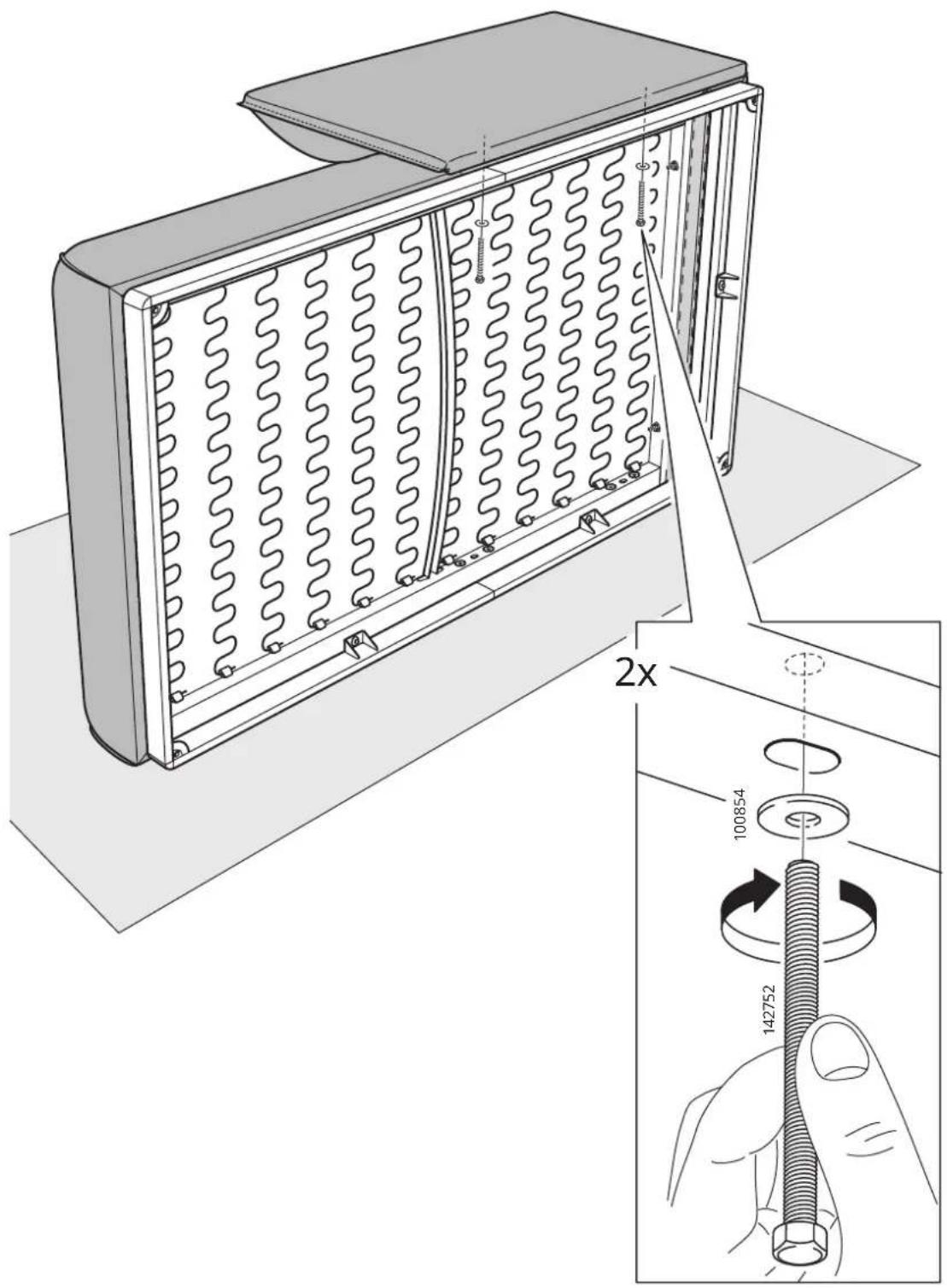

2x 100854 142752

10 2x 100854 142752 120202

11
10078378 4x 151907

12 4x 151907 10078378

13
3

i 10078540 153715

IKEA ÄPPLARYD 105.062.64 - 26 - 12

natural_image Line drawing of a simple bed with legs, front panel, and seat, shown with measurement tools and a partial view indicator (no text or symbols on the diagram itself)

ZX 10078540 100092 10078540 10003394 100092

Technical diagram showing two views of a mechanical component with labeled parts and hand gestures indicating inspection or disassembly.

14
IKEA ÄPPLARYD 105.062.64 - 26 - 15

natural_image Line drawing of a two-seater sofa with legs and backrest, showing front and side views (no text or symbols)

i 115302 151907

4x 115302 115302 151907

15

IKEA ÄPPLARYD 105.062.64 - 15 - 1

natural_image Technical line drawing of a server rack unit with coiled heat exchangers and mounting base (no text or symbols)

16
4x 120202 114254 115302

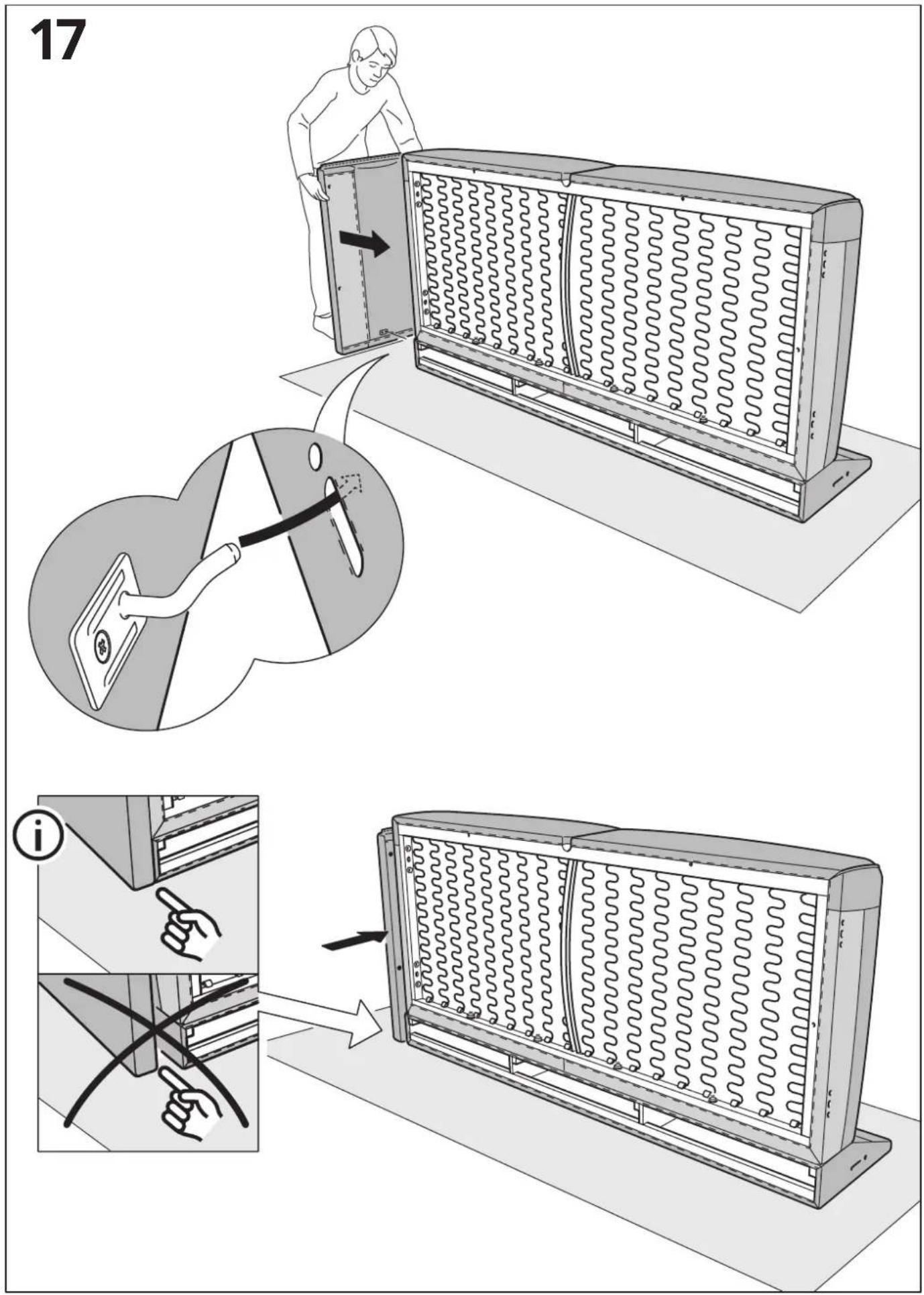

17 i

18
ÄPPLARYD 142752 2x 2x 100854

2x 100854 142752

19
2x 100854 142752 120202

20

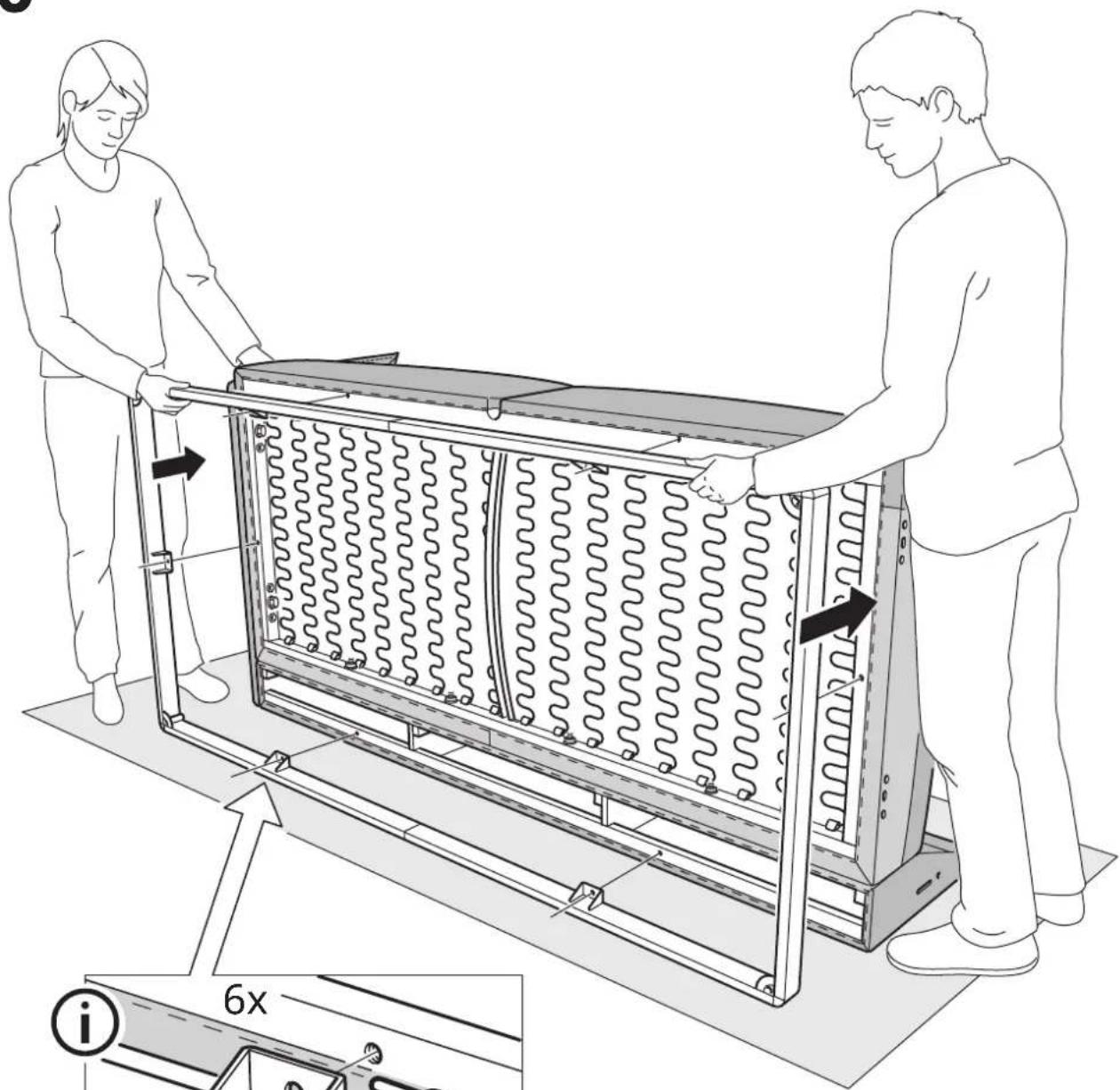

6x i

6x i

21 6x 153715 100842 124345

22

10078378 4x 151907

23
4x 10078378 151907

IKEA ÄPPLARYD 105.062.64 - 22 - 3

25
25 108116

26

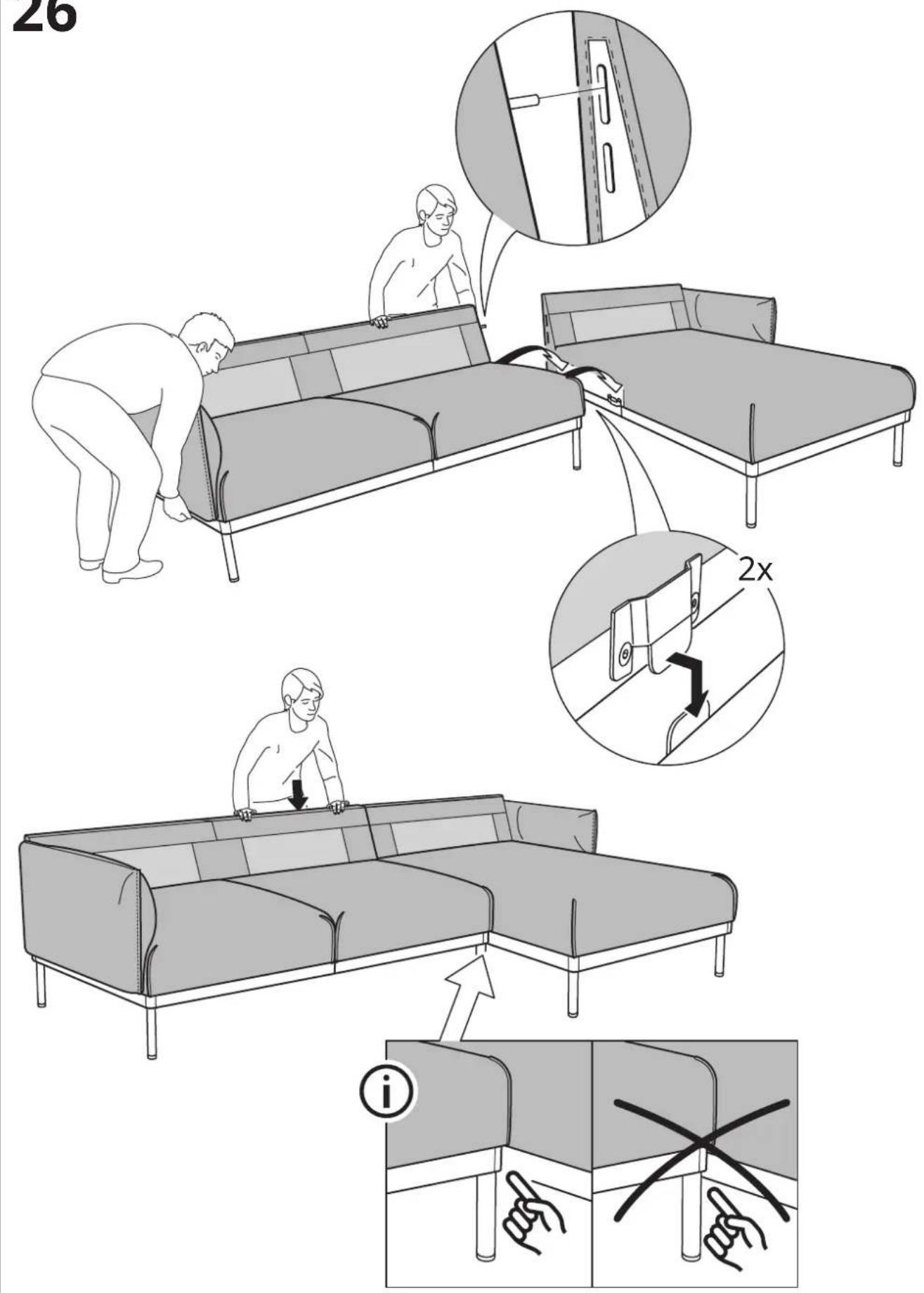

26 2x i

27

IKEA ÄPPLARYD 105.062.64 - 27 - 1

natural_image Line drawing of a two-seater sofa with three covers and three pillows, showing seat arrangement and pressure arrows (no text or symbols)
