BLACK ENVELOPE GENERATOR 2

THANK YOU FOR PURCHASING THIS ERICA SYNTHS BLACK SERIES MODULE!

The Erica Black Series includes high-end modules with unique functionality and superior build quality. Only the best, highest quality components are used, all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we placed an emphasis on usability with the goal of providing an enjoyable user experience. Big knobs are assigned to functions that make differences in sound. The Erica Black Series consists of a range of modules that are needed to put together an entire synth. Enjoy!

The Erica Synths Envelope Generator 2 is a re-triggerable, looping envelope generator with some unconventional features that are very useful for experimental setups. What sets the Black EG2 apart from other envelope generators is its optional GATE LENGTH setting, which allows for generating full ADSR envelopes even if a short trigger is used of the input. Likewise, in LOOF mode, the module outputs a full ADSR envelope instead of a classical AD envelope. The gate length is both manual and CV controlled, which allows for using this envelope generator in compact modular setups controlled by trigger sequencers only.

FEATURES:

Full exponential ADSR envelope Retriggering option

Internal gate generator with adjustable gate length

Manual and voltage-controlled gate length

Full ADSR looping mode

SPECS:

Gate input level	3...10V
Envelope	amplitude	0...10V
Attack	time	0...7.4"
Decoy	time	0...18"
Sustain	level	0...10V
Release time	0...17"
Gate length	0...3.7"
Panel	width	8HP
Module	depth	25mm

Power consumption 29mA@+12V, 33mA@-12V

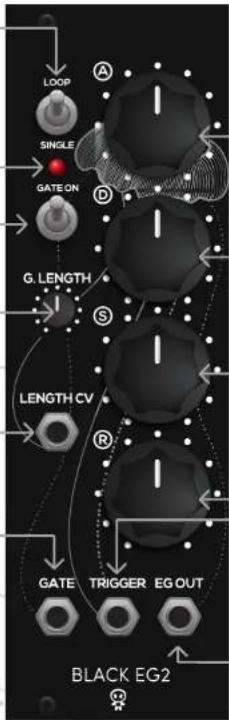

LOOP/SINGLE

Select between SINGLE SHOT or LOOP modes. When the internal gate is off, the rise and fall times are set via the A and R knobs. When the internal gate is on, all knobs have an effect on the envelope shape.

The LED gives visual feedback on the envelope state

GATE ON

Engage the internal gate and you have a full ADSR envelope in loop mode and with a trigger applied to the trigger input in single mode.

G. LENGTH

Set the internal gate length manually

LENGTH CV

This is the internal gate length CV input. The CV is added to the gate length potentiometer setting

GATE

This is the GATE input

A/D/S/R

These knobs adjust envelope stage times and sustain level

TRIGGER

This is the TRIGGER input. You can retrigger the envelope and start the attack stage again, even if the gate is still high (see Figure 1). If you wish to use the envelope generator with an internal gate, patch the incoming trigger signal here. The internal gate is linked to the trigger input, not the gate input.

EG OUT

This is the envelope generator output
