DCLAMP Tension Rod Mic Mount

OVERVIEW

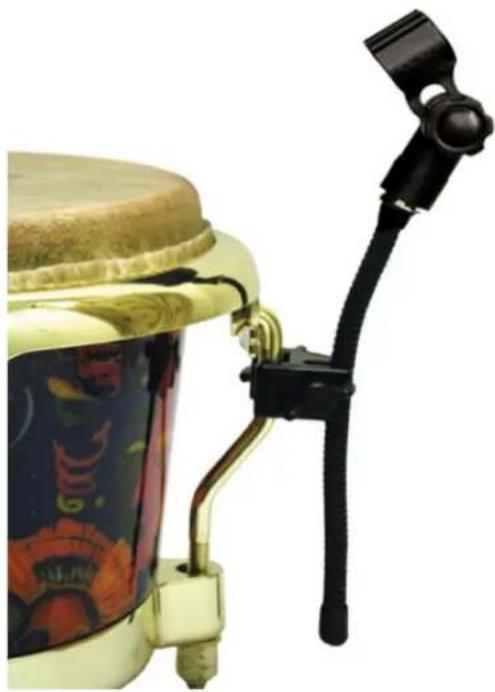

The DCLAMP is a low profile, simple-to-use mounting system that eliminates the need for bulky mic stands. Easily operated, the DCLAMP is provided with a standard 5/8" thread adapter, which allows most mics to be used by just simply changing the clip. The DCLIP fits the D Series microphones and many pencil condenser mics.

The DCLAMP works on most tension rods used with hand percussion instruments (such as congas and bongos) as well as standard 9.5 mm and 10.5 mm knurled rods found on tom and percussion mounts. It provides a nice clean look especially when used with the Audix right angle XLR mic cable CBLDR25.

The DCLAMP can also be used with the MicroD small condenser mic by simply replacing the DCLAMP's gooseneck with the MicroD gooseneck. This allows the MicroD to be used in tight spaces (congas, timbales, bongos) where a larger dynamic mic may be hard to position.

PLACEMENT

For best results, position the head of the mic approximately two inches above the drum head and aimed towards the center of the drum (usually about 45^ angle). Depending on the size and type of microphone being used, the height of the metal gooseneck will have to be adjusted. Simply loosen the wing nut on the side of the clip and move the gooseneck into the proper position then tighten. The gooseneck can also be angled in any direction to achieve the desired position.

Microphone placement is not an exact science. It depends on the instrument, the player's style, the type of music, the loudness of the music, the room acoustics, the sound system, the engineer and, of course, the microphone itself. The DCLAMP is designed to offer maximum flexibility in mic positioning to yield the best possible sound.

Experimentation is ultimately the key to achieving the best results for each application. For more ideas go to www.audixusa.com.

Close-up of a black automotive connector with attached cable, mounted on a vehicle (no visible text or symbols)

Works with MicroD (pictured) and other miniaturized mics.

Close-up of a microphone attached to a drum set with decorative pattern (no visible text or symbols)

Works with a wide variety of dynamic mics. (pictured with the D2)

Close-up of a golden beer mug with a black adjustable stand and handle, no visible text or symbols

FEATURES

• Flexible multi-position metal gooseneck
- Locks firmly into position
- Fingertip control
• Lightweight, durable and scratch resistant
- Eliminates bulky mic stands
• Works with most microphones
• 1 year warranty

Laboratory setup with a black adjustable arm, blue base, and red handle (no visible text or symbols)

Works with condenser microphones. (pictured with the SCX1C)

PRODUCT REGISTRATION: Please register your product online at www.audixusa.com/docs_12/about/product_registration.shtml.

SERVICE AND WARRANTY: This product is under warranty for a period of 1 year to be free of defects in material and workmanship. In the event of a product failure due to materials or workmanship, Audix will repair or replace said product at no charge with proof of purchase. Audix does not pay or reimburse shipping costs for warranty repairs or returns. The warranty excludes any causes other than manufacturing defects, such as normal wear, abuse, environmental damage, shipping damage or failure to use or maintain the product per the supplied instructions. No implied warranties: All implied warranties, including but not limited to implied warranties of merchantability and fitness for a particular purpose are hereby excluded. The liability of Audix, if any, for damages relating to allegedly defective products shall be limited to the actual price paid by Dealer for such products and shall in no event include incidental or consequential damages of any kind. Should your product fail in any way, please contact the Audix Service department at 503.682.6933. A Return Authorization is required before returning any product. OTHER THAN THIS WARRANTY, AUDIX MAKES NO WARRANTIES, EXPRESS OR IMPLIED, WITH RESPECT TO THE PRODUCTS, THE USE OF THE PRODUCTS, THE PERFORMANCE OF THE PRODUCTS. AUDIX SHALL NOT BE LIABLE FOR SPECIAL INCIDENTAL, CONSEQUENTIAL, INDIRECT OR SIMILAR DAMAGES ARISING FROM OR BASED ON THE SALE, USE, STORAGE OR DISPOSAL OF THE PRODUCTS, AUDIX'S SERVICE WORK, BREACH OF WARRANTY, BREACH OF CONTRACT. NEGLIGENCE, OR ANY OTHER THEORY OF LIABILITY, EVEN IF AUDIX HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.

CE

www.audixusa.com

Audix Corporation 9100 SW Barber St. Wilsonville, OR 97070

AUDIX®

ver 3.0 10-15
