KASUTUSJUHEND Acies 32 Smith-Victor
Troubleshooting:
| Description | Cause | Troubleshooting |
| No power | Poor connection with power source | Reseat power cable into receptacle |
| Internal malfunction | Email repair@promarkbrands.com | |
| LED panel flickers | Internal malfunction | Email repair@promarkbrands.com |
| Brightness stays constant | Internal malfunction | Email repair@promarkbrands.com |
Smith-Victor WARRANTY
Smith-Victor warrants to the first commercial owner to be free from defects in the material and workmanship for a period of one (1) year from the date of purchase and will repair or replace product found to be defective under normal use. Warranty does not cover damage caused by shipment, by product abuse, accident, modification, disassembly or use beyond intended use specified by Smith-Victor.
This warranty is the only warranty made to any person by Smith-Victor and is in lieu of all other expressed or implied warranties. The remedies set forth in this warranty shall be the exclusive remedies available to any person for breach of this warranty. Under no circumstances shall Smith-Victor be liable to any person for incidental or consequential damages, whether arising out of breach of warranty or other contract, negligence, strict liability or other tort or otherwise.
Smith-Victor • Photogenic • Dot Line Quantum • Radiopopper • Photoflex • Cool-Lux Speedotron • Norman • Logan
Smith-Victor is a division of PromarkBRANDS 1268 Humbracht Circle, Bartlett, IL 60103 U.S.A. 800-348-9862 or 630-830-9200
sales@smithvictor.com | www.smithvictor.com www.promarkbrands.com
# 999615 Manual for Acies Strip Lights 401670 & 401672_12-2018

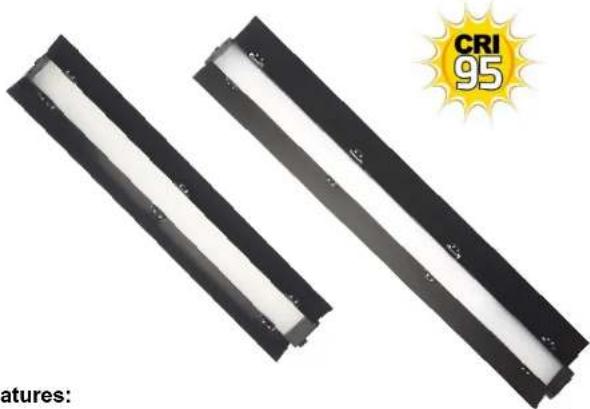

ACIES PRO LED STRIP LIGHT
User Manual
Model: Acies32
Item: 401670
32" Pro LED Strip Light with Barndoors
Model: Acies48
Item: 401672
48" Pro LED Strip Light with Barndoors
• Evenly illuminates a wide area.
- Barndoors can be adjusted to illuminate a narrow strip.
• Multiple mounting options allow adjustment to any angle.
• Great for interviews, groups, product photos and videos.
- Perfect for illuminating backgrounds, especially green screens.
Operation:

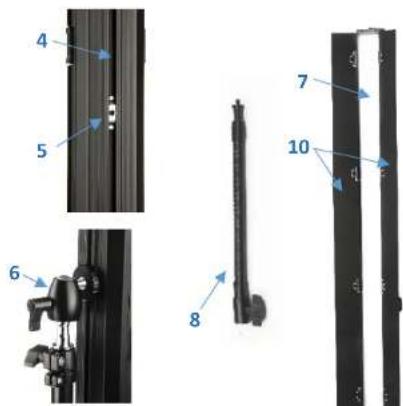

9
6 - Universal ball head
7 - LED panel
8 - Flex arm
9 - ¼-20 mount
10 - Barndoors
1 - Power switch
2 - Power socket
3 - Light intensity adjustment
4 - Positioning channel
5 - Sliding channel lock nut
Instructions
- Mounting and positioning light:
a. Position the spring loaded sliding lock nut (5) to the desired location.
b. Be sure ball head (6) tightening knob is securely fastened to provide resistance when screwing ball head into place. Mount ball head to channel lock nut by rotating the ball head clockwise until it is securely in place and cannot slide along the channel.
c. Connect ¼-20 threaded mounting hole (9) to light stand, flex arm (8) or other ¼-20 threaded fixture.
- Power input
a. Install power adapter output port to power socket (2). The socket will be locked when a "Click" is heard.
- Power switch
Turn the power switch (1) to "ON" and the light will illuminate.
- Dimmer
Rotate the light intensity knob (3) to adjust brightness (0-100%).
Specifications:
Power Draw
Color Temperature
CRI
Maximum Beam Angle
Dimming
Illumination at 1 meter
Size (barndoors closed)
Weight
Power Adapter
| 401670 Acies32 | 401672 Acies48 |
| 55 watts | 75 watts |
| 5500° K +/- 200° K | 5500° K +/- 200° K |
| >95 | >95 |
| 90° | 90° |
| 100% ~ 0% | 100% ~ 0% |
| 1100Lx | 1300Lx |
| 33.7x3.0x1.8" (855x75x46mm) | 49.0x3.0x1.8" (1245x75x46mm) |
| 3.6 lbs (1.7kg) | 5.1 lbs. (2.3kg) |
| 15V/4A | 15V/5A |

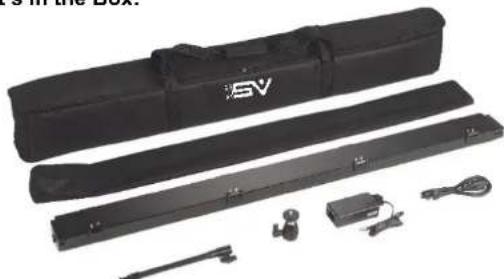

What's in the Box:
(1) 32" or 48" Acies Pro LED Strip Light
(1) Pair of Barndoors
(1) AC Power Adapter
(1) Ball Head
(1) Flex Arm
(1) Carry Case (with enough room to add a stand)
(1) Protective pouch for light
Recommended accessory:
956055 Photogenic ION Pure Sine Wave Inverter
Recommended compatible lights:
401605 Smith-Victor Cine-Flood and 401607 Cine-Flood Kit
401616 Smith-Victor Bi-Color Ring Light
