KASUTUSJUHEND Star-Light DWC-BL5363TIR Digital Watchdog

Everything's Digital

Starlight BL5363TIR

User Manual Version #2:

Camera with ICON Menu

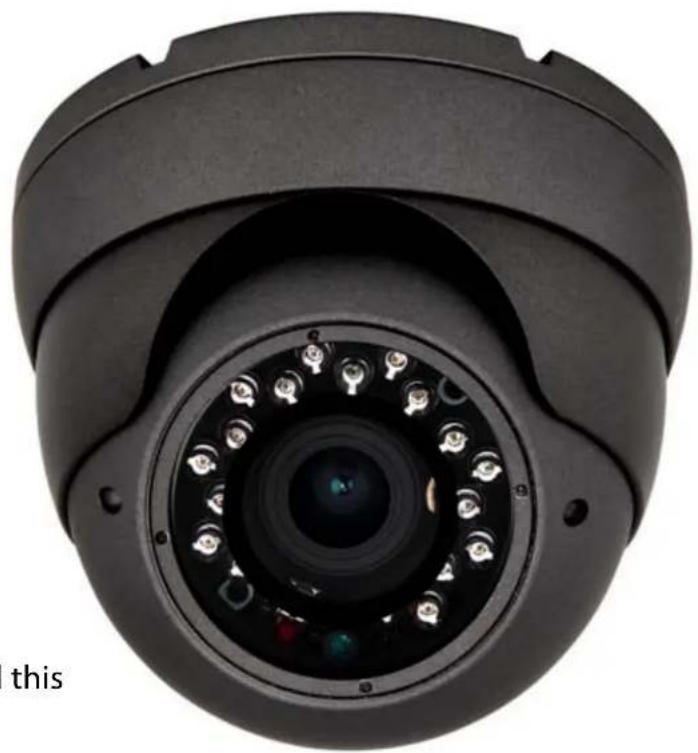

Close-up of a black surveillance camera with circular lens and multiple screw clips (no text or symbols visible)

11192010

PRECAUTIONS

• Do not open or modify.
• Do not open the case except during maintenance and installation, for it may be dangerous and can cause damages.
• Do not put objects into the unit.
• Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages.
  ■ Be careful when handling the unit.
• To prevent damages, do not drop the camera or subject it to shock or vibration.
• Do not install near electric or magnetic fields.
  ■ Protect from humidity and dust.
  ■ Protect from high temperature.
• Be careful when installing near the ceiling of a kitchen or a boiler room, as the temperature may rise to high levels.
• Cleaning
• To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.
  ■ Mounting Surface
• The material of the mounting surface must be strong enough to support the camera.

FCC COMPLIANCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to Provide reasonable protection against harmful interference .when the equipment is operated in a residential environment. This equipment generates, uses, and radiates radio frequency energy; and if it is not installed and used in accordance with the instruction manual, it may cause harmful interference to radio communications.

WARNING: Changes or modifications are not expressly approved by the manufacture.

TROUBSHOOTING

Before sending your camera for repair, check the following or contact our technical specialist.

No VIDEO

Check the coaxial cable and make sure it is connected securely.

Check the lens' iris adjustment at the menu setup of the camera.

Check the power supply and make sure the camera has the proper voltage and current.

Out-of-Focus VIDEO

Check the clear dome cover and the lens for dirt or fingerprints. Use a soft cloth and gently clean.

Check the lens manual focal and zoom adjustment. Field test monitor is recommended.

FEATURES

■ 1/3" Sony Super HAD II CCD
■ High Resolution 560 TV Lines
■ 2.8 \~ 11mm Varifocal Auto Iris Lens
■ 65ft Range IR with Intelligent Camera Sync
■ True Day & Night / TDN5 (Electro Magnetic Mechanism)
■ Star-Light (Super Low Light Technology)
■ DRC (Dynamic Range Compressor)
Dark spots in images particularly become more visible without overexposing the bright spots to create one perfect image.
■ 3D-DNR (3D Digital Noise Reduction)
Produces less noise and more color during low-light application.
■ HME (Highlight Mask Exposure)
Masks overly exposed light to produce a true video image of any environment.
■ BLC (Back Light Compensation)
■ Programmable Privacy Zone (6) & Motion Detection
■ Easy Icon Driven OSD Menu with Built-In Joystick
■ Auto Sensing 12VDC or 24VAC with Line Lock
■ No Fog or Condensation under Any Weather Condition

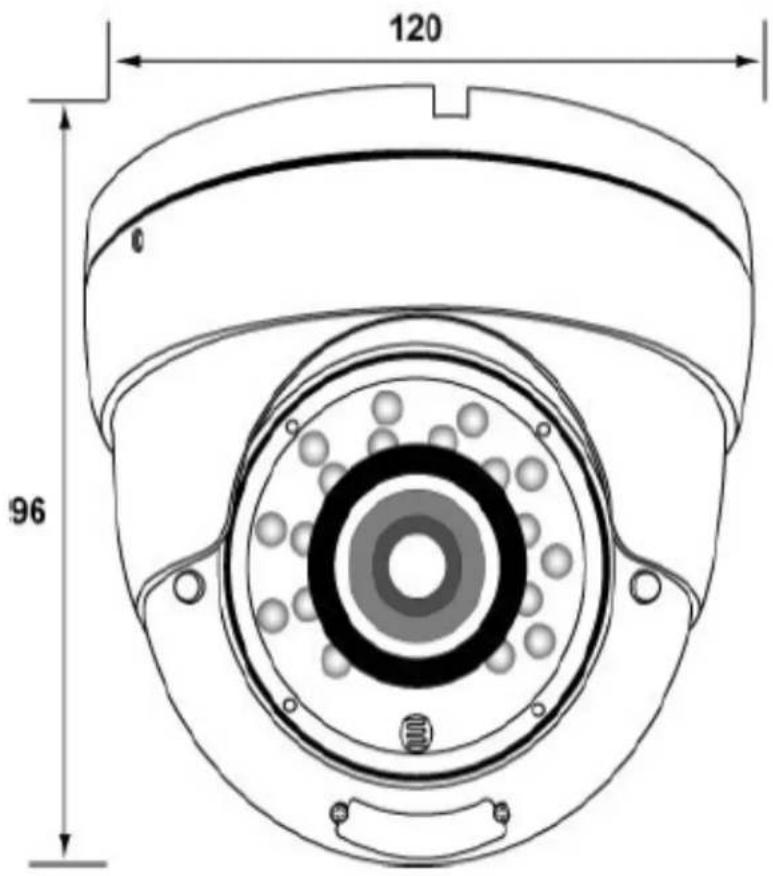

DIMENSION (mm) & POWER REQUIREMENT

POWER REQUIREMENT:

12VDC @1A

24VAC @ .500mA

Power Wire Maximum Distance

Wire Gauge	12VDC	24VAC
24 AWG	80ft	323ft
22 AWG	128ft	513ft
20 AWG	203ft	815ft
18 AWG	323ft	1295ft
16 AWG	514ft	2056ft
14 AWG	816ft	3264ft
12 AWG	1295ft	5183ft
10 AWG	2057ft	8228ft

COAXIAL CABLE TYPE MAXIMUM DISTANCE

RG59/U

750feet

RG6/U

1,000feet

RG11/U

1,500feet

INSTALLATION AND ADJUSTMENT

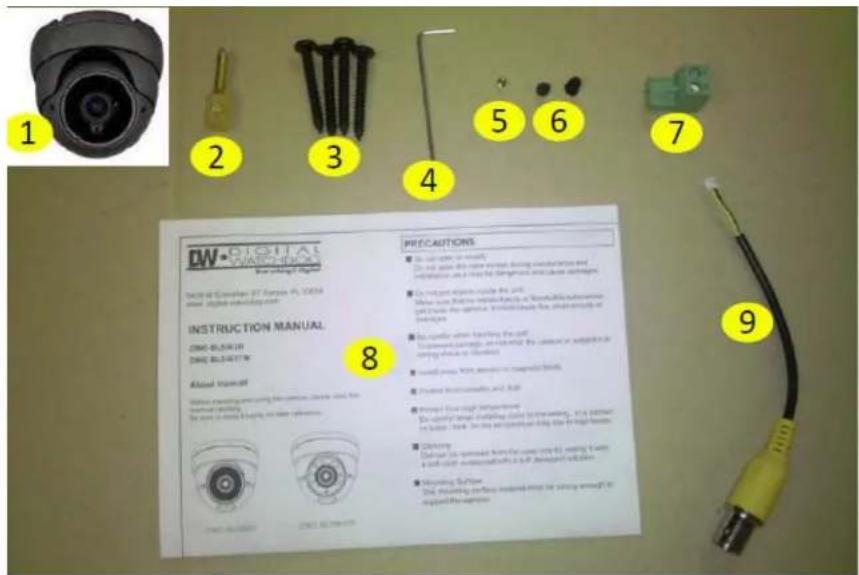

INSIDE THE BOX

1. Digital Watchdog Ball Dome Camera
2. Zoom & Focus Adjustment Tool
3. Pack of Four (4) Wood Screws
4. One Security L-Key
5. Security Lock Screw
6. Zoom & Focus Seal Covers
7. Quick Connect & Disconnect Power Connector
8. User Manual
9. Secondary BNC Cable for a Field Monitor

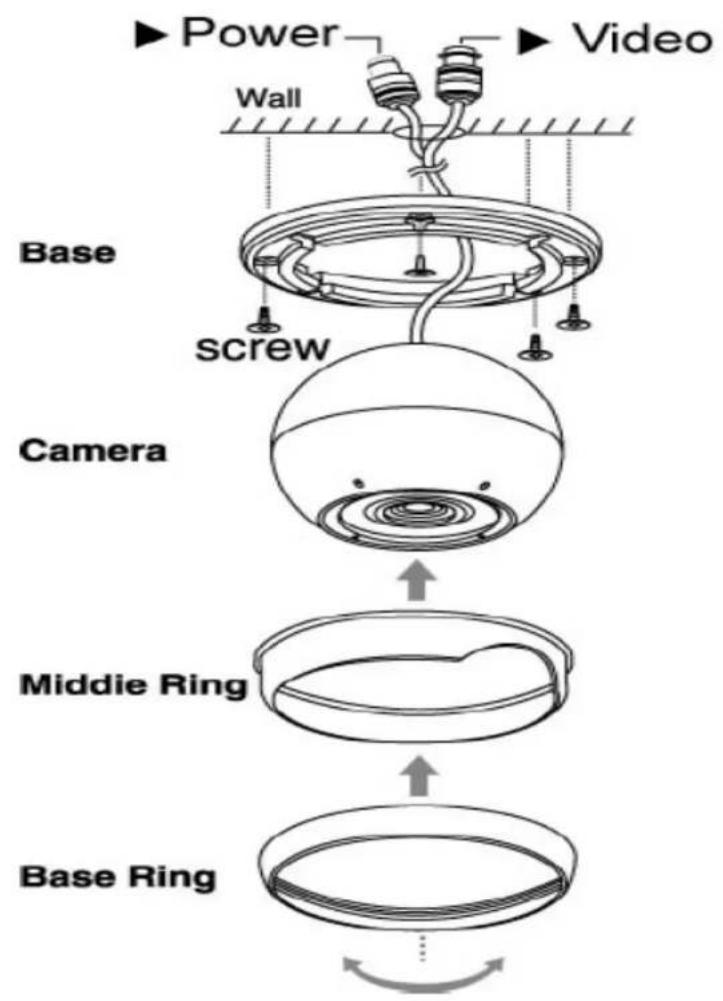

INSTALLATION

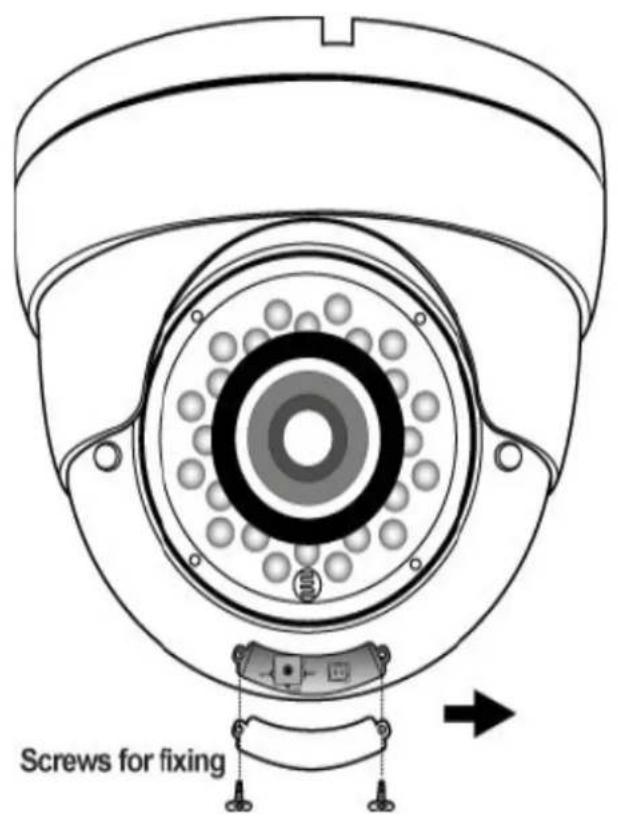

OSD CONTROL

< OSD Controller > < Second Video >

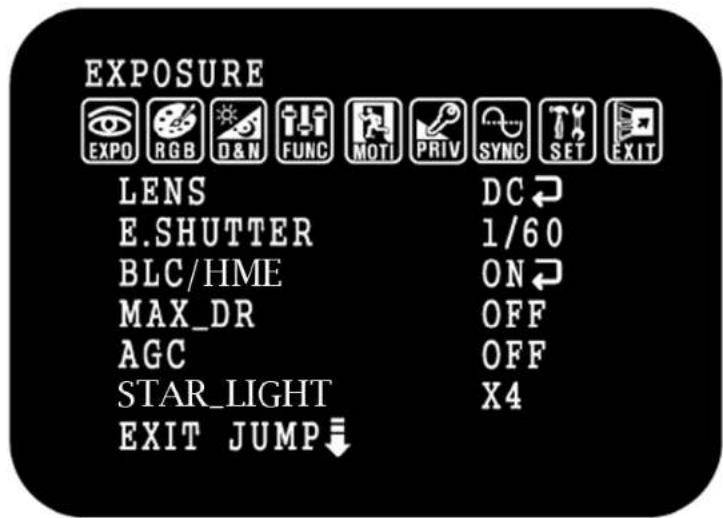

EXPOSURE
LENS	DC (0~100) / MANUAL / VIDEO. (DC Lens is recommended.)
SHUTTER	1/160 /1/100 / FLC / 1/250 ~ 10000 / SENS-UP x2 ~ x250
BLC	OFF / ONBLC (Back Light Compensation)
AGC	HIGH / MIDDLE / LOW / OFFAGC (Auto Gain Control)
MAX-DR	OFF / ON (0 ~ 20) (Electronic Wide Dynamic Range)
STAR-LIGHT	AUTO (x2 ~ x250) / OFF (x32 is recommended.)
EXIT JUMP	EXIT / SAVE&EXIT / FACTORY RESET
COLOR
WB MODE	AWC / ATW / MANUAL / PUSH LOCK
R-Y GAIN	0 ~ 100
B-Y GAIN	0 ~ 100
DAY & NIGHT
Day & Night Mode	AUTO / COLOR / BW / EX-CONTCOLOR ----→ BW : Switching from color to BW; if the number is higher, the camera will only switch during a super low light condition.BW ----→ COLOR : Switching from BW to color; this number should always be lower than COLOR to BWRead Time: Time interval to switch from Color to Black-and-White
	COLOR
	B&W: (BURST:OFF/ON) When the burst is OFF will make less noise
C-SUP	Color Suppression :Color will be reduced at low illumination, if the C-SUP Level is higher.0 ~ 100 (Not Available when DNR is On.)
A-SUP	Aperture Suppression: The sharpness of the edges will be reduced at low illumination, if A-SUP Level is higher.0 ~ 100 (Not Available when DNR is On.)
EXIT JUMP	EXIT / SAVE&EXIT / FACTORY SET
FUNCTION
MIRROR	OFF / MIRROR / V-FLIP / ROTATE
SHARPNESS 0 ~ 31
GAMMA 0.05 ~ 1.00 / USER
FREEZE OFF / ON
NEGATIVE OFF/ON
3D-DNR	OFF / LOW / MIDDLE / HIGH3D-DNR (3D Digital Noise Reduction)
D-ZOOM	OFF / ON (x1.0 ~ x32 PTZ)
SLC	OFF / ONSLC (Side Light Compensation)
HME	OFF / ONHME (Highlight Masking Exposure)
DIS	OFF / ONDIS (Digital Image Stabilizer)
EXIT JUMP	EXIT / SAVE&EXIT / FACTORY SET
MOTION(OMNI-Focus Lens Only)
MOTION OFF / ON
	SET WINDOW
	ALL SET (Set the Entire Screen)
	ALL CLEAR (Clear the Entire Screen)
	SENSITIVITY (1 ~ 120)
	SHOW INDICATOR (OFF / ICON / TRACE)
	DELAY OUT (1 ~ 15)Motion Alarm Zoom-In Delay
EXIT JUMP	EXIT / SAVE&EXIT / FACTORY SET
PRIVACY
	MASK 1 OFF / ON ↗
	MASK 2 OFF / ON ↗
	MASK 3 OFF / ON ↗
	MASK 4 OFF / ON ↗
	MASK 5 OFF / ON ↗
	MASK 6 OFF / ON ↗
EXIT JUMP	EXIT / SAVE&EXIT / FACTORY SET
SETUP
CAMERA ID 0 ~ 255
TITLE OFF / ON
DPC	OFF / AUTODPC (Dead Pixels Cancellation)
MONITOR CRT / LCD
LANGUAGE	English, Japanese, Chinese
BAUDRATE	2400 / 4800 / 9600 / 14400 / 19200 / 38400.Protocol is Pelco-D (fixed cannot be changed; hardcoded into the DSP)
OMNI LENS	OFF / 1 ~ 10 (for OMNI-PLUS CAMERA only)
EXIT JUMP	EXIT / SAVE&EXIT / FACTORY SET
SYNC
SYNC INTERNAL / AUTO
V-PHASE 0 ~ 199
EXIT JUMP	EXIT / SAVE & EXIT / FACTORY SET
EXIT
EXIT Exit the menu
SAVE&EXIT Exit the menu and save the setting
FACTORY SET Reset the menu setting to factory default

SPECIFICATIONS:

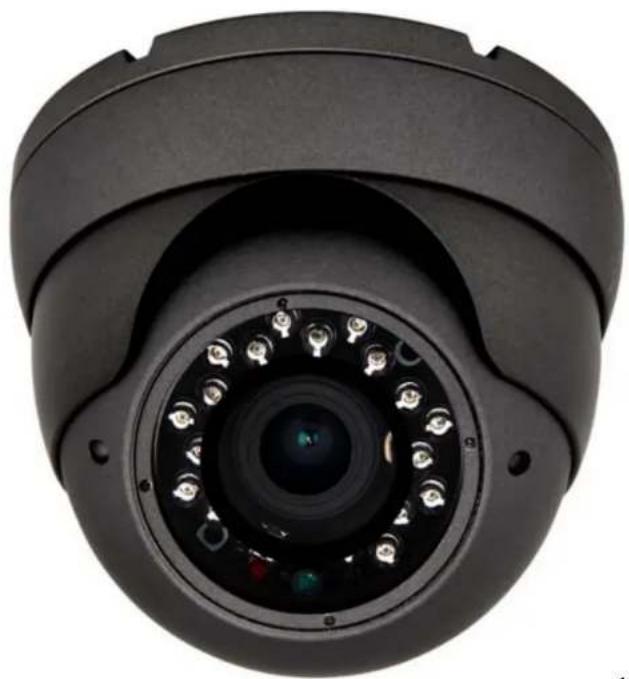

Close-up of a black surveillance camera with circular lens and multiple camera modules (no visible text or symbols)

5436 W Crenshaw St. Tampa, FL 33634

Tel: [phone]

Fax: [phone]

www.Digital-Watchdog.com

[e-mail]

Technical Support Hours: Monday-Friday

8:30am to 8:00pm Eastern Time

Everything's Digital

Camera TYPE Color / BW BL5363TIR
	Mount 3 Axis Ball
Image Device Super HAD II CCD
	Size 1/3"
	Pixels-Total	811(H) x 508 (V)
	Pixels-Effective	768(H) x 494 (V)
Scanning System 525 line, 2:1Interlace
	Horizontal Frequency Internal Mode 15,734Hz
	Vertical Frequency Internal Mode	59.94Hz
Min. Scene Illumination	IR-LED On	0.0 Lux
	IR Distance	65ft Range
Functions	BLC	ON / OFF
	AGC	HIGH / MIDDLE / LOW /OFF
	DRC	OFF / INDOOR / OUTDOOR
	Mirror	OFF / MIRROR / V-FLIP / ROTATE
	STAR-LIGHT	AUTO (x2 ~ x250) / OFF
	3D-DNR	OFF / ON (0~100)
	HME	OFF / ON
	Privacy Zone	6 Programmable Zone / Size
Lens	Focal Length	2.8~11mm Varifocal Auto Iris Lens
Resolution	Horizontal	560 TV Lines [Color]; 580 TV Lines [BW]
Video Output	VBS 1.0Vp-p	VBS 1.0Vp-p(75 Load)
S/N Ratio	S/N Ratio	50dB
OSD	OSD YES
Environmental Conditions	Operating Temperature	-10°C ~ +55°C(14°F ~ 131°F)
	Humidity	Less than 90%
Power	Power Requirement	12VDC / 24VAC
	Power Consumption	1.96 [W] / 2.2 [W] LED Off; 4.3 [W] / 3 [W] LED On
Physical Specifications	Dimensions	96 x 120 mm
	Weight	1.6lbs
	Nema Type	IP66
	Certifications	FCC, RoHS, CE

Everything's Digital

Starlight BL5363D Ball Camera

User Manual Version #1: Camera without ICON Menu

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

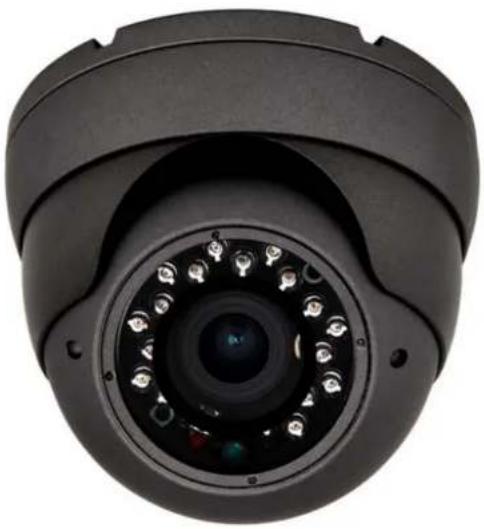

Close-up of a black circular security camera with multiple lenses and a central lens (no text or symbols visible)

11192010

CAMERA SETTINGS

SETUP
LENS	[DC] - Brightness (DC Lens is recommended.)
	Manual. Shutter is available.
SHUTTER	FLK (Flicker Free)
	ESC (Electronic Shutter Control) - Brightness Adjustment
	Manual Adjustment
WHITE BALANCE	ATW 1800K ~10500K (ATW is recommended).
	Manual Adjustment
	AWC (Auto White Balance)
BACKLIGHT OFF / LOW / MIDDLE / HIGH
AGC NORMAL / HIGH / OFF (When the AGC is Off, DNR is not available.)
DNR LOW / MIDDLE / HIGH / OFF
SENS-UP AUTO x2 ~ x128 / OFF
SPECIAL
CAMERA ID OFF / ON
DAY NIGHT AUTO / BW / EXTERNAL / COLOR
SYNC INTERNAL / LINE
MOTION DETECTION OFF / ON
PRIVACY OFF / ON
MIRROR OFF / ON
SHARPNESS OFF / ON Level Adjustment
RESET
RETURN Return to main setup.

SPECIFICATIONS:

Close-up of a black surveillance camera with circular lens and multiple camera modules (no visible text or symbols)

5436 W Crenshaw St. Tampa, FL 33634

Tel: [phone]

Fax: [phone]

www.Digital-Watchdog.com

[e-mail]

Technical Support Hours: Monday-Friday

8:30am to 8:00pm Eastern Time

Everything's Digital

Camera TYPE Color / BW BL5363TIR
	Mount 3 Axis Ball
Image Device Super HAD II CCD
	Size 1/3"
	Pixels-Total	811(H) x 508 (V)
	Pixels-Effective	768(H) x 494 (V)
Scanning System 525 line, 2:1Interlace
	Horizontal Frequency Internal Mode 15,734Hz
	Vertical Frequency Internal Mode	59.94Hz
Min. Scene Illumination	IR-LED On	0.0 Lux
	IR Distance	65ft Range
Functions	BLC	ON / OFF
	AGC	HIGH / MIDDLE / LOW /OFF
	DRC	OFF / INDOOR / OUTDOOR
	Mirror	OFF / MIRROR / V-FLIP / ROTATE
	STAR-LIGHT	AUTO (x2 ~ x250) / OFF
	3D-DNR	OFF / ON (0~100)
	HME	OFF / ON
	Privacy Zone	6 Programmable Zone / Size
Lens	Focal Length	2.8~11mm Varifocal Auto Iris Lens
Resolution	Horizontal	560 TV Lines [Color]; 580 TV Lines [BW]
Video Output	VBS 1.0Vp-p	VBS 1.0Vp-p(75 Load)
S/N Ratio	S/N Ratio	50dB
OSD	OSD YES
Environmental Conditions	Operating Temperature	-10°C ~ +55°C(14°F ~ 131°F)
	Humidity	Less than 90%
Power	Power Requirement	12VDC / 24VAC
	Power Consumption	1.96 [W] / 2.2 [W] LED Off; 4.3 [W] / 3 [W] LED On
Physical Specifications	Dimensions	96 x 120 mm
	Weight	1.6lbs
	Nema Type	IP66
	Certifications	FCC, RoHS, CE
