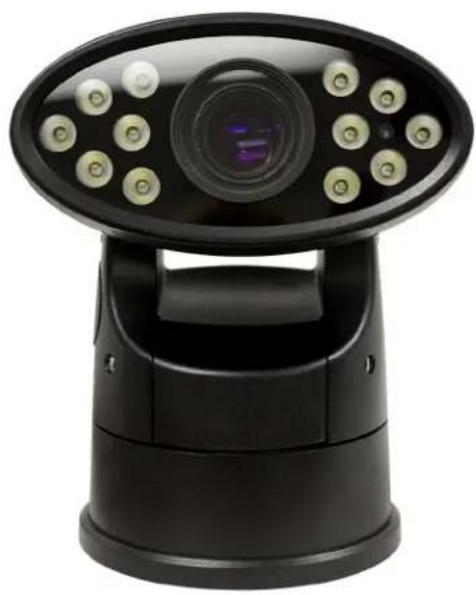

Full HD Mega-pixel Rugged IR PTZ Camera

- 1/3" 2M Pixel CMOS image sensor that supports FULL HD (1920 x 1080)

• Progressive scan and Auto WDR

- 20x optical zoom and F1.6 aperture (optical zoom + digital zoom = 240x)

• Good at low-light environments using the Noise Reduction function

• Video signals can be output as digital and analog composite outputs

• A variety of digital output formats

• Auto ICR

• 12pcs of 18ø IR LED (120m manual focusing)

- DC12V version for vehicle application: The power ground and video ground in DC12V version is unified in common so that the power can be input from vehicle

• IP66 Outdoor Application

- Endless Pan rotation (TOP 15°\~270°, BOTTOM 345°\~90° tilt angle)

- Up to 63 programmable presets

• Less than 0.3° Preset Accuracy

• 8 programmable Tour, 2 Pattern

- Alarm - Move the camera to programmed Preset position with Alarm trigger. (Max. 2)

• 4 Scan (Programmable speed and diagonal scan)

• Programmable Privacy Masking (2 Zones)

• RS-422, RS-485 communication

- Multiple protocol (WTX, PELCO-D V1, PELCO-P, PELCO-D V5)

• Built-in Menu System for Setup of Programmable Functions

- Mechanical Auto Flip

IR Light Function

Its built-in 12pcs of 180 IR Lens provide visible distance of up to 120m in the dark (manual focusing).

Three business professionals in a meeting setting with cityscape background (no visible text or symbols)

Auto WDR Function

The Camera delivers clear, high quality pictures even when the subject is backlit. By increasing exposure in dark areas while simultaneously decreasing it in bright areas will result in a corrected image with clear details.

Supports

1080i/720p

60/59.94

standards for

Broadcast

Black industrial sensor device with multiple circular lights (no visible text or symbols)

→ 20x Optical Zoom
→ 1080p 30 fps
→ 1080i 60 / 59.94 fps
→ HD-SDI (SMPTE 292M)

Black industrial robotic arm component with circular ports and mounting holes (no visible text or symbols)

Auto ICR

These cameras offer optimal sensitivity in both day and night shooting applications. At a preset level of darkness, the IR-cut filter is automatically disabled (ICR ON) and the near-infrared sensitivity is increased. At a preset level of brightness, the filter is automatically enabled (ICR OFF). The IR-cut filter automatically engages depending on the ambient light, allowing the camera 24/7 operation in a variety of lighting conditions.

VS-WC202B-HDSDI Specifications

MECHANICAL Light distance 120m (manual focusing)
Pan	360° Endless Pan
	0.1° to 100°/sec.	Video Out	HD-SDI - 1 channel(1080i60, 1080p30, 720p60, 1080i50,1080p25, 720p50 )
Pan Preset Speed	10°/sec, 0.3° Accuracy
Tilt	TOP 15°~270°, BOTTOM 345°~90° tiltangle, Proportional to zoom		CVBS -1 channel, IP Webserver (Optional)
Tilt Preset Speed	60°/sec, 0.3° Accuracy CERTIFICATION CE, FCC CLASS A, RoHS
Weight	2.7kg
Dimensions	38(∅) x 212(H) mm Imager 1/3" 2M Pixel CMOS Sensor
ENVIRONMENTAL Picture elements 1920 x 1080 pixels
Construction	Aluminum Lens		20x zoom F= 4.7 mm (WIDE) to 94.0 mm (TELE), F1.6 to F3.5
Ingress Protection	IP66 Digital zoom 12x (240x with optical zoom)
Color	Black	(1080i mode)Angle of view (H)	Approx. 55.4 degrees (WIDE end),approx. 2.9 degrees
Operating Temp	20°C to 50°C (Fan & Heater power ON) (TELE end)
Humidity	0% to 90%		Approx. 37.6 degrees (WIDE end),approx. 2.0 degrees
FUNCTIONS (TELE end) (720p mode)
Preset	63 points Min. working distance 10 mm (WIDE end), 800 mm (TELE end)
Tour	3 programmable	Sync system Internal
Pattern	patterns	Min. illumination	0.5 lux/1/30 sec., 50% (Interlace mode)(High Sensitivity mode ON)
Flip	Mechanical / Auto / Off (Rotate 90° atbottom of tilt)		1.7 lux/1/30 sec., 50% (Typical value)0.26 lux/1/4 sec (NTSC)
Auto Scan	(programmable speed and diagonal scan)		/3 sec (PAL) (Typical value)
Privacy Zone	2 blocks with title (Masking / Video off)		ICR-ON Mode 0.0005 lux/1/4 sec (NTSC),1/3 sec (PAL)
Address	Up to 255 selectable ID (Rotary switch)	Recommended illumination 100 to 100,000 lux
Data Communication	RS-485 / RS-422	S/N ratio 50	dB (Weight ON)
Protocol	Multiple protocol (WTX, PELCO-D V1,PELCO-P, PELCO-D V5)	Back light compensation ON/OFF
Baud rate	2400, 4800, 9600, 19200, 38400, 57600,115200 bps	Electronic shutter speed	60/30 mode: 1/1 to 1/10000 sec.(22 steps)/50/25 mode: 1/1 to 1/10000 sec. (22 steps)
Alarm In	alarm (NO/NC, Priority)	White balance	AUTO, ATW, Indoor, Outdoor, One Push WB,Manual WB, Outdoor Auto, Sodium Vapor
Alarm Out	relay out (Hold, Latch)
Display	Zone title on/off (start/end zone)	Gain Auto/Manual (-3 dB to +28 dB, 16 steps)
ELECTRICAL		Wide dynamic range ON/OFF/AUTO
Power	DC 12V, 40W, 3.3A Noise reduction ON/OFF (level 5 to 1 / OFF, 6 steps)
	(Power adaptor not included)	Color Enhancement ON/OFF
	IR: 1.9A (23W) (Fan &Heater ON)	Aperture control 16 steps
Light	2pcs of 18ø IR LED	Preset 6 positions

Black industrial control device with digital display and joystick (no visible text or symbols)

Accessories

VS-TKC-100

PTZ Keyboard Controller
