KASUTUSJUHEND 101ST70 James

SUBTERRANEAN Installation Guide

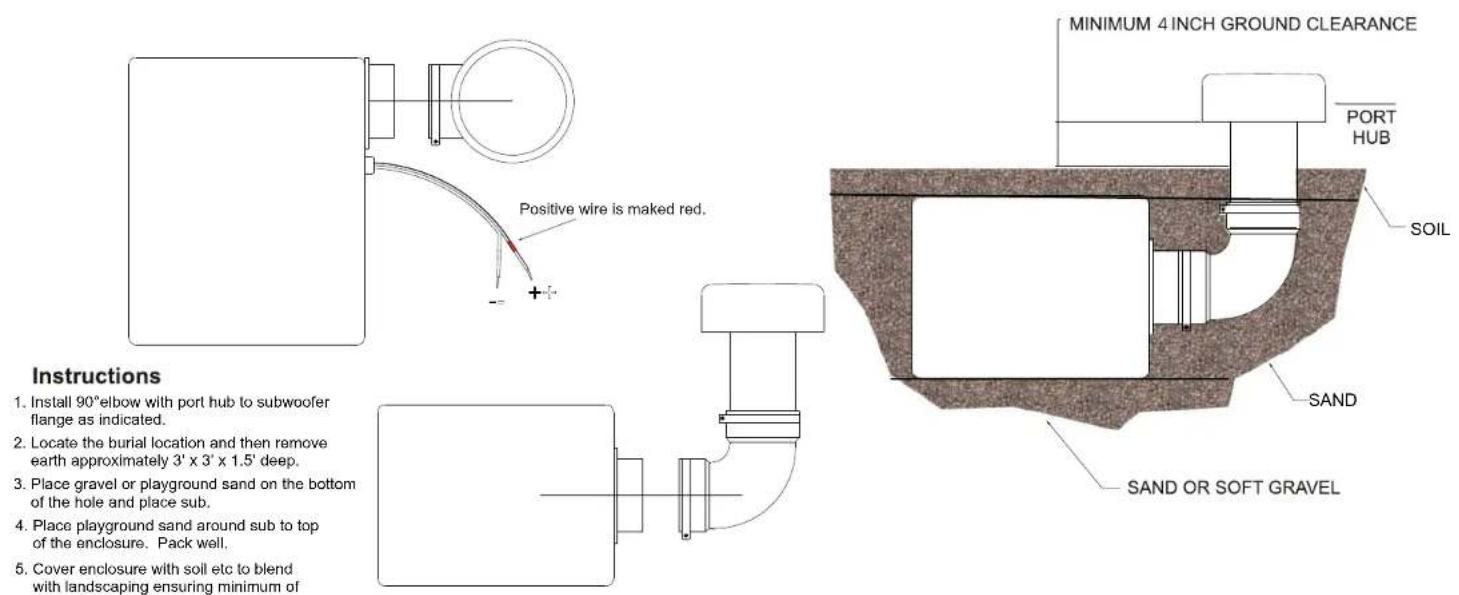

MINIMUM 4 INCH GROUND CLEARANCE PORT HUB SOIL SAND SAND OR SOFT GRAVEL Positive wire is maked red. Instructions 1. Install 90°elbow with port hub to subwoofer flange as indicated. 2. Locate the burial location and then remove earth approximately 3' x 3' x 1.5' deep. 3. Place gravel or playground sand on the bottom of the hole and place sub. 4. Place playground sand around sub to top of the enclosure. Pack well. 5. Cover enclosure with soil etc to blend with landscaping ensuring minimum of

Instructions

  1. Install 90°elbow with port hub to subwoofer flange as indicated.
  2. Locate the burial location and then remove earth approximately 3' × 3' × 1.5' deep.
  3. Place gravel or playground sand on the bottom of the hole and place sub.
  4. Place playground sand around sub to top of the enclosure. Pack well.
  5. Cover enclosure with soil etc to blend with landscaping ensuring minimum of 4" clearance from the soil to the bottom of the port hub.

NOTE: Gravel provides some drainage and the sand makes removal of sub much easier if required.

James LOUDSPEAKER® SOUND THAT IS PATENTED

535 Airpark Rd

Napa, CA 94558

P: 1-707-265-6343 F: 1-707-265-6334

www.jamesloudspeaker.com

JAMES LOUDSPEAKER
SUBTERRANEAN
INSTRUCTION MANUAL
P/N: -DWR #: -
REVISED BY:
DRAWN BY: M. PARKFILE:
DATE: 07-11-06SCALE:
APPROVED:
DRAFTING APPROVED:
DO NOT SCALE DRAWING
DRAWING NOT TO BE USED FOR CNC
TOLERANCES: ANG: %%P = .5%%D FRACT. %%P = 1/32DECIMALS: XX %%P = .01 XXX %%P = .005
Revision: C
