KASUTUSJUHEND TT111 Arkon
TT111 | Sun Visor Mount for TomTom GPS
Patented & Patents Pending

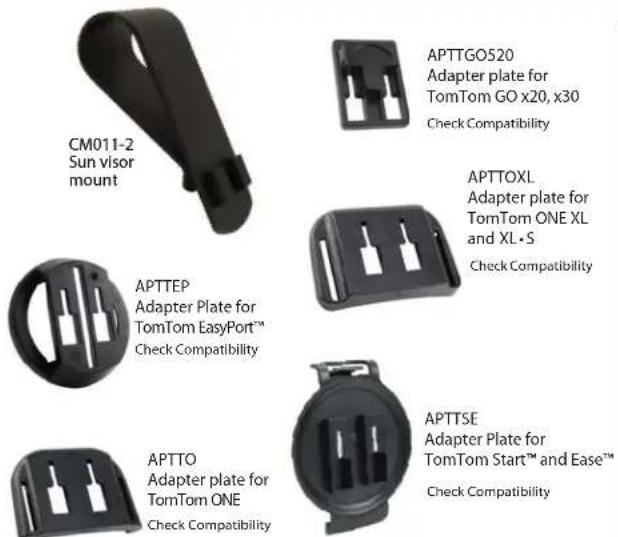

Package Contents:
(1) CM011-2 Sun visor mount
(1) APTTO - Adapter plate for TomTom ONE™ Series
(1) APTTOXL - Adapter plate for TomTom ONE XL / XL • S™ Series
(1) APTTGO520 - Adapter plate for TomTom GO™ Series
(1) APTTEP - Adapter plate for TomTom EasyPort™ Series
(1) APTTSE - Adapter plate for TomTom Start™ and Ease™
TomTom Device Compatibility:
TomTom ONE 125 125-SE (TomTom EasyPort Mount)
TomTom ONE 130, ONE 130-S (TomTom EasyPort Mount)
TomTom ONE 140, ONE 140-S (TomTom EasyPort Mount)
TomTom XL 325, XL 325-S, XL 325-SE (TomTom EasyPort Mount)
TomTom XL 330, XL 330-S (TomTom EasyPort Mount)
TomTom XL 335 Series (TomTom EasyPort Mount)
TomTom XL 340 XL 340 S XL 340 LIVE Series (Top
TomTom XL 340, XL 340-5, XL 340 LIVE Series (TomTom EasyPort Mount)
TomTom XL 350 Series (TomTom EasyPort Mount)
TomTom XXI 570 S, XYI 575 T, XYI 540 F/WTF, X
TomTom AXL 350-3, XXL 333-1, XXL 340-3/W TE, XXL 350 Series (TomTom EasyPort Mount/ TomTom ONE (US Edition, US 3rd Edition)
TomTom ONE (US Edition, US 3rd Edition) TomTom ONE XL (1st Edition) - TomTom O
TomTom ONE XL (1st Edition) - TomTom ONE XL-5 (1st Edition)
TomTom ONE 22, ONE 22 Regional, ONE 22 Regional Traffic
TomTom XL 22, XL 22 Regional (TomTom EasyPort Mount)
TomTom ONE UK / EUROPE (NEW Edition aka 2nd Edition, 3rd Edition)
TomTom GO 520/530/630/720/730/920/920T/930
TomTom Start and Ease
TomTom, ONE, GO, and EasyPort, Start and Ease are product names, trademarks, or registered trademarks of TomTom International b.v. Arkon Resources, Inc. is not affiliated with TomTom International b.v.
Visor mount for holding GPS device in convenient location. Place, secure, and use your device in a manner that does not obstruct the driver's view of the road. Do not operate device while driving. Always observe safe driving practices.


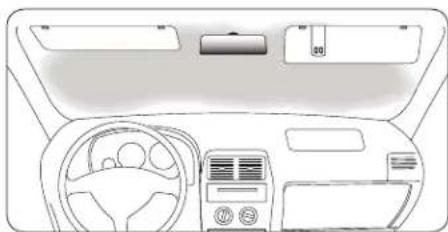

Front view of a car dashboard and steering wheel (no text or symbols visible)Sun Visor Mounting
Step 1. Lower the vehicle sun visor and place the clip mount over the top of the visor. Slide the mount left or right to adjust the location on the visor.

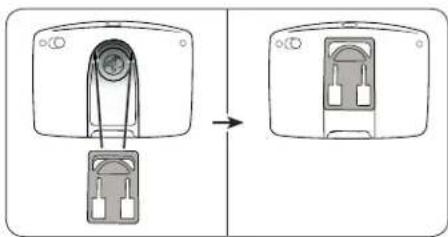

TomTom GO Adapter Plate Installation
Step 1. Attach the adapter plate by sliding it up into the slot on the back of the TomTom GO 520, 530, 630, 720, 730, 920, 920T or 930 device as shown. Attach the device as shown to the right.
Step 1. Slide the adapter plate up into the grooves on the back of the TomTom ONE, ONE XL, or ONE XL • S.
Step 1. Attach the device cradle to the visor pedestal by inserting the dual T-Tabs of the pedestal (A) into the T-slots of the adapter plate (B).

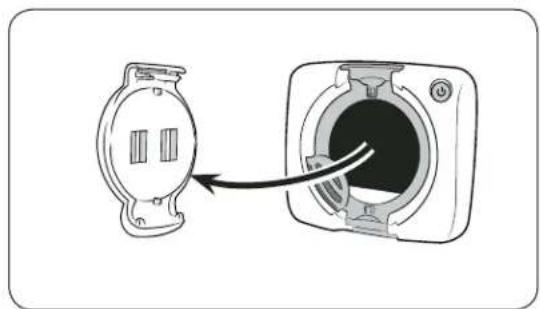

TomTom Start Adapter Plate Installation
Step 1. Attach the TomTom dual-T adapter plate to the mount by inserting the dual-T tabs of the pedestal (A) into the dual T-slots on the adapter plate (B).
Safety Precautions
It is your responsibility to place, secure, and use your device in a manner that will not cause accidents, personal injury, or property damage, or obstruct the driver's view of the road. Do not operate device while driving. Always observe safe driving practices.
Do not install in an air bag deployment zone. Arkon Resources, Inc. is not responsible for any damages caused to your car, your device, or yourself due to the use of this mounting accessory.
ARKON
RESOURCES INC.
The Mobile Mounting Specialists™
Consumer Hotline:
USA (800) 841-0884
INT'L (626) 254-9005
Monday-Friday 9am-5pm,PST
www.arkon.com
Arcadia, CA 91006 USA
Designed in USA | Made in China
© Copyright 2010 Arkon Resources, Inc.
TT111 | Sun Visor Mount for TomTom GPS
Step 2. While holding the mounted TomTom adapter plate, gently insert the TomTom device (not included, sold separately) into the adapter plate until an audible click is heard.


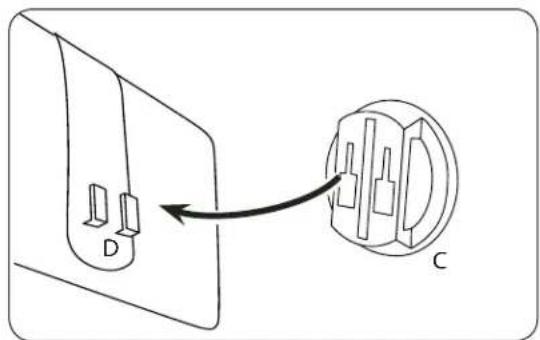

Diagram showing a device with internal components connected to an open socket (no text or symbols)TomTom EasyPort Adapter Plate Installation
Step 1. Connect the dual T-slots (C) on the adapter plate to the dual T-tabs (D) on the sun visor mount.

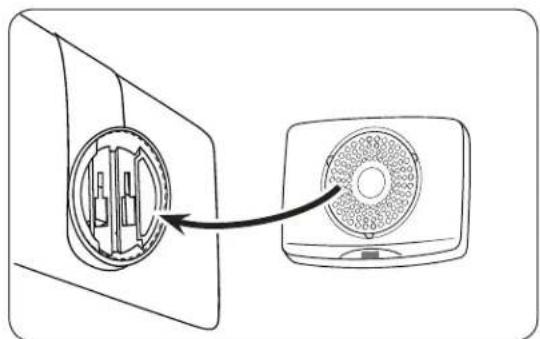

TomTom EasyPort Device Insertion
Step 1. Insert your TomTom device into the adapter plate.
Safety Precautions
It is your responsibility to place, secure, and use your device in a manner that will not cause accidents, personal injury, or property damage, or obstruct the driver's view of the road. Do not operate device while driving. Always observe safe driving practices.
Do not install in an air bag deployment zone. Arkon Resources, Inc. is not responsible for any damages caused to your car, your device, or yourself due to the use of this mounting accessory.
ARKON RESOURCES INC.
Consumer Hotline:
USA (800) 841-0884
INT'L (626) 254-9005
Monday - Friday 9 am - 5 pm, PST
The Mobile Mounting Specialists™
www.arkon.com
Arcadia, CA 91006 USA
Designed in USA | Made in China
© Copyright 2010 Arkon Resources, Inc.
