KASUTUSJUHEND SDQ5T-BL APART
SDQ5T
Technical Specifications
- type : 2-way hiFi Pro, sealed box
- woofer : 5,25" CP type
- tweeter : 1" mylar ferro cooled
• protection : system auto-reset 1-guard - impedance : 16Ω
• 100Volt trafo selector: 30-15-6-3-OFF-16Ω - RMS power low-imp.
AES rated : 70 Watts
music - program : 80 Watts
dynamic peak : (lo-cut) 250 Watts
SPL 1 watt / 1 m : 90dB
SPL max peak : 114dB
• Freq range : 70 - 20000 Hz
• dispersion : 120° H x 100° V
• IP rating : 54 - enclosure material : enforced PolyPlastic
- bracket included : U-type
- dimensions (h x w x d) : 244 x 179 x 154
- weight : 2,35 Kg
The SDQ5T 2-way design cabinet loudspeaker probably is one of the most cost-effective loudspeakers for the contractor market. The loudspeaker can be used as a 16Ω or 100V loudspeaker. In 16Ω use, you can connect up to 4 loudspeakers in parallel on each channel of a standard 4Ω amplifier. For 100V use, the loudspeaker is equipped with a high quality 30 Watt transformer with several power taps. Further, the SDQ5T is equipped with an auto-reset protection system. It makes the SDQ5T loudspeaker very suitable for the distribution of background music or microphone calls. The loudspeaker comes standard with a U-type bracket. The SDQ5T loudspeakers can be used outdoor. However, be aware of the fact that the loudspeaker terminals are not protected and that the grill is made of plasticized painted metal. This means direct exposure to rain or water is not recommended. In case this is really needed, we recommend to use the APart MASK loudspeaker series.
Power Tappings
| SWITCHPOWERIMPEDANCEAMPLIFIER | |||
| 1 30 Watts | 333Ω 100 Volt | ||
| 2 15 Watts | 666Ω 100 Volt | ||
| 3 6 Watts | 1.6KΩ 100 Volt | ||
| 4 3 Watts | 3.3KΩ 100 Volt | ||
| 5 OFF OFF OFF | |||
| 6 16Ω / 80 Watt | 16Ω HiFi amp | ||

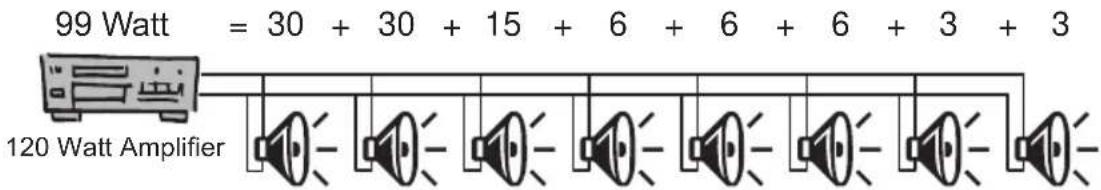

100 Volt Technology

Amplifier power must be higher than total power of all speakers.
Het versterkervermogen moet hoger zijn dan de som van de vermogens van de luidsprekers. La puissance de l'amplificateur doit être plus élevée que la puissance totale des haut parleurs.

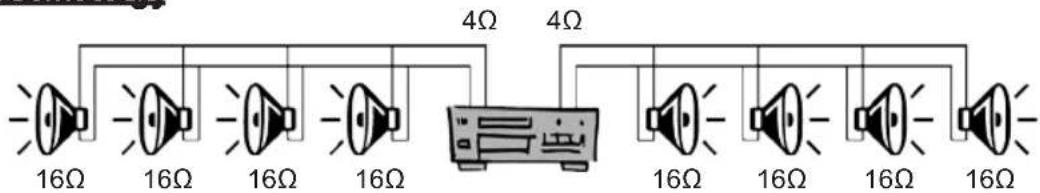

16 ohm Technology
