Product Type	Refrigerator-Freezer
Brand	Logik
Model	LFC152W16
Overall Dimensions (H x W x D)	1520 x 550 x 580 mm
Fresh Food Capacity	129 L
Frozen Food Capacity	50 L
Energy Efficiency Class	A+
Energy Consumption	0.600 kWh/24h (219 kWh/year)
Climate Class	ST (16°C – 38°C)
Storage Temperature (Fridge)	0–8°C, average ≤4°C
Storage Temperature (Freezer)	≤ -18°C
Defrost Type (Fridge)	Auto Defrost
Defrost Type (Freezer)	Frost-free
Freezing Capacity	2.5 kg/24h
Temperature Rise Time	12 hours
Noise Level	42 dB(A)
Rated Voltage	AC 220–240 V / 50 Hz
Rated Current	0.4 A
Door Reversibility	Yes (user reversible, qualified recommended)
Adjustable Thermostat	Positions 1–7, recommended 3 (normal room)
Clearance Requirements	25 mm sides, 50 mm rear, 25 mm top
Levelling Feet	2 adjustable feet at front
Included Accessories	Glass shelves (2), salad bin with cover, upper drawers (2), bottom drawer (1), balconies (3), egg tray, ice tray, spacers (2)
Installation Type	Freestanding
Net Weight	Not specified in manual; estimated ~50 kg

Frequently Asked Questions - LFC152W16 Logik

How do I adjust the temperature?

The thermostat controls the internal temperature. Turn the dial to a higher number for colder temperatures. Position 3 is recommended for normal room temperature (16°C–38°C). For colder environments, use 1–4; for hotter, use 5–7.

Can I reverse the door swing?

Yes, the door can be reversed. However, we recommend contacting a qualified technician. The manual provides step-by-step instructions requiring a Philips screwdriver, flat-bladed screwdriver, and hexagonal spanner. Ensure the unit is unplugged and empty before starting.

Why is my fridge making unusual noises?

Most noises are normal due to refrigerant circulation and compressor operation. These sounds are more noticeable with CFC-free gases. If the noise seems abnormal, check if the unit is level and that all internal components are secure.

How do I clean the appliance?

Use a weak bicarbonate of soda solution for the interior, rinse with warm water, and dry completely. The exterior can be cleaned with a damp cloth and standard furniture polish. Avoid getting polish on the magnetic door seal. Vacuum the condenser grille at the back with a soft brush attachment.

How does the auto defrost work?

The fridge compartment defrosts automatically. Frost melts during the compressor's off cycle and water drains through a hole into a collection tray above the compressor, where it evaporates. Regularly check and clean the drain hole to prevent blockages.

What should I do before first use?

After installation, wait 2 hours before turning on to allow the coolant to settle. Then plug in, set the thermostat to position 3, and run empty for 24 hours to reach the correct temperature before adding food.

How much free space is needed around the fridge?

Leave at least 25 mm on each side, 50 mm at the rear, and 25 mm at the top. Additionally, ensure there is more than twice the unit's width and depth to allow the door to open up to 160°.

Can I store bottles in the freezer?

No, do not store bottles or glass containers in the freezer. Contents can expand when frozen (e.g., fizzy drinks) and may break the bottle, damaging the compartment.

What is the energy consumption of this model?

The energy consumption is 0.600 kWh per 24 hours, equivalent to 219 kWh per year based on standard tests. Actual consumption depends on usage and location.

How do I defrost the freezer?

The freezer is frost-free under normal use. If frost builds up (max 3 mm), remove food, turn off the unit, leave the door open, and scrape frost with a plastic scraper. Do not use metal or electrical appliances. A bowl of hot water inside can speed up the process.

USER MANUAL LFC152W16 Logik

Exterior view of a white refrigerator with two doors and a side door (no visible text or symbols)

Safety Warnings....4

Unpacking......6

Installation....7

Location....7

Levelling the Unit....7

Installing the Spacers....7

Free Space Requirements 7

Reversing the Door Swing 8

Cleaning Before Use....11

Before Using Your Unit....11

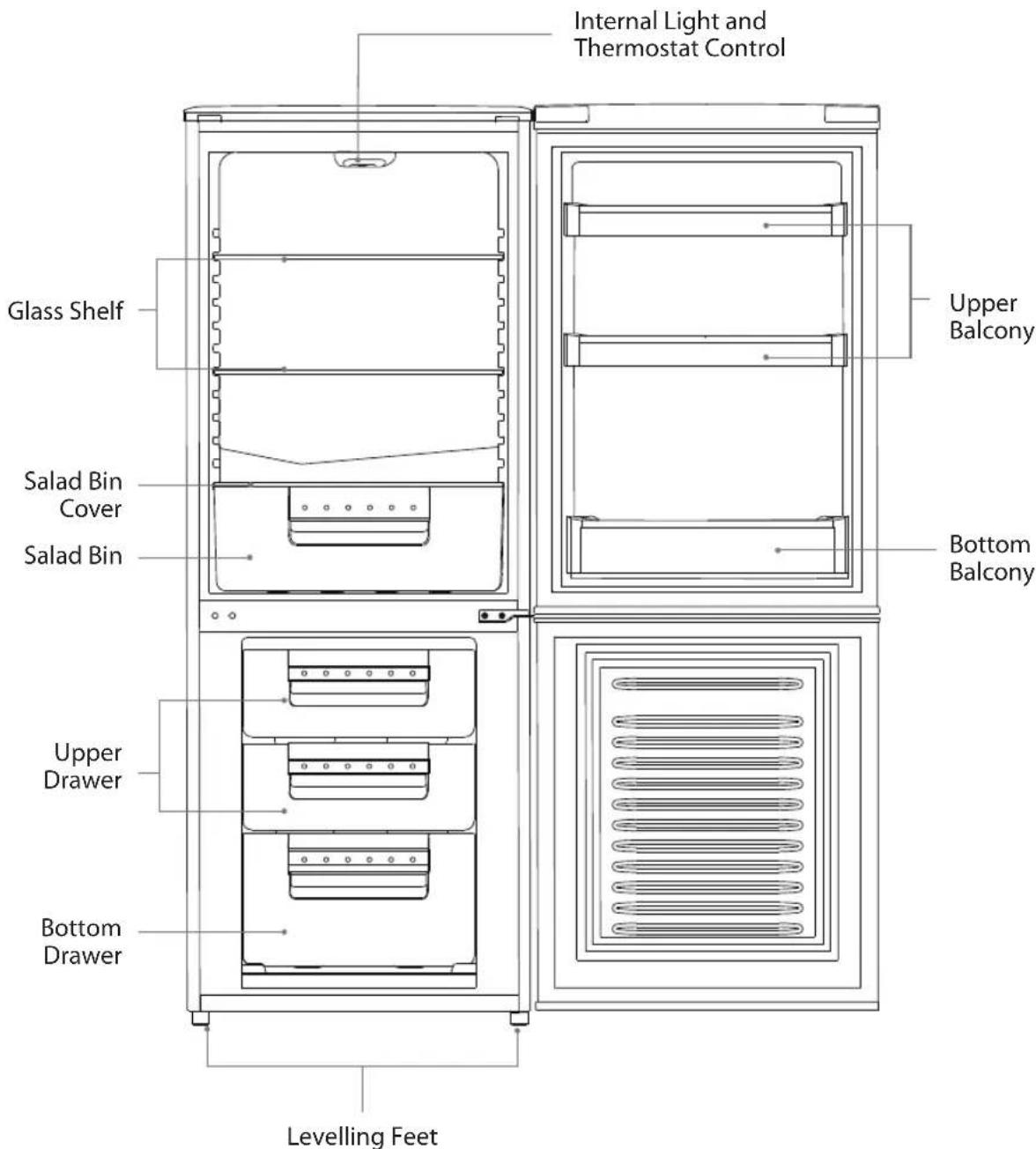

Product Overview....12

Switching On Your Unit....13

Adjusting the Temperature 13

Noises Inside the Unit! 13

Tips for Keeping Food in the Unit....14

Preparations for Freezing....14

Defrosting Frozen Food....14

Cleaning 15

Defrosting....15

Cleaning the Interior and the Exterior of the Unit....15

Maintenance ....16

Care When Handling / Moving Your Unit....16

Servicing 16

Switching Off for Long Periods of Time 16

Condensation....16

Disposal....16

Specifications....17

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party, make sure to include this manual.
• This appliance is intended for indoor household use and similar applications such as:

- farm houses and by clients in hotels, motels and other residential type environment;

• bed and breakfast type environment;
• catering and similar non-retail applications.

- Ensure that the plug is easily accessible to enable disconnection from the mains supply.

- If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.

- Choose a location for your unit away from heat sources such as radiators or fires as refrigerant and vesicant are burnable.

• The unit must be manoeuvred by a minimum of 2 persons.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Children should be supervised to ensure that they do not play with the unit.

- If your unit is fitted with a lock to prevent children being trapped inside, keep the key out of reach and not in the vicinity of the unit.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- Do not store bottles or glass containers in the freezer compartment. Contents can expand when frozen (fizzy drinks) which may break the bottle and damage your freezer compartment. (If applicable)

WARNING

• Keep ventilation openings in the unit enclosure or in the built-in structure clear of obstructions.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not use electrical appliances inside the food storage compartments of the unit, unless they are of the type recommended by the manufacturer.
• Do not damage the refrigerant circuit (The refrigerant is a very environmental-friendly gas but is also combustible. Take care when transporting or moving the unit to ensure that the refrigeration circuit is not damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.)

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

Thank you for purchasing your new Logik Fridge Freezer.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Line drawing of a refrigerator front view with a horizontal shelf and mounting feet (no text or symbols)

Main Unit

Glass Shelf x 2

Salad Bin Cover x 1

Upper Drawer x 2 Bottom Drawer x 1

Line drawing of a rectangular box with a side tab (no text or symbols)

Upper Balcony x 2 Bottom Balcony x 1

Simple line drawing of a rectangular box with a recessed slot (no text or symbols)

Salad Bin x 1

Egg Tray

Isometric line drawing of a rectangular frame with internal geometric patterns (no text or symbols)

Ice Tray Spacer x 2

If items are missing or damaged please contact Partmaster (UK only). Tel: [phone] for assistance.

INSTALLATION

Location

When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16^ C and 38^ C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering.

Levelling the Unit

To do this adjust the two levelling feet at the front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

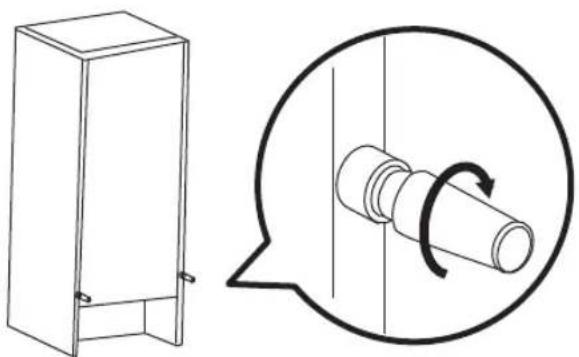

Installing the Spacers

Screw the spacers to the left and right side of the unit's rear part.

Technical line drawing of a cabinet and a mechanical component with rotational arrow (no text or symbols)

Free Space Requirements

When installing the unit, ensure that 25 mm of free space is left at both sides, 50 mm at the rear of the unit and 25 mm at the top of the unit. The door can be opened to the right or the left, depending on which best suits the location.

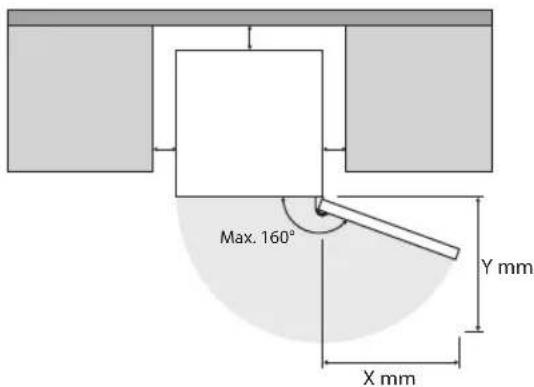

Please ensure there is more than twice the width and depth distance space of the unit to fully open the door to a maximum angle of 160^ .

Reversing the Door Swing

Tools required: Philips style screwdriver / Flat bladed screwdriver / Hexagonal spanner

• Ensure the unit is unplugged and empty.
  • To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid, e.g. a chair just below the top panel.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.
  • We recommend that 2 people handle the unit during assembly.

• If you want to have the door swing reversed, we recommend that you contact a qualified technician. You should only try to reverse the door yourself if you believe that you are qualified to do so.

• Remove the 4 screws from top cover.

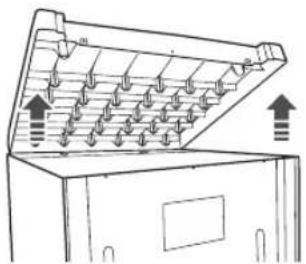

• Lift the top cover away from the fridge.

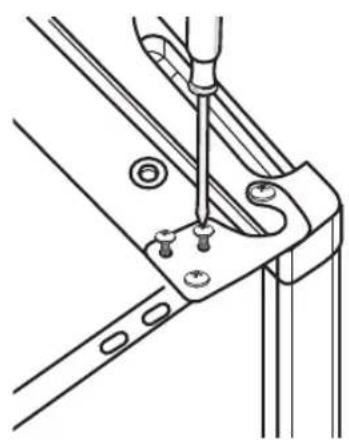

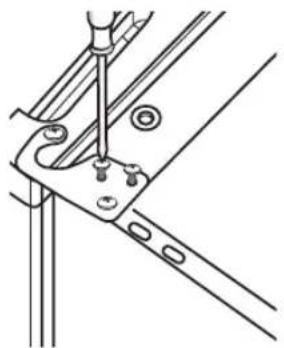

• Remove the three screws, then remove the upper hinge that holds the door in place. Lift the upper door and place it on a padded surface to prevent it from scratching.

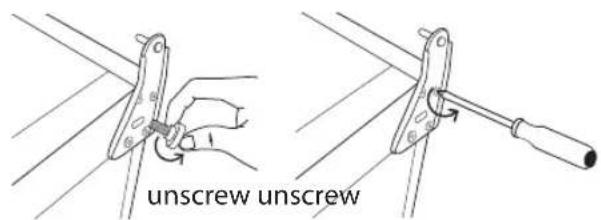

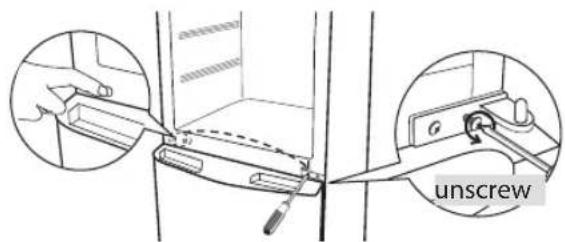

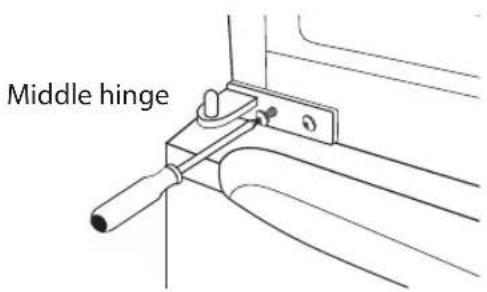

• Take off the middle hinge by removing the screws. Lift the lower door and place it on a padded surface to prevent it from scratching.

Simple line drawing of a screwdriver on a flat surface (no text or symbols)

Diagram of a mechanical device with arrows indicating force or movement, no text or symbols present

Technical line drawing of a mechanical bracket with mounting holes and a screwdriver (no text or symbols)

INSTALLATION

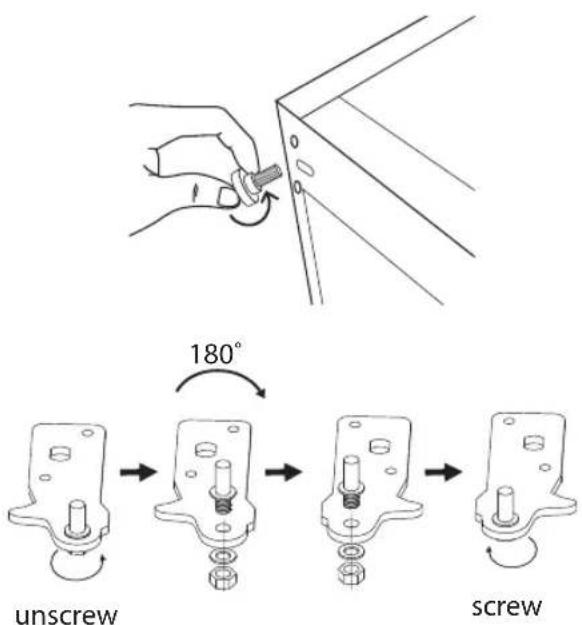

1. Remove the lower screws, hinge bracket and levelling foot from the unit bottom. Keep the matching bracket and foot together.

1. Remove the remaining levelling foot from the other side of the unit bottom and transfer it to the corresponding position on the opposite side of the unit bottom.

1. Re-attach the bottom door hinge, screws and foot to the opposite side of the unit.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

1. After replacing the freezer door, screw the middle hinge back onto the opposite side of the unit.

Ensure the freezer door is aligned horizontally and vertically, so that the seals are closed on all sides before finally tightening the hinge.

INSTALLATION

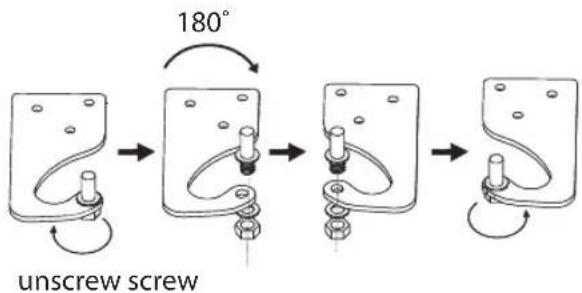

1. Remove and replace the pin on the reverse side of the hinge.

1. Carefully set the upper door back into place. Re-attach the re-assembled upper door hinge on the opposite side of the unit. Ensure the fridge door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge.

Technical line drawing of a mechanical assembly with screws and bolts (no text or symbols)

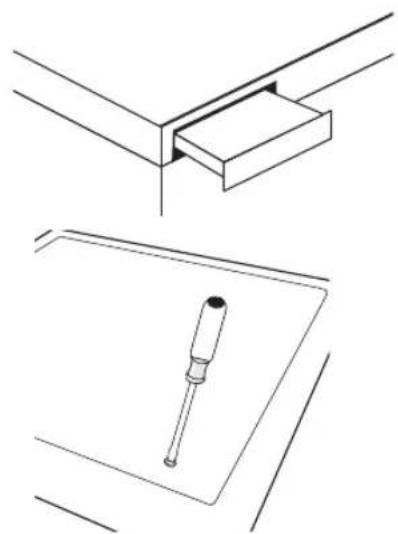

1. On the top panel move the blanking plate to the side opposite the hinge.

Technical line drawing showing a bracket and a screwdriver (no text or symbols)

1. Put the top cover back on and fix it in place with the screws.

2. With the door closed, check that the door is aligned horizontally and vertically and that the seals are closed on all sides before finally tightening the bottom hinge. Re-adjust the levelling feet as needed.

INSTALLATION

Cleaning Before Use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a sponge or cloth. Wash the shelves and salad bin in warm soapy water and dry completely before replacing in the unit. Clean the exterior of the unit with a damp cloth.

If you require more information refer to the Cleaning section.

Before Using Your Unit

Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.

• Before Plugging in YOU MUST
Check that you have a socket which is compatible with the plug supplied with the unit.
• Before Turning On!
Do not turn on until two hours after moving the unit. The coolant fluid needs time to settle.

Isometric line drawing of a rectangular frame with internal triangular patterns (no text or symbols)

Switching On Your Unit

1. Before connecting the unit to the mains supply, adjust the thermostat control to the desired position. Bear in mind that the higher the number, the lower the temperature. Position 3 is the recommended setting when operating at normal room temperature (between 16^ C and 38^ C). Position 0 turns the unit off.

2. The unit may not operate at the correct temperature if it is in a particularly hot or a particularly cold room, or if you open the door often.

3. To ensure that the unit is cool enough to sufficiently chill your food, wait 24 hours before filling it with food.

4. If you are concerned that your unit is not being kept cold enough and wish to check the temperature, you will need a special fridge/freezer thermometer. These are available from most supermarkets and hardware shops.

Place the thermometer in the centre of the unit, where it can be read easily. Leave overnight, the temperature in the unit should be an average of 5^ C.

Simple line drawing of a folder or folder with a circular base (no text or symbols)

Adjusting the Temperature

The internal temperature of the unit is controlled by a thermostat. The recommended position is between 1 to 4 for colder working environments (i.e. during winter) and between 5 to 7 for hotter environments. Please adjust according to the environment.

Noises Inside the Unit!

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

Tips for Keeping Food in the Unit

• Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf.
• Leave space around your food, to allow air to circulate inside the unit. Ensure all parts of the unit are kept cool.
  • To prevent transfer of flavours and drying out, pack or cover the food separately. Fruit and vegetables do not need to be wrapped.
  • Always let pre-cooked food cool down before you put in the unit. This will help to maintain the internal temperature of the unit.
  • To prevent cold air escaping from the unit, try to limit the number of times you open the door. We recommend that you only open the door when you need to put food in or take food out.

Preparations for Freezing

• Use quality food and handle it as little as possible. Freeze food in small quantities as it freezes faster, takes less time to defrost and enables you to control the quantity you need better.
• Leave cooked food to cool completely. Chill food before freezing if possible.
• Consider how you will want to cook the food before freezing it.
• Don't freeze food in metal containers if you may want to microwave it straight from the freezer.
• Use special freezer bags, freezer film, polythene bags, plastic containers, and aluminium foil (heavy duty grade only). If in doubt, double wrap your food. Don't use aluminium foil for acidic foods, e.g. citrus fruits. Don't use thin cling film, glass, or used food containers without cleaning.

- Exclude as much air from the container as possible. You could buy a special vacuum pump which sucks excessive air out of the packaging.

- Leave a small amount of air space when freezing liquids to allow expansion.

- You can use the space in the freezer most efficiently if you freeze liquids (or solids with liquids, e.g. stew) in square blocks. This is known as "Preforming". Pour the liquid into a polythene bag which is inside a square sided container. Freeze it, and then remove it from the container and seal the bag.

- Label your frozen foods as they will look the same when in frozen state. Use special freezer tapes, labels and pens with different colours. This allows you to easily organise and to effectively use the freezer. Write the contents and date; otherwise the frozen food might exceed the storage time and this could cause food poisoning. Please refer to your food packaging for the recommended storage time.

Line drawing of a hand pouring liquid from a container into a container with a spoon (no text or symbols)

You may also add the weight and cooking notes, e.g. "defrost first", "cook from frozen" and keep a separate log of what is in each drawer. This will save opening the door and searching around unnecessarily.

Defrosting Frozen Food

1. Take the frozen food out from the unit and uncover the frozen food. Let it defrost at room temperature. Don't forget that defrosting in a warm area encourages the growth of bacteria and low temperature cooking may not destroy dangerous bacteria.
2. Drain off and throw away any liquid lost during defrosting.
3. Always make sure there are no ice-crystals in the food before cooking, particularly with meat. These crystals indicate that the food has not fully defrosted.
4. Cook food as soon as possible after defrosting.
5. Many microwaves and ovens have a defrost setting. To avoid bacterial build up, only use these if you intend to cook the food immediately afterwards.

Never re-freeze anything that has been defrosted unless you cook it again, to kill off harmful bacteria. Never re-freeze defrosted shellfish. Re-seal packs properly after removing items. This prevents drying or freezer-burn and a build up of frost on any remaining food.

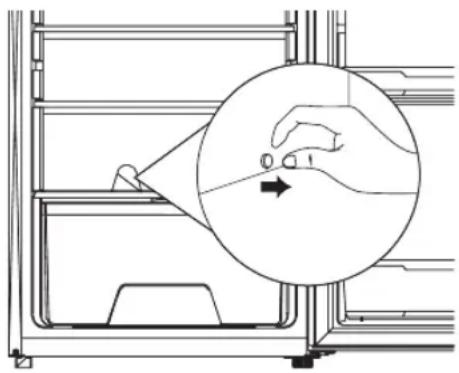

Defrosting

Frost may accumulate on the inner rear surface of the appliance which will automatically defrost during the off cycle of the compressor.

Water is channelled via the drain hole to the collection tray above the compressor where it will evaporate.

Please ensure the drain hole is checked and cleaned on a regular basis so water can exit the storage compartment.

The freezer compartment of this unit is frost-free. With proper use, there should not be any frost accumulated.

Diagram showing a hand pressing down on a device panel with an inset magnified view of the handle (no text or symbols)

However, in case of improper use of the freezer compartment, frost might build up in the freezer compartment after the unit has been used for a period of time. Scrape away the frost using a plastic scraper (not included).

Do not use a metal or sharp instrument to scrape away the frost, nor should you use any electrical appliances to aid defrosting.

We recommend that defrosting should be carried out when the frost layer builds up to 3mm. Choose a time when the stock of frozen food is low, follow these procedures:

1. Take out the food, turn the unit off at the mains supply and leave the door open. Ideally, the frozen food should be put into another freezer. If this is not possible, wrap the food in several sheets of newspaper or large towels and then a thick rug or blanket to keep it cool.
2. Place a dry towel on the edge of the compartment shelf. Scrape away the frost using a plastic scraper. Defrosting the remaining frost can be speeded up by placing a bowl of hot water inside the freezer compartment and closing the door. As the solid frost loosens, scrape it away with the plastic scraper.
3. When defrosting is complete, clean your unit's interior and exterior.

Cleaning the Interior and the Exterior of the Unit

• Remove all the shelves and drawers.
• Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm water using a sponge or cloth. Wipe completely dry before replacing the shelves and drawers.
• Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure that the door is closed to avoid the polish getting on the magnetic door seal or inside the unit.
• The grille of the condenser at the back of the unit and the adjacent components can be vacuumed using a soft brush attachment.

Care When Handling / Moving Your Unit

Hold the unit around its sides or base when moving it.

Servicing

The unit should be serviced by an authorised engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.

Switching Off for Long Periods of Time

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the appliance, leaving the door ajar to prevent unpleasant smells.

Condensation

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified technician for assistance.

Disposal

Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in your unit and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the unit are damaged prior to disposal.

Up to date information concerning options of disposing of your old unit and packaging from the new one can be obtained from your local council office.

When disposing of an old unit break off any old locks or latches and remove the door as a safeguard.

Model LFC152W16
Appliance Category Category 7 (Refrigerator - Freezer)
Overall Dimension (H x W x D) 1520 x 550 x 580 mm
Fresh Food Storage Compartment Volume	129L
Frozen Food Storage Volume	50L ***
Defrosting Type Fridge = Auto Defrost, Freezer = Frost-free
Climate Class ST
This appliance is intended to be used at an ambient temperature between 16°C and 38°C.
Storage Temperature	Freezer: ≤-18°CFridge: 0-8°C, average ≤4°C
Energy Consumption 0.600kWh / 24h
Energy consumption 219 kWh per year, based on standard test results for 24 hours.Actual energy consumption will depend on how the appliance is used and where it is located.
Airborne Acoustical Noise 42dB(A)
Energy Grading A+
Temperature Rise Time 12 hours
Freezing Capacity 2.5kg/24h
Rated Voltage AC 220~240V/50Hz
Rated Current 0.4A

Features and specifications are subject to change without prior notice.

For general information about this appliance

and handy hints and tips, please visit

www.knowhow.com/knowledgebank or call 0344 5611234.

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct

to your door the very next day. Visit www.partmaster.co.uk or call 0344 800 3456 (UK customers only) Calls charged at National Rate.

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.

The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.
