Product Type	Wireless smoke detector (EN 14604)
Dimensions (W x H x D)	119 mm x 51 mm
Weight	165 g
Power Supply	3 V lithium battery (non-replaceable, pre-installed)
Battery Life	Typical >10 years (under normal conditions)
Main Functions	Smoke detection, visual alarm (LED red), audible alarm (>85 dB(A) at 3 m), emergency light (escape route illumination), integration with Bosch Smart Home System, intruder alarm mode with motion sensor/door contact
Mounting Options	Ceiling mount with screws (2 plugs, 2 screws included) or adhesive strip (3M VHB tape included)
Maintenance	Monthly visual inspection and functional test; clean with damp cloth; replace device after 10 years
Safety Certifications	EN 14604, CE, EU Declaration of Conformity
Spare Parts / Reparability	No user-serviceable parts; battery not replaceable; device must be replaced if faulty or after 10 years
Wireless Frequency / Range	868.3 MHz / 869.525 MHz; free-field range >100 m
Maximum Devices Connected	Up to 40 devices in Bosch Smart Home System
Protection Class / Temperature	IP20; ambient +5°C to +55°C
General Information	Requires Bosch Smart Home Controller and App for setup; indoor use only; not compatible with other brands; emergency services not automatically called

Frequently Asked Questions - Smart Home Smoke Detector BOSCH

How do I install the Bosch Smart Home Smoke Detector?

Installation requires a Bosch Smart Home Controller and the Bosch Smart Home App. Start the app, select 'Add device', scan the QR code on the back of the smoke detector, and follow the in-app instructions. You can mount the detector on the ceiling using screws or the included adhesive strip. Ensure the emergency light points toward the escape route.

What should I do if the smoke detector alarms continuously?

If the alarm sounds repeatedly, press the operating button on the triggering device (identified by a red flashing LED) to mute all connected alarms. Smoke detection is then deactivated for 10 minutes. If the alarm persists without smoke, check for dust or a low battery (single beep every 43 seconds with red LED flash). Replace the detector if the battery is low (battery is not replaceable).

How often should I test the smoke detector?

Test the smoke detector monthly by briefly pressing the operating button or using the app. A successful test produces three audible beeps, a red flashing LED, and the emergency light illuminates. After the test, the LED flashes red every 10 seconds for 10 minutes. If these signals do not occur, the device is faulty and should be replaced.

Can I use the smoke detector without a Bosch Smart Home Controller?

No. The Bosch Smart Home Smoke Detector requires a Bosch Smart Home Controller and the Bosch Smart Home App for setup and operation. It cannot function as a standalone device without the controller.

How long does the battery last, and can I replace it?

The built-in lithium battery lasts a typical of >10 years under normal storage and use conditions ( -5°C to +30°C, monthly tests). The battery is not replaceable; the entire smoke detector must be replaced when the battery is depleted or after 10 years of use.

Where is the best location to mount the smoke detector?

Mount the detector on the ceiling in every bedroom, children's room, and hallway serving as an escape route. For maximum protection, also install in living areas, attics, and basements. Avoid locations near direct sunlight, heat/cold sources, or with less than 0.5 m clearance around the detector. Ensure the emergency light points towards the escape route.

What does the emergency light do, and how do I orient it?

The integrated emergency light illuminates the escape route during an alarm. During installation, align the mounting bracket so that the recessed marking for the emergency light (visible on the inside of the bracket) points toward the desired escape direction.

Is the smoke detector compatible with other smart home systems?

No. The smoke detector is designed to work exclusively with the Bosch Smart Home System using the Bosch Smart Home Controller. It cannot be used with other smart home platforms.

How do I clean and maintain the smoke detector?

Perform a monthly visual inspection. Clean the smoke inlet openings along the sides with a damp cloth if clogged by dust or dirt. Do not paint or wallpaper over the device. Check that the mounting bracket is firmly fixed and there is 0.5 m clear space around the detector.

What should I do if the smoke detector is faulty?

If the device fails the functional test or shows any fault (e.g., continuous alarm without smoke, low battery signal), contact Bosch customer service at 00800 8437 6278. The product does not contain user-serviceable parts; do not open it. In case of a fault, the entire smoke detector must be replaced.

USER MANUAL Smart Home Smoke Detector BOSCH

Diagram of a ceiling-mounted device with concentric and radial bands, no text or symbols present

Bosch Smart Home

Smoke detector Instruction manual

BOSCH

Start making your home smart! Set up your product in just three steps

Blue square logo with white house icon and 'BOSCH' text below (no additional symbols or text)

Simple line drawing of a vertical cylindrical object with a horizontal bar, no text or symbols present.

Please ensure that you have a Bosch Smart Home Controller as well as the Bosch Smart Home App, and that you have set both of them up successfully.

▶ StarttheBosch Smart Home App

▶ Select "Add device" ▶ Scan the QR code and follow the instructions

Please be sure to install the Bosch Smart Home Controller first.

You can also watch easy to follow installation videos on our website:www.bosch-smarthome.com/installation

Family moment with a man blowing bubbles and a woman holding a bottle, smiling at the camera (no text or symbols visible)

Dear customer,

Congratulations on purchasing your Bosch Smart Home Smoke Detector. It will help you to make your home even safer and smarter. The Bosch Smart Home Smoke Detector will warn you to potential fires in your home and the integrated light will illuminate the escape route.

The Bosch Smart Home Smoke Detector is quickly and easily integrated into your Bosch Smart Home System, enabling you to receive alarm notifications via the Smart Home App to your smart device. When installed alongside Bosch Smart Home motion sensors and door window contacts the smoke detector doubles as an intruder alarm to warn off unwanted guests.

We hope you enjoy your new product, The Bosch Smart Home team

TABLE OF CONTENTS

1.0 Product description....08
1.1 Intendeduse 09
2.0 Box contents.... 10
3.0 Warning notices .....12
3.1 Explanation of symbols.... 12
3.2 Safety instructions....13

4.0 Indicators and controls .....14
4.1 Product overview 14
5.0 Installation and setup .....16
5.1 Installation.... 17
5.2 Activating the device....18

6.0 Mounting the smoke

detector 20

6.1 Mounting instructions....20
6.2 Fixing with screws....24
6.3 Fixing with adhesive tapes ..... 26
6.4 Functional test 28

7.0 Maintenance instructions .....30

7.1 Visual inspection....30

8.0 Alarm and troubleshooting ....31
8.1 Switching off the alarm....31
8.2 Faults and measures 31

9.0 Product details 32
9.1 Technical data.... 32
9.2 Declaration of conformity ..... 33
9.3 Faults in radio operation......34
9.4 Open-source software....34
9.5 Environmental protection and disposal 36
10.0 Further information....36

1.0 PRODUCT DESCRIPTION 1.1 Intended use

The product is an EN 14604 standard network-enabled wireless smoke detector consisting of:

▶ Built-in audible alarm
- On detection of smoke
- On unauthorized entry (in conjunction with a motion sensor or door/window contact)
▶ Alarm LED
Emergency light
▶ Large operating button
▶ Built-in long-life lithium-ion battery

The product reliably warns you of potential fires in your home. If smoke is detected both a visual and audible alarm is triggered. Where more than one Smoke Detector is connected to your Smart Home System if one alarm is triggered all connected alarms will sound.

The product is intended for indoor use in residential buildings. It should only be used together with original Bosch Smart Home components.

▶ Follow the safety instructions and the directions in this manual and in the Bosch Smart Home App to ensure that the product is set up correctly
▶ Please note the details in the Technical Data section (see p. 32)

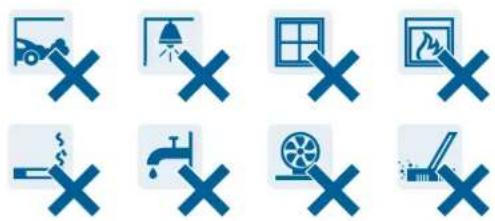

- Avoid installing in areas prone to high amounts of direct sunlight or near to sources of heat or cold

Do not modify the product in any way. Any other use is considered unintended use. We will not assume liability for any resulting damage.

2.0 BOX CONTENTS

Simple 3D diagram of a conical object with horizontal bands, no text or symbols present

Smoke detector

Simple circular diagram with five internal symbols (no text or labels)

Mounting bracket

2 plugs, 2 screws

Adhesive strip (3M™ VHB™ 5915/5925/5930/5952 adhesive tape)

Batteries are supplied pre installed in the smoke detector. Twisting into the mounting bracket switches on the smoke detector.

3.0 WARNING NOTICES

3.1 Explanation of symbols

Warning.

This alerts you to danger.

Info.

Indicates important information.

3.2 Safety instructions

Please do not open the smoke detector. The product does not contain any user replaceable parts. The smoke detector should not be dismantled. Incase of fault, please contact our customer service team on 00800 8437 6278. Please observe the intended use.

The product should only be mounted using the material provided or recommended in this manual. Do not paint or wallpaper over any of the devices. It is recommended that you replace the device after 10 years.

Batteries must not be exposed to excessive heat such as sunlight, fire, etc.

4.0 INDICATORS AND CONTROLS

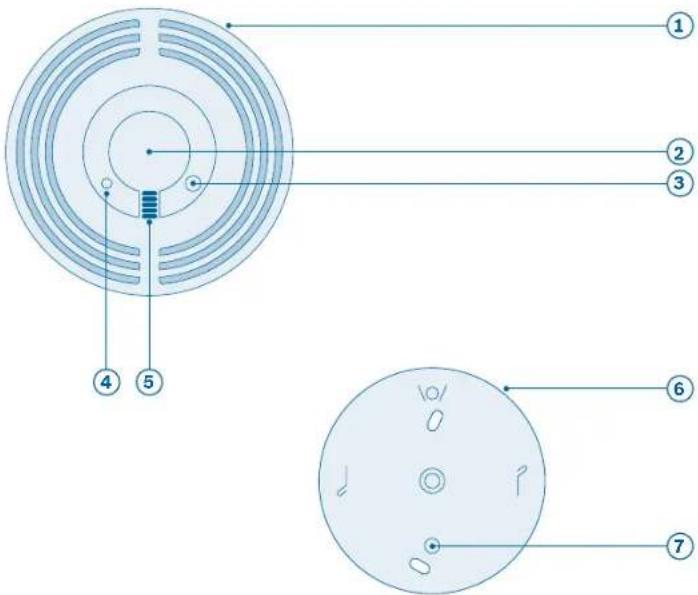

4.1 Product overview

Item Part Explanation
1 Smoke detector -
2 Operating button Accessing and confirming functions
3 Emergency light Illuminates up the escape route
4 Alarm LED		Red Alarm or fault
		Orange Process or update
		Green Standby mode
5 Alarm Audible signal
6	Mounting bracket	-
7	Emergency light marking	Helps during installation to direct the emergency light towards the escape route

5.0 INSTALLATION AND SETUP

Before you start

Please ensure that you have a Bosch Smart Home Controller and the Bosch Smart Home App, and that you have set both of them up successfully.

You can also watch easy to follow installation videos on our website: www.bosch-smarthome.com/installation

5.1 Installation

Start the Bosch Smart Home App and select "Add device".

The app will prompt you to scan the QR code found on the back of the smoke detector.

5.2 Activating the device

The next step in the app is the activation of the smoke detector.

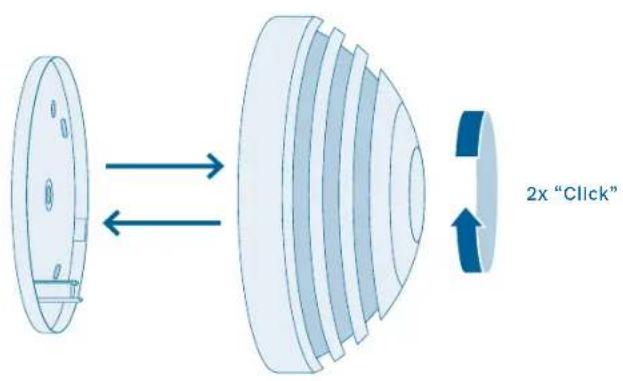

Twist the smoke detector into the mounting bracket.

The Smoke Detector is operational once it is twisted into the mounting bracket. Please note that inadvertently pressing the operating button will trigger a test alarm.

From this point, the app guides you through the installation process. You will find a detailed description in this instruction manual.

6.0 MOUNTING THE SMOKE DETECTOR

6.1 Mounting instructions

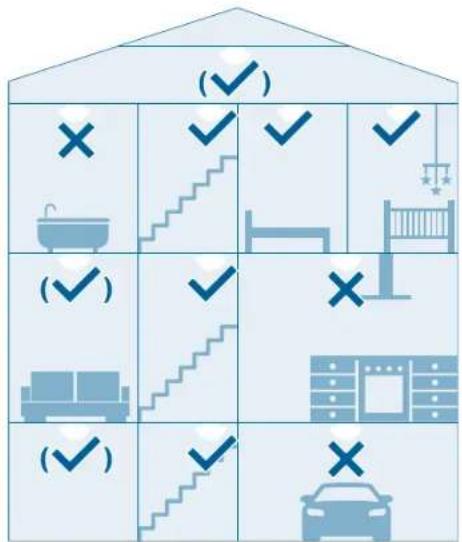

It is best practice to install several smoke detectors in your home to be fully protected. As a minimum we recommend that they are installed in every bedroom, kids room and in all hallways that serve as an escape route. For the maximum effectiveness we recommend that additional smoke detectors should be installed in living areas, attics and basements.

In order to prevent injury, the mounting instructions in this instruction manual must be followed and the general safety regulations observed.

The smoke detector should be mounted on the ceiling, the diagrams above gives guidance on best practice for installation locations.

When choosing a mounting location and when drilling, pay attention to potential electrical cables and/or pipes that could be behind the wall.

The app will guide you through the following mounting steps. You can choose between mounting with either the screws or the adhesive strip.

Ensure you have positioned the emergency light in the desired position.

There is a round recess on the inside of the mounting bracket. This shows the position of the emergency light.

Circular diagram with five symbols and a blue arrow pointing to a small circle (no text or labels)

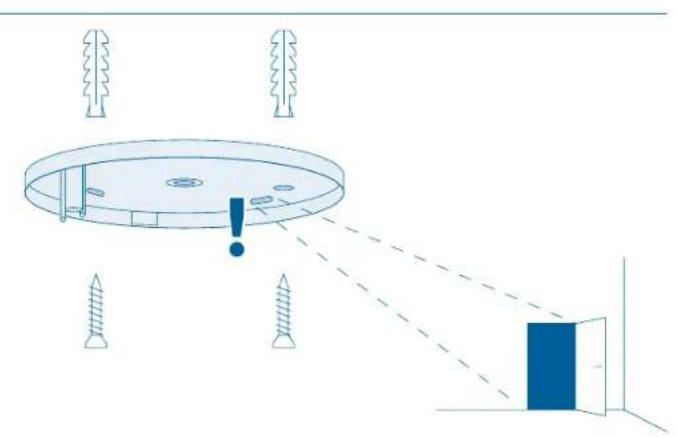

6.2 Fixing with screws

Diagram showing a ceiling-mounted device emitting exhaust rays, with screw and drain components nearby (no text or symbols)

▶ Hold the mounting bracket in the desired position ensuring the emergency light is in the correct orientation

▶ Mark the drill holes

▶ Drill the holes and insert the plugs

▶ Position the mounting bracket and screw in place

Diagram of a ceiling-mounted device with a warning symbol and circular arrow indicating rotation (no text or labels)

2x "Click" Escape route

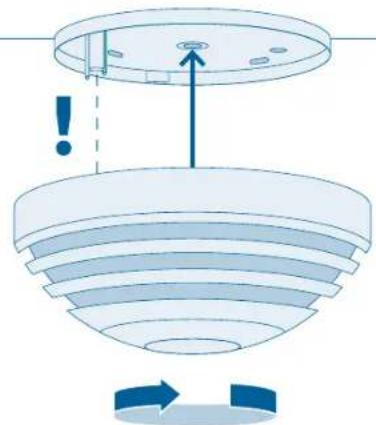

▶ Now twist the smoke detector into the mounting bracket

6.3 Fixing with adhesive tapes

▶ Twist the smoke detector into the mounting bracket

Please note when firmly pressing the smoke detector with the mounting bracket against the ceiling that inadvertently pressing the operating button will trigger a test alarm.

▶ Attach the adhesive strip to the mounting bracket and peel off the second protective film
▶ Make sure the emergency light is pointing towards the escape route
▶ Now press the smoke detector with mounting bracket attached firmly against the ceiling

6.4 Functional test

We recommend that you test your smoke detector immediately following installation and then again every month after.

▶ To do so, briefly press the operating button or start a functional test via the app.

The alarm will sound three times, the alarm LED will flash red and the emergency light will light up. Following a successful test the alarm LED flashes red every 10 seconds for 10 minutes. During this time the product will be muted.

If the signals described do not occur, the product is faulty. If this is the case, replace the product.

After a functional test or switching off the alarm, smoke detection will be deactivated for 10 minutes and the product will be muted.

There must be a functioning wireless network and internet connection in order for warnings to be sent in the event of a potential fire. Robert Bosch Smart Home GmbH is not able to offer a guarantee on the time it will take for this notification to be transmitted.

Please note that the emergency services number stored in the app will not be automatically called if the smoke detector detects smoke. If necessary, you always have to call the emergency services yourself!

You need to ensure that your mobile device is on and connected to a mobile communications network in order for it to receive warnings and notifications from the Smart Home Smoke Detector.

7.0 MAINTENANCE INSTRUCTIONS

We recommend you inspect and test your smoke detector on a monthly basis.

7.1 Visual inspection

The smoke inlet openings along the sides and the sound outlets are not clogged (e.g. by dust, dirt or paint)
▶ If necessary, clean the smoke detector carefully with a damp cloth

▶ Check for any damage and that the bracket is still firmly fixed in place.
▶ Ensure that there is a clear space of 0.5 m around your smoke detector so smoke detection is not hindered (e.g. by furnishing).

8.0 ALARM AND TROUBLESHOOTING

8.1 Switching off the alarm

If you have multiple smoke detectors installed, an alarm can only be muted on the detector that detected the potential fire. This can be identified by the red flashing LED.

▶ Pressing the operating button on the triggering device will silence all other alarms at the same time.

8.2 Faults and measures

Audible signal	Visual signal	Cause	Flx
The alarm sounds once every 43 seconds.	The LED flashes red once every 43 seconds.	The battery level is low.	The battery itself cannot be replaced, the smoke detector should be replaced.

9.0 PRODUCT DETAILS

9.1 Technical data

Classification Wireless smoke detector
Rated voltage 3 V lithium batteries (not replaceable)
Battery life >10 years (typical)
Type of protection IP20
Ambient temperature +5 °C to +55 °C
Storage temperature	-5 °C to +30 °C, 55 °C (for a short term, maximum of 14 days in total)
Radio frequency 868.3 MHz, 869.525 MHz
Wireless free-field range >100 m
Receiver category SRD category 2
Duty cycle	At 868.3 MHz < 1% per hAt 869.525 MHz < 10% per h
Maximum number of connectable devices	40
Volume at a distance of 3 m >85 dB(A)
Casing dimensions (W×H×D) 119 mm × 51 mm
Weight 165 g

10 years based on typical storage temperature (-5 °C to +30 °C), typical battery temperature (-5 °C to +30 °C) and monthly functional test. High temperatures above 30 °C reduce the service life.

9.2 Declaration of conformity

Robert Bosch Smart Home GmbH hereby declares that the Bosch Smart Home Smoke Detector radio communication unit complies with Directive 1999/5/EC and is designed for use in all countries of the European Union.

The declaration of conformity and declaration of performance can be downloaded from www.bosch-smarthome.com

9.3 Faults in radio operation

Faults in radio operation (e.g. due to electric motors or defective electrical devices) cannot be ruled out. The radio range inside buildings may differ greatly from the radio range in free-field conditions. Apart from the

transmission power and the receiver characteristics, environmental influences such as humidity and structural characteristics may also influence radio operation.

9.4 Open-source software

This Bosch Smart Home product uses open-source software. You will find the license information for the components used on the opposite site.

core\_cm3.h

Copyright (C) 2009-2013 ARM Limited. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

▶ Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
▶ Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
▶ Neither the name of ARM nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS „AS IS“ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

9.5 Environmental protection and disposal

Electrical and electronic equipment that is no longer usable or is defective, or used batteries must be separated from other waste and recycled in an environmentally friendly manner (European Directive on Waste Electrical and Electronic Equipment). To dispose of old electrical and electronic equipment or batteries,

use your country-specific return and collection systems. Batteries must not be disposed of with household waste. Used batteries must be disposed of in the local collection systems.

10.0 FURTHER INFORMATION

You can find more detailed information on operating and maintaining the smoke detector in the online FAQs at www.bosch-smarthome.com/faq

You will also find all contact details on the rear side of this document.

Sale and transfer

Before you transfer or sell your device, delete your personal information. To do this, reset the device to its factory settings (see online FAQs).

BeSmarter

INTERCONNECTED SMART HOME PRODUCTS

Save on heating costs, protect your valuables, create mood lighting and much more: Bosch Smart Home offers a complete, Intelligent system to make your life more comfortable, safer and more sustainable.

More at www.bosch-smarthome.com

3D rendered image of two white rectangular objects with rounded ends, one larger and one smaller, against a plain white background (no text or symbols)

Door/Window Contact Motion sensor

White cylindrical object with a small black mark on top, isolated on white background (no text or symbols)

White electronic device with a display screen and control panel, isolated on white background (no visible text or symbols)

Radiator Thermostat

White electrical socket with a metallic port and terminal pin (no text or symbols visible)

Plug

Two people relaxing on a gray sofa in a wooden room, one holding a smartphone (no visible text or symbols)

EN Important information for your Bosch Smart Home!

Robert Bosch Smart Home GmbH declares that this Bosch Smart Home wireless radio equipment is in compliance with the Directive 1999/5/EC (until 12th of June 2017) and Directive 2014/53/EU (from 13th of June 2017). The full text of the EU declaration of conformity is available at the following internet address: www.bosch-smarthome.com/uk/en/EU-declarations-of-conformity

70565 Stuttgart, Germany

00800 8437 6278 (toll-free AT, DE, FR, UK)

[e-mail]

www.bosch-smarthome.com

BOSCH
