Product Type	Medical Panel PC (Monitor)
Model	e-medic Silence TP 6 (fanless) / TP 6S (low noise fan)
Display Size	23.8 inches
Resolution	1920 x 1080 (Full HD)
Brightness	250 cd/m² (typ)
Contrast Ratio	3000:1 (typ)
Viewing Angle	178° horizontal / 178° vertical
Touch Screen	Projected capacitive, 10-finger multi-touch

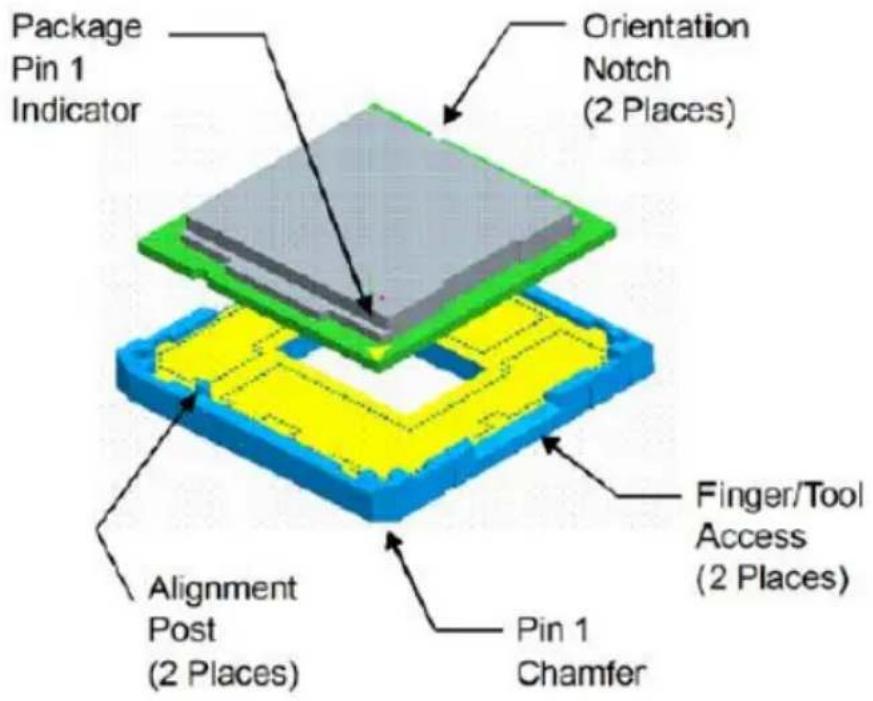

CPU Support	6th gen Intel Core i7/i5/i3 (LGA1151, 35W max)
Memory	Dual Channel DDR4 SO-DIMM, max 32 GB
Storage	2.5" SATA III HDD/SSD (one drive bay)
Expansion Slots	1x Mini-PCIe (supports mSATA), 1x M.2 E-key (WLAN), 1x PCI-E x16 (option)

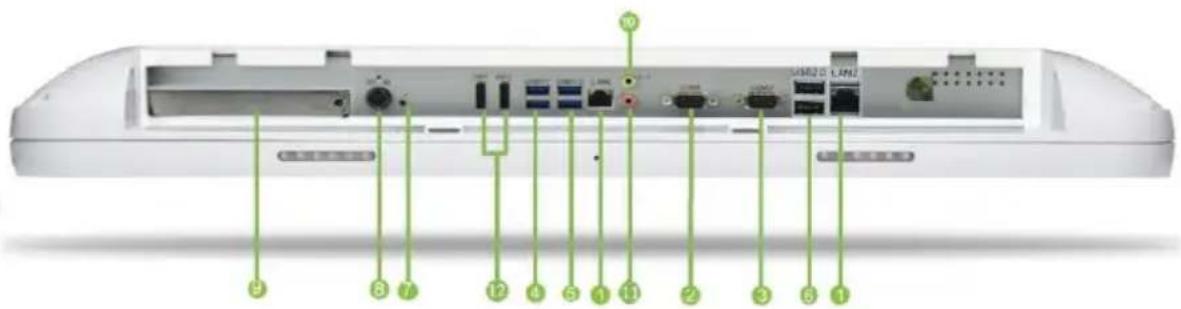

I/O Ports (Standard)	2x USB 3.1 Gen2, 2x USB 3.0, 2x RS232, 1x Gigabit Ethernet, 2x DP output, 1x audio line-out, 1x mic-in, DC-in (with lock)
Dimensions (WxHxD)	606 x 398 x 65.6 mm (23.86 x 15.67 x 2.58 in)
Weight	TP6: 10.80 kg (23.81 lbs), TP6S: 10.83 kg (23.88 lbs) without power adapter
Power Input	100-240 V AC, 2.2-0.9 A, 47-63 Hz via external adapter (Sinpro HPU180A-108)
Power Output	DC 24 V, 7.5 A
Protection Class	Class I (protective earth)
Ingress Protection	IP65 front, IPx1 whole system

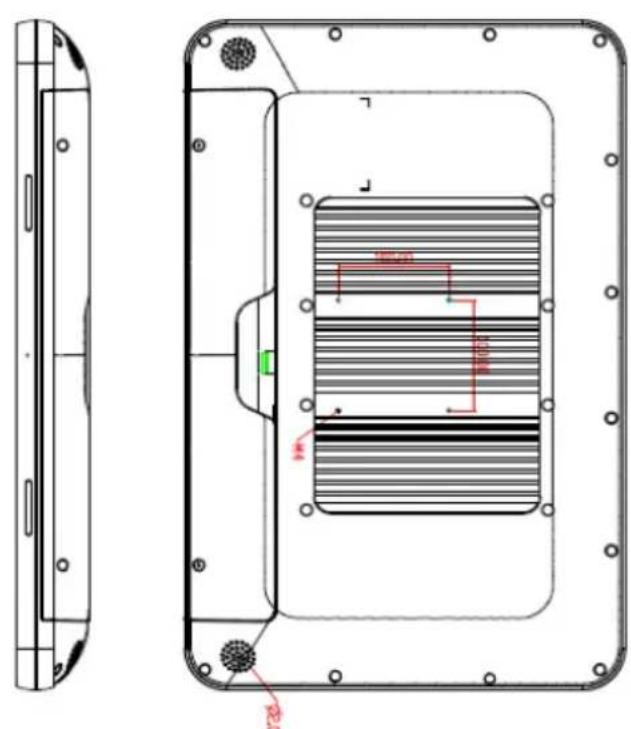

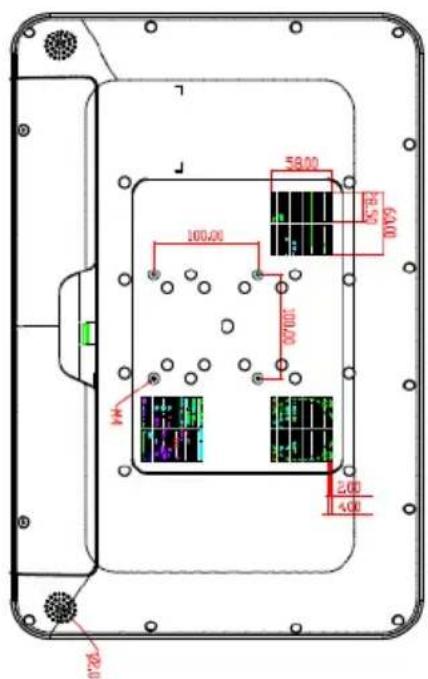

Mounting	VESA 100 x 100 mm
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity (Operating)	10% to 90% non-condensing at 35°C
Medical Standards	ANSI/AAMI ES 60601-1, IEC 60601-1-2, FCC Class B, C-UL-US listed
Intended Use	Hospital environment, diagnostic imaging (Surgical, Radiology, PACS, LIS, EMR)
Cleaning	Dry soft cloth; avoid phenol, strong solvents; no immersion

Frequently Asked Questions - e-medic Silence TP 6 Baaske Medical

How to clean the e-medic Silence TP 6 monitor?

Turn off power and unplug. Use a dry soft cloth. Do not spray cleaning agents directly on the chassis. Avoid disinfectants containing phenol, strong aromatic solvents, or abrasives. Do not immerse or rinse the device. If liquid spills, disconnect power and contact service.

Can I mount the monitor on a wall or arm?

Yes, the monitor supports VESA 100x100 mm mounting. Use only hardware recommended by the manufacturer. Ensure the mounting surface is sturdy and can support the weight (approx. 10.8 kg). Two or more people are recommended for installation.

What power supply is required?

The monitor operates on 100-240 V AC, 47-63 Hz. It uses an external power adapter (Sinpro HPU180A-108) outputting 24 V DC, 7.5 A. Use only the supplied hospital-grade power cord. Connect to a grounded outlet marked 'Hospital Only' or 'Hospital Grade'.

Is the touchscreen compatible with gloves?

The projected capacitive touchscreen supports 10-finger multi-touch. It typically works with thin medical gloves, but performance may vary with thick or non-conductive gloves. For best results, use conductive gloves or a stylus.

What operating systems are supported?

The monitor is compatible with Windows operating systems (e.g., Windows 10/11). It uses Intel 6th gen Core processors and standard x86 architecture. Linux distributions may also be used but driver support may vary.

Can I use this monitor for life-support systems?

No. The e-medic Silence TP 6 is intended for diagnostic and general hospital use, not for life-supporting systems. Critical diagnostic decisions should not be based solely on images displayed by this device.

How to enter BIOS setup?

Press the Del key immediately after powering on. If you miss the prompt, restart the system. The BIOS allows configuration of system settings including boot order, security, and hardware parameters.

What is the difference between TP 6 and TP 6S?

The TP 6 is fanless (silent operation), while the TP 6S includes a low-noise fan. Both have similar specifications. The TP 6S may have slightly different weight (10.83 kg vs 10.80 kg) and thermal characteristics.

How do I clean the screen safely?

Use a dry, soft, lint-free cloth. If needed, lightly dampen the cloth with water or a mild screen cleaner (isopropyl alcohol up to 70%). Do not spray directly on the screen. Avoid ammonia or abrasive cleaners.

What should I do if the monitor does not start?

Check that the power adapter is securely connected to the monitor and a live AC outlet. Verify the power cord is not damaged. Press the power button on the front panel. If still no power, contact qualified service personnel.

USER MANUAL e-medic Silence TP 6 Baaske Medical

Silence TP e-medic

6-1980c

User Manual

e-medic™ Silence TP 6/6S

Medical Panel PC

Version Change History

Date	Version	Description	Remark
2018/8/13	1.0	First release	Cosa

Acknowledgments

• Intel® 6th generation Core i and Celeron are registered trademarks of Intel® Corporation.
• IBM, PC/AT, PS/2 are trademarks of International Business Machines Corporation.
• Microsoft ^® Windows is a registered trademark of Microsoft ^® Corporation.
• RTL is a trademark of Realtek Semi-Conductor Co., Ltd.
  ● C&T is a trademark of Chips and Technologies, Inc.
• UMC is a trademark of United Microelectronics Corporation.
• ITE is a trademark of Integrated Technology Express, Inc.
• PS/2 is a trademark of International Business Machines Corporation.
• Intel is a trademark or registered trademark of Intel Corporation.
• Microsoft Windows is a registered trademark of Microsoft Corporation.
  ● Winbond is a registered trademark of Winbond Electronics Corporation.

All other product names or trademarks are properties of their respective owners.

FCC Class B

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment.

This equipment generates, uses and can radiate radio frequency energy. If not installed and used in accordance with this user manual, it may cause harmful interference to radio communications.

Note that even when this equipment is installed and used in accordance with this user manual, there is still no guarantee that interference will not occur. If this equipment is believed to be causing harmful interference to radio or television reception, this can be determined by turning the equipment on and off. If interference is occurring, the user is encouraged to try to correct the interference by one or more of the following measures:

● Reorient or relocate the receiving antenna
- Increase the separation between the equipment and the receiver
- Connect the equipment to a power outlet on a circuit different from that to which the receiver is connected
- Consult the dealer or an experienced radio/TV technician for help

Warning:

Any changes or modifications made to the equipment which are not expressly approved by the relevant standards authority could void your authority to operate the equipment.

To avoid risk of electric shock, this equipment must only be connected to a supply mains with protective earth.

Do not modify this equipment without authorization of the manufacturer.

Safety Instructions

Intended use

The E-MEDICTM SILENCE TP 6S / 6 is intended to serve as a medical monitor which is designed for general purpose for hospital environment and for diagnosis. It could be used for Surgical, Radiology, PACS (Picture Archiving Communication Systems), LIS (Lab Information Systems) and Electronic Medical Record purpose. It shall not be used for life-supporting system. WARNING: Critical diagnostic decision must not be based solely on images displayed by this device

Intended User profile

The equipment is intended for infant or adults by profession Health care professionals.

Greeting & Setup

Thank you for purchasing the E-MEDIC™ SILENCE TP 6S / 6 unit. We wish that this unit will be durable and reliable in providing your medical application needs. Please follow the instructions below to ensure the unit continues to have high performance.

Unpacking

After opening the carton, there will be a medical panel PC unit with an accessory box. Examine the contents to see if there are damages to the unit and if all accessories are present.

Setting up

Please read this manual carefully and remember to keep this manual for future reference.

Safety Instructions & Cleaning

The unit has undergone various tests in order to comply with safety standards. Inappropriate use of the open frame unit may be dangerous. Please remember to follow the instructions below to insure your safety during the installation and operating process.

Transporting & Placement of unit

1. When moving the unit on a cart; be very cautious. Quick stops, excessive forces and uneven surfaces may cause

the cart to overturn thus risking the unit to fall to the ground.

1. If the medical panel PC unit does fall to the ground, immediately turn the power off and disconnect cords. Then contact a service technician for repairs. Continual use of the unit may result cause a fire or electric shock. Also, do not repair the unit on your own.

2. Having two or more people transporting the display unit is recommended. In addition, when installing the unit by suspending it also requires two or more people.

3. Before suspending the unit, make sure the material used for suspension is sturdy and stable. If not properly suspended, the display unit may fall and cause serious injury to people standing nearby as well as to the unit itself.

4. If you wish to mount the display unit, remember to use only the mounting hardware recommended by the manufacturer.

Electrical and Power Source Related

1. This medical panel PC unit must operate on a power source as shown on the specification label. If you are not sure what type of power supply used in the area, consult your dealer or local power supplier.

2. The power cords must not be damaged. Applied pressure, added heat, and tugging may damage the power cord.

3. The power cord must be routed properly when setup takes place. We advise that this aspect measure is to prevent people from stepping on the cords or while the unit is suspended to prevent flying objects from getting tangled with the unit.

4. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible.

5. Do not overload the AC outlets or extension cords. Electrical shocks or fires may occur from overloading.

6. Do not touch the power source during a thunderstorm.

7. If your hands are wet, do not touch the plug.

8. Use your thumb and index finger, grip firmly on the power cord to disconnect from the electrical socket. By pulling the power cord, may result in damaging it.

9. If the unit is not going to be in use for an extended period of time, remember to disconnect the unit.

10. The medical panel PC unit uses voltage between 100-240VAC. Connect the unit to a power source with the same numerical value as shown. Please use only the power cord provided by the dealer to ensure safety and EMC compliance.

Various Factors of Environment

1. Do not insert objects into the openings.

2. Do not have liquids seep into the internal areas of the medical panel PC unit.

3. Having liquids seep in or inserting objects into the unit may result in electric shocks from taking and/or short circuiting the internal parts.

4. Do not place the medical panel PC unit in the presence of high moisture areas.

5. Do not install the medical panel PC unit in a wet environment.

6. Do not place near unit near heat generating sources.

7. Do not place the unit in a location where it will come in contact with fumes or steam.

8. Remember to keep the medical panel PC unit away from the presence of dust.

9. If water has flow in or seep in, immediately disconnect the open frame unit. Then contact a service technician for repairs.

Ventilation Spacing

1. Do not cover or block the openings on the top and back sides of the display unit. Inadequate ventilation may cause overheating thus reducing the lifespan of the unit.

2. Unless proper ventilation is present, do not place unit in an enclosed area; such as a built-in shelf. Keep a minimum distance of 10 cm between the display unit and wall.

Operating principle

■ A Medical Panel PC has four main components: the arithmetic logic unit (ALU), the control unit, the memory, and the input and output devices (collectively termed I/O). These parts are interconnected by buses, often made of groups of wires.
■ The control unit, ALU, and registers are collectively known as a central processing unit (CPU).
■ Inside each of these parts are thousands to trillions of small electrical circuits which can be turned off or on by means of an electronic switch. Each circuit represents a bit (binary digit) of information so that when the circuit is on it represents a "1", and when off it represents a "0" (in positive logic representation). The circuits are arranged in logic gates so that one or more of the circuits may control the state of one or more of the other circuits.

Cleaning the unit

1. Remember to turn off the power source and to unplug the cord from the outlet before cleaning the unit.
2. Carefully dismount the unit or bring the unit down from suspension to clean.
3. Please use a dry soft cloth to clean the unit.
4. Take a dry cloth and wipe the unit dry. Remember to avoid having liquids seep into the internal components and areas of the medical panel PC unit.

Error message / Troubleshooting

No power

1. Connect the AC adapter to the computer, and then plug it into an AC outlet.2. Turn on the computer.

Servicing, Repairing, Maintenance & Safety Checks

1. If the unit is not functioning properly, observe the performance level of the display closely to determine what type of servicing is needed.
2. Do not attempt to repair the medical panel PC unit on your own. Disassembling the cover exposes users' to high voltages and other dangerous conditions. Notify and request a qualified service technician for servicing the unit.
3. To avoid risk of electric shock, this equipment must only be connected to a supply mains with protective earth.
4. If any of the following situations occur turn the power source off and unplug the unit. Then contact a qualified service technician.

(a) A liquid was spilled on the unit or objects have fallen into the unit.
(b) The unit is soaked with liquids.
(c) The unit is dropped or damaged.
(d) If smoke or strange odor is flowing out of the operating unit.
(e) If the power cord or plug is damaged.
(f) When the functions of the unit are dysfunctional.

1. When replacement parts are needed for the medical panel PC unit, make sure service technicians use replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. If unauthorized parts are used it may result in starting a fire, electrical shock and/or other dangers.

	ISO 7000-0434 : Caution, consult ACCOMPANYING DOCUMENTS.
	ISO 7000-1641 : Follow operating instructions or Consult instructions for use.
	IEC 60417 -5009 : STAND-BY.
	IEC 60417-5031 : Direct current.
	EU-wide legislation, as implemented in each Member State, requires that waste electrical and electronic products carrying the mark (left) must be disposed of separately from normal household waste. This includes monitors and electrical accessories, such as signal cables or power cords. When you need to dispose of your display products, please follow the guidance of your local authority, or ask the shop where you purchased the product, or if applicable, follow any agreements made between yourself.The mark on electrical and electronic products only applies to the current European Union Member States.

When networking with electrical devices, the operator is responsible for ensuring that the resulting system meets the requirements set forth by the following standards:

- EN 60601-1 (IEC 60601-1)

Medical electrical equipment

Part 1: General requirements for safety

- EN 60601-1-1 (IEC 60601-1-1)

Medical electrical equipment

Part 1-1: General requirements for safety

Collateral standard: Safety requirements for

Medical electrical systems

- EN 60601-1-2 (IEC 60601-1-2)

Medical electrical equipment

Part 1-2: General requirements for safety

Collateral standard: Electromagnetic compatibility;

Requirements and tests

Accessory equipment connected to the analog and digital interfaces must be in

CLASSIFIED CUL® US

5AW4

E355176

MEDICAL - GENERAL MEDICAL EQUIPMENT AS TO ELECTRICAL SHOCK, FIRE AND MECHANICAL HAZARDS ONLY IN ACCORDANCE WITH ANSI/AAMI ES 60601-1 (2005) + AMD (2012), CAN/CSA-C22.2 No. 60601-1 (2008) + (2014)

compliance with the respective nationally harmonized IEC standards (i.e. IEC 60950 for data processing equipment, IEC 60065 for video equipment, IEC 61010-1 for laboratory equipment, and IEC 60601-1 for medical equipment.) Furthermore all configurations shall comply with the system standard IEC 60601-1-1. Everybody who connects additional equipment to the signal input part or signal output part configures a medical system, and is therefore, responsible that the system complies with the requirements of the system standard IEC 60601-1-1. The unit is for exclusive interconnection with IEC 60601-1 certified equipment in the patient environment and IEC 60XXX certified equipment outside of the patient environment. If in doubt, consult the technical services department or your local representative.

Caution:

DO NOT LEAVE THIS EQUIPMENT IN AN UNCONTROLLED ENVIRONMENT WHERE THE STORAGE TEMPERATURE IS BELOW -20°C (-4°F) OR ABOVE 60°C (140°F). THIS MAY DAMAGE THE EQUIPMENT.

This equipment shall not be used in life support systems.

The user is not to touch SIP/SOPs and the patient at the same time.

Caution – Use suitable mounting apparatus to avoid risk of injury.

The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70dB (A).

A) Grounding reliability can only be achieved when the equipment is connected to an equivalent receptacle marked "Hospital Only" or "Hospital Grade".
B) Use a power cord that matches the voltage of the power outlet, which has been approved and complies with the safety standard of your particular country.

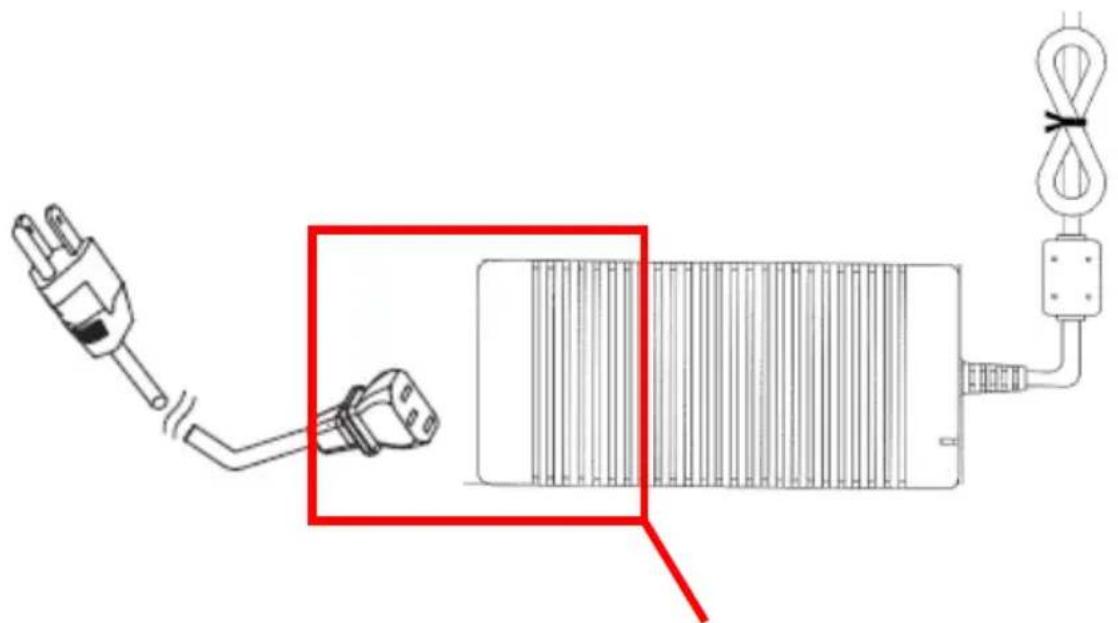

C) Caution: This adapter Sinpro HPU180A-108 is a forming part of the medical device

Contact informaon:

FCC Class B .... iii

Safety Instructions......iv

Introduction......1

Product Description....1

Package list....2

Features....3

Specifications....4

Guidance and manufacturer's declaration – electromagnetic emissions 7

Guidance and manufacturer's declaration – electromagnetic immunity......8

Immunity 10

Cleaning/Disinfecting....11

Getting Started....11

System Set Up....11

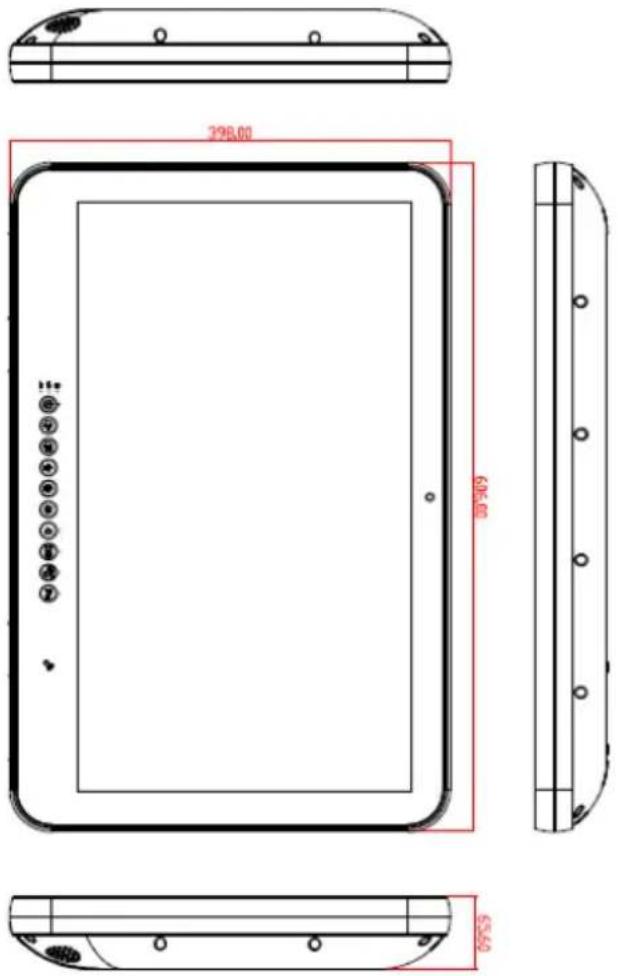

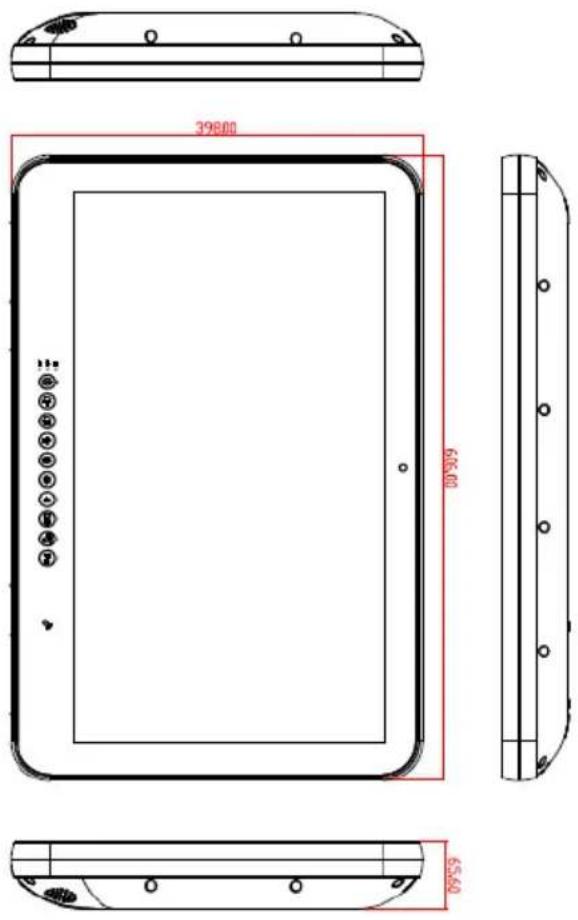

Dimension....13

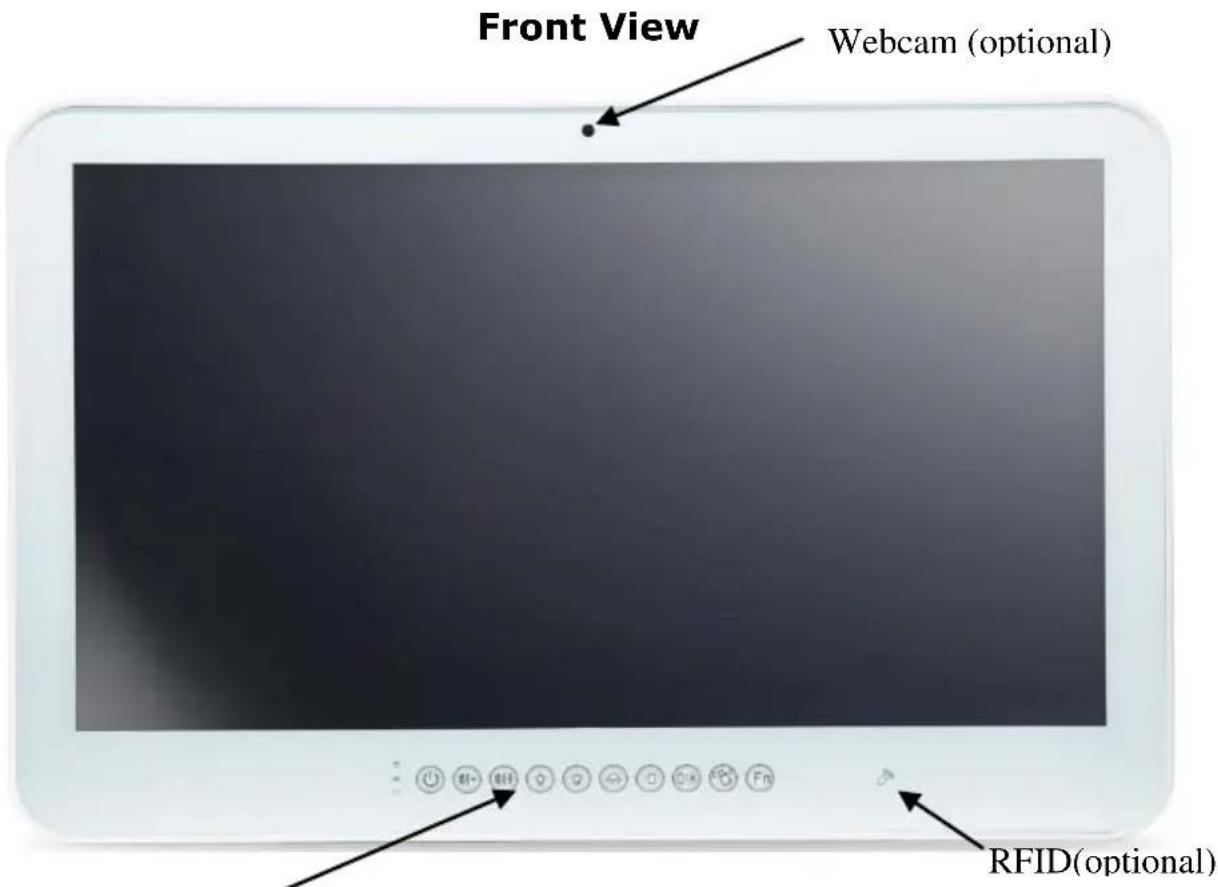

System View 15

Disconnect Device....20

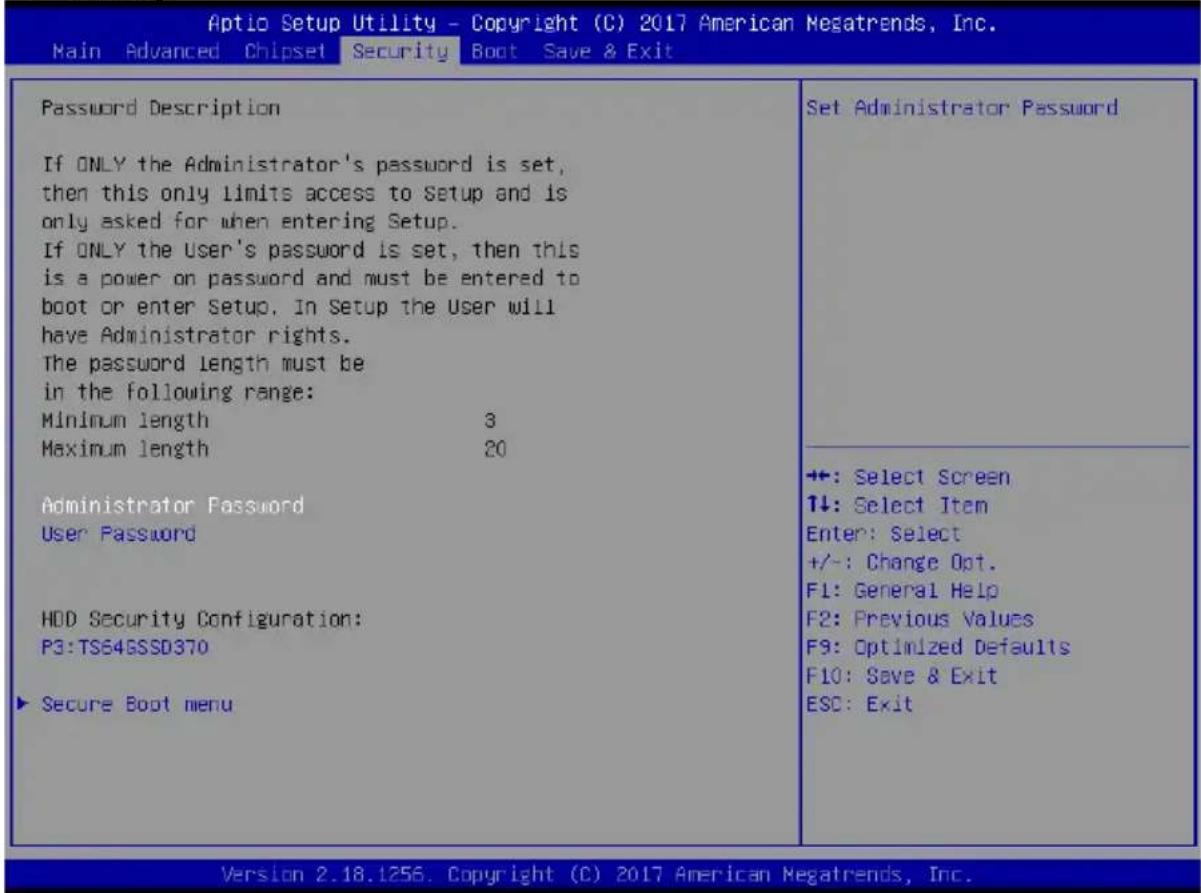

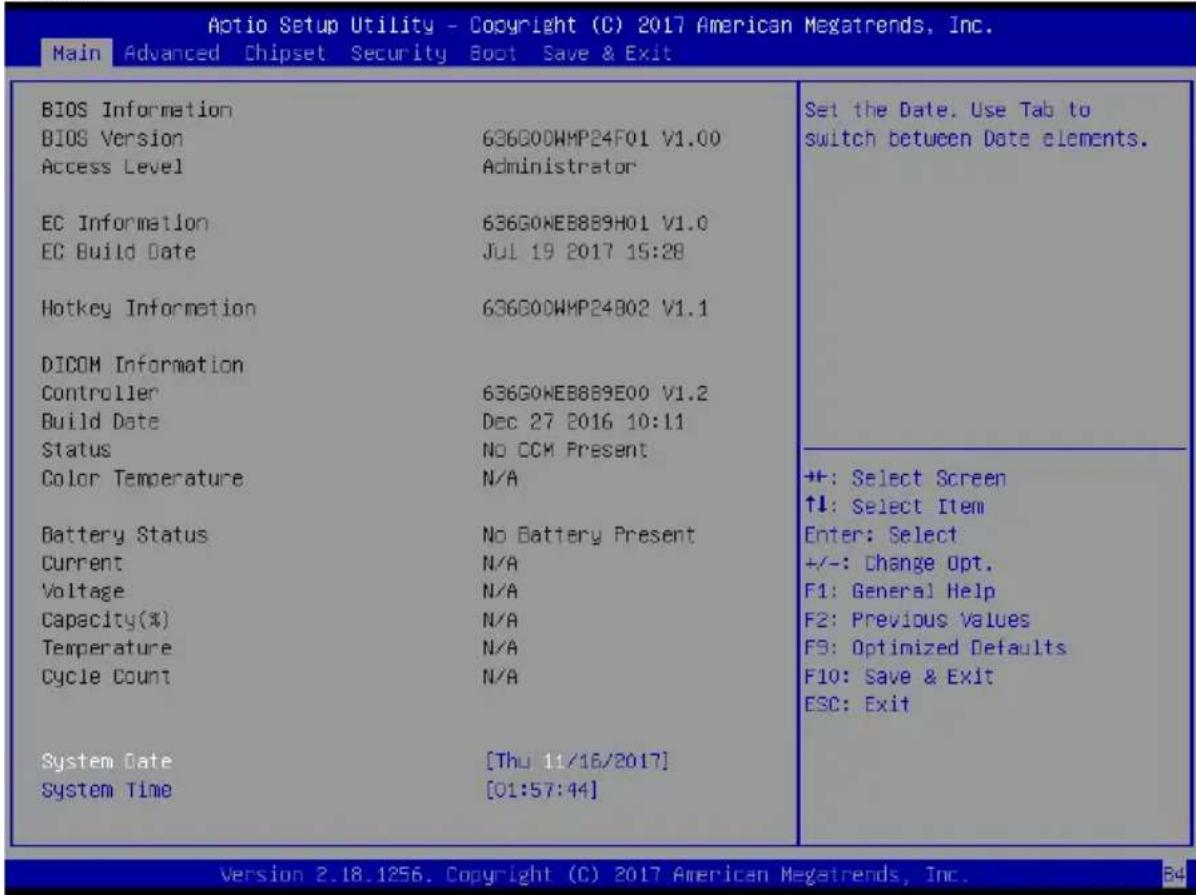

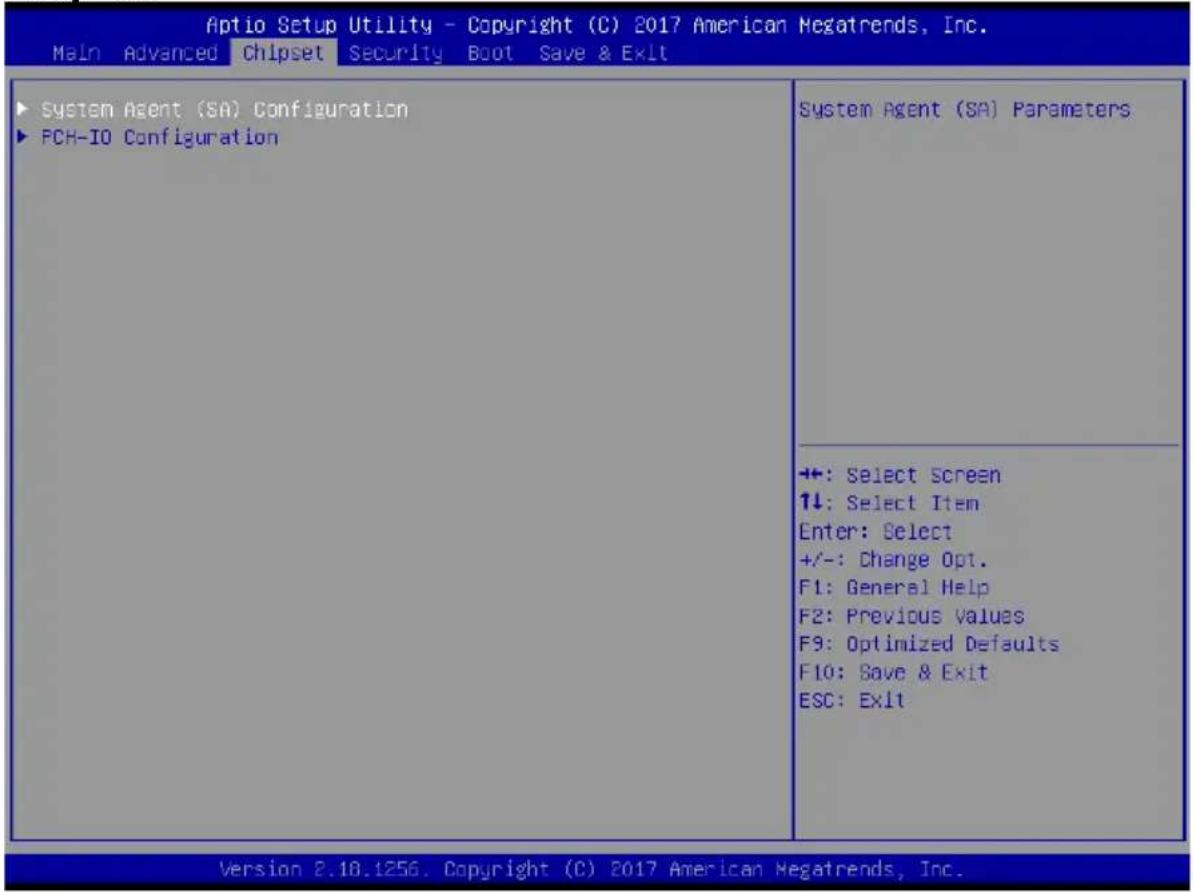

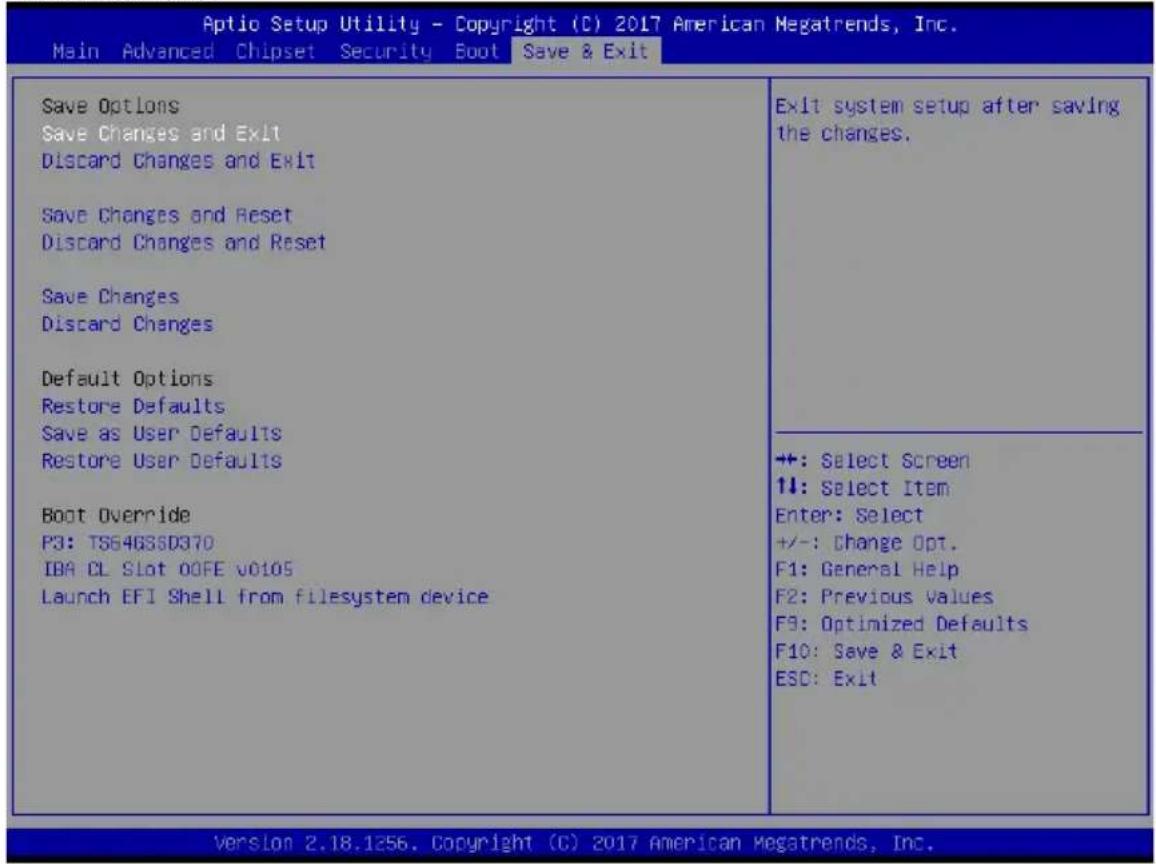

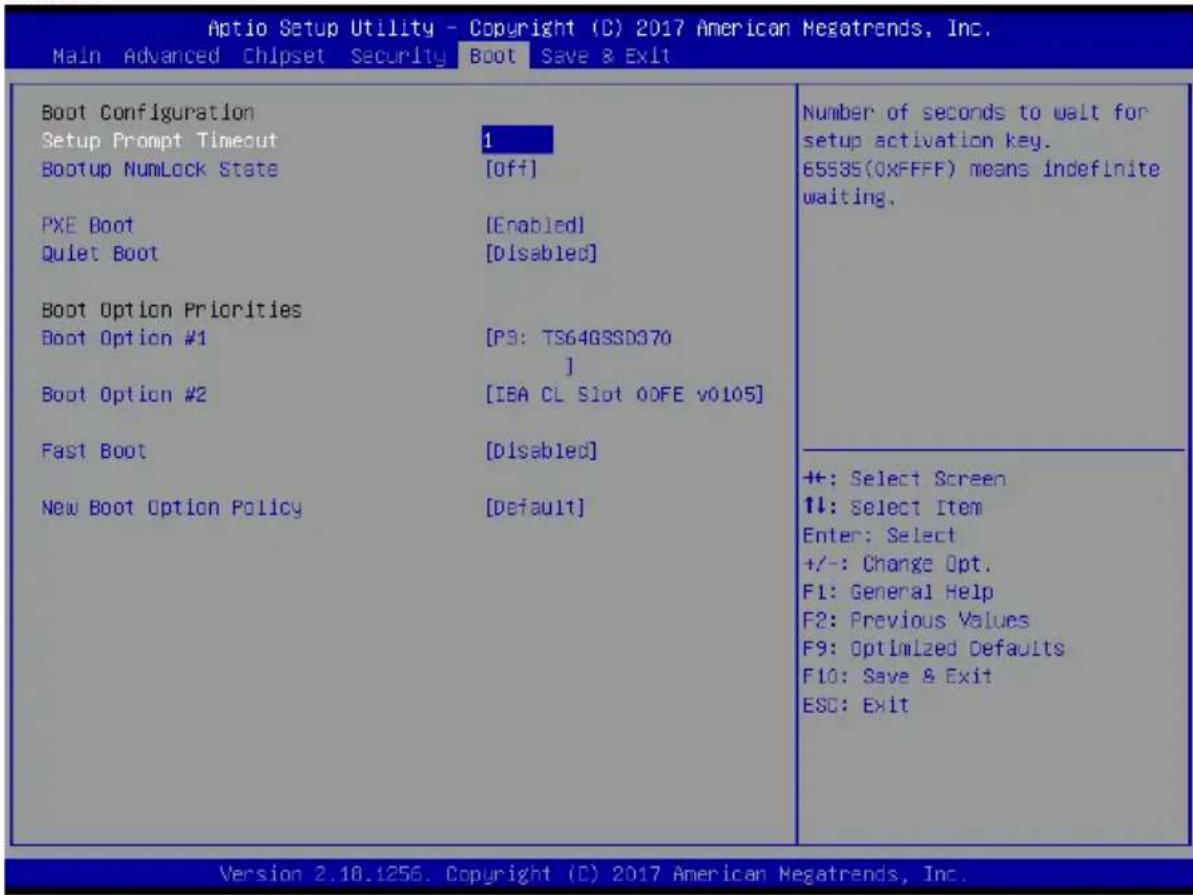

BIOS Setup....21

Appendix 37

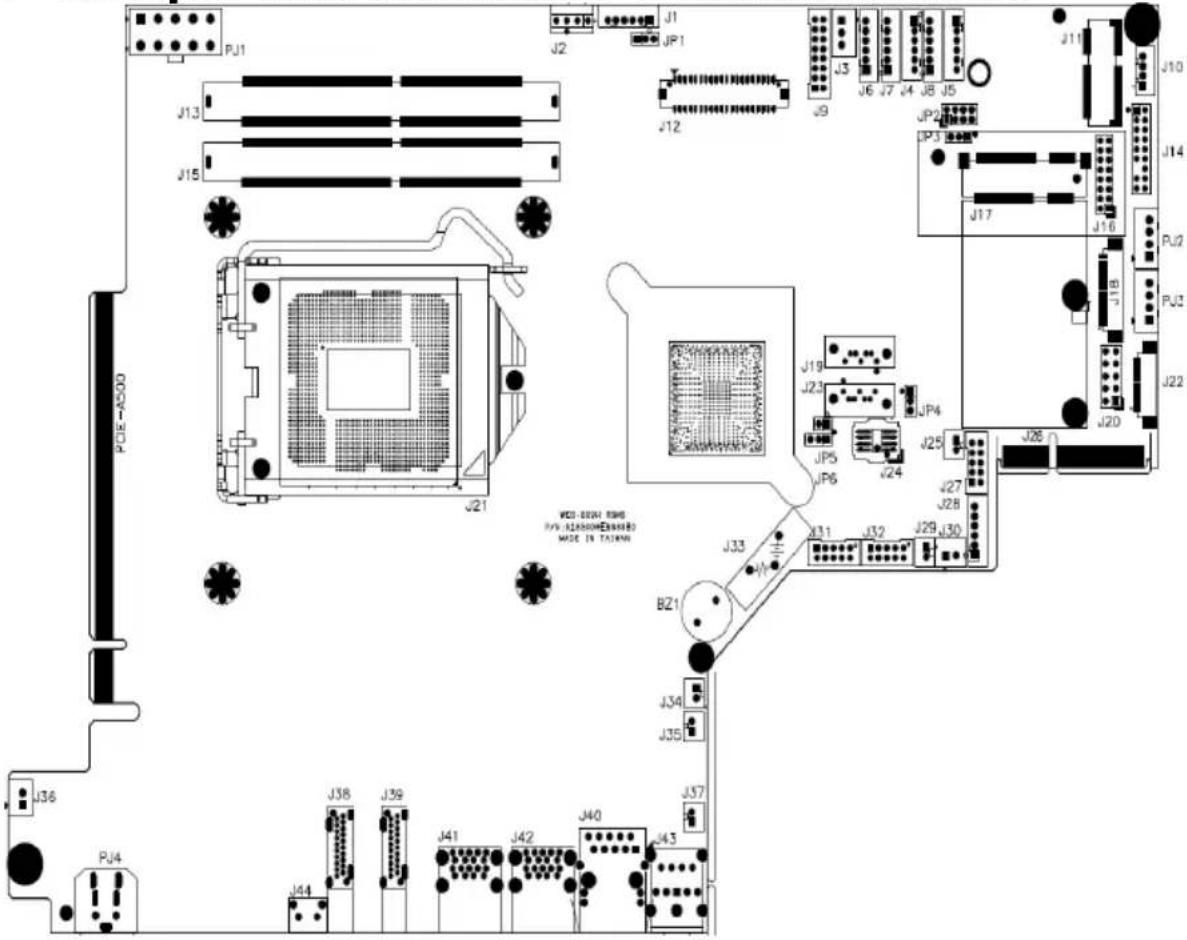

A. Jumper settings and Connectors....37

B. L type Stand (optional kit)....57

C. Battery Pack Specifications (optional kit)....58

D. Scrap Computer Recycling ....59

Introduction Product Description

The E-MEDICTM SILENCE TP 6S / 6 Medical Panel PC are based on Intel 6th generation Core i processor which can deliver faster graphic with higher CPU performance. It accommodates two SATA III devices and up to 32GB DDR4 SODIMM.

The high brightness LCD, Low noise (E-MEDICTM SILENCE TP 6S) / Fanless (E-MEDIC TM SILENCE TP 6) solution, integrated multimedia functions and extensive expansion options make them the perfect platform upon which to build comprehensive lifestyle computing applications.

The E-MEDICTM SILENCE TP 6S / 6 includes all the features of a powerful computer into a slim and attractive chassis. The E-MEDICTM SILENCE TP 6S / 6 has a 23.8" high brightness TFT display with 1920 x 1080 resolutions.

The E-MEDIC™ SILENCE TP 6S / 6 is compact, Giga LAN and selectable WLAN network compatible PC with full safety and medical approval and features to control a dedicated system with a wide variety of applications. Combining the E-MEDIC™ SILENCE TP 6S / 6 into your system can achieve both cost-saving and efficient improvements.

Common applications include Surgical, Radiology, PACS (Picture Archiving Communication Systems), LIS (Lab Information Systems) and Electronic Medical Record. The E-MEDIC ^TM SILENCE TP 6S / 6 are definitely your perfect choices.

Before you begin installing your Medical Station, please make sure that the following items have been shipped:

• The E-MEDICTM SILENCE TP 6S or E-MEDICTM SILENCE TP 6 Medical Panel PC unit
• User manual, chipset drivers
• Power Adapter x 1 (Mf: Sinpro, type/model: HPU180A-108)
• Power cord – Hospital grade used(US type), or other type in UK, EU...etc.

• Screw x 4 (VESA 100 use)

• Anti-bacteria (MRSA) plastic housing
  ● 23.8" full HD (1920X1080), MVA, Diagnostic Panel
  ● High performance 6th generation intel Core i CPU (S series)
  ● Supports Dual Channel DDR4 SO-DIMM, Max. 32GB
  ● Projective Capacitive Multi-touch screen (10 fingers)

• Easy wipe surfaces with no internal corners
• IP65 at front side, IPx1 for whole system
• Fanless solution
  ● High speed USB3.1 gen II
• One mini-PCIe expansion, support mSATA
  ● One M.2 E type support WLAN solution
• HDD Anti-vibration mechanism
  ● Supports PCI-E x 16 (option)
• USB/LAN/COM isolated module by different configuration
• Optional DVD-RW or Smart card reader by different configuration
• Optional WLAN/Bluetooth module with inner antenna, mSATA card, battery pack, Auto focus 5M pixel camera, desktop stand and project with RFID solution

Hardware Specifications

Display	23.8" 250 nits Full HD TFT LCD
CPU Support	E-MEDICTM SILENCE TP 6SLGA1151 for 6th generation Intel® mobile Core i7/i5/i3 processor (35W max.)E-MEDICTM SILENCE TP 6LGA1151 for 6th generation Intel® mobile Core i7/i5/i3 processor
Disk Drive Space	2.5" Hard Disk Drive (SATA III)
Expansion	One Mini PCIe slotOne M.2 Type E slotOne PCI-E expansion slot
Button	Power // Audio adjustment (+)(-) // brightness (+)(-)// Reading Light // Video input selection // LCD on/off // Clean me(auto release after 1 minute) // Fn
I/O	Standard versionUSB 3.1 gen II x 2, USB 3.0 x 2RS232 x 2RJ-45 x 1 (Gigabit Ethernet)3.5mm phone jack connector * 2 (Line-out, and Mic-in)DP video output x 2Reset x 1DC-in Jack x 1(with lock function)Two 5W speaker on back sideExpansion I/O versionUSB 3.1 gen II x 2, USB 3.0 x 2, USB 2.0 x 2RS232 x 1, RS232/RS422/RS485 x 1 (RS-485 auto flow support)RJ-45 x 2 (Gigabit Ethernet)3.5mm phone jack connector * 2 (Line-out, and Mic-in)DP video output x 2Reset x 1DC-in Jack x 1(with lock function)Two 5W speaker on back sideIsolated versionUSB 3.1 gen II x 2, USB 3.0 x 2RJ-45 x 1 (Gigabit Ethernet)3.5mm phone jack connector * 2 (Line-out, and Mic-in)DP video output x 2Reset x 1DC-in Jack x 1(with lock function)Two 5W speaker on back sideIsolation:4KV isolated RS-232 x 1, RS-232/422/485 x 14KV isolated USB 2.0 x 1 (Full speed)4KV isolated Lan x 1 (Gigabit)(The isolated ports verified through Dielectric test 4000Vac only)

LCD Specifications

Display Type	23.8" LED backlight LCD
Max. Resolution	1920 x 1080 (Full HD)
Contrast Ratio	3000 : 1 (Typ)
Pixel Pitch (um)	274.5 (per one triad) × 274.5
Luminance (cd/m2)	250 (TYP)
Viewing Angle	178°(H)
	178°(V)
Operating Temperature	0°C~ 40°C (32°F~104°F)
Brightness Control	Yes

Cautions:

Continuous displaying fixed pattern may induce image sticking. It's recommended to use screen saver or moving content periodically if fixed pattern is displayed on the screen.

Power Adapter Specifications

Power	Close-frame
MFR	Sinpro
Type	HPU180A-108
Input Rating	AC 100 ~ 240 V, 2.2-0.9A @ 47 ~ 63 Hz
Output Rating	DC 24V, 7.5A
MTBF	100,000 hrs operation at 25°C
Classification	Power by Class I certified power adapter.No applied part.
Mode of operation	Continuous operation
System input rating	DC 24V, 7A

Mechanical Specifications

Architecture	Close-frame
Front Bezel	PCT touch
Color	Medical-white
Mounting / Holder	VESA 100mm
Construction	3mm ABS + PC TYPE Plastic housing
Dimension (WxHxD)	606 x 398 x 65.6 mm
Net Weight	E-MEDICTM SILENCE TP 6S: 10.83kg (w/o power adapter)E-MEDICTM SILENCE TP 6: 10.80kg (w/o power adapter)
Packing Filler	PE

Environmental Specifications

Temperature	Operating:0°C to 35°C (32°F ~95°F) with Sinpro Adapter Storage, Transportation: -20°C to 60°C (-4°F ~140°F)
Humidity	Operating:10% to 90%@ 35°C, non-condensingStorage, Transportation:10% to 90%, non-condensing
Vibration	Operating: 15g/0.53 oz, 11 ms, half sine waveNon-operating: 50g/1.76 oz, 11 ms, half sine wave
Shock	Operating: 5 ~ 17 Hz ,Amplitude : 0.117 ~ 500Hz ,Acceleration : 1.0GNon-operating:10~55Hz/0.15g, 55~500Hz/2.0g
Altitudes	Operational: up to 3000 m (9842 feet)Shipping: up to 12192 m (40000 feet)
Pressure	700 – 1060 hPa (Operation)186 – 1060 hPa (Storage)186 – 1060 hPa (Transportation)

Touch Screen

P.cap touch (10 fingers)

Type	Full flat projective capacitive touch panel
Interface	Controller with USB interface, 5V
Resolution	100ppi to 25ppi Based WIN7 definition ppi(Pixel per inch)
Light Transmission	90% ± 3%
Life Time	100M times

Guidance and manufacturer's declaration – electromagnetic emissions
The model E-MEDICTM SILENCE TP 6S / 6 is intended for use in the electromagnetic environment specified below. The customer or the user of the model E-MEDICTM SILENCE TP 6S / 6 should assure that it is used in such an environment.
Emissions test	Compliance	Electromagnetic environment – guidance
RF emissionsCISPR 11		The model E-MEDICTM SILENCE TP 6S / 6 uses RF energy only for its internal function. Therefore, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment.
RF emissionsCISPR 11		The model E-MEDICTM SILENCE TP 6S / 6 is suitable for use in all establishments, including domestic establishments and those directly connected to the public low-voltage power supply network that supplies buildings used for domestic purposes.
Harmonic emissionsIEC 61000-3-2
Voltage fluctuations/flicker emissionsIEC 61000-3-3
Recommended separation distances between portable and mobile RF communications equipment and the model E-MEDICTM SILENCE TP 6S / 6
The model E-MEDICTM SILENCE TP 6S / 6 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the model E-MEDICTM SILENCE TP 6S / 6 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the model E-MEDICTM SILENCE TP 6S / 6 as recommended below, according to the maximum output power of the communications equipment.

Rated maximum output power of transmitterW	Separation distance according to frequency of transmitterm
	150 kHz to 80 MHz d = 1,2	80 MHz to 800 MHz d = 1,2	800 MHz to 2.7 GHz d = 2,3
0,01	0,12	0,12	0,23
0,1	0,38	0,38	0,73
1	1,2	1,2	2,3
10	3,8	3,8	7,3
100	12	12	23
For transmitters rated at a maximum output power not listed above, the recommended separation distanced in meters (m) can be estimated using the equation applicable to the frequency of the transmitter, where F is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.NOTE 2 These guidelines may not apply in all situations.Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.

Guidance and manufacturer's declaration – electromagnetic immunity
The model E-MEDICTM SILENCE TP 6S / 6 is intended for use in the electromagnetic environment specified below. The customer or the user of the model E-MEDICTM SILENCE TP 6S / 6 should assure that it is used in such an environment.
Immunity test	IEC 60601 test level	Compliance level	Electromagnetic environment – guidance
Electrostatic discharge (ESD) IEC 61000-4-2	±8 kV contact ±15 kV air	±8 kV contact ±15 kV air	Floors should be wood, concrete or ceramic tile. If floors are covered with synthetic material, the relative humidity should be at least 30%.
Electrical fast	±2 kV for	±2 kV for	Mains power quality
transient/burstIEC 61000-4-4	powersupply lines±1 kV for input/output lines	powersupply lines±1 kV for input/output lines	should be that of a typical commercial or hospital environment.
SurgeIEC 61000-4-5	±1 kV line(s) to line(s)±2 kV line(s) to earth	±1 kV line(s) to line(s)±2 kV line(s) to earth	Mains power quality should be that of a typical commercial or hospital environment.
interruptions and voltage variations on power supply input linesIEC 61000-4-11	0% UT(100 % dip in UT)for 0.5 cycle0 % UT(100 % dip in UT)for 1 cycles70 % UT(30 % dip in UT)for 25 cycles0 % UT(100 % dip in UT)for 250 cycles	0 % UT(100 % dip in UT)for 0.5 cycle0 % UT(100 % dip in UT)for 1 cycles70 % UT(30 % dip in UT)for 25 cycles0 % UT(100 % dip in UT)for 250 cycles	Mains power quality should be that of a typical commercial or hospital environment. If the user of the model E-MEDICTMSILENCE TP 6S / 6 requires continued operation during power mains interruptions, it is recommended that the model E-MEDICTMSILENCE TP 6S / 6 be powered from an uninterruptible power supply or a battery.
Power frequency (50/60 Hz)magnetic fieldIEC 61000-4-8	30 A/m	30 A/m	Power frequency magnetic fields should be at levels characteristic of a typical location in a typical commercial or hospital environment.
NOTE UT is the a.c. mains voltage prior to application of the test level.
Guidance and manufacturer's declaration - electromagnetic immunity
The model E-MEDICTM SILENCE TP 6S / 6 is intended for use in the electromagnetic environment specified below. The customer or the user of the model E-MEDICTM SILENCE TP 6S / 6 should assure that it is used in such an environment.
Immunity	IEC 60601 test level	Compliance level	Electromagnetic environment - guidance
Conducted RF IEC 61000-4-6	3 Vrms150 kHz to 80 MHz	Vrms	Portable and mobile RF communications equipment should be used no closer to any part of the model E-MEDICTM SILENCE TP 6S / 6, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter.
Radiated RF IEC 61000-4-3	3 V/m80 MHz to 2.7 GHz	V/m	Recommended separation distance d = 1,2 d = 2,3 where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation distance in meters (m).Field strengths from fixed RF transmitters, as determined by an electromagnetic site survey, ^a should be less than the compliance level in each frequency range. ^b Interference may occur in the vicinity of equipment marked with the following symbol:
NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorptionand reflection from structures, objects and people.
^a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the model E-MEDICTM SILENCE TP 6S / 6 is used exceeds the applicable RF compliance level above, the model E-MEDICTM SILENCE TP 6S / 6 should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the model E-MEDICTM SILENCE TP 6S / 6. ^b Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.

Steps:

1. Wipe the E-MEDIC™ SILENCE TP 6S / 6 with a dry clean cloth.
2. Operate with manufacturer's instructions or hospital protocol.

Cautions:

• Do not immerse or rinse the E-MEDICTM SILENCE TP 6S / 6 and its peripherals. If you accidentally spill liquid on the device, disconnect the unit from the power source. Contact your Biomed regarding the continued safety of the unit before placing it back in operation.
• Do not spray cleaning agent on the chassis.
• Do not use disinfectants that contain phenol.
• Do not autoclave or clean the E-MEDICTM SILENCE TP 6S / 6 or its peripherals with strong aromatic, chlorinated, ketone, ether, or Esther solvents, sharp tools or abrasives. Never immerse electrical connectors in water or other liquids.

Getting Started

System Set Up

The following is a summary of the steps in setting up the system for use.

(1). You can fix the system to a mounting fixture using the screw holes on the sides of the system.
(2). Make any required external connections such as the display, keyboard, and LAN.
(3). Plug the appropriate end of the power cord into the power connector on the rear of the system and the plug to an electrical outlet.
(4). Waiting for 3 seconds then press the power switch on the front panel of the system once to turn on the system power.
(5). If necessary, run the BIOS SETUP programs to configure the system.

Caution:

In order to boot up system from USB-CD/DVD drive, please connect USB-CD/DVD drive, turn on computer power, keep on pressing "F11" key, go into BIOS quick boot menu, select "USB-CD ROM", WAIT FOR 20 SECONDS, then press enter, system OS will boot up from USB-CD/DVD drive directly.

Notice:

The installation is only to be carried out by manufacturer trained and authorized personnel.

E-MEDICTM SILENCE TP 6S

(VESA Mount Screw type: M4)

Technical line drawing of a mechanical component with no visible text or symbols

58.00 100.00 200.00 2.00 <.00 M 20.00

E-MEDICTM SILENCE TP 6 (VESA Mount Screw type: M4)

298.00 695.00 5540

Technical drawing of a device casing with internal structure and dimension annotations

e-medic™ Silence TP 6S / 6 User's manual

Front View Webcam (optional) RFID(optional)

Hotkey and LED definition at front panel

Toolbar with function icons including audio, speaker, lightbulb, lamp, camera, and phone

Located on Touch screen bottom side, from left to right, front view

1- 1. Up. HDD: Amber

1-2 Down. Battery1(Green) & Battery2(Amber):

	LED 1	LED 2
	(Charge/Discharge/Low)	(Batt present/ not present)
In charge	blinking	ON
Discharge	OFF	ON
Full charge	ON	ON
Low battery	blinking	blinking
No battery	OFF	OFF

1. Power Button (with LED status indicator: ON: Green, OFF: dark)

Operation: always on.

Suspend: Flash 2(light)/2(dark) sec.

1. Volume adjustment (-)
2. Volume adjustment (+)
3. Brightness (-)
4. Brightness (+)
5. Reading light
6. Video input selection (with LED status indicator: ON:

Green->DVI input, OFF: dark->PC mode)

	PC mode	DVI input	Remark
Sys power off	No any message	1. No connect - 60S message off (no connection)2. No signal -60S message off (cable connected, but no signal input)3. DVI input - message for 3 sec.
Sys power on	PC mode forcibly	Switch to PC mode when sys power on
In Windows	Message for 3 sec	Same as power off

1. LCD on/off (with LED status indicator: LCD ON: dark, LCD OFF: Green)
2. Clean me (with LED status indicator: ON: Amber, OFF: dark)

a. Keep on contacting 5 seconds to active
b. keep contacting 5 seconds to release
c. auto release after 60 seconds

1. Fn: Function key (with LED status indicator: ON: Green, OFF: dark)

Side View

Standard model without door	Customized model with DVD (or Smart card reader)

Rear View

E-MEDICTM SILENCE TP 6S(Fan)	E-MEDICTM SILENCE TP 6(Fanless)

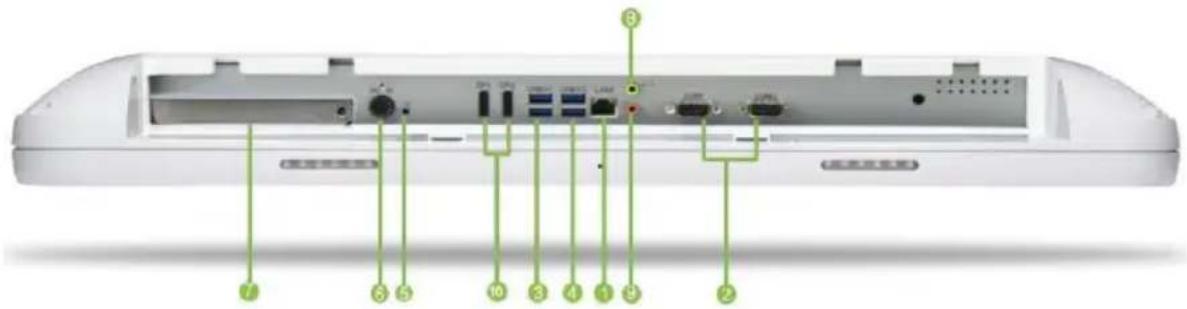

I/O parts (Standard version)

Diagram of a computer rear panel with numbered ports and connectors, highlighting key ports 1 through 8.

1. LAN × 1
2. RS232 x 2
3. USB 3.1 x 2
4. USB 3.0 x 2

5. Reset

6. DC-in

7. PCI-E/PCI expansion
8. Line-out
9. Microphone-in
10. DP Port x 2 (Output)

I/O parts (Expansion I/O version)

Diagram of a device rear panel with numbered ports and connectors, highlighting ports 1 through 10.

1. LAN × 2
2. RS232 x 1
3. RS232/RS422/RS485 x 1 (RS-485 auto flow support)
4. USB 3.1 x 2
5. USB 3.0 x 2

6. USB 2.0 x 2

7. Reset

8. DC-in
9. PCI-E/PCI expansion
10. Line-out
11. Microphone-in
12. DP Port x 2 (Output)

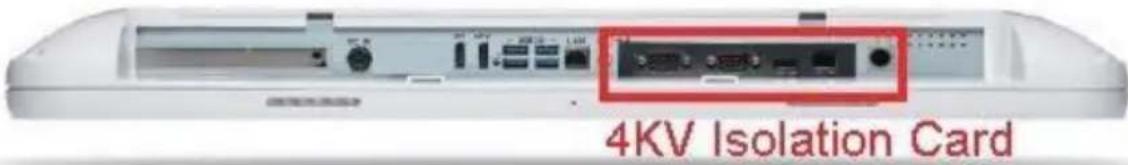

I/O parts (Isolated version)

4KV Isolation Card

isolation

isolated COM 4KV isolated RS-232 x 1, RS-232/422/485 x 1 isolated USB 4KV isolated USB 2.0 x 1 (Full speed) isolated LAN 4KV isolated Lan x 1 (Gigabit)

Pure electrical circuit lines without any symbols

Unplug the power cord from the power adapter jack to disconnect the device.

Turn off the system:

Turning off E-MEDIC™ SILENCE TP 6S / 6 properly is important for system reliability.

1. On the start menu, click "Shut down" and select "OK".

BIOS Setup

BIOS Introduction

The AMI BIOS (Basic Input / Output System) installed in your computer system's ROM supports Intel processors. The BIOS provides critical low-level support for a standard device such as disk drives, serial ports and parallel ports. It also adds virus and password protection as well as special support for detailed fine-tuning of the chipset controlling the entire system.

BIOS Setup

The AMI BIOS provides a Setup utility program for specifying the system configurations and settings. The BIOS ROM of the system stores the Setup utility. When you turn on the computer, the AMI BIOS is immediately activated. Pressing the key immediately allows you to enter the Setup utility. If you are a little bit late pressing the key, POST (Power On Self Test) will continue with its test routines, thus preventing you from invoking the Setup. If you still wish to enter Setup, restart the system by pressing the "Reset" button or simultaneously pressing the , and keys. You can also restart by turning the system Off and back On again. The following message will appear on the screen:

Press to Enter Setup

In general, you press the arrow keys to highlight items, to select, the and keys to change entries, for help and to quit.

When you enter the Setup utility, the Main Menu screen will appear on the screen. The Main Menu allows you to select from various setup functions and exit choices.

Main

Aptio Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit BIOS Information BIOS Version 636G00WMP24F01 V1.00 Access Level Administrator EC Information 636G0NEE889H01 V1.0 EC Build Date Jul 19 2017 15:28 Hotkey Information 636G00WMP24B02 V1.1 DICOM Information Controller 636G0NEE889E00 V1.2 Build Date Dec 27 2016 10:11 Status NO CCM Present Color Temperature N/A Battery Status No Battery Present Current N/A Voltage N/A Capacity(%) N/A Temperature N/A Cycle Count N/A System Date [Thu 11/16/2017] System Time [01:57:44] Set the Date. Use Tab to switch between Date elements. +#: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.18.1256. Copyright (C) 2017 American Megatrends, Inc.

This section provides information on the BIOS information, Embedded controller information and Battery information

System Date

Set the system date. Use the key to switch between data elements.

System Time

Set the system time. Use the key to switch between time elements.

Advanced

Trusted Computing ACPI Settings AMT Configuration Serial Port Configuration Hardware Monitor SS RTC Make Settings CPU Configuration Embedded Controller Configuration Platform Misc Configuration Secure Erase SATA Configuration Info Report Configuration USB Configuration	Trusted Computing Settings
	+: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F10: Save & Exit ESC: Exit

Trusted Computing Configuration

Enables or disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.

ACPI Settings

Enable Hibernation

Enables or Disables System ability to Hibernate (OS/S4 Sleep State). This option may be not effective with some OS.

ACPI Sleep State

Select the highest ACPI sleep state the system will enter when the SISPEND button is pressed.

AMT Configuration Intel AMT

Enable/Disable Intel (R) Active Management Technology BIOS Extension. Note: iAMT H/W is always enabled. This option just controls the BIOS extension execution. If enabled, this requires additional firmware in the SPI device.

BIOS Hotkey Pressed

OEMFLag Bit 1: Enable/Disable BIOS hotkey press.

MEBx Selection Screen

OEMFLag Bit 2: Enable/Disable MEBx selection screen.

Hide Un-Configure ME Confirmation Prompt

OEMFlag Bit 6: Hide Un-Configure ME without password Confirmation Prompt.

Un-Configure ME

OEMFlag Bit 15:Un-Configure ME without password.

Serial Port Configuration

Serial Port 1 Configuration

Serial Port

Select an optimal settings for super IO Device.

Change Settings

Select an optimal settings for Super IO Device.

Set Parameters of Serial Port 1.

Serial Port 2 Configuration

Serial Port

Enable or Disable Serial Port (COM).

Change Settings

Select an optimal settings for super IO Device.

Serial Port 3 Configuration

Serial Port

Enable or Disable Serial Port (COM).

Change Settings

Select an optimal settings for super IO Device.

Serial Port 4 Configuration

Serial Port

Enable or Disable Serial Port (COM).

Change Settings

Select an optimal settings for super IO Device.

e-medic™ Silence TP 6S / 6 User's manual

Serial Port 5 Configuration

Serial Port

Enable or Disable Serial Port (COM).

Change Settings

Select an optimal settings for super IO Device.

Serial Port 6 Configuration

Serial Port

Enable or Disable Serial Port (COM).

Change Settings

Select an optimal settings for super IO Device.

Hardware Monitor

Monitor hardware status

S5 RTC Wake Settings

Wake system From S5

Enable or disable System wake on alarm event. Select

FixedTime, System will wake on the hr::min::sec specified.

Select DynamicTime , System will wake on the current time

+ Increase minute(s).

CPU Configuration

CPU Configuration Parameters

Active Processor Cores

Number of cores to enable in each processor package.

Intel Virtualization Technology

When enabled, a VMM can utilize the additional hardware

capabilities provided by Vanderpool Technology.

Intel(R) SpeedStep(tm)

Allows more than tow frequency ranges to be supported.

Turbo Mode

Enable / Disable Turbo Mode.

Battery Mode Power Limit

Enable / Disable battery mode power limit function.

Embedded Controller Configuration

Battery off Time

Number of seconds of cut off battery output after system shutdowns.0\~600 second(s) 0 means disable battery off function.

Max CPU Temperature

Start point of CPU temperature for throttling.

Max CPU Temperature(Fanless)

Start point of CPU temperature for throttling

Adopter Power Limitation

Adopter Power Limitation in watts.

Battery Power Limitation

Battery Power Limitation in watts.

Platform Misc Configuration

Native PCIE Enable

PCI Express Native Support Enable/Disable. This feature is only available in Vista

Native ASPM

On enable, Vista will control the ASPM Support for the device. If disabled, the BIOS will

Show/hide hidden items

For debug only.

Show / hide hidden items.

Secure Erase

Secure Erase mode

Change behavior of Secure Erase module. Causes the module to show the flow without actually erasing SSD, Causes the module to erase SSD.

Force Secure Erase

Force Secure Erase on next boot.

SATA Configuration

Enable or Disable SATA Device.

SATA Mode Selection

Determines how SATA controller(s) operate.

Software Feature Mask Configuration

RAID OROM/RST driver will refer to the SWFM configuration to enable or disable the storage features.

Serial-ATA Port 0

Enable / Disable Serial ATA Port 0.

e-medic™ Silence TP 6S / 6 User's manual

Port 0

Enable or Disable SATA Port

HotPlug

Designates this port as hot Pluggable.

External SATA

External SATA Support

Spin Up Device

On an edge detect from 0 to 1, the PCH starts a COMRESET initialization sequence to the device.

SATA Device Type

Identify the SATA port is connected to Solid State Drive or Hard Disk Drive.

Topology

Identify the SATA Topology if it is Default or ISATA or Flex or DirectConnect or M2

Device Sleep

mSATA for RTD3.

SATA DEVSLEP Idle Timeout config

Enable/Disable SATA DTIO Config

Serial-ATA Port 1

Enable / Disable Serial ATA Port 0.

Port 0

Enable or Disable SATA Port

HotPlug

Designates this port as hot Pluggable.

External SATA

External SATA Support

Spin Up Device

On an edge detect from 0 to 1, the PCH starts a COMRESET initialization sequence to the device.

SATA Device Type

Identify the SATA port is connected to Solid State Drive or Hard Disk Drive.

Topology

Identify the SATA Topology if it is Default or ISATA or Flex or DirectConnect or M2

Device Sleep

mSATA for RTD3.

SATA DEVSLEP Idle Timeout config

Enable/Disable SATA DTIO Config

Serial-ATA Port 3

Enable / Disable Serial ATA Port 0.

Port 0

Enable or Disable SATA Port

HotPlug

Designates this port as hot Pluggable.

External SATA

External SATA Support

Spin Up Device

On an edge detect from 0 to 1, the PCH starts a COMRESET initialization sequence to the device.

SATA Device Type

Identify the SATA port is connected to Solid State Drive or Hard Disk Drive.

Topology

Identify the SATA Topology if it is Default or ISATA or Flex or DirectConnect or M2

Device Sleep

mSATA for RTD3.

SATA DEVSLEP Idle Timeout config

Enable/Disable SATA DTIO Config

Serial-ATA Port 4

Enable / Disable Serial ATA Port 0.

Port 0

Enable or Disable SATA Port

HotPlug

Designates this port as hot Pluggable.

External SATA

External SATA Support

Spin Up Device

On an edge detect from 0 to 1, the PCH starts a COMRESET initialization sequence to the device.

SATA Device Type

Identify the SATA port is connected to Solid State Drive or Hard Disk Drive.

Topology

Identify the SATA Topology if it is Default or ISATA or Flex or DirectConnect or M2

Device Sleep

mSATA for RTD3.

SATA DEVSLEP Idle Timeout config

Enable/Disable SATA DTIO Config

Info Report Configuration

Post Report

Post Repost Support Enabled / Disabled.

Info Error Message

Info Error Message Support Enabled / Disabled.

Summary Screen

Summary Screen Support Enabled / Disabled.

USB Configuration

USB Support

USB Support Parameters.

Legacy USB Support

Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications

XHCI Hand-off

Enable / Disable XHCI Controller Legacy support.

USB Mass Storage Driver Support

Enable/Disable USB Mass Storage Driver Support.

USB hardware delays and time-outs:

USB Transfer Time-out

The Time-out value for control, Bulk, and Interrupt transfers.

Device reset time-out

USB mass storage device Start Unit command time-out

Device power-up delay

Maximun time the device will take before it properly reports itself to the Host Controller. 'Auto' uses default value: for a Root port the delay is taken from Hub descriptor.

Chipset

Aptio Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit ► System Agent (SA) Configuration ► PCH-IO Configuration System Agent (SA) Parameters +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.18.1256. Copyright (C) 2017 American Megatrends, Inc.

System Agent (SA) Configuration

System Agent (SA) Parameters.

VT-d

VT-d capability

Graphics Configuration

Graphics Turbo IMON Current

Graphics Turbo IMON current values supported(14-31)

Skip Scanning of External GFX Card

If Enable, it will not scan for external GFX Card on PEG and PCH PCIE Ports

Primary Display

Select which of IGFX/PEG/PCI Graphics device should be Primary Display or Select SG for Switchable GFX.

Internal Graphics

Keep IGFX enabled based on the setup options

GTT Size

Select the GTT Size

Aperture Size

Select the Aperture Size Note : Above 4GB MMIO BIOS assignment is automatically enabled when selecting 2048MB aperture. To use this feature, please disable CSM Support.

DVMT Pre-Allocated

Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the Internal Graphics Device.

DVMT Total Gfx Mem

Select DVMT5.0 Total Graphic Memory size used by the Internal Graphics Device.

Memory Configuration

Memory configuration Parameters

PCH-IO Configuration

PCI Express Configuration

PCI Express Configuration settings

USB Configuration

USB Precondition

Precondition work on USB host controller and root ports for faster enumeration.

PCI Express Configuration settings

XHCI Disable Compliance Mode

Options to disable Compliance Mode. Default is FALSE to not disable Compliance Mode. Set TRUE to disable Compliance Mode.

USB Port Disable Override

Selectively Enable/Disable the corresponding USB port from reporting a Device Connection to the controller..

HD Audio

Control Detection of the HD-Audio device.\n\nDisabled = HDA will be unconditionally disabled\n\nEnabled = HDA will be unconditionally enabled\n\nAuto = HDA will be enabled if present, disabled otherwise.

PCH LAN Controller

Enable or disable onboard NIC

DeepSx Power Policies

Configure the DeepSx Mode Configuration

Wake on LAN

Enable or disable integrated LAN to wake the system.(The wake ON LAN cannot be disabled if ME is on at SX state.)

SLP\_LAN# Low on DC Power

Enable/Disable SLP_LAN# Low on DC power.

Wake on WLAN Enable

Enable/Disable PCI Express Wireless LAN to wake the system.

Restore AC Power Loss

Select AC power state when power is re-applied after a power failure.

Security

Aptio Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit Password Description If ONLY the Administrator's password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User's password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password length must be in the following range: Minimum length 3 Maximum length 20 Administrator Password User Password HDD Security Configuration: P3:TS64GSSD370 ▶ Secure Boot menu Set Administrator Password ++: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.18.1256. Copyright (C) 2017 American Megatrends, Inc.

Administrator Password

Set Administrator Password.

User Password

Set user Password.

P3 : TS64GSSD370

HDD Security Configuration for selected drive.

Secure Boot menu

Secure Boot

Secure Boot can be enabled if 1. System running in User mode with enrolled Platform key(PK). 2. CSM function is disabled.

Secure Boot Mode

Secure Boot mode selector. 'Custom' Mode enables users to change Image Execution policy and manage Secure Boot keys.

Key Management

Enables experienced users to modify Secure Boot variables

Boot

Aptio Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit Boot Configuration Setup Prompt Timeout 1 Bootup NumLock State [Off] PXE Boot [Enabled] Quiet Boot [Disabled] Boot Option Priorities Boot Option #1 [PS: TS64GSSD370] Boot Option #2 [IBA CL Slot OOFE v0105] Fast Boot [Disabled] New Boot Option Policy [Default] Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting. +: Select Screen 1↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F9: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.18.1256. Copyright (C) 2017 American Megatrends, Inc.

Setup Prompt Timeout

Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting.

Bootup Numlock State

Selects the keyboard NumLock state.

PXE Boot

PXE Network Boot Enable / Disable.

Quiet Boot

Enable or disables Quiet Boot option.

Boot Option #1

Sets the system boot order.

Boot Option #2

Sets the system boot order.

Fast Boot

Enables or disables boot with initialization of a minimal set of devices required to launch active boot option. Has no effect for BBS boot options.

New Boot Option

Controls the placement of newly detected UEFI boot options

Save & Exit

Aptio Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit Save Options Save Changes and Exit Discard Changes and Exit Save Changes and Reset Discard Changes and Reset Save Changes Discard Changes Default Options Restore Defaults Save as User Defaults Restore User Defaults Boot Override P3: TS64GSSD370 IBA CL Slot 00FE v0105 Launch EFI Shell from filesystem device Exit system setup after saving the changes. +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.18.1256. Copyright (C) 2017 American Megatrends, Inc.

Save Changes and Exit

Exit system setup after saving the changes.

Discard Changes and Exit

Exit system setup without saving any changes.

Save Changes and Reset

Reset the system after saving the changes.

Discard Changes and Reset

Reset system setup without saving the changes.

Save Changes

Save the changes done so far to any of setup options.

Discard Changes

Discard the changes done so far to any of setup options.

Restore Defaults

Restore/load default values for all the setup options.

Save as User Defaults

Save the changes done so far as User Defaults.

Restore the User Defaults to all the setup options.

Appendix

A. Jumper settings and Connectors

This appendix gives the definitions and shows the positions of jumpers, headers and connectors. All of the configuration jumpers on E-MEDICTM SILENCE TP 6S / 6 are in the proper position.

Note: Some of jumpers or connectors will be removed base on system configuration.

Jumper and Connector Definition Block

PBJ J13 J15 J21 J2 J1 JP1 J12 J9 J6 J7 J4 J8 J5 J11 J10 J14 J17 J16 J18 PBJ PBJ J22 J20 WCI-80V4 50Hz P/W J24000E80A80B MODE IN TAININ J33 BZ1 J34 J35 J57 J44 J38 J39 J41 J42 J40 J43 PBJ4

- JP1 – Backlight Adjust

Description	Jumper Setting
Analog Inverter	1-2
PWM Inverter	2-3 (default)

- JP2 – BISO code select Settings

Description	Jumper Setting
1-2	LVDS BIOS (Low) default
3-4	VEDIO-IN BIOS function
5-6	DICOM BIOS function
7-8	eDP BIOS function

JP3 –mini-PCIe connector mSATA Settings

Description	Jumper Setting
mSATA	2-3 (NA)default
PCIe	1-2

JP4 –SATA or SATA DOM Selection

Description	Jumper Setting
SATA DOM	1-2 ---power +5V
SATA Port	2-3 (GND) default

JP5-ME Clear

Description	Jumper Setting
Clear ME	1-2 (NC) default

JP6 -CMOS Clear

Description	Jumper Setting
Normal Open	1-2 (default)
CMOS Clear	2-3

1.1 Connector Definition

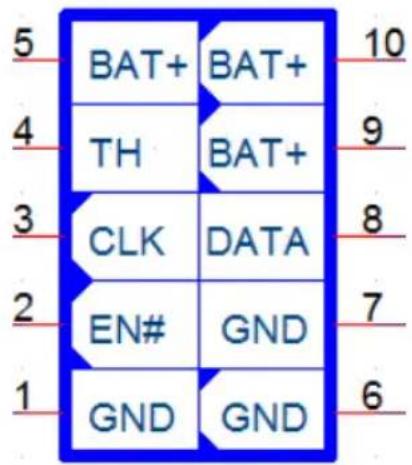

PJ1 – Battery Connector

5 BAT+ BAT+ 4 TH BAT+ 3 CLK DATA 2 EN# GND 1 GND GND 10 9 8 7 6

ATX12V-10

Pin #	Signal Description
1	Ground
2	BATT_EN#
3	BATT_CLK
4	BATT_T
5	BATT+
6	Ground
7	Ground
8	BATT_DAT
9	BATT+
10	BATT+

PJ2 /PJ3 – HDD Power Connector

Pin #	Signal Description
1	+12VS
2	Ground
3	Ground
4	+5VS

PJ4 Power Jack Connector

Technical line drawing of a four-pin electrical connector (no text or symbols)

Pin #	Signal Description
1	DC In
2	DC In
3	Ground
4	Ground
5	Ground

J1 – Inverter connect

Pin #	Signal Description
1	+12VS
2	+12VS
3	Backlight Adjust
4	Backlight Enable
5	Ground
6	Ground

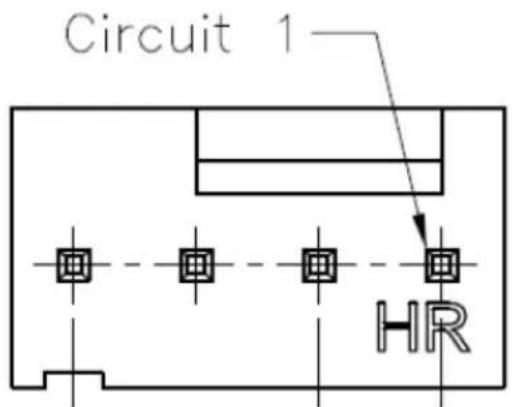

J2 – CPU PWM FAN

Circuit 1 HR

Pin #	Signal Description
1	GND
2	+12VS
3	CPU_FAN_RPM
4	FAN_PWM

J3 - PCI POWER

Pin #	Signal Description
1	+5V
2	Ground
3	+5V

J4/J5/J6/J7/J8 – Internal USB Interface

Pin #	Signal Description
1	+5VSB
2	+5VSB
3	D-
4	D+
5	Ground
6	Ground

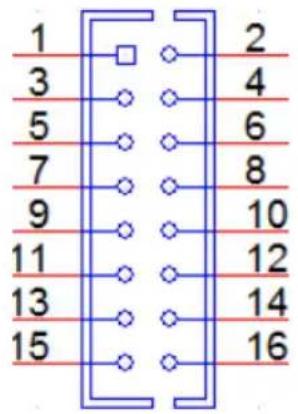

J9 - VEDIO-IN

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Pin #	Signal Description
	J9(VEDIO-IN)
1	DVI_DATA0+
2	DVI_DATA2+
3	DVI_DATA0-
4	DVI_DATA2-
5	DVI_DATA1+
6	GND
7	DVI_DATA1-
8	DET_DVI
9	GND
10	DVI_5V
11	SCL
12	GND
13	SDA
14	DVI_CLK+
15	HPD_DVI
16	DVI_CLK-

J10 – SYSTEM FAN

Pin #	Signal Description
	J10(System Fan)
1	SYS_PWM
2	SYS_RPM
3	+12VS
4	GND

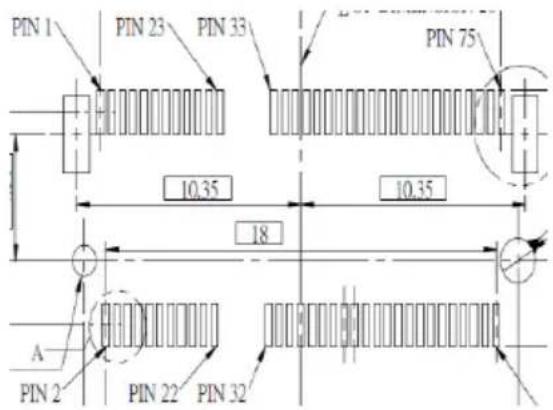

J11 - M.2 E-KEY Socket

PIN 1 PIN 23 PIN 33 PIN 75 10.35 10.35 18 A PIN 2 PIN 22 PIN 32

Pin #	Signal Description	Pin #	Signal Description
1	GND	2	+3.3V
3	USB_D+	4	+3.3V
5	USB_D-	6	LED1#(O)(OD)
7	GND	8	KEY A
9	KEY A	10	KEY A
11	KEY A	12	KEY A
13	KEY A	14	KEY A
15	KEY A	16	LED2#(O)(OD)
17	NA	18	GND
19	NA	20	NA
21	NA	22	NA
23	NA	24	KEY E
25	KEY E	26	KEY E
27	KEY E	28	KEY E
29	KEY E	30	KEY E
31	KEY E	32	NA
33	GND	34	NA
35	PETP0	36	NA
37	PETN0	38	CLINK Reset(I)(0/3.3V)
39	GND	40	CLINK DATA (I/O)
41	PERP0	42	CLINK CLK(I/O)
43	PERN0	44	COEX3(I/O)(0/1.8V)
45	GND	46	COEX2(I/O)(0/1.8V)
47	REFCLKP0	48	COEX1(I/O)(0/1.8V)
49	REFCLKN0	50	SUSCLK(32kHz)(I)(0/3.3V)
51	GND	52	PERST0#(0/3.3V)
53	CLKREQ0#(I/O)(0/3.3V)	54	BT_DISABLE2#(I)(0/3.3V)
55	PEWAKE0#(I/O)(0/3.3V)	56	W_DISABLE1#(I)(0/3.3V)
57	GND	58	NA
59	NA	60	NA
61	NA	62	NA
63	GND	64	NA
65	NA	66	NA
67	NA	68	NA
69	GND	70	NA
71	NA	72	+3.3V
73	NA	74	+3.3V
75	GND

J12 – LVDS Interface

Pin #	Signal Description	Pin #	Signal Description
1	+LCD (+5VSB)	2	+LCD (+5VSB)
3	+LCD (+5VSB)	4	+LCD (+5VSB)
5	Ground	6	Ground
7	Ground	8	Ground
9	A_RxIn0-	10	B_RxIn0-
11	A_RxIn0+	12	B_RxIn0+
13	Ground	14	Ground
15	A_RxIn1-	16	B_RxIn1-
17	A_RxIn1+	18	B_RxIn1+
19	Ground	20	Ground
21	A_RxIn2-	22	B_RxIn2-
23	A_RxIn2+	24	B_RxIn2+
25	Ground	26	Ground
27	A_CKIN-	28	B_CKIN-
29	A_CKIN+	30	B_CKIN+
31	Ground	32	Ground
33	A_RxIn3-	34	B_RxIn3-
35	A_RxIn3+	36	B_RxIn3+
37	Ground	38	Ground
39	Ground	40	Ground

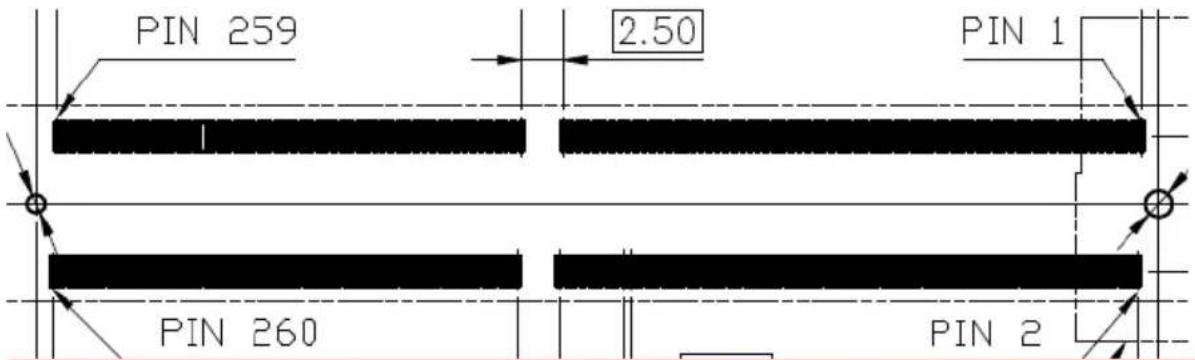

J13 / J15 - DIMM1 / DIMM0 DDR4 Vertical Connect

PIN 259 2.50 PIN 1 PIN 260 PIN 2

Pin	Prout	Pin	Deck	Pin	Prout	Pin	Deck	Pin	Prout	Deck	Pin	Prout	Pin	Deck
1	VGG	2	VGG	67	DQ20	60	VGG	109	A1	154	EMNT_n,NF	180	DMG_n/DG12_n	200	DGGS_1
9	DG5	4	DG4	69	VGG	70	DG24	106	VDD	159	VDD	201	VGG	202	VGG
6	VGS	6	VGS	71	DG25	72	VGS	137	CKD_L	138	CKL_SNP	203	DG48	204	DG47
7	DG1	8	DG0	78	VGG	74	DG03_c	100	CKD_c	140	CKL_SNP	205	VGG	206	VGG
9	VGG	10	VGG	76	DMG_N/DM12_n	70	IDG03_I	141	VDD	142	VDD	207	DG42	208	DG43
11	DG50_C	12	DMG_N/DM10_n	77	VGS	78	VGS	143	PANTITY	144	A0	208	VGS	210	VGS
13	DG52_I	14	VGS	78	DG30	80	DG31	146	BAI	146	A10/AP	211	DG52	212	DG53
16	VGG	16	DG5	81	VGG	82	VGG	147	VDD	148	VDD	210	VGG	214	VGG
17	DG7	18	VGG	89	DG26	84	DG27	149	CGG_n	150	GA0	216	DG49	219	DG40
18	VGS	20	DG2	88	VGG	88	VGS	151	WR_N/A14	152	RAS_N/A15	217	VGS	218	VGS
21	DG3	22	VGG	87	CGS/NC	88	CG4/NC	153	VDD	154	VDD	218	DG50_c	220	DMG_N/DM10_n
23	VGG	24	DG12	89	VGG	89	VGG	156	COTD	158	CAG_N/A15	221	DG50_I	222	VGG
26	DG13	26	VGG	91	CG1/NC	92	CGG/NC	157	CG1_n	158	A13	223	VGG	224	DG54
27	VGS	28	DGK	93	VGS	94	VGS	159	VDD	160	VDD	226	DG24	228	VGS
28	DG5	30	VGG	96	DG 06_c	96	DVO_N/DM_NNC	161	COTI	162	CO/CX2_NNC	227	VGG	228	DG50
31	VGG	32	DG01_c	97	DG08_I	98	VGG	163	VDD	164	VREFOA	229	DG51	230	VGG
33	DM1_N/DGI_n	34	DG01_I	99	VGG	100	DG0/NC	165	G1_CRS_L,NO	166	GA2	231	VGG	232	DG50
36	VGS	36	VGS	101	CRJ/NC	102	VGS	167	VGS	168	VGS	233	DG51	234	VGS
37	DG15	38	DG14	100	VGG	104	CGT/NC	168	DG37	170	DG36	236	VGG	236	DG57
39	VGG	40	VGG	105	CG3/NC	106	VGG	171	VGG	172	VGG	237	DG56	238	VGG
41	DG10	43	DG11	107	VGS	108	PRKRT_J	173	DG18	174	DG32	238	VGS	240	DGINT_c
43	VGS	44	VGS	109	CRWD	110	CRK1	176	VGS	178	VGS	241	DMF_n/DM17_n	242	DGINT_I
46	DG21	46	DG20	111	VDD	112	VDD	177	DG04_c	178	DMA_N/DGM_L_n	243	VGG	244	VGG
47	VGG	48	VGG	110	DG1	114	ACT_n	179	DG04_I	180	VGG	246	DG62	248	DG63
49	DG17	50	DG16	116	MOO	116	ALMRT_J	181	VGS	182	DG39	247	VGS	248	VGS
51	VGG	52	VGG	117	VDD	118	VDD	183	DG35	184	VGG	248	DG50	250	DG50
53	DG02_c	54	DMG_N/DG12_n	119	A12	120	A11	186	VGG	188	DG35	261	VGG	262	VGG
55	DG02_I	59	VGG	121	A9	122	A7	187	DG34	188	VGG	263	GCL	264	GCA
57	VGS	63	DG22	123	VDD	124	VDD	189	VGS	190	DG38	268	VDD/SFO	269	SAO
59	DG23	60	VGG	126	A0	128	A5	191	DG44	192	VGG	267	VFP	268	VTT
61	VGG	62	DG10	127	A5	129	A4	193	VGG	194	DG41	269	VFP	269	GA1
63	DG19	64	VGG	129	VDD	130	VDD	195	DG40	196	VGG
65	VGS	66	DG23	131	A3	133	A2	197	VGS	198	DG38_c

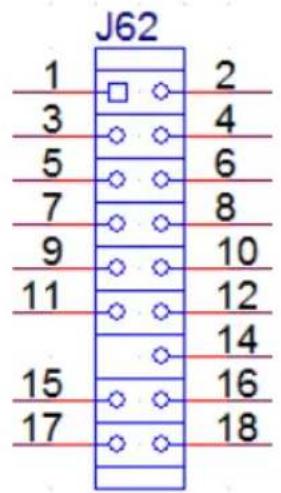

J14 – TPM 2.0 support

J62 1 2 3 4 5 6 7 8 9 10 11 12 15 14 17 16 18

1	DEBUG_CLK	6	SMBDATA	11	LPC_AD0	16	SERIRQ
2	GND	7	LPC_LAD3	12	GND	17	GND
3	LPC_FRAME#	8	LPC_DAT2	13	NA	18
4	SMBCLK	9	+3VS	14	SUS_SATA#
5	PLT_RST#	10	LPC_DAT1	15	+3.3VSB

J16-TPM/ID-394

2 15 16

Pin #	Signal Description	Pin #	Signal Description
1	LPC AD0	2	PCI reset
3	LPC AD1	4	SERIRQ
5	LPC AD2	6	+3.3VS
7	LPC AD3	8	+5VSB
9	LPC Frame	10	PCI CLKRUN
11	Debug CLK	12	SMB CLK
13	GND	14	SMB DATA
15	SUS_STAT#	16	+3.3VB

J17-mini PCI Express Socket

Pure electrical circuit lines without any symbols

Pin #	Signal Description	Pin #	Signal Description
1	WAKE#	2	+3.3VSB
3	Reserved	4	GND
5	Reserved	6	+1.5VS
7	CLKREQ#	8	Reserved
9	GND	10	Reserved
11	REFCLK-	12	Reserved
13	REFCLK+	14	Reserved
15	GND	16	Reserved
17	Reserved	18	GND
19	Reserved	20	Reserved
21	GND	22	PERST#
23	PERn0	24	+3.3VSB
25	PERp0	26	GND
27	GND	28	+1.5VS
29	GND	30	SMB_CLK
31	PETn0	32	SMB_DATA
33	PETp0	34	GND
35	GND	36	USB_D-
37	GND	38	USB_D+
39	+3.3VSB	40	GND
41	+3.3VSB	42	Reserved
43	SEL_PCIE_SATA	44	Reserved
45	CL_CLK	46	Reserved
47	CL_DATA	48	+1.5VS
49	Controller Link RST#	50	GND
51	Reserved	52	+3.3VSB

J18 – DICOM connect

1 2 3 4 5 6 7 8 9 10 11 12

Pin #	Signal Description
1	ASIC_RST#
2	+3.3VS
3	+3.3VS
4	CSC_DET#
5	SCK_OUT
6	SDA_OUT
7	GND
8	SPI_PROG
9	SPI_CLK
10	SPI_DO
11	SPI_DI
12	GND

J19 / J23 – Standard SATA / SATA DOM Interface

Pin #	Signal Description
1	Ground
2	Tx+
3	Tx-
4	Ground
5	Rx-
6	Rx+
7	Ground / +5VS (jump select SATA DOM only)

J20 – DICOM JTAG

Pin #	Signal Description	Pin #	Signal Description
1	+3.3VS	2	GND
3	GND	4	394_C2D
5	+3.3VS Pull High	6	X
7	394_RST#	8	X
9	GND	10	X

J21 – CPU Interface (Please refer to FCLGA1151)

Package Pin 1 Indicator Orientation Notch (2 Places) Alignment Post (2 Places) Finger/Tool Access (2 Places) Pin 1 Chamfer

J22 – CAP Front Bezel Button Connector

Pin #	Signal Description
1	+5V_AWS
2	+3.3_AWS
3	KP_SCL
4	KP_SDA
5	PWR_LED#
6	KP_P_LED#
7	SATA_LED#
8	Ground
9	Ground

J24 – BIOS SOCKET

Pin #	Signal Description	Pin #	Signal Description
1	CS#	5	VDD
2	SO	6	HOLD#
3	WP#	7	SCK
4	VSS	8	SI

J26 – STD or ISO Slot Interface

Simple horizontal bar with two rounded ends, no text or symbols present

Pin #	Side B	Side A	Pin #	Side B	Side A
1	+5VSB	+3.3V_LAN	17	Ground	USBPN8
2	+5VSB	+3.3V_LAN	18	UARTCLK2_24M	Ground
3	+5VSB	+3.3V_LAN	19	Ground	Ground
4	+5VSB	+3.3V_LAN	20	232_RI#	Ground
5	+5VSB	+3.3V_LAN	21	Ground	USBPP9
6	+5VSB	+3.3V_LAN	22	Ground	USBPN9
7	Ground	Ground	23	PCIE_RXN12	Ground
8	LPC_AD0	+5VS	24	PCIE_RXP12	ISOCOM_GPIO2
9	LPC_AD1	+5VS	25	Ground	ISOCOM_GPIO3
10	LPC_AD2	+3.3VS	26	Ground	CLKRQ#_LAN
11	LPC_AD3	ISOCOM_GPIO1	27	PCIE_TXN12	Ground
12	LPC_FRAME#	USB_PWREN	28	PCIE_TXP12	Ground
13	PLT_RST#	Ground	29	Ground	LANCLK2_100MN
14	SERIRQ	USB_OC#89	30	PCIE_WAKE#	LANCLK2_100MP
15	Ground	Ground	31	Ground	Ground
16	ISO_24M	USBPP8	32	Ground	Ground

J27 - EC 80 Port

Pin #	Signal Description	Pin #	Signal Description
1	LPC_AD0	2	+5VS
3	LPC_AD1	4	+3.3VS
5	LPC_AD2	6	L80HLAT
7	LPC_AD3	8	L80LLAT

J28 – WRDM Interface

6

Pin #	Signal Description
1	GND
2	232_EC_SOUT7
3	GND
4	232_EC_SIN7
5	+5VSB
6	+3.3VSB

J29 – Power Switch connect

Pin #	Signal Description
1	Power ON
2	GND

J30,J36 – Reading Light

Pin #	Signal Description
1	+12VP
2	READING LIGHT

J31,J32 – COM5, COM6 Serial Port

9 1 10 2

Pin #	Signal Description	Pin #	Signal Description
1	232_DCD	2	232_DSR
3	232_SIN	4	232_RTS
5	232_SOUT	6	232_CTS
7	232_DTR	8	232_RI
9	GND	10	+5VS

J33 – Battery Socket

Pure technical diagram of a mechanical component with no text, numbers, or symbols

Pin #	Signal Description
1	RTC +3.3V
2	GND
3	RTC +3.3V

J34,J35 – L/R Speaker Connect

Pin #	Signal Description
1	AMP. Out +
2	AMP. Out -

J37- Internal MIC

Pin #	Signal Description
1	MIC R/L Signals
2	AGND

J38,J39 – DisplayPort Interface

Pin #	Signal Description	Pin #	Signal Description
1	ML_LANE0+	11	GND
2	GND	12	ML_LANE3-
3	ML_LANE0-	13	CONFI G1
4	ML_LAN1+	14	CONGI G2
5	GND	15	AUX_CH+
6	ML_LAN1-	16	GND
7	ML_LANE2+	17	AUX_CH-
8	GND	18	HOT PLUG
9	ML_LANE2-	19	RETURN
10	ML_LANE3+	20	+3.3VS

J40 – Ethernet Port

Pure electrical connector diagram without any text or symbols

Pin #	Signal Description
1	LAN1_MDI3_N
2	LAN1_MDI3_P
3	LAN1_MDI2_N
4	LAN1_MDI2_P
5	LAN1_MDI1_N
6	LAN1_MDI1_P
7	LAN1_MDI0_N
8	LAN1_MDI0_P

J41- USB3.1 Gen2 Ports

Simple diagram of two rectangular compartments with horizontal bars, no text or symbols present

Pin #	Signal Description	Pin #	Signal Description
1	+5VSB	10	+5VSB
2	Data1-	11	Data2-
3	Data1+	12	Data2+
4	GND	13	GND
5	SSRX1-	14	SSRX2-
6	SSRX1+	15	SSRX2+
7	GND	16	GND
8	SSTX1-	17	SSTX2-
9	SSTX1+	18	SSTX2+

J42-USB3.0 Port

Simple diagram of two rectangular compartments with horizontal bars, no text or symbols present

Pin #	Signal Description	Pin #	Signal Description
1	+5VSB	10	+5VSB
2	Data1-	11	Data2-
3	Data1+	12	Data2+
4	GND	13	GND
5	SSRX1-	14	SSRX2-
6	SSRX1+	15	SSRX2+
7	GND	16	GND
8	SSTX1-	17	SSTX2-
9	SSTX1+	18	SSTX2+

J43 – Audio Earphone / MIC

Simple line drawing of a vertical rectangle with two circular holes and two small protrusions at the bottom (no text or symbols)

	Signal Description
UP	Line Out (stereo) Green
DOWN	Microphone (stereo) Pink

J44 – Reset Button

Pin #	Signal Description
1	SYS_RESET#
2	GND

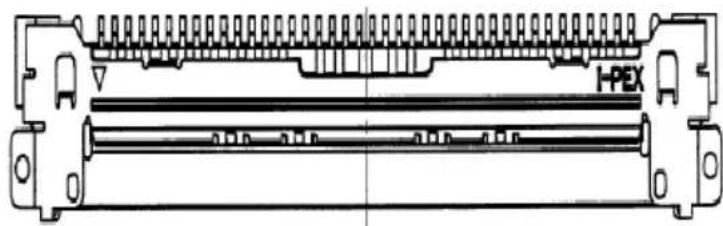

J500 -eDP connector Interface (bottom layer)

Technical line drawing of a mechanical component with no visible text or symbols

Pin #	Signal Description	Pin #	Signal Description	Pin #	Signal Description
1	NA	15	EDP_AUX_DP_R	29	Ground
2	Ground	16	EDP_AUX_DN_R	30	Ground
3	EDP_TX3_DN_R	17	Ground	31	Ground
4	EDP_TX3_DP_R	18	+VLCD	32	EDP_BKLT_EN
5	Ground	19	+VLCD	33	EDP_BKLT_CTL
6	EDP_TX2_DN_R	20	+VLCD	34	Test Point
7	EDP_TX2_DP_R	21	+VLCD	35	Test Point
8	Ground	22	NA	36	NA
9	EDP_TX1_DN_R	23	Ground	37	NA
10	EDP_TX1_DP_R	24	Ground	38	NA
11	Ground	25	Ground	39	NA
12	EDP_TX0_DN_R	26	Ground	40	NA
12	EDP_TX0_DP_R	27	EDP_HPD
14	Ground	28	Ground

B. L type Stand (optional kit)

Key Features and Benefits

■ Similar color as e-medic Silence series
■ 5,000 times hinge life cycle

Specifications:

Weight Capacity:	Max 10kgs
Monitor Mounting Holes	VESA 100*100mm
Application using	Desktop stand

Exterior view of a modern office building (no signage)

C. Battery Pack Specifications (optional kit)

Battery Model	22/3900 SA
Battery Type	Li-ion 2S2P
Minimum Capacity	3900 mAh
Nominal Voltage	7.2 V
Max. Charge Voltage	8.4V
Cut Off Voltage	6.0v
Suggested Charge Current (Max.)	2A
System Continuous Discharging Current (Max.)	16.6 A
The End of Charge Condition	150 mA/min
Discharge Protection	UVP/OCP
Charge Protection	OVP/OTP
Self-discharge Rate	10uA ~800 uA
Dimensions	133 x 47 x 21mm
Weight	220g+/-20g
Ambient Temperature	0°C ~ +45°C
Storage Temperature	-20°C ~ +60°C
Energy	28.08Wh
Backup	100 W/ 10 min

D. Scrap Computer Recycling

If the computer equipments need the maintenance or are beyond repair, we strongly recommended that you should inform us as soon as possible for the suitable solution. For the computers that are no longer useful or work well, please contact with worldwide distributors for recycling.

The worldwide distributors show on the following website: hp://www.baaske-medical.de/en/Contact

Note:

Follow the naonal requirement to dispose unit
