USER MANUAL BT2700 Nuisance Call Blocker Twin British Telecom

Abstract colorful logo design with overlapping blue, purple, and red shapes (no text or symbols)

Block Nuisance Calls

Quick Set-up and User Guide

BT Calling Riya Home 1 2 AF 3 DE 4 OH 5 IN 6 MR 7 PG 8 PU 9 WY * Incom 0 AU # Awa Back Active OK Delete + - Volume + Skip Play ▶ Skip BT

BT2700 Nuisance Call Blocker

Digital Cordless Phone with Answer Machine

Important – please read first

• Only use the line cord, power supply and rechargeable batteries that come with your phone.
• Make sure the power supply is connected to a socket that you know works.
• Connect your phone to the power supply and let the batteries charge for 16 hours before connecting your phone to the phone socket.
• The base should always be plugged in to the mains power supply.

Your Answer Machine

Make sure the phone is set to Answer + Rec and that the ring delay is set to answer before any voicemail service does. The default setting is five rings. If you want to change it, take a look at page 41.

Where to put your phone

To make sure your handset gives you the best range and reception, avoid interference by placing it away from any large metal objects like fridge-freezers, microwave ovens, or electronic products such as computers and TVs.

Check the box contents

Handset Base

Phone line (this comes already installed)

Mains power adaptor (item code 066270)

Two rechargeable batteries, AAA NiMH 550mAh (already installed in the handset)

If you bought more than one handset you'll also get

Extra handset

Charger Mains power adaptor (item code 066270)

Two rechargeable batteries, AAA NiMH 550mAh (already installed in the handset)

IMPORTANT

Only use the mains power adaptors, cables and rechargeable batteries supplied in this box or this product might not work. Any replacement rechargeable batteries must be of the same type. BT accepts no responsibility for damage caused to your BT2700 if you use any other type of batteries.

Quick set-up guide

Where to put your phone

• Place the base within 3 metres of a mains power socket and 1.8 metres of a phone socket so the cables will reach.
• Make sure it's at least a metre away from other electrical appliances to avoid interference.
• Don't place the phone or base in a bathroom or other humid area.
• The product works by sending radio signals between the handset and base. The strength of the signal depends on where you position the base. Putting it as high as possible can help give you the best signal.

IMPORTANT

• Don't connect the phone line to a phone socket until the handset is fully charged.
• The base station should be plugged into the mains power socket all the time.

1 Plug in

1. Your phone will come with the phone line cord already fitted. Plug the other end into the wall socket.
2. Plug the mains power adaptor into the base, with the cable clipped in the groove provided.
3. Plug the other end of the power adaptor into the wall power socket and switch it on.

123 BT BT2700-Steph High Cable - Advanced Powering Meters ITEM CODE: CM80005 S.No: 0000000000 BT Lighting 0800 145 6789 Line 123 BT2700-Steph High Cable - Advanced Powering Meters ITEM CODE: CM80005 S.No: 0000000000 BT Lighting 0800 145 6789 Line 123 BT2700-Steph High Cable - Advanced Powering Meters ITEM CODE: CM80005 S.No. 0000000000 BT Lighting 0800 145 6789

2 Charge

1. Activate the batteries by pulling the plastic tab away from the bottom of the handset.
2. The handset will then check for a link with the base station. When it's found it, follow the prompt to set the date and time on the phone.
3. Place the handset on the base and let it charge for 16 hours.

IMPORTANT

Charge the handset batteries for 16 hours or your phone might not work.

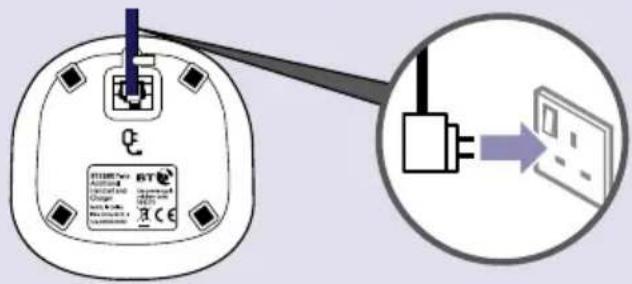

Set up your additional handsets (multipacks only)

1. For additional handsets and chargers: plug the mains power adaptor into the underside of the charger and plug the other end into the mains wall socket and switch on the power.

Already fitted Next-generation batteries ↓ PULL ↓ Remove this tab for 10 hours before use.

Talk/Standby time

Under ideal conditions, the handset batteries should give up to 12 hours talk time or 120 hours standby on a single charge. (This doesn't mean you can unplug the base or leave the handset for this length of time without charge).

Please note that new Ni-MH rechargeable batteries don't reach full capacity until they've been in normal use for several days.

Battery low warning

You will hear a warning beep every 2 minutes during a call and the □ icon will flash.

You must recharge the handset batteries before you can use the handset. If the charge completely runs out the handset will switch off. Place the handset on the base or charger to charge.

Battery performance

• To keep the batteries in the best condition, leave the handset off the base for a few hours at a time.
• Running the batteries right down at least once a week will help them last as long as possible.
  • After charging your handset for the first time, subsequent charging time for the batteries is approximately 8 hours.
• The charge capacity of rechargeable batteries will go down over time, which will reduce the talk and standby time. Eventually they'll need replacing. For details on how to get replacement batteries, call the helpline on 0800 145 6789*.

ST13007 AUXED BY CNC1542 Charger AC 1.5V DC 1.5V DC 1.5V CE CE CE CE CE CE CE CE CE CE CE CE CE CE CE CE CE CE CE CE CE CE CE CE CE CE CE CE CE CE CE CE CE CE CE CE CE CE CE CE CE CE CE CE CE CE CE CE CE CE CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CNC15427687878787878787878787878787878787878787878787878787878787878787878787878787878787878787878787878787878

1. Activate the batteries as explained on page 5.
2. Place the handset on the charger to charge for 16 hours.

TIP

If you need to take the batteries out, place your finger in the groove at the bottom of the handset and lift the cover up to release it. Then gently take the batteries out.

3Go!

Your BT2700 is now ready for you to use

• For help setting the date and time, go to page 54.
• For instructions on making a call, go to page 18.
• For help personalising your phone's settings, go to page 48.
• For instructions on using the answer machine, go to page 38.
  Or, you may find the answer in the Help section on page 57 or see our online frequently asked questions at bt.com/producthelp Alternatively, call the Helpline on 0800 145 6789*.

* Calls made from within the UK mainland network are free. Mobile and international call costs may vary.

Using your BT2700 on a line with broadband?

To avoid problems with your broadband or noise on your phone line, you might need to plug your telephone line cord into the wall socket via a microfilter (not supplied).

If your main phone socket has a single socket, you do need to use microfilters, like this:

Illustration of a white USB device connected to a separate rectangular socket (no text or symbols visible)

You'll need a microfilter for every phone socket where you've got equipment plugged in – up to a maximum of four per line – including alarm sytems and digital TV boxes.

You can get BT ADSL micro filters from bt.com/shop

You don't need to use microfilters if your main phone socket has two separate sockets, like these:

Two 3D-rendered white rectangular electronic components with square cutouts, shown side by side (no text or symbols)

Contents

Quick set up guide 4

Getting to know your phone .....12

Handset buttons ......12

Handset display 14

Finding your way around your phone .15

Menu map ......16

Base buttons 19

Using the phone 20

Switching the handset on and off .....20

Making an external call....20

Preparatory dialling 20

Ending a call ......20

Receiving a call 20

Mute 21

Incoming speech/Handsfree volume ..21

Handsfree 21

Answer a call using handsfree ......22

Switching to handsfree during a call ..22

Voicemail (1571) 22

Redial 22

Redialling the last number ......22

Viewing and dialling a number in the redial list 23

Saving a redial number to the phonebook 23

Deleting a number from the redial list 23

Deleting the entire redial list ......23

Do not disturb 24

Turning Do not disturb off ......24

Turning the handset ringer on or off ..24

Finding your handset (paging) ......25

Call Block 26

Blocking calls by type ......26

Adding a number to the Blacklist .....27

Viewing the Blacklist ......27

Editing a number in the Blacklist .....28

Deleting a number from the Blacklist .28

Deleting all of your Blacklist ......29

Changing your PIN 29

Phonebook 30

Store a phonebook entry ......30

Character map ....31

Viewing/dialling a phonebook entry ..31

Searching alphabetically for a phonebook entry 32

Editing a phonebook entry ......32

Adding a pause to a saved number .....33

Viewing a phonebook entry during a call. 33

Deleting a phonebook entry .....33

Deleting the entire phonebook .....34

Storing a speed dial number ......34

Dialling a speed dial entry .....35

Caller display and the Calls List ......36

Caller display 36

The Calls List 36

Viewing or dialling an entry in the Calls List ....37

Saving a Calls List entry to your phonebook ....37

Deleting an entry in the Calls List .....38

Deleting all of the Calls List......38

Answer machine 39

Using the answer machine from the handset 39

Switching the answer machine on or off 39

Outgoing messages 39

Recording your own outgoing message ....40

Playing the current outgoing message .... 40

Recording a memo 41

Setting the answer mode ......42

Setting the answer delay .....42

Call screening 43

Playing messages using the handset ..44

Message playback 44

Contents

Deleting all old played messages .....45

Using the answer machine from the base ....46

Switching the answer machine on or off at the base 46

Playing messages using the base .....46

Message playback on the base .....46

Deleting all played messages ......47

Remote access 47

Setting or changing the remote access PIN ....47

Turning remote access on or off ......48

Operating your answer machine remotely ....48

Settings 49

Setting the handset ringtone ......49

Setting the handset ringer volume ....49

Turning the handset tones on or off ... 50

Changing the handset name .....50

Turning the backlight on or off .....51

Changing the call settings ....51

Base settings 52

Setting the base ringtone ....52

Setting the base ringer volume .....52

Change the system PIN ....52

Reset 53

Clock/Alarm 54

Setting the time ....54

Setting an alarm 54

Switching the alarm off ....54

Using additional handsets ....55

Registering an additional handset .....55

De-registering a handset ....55

Making an internal call between handsets ....56

Transferring a call 56

Holding a three-way call ....57

Help 58

General information ......62

Safety 62

Contents 11

Cleaning 63

Environmental 63

How to recycle your equipment ......63

Guarantee 64

Technical details 65

Connecting to a switchboard ......65

R&TTE 65

Getting to know your phone

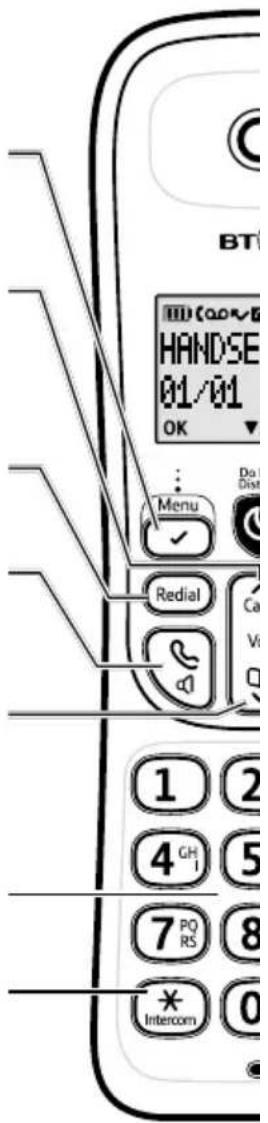

Handset buttons

Menu/Left option

Press to enter the main menu, access sub-menus and confirm options shown on the display above the button

Up/Calls

Enter Calls List.

Move through menu options.

Increase volume.

Redial

Open redial list.

Talk

In standby mode make and receive calls. In talk mode switch handsfree on or off.

Down/Phonebook

Access saved contacts.

Move down through menu options.

Decrease volume.

1 to 9 Speed dial buttons

In standby, press and hold to dial a saved speed dial number.

*

Long press to make internal calls to other handsets registered to the base.

CANV HANDSE 01/01 OK Menu Dai Dist Redial Ca Vi 1 2 4 GH 5 7 PQ RS 8 * Intercom 0

T 1 10:00 Mute R AB C 3 DE F JK L 6 MN O TU V 5 WX Y2

Aza

Do not disturb

In standby mode, press to turn Do not disturb on or off.

Press during a call to silence the ringer.

If Do not disturb is set to on, your caller can leave a message.

Mute/Right option

Press to confirm the option displayed on the screen above the button.

Delete or go back to the previous screen. Press during a call to mute your caller.

R (Recall)

Can be used when connected to a switchboard or PBX and with some BT Calling Features.

End call button

End a call or press and hold to turn handset on or off.

0

Add a space when typing.

#

Toggle between uppercase and lowercase characters.

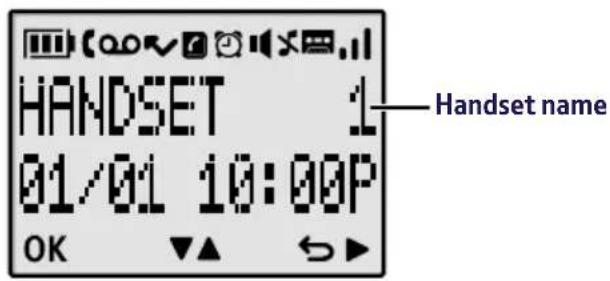

Handset display

HANDSET 1 01/01 10:00P OK ▼▲ ← ► Handset name

Shows you how much charge is left on the handset.

Will appear if you're on, or starting, a call.
Lets you know a new voicemail has been received.
Shows when a new missed call has been received.
Lets you know the Phonebook is open.
Shows when you've set an alarm clock.
Shows when handsfree is switched on.
✗ Lets you know the handset ringer is off.
Lets you know the answer machine is on. Flashes if you have new answer machine messages.
Lets you know the signal range from your new phone's base

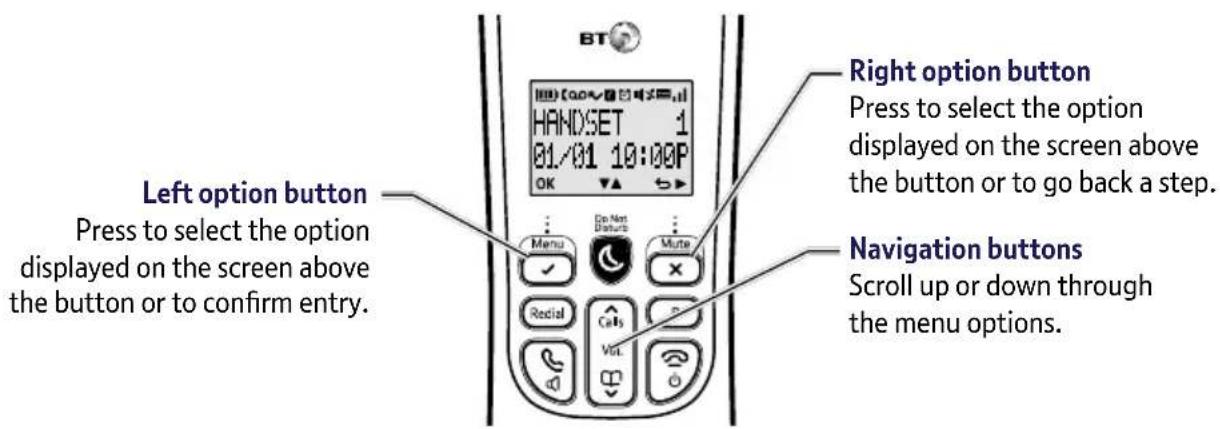

Finding your way around your phone

Your new phone's menu is easy to navigate. Each menu has a list of options, which you can see on the next page.

When the handset is switched on and at the home screen

1. Choose menu by pressing ✅️.
2. Use the 📁 or 📝 buttons to scroll through the available menu options.
3. When the menu you want is on the screen, press the
4. Use 📁 a scroll through the available menu options. To go back, press 📄. To return to the home screen menu, press 📄 if you don't press anything for 30 seconds, the handset will automatically return to the home screen.

BT HANDSET 1 01/01 10:00P OK ▼ ▲ ▶ Left option button Press to select the option displayed on the screen above the button or to confirm entry. Right option button Press to select the option displayed on the screen above the button or to go back a step. Navigation buttons Scroll up or down through the menu options.

If you need some help, call us on 0800 145 6789* or go to bt.com/producthelp

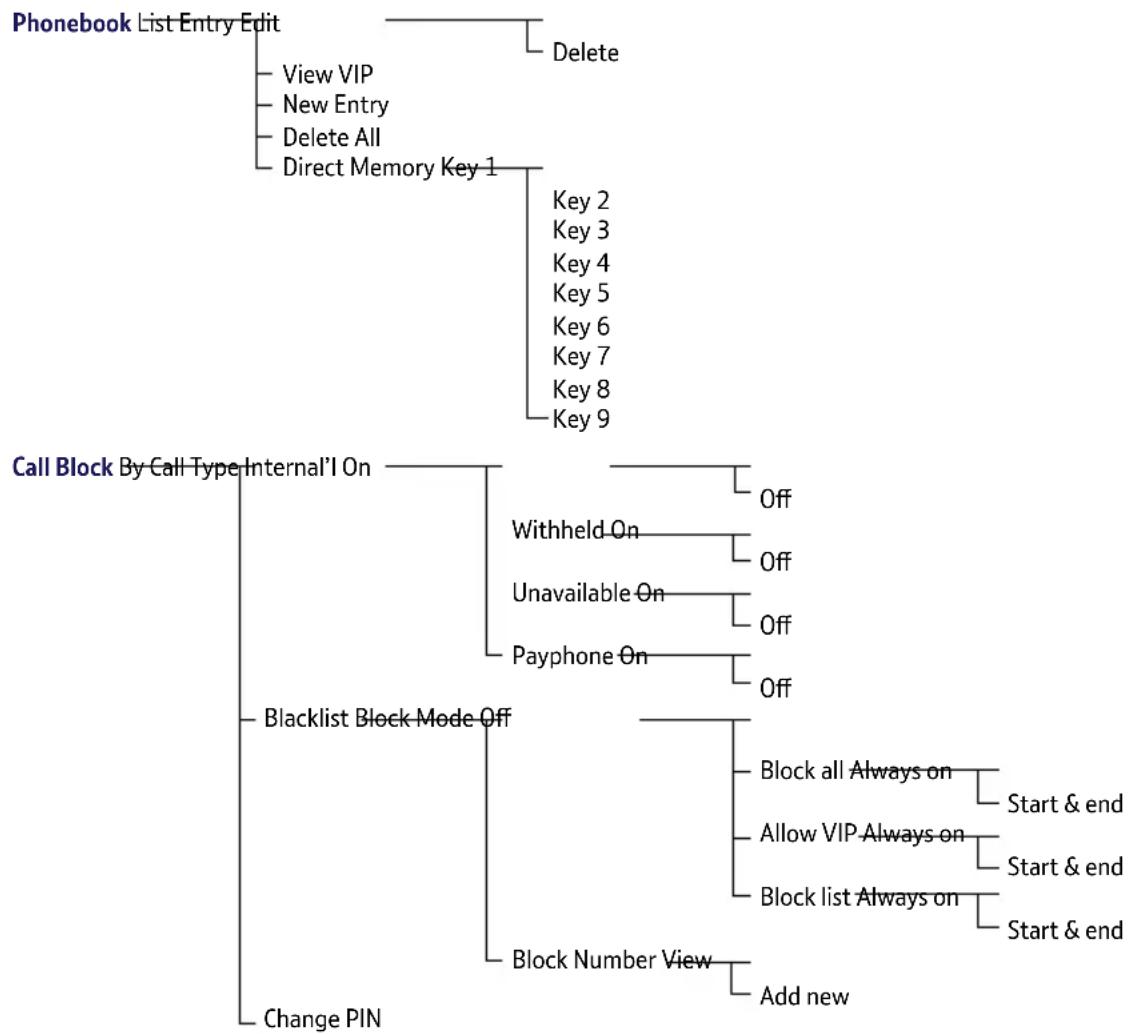

Menu map

    O["Call Block By Call Type Internal'1 On"] --> P["Withheld On"]
    O --> Q["Unavailable On"]
    O --> R["Payphone On"]
    O --> S["Blacklist Block Mode Off"]
    S --> T["Block all Always on Start & end"]
    S --> U["Allow VIP Always on Start & end"]
    S --> V["Block list Always on Start & end"]
    S --> W["Block Number View"]
    W --> X["Add new"]
    W --> Y["Change PIN"]

If you need some help, call us on 0800 145 6789* or go to bt.com/producthelp

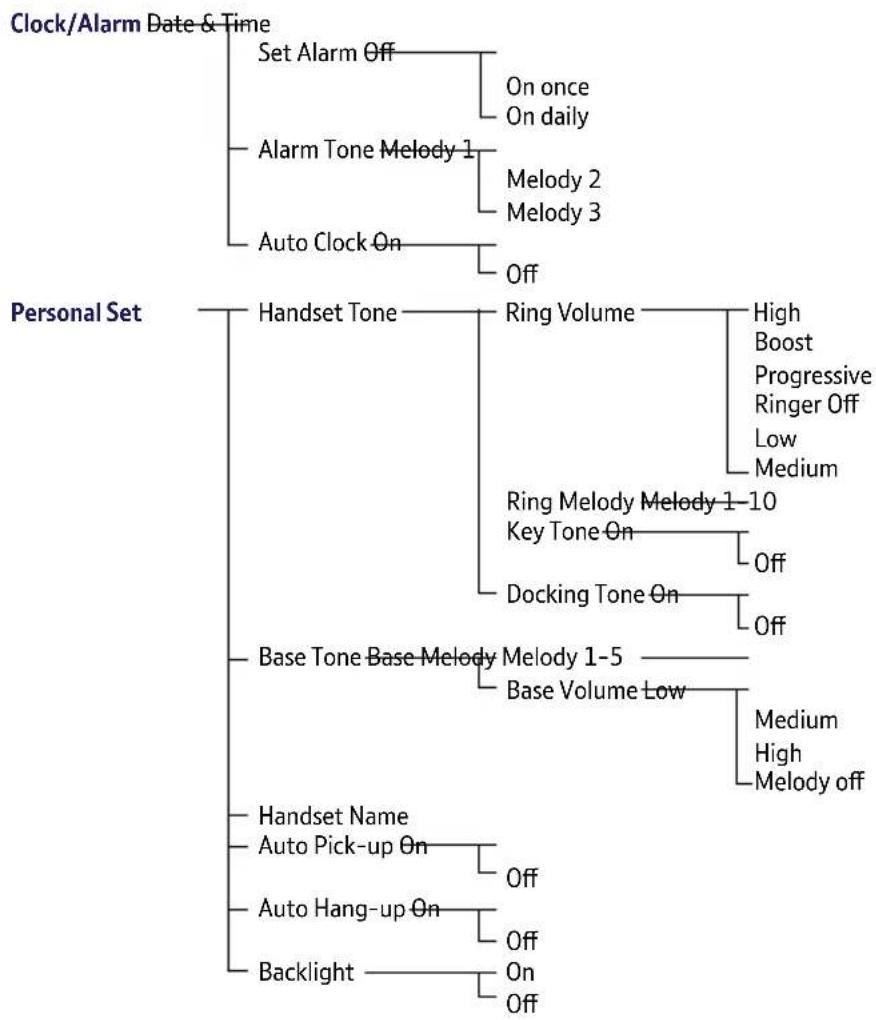


    H["Personal Set"] --> I["Handset Tone"]
    I --> J["Ring Volume"]
    J --> K["High Boost Progressive Ringer Off Low Medium"]
    I --> L["Ring Melody Melody 1-10 Key Tone On"]
    L --> M["Off"]
    I --> N["Docking Tone On"]
    N --> O["Off"]

    P["Base Tone Base Melody Melody 1-5"] --> Q["Base Volume Low"]
    Q --> R["Medium High Melody off"]

    S["Handset Name"] --> T["Auto Pick-up On"]
    T --> U["Off"]

    V["Auto Hang-up On"] --> W["Off"]

    X["Backlight"] --> Y["On Off"]

If you need some help, call us on 0800 145 6789* or go to bt.com/producthelp

    J["Answer machine Play"] --> K["Delete All"]
    K --> L["Record Memo Recording"]
    L --> M["Play"]
    L --> N["Answer Mode Record also"]
    N --> O["Answer Only Predefined"]
    O --> P["Personalized"]
    N --> Q["Answer On/Off On"]
    Q --> R["Off"]
    N --> S["Answer Setting Ring delay 2-9 Rings"]
    S --> T["Toll Saver"]
    S --> U["Remote Acc. Deactivate"]
    U --> V["Change PIN Activate"]
    S --> W["Hs Screening On"]
    W --> X["Off"]
    W --> Y["Bs Screening On"]
    Y --> Z["Off"]

    AA["Calls menu"] --> AB["Call Log Calls List"]
    AB --> AC["Answ Machine"]

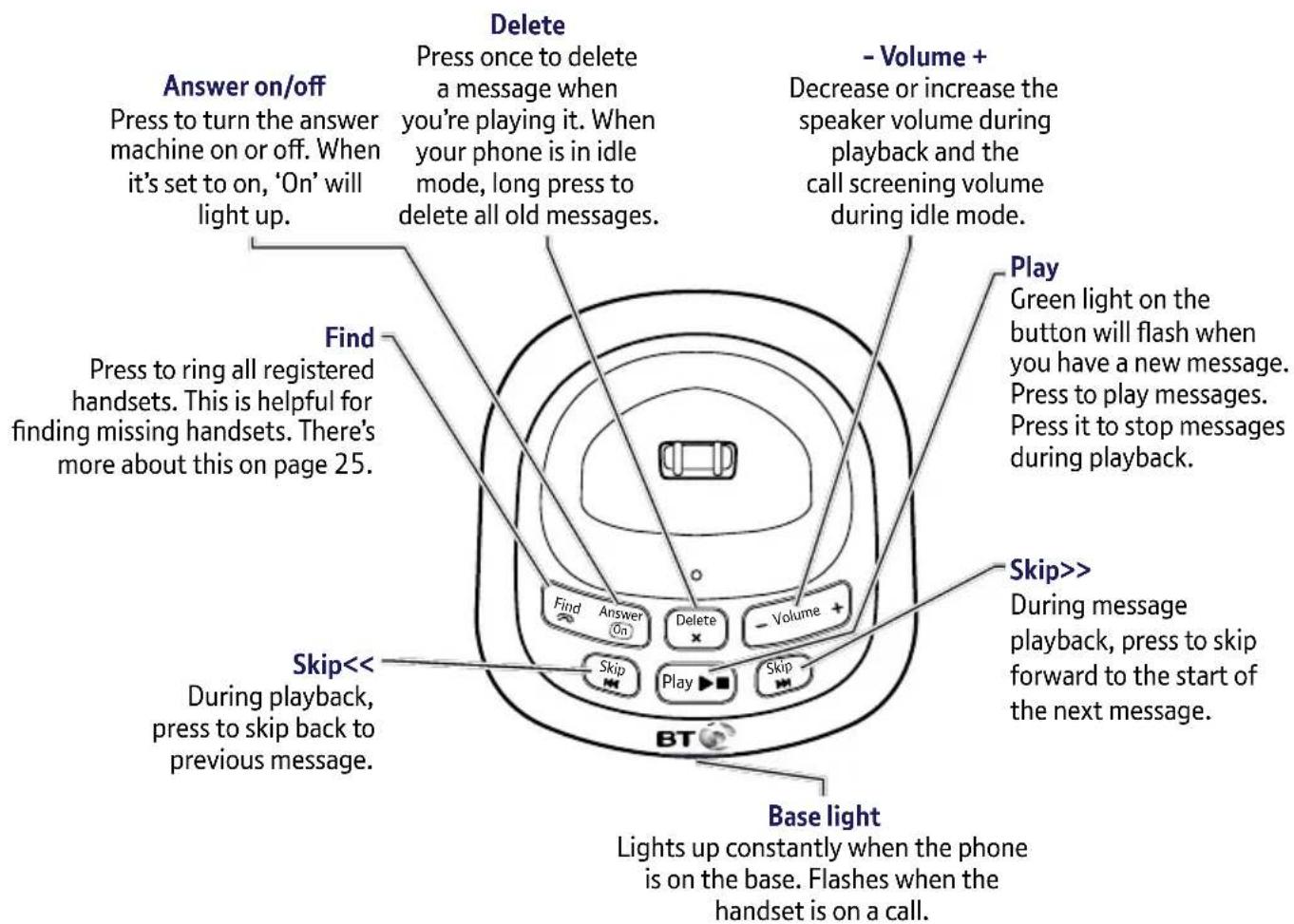

Base buttons

Answer on/off Press to turn the answer machine on or off. When it's set to on, 'On' will light up. Delete Press once to delete a message when you're playing it. When your phone is in idle mode, long press to delete all old messages. - Volume + Decrease or increase the speaker volume during playback and the call screening volume during idle mode. Find Press to ring all registered handsets. This is helpful for finding missing handsets. There's more about this on page 25. Play Green light on the button will flash when you have a new message. Press to play messages. Press it to stop messages during playback. Skip>> During message playback, press to skip forward to the start of the next message. Skip<< During playback, press to skip back to previous message. Base light Lights up constantly when the phone is on the base. Flashes when the handset is on a call. BT

Using the phone

Switching the handset on and off

1. Press and hold 📞 until the handset turns on or off.

Making an external call

1. Press

2. When you hear the dial tone, type the number. When the call begins, the light on the phone's base will flash.

Preparatory dialling

1. This lets you type in the number first, to avoid mistakes before the call is connected. If you make a mistake, press 📄 to delete the last digit.

2. Press 📞 to dial.

Ending a call

Press.

Receiving a call

When you get a call, your phone will ring and the icon will flash on the display. If you've got a caller display service, the caller's number will show on the display. Press 📞 to answer the call.

If you switch the phone off and on again, the phone will need to be charged for some time, before the true charge status can be recalculated by the phone and accurately displayed.

Call timer

Your handset will automatically time your outgoing and incoming calls. The handset shows the length of time both during and for a few seconds after your call.

When you make a call, the In use light on the base comes on.

Auto Hang-up

If auto hangup is set to On you can end a call by placing the handset back in the base.

If auto hang-up is set to Off, you'll need to press 📷 to end the call.

Auto hang-up On is the default setting. See page 51.

21 Using the phone

Auto Pick-up

If auto pick-up is set to On you can answer a call by lifting the handset off the base. If auto pick-up is set to Off, you'll need to lift the handset off the base and press 📄. Auto pick-up Off is the default setting. See page 51.

Out of range warning

The .■ icon on the handset display lets you know you're within range of the base. If you go out of range the icon will disappear.

If you're on a call and go out of range, you'll hear a warning beep. You'll need to move back within range of the base. If you do lose the connection, the handset will automatically re-connect to the base when you move back in range.

Mute

When you're on a call, you can mute the microphone, so the person at the other end can't hear you.

1. During the call, press 📄 to mute your microphone. Your display screen will show Mute on, so you'll know your caller can't hear you.

2. Press 📄 again to unmute. The display will go back to showing Calling, and the call length.

Incoming speech/Handsfree volume

To turn the volume up or down during a call, use 📄 and 📃 press to hear the volume change.

Handsfree

Handsfree lets you talk to your caller without holding the handset. It also means anyone in the room can listen to the call as well.

1. Type the number you want to call and then press twice. You'll hear your call on the loudspeaker. Press to switch between the earpiece and loudspeaker.

2. Press 📋 to end the call.

Answer a call using handsfree

When your phone rings, press 📞 after you've answered it. Your call will be transferred to the handset loudspeaker.

Switching to handsfree during a call

During a call, press 📞 to put it on loudspeaker. To switch handsfree off and go back to the earpiece, press 📌 again.

Redial

You can redial any of the last ten numbers you've called on your BT2700.

Redialling the last number

1. Press 📄. Your last dialled number will show on the display screen.
2. Press to call it.

Viewing and dialling a number in the redial list

1. Press Redial. The last number will show.
2. Press 🤾 and 🔵 to get to the number you want.
3. Press 📋 to connect your call.

Saving a redial number to the phonebook

1. Press Redial and use the arrow buttons to get to the number you want to save.
2. Press ✅️. You’ll be asked if you want to save the number, press ✅️.
3. Use the keypad to type in the name and press ✅
4. If you need to, edit the number and press √

Deleting a number from the redial list

1. Press Redial, then use the arrow buttons to scroll through to the number you want to delete.
2. Press ☑ and then ☑ get to Delete. Press . ☑
3. You'll be asked to confirm. Press ✅ again.

Deleting the entire redial list

1. Press Redial and then Menu
2. Press 🤒 until you see Delete all. Press 🕒
3. You'll be asked to confirm. Press

Do not disturb

The Do not disturb feature lets you choose calls to ring silently. When set to On, the base and handsets won't ring.

The handset backlight won't come on and the only sounds the handset will make will be the ‘battery low’ and ‘out of range’ warnings. The base call screening and message alert will also be set to low.

Turning Do not disturb off

When you have Do not disturb switched to On, it will show on the screen when your phone is in idle mode.

1. When you're on the handset's standby screen, press to turn the feature On or Off. DoNotDisturb will replace the handset name and number when this is switched on.

Turning the handset ringer on or off

1. Open the main menu by pressing 📂, then scroll through to Personal Set. using 📋.
2. You'll see Handset tone on the display screen, press ✅.
3. Use 📋 to find Ring volume and press ⬆
4. Use the arrow buttons again to scroll through to Ringer off and press 📄.

Finding your handset (paging)

If you can't find a handset, you can ring it using the base. If you get a call while using paging, the call will take priority. If you've switched your ringer off, it'll be temporarily switched back on during paging to help you find your handset.

1. Press find to ring all of the handsets registered to the base. The display screen on each handset will show Paging for up to 30 seconds.

When you've found your handset, press find again to stop the ringing.

Call Block

Default PIN is 0000.

Intern'l means you have an international call.

Your BT2700 can block calls by type or by number. To get the most out of it, you'll need to subscribe to a Caller Display service from your network provider. Charges may apply. You'll need to type in your PIN before you'll be able to change any of your Call Block settings.

Blocking calls by type

You can choose to block International, Withheld, Unavailable or Payphone numbers. To set your phone up to silence one of these call types:

1. Press ☐ to open the menu.
2. Press 🤨 to get to Call Block and then press ⬆
3. You'll be asked to type your PIN; use the keypad buttons to add it. Press
4. You'll see By CallType on the display screen. Press OK.
5. Use the arrow buttons to scroll between Intern'l, Withheld, Unavailable and Payphone. When you've found the one you want, press
6. Use the arrow buttons to scroll between On and Off and press 📋.

Adding a number to the Blacklist

You can block specific numbers by adding them to the Blacklist. If you add a number to the Blacklist, your phone won't ring.

1. Open the menu and press 📋 until you get to Call Block. Press 📋.

2. Type in your PIN and press ✅ again.

3. Press 📋 until you get to Blacklist and press ✅️

4. Press the arrow buttons again to scroll through to Block number. Press ✅️.

5. Press 🤨 until you see Add new and press ✅

6. Type in the number you want to block, then press to save it to the Blacklist.

Viewing the Blacklist

1. Press 📋 to open the main menu and then use the arrow buttons to find Call Block. Press 📋

2. Add your PIN and press ✅️.

3. Press 🤒 to find Blacklist and press ✅️

4. Use the arrow buttons again to find Block number. Press 📋.

5. View will show on the display screen. Press ✅ to open your Blacklist.

Editing a number in the Blacklist

1. Open the main menu and press 📋 until you see Call Block. Press 🖱️.
2. Type your PIN using the keypad and press ✅ again.
3. Press the arrow buttons to scroll through to Blacklist and press ✅️.
4. Press 📋 to get to Block number, then press ✅
5. Use the arrow buttons to get to Edit and press
6. Find the number you want to edit and then press 📋. When you've finished editing it, press 📋 save your changes.

Deleting a number from the Blacklist

1. Choose menu by pressing ⚡️ Scroll through to Call Block and press ⚡️.

2. Enter your PIN and then press ✅️

3. Use the arrow buttons to get to Blacklist and press

4. Scroll through to Block Number and press

5. Press 🤨 until you see Delete. Press 🤨

6. The Blacklist will show on the screen. Use the arrow buttons to scroll through to the number you want to delete. When you've found it, press 📋 Then press it again to confirm.

Deleting all of your Blacklist

1. Open the main menu and then press 📋 to get to Call Block. Press ✅️.

2. Type in your PIN using the handset keypad and then press ✅️.

3. Press 📋 until you see Blacklist on the display screen. Press 🖱️.

4. Press 🤒 to get to Block number and press 🕒

5. Press ✅ until you get to Delete all. Press ✅

6. Confirm? will show on the handset display screen. Press ✅️.

Changing your PIN

1. Press ☑ to open the menu. Press ☑ get to Call Block and press ☑.

2. Type in your PIN and press 🖼️.

3. Press 📋 to get to Change PIN and press ✅

4. You'll be asked to confirm your current PIN. When you've typed it, press

5. Type in your new PIN, press 📋 and then repeat this step. Your new PIN will be saved.

Phonebook

If you make a mistake, use the delete the last letter you typed. You can use toggle between uppercase and lowercase letters and numbers. To add a space, press and hold 0.

You can save up to 50 numbers to your phonebook. Names can be up to 12 characters and numbers can be 24 digits.

Use the keypad buttons to type names, using the letters above each number. For example, if you wanted to write Tom, you would press 6 ^MN once for the 'T', 6 ^MN three times for the 'o' and 8 ^12 ce to enter 'm'.

Store a phonebook entry

1. When your handset is on the home screen, press to open the menu.
2. You'll see Phonebook. Press Use to find New entry. Then press OK.
3. Type in the phonebook entry name using the keypad, then press ✅.
4. Add the phone number and press ✅️.
5. You'll be asked if you want to add this number to the VIP list. If you do, press ✅ if not, press ✅ your new entry will be saved.
6. If you only have one handset, the display will return to the phonebook, showing the new entry.

Character map

0SP . 0 , / : ; “‘! i ? ¿ * + - % \ ^ ~ |
11	@ _ # = < > ( ) & € £ $ ¥ [ ] { } ☐ § ...
2a	b c 2
3d	e f 3
4g	h i 4
5j	k l 5
6m	n o 6
7p	q r s 7
8t	u v 8
9w	x y z 9
**
# Changes text entry mode (sentence case, upper, lower or numeric)

Viewing/dialling a phonebook entry

1. When the handset is on the home screen, press 🤨. The first entry will show.
2. Press 📁 and 🤔 scroll through the entries.
3. When the phonebook entry you want shows on the screen, press 📞 to dial it.

Searching alphabetically for a phonebook entry

1. When the handset is on the home screen, press 🤨.
2. Use the keypad buttons to search for the name. For example, to find a phonebook entry beginning with 'S', press 7 four times and then use the arrow buttons to scroll through the entries until you find the one you need.

Editing a phonebook entry

1. When your handset is on the home screen, press
2. Use 📊 and 🌐 scroll through to the phonebook entry you want to edit and select OK by pressing ⚫.
3. Use the arrow buttons again to scroll through to Edit and press ✅ again.
4. Use the keypad to add your changes, then press ✅
5. Saved! will show on the home screen and you'll hear the confirmation tone.

Adding a pause to a saved number

If your new phone is connected to a switchboard, you might need to add a pause to a stored number. A pause will normally be after the switchboard access code (for example 9). When storing a number, press and hold 📄 and then continue typing it.

Viewing a phonebook entry during a call.

1. Press √. You'll see Phonebook. Press √ again.
2. Type the first letter of your phonebook entry name using the keypad. Then scroll through the entries using 📄 and 🎨 press to display the number.

Deleting a phonebook entry

1. When your handset is on the home screen, press 📋.
2. Use the arrow buttons to scroll through to the entry you want to delete and select options by pressing 📂.
3. Press 📁 and 📌ain until you get to Delete. Press 🖼️.
4. You'll be asked to confirm you want to delete the phonebook entry. Press ✅. Deleted will show and you'll hear a confirmation tone.

Deleting the entire phonebook

When you delete all of your phonebook entries, they'll be removed from each of the handsets.

1. Press 📋 to open the menu. Press it again when you see Phonebook.

2. Use the arrow buttons to get to Delete all and press

3. Press ☑ to confirm.

Storing a speed dial number

You can assign numbers from your phonebook to the 1–9 buttons on your keypad, so you can call them quickly by just holding the number down. They're also called Direct Memory numbers.

1. When your handset is on the home screen, press to get to the main Menu.

2. Press 📋 when you see Phonebook.

3. Then use the arrow buttons to get to Direct Mem and press 📄.

4. Press 📁 and 📋 scroll through to the button you want to save a speed dial number to and press 📄

5. Press ☑ You'll see Add, then press ☑ again.

6. Use the arrow buttons to find the Phonebook entry you want to assign to the speed dial button and press

Dialling a speed dial entry

1. On the keypad, press and hold the speed dial number you've assigned your phonebook entry to. Their phone number will be dialled automatically.

Caller display and the Calls List

You'll need to subscribe to your network provider's Caller Display service for this feature to work. You might have to pay a fee. For more information on BT Calling Features, call BT free on 0800 800 150.

For the caller's name to be displayed, make sure you've stored the full telephone number in your contacts list, including the dialling code.

There are some incoming calls where a number is not displayed and a network message is recorded instead:

Unavailable = number is unavailable

Withheld = number has been withheld

Intern'l = international number

Operator = call from the operator

Payphone = call from a payphone

Ringback = a ringback call

Caller display

You'll need to subscribe to a caller display service to get the most out of this feature. When you do, you'll be able to see your caller's number on your handset display, as long as it's not withheld.

If the number is unavailable (which can happen if the call is coming from overseas), the number will show as Unavailable. If you've requested a Ringback, that'll also show on the handset display screen.

If a number is stored in your handset, the caller's name will be displayed. If you haven't subscribed to a caller display service, Calling will show on the phone's display.

The Calls List

The Calls List is where you can find all missed and received calls. The most recent call will show at the top of the list, followed by the rest in chronological order. Your Calls List will store up to 50 calls. When it's full, the newest call will replace the oldest.

If you miss a call, will show on the handset display screen. To stop this from showing, just view the Calls List from any handset registered to the base.

Viewing or dialling an entry in the Calls List

1. Press 📄 to get to the Calls List. When you see Calls List, press ✅️.
2. You'll see the most recent entry. If you haven't got any numbers stored to the Calls List, List empty will show.
3. Use 📁 and 🖱 scroll through the list.
4. If you want to call a number from the list, when it shows on the screen, press 📞.

Saving a Calls List entry to your phonebook

1. Press 📊 to get to your Calls List.
2. Press 📋 or OK to enter Calls List.
3. Use the arrow buttons to scroll through to the number you want to save.
4. When you get to it, select OK by pressing
5. Save number will show on the display screen. Press 📋.
6. Type in the phonebook entry name, using the handset keypad. Press ✅️.

When the Calls List is open, press 📄 scroll from the newest call to the oldest, or press 🤡 to scroll from the oldest call to the newest.

1. The number you're saving will be displayed. Edit it if you need to, then press 📄 to save the number. Saved! will show and you'll hear the confirmation tone.

Deleting an entry in the Calls List

1. Press 📊 to get to your Calls List.
2. Press 📋 or OK to enter Calls List.
3. Use the arrow buttons to get to the list entry you want to delete and select OK by pressing √.

4. Press 📋 until you get to Delete and press 🌐 You’ll be asked to confirm, press OK. Deleted will show on your screen and you’ll hear the confirmation sound.

5. If you want to go back to the home screen, press Deleting all of the Calls List

6. Press 📄 to get to your Calls List. The most recent call will show first.

7. Press 📋 or OK to enter Calls List.
8. Press ☑ to choose Options.
9. Use the arrow buttons to scroll through the menu until you get to Delete All and press ✅️. You’ll be asked to confirm. Press ✅️ to delete.

Answer machine

Your new BT2700 comes with an answer machine that can record up to 59 messages within the 20 minutes recording time when it's switched on. Each message can be up to three minutes long.

Using the answer machine from the handset

Switching the answer machine on or off

1. Press 📋 to get to the menu, then use the arrow buttons to find Answ machine. Press 📋.
2. Press 🤨 until you see Answ on/off and press ✅️
3. Use the arrow buttons to choose between On or Off, then press 📋 to confirm. You'll hear the confirmation tone.

Outgoing messages

Your outgoing message is what your callers hear when their call goes to the answer machine. With the pre-recorded messages, you'll get two options. Answer + Rec lets callers leave a message; Answer only just answers your calls.

When the answer machine is switched On, the text 'On' will light up on the 📄 button.

Answer + Rec

The pre-recorded Answer + Rec outgoing message that allows your caller to leave a message is, “Hello, your call cannot be taken at the moment, so please leave your message after the tone”.

Answer Only

The pre-record Answer Only outgoing message, where callers hear an announcement but can't leave a message, is "Hello, your call cannot be taken at the moment and you cannot leave a message, so please call later".

Recording your own outgoing message

You can record either a Answer + Rec message or an Answer only message. If you chose Answer + Rec, your caller will be able to leave a message. If you choose Answer only, they won't.

1. To record your own outgoing message, press ✅ to get to the menu.

2. Press 📋 until you get to Answ machine. Press ✅

3. Then use the arrow buttons to find Answer mode and press 📋.

4. Then choose Answer + Rec or Answer only and press

5. Scroll through to Personalized and then use the arrow buttons to get to Record.

6. Press 📂 to start recording your message. When you're done, press 📂 again and your message will be played back to you.

Playing the current outgoing message

1. Press ☑ to get to the menu.

2. Use the arrow buttons to get to Answ machine. Press

3. Then press the arrow buttons until you find Answer mode. Press ✅️.

4. Then choose between Answer + Rec or Answer only and press left option button.
5. Then select Personalized or Predefined by pressing 📄.
6. When you see Play on the display screen, press Your current message will be played back to you

Recording a memo

When you record a memo, it's saved on your answer machine and can be played back by other users like a normal answer machine message.

1. Press 📋 to bring up the handset menu.
2. Use 📁 and 🖼 get to Answ machine and press ⬆️.
3. Press 📋 until you see Record memo. Press ✅️
4. Follow the onscreen prompt and record your memo. Select Save when you're finished.
5. Your memo will then be played back to you.

You can record a memo message on the answer machine for other users to hear when they listen to messages. You can only record memos using the handset. Memo messages are played back in exactly the same way as normal answer machine messages, see page 44 and 46.

The default outgoing message is Answer + Rec.

Setting the answer mode

There are two answer machine types: Answer + Rec and Answer only. Answer + Rec lets users record messages to your answer machine. Answer only doesn't. Here's how to set it.

1. Press ☑ to display the handset menu. Use 📂 and ☑ to get to Answ machine. Press ☑

2. Press 📋 until you get to Answer mode and press ✅.

3. Use the arrow buttons to choose the answer type you want and press ✅.

4. You'll then be asked to choose between your own outgoing message or the one that came with the phone. When you've decided, press 📋.

Setting the answer delay

Answer delay is the number of times the phone will ring before the answer machine picks the call up for you. You can choose from two to nine rings and Toll saver.

If you've got Toll saver switched on, when you call in to check your answer machine messages remotely, it'll only answer the call after six rings if you don't

have new messages. That way, you won't get charged for the call if you haven't got any messages to check.

1. Press ✅️. Press 🔒 til you see Answ machine, then press ✅️.
2. Press 📋 until you get to Answer settings, then press 📋.
3. When you see Ring delay, press 📋.
4. Press 📁 and 🌐 get to the number of rings you want and press ⚫.

Call screening

You have two Call screening options on the BT2700: Handset screening (Hs) and Base screening (Bs). When Base screening is switched on, you'll hear the caller leaving a message through the base. When Handset screening is on, you'll hear them through the handset.

For compatibility with BT 1571 (or another voicemail service)

Make sure the answer delay is set for your answer machine to answer before the voicemail service. Therefore, the answer delay should be less than on your voicemail service. For BT 1571 do not set the answer delay to more than 5 rings.

Answer machine

The default setting is call screening On.

While screening, you can adjust the volume by pressing or on the handset or on the base.

1. To turn it on or off, press 📄 display the menu. Use the arrow buttons to scroll through to Answ machine.

2. Press 📋 until Answer settings appears on the screen. Press ✅️.

3. Use the arrow button again until you get to Hs screening or BS screening and press

4. Use the arrow buttons to choose between On or Off and press 📋 to confirm.

Playing messages using the handset

When you get a new message, a message will show on the handset display screen.

1. To play it, press 📋 on your handset. Press 📋 get to Answ machine, then press 📋.

2. Play will show on the screen. Press 📋 and your messages will be played in the order they were left, with the most recent first. If you've got caller display, the number of the caller and the date and time they left the message will be shown on the screen.

Message playback

When you're playing messages, you have the following options:

and adjust the volume.

switches the playback from handsfree carpiece.

plays the current message from the beginning.

skips to the previous message.

skips to the next message.

Del. or 3 ^th deletes the message currently playing. When your messages have finished playing, you'll be taken back to the Play messages screen and messages will be renumbered if you've deleted any.

Deleting all old played messages

1. Press ✅, and then use the arrow buttons to scroll through to Answ machine. Press ✅

2. Press 📋 until you get to Delete all. Press ✅️

3. You'll be asked to confirm. Press ✅️.

Using the answer machine from the base

Switching the answer machine on or off at the base

To turn the answer machine on and off using the base, just press 📄. When the answer machine is On, On will be lit on the 📄.

Playing messages using the base

When you get a new message, Play will flash on the base of your phone. Press it to play your messages. New messages will be played first, followed by those you've already listened to.

Message playback on the base

During playback, you can press:

Play ▶ to stop playback.

Play ▶ to resume or pause playback.

Delete to delete the message being played.

Skip to skip to the next message.

Skip twice to skip to the previous message.

- Volume + to turn the playback volume up or down.

Deleting all played messages

1. When the base isn't in use, press Delete ✗.
2. The base will ask you to confirm. Press Delete again within three seconds to delete all your old messages.

Remote access

With Remote access, you can listen to your answer machine messages from another phone. You'll need to set a PIN. The feature will need to be switched On for it to work.

Setting or changing the remote access PIN

1. Press 📂 to open the menu. Press 📂 til you get to Answ machine. Press 📂.
2. Press 📋 until you see Answ settings, then press ✅ again.
3. Use the arrow buttons again until you see Remote acc. and press √.
4. Press 📋 until you get to Change PIN. Press 🏠️
5. Type your current PIN, press ✅️.
6. Type in your new PIN and press 📋 and then repeat this step. Your new PIN will be saved.

Memory full

The memory is full if there is less than 15 seconds of recording time left. When full, the 📄 flashes quickly on the handset display and the machine will switch to Answer Only mode. If the memory becomes full when a caller is leaving a message, they will hear a beep and the call will end.

You will need to delete messages before your answer machine will be able to record new ones. To delete all old (played) messages, see page 45 and opposite.

You cannot turn Remote access On until you have set a remote access PIN.

The default setting is Off.

Turning remote access on or off

1. Press ☑, then scroll to Answ machine and press ☑

2. Press 📋 until you get to Answ settings, then press ✅️.

3. Use the arrow button again to find Remote acc. and press ✅.

4. Press 📁 and 🌐 choose between Activate and Deactivate, then press 🖱️ to confirm.

Operating your answer machine remotely

1. Dial your number from another phone.
2. When you hear your outgoing message, press # and then your remote access PIN.
3. You can then:

1 replay previous message
2 play all messages
3 play next message
6 delete current message
7 switch answer machine on
8 stop playback
9 turn answer machine off

Setting the handset ringtone

You can choose from ten ringtones.

1. To change it, press 📂 and then press 📍 find Personal Set and press 🖱️.

2. Handset tone will show on your display screen. Press 📋.

3. Use the arrow button to scroll through to Ring melody. Press 🖱️.

4. Select the tone you want and then press ✅ to save it.

Setting the handset ringer volume

1. Open the menu by pressing ✅️. Use the arrow buttons to scroll through until you come to Personal Set. Press ✅️.

2. Handset tone will appear on the screen, then press ✅️.

3. Ring volume will show on your display screen. Use the arrow buttons to scroll through the volume options and then press ✅.

Choose from 10 handset ringtones. The default external ringtone is Melody 1 and the internal ringtone is Melody 2.

There are 5 handset ringer volume levels, Low, Medium, High, Boost, Progressive and Ringer off.

If you turn the ringer off, the ✗ icon will be displayed on the home screen.

Turning the handset tones on or off

Each time you press a button on your keypad, a tone will sound. You can turn these on or off. The default setting is Off.

1. To change it, press 📄 and press 🌐 til you get to Personal Set. Press 🖱️.

2. Press 📋 until you get to Handset Tone. Press ✅️

3. Then press 🎨 to get to Key tone. Press 🎩

4. Then use the arrow buttons to scroll between On and Off and press 📋.

Changing the handset name

You can personalise your handset name, using up to ten characters. You can change it back at any time by following the steps below and then deleting all of the characters and pressing 📄.

1. To change a handset name, press 📋 and then press 📋 to find Personal Set. Press 📋

2. Press ✅ until you get to Handset name. Press ✅

3. Type in the name you want to give your handset using the keypad and press ✅ to save.

Turning the backlight on or off

1. Press 📂 and then use the arrow buttons to scroll through to Personal Set. Press 📂.

2. Press 📋 until you see Backlight and press 🌈

3. Press 📄 or 🤖 to scroll between On and Off, then press ⚡️ to save.

Changing the call settings

You can set your BT2700 to Auto Pick-Up and Auto Hang-Up. With Auto Pick-Up, you can answer a call by taking the handset off of the base when it's ringing, without having to press any buttons. If Auto Hang-Up is switched on, you'll be able to end a call by placing the handset back on the base.

1. To change these settings, press 📂 and then press 📁 to scroll through to Personal Set. Press 📃

2. Press 📋 again until you get to Auto Hang-Up or Auto Pick-Up, then press 📋.

3. Press 📁 or 📋 again to go between On and Off. When you get to the option you want, press 📋 and your changes will be saved.

Base settings

Choose from 5 base ringtones. The default base ringtone is Melody 1.

There are 5 base ringer volume levels, Low, Medium, High and Melody Off. The default is Medium.

Setting the base ringtone

1. Press ☑ and then scroll through to Personal Set. using the arrow buttons. Press ☑.
2. Press 📋 until you get to Base tone and press ✅
3. Base melody will show on the screen. Press
4. The base will play your current ringtone. Press 🖱 and 📋 to choose between five different ringtones, then press 🖼️.

Setting the base ringer volume

1. Press ☑ and then press ⏻ scroll through to Personal Set. Press ☑.

2. Press 📋 until you get to Base tone, then press ✅️

3. Press 📋 to scroll through to Base volume. Press 🖱️

4. The base will ring at its current volume. Use the arrow buttons to choose the volume you want.

5. When you've chosen the right volume, press 📄 to save your changes.

Change the system PIN

To change some of the settings on your phone, you'll need to give your access PIN. This is a four-digit number and the default is set to 0000.

1. To change it, press 📄 and then press to scroll through to Advanced set. Press 📄.

2. Press 📋 until you see PIN on the display screen. Press 🖱️.

3. If you haven't set one before, you'll be prompted to set a four-digit PIN. When you've done it, press Or if you're changing a PIN you've already set, you'll be asked to type in the current PIN. Then follow the instructions on the screen to set a new one and press

4. Enter your new PIN again and press 📋. Saved! will show on the screen.

Reset

If you choose to do this, your BT2700 will go back to the settings it had when it arrived. Your phonebook will still be saved on your phone if you reset.

1. Press 📋 and then press 📋 til you see Advanced set. Press 📋.

2. Press 📋 until you get to Reset and then press ✅

3. Reset confirm? will show on the screen. Press 📄 to confirm. When your handset has finished resetting, you'll hear a confirmation beep.

Clock/Alarm

If you have subscribed to a Caller Display service the time and month may be set when you receive your first call but you will still need to set the year.

Setting the date and time

1. Press ☑, then scroll ☑ to Clock/Alarm. Press ☑.
2. Press 📋 until you get to Date & time and press 🌈
3. Use the keypad to type in the date and press 📄. Then add the time. Press 📄 to save.

Setting an alarm

1. Press 📂, then scroll 📋 to Clock/Alarm and press 📋.

2. When you see Set alarm, press ✅️.

3. Press 📁 and 🔒 choose how often you want the alarm to go off: Off, On once, On daily. Press ✅️

4. Using the keypad, type in the time you want to set the alarm for and press 📋. When you’ve set your alarm, the 🔔 icon will show on the display screen.

Switching the alarm off

When the alarm goes off, the screen will light up, the alarm will ring at the medium level and Alarm On and the 📋 will flash on the display. To switch it off, press 🔒.

Using additional handsets

Registering an additional handset

If you bought your BT2700 as a multipack, all the handsets that came with it will be registered at the base. If you buy new handsets separately, you'll need to register them before you can use them. You can register up to four handsets and have to complete the registration process in two minutes.

At the base:

1. Press and hold 📄 for 5 seconds. You now have 2 minutes to register a handset.

At the handset:

1. Press 📂, then press 📋 til you see Advanced set. Then press 📋.
2. Press 📋 until Register is displayed. Press ✅
3. You'll be asked to confirm your PIN. Type it in and then press ✅. When your handset is registered, it'll be given a handset number.

De-registering a handset

1. Press 📋, then press 📋 Advanced set. using . 🖼️ Press 📋.
2. Press 📋 until you come to Unregister. Press ✉️
3. Type your 4 digit PIN, then press ✅️.

You can register up to four GAP compliant handsets to your BT2700 base to extend your phone system without needing to install telephone extension sockets for each new phone.

You have 2 minutes to complete the registration process.

If registration isn't successful the first time, please try again incase the base registration period ran out of time.

If there are already four handsets registered to the base, the registration will fail. You must de-register another handset before you can register the new one.

Registering another make of handset to your BT2700 base If you want to register another make of handset (i.e. not a BT2700 handset) to your BT2700 base you will need to follow the Registration instructions that came with the handset first and then continue with the base part of the registration procedure (as shown in point 1 on page 54). Please note that registering other types of handset will only provide limited compatibility i.e. you may only be able to make and receive calls on the additional handset.

1. De-registering handset will show on the screen. When it's finished, you'll get confirmation on the screen and hear a beep.

Making an internal call between handsets

If you've got more than one handset registered to your base, you can make internal calls between them.

1. Press and hold 📄. Any registered handsets will start ringing.

Transferring a call

You can transfer an external call from one handset to another registered to the base.

1. When you're on the call, press and hold ✝️. Your caller will be put on hold.
2. Use the arrow buttons to get to the handset you want to send the call to. Press ✅️.
3. When the handset answers, announce the caller and then press 📋 to transfer the call. If the handset doesn't answer, press and hold 📋 again to talk to your caller.

Holding a three-way call

You can hold three-way calls with either two external callers or, if you've got more than one handset, two internal handsets and one external caller.

1. During a call, press and hold 📄. This will put your caller on hold.
2. Use the arrow buttons to find the handset you want to add to the call.
3. When the other handset answers, you can announce the call and press ✅ to connect the calls.
4. If the other handset doesn't answer, press and hold to talk to your caller again.

My phone isn't working

• Have you activated the batteries correctly? See page 5.
• Check that the mains power is correctly connected.

No dial tone, or a line cord error message is displayed on the screen

• Is the phone cord plugged into the base and phone wall socket?
• Check that the mains power is correctly connected.
• Only use the phone cord supplied with the phone.

Can't make or receive calls

• Check that the mains power is correctly connected.
• The batteries may need recharging.
• Has there been a power cut? If so, place the handset back on the base for ten seconds and try again. If it still doesn't work, disconnect the batteries and mains power for ten minutes, then reconnect and try again.

You have a dial tone but the phone won't dial out

- If you're connected to a switchboard, check whether you need to dial an access code.

Handset doesn't ring

The ringer volume may be switched off. See page 49.

• Check that the mains power is correctly connected.
• Do not disturb may be switched on. See page 24.

- Make sure the handset is registered to the base. See page 55.

No display

• The batteries may be flat, dead or incorrectly inserted.
• Recharge or replace the batteries.

Range icon flashes

• Make sure the handset is registered to the base. See page 55.
• Check that the mains power is correctly connected to the base.
• Check that the handset is within range of the base.
• If the batteries are low, place the handset on the base/charger to recharge.

You hear the busy tone when you press

• Make sure the handset is in range of the base.
• Another handset registered to your BT2700 base may be on the line.

No caller display number or name is displayed

• Have you subscribed to a caller display service from your network provider?
• The caller may have withheld their number.
• The network might not have the caller's number information.
• There isn't an exact name or number match in your phonebook.

Check that you've stored the full STD dialling code.

Can't register a handset to a base

• You can register up to four handsets to your BT2700 base and you can register your BT2700 handset to up to four bases. Check that you haven't gone over the limits.
• Check that you've entered the correct system PIN number (default PIN 0000).
• Check that you're at least one metre away from other electrical equipment to avoid interference when registering.

Base unit doesn't ring but the lights are on

• Have you connected the phone line correctly?
• Do not disturb may be switched on. See page 24.
• Is the base ringer set to Off?
• You may have a faulty line or socket. Try using another socket or line. Call your network provider or, if you're a BT customer, please call 0800 800 151 if you still have problems.

Buzzing noise on my phone or on other electrical equipment nearby

- Sometimes other electrical equipment can interfere with your BT2700 if it's placed too close. We recommend that you place your BT2700 at least one metre away from electrical appliances or metal obstructions to avoid any risk of interference.

Customer helpline

If you're still having problems, call us on 0800 145 6789* or go to bt.com/producthelp

General sales enquiries

• BT residential lines, call 150. BT Business lines, call 152.
- Non-BT line customers, call 0800 800 150 (residential) or 0800 800 152 (business).
- To buy extra handsets, call us on 0800 145 6789*.

Billing enquiries

Please see the phone number shown on your BT bill.

General information

Important

This equipment is not designed for making emergency phone calls when the power fails. Alternative arrangements should be made for access to emergency services.

This product is intended for connection to analogue public switched phone networks and private switchboards in the United Kingdom.

Replacing the handset batteries

After a time, you might find that the handset batteries run out of charge more quickly. This is a standard sign of wear and the batteries will need replacing.

1. Open the battery compartment cover.
2. Lift the battery out and remove the batteries. Replace with two new AAA Ni-MH 550mAh rechargeable batteries.
3. Replace the battery compartment cover.

Caution

Don't immerse batteries in water, throw them into a fire or dispose of them with ordinary domestic refuse.

BT accepts no responsibility for damage caused to your BT2700 by using any other types of batteries.

There is a risk of explosion if incorrect batteries are fitted.

Safety

• Only use the power supply suitable for the BT2700. Using an unauthorised power supply will invalidate your guarantee and may damage the phone. The item code for the base mains power supply is 066270. If you've bought a multiple pack, the item code for the charger mains power supply is 066270.
• Use only the approved rechargeable batteries supplied. Spare rechargeable batteries are available from the BT2700 Helpline on 0800 145 6789*.
• Don't open the handset (except to replace the handset batteries) or the base. This could expose you to high voltages or other risks. Contact the Helpline on 0800 145 6789* for all repairs.
• Radio signal transmitted between the handset and base may cause interference to hearing aids.
• It is recommended that advice from a qualified expert be sought before using this product in the vicinity of emergency/intensive care medical equipment.
• It is recommended that if you have a pacemaker fitted you check with a medical expert before using this product.
• Your product may interfere with other electrical equipment, e.g. TV and radio sets, clock/alarms and computers if placed too close.
• It is recommended that you place your product at least one metre away from such appliances to minimise any risk of interference.

- Never dispose of batteries in a fire. There is a serious risk of explosion and/or the release of highly toxic chemicals.

Cleaning

Clean the handset and base (or charger) with a damp (not wet) cloth, or an anti-static wipe. Never use household polish as this will damage the product. Never use a dry cloth as this may cause a static shock.

Environmental

• Do not expose to direct sunlight.
• The handset may become warm when the batteries are being charged or during prolonged periods of use. This is normal. However, we recommend that to avoid damage you do not place the product on any surface susceptible to heat damage.
• Do not stand your product on carpets or other surfaces which generate fibres, or place it in locations preventing the free flow of air over its surfaces.
• Do not submerge any part of your product in water and do not use it in damp or humid conditions, such as bathrooms.
• Do not expose your product to fire, explosive or other hazardous conditions.
• There is a slight chance your phone could be damaged by an electrical storm. We recommend that you unplug the power and phone line cord during an electrical storm.

How to recycle your equipment

The symbol shown here and on the product means that the product is classed as electrical or electronic equipment, so DO NOT put it in your normal rubbish bin.

It's all part of the Waste Electrical and Electronic Equipment (WEEE) Directive to recycle products in the best way – to be kinder to the planet, get rid of dangerous things more safely and bury less rubbish in the ground.

You should contact your retailer or supplier for advice on how to dispose of this product in an environmentally friendly way.

Warning

You won't be able to call 999 from this phone if there's a power cut, so make sure you've got another way to call for help in an emergency.

R&TTE Directive & Declaration of Conformance

This product is intended for use within the UK for connection to the public phone network and compatible switchboards.

This equipment complies with the essential requirements for the Radio Equipment and

Telecommunications Terminal Equipment Directive (R&TTE) (1999/5/EC).

For a copy of the Declaration of Conformance please refer to bt.com/producthelp

Guarantee

Your BT2700 is guaranteed for 12 months from the date of purchase.

Subject to the terms listed below, the guarantee will provide for the repair of, or at BT's or its agent's discretion, the option to replace the BT2700 or any component thereof, (other than batteries), which is identified as faulty or below standard, or as a result of inferior workmanship or materials. Products over 28 days old from the date of purchase may be replaced with a refurbished or repaired product.

Guarantee conditions

• The guarantee shall only apply to defects that occur within the 12 month guarantee period.
  • Proof of purchase is provided.
• The equipment is returned to BT or its agent as instructed.
• This guarantee doesn't cover any faults or defects caused by accidents, misuse, fair wear and tear, neglect, tampering with the equipment, or any attempt at adjustment or repair other than through approved agents.
• This guarantee does not affect your statutory rights.

Within the 12 month guarantee period

Prior to returning your product, please read the Help section beginning on page 58 or contact the BT2700 Helpline on 0800 145 6789. Additional answers to frequently asked questions are available from

bt.com/producthelp

In the unlikely event of a defect occurring, the helpdesk will issue a Fault Reference Authorisation (FRA) number and instructions for replacement or repair. Please note you will need the FRA number before returning the product. This does not affect your statutory rights.

Outside of the 12 month guarantee period

If your product needs repair after the guarantee period has ended, the repair must meet the approval requirements for connection to the phone network.

We recommend that you contact BT's recommended repair agent Discount Communications on 0800 980 8999 or a local qualified repairer.

Returning your phone

If the Helpline is unable to remedy your problem they will issue a Fault Reference Authorisation number and ask you to return the product to your original place of purchase. Where possible, pack the product in its original packaging. Please remember to include all parts, including the line cords, power supply units and the original batteries.

Technical details

How many phones can I have?

All items of telephone equipment have a Ringer Equivalence Number (REN), which is used to calculate the number of items which may be connected to any one telephone line. Your BT2700 has a REN of 1. A total

REN of 4 is allowed. If the total REN of 4 is exceeded, the telephones may not ring. With different telephone types there is no guarantee of ringing, even when the REN is less than 4.

Any additional handsets and chargers that you register have a REN of 0.

Connecting to a switchboard

Switchboard compatibility

This telephone may be connected to most types of switchboard, however in the event of any difficulties, consult your switchboard Service Provider.

Recall (R)

Recall is used when connected to certain switchboards/PBXs and some BT Calling Features, or those services available via your network provider. The BT2700 supports time break recall but not earth loop recall.

R&TTE

This product is intended for use within the UK for connection to the public telephone network and compatible switchboards.

This equipment complies with the essential requirements for the Radio Equipment and Telecommunications Terminal Equipment (R&TTE) Directive (1999/5/EC).

Declaration of Conformance

Hereby, BT declares that this BT2700 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

If you would like a copy of the Declaration of Conformance, please visit bt.com/producthelp

For your records

Date of purchase:

Place of purchase:

For guarantee purposes, proof of purchase is required, so please keep your receipt.

Enter your base system PIN here:

[ / / / ]

Enter your remote access PIN here:

[ / / / ]

BT

Offices worldwide

The services described in this publication are subject to availability and may be modified from time to time. Services and equipment are provided subject to British Telecommunications plc's respective standard conditions of contract. Nothing in this publication forms any part of any contract.

© British Telecommunications plc 2016. Registered Office: 81 Newgate Street, London EC1A 7AJ. Registered in England No. 1800000.

Printed in China. Written and Designed by Muse Publishing and The Art and Design Partnership

Available in other formats including braille, large print or audio CD. If you would like a copy, please call 0800 145 6789*.

* Calls made from within the UK mainland network are free. Mobile and international call costs may vary

BT2700 (07/16) Issue 1

CE
