Product Type	Induction Cooker
Brand	V-ZUG
Model	GK37TIMS
Number of Cooking Zones	3
Cooking Zone Configuration	2 zones ∅210 mm (back), 1 zone ∅180 mm (front)
Heating Technology	Induction
PowerPlus Booster	Yes (10 minutes at extra high power)
Automatic Boost	Yes (selectable, time depends on power level)
Flexible Cooking	Yes (no marked zones, bridge function for large pots)
Keep Warm Setting	Yes (approx. 65 °C)
Melting Function	Yes (40 °C)
Simmer Function	Yes (approx. 94 °C)
Pan Detection	Yes (automatic shut-off after 10 min if no pan)
Residual Heat Indicator	Yes (displays H until safe)
Timer	Yes (1-99 min, independent egg timer)
Operating Time	Yes (1-99 min, per cooking zone)
Childproof Lock	Yes
Pause Cooking	Yes (reduces all zones to level 1 for up to 10 min)
Wipe Protection	Yes (locks controls for 30 seconds)
Restore Function	Yes (restores settings after accidental power off)
Automatic Safety Shut-off	Yes (time depends on power level)
Energy Consumption per Cooking Zone (Wh/kg)	∅210 mm: 178.1 / 195, ∅180 mm: 198.6
Energy Consumption for Hob (EC)	190.5 Wh/kg
Care and Cleaning	Clean after use; use soft cloth, glass ceramic scraper for burnt-on food; avoid abrasive cleaners
Spare Parts	Use original parts only; contact V-ZUG Customer Services
Safety Precautions	Do not use steam cleaner; avoid metal objects; never leave unattended with oil; do not operate with external timer
Product Fiche Reference	Model number GK 31041, Type GK37TIMS/C/F

Frequently Asked Questions - GK37TIMS V-ZUG

What type of cookware is suitable for the GK37TIMS induction hob?

Only cookware with a full magnetic base works with induction. Test with a magnet: if it sticks to the base, the pan is suitable. Avoid copper or aluminium bases as they may leave traces.

Why does my hob make noise during cooking?

Noise is normal for induction hobs and depends on the cookware. It does not indicate a malfunction. Changing cookware may reduce noise.

How do I activate the PowerPlus booster?

Select the cooking zone, then touch the slider twice quickly. P appears in the display. PowerPlus runs for 10 minutes at extra high power, then reverts to level 9.

What is the childproof lock and how do I set it?

The childproof lock prevents accidental operation. To activate: switch on the appliance, ensure all zones are off, then touch the I and ⏻ buttons simultaneously until a beep sounds, then press I again. The display shows - for 10 seconds.

How do I clean the glass ceramic hob?

Clean after each use once cool. Use a soft cloth with water and a mild cleaner. For burnt-on food, use a glass ceramic scraper while the hob is still warm. Avoid abrasive pads or scouring agents.

What does the residual heat indicator 'H' mean?

The 'H' indicates the cooking zone is still hot and there is a risk of burns. It remains lit until the surface cools to a safe temperature.

Can I use the hob with an external timer or remote control?

No. The safety instructions explicitly state that the appliance must not be operated with an external time switch or separate remote control system.

What should I do if the hob displays an error code like 'E' or 'uO'?

For 'uO' (power interruption), press any button to clear. For 'E' with ventilation issue, remove any obstruction under the hob and press a button; if it persists, call Customer Services. For other errors, note the code and serial number, then contact V-ZUG support.

How does the automatic boost work?

Select a cooking zone, then press and hold the desired power level for 3 seconds. The display alternates between R and the power level. The zone runs at level 9 for a set time (e.g., 40 sec for level 2) then drops to the selected level.

Where can I find the model number and serial number?

The identification plate with the serial number (FN) is located on the underside of the hob. A second plate is supplied to affix underneath the fitted unit. Note the FN for service requests.

USER MANUAL GK37TIMS V-ZUG

Two white rectangular shapes with small circles and a gray rectangle on a gray background, no text or symbols present.

Operating instructions

Induction with single slider

Glass ceramic hob

Thank you for choosing to buy one of our products. Your appliance is made to high standards and is easy to use. Nevertheless, please take the time to read these operating instructions in order to familiarise yourself with the appliance and get the best use out of it.

Please follow the safety precautions.

Modifications

Text, diagrams and data correspond to the technical standard of the appliance at the time these operating instructions went to press. The right to make technical modifications for the purpose of the further development of the appliance is reserved.

Validity

The product family (model number) corresponds to the first alphanumerics on the identification plate. These operating instructions apply to:

Type Product family
GK37TIMS/C/F 31041
GK47TIMS/C/F/U 31040
GK47TIMXSC/F 31039
GK36TIS/C/F/.1F 008, 31	013
GK46TIS/C/F/U/.1F 027,	31016
GK46TIXS/C/F/.1F 009, 3	1015

Variations depending on the model are noted in the text.

Contents

1 Safety precautions 5

1.1 Symbols used 5
1.2 General safety precautions 6
1.3 Appliance-specific safety precautions.... 7
1.4 Instructions for use 8

2 Disposal 10

3 Using for the first time 11

4 Your appliance 12

4.1 Appliance overview.... 12
4.2 Operating and display elements 14
4.3 How induction hobs function 15
4.4 Pan detection 15
4.5 Cookware.... 16
4.6 Flexible cooking.... 17

5 Operating the appliance 18

5.1 Switching the appliance on and off 18
5.2 Selecting a cooking zone 18
5.3 Overview of power levels.... 19
5.4 Switching a cooking zone off.... 20
5.5 Residual heat indicator 20
5.6 Keep warm setting 20
5.7 Melting function 20
5.8 Simmer function.... 21
5.9 PowerPlus 21
5.10 Automatic boost 26
5.11 Operating time 27
5.12 Timer.... 29
5.13 Childproof lock 30
5.14 Restore function 31
5.15 Pause cooking 31
5.16 Wipe protection.... 32

6 Care and maintenance 33

7 Trouble-shooting 34

8 Technical data 38

8.1 Product fiche 38
9 Index 40
10 Notes 42
11 Service & Support 43

1 Safety precautions

1.1 Symbols used

Denotes important safety precautions.

Failure to observe said precautions can result in injury or in damage to the appliance or fittings!

Information and precautions that should be observed.

Information on disposal

Information about the operating instructions

▶ Indicates step-by-step instructions.

- Describes how the appliance reacts to the steps taken.

- Indicates a list.

1.2 General safety precautions

- Read the operating instructions before using the appliance for the first time!

- This appliance can be used by children aged 8 and above and by persons with reduced physical, sensory or mental capabilities, or lack of experience and/or knowledge, provided they are supervised or have been instructed on the safe use of the appliance and have understood the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be undertaken by children without supervision.

- If an appliance is not equipped with a mains cable and a plug or other means for disconnecting from the mains with a contact opening on each pole complying with the conditions of overvoltage category III for full isolation, an isolating device must be incorporated into the permanently installed electrical installation in accordance with the installation regulations.

- If the mains cable of this appliance is damaged, it must be replaced by the manufacturer or its Customer Services or a similarly qualified person in order to avoid hazard.

1.3 Appliance-specific safety precautions

• WARNING: If the surface is cracked or there is damage to the material thickness, the appliance must be switched off and disconnected from the electricity supply in order to avoid a possible electric shock.
• WARNING: During use, the appliance and its exposed parts become hot. Please be careful to avoid the exposed parts of the heating elements.
• Never use a steam cleaner.
• Objects made of metal, e.g. knives, forks, spoons, covers or aluminium foil, should not be put on the hob as they can become hot.
• WARNING: Leaving fat or oil unattended on the hob can be dangerous and can lead to fires. NEVER try to extinguish a fire with water. Instead, switch the appliance off and then carefully cover the flames with an object such as a cover or a fire blanket.
• WARNING: Never leave objects on the hob as they pose a fire hazard.
• The appliance must not be operated with an external time switch or a separate remote control system.

1.4 Instructions for use

Before using for the first time

- The appliance must be installed and connected to the electricity supply in accordance with the separate installation instructions. Have a qualified fitter/electrician carry out the necessary work.

Correct use

• The appliance is designed for use in the home for preparing food. No liability is assumed for any damage caused by improper use or incorrect handling.
• Any repairs, modifications or manipulations to the appliance, especially any electrically live parts, may only be carried out by the manufacturer, its Customer Services or a similarly qualified person. Repairs if carried out incorrectly may cause serious injury, damage to the appliance and fittings, as well as affect the functioning of the appliance. If the appliance is not working properly or in case of a repair order, follow the instructions given in the repair service section. Please contact Customer Services if necessary.
• Use original spare parts only.
• Retain these operating instructions for future reference. If you sell the appliance or pass it on to a third party, include these operating instructions as well as the installation instructions.
• The appliance corresponds to recognised technology standards and the relevant safety regulations. Proper use of the appliance is, however, essential to avoid damage and accidents. Please therefore follow the precautions given in these operating instructions.
• The heated surface will remain hot for some time after it is switched off and will only cool down slowly to room temperature. Leave a sufficient amount of time before you carry out work such as cleaning the appliance.

Caution: Risk of burns!

- Overheated fat and oil can easily catch fire. Never attempt to extinguish burning oil or fat with water. Danger of explosion! Smother the flames with a fire blanket. Keep doors and windows closed.

Caution: Risk of injury!

- Keep pets away from the device.

Caution: Risk to life!

- Packaging materials, e.g. plastic film and polystyrene, can be dangerous for children. Danger of suffocation! Keep packaging material away from children.

How to avoid damaging the appliance

• In the case of thermal failure, switch the solid plate off and allow to cool down completely. Do not put any dishes on it. Do not cool with cold water under any circumstances.
• Do not climb onto the appliance.
• To avoid damaging the silicon grouting, do not put hot cookware on the frame.
• Do not cut or prepare food on the surface or drop hard objects onto it. Do not drag cookware across the surface.
• Make sure than no sugary foods or juices end up on the hot cooking zones. This can damage the surface. If sugary foods or juices do end up on the hot cooking zones, remove these immediately with a glass ceramic hob scraper (while the hob is still hot).
• Do not leave the appliance unattended during operation.
• Pots with pure copper or aluminium bases should not be used for cooking as they leave behind traces that can be difficult to clean. If the traces are not removed immediately after cooking with a suitable cleaning agent, they can be permanently burned on and therefore permanently ruin the visual appearance of the appliance.
• Sliding pots and cookware across the glass ceramic causes scratches. You can largely avoid these by lifting pots and cookware when putting them into place.
• The hob is an item for daily use: signs of usage such as scratches or visible material abrasion from pots or cookware are normal. Intensive use leads to more distinctive signs of usage. In such cases, the appliance continues to function perfectly and a complaint is not justified. Safety is always guaranteed.
• There is no such thing as completely scratch-proof glass; scratches can even develop on sapphire glass, which is used in watches. The glass ceramic used is of the best quality available on the market.

2 Disposal

Packaging

- All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked and should, if possible, be collected for recycling and disposed of in an environmentally friendly way.

Disconnection

- Disconnect the appliance from the mains. With a fixed appliance, this is to be carried out by a qualified electrician!

Safety

- Disable the appliance to prevent accidents caused by improper use, especially through children playing.

- Pull the plug out of the mains socket or have the appliance disconnected from the mains by an electrician. Then cut the mains cable off flush with the appliance.

Disposal

- The old appliance should not be discarded as worthless rubbish. If disposed of correctly, the raw materials can be recovered for recycling.

- The symbol on the identification plate warns that the appliance may not be disposed of in normal household waste.

- The appliance must be disposed of in accordance with local regulations on waste disposal. For more information on the handling, disposal and recycling of the product, please contact the local authorities, the local recycling facilities for household waste or the retailer from whom you purchased the appliance.

3 Using for the first time

The appliance must be installed and connected to the electricity supply in accordance with the separate installation instructions. Have a qualified fitter/electrician carry out the necessary work.

During the first few hours of use, a cooking zone can give off an unpleasant smell. This is normal for brand new appliances. Ensure that the room is well ventilated.

Where is the identification plate?

The identification plate and the connection plate are located on the underside of the hob.

1 2

1 Identification plate with serial number (FN)

2 Connection plate

A second identification plate is supplied and should be affixed in the fitted unit underneath the hob.

Note down the serial number (FN) of your appliance on the back page of these operating instructions.

The serial number is required for identifying the appliance. Only then can customer services guarantee a faultless service.

4 Your appliance

4.1 Appliance overview

GK37TIMS, GK37TIMSC, GK37TIMSF

• 2 cooking zones ∅ 210 mm (back)
  ■ 1 cooking zone ∅ 180 mm (front)

Simple diagram with four circles and one shaded rectangle on a white background (no text or symbols)

GK47TIMS, GK47TIMSC, GK47TIMSU, GK47TIMSF GK47TIMXSC, GK47TIMXSF

• 2 cooking zones ∅ 210 mm (back)
• 2 cooking zones ∅ 180 mm (front)

Simple geometric diagram with a gray rectangle and four empty circles (no text or symbols)

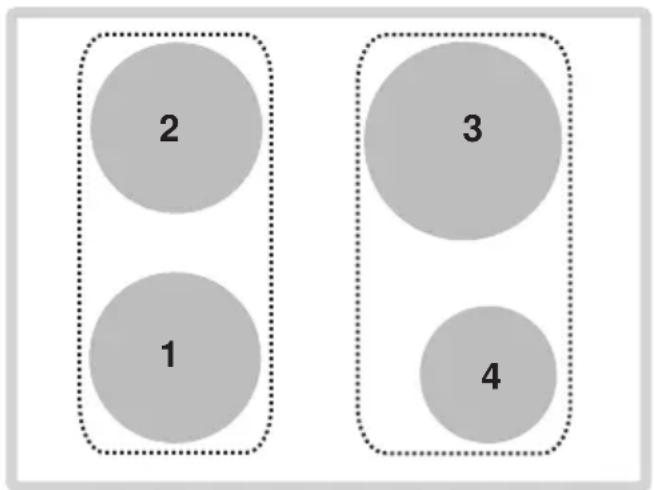

GK36TIS, GK36TISC, GK36TISF

• 1 cooking zone ∅ 250 mm
• 1 cooking zone ∅ 210 mm
• 1 cooking zone ∅ 145 mm

Abstract composition of four gray circles and one white rectangle on a white background (no text or symbols)

GK46TIS, GK46TISC, GK46TISF, GK46TISU, GK46TIS.1F GK46TIXS, GK46TIXSC, GK46TIXSF, GK46TIXS.1F

• 1 cooking zone ∅ 210 mm
• 2 cooking zones ∅ 180 mm
  ■ 1 cooking zone ∅ 145 mm

Four gray circles arranged in a 2x2 grid with one circle partially filled, no text or symbols present.

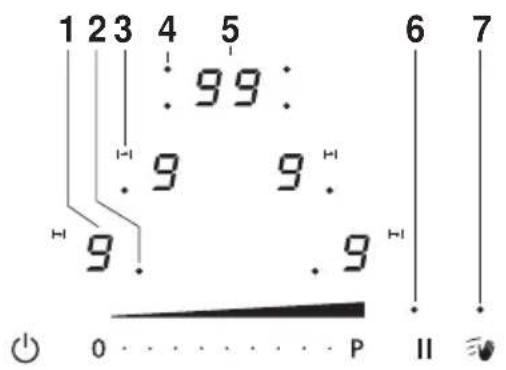

4.2 Operating and display elements

1 2 3 4 5 .99: .9 9. .9 .9 6 7 0 P II

Buttons

Device ON/OFF
0 · · Slider (to set the power level)
. . P PowerPlus
II Pause cooking ON/OFF and restore function
Wipe protection ON/OFF
8 Select the cooking zone
88 Operating time/timer

Displays

1 Power level of the cooking zone
2 Selection point: cooking zone selected
3 Operating time activated
4 Cooking zone indicator light for the operating time
5 Operating time/timer
6 Pause activated/restoration of saved setting possible
7 Wipe protection activated

4.3 How induction hobs function

Induction hobs work very differently from conventional hobs or hot plates. The induction coils under the glass ceramic plate produce a rapidly changing magnetic field which directly heats up the magnetic base of the cookware.

The glass ceramic plate is only warmed by the hot cookware. Removing the cookware from the cooking zone immediately interrupts the supply of energy.

Induction hobs are:

• quick reacting
• finely adjustable
• powerful
• energy-efficient
• safe.

Induction hobs can only be used with cookware with a complete/full magnetic base.

4.4 Pan detection

Every cooking zone is equipped with pan detection. This recognises cookware with a magnetisable base that is suitable for use with induction hobs.

• If the cookware is removed during operation or unsuitable cookware is used,
• the selected power level flashes alternately with
• If there is no cookware placed on the cooking zone during the pan detection time of 10 minutes:
• The cooking zone switches off automatically.
• The display changes from 4 to .0
• The appliance switches off after 10 seconds if no other cooking zone is switched on.

4.5 Cookware

Suitable cookware

Only cookware with a full magnetic base is suitable for use with the induction hob.

This can be checked in the follow ways:

- A magnet sticks anywhere on the base of the cookware.

- On the hob, the power level set illuminates and does not alternate with the power level.

Do not heat any unsuitable cookware using aids such as metal rings and the like. This can damage the hob.

Energy-efficient cooking

For maximum energy efficiency and even heat distribution note the following:

• The base of the cookware must be clean, dry and smooth.
• Centre the cookware in the middle of the cooking zone.
• Use a well-fitting lid.
• Match the diameter of the cookware to the quantity of food to be cooked.

Coated cookware

- Coated cookware when empty may never be heated at a higher power level than 7

- The coating may otherwise become overheated and damaged.

- For frying, do not use a higher power level than 9.

Never use PowerPlus with coated frying pans.

Noise during cooking

Cookware can make noise during cooking. This does not indicate any malfunction, nor does it affect the functioning of the appliance in any way.

Noise depends on the cookware used. If the noise causes considerable disturbance, it can help to change the cookware.

4.6 Flexible cooking

Only applicable for GK37TIMS, GK47TIMS and GK47TIMXS.

For flexible cooking, there are no marked cooking zones.

Pots of different sizes can be placed on every zone. However, for pan detection, must be covered.

If both circles are covered by a large pot, both heating areas can be operated together with the bridge function.

For even frying, the pan must be centred on

5 Operating the appliance

5.1 Switching the appliance on and off

All the appliances are operated in the same way.

▶ To switch the appliance on: Depress the ⏻ button for 1 second.

- 0flashes in all the power level displays.

- If no other entry is made, the appliance switches off again after about 10 seconds for safety reasons.

▶ To switch the appliance off: Touch the ⏻ button.

5.2 Selecting a cooking zone

▶ Press the 8 button of the required cooking zone.

- 0flashes in the corresponding display of the power level.

– The selection point of this cooking zone is illuminated.

▶ Touch the slider or swipe it to set the power level.

Settings for a cooking zone can only be changed when the corresponding selection point is illuminated.

As soon as the selection point goes out, the cooking zone must be selected again.

5.3 Overview of power levels

Power level Cooking method Use
L	Keeping warm Sauces, keeps food ready for serving at around 65 °C
1	Melting, gentle warming	Butter, chocolate, gelatine, sauces
2
3	Swelling Rice
4	Continued cooking, reducing, stewing	Vegetables, potatoes, sauces, fruit, fish
5
6	Continued cooking, braising	Pasta, soup, braised meat
7	Gentle frying Rösti (hash browns), omelettes, breaded fried foods, sausages
8	Frying, deep frying Meat, chips
9	Flash frying Steak
P	Fast heating Boiling water

5.4 Switching a cooking zone off

▶ Press the 8 button of the required cooking zone.

– The selection point of this cooking zone is illuminated.

▶ Touch power level «0» on the slider.

- If no other entry is made and the other cooking zones are switched off, the appliance switches off after 10 seconds.

5.5 Residual heat indicator

After a cooking zone is switched off, H remains illuminated as long as there is a risk of burns.

5.6 Keep warm setting

The keep warm setting L keeps ready-cooked foods warm at approx. 65 °C. It can be found between power levels D and .

5.7 Melting function

With the melting function, butter, chocolate or honey, for instance, can be gently melted at 40 °C .

Switching the melting function on

▶ Hold power level L on the slider depressed for 2 seconds.

- Two horizontal bars= illuminate in the power level display.

Switching the melting function off

▶ Use the slider to set any power level.

5.8 Simmer function

With the simmer function, sausages, dumplings and stuffed pasta, for instance, can be cooked below boiling point at about 94 °C .

Switching the simmer function on

▶ Press the level On the slider for 4 seconds.

- Three cross pieces are illuminated in the power level display.

Switching the simmer function off

▶ Set any power level using the slider.

In locations higher than 1500 m above sea level, we recommend using the simmer function without the pan lid.

5.9 PowerPlus

All the cooking zones are equipped with the PowerPlus booster.

When PowerPlus is switched on, the cooking zone selected works at extra high power for 10 minutes. PowerPlus can be used, for instance, to heat a large quantity of water quickly.

Switching PowerPlus on

▶ Press the 8 button of the required cooking zone.
▶ Touch the slider · 2×. P

- P is illuminated in the display.

- After 10 minutes, it automatically reverts to power level9.

If the cookware is removed, PowerPlus is interrupted. PowerPlus continues as soon as the cookware is placed back on the cooking zone.

Ending PowerPlus off before time

• Press the B button of the required cooking zone.
• Touch the required power level on the slider.

Power management

GK37TIMS, GK37TIMSC, GK37TIMSF

2 1 3

PowerPlus cannot be used in cooking zones 1 and 2 at the same time. If PowerPlus is activated for both cooking zones, the power of the cooking zone that was initially set reduces.

Cooking zone 3 can be operated with PowerPlus independently of 1 and 2.

PowerPlus in cooking zone	Maximum available power level in cooking zone
	1	2
1	P	7
2	5	P

If the power level is raised above the values specified above, PowerPlus switches off.

GK47TIMS, GK47TIMSC, GK47TIMSF, GK47TIMSU GK47TIMXSC, GK47TIMXSF

A 2 1 B 3 4

PowerPlus cannot be used for both cooking zones of a group (A or B) at the same time. If PowerPlus is activated for both cooking zones of a group, the power of the cooking zone that was initially set reduces.

PowerPlus in cooking zone	Group A*
	1	2
1	P	7
2	5	P

PowerPlus in cooking zone	Group B*
	3	4
3	P	5
4	7	P

*Maximum available power levels in cooking zones

If the power level is raised above the values specified above, PowerPlus switches off.

GK36TIS, GK36TISC, GK36TISF, GK36TIS.1F

2 1 3

PowerPlus cannot be used in cooking zones 1 and 2 at the same time. If PowerPlus is activated for both cooking zones, the power of the cooking zone that was initially set reduces.

Cooking zone 3 can be operated with PowerPlus independently of 1 and 2.

PowerPlus in cooking zone	Maximum available power level in cooking zone
	1	2
1	P	6
2	8	P

If the power level is raised above the values specified above, PowerPlus switches off.

GK46TIS, GK46TISC, GK46TISF, GK46TISU, GK46TIS.1F GK46TIXS, GK46TIXSC, GK46TIXSF, GK46TIXS.1F

A

2 1 3 4

B

PowerPlus cannot be used for both cooking zones of a group (A or B) at the same time. If PowerPlus is activated for both cooking zones of a group, the power of the cooking zone that was initially set reduces.

PowerPlus in cooking zone	Group A*
	1	2
1	P	8
2	8	P

PowerPlus in cooking zone	Group B*
	3	4
3	P	6
4	8	P

*Maximum available power levels in cooking zones

If the power level is raised above the values specified above, PowerPlus switches off.

5.10 Automatic boost

Do not leave the hob unattended when using the automatic boost. Risk of boiling over, burning on and igniting!

All the cooking zones are equipped with a selectable automatic boost. With this function, a cooking zone works at power level 9 for a certain length of time (see table). Then it automatically switches back to the power level set.

The automatic boost function must be activated anew each time a cooking zone is switched on.

Power level	1 2	3 4 5	6 7 8
Boost in mins.:secs.	0:40	1:15 2	:00 3.	00 4:1	5 7:15	2:00	3:15

If during the automatic boost a higher power level is selected, the duration will change automatically.

Switching the automatic boost on

▶ Press the 8 button of the required cooking zone.
▶ Press the required power level on the slider for 3 seconds.

• As long as the automatic boost is active, R and the power level are illuminated alternately in the display.
• After the boost time has ended, the heat output is reduced to the selected power level again.

Switching the automatic boost off before time

▶ Press the 8 button of the required cooking zone.
▶ Set a lower power level using the slider.

5.11 Operating time

Do not leave the hob unattended during use. Risk of boiling over, burning on and igniting!

With the operating time function, a Cooking zone switches off automatically after a set time 1–99 min..

Setting the operating time

▶ Set the required cooking zone.
▶ Press the 8 button of the required cooking zone.
▶ Press the 89 button.

• 00 appears in the display: the second digit flashes.
• The illuminated point of the cooking zone indicator light flashes.
• The symbol illuminates.

▶ Set the second digit of the operating time using the slider.
▶ Press the button.

- The first digit flashes.

▶ Set the first digit of the operating time using the slider.
▶ Press the 88 button.

– The operating time starts.

Changing the operating time

▶ Press the 8 button of the required cooking zone.

- The remaining operating time for the selected cooking zone is displayed.

▶ Press the button.
▶ Change the second digit of the operating time using the slider.
▶ Press the button.
▶ Change the first digit of the operating time using the slider.
▶ Press the button.

- The changed operating time starts.

Switching the operating time off before time

▶ Press the 8 button of the required cooking zone.
▶ Press the 80 button.
▶ Set the second digit of the operating time to ☐ using the slider.
▶ Press the button.
▶ Set the first digit of the operating time to ☐ using the slider.
▶ Press the Button.

- The cooking zone remains in operation.

End of the operating time

After the operating time has ended:

• The assigned cooking zone is automatically selected
• The assigned cooking zone switches off
  – An acoustic signal is emitted
• the symbol and the power level flash.

▶ Switch off the acoustic signal and displays by pressing any button.

Several operating times

If operating times are set for several cooking zones:

• The shortest operating time is illuminated in the display as long as no cooking zone has been selected.
• The corresponding illuminated point of the cooking zone indicator light is illuminated.
• The is illuminated for every cooking zone with a set operating time.

To display another operating time:

▶ Press the 8 button of the required cooking zone.

5.12 Timer

The timer functions like an egg timer (1–99 min.).

It can only be set when a cooking zone is in operation.

A cooking zone can be put into operation when the timer is running. However, no operating time can be set.

Setting the timer

▶ Switch on the appliance.
▶ Press the button.
- 0.0 appears in the display: the second digit flashes.

▶ Set the second digit of the timer using the slider.

▶ Press the button.

- The first digit flashes.

▶ Set the first digit of the timer using the slider.

▶ Press the 80 button.

- The timer starts.

Changing the timer

▶ Switch on the appliance.
▶ Press the button.
– The remaining timer duration is displayed.
▶ Change the second digit of the timer using the slider.
▶ Press the 8.0 button.
▶ Change the first digit of the timer using the slider.
▶ Press the button.
▶ The changed timer starts.

Switching the timer off before time

If no cooking zone is in operation:

▶ Turn the appliance on and off again. If a cooking zone is in operation:

▶ Press the 8.9 button.

▶ Set both digits to ☐ one after another using the slider.

5.13 Childproof lock

The childproof lock is to prevent the appliance from being accidentally switched on.

Switching the childproof lock on

• Switch the appliance on. Ensure all cooking zones are switched off.
• Touch the I and buttons at the same time.
• An acoustic signal is emitted.
• Touch the I button again.
• An acoustic signal is emitted.
• The childproof lock is now switched on.
• -illuminates in all the power level displays for 10 seconds.

Operating the appliance with the childproof lock activated

- Switch the appliance on. - Touch the I and buttons at the same time.

- An acoustic signal is emitted. - The childproof lock is overridden. The appliance can now be used as normal.

The childproof lock is automatically activated again after switching off the hob.

Switching the childproof lock off

- Switch on the appliance. No cooking zone must be in operation.

- Touch the I and buttons at the same time. - An acoustic signal is emitted.

- Press the button again. - A double acoustic signal is emitted. - On all power level displays, flashes for 10 seconds. - The childproof lock is now switched off.

If the appliance was switched off accidentally with the ⏻ button, the settings can be restored within 6 seconds.

▶ Switch on the appliance.

- The illuminated point for the button flashes.

▶ Press the I button.

5.15 Pause cooking

With this function, the power level of all cooking zones that are switched on can be temporarily reduced to 12 for up to 10 minutes.

Thereafter, the appliance can continue to be operated using the previous settings.

▶ Press the I button.

- The indicator light for the button illuminates.

- The power level of the cooking zone switched on changes to 1.

- The operating time is interrupted.

- The timer continues to run.

- All buttons except, I and are inactive.

If the pause cooking function is not turned off within 10 minutes, the appliance switches off completely.

▶ Press the I button again to resume cooking.

- The cooking zones resume operation using the previous settings.

5.16 Wipe protection

This function prevents the power level from being changed accidentally, for instance when wiping the control panel with a cloth.

▶ Press the button.

- The indicator light for the button illuminates.

- Wipe protection is switched off by pressing the button again or automatically after 30 seconds.

Press the ⏻ button to switch the appliance off at any time.

6 Care and maintenance

Preferably, do not clean the appliance until it is cold. Burns hazard!

Clean the hob after every use in order to prevent food residues from burning on. Cleaning dried-on and burnt-on dirt requires more effort.

If the appliance is not cleaned correctly, the appearance and surface could be damaged.

Do not clean the glass ceramic surface with scouring cleaning agents, all purpose scouring pads, steel wool, etc. This can damage the surface.

• For cleaning everyday dirt, just use a soft cloth or sponge with water and a suitable cleaning agent. Please follow the manufacturer's advice with regard to cleaning agents. We recommend using protective cleaning agents.
• Remove encrusted dirt, e.g. from milk that has boiled over, with a glass ceramic hob scraper while the hob is still warm. Please follow the manufacturer's advice with regard to the scraper.
  ▶ Remove sugary foods, such as marmalade, which have boiled over with a glass ceramic hob scraper while the hob is still warm. Otherwise, this could damage the glass ceramic surface.
• Remove melted plastic with a glass ceramic hob scraper while the hob is still warm. Otherwise, this could damage the glass ceramic surface.
• Remove limescale stains using a small amount of lime-dissolving solution, e.g. vinegar or lemon juice, when the hob has cooled down. Then clean again with a damp cloth.

7 Trouble-shooting

What to do if ...

... the appliance is not working and the displays are not illuminated?

Possible cause Solution
The fuse or circuit breaker for electrical installations in the home is defective.	▶ Change the fuse.▶ Reset the circuit breaker.
The fuse or circuit breaker keeps blowing.	▶ Call Customer Services.
An interruption in the power supply.	▶ Check the power supply.

... flashes alternately with the power level in the display?

Possible cause Solution
Cookware is not suitable for use with induction hobs.	▶ Use suitable magnetic cookware. See «Cookware» section.
Cookware is too small for the cooking zone selected.	▶ Ensure cookware corresponds to the size of the cooking zone.

... -illuminates in the displays?

Possible cause Solution
The childproof lock is activated.	► For operating the appliance with the childproof lock activated, see «Operating the appliance» section.► Switch the childproof lock off.

... A continuous acoustic signal is emitted, flashes in a display and the appliance switches off?

Possible cause Solution
A button or a slider was touched for longer than 10 seconds.	Remove object or food that has boiled over.The appliance can be used again as normal.
Object (e.g. pan, dish) on the control panel.
Food boiled over onto the control panel.

... Hand flash alternately in the display?

Possible cause Solution
The automatic safety shut-off was triggered.	Switch the cooking zone back on again if required.

If a cooking zone has been running for longer without any settings being changed, the appliance switches the cooking zone off automatically, after how much time depends on the power level set.

Power level	L 1	2 3 4
Safety shut-off after hrs.:mins.	2:00	8:30 6:30	5:30	4:30

Power level	5 6	7 8 9
Safety shut-off after hrs.:mins.	3:30	3:00 2:30	2:00	1:30

... Hflashes in the display?

Possible cause Solution
The excess temperature protection of a cooking zone was triggered.	Allow the cooking zone to cool down.Continue cooking on a different cooking zone.Check cookware.

...uO flashes in the display?

Possible cause Solution
An interruption in the power supply.	Press any button to quit the error message.The appliance can be used again as normal.

...E and B are illuminated in the display?

Possible cause Solution
An object, e.g. paper, underneath the hob is affecting the air intake.	Remove any objects in the drawer underneath the hob.Press any button to cancel the error message.After 10 minutes the appliance can be used again as normal.
Ventilation is defective.	Note down the error number.Note down the serial number (FN) of the appliance. See the identification plate for this.Call Customer Services.

...Eor and a number illuminate in the display?

Possible cause Solution
• Internal error occurred.	▸ Note down the error number.▸ Note down the serial number (FN) of the appliance. See the identification plate for this.▸ Call Customer Services.

8 Technical data

8.1 Product fiche

In accordance with EU Regulation No. 66/2014

Model number GK 31039
Type designation GK G47TIMXSC/F
Number of cooking zones 4
Heating technology Induction cooking zone
Diameter of round cooking zones	cm 18	21	21	18
Energy consumption per cooking zone	Wh/kg	184.9	173	.8	199.1
Energy consumption for hob EC	Wh/kg	188.2

Model number GK 31040
Type designation GK GK47TIMS/C/U/F
Number of cooking zones 4
Heating technology Induction cooking zone
Diameter of round cooking zones	cm 18	21	21	18
Energy consumption per cooking zone	Wh/kg	183.4	174	.3	200.7
Energy consumption for hob EC	Wh/kg	188.5
Model number GK 31041
Type designation GK GK37T	IMS/C/F
Number of cooking zones 3
Heating technology Induction	cooking zone
Diameter of round cooking zones	cm 21	21 18
Energy consumption per cooking zone	Wh/kg	195 178.1	198.6
Energy consumption for hob EC	Wh/kg	190.5

9 Index

A

Appliance

Switching on and off.... 18

Appliance overview 12

Appliance-specific safety precautions 7

Automatic boost.... 26

Cancelling before time 26

C

Care and maintenance 33

Childproof lock 30

Operating appliance with childproof lock activated 30

Switching off.... 30

Switching on.... 30

Connection plate.... 11

Cookware 16

Coated cookware 16

Energy-efficient cooking...... 16

Noise during cooking 16

Suitable cookware.... 16

D

Disconnection.... 10

Disposal.... 10

E

Extended warranty 43

|

Instructions for use 8

M

Melting function.... 20

Switching off.... 20

Switching on.... 20

Model number 2

N

Notes...... 42

0

Operating and display elements

Buttons 14

Displays.... 14

Operating time.... 27

Cancelling before time 28

Changing 27

Elapsed 28

Setting 27

Several operating times 28

Overview of power levels 19

P

Packaging 10

Pan detection.... 15

Pause cooking.... 31

Power levels.... 21

PowerPlus.... 21

Ending before time.... 21

Power management.... 22

Switching on.... 21

Product family.... 2

Product fiche 38

Q

Quick instructions 44

R

Residual heat indicator.... 20

Restore function.... 31

S

Safety 10

Safety precautions

General.... 6

Safety shut-off 35

Serial number (FN) 11

Service & Support 43

Simmer function 21

Switching off.... 21

Switching on.... 21

Symbols 5

T

Technical enquiries.... 43

Timer 29

Cancelling before time 29

Changing 29

Setting 29

Trouble-shooting 34

Type.... 2

U

Using for the first time.... 11

V

Validity.... 2

W

Where is the identification plate?...... 11

Wipe protection 32

10 Notes

11 Service & Support

The «Troubleshooting» chapter provides valuable information for dealing with minor operating faults. This saves you the time, effort and potential cost of having to call out a service technician.

Information on the V-ZUG warranty can be found at www.vzug.com →Service →Warranty information. Please read this information carefully.

Please register your V-ZUG appliance online immediately at www.vzug.com→Service→Warranty registration. This will allow you to take advantage of the best possible support in the event of an fault in the appliance during the warranty period. You will require the serial number (FN) and appliance designation to complete the registration process. This information can be found on the identification plate for your appliance.

My appliance information:

FN: ____ Appliance: ____

Always have this appliance information to hand when you contact V-ZUG. Thank you. The identification plate and connection plate are located on the underside of the hob.

Requesting repairs

You can find the telephone number for your nearest V-ZUG service centre at www.vzug.com→Service→Service hotline.

Technical enquiries, accessories, extended warranty

V-ZUG is happy to help with your general administrative and technical enquiries, orders for accessories and spare parts, or information relating to advanced service agreements.

Quick instructions

First, please read the safety precautions in the operating instructions.

Switching the appliance on

▶ Hold ⏻ button down for 1 second.

Setting the cooking zone

▶ Press the 8 button of the required cooking zone.
– The selection point of this cooking zone is illuminated.
- Touch the slider or swipe it to set the power level.

Switching the cooking zone off

▶ Press the 8 button of the required cooking zone.
▶ Touch 0 on the slider.

Switching the appliance off

▶ Press the ⏻ button.
