OD-325HD - Security Camera AIRLIVE - Free user manual and instructions

Product Type	IP Security Camera
Brand	AirLive
Model	OD-325HD
Image Sensor	1.3 Megapixel CMOS
Effective Pixels	1280 x 1024 (SXGA)
Frame Rate	Up to 30 fps (VGA mode), Up to 15 fps (Megapixel mode)
Video Compression	H.264, MPEG-4, MJPEG (triple codec)
Lens	Fixed focal length, F1.8, 4.3mm
Night Vision	25 IR LEDs, up to 25m range
Pan/Tilt Range	Pan: 355°, Tilt: -10° to 90°
Audio	Two-way audio with external microphone and line out
Power Supply	12V DC via adapter or PoE (IEEE 802.3af)
Power Consumption	5W max
Network Interface	10/100Base-TX Ethernet RJ-45
Supported Protocols	TCP, UDP, HTTP, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, PPPoE, 3GPP, ICMP, IGMP, SAMBA

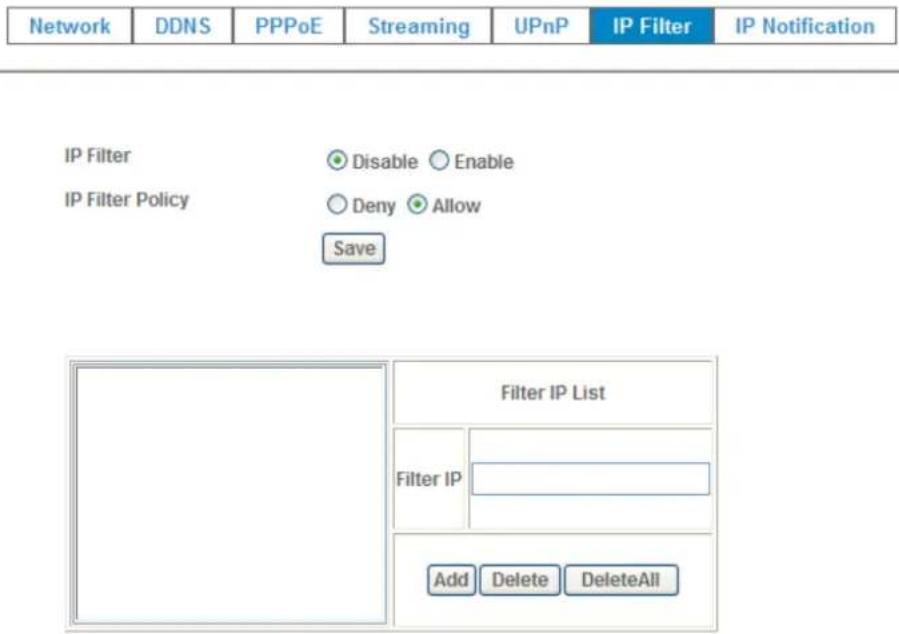

Security	Password protection, IP address filtering, user access log
Motion Detection	10 configurable zones
Event Triggers	Motion detection, external sensor input, schedule
Storage	Upload to FTP, email, SAMBA; local recording via PC
Operating Temperature	0°C to 40°C (32°F to 104°F)
Dimensions	Approximately 120 x 90 x 70 mm (estimated)
Weight	Approximately 600 g (estimated)
Mounting	Ceiling mount with included screws and wall mount stand
Maintenance	Clean lens with soft cloth; upgrade firmware via web interface
Package Contents	Camera, wall mount, stand, screws, power adapter, CD manual, quick start guide

Frequently Asked Questions - OD-325HD AIRLIVE

How do I reset the camera to factory defaults?

Press and hold the reset button on the camera for at least 5 seconds using a paper clip. The camera will reboot with default settings, including IP address. After reset, use IPWizard II to reconfigure.

What is the default username and password?

The default username is admin and the password is airlive. Both are case-sensitive. Change them after first login for security.

Can I access the camera from the internet?

Yes, you can access it remotely by configuring port forwarding on your router or enabling UPnP NAT traversal. You can also use DDNS (e.g., dyndns.org) if your public IP is dynamic.

Why is the video not displaying in Internet Explorer?

Make sure ActiveX controls are allowed in IE security settings. You may need to add the camera's IP to trusted sites. If prompted, install the IPCamera Control ActiveX component. Also check that your browser is IE 6.0 or later.

What is the maximum frame rate and resolution?

In VGA mode (640x480), up to 30 fps. In megapixel mode (1280x1024), up to 15 fps. The camera supports up to 11 simultaneous video profiles.

Does the camera support audio?

Yes, it supports two-way audio with an external microphone (MIC in) and a line out for speakers. Audio codecs: G.711 for RTSP and AMR for 3GPP.

Can I use the camera outdoors?

The camera is designed for indoor use only. For outdoor installation, you need a weatherproof housing. Note that using a housing may interfere with audio and IR performance.

How do I update the firmware?

Download the latest firmware from the AirLive website. In the camera's web interface, go to Setting > System > Maintenance. Click Browse to select the firmware file, then click Firmware Upgrade. Do not power off during the update.

The IPWizard II tool cannot find my camera. What should I do?

Ensure the camera is powered on and connected to the same LAN as your PC. Disable any firewall or antivirus temporarily. If the camera is behind a router, connect it directly to the same switch/hub. Also check that your PC has a valid IP address.

How do I enable motion detection alerts?

Go to Setting > Object Detection to define motion windows. Then go to Setting > Event Schedule, create a new event, select Event Trigger, enable motion area as trigger, and choose actions like sending an email or FTP upload.

USER MANUAL OD-325HD AIRLIVE

Powered by OvisLink Corp.

Copyright & Disclaimer

No part of this publication may be reproduced in any form or by any means, whether electronic, mechanical, photocopying, or recording without the written consent of OvisLink Corp.

OvisLink Corp. has made the best effort to ensure the accuracy of the information in this user's guide. However, we are not liable for the inaccuracies or errors in this guide. Please use with caution. All information is subject to change without notice

All Trademarks are properties of their respective holders.

Table of Contents

1. Overview ....1

1.1 Introduction....1
1.2 Features....1
1.3 Minimum System Requirements....2

2. Package Contents....3

2.1 Connections....5
2.2 Mounting the Camera ....7

3. Preparation....8

3.1 Search and Set up by IPWizard II......8
3.2 Using UPnP of Windows® XP or Vista 11
3.3 Install the Device behind a NAT Router ....11
3.4 Access the device from the Internet Explorer for the first time......12

4. Operating the Network Camera ....14

5. Administering the Device....20

5.1 System Setting....20

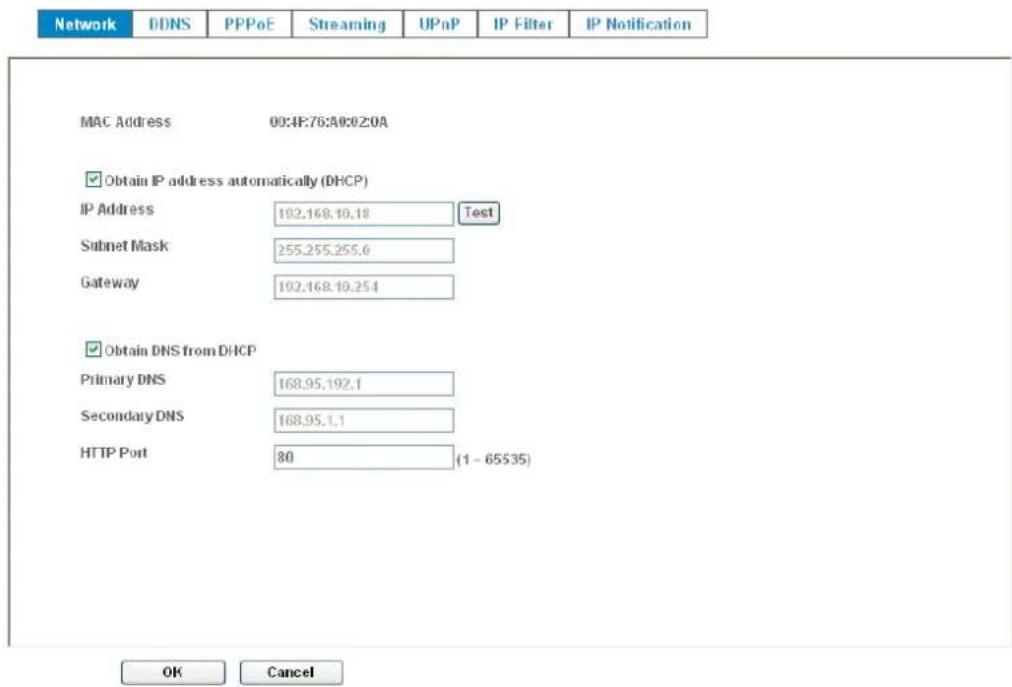

5.1.1 Network....21

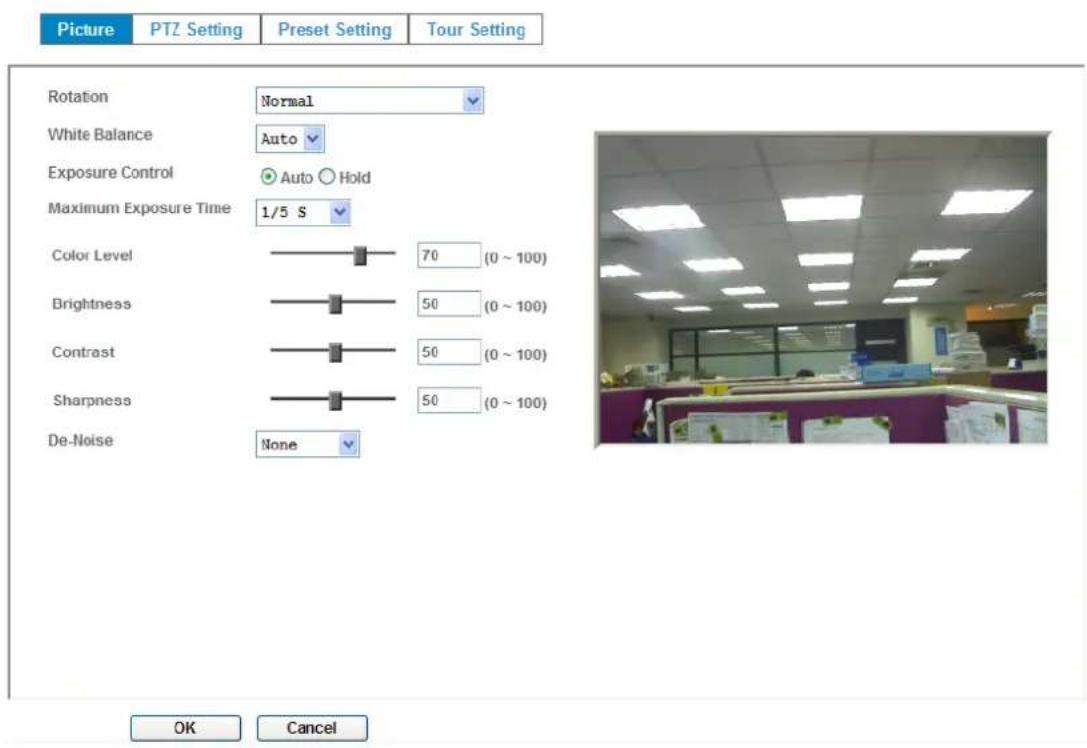

5.1.2 Camera : Adjust Camera parameters....29
5.1.3 System : Configure and maintain system....33

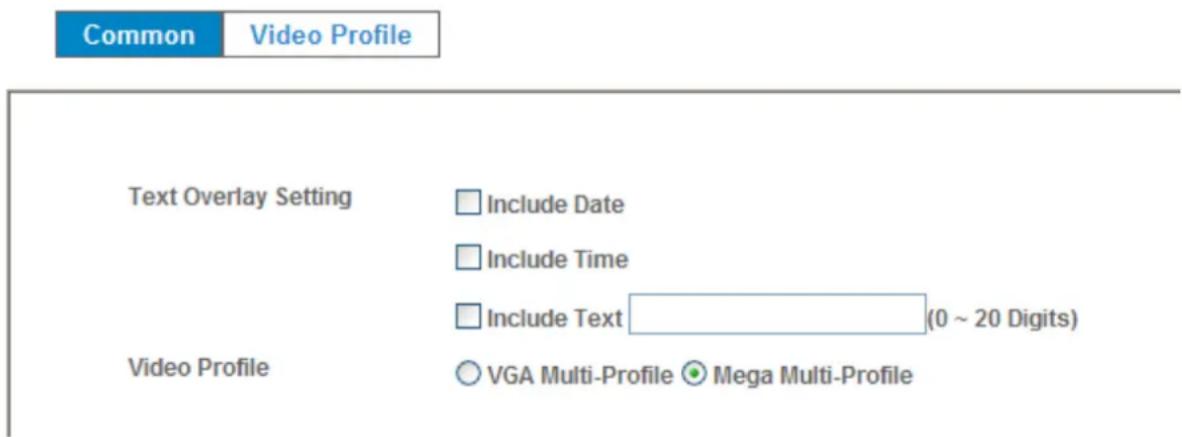

5.1.4 Video: Configure profile....37
5.1.5 Audio: Audio parameters 40

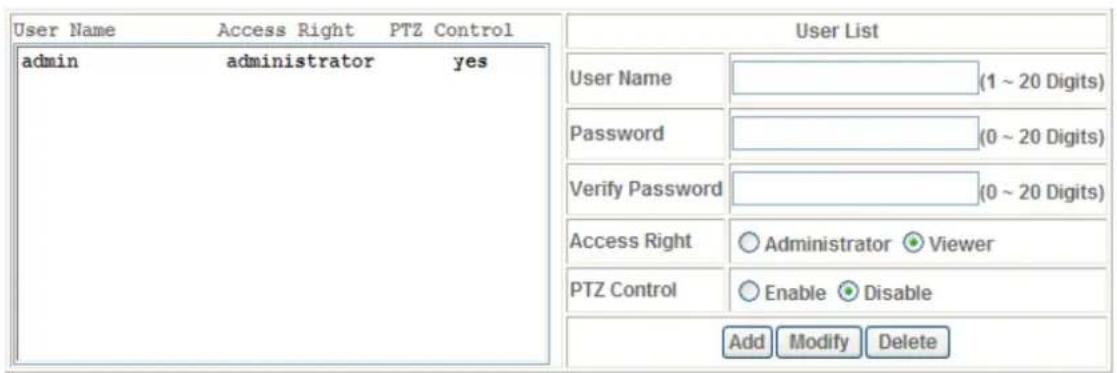

5.1.6 User : Manage user name, password and login privilege ....41

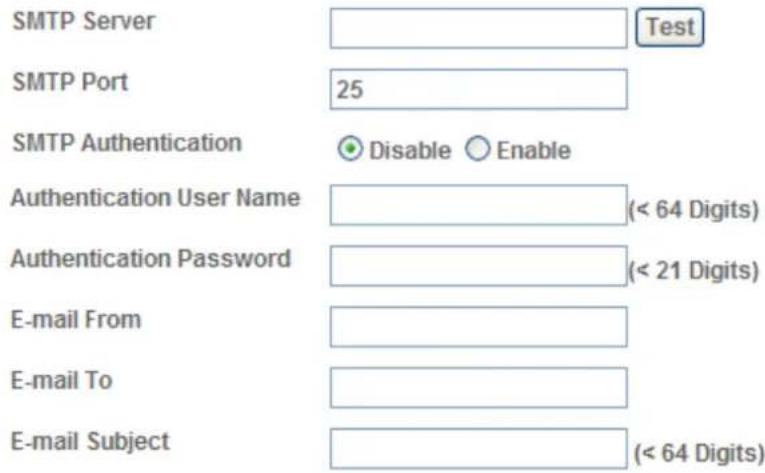

5.1.7 E-Mail : Setup E-Mail configuration ....41
5.1.8 Object Detection : Setup Object detection....43

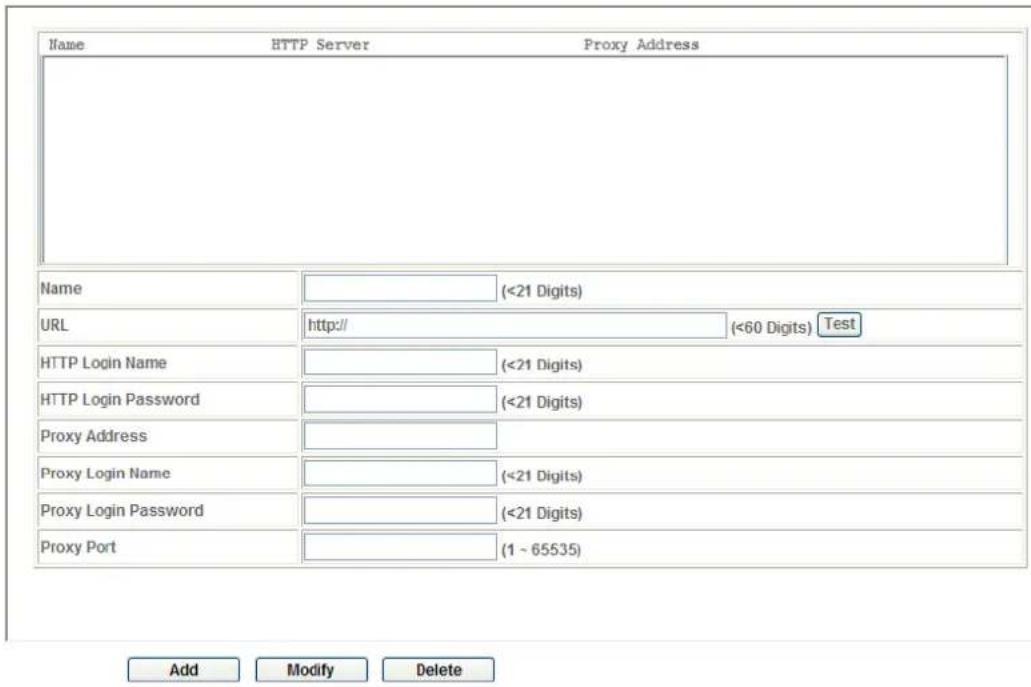

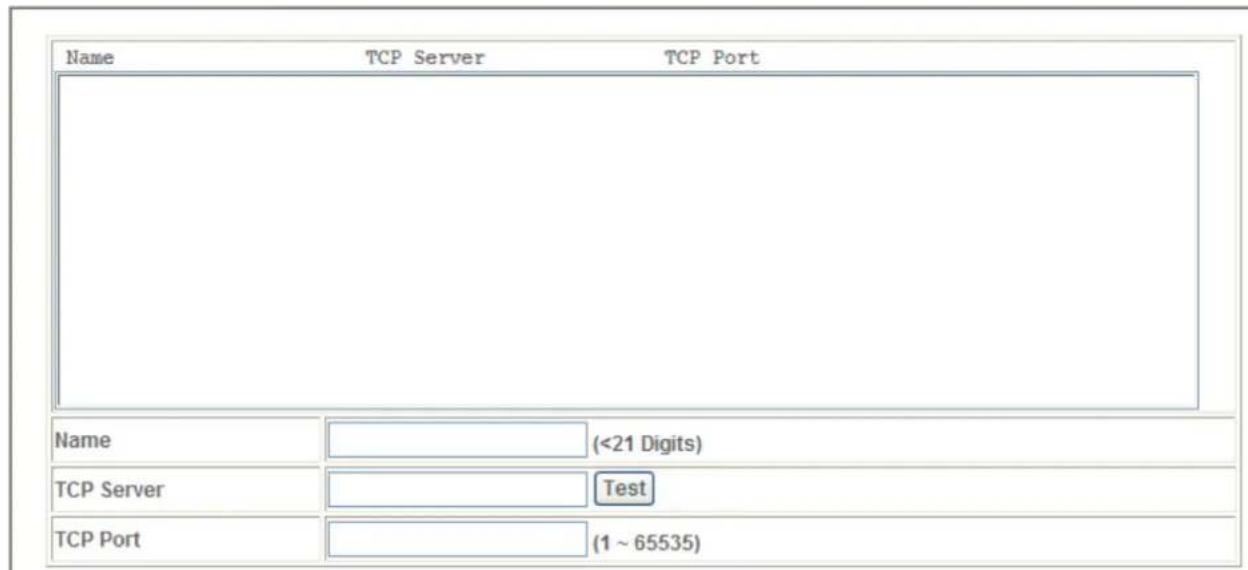

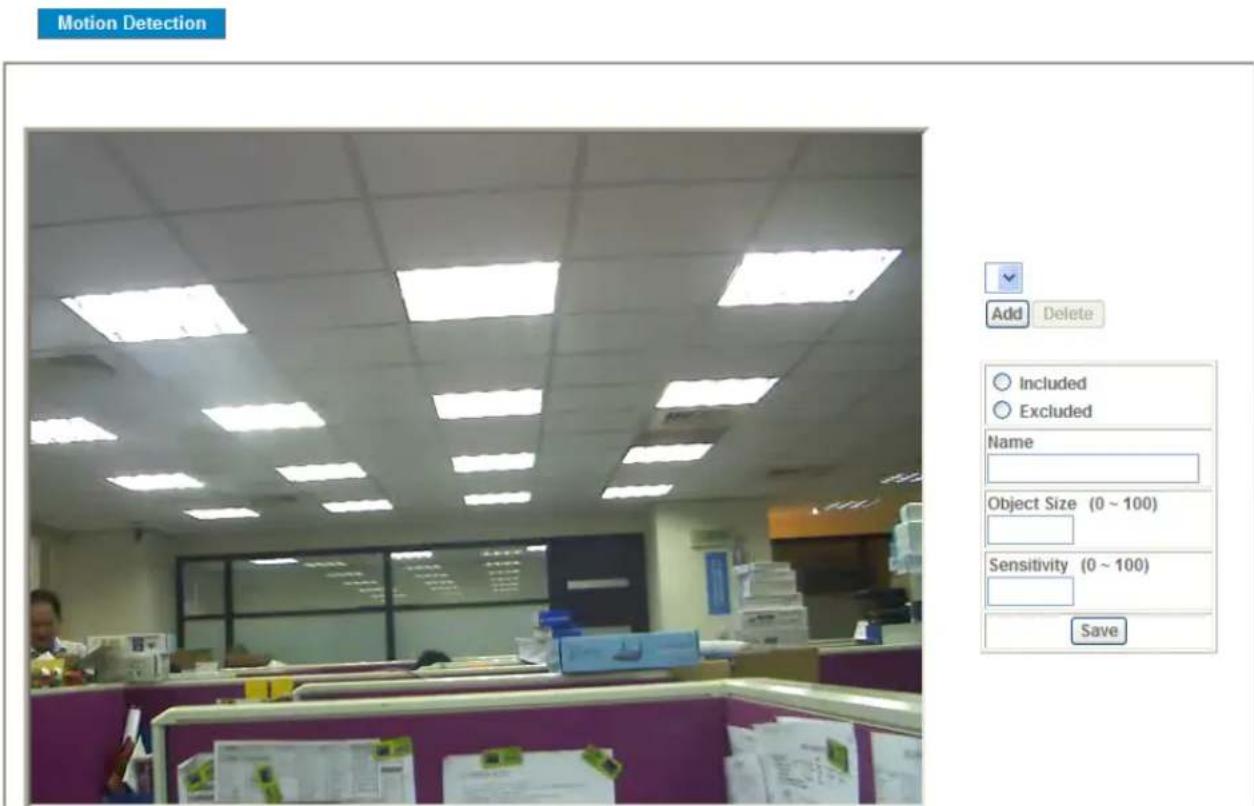

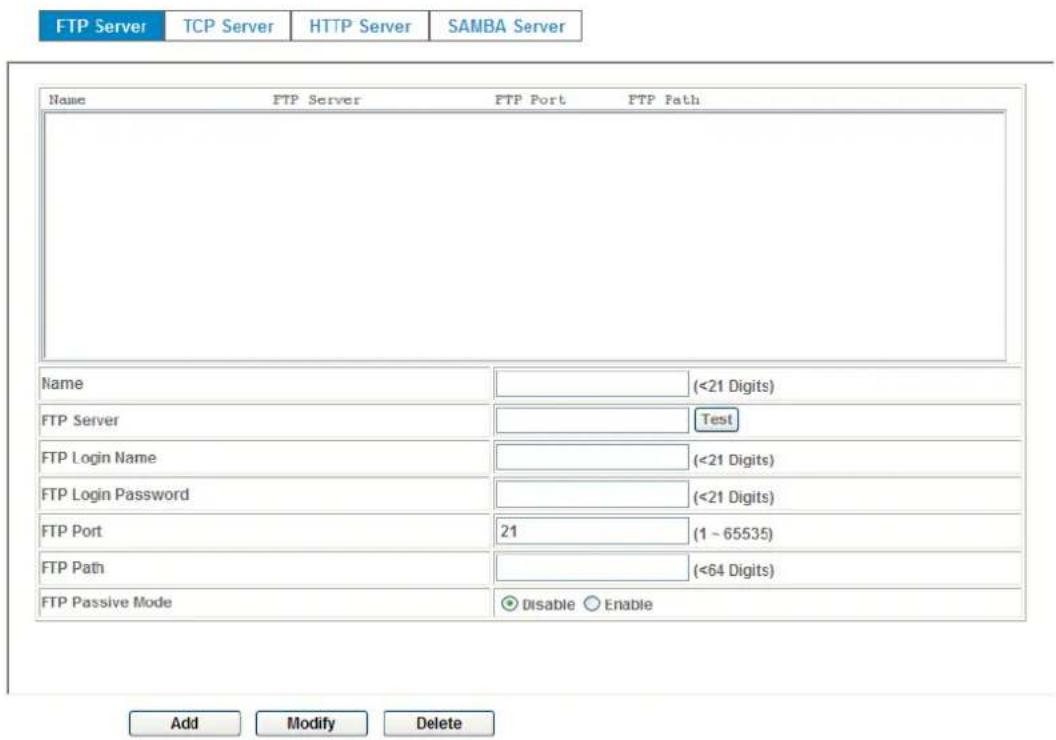

5.1.9 Event Server : Setup FTP/TCP/HTTP/SAMBA server configuration....44

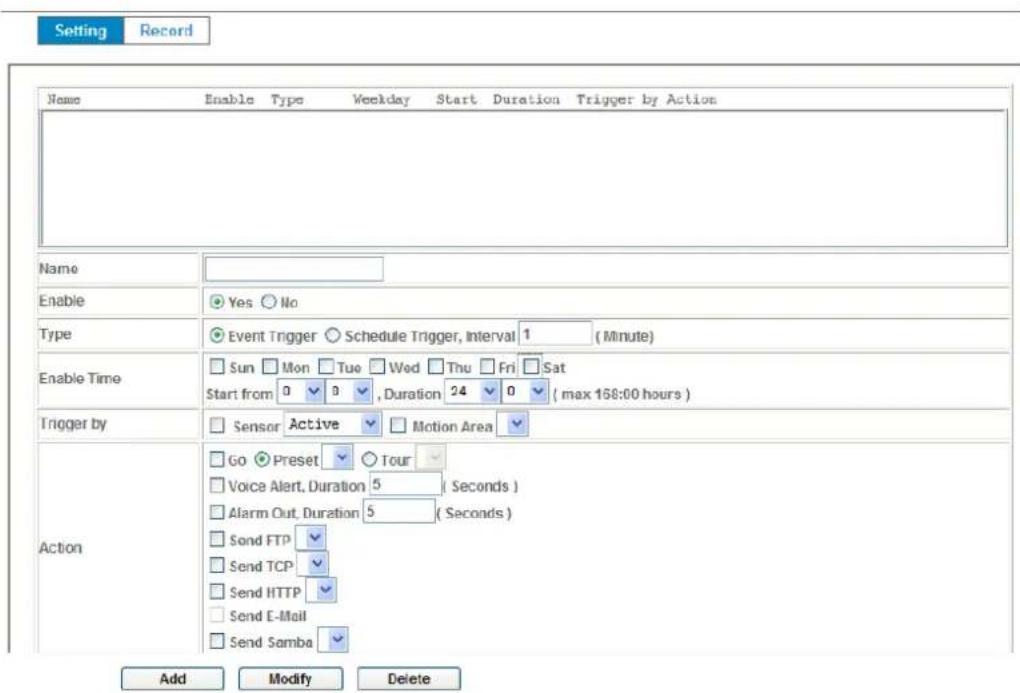

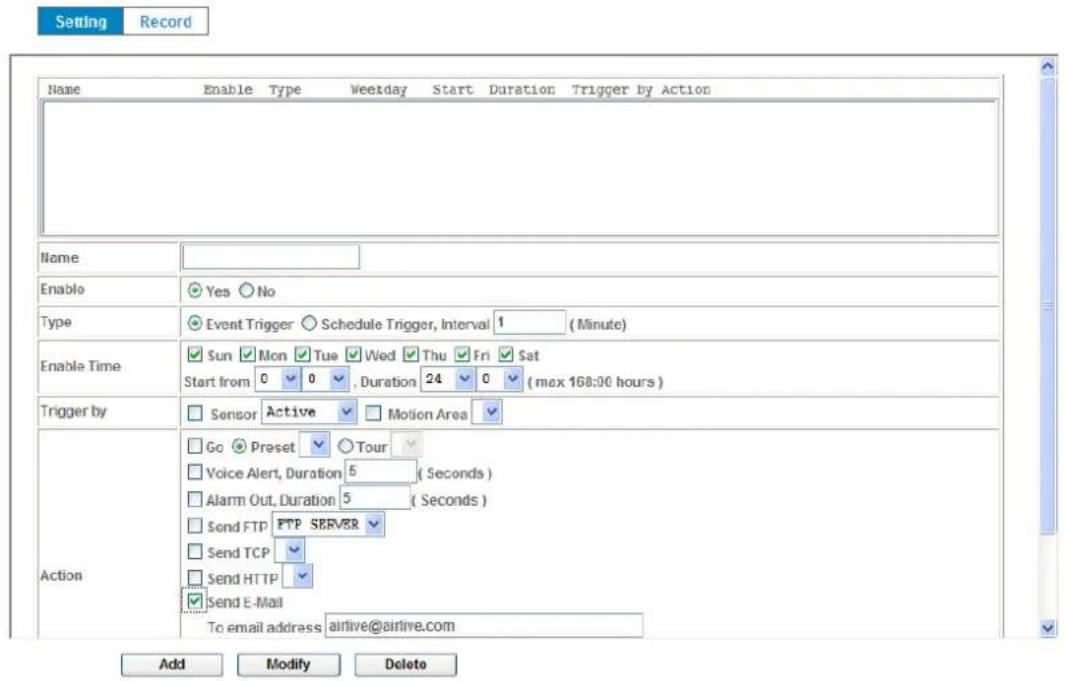

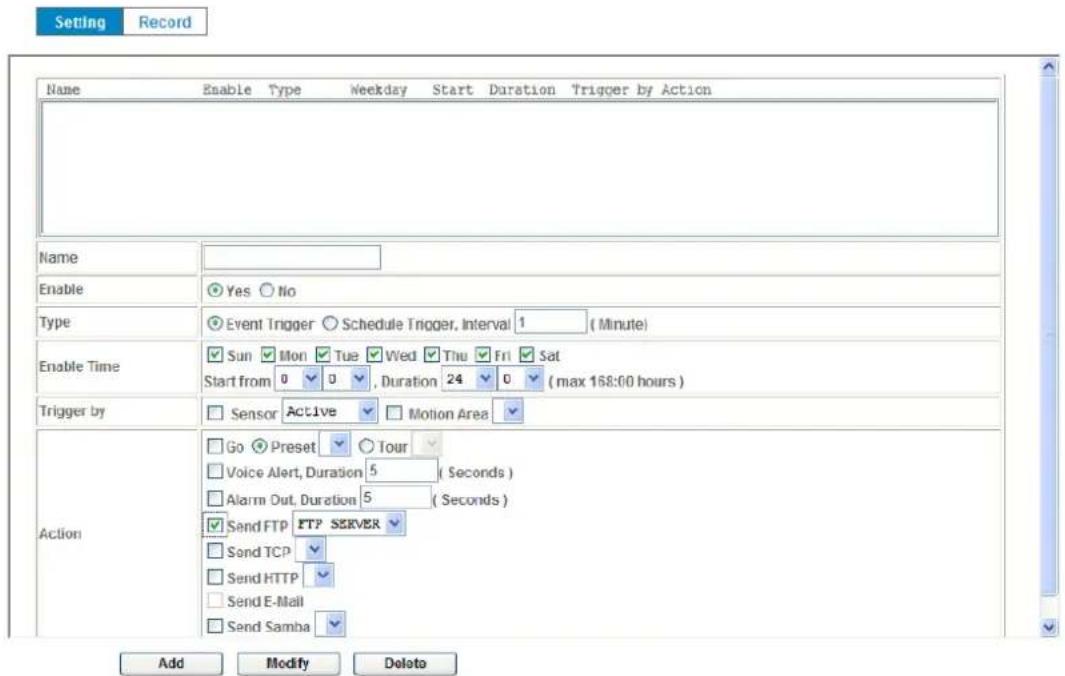

5.1.10 Event Schedule: Configure the event schedule....48

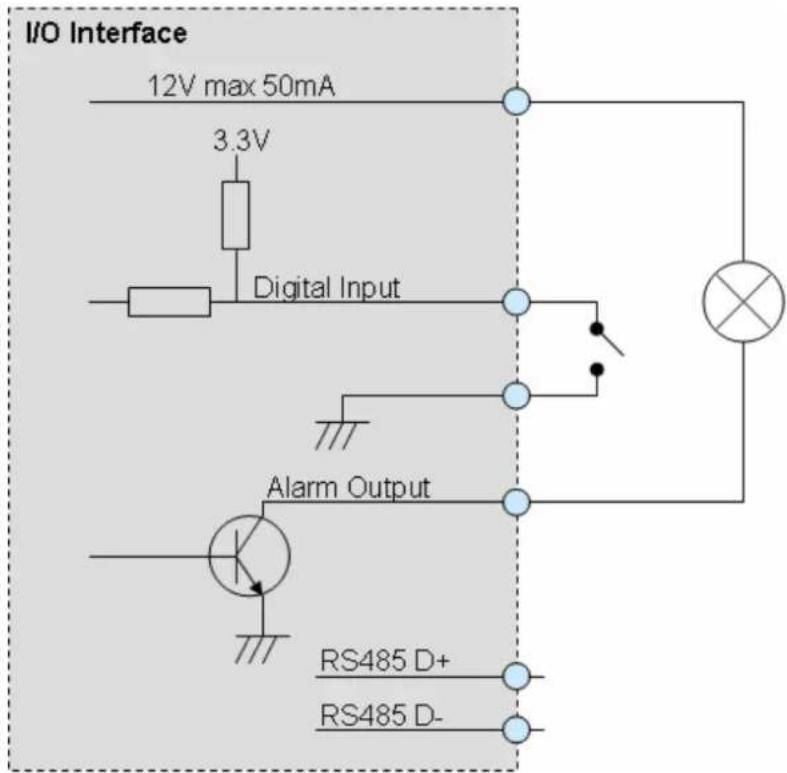

Appendix A : Alarm I/O Connector 52

Appendix B :Frequently Asked Questions ....54

Appendix C : PING IP Address....58

Appendix D : Bandwidth Estimation ....59

Appendix E : Specifications....60

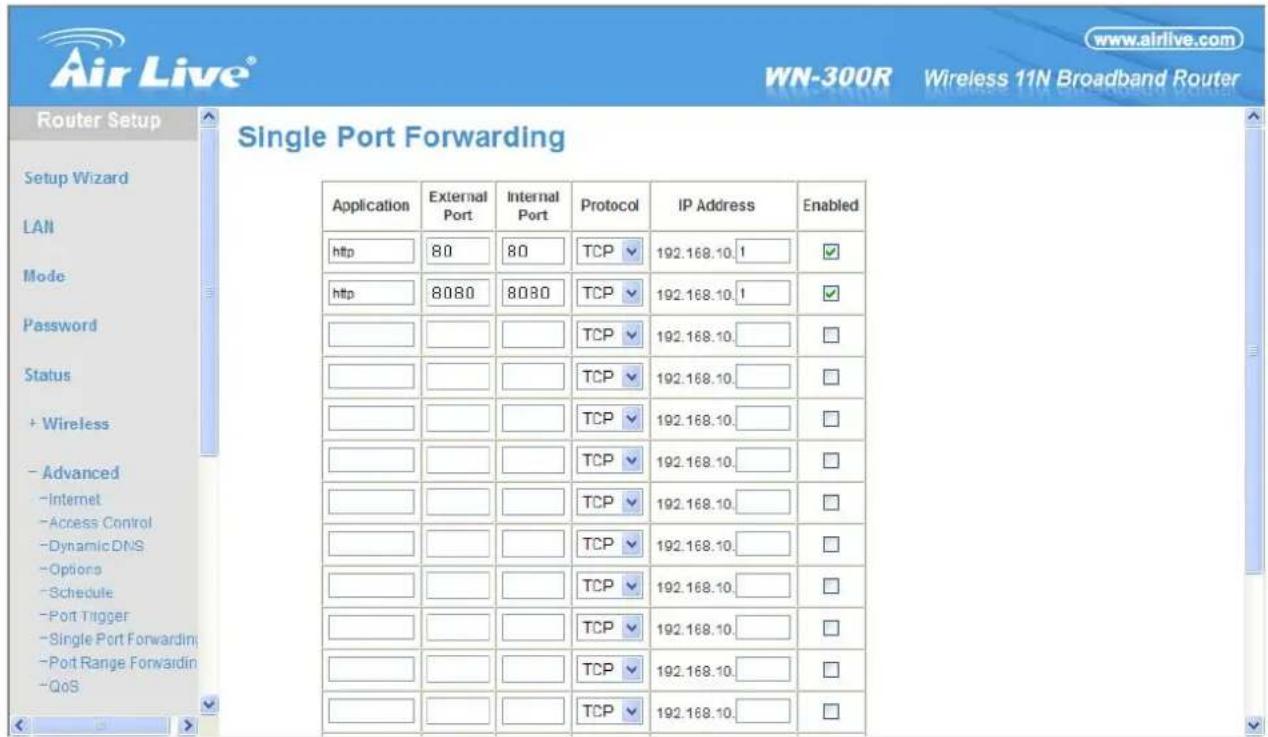

Appendix F : Configure Port Forwarding Manually....62

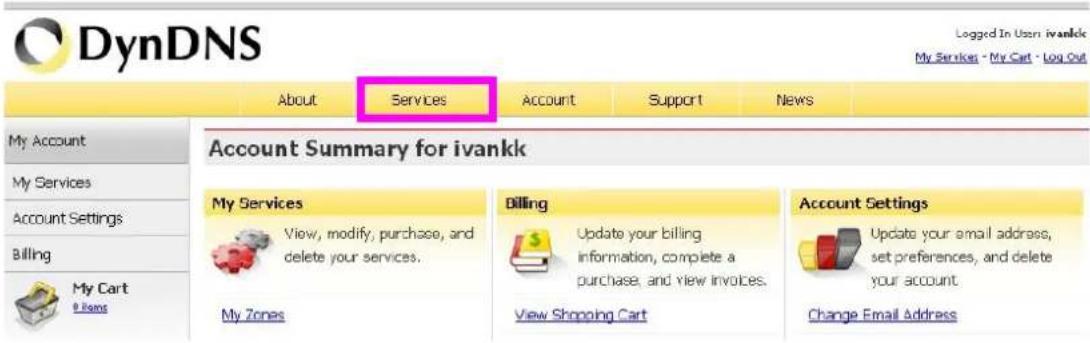

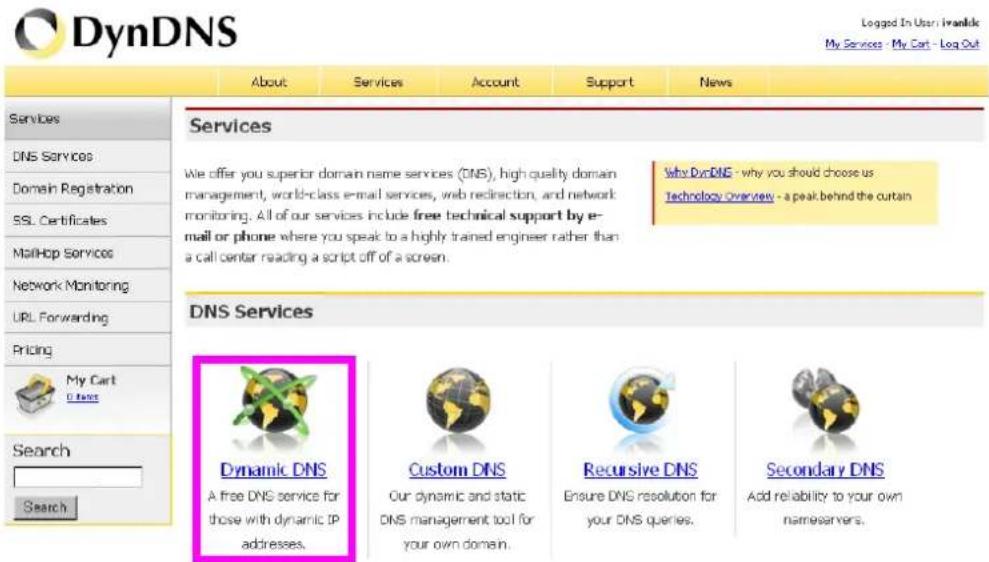

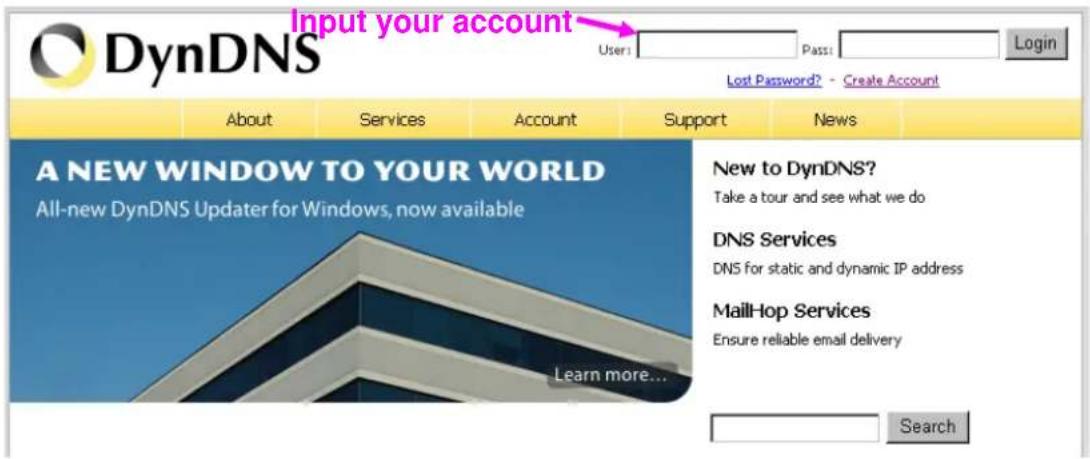

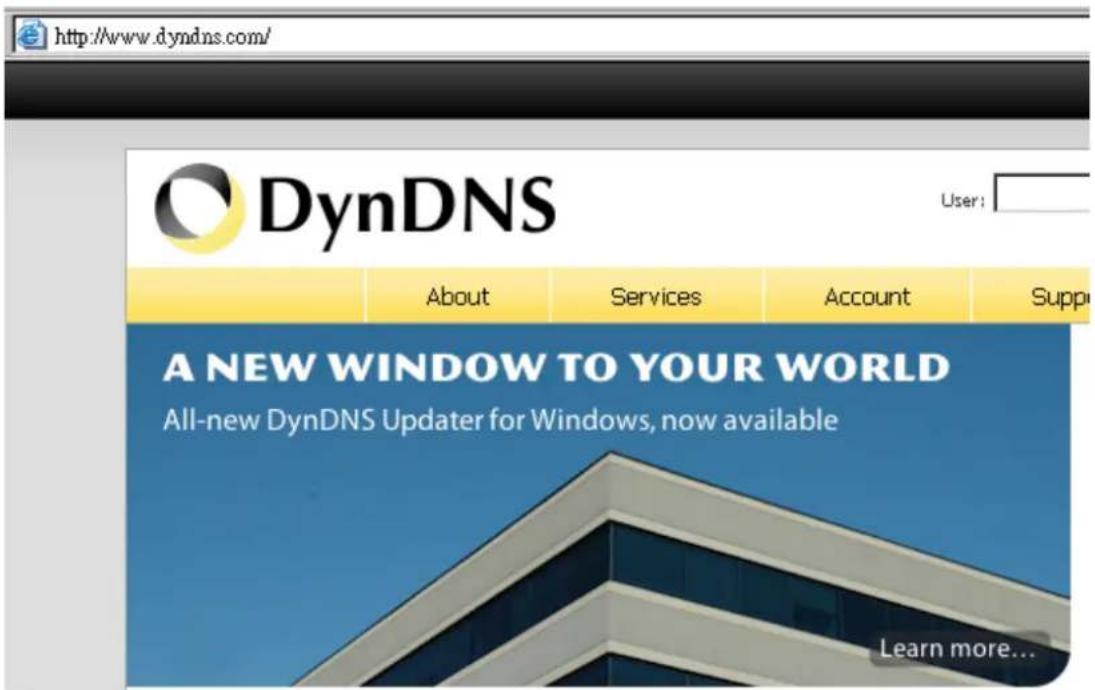

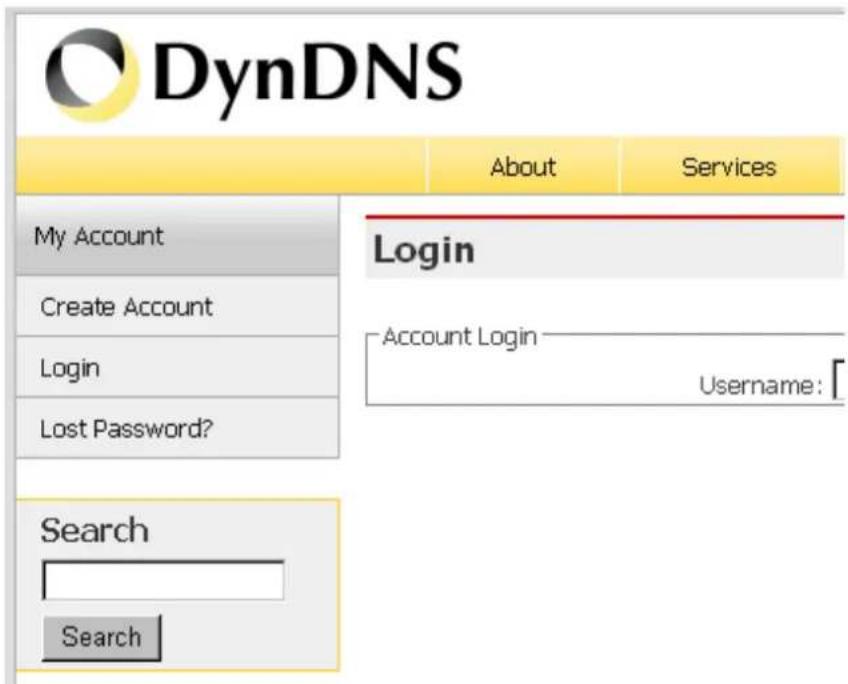

Appendix G : DDNS Application 65

Appendix H : Power Line Frequency....72

Appendix I : 3GPP....73

Appendix J :Enable UPnP of Windows XP....74

1

Overview

This user's guide explains how to operate this camera from a computer. User should read this manual completely and carefully before you operate the device.

1.1 Introduction

This camera is an inexpensive and fully scalable surveillance device. Because the Network Cameras can be plugged into your existing local area network (LAN), you will potentially save thousands of dollars from unnecessary cabling.

The device is accessible via the LAN or Internet connection. Connect your device directly to a local area network or xDSL modem, and with Microsoft® Internet Explorer you get instant, on demand video streams. Within minutes you can set up the device to capture a video sequence to a PC. The live video can be uploaded to a website for the world to see.

1.2 Features

☐ Easy installation with setup wizard
☐ UPnP device discovery and NAT router transversal for easy installation
☐ Dynamic IP Service, DIPS®, to search your IP camera from Internet easily
☐ H.264, MPEG4 and JPEG triple compression simultaneously
☐ Mega-pixel resolution up to 1280x1024
☐ Up to 11-profile encoder simultaneously
☐ UDP / TCP / HTTP protocols selectable
□ Supports video/audio multi-casting
☐ 3GPP for 3G mobile remote application
□ Mega-pixel or VGA mode selectable
☐ 30 fps for VGA mode
☐ 15 fps for Mega-pixel mode
Digital zoom
External microphone
□ Audio line out
□ Two-way audio
☐ Intelligent motion detection up to 10 zones
☐ Go to preset once motion triggered

☐ Image transmission using an FTP or e-mail for event

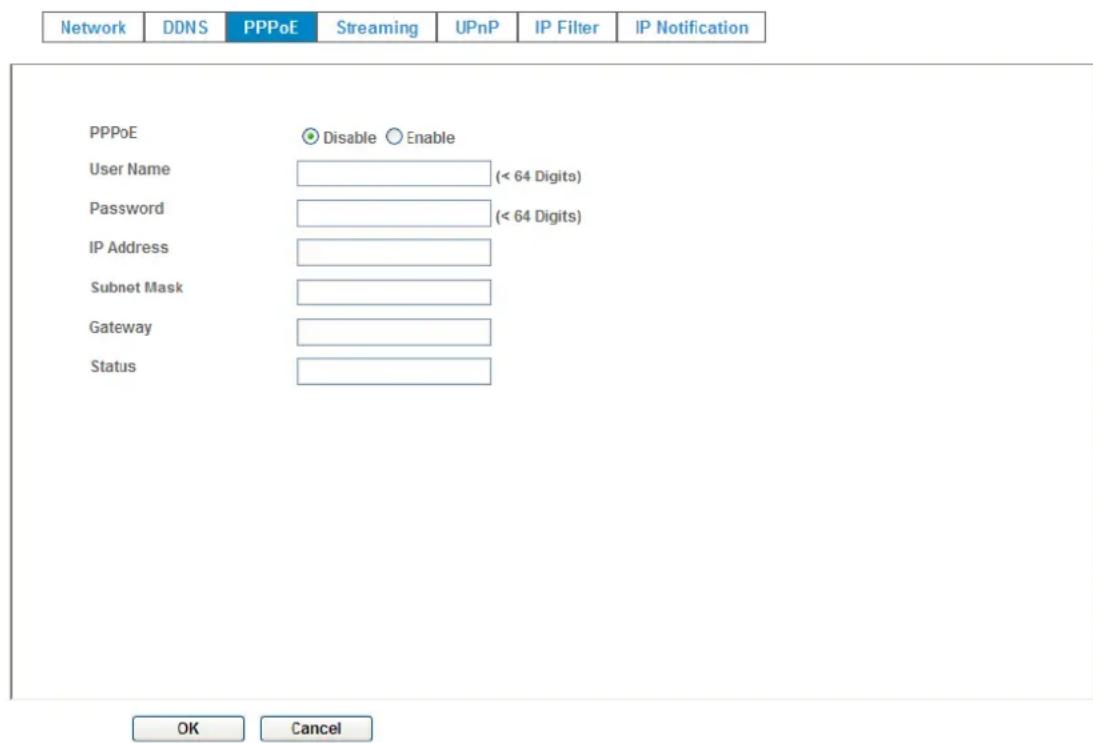

□ DDNS and PPPoE
□ Multi-channel control software for surveillance application
☐ On-line firmware upgrade
☐ 802.3af PoE support (wired model only)

1.3 Minimum System Requirements

☐ Microsoft Internet Explorer 6.0 or later
☐ Microsoft Media Player 11.0 or later (to playback recorded file)
☐ VGA Monitor resolution 1280 x 1024 or higher
☐ Pentium-4 2.0 GHz or higher
☐ Memory Size: 512MB or more
□ Windows XP, Vista

2

Package Contents

User can find the following items in the package as below:

Item Descriptions

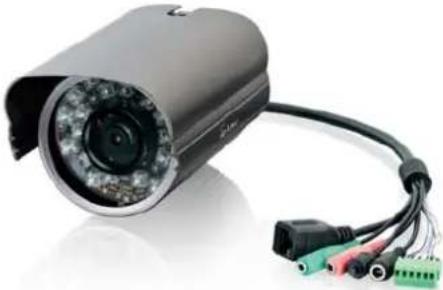

		1. 25M IR IP Cam is the main element of the product.
		2. Wall mount
		3. Wall mount stand
		2. Screws x 3
		3. Power Adapter dedicates 12V DC electric power output to Network Camera.
		4. User's Manual CD provides installation software, application program, important information and instructions for operating the Network Camera.
		5. Quick Start Guide provides important information and instructions for installing this device.

If any of the above items are missing, please contact your dealer immediately.

Note: Using a power supply with a different voltage than the one included with the Network Camera will cause damage and void the warranty for this product.

2.1 Connections

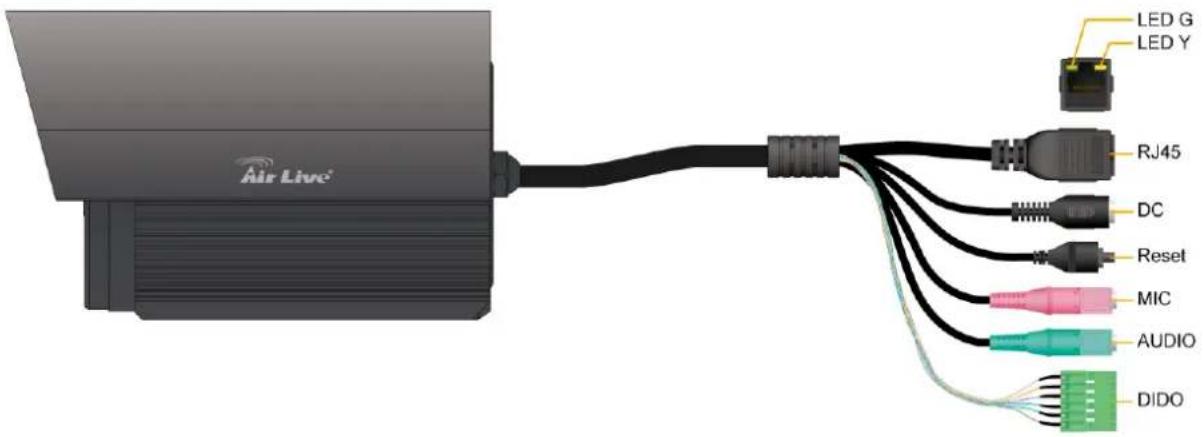

LED G LED Y RJ45 DC Reset MIC AUDIO DIDO

1. RJ45 LAN socket: Connect to PC or Hub/Switch.

For connections to 10Base-T Ethernet or 100Base-TX Fast Ethernet cabling. This Ethernet port built N-Way protocol can detect or negotiate the transmission speed of the network automatically. Please use Category 5 cable to connect the Network Camera to a 100Mbps Fast Ethernet network switch or hub.

In the LAN socket, there are two LEDs embedded:

LAN LED (green color)

This LED will be flashing while network accessing via Ethernet.

Power & Wireless LED (orange color)

This LED is used to indicate whether DC power is on or not. In addition, this LED will be flashing while the wireless accessing of the Camera.

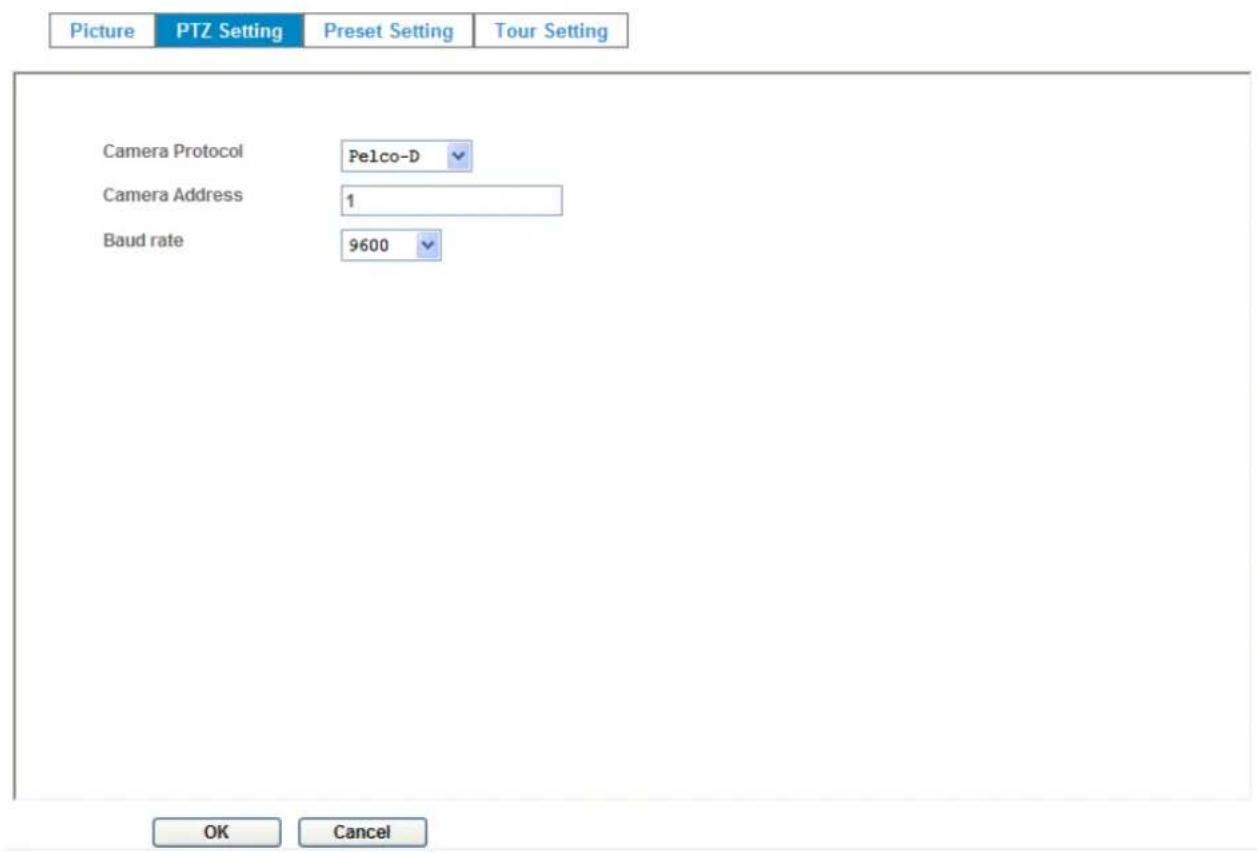

1. RS-485: Connect to a local keyboard controller.

■ DI/ DO: Connect to sensor in and alarm out devices

Cable for I/O connectors:

Name	Cable	Color	Function
12VDC	Brown/White	DC	12V (50mA maximum)
GND	Blue/White		GND
NC Purple/White Do not connect
NC Gray Do not connect
DI Green/White Digital signal input
DO Orange/White Digital signal output

3. Factory Default Reset

This button is used to restore the all factory default settings. Sometimes restarting the device will make the system back to a normal state. However, if the system still got problems after restart, user can restore the factory default settings and install it again.

Restore the device:

(i) Press the button down continuously.
(ii) Hold the button at least 5s seconds and release it. Then the device has been restored to default settings and reboot again.

Note: Restoring the factory default setting will lose the all previous settings included IP address forever. User needs to run the IPWizard II program to search the device and configure it to let the device work properly again.

4. DC-in Jack

The input power is 12VDC. Note that supply the power to the Network Camera with the power adapter included in package.

5. MIC in (audio in)

Connect a microphone to the network camera.

6. Line out (audio out)

Connect a loud speaker to the network camera. This function is for voice alerting and two-way audio.

2.2 Mounting the Camera

Ceiling Mount

Fix the camera to ceiling with the three supplied screws.

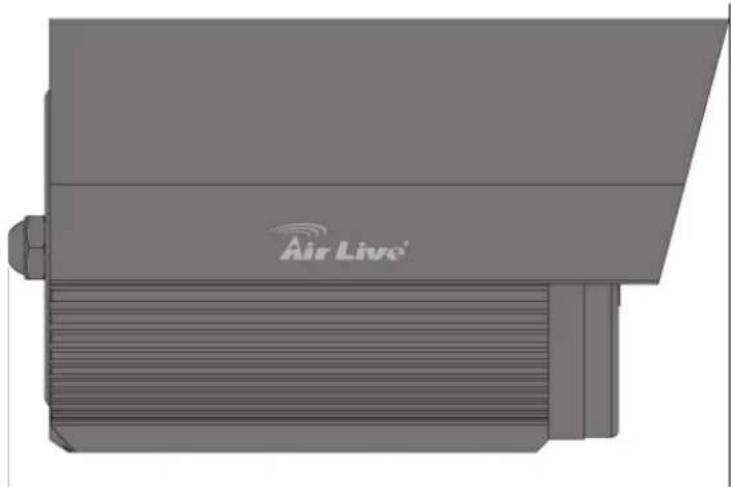

3D rendering of a gray air vehicle with 'Air Live' branding on the side panel (no other text or symbols)

Install the Camera in LAN

1. Plug an Ethernet cable into the Camera

Connect an Ethernet cable to the LAN socket and attach it into the network.

2. Connect the external power supply to Camera

Connect the attached power adapter to the DC power jack of the camera. Note: Use the power adapter, 12VDC, included in the package and connect it to wall outlet for AC power.

Once you have installed the camera well and powered it on, the power LED (orange) will turn on later. The power LED turned on, it means the system is booting up successfully. Furthermore, if you have a proper network connection, and access to the camera, the LAN LED (green) will flash.

3

Preparation

3.1 Search and Set up by IPWizard II

When you installed the Camera on a LAN environment, you have two easy ways to search your Cameras by IPWizard II or UPnP™ discovery. Here is the way to execute IPWizard II to discover Camera's IP address and set up related parameter in a Camera.

Search

Air Live IP Wizard II Version 1.0.0.3431 Device Title IP Address Port MAC AirCam OD-325HD 192.168.10.11 80 00-4E-AE-A0-01-57 SEARCH Camera: VIEW Model Name: AirCam OD 325HD LAN Network: Wired WIRELESS DHCP: ON EXIT WiFi: Ethernet Only Connection: Not Connected User Name: admin Password: ****** Off-Line

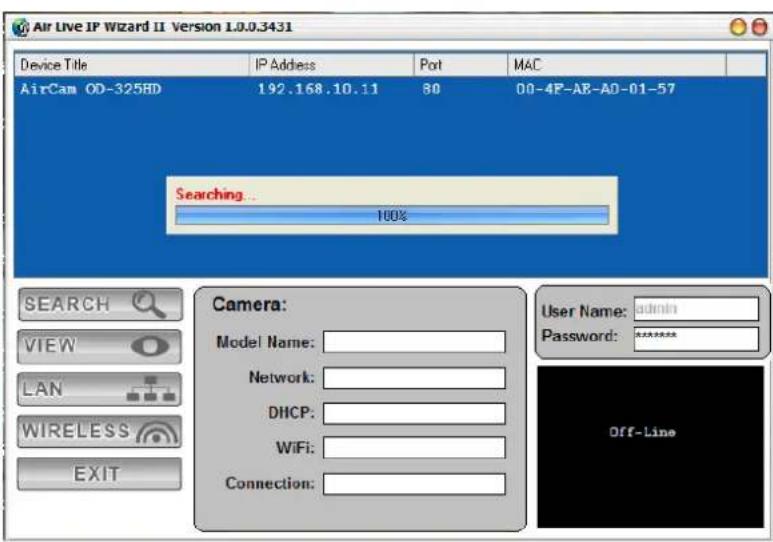

When launch the IPWizard II, a searching window will pop up. IPWizard II is starting to search Network Cameras on the LAN. The existed devices will be listed as below.

Air Live IP Wizard II Version 1.0.0.3431 Device Title IP Address Port MAC AirCam OD-325HD 192.168.10.11 80 00-4P-AE-AO-01-57 Searching... 100% SEARCH VIEW LAN WIRELESS EXIT Camera: Model Name: Network: DHCP: WiFi: Connection: User Name: admin Password: ******** Off-Line

View

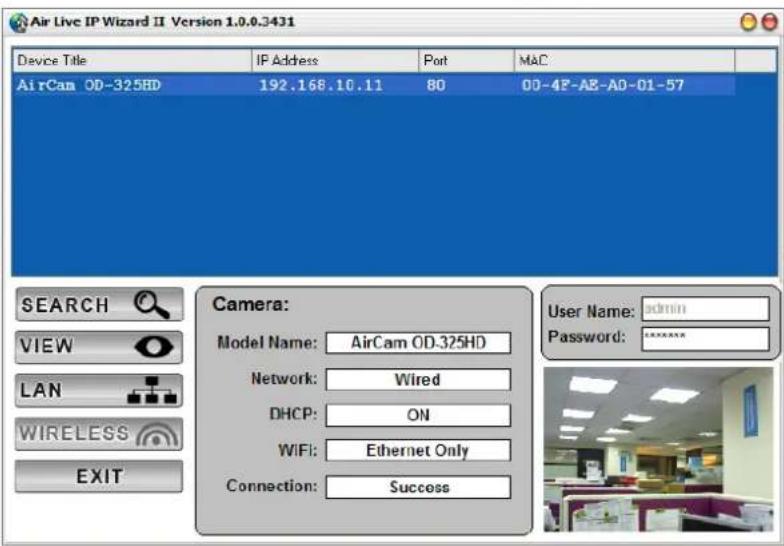

If IPWizard II finds network devices, View button will be available. Please select the device you want to view and click the View button. Then you could see the video from camera directly. Furthermore you could double click the left button of mouse to link to the network device by browser.

Air Live IP Wizard II Version 1.0.0.3431 Device Title IP Address Port M&C Air rCam OD-325HD 192.168.10.11 80 00-4F-A8-A0-01-57 SEARCH Camera: VIEW-model Name: AirCam OD-325HD LAN Network: Wired WIRELESS DHCP: ON EXIT WIFI: Ethernet Only Connection: Success User Name: admin Password: ********

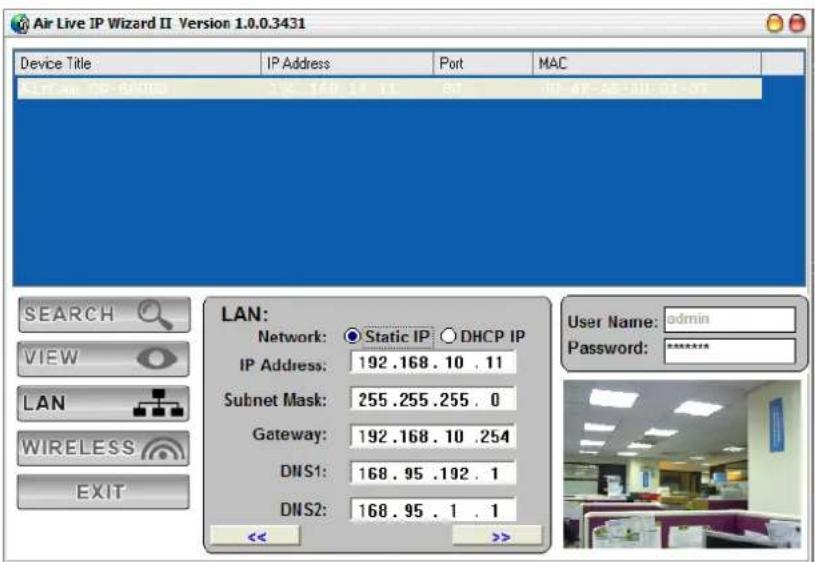

LAN

In case you want to change the IP related parameters of wired interface, please select the device you want to configure and click the LAN button. Relative settings will be carried out as below.

Air Live IP Wizard II Version 1.0.0.3431 Device Title IP Address Port MAC SEARCH VIEW LAN WIRELESS EXIT LAN: Network: Static IP DHCP IP IP Address: 192 .168 . 10 . 11 Subnet Mask: 255 .255 .255 . 0 Gateway: 192 .168 . 10 .254 DNS1: 168 . 95 .192 . 1 DNS2: 168 . 95 . 1 . 1 << >> User Name: admin Password: **********

You could modify the relative settings of the selected device. Click “<<” button will quit the LAN setting procedure and click “>>” button will move to next page as below.

Air Live IP Wizard II Version 1.0.0.3431 Device Title IP Address Port MAC SEARCH VIEW LAN WIRELESS EXIT User: Change Password << Submit User Name: admin Password: ********

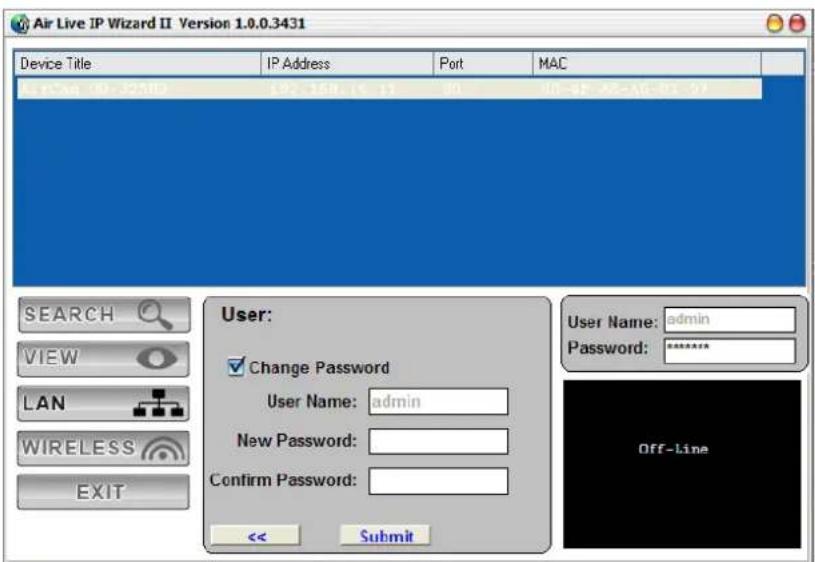

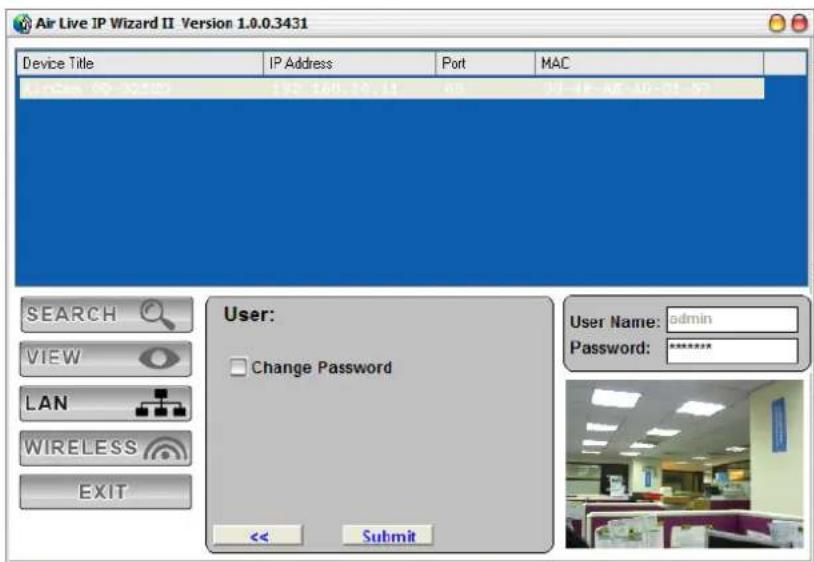

In case, you do not want to change username and/or password, then just click "Submit" button to perform your setting accordingly. Click "<<" button will go back to previous page. If you like to change username and/or password of the device, just click the check button. Then, the related fields will show up as below.

Air Live IP Wizard II Version 1.0.0.3431 Device Title IP Address Port MAC SEARCH VIEW LAN WIRELESS EXIT User: ✓ Change Password User Name: admin New Password: Confirm Password: << Submit User Name: admin Password: ******** Off-line

After keying in new username and password, click "Submit" button to perform your setting accordingly. Click "<<" button will go back to previous page.

Wireless

This model does not support wireless function. Therefore, IPWizard II disables this function automatically.

3.2 Using UPnP of Windows® XP or Vista

UPnP™ is short for Universal Plug and Play, which is a networking architecture that provides compatibility among networking equipment, software, and peripherals. This device is an UPnP enabled device. If the operating system, Windows XP or Vista, of your PC is UPnP enabled, the Network Camera will be very easy to be found.

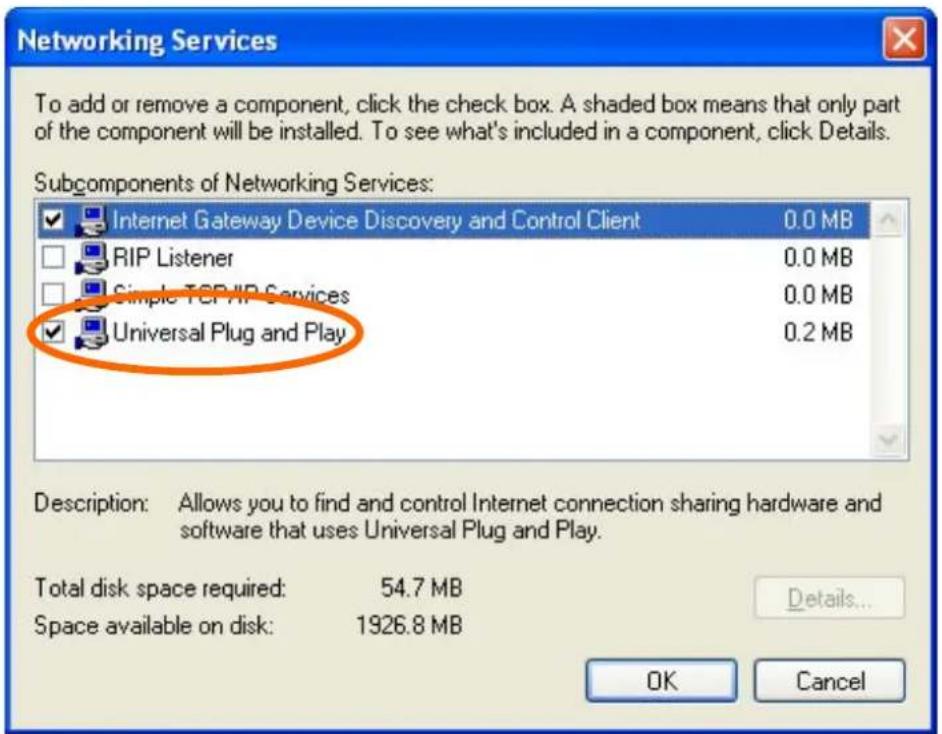

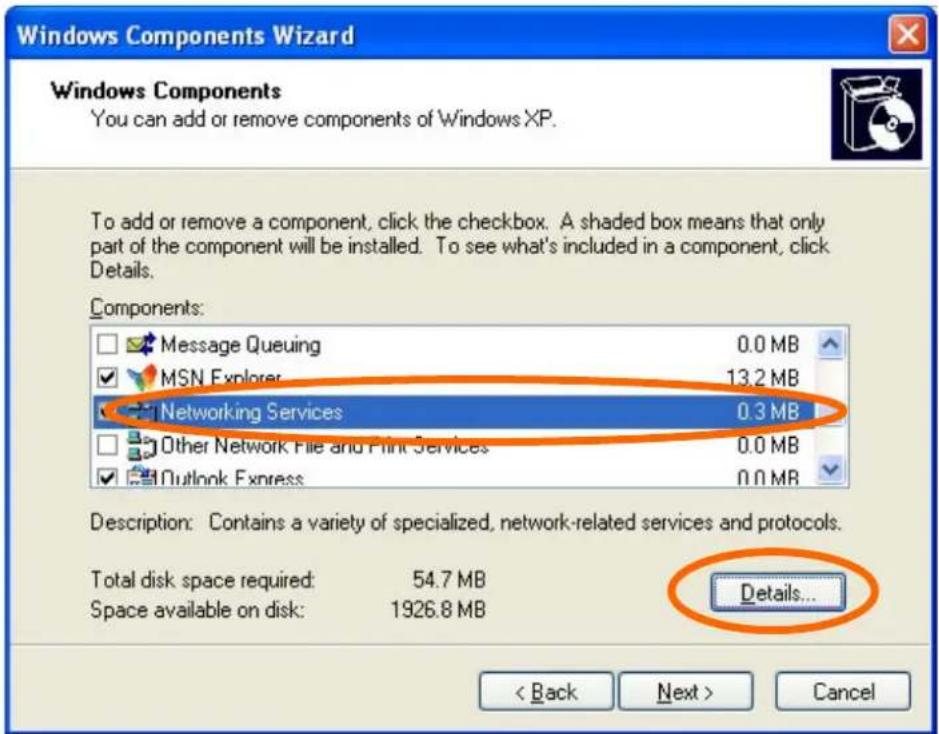

Please refer to Appendix J to enable UPnP settings only if your operating system of PC is running Windows XP.

Note: Windows 2000 does not support UPnP feature.

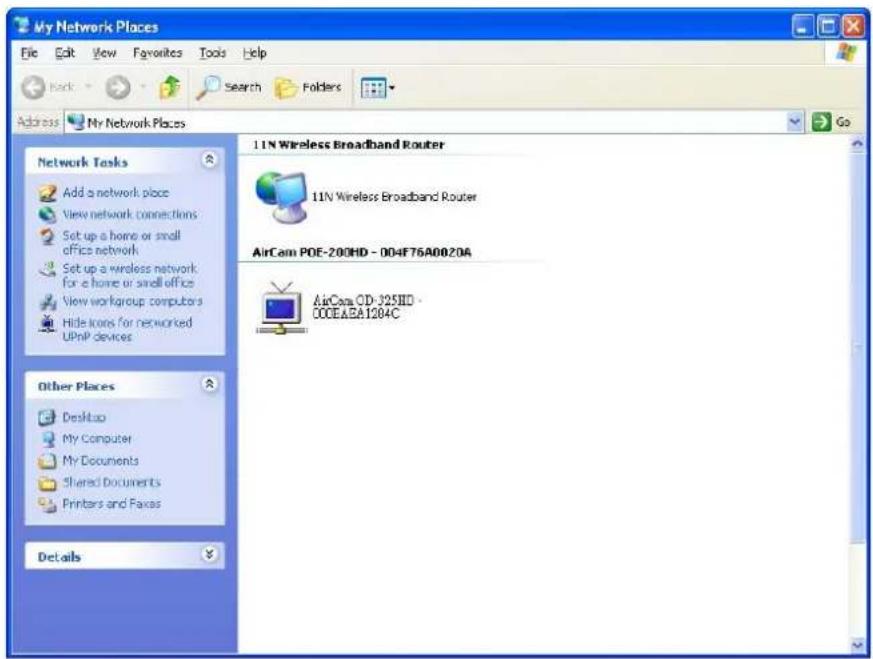

To discover your device, go to your Desktop and click My Network Places.

My Network Places File Edit View Favorites Tools Help Back Search Folders Address My Network Places Go Network Tasks Add a network place View network connections Set up a home or small office network Set up a wireless network for a home or small office View workgroup computers Hide icons for networked UPnP devices Other Places Desktop My Computer My Documents Shared Documents Printers and Faxes Details 11N Wireless Broadband Router 11N Wireless Broadband Router AirCam POE-200HD - 004F76A0020A AirCam OD-325HD - 000EA2A1284C

Click the targeted Device. Then Internet Explorer will connect to this Network Camera automatically.

3.3 Install the Device behind a NAT Router

Once installed, the device is accessible on your LAN. To access the device from the Internet you must configure your broadband router to allow incoming data traffic to the device. If the device is installed on the LAN with a router, then it may get a dynamic IP address from the DHCP server. However, if the device wants to be accessed from the WAN, its IP address needs to be setup as fixed IP, also the port forwarding or Virtual Server function of router needs to be setup.

However, if your NAT router supports UPnP feature, it can be very easy to achieve NAT traversal automatically. To do this, enable the NAT-traversal feature, which will attempt to automatically configure the router to allow access to the camera.

Installing the device with an UPnP router on your network is an easy 3-step procedure:

(1) Enable UPnP option of your NAT router
(2) Enable UPnP NAT traversal option of the Network Camera
(3) Access your Network Camera by DIPS

(1) Enable UPnP option of your NAT router

To use UPnP IGD function (NAT traversal), you need to make sure the UPnP function is enabled in your router. Most new home routers should support this function. Some of routers are default enable and others are not. Please check user's manual of your NAT router for detail.

(2) Enable UPnP NAT traversal option of the Network Camera

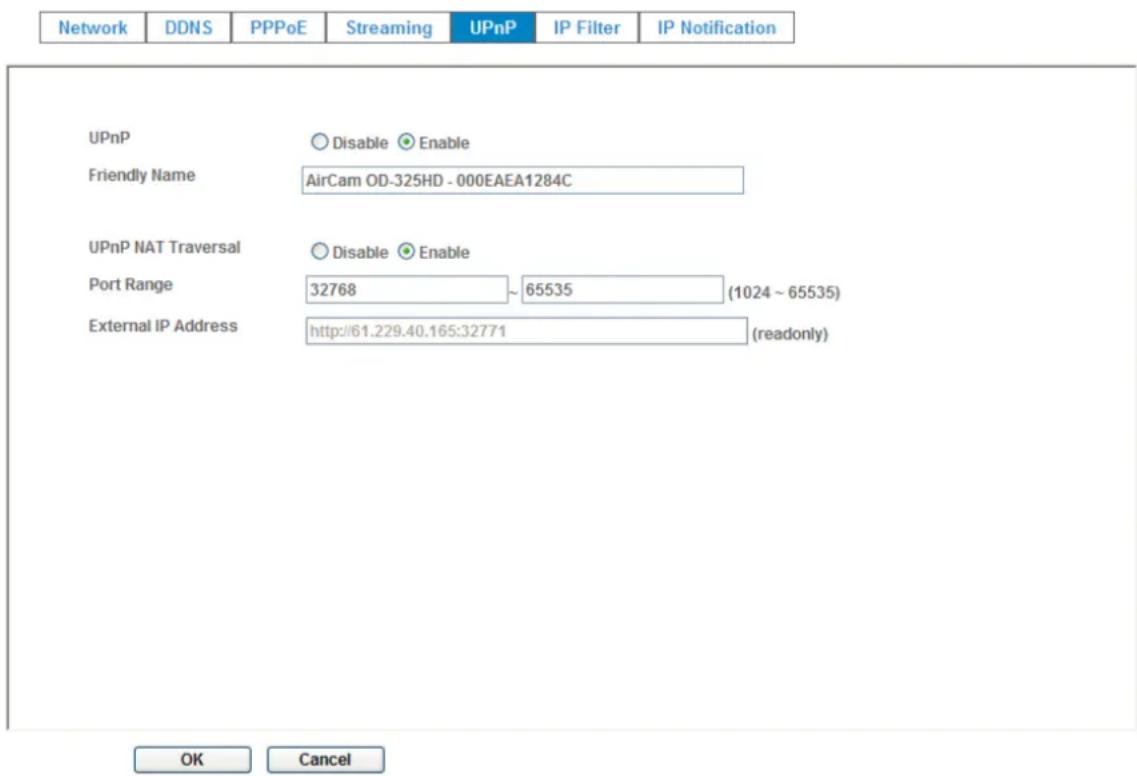

Refer to Setting → Network → UPnP page for detail NAT traversal setting.

(3) Access your Network Camera by DIPS

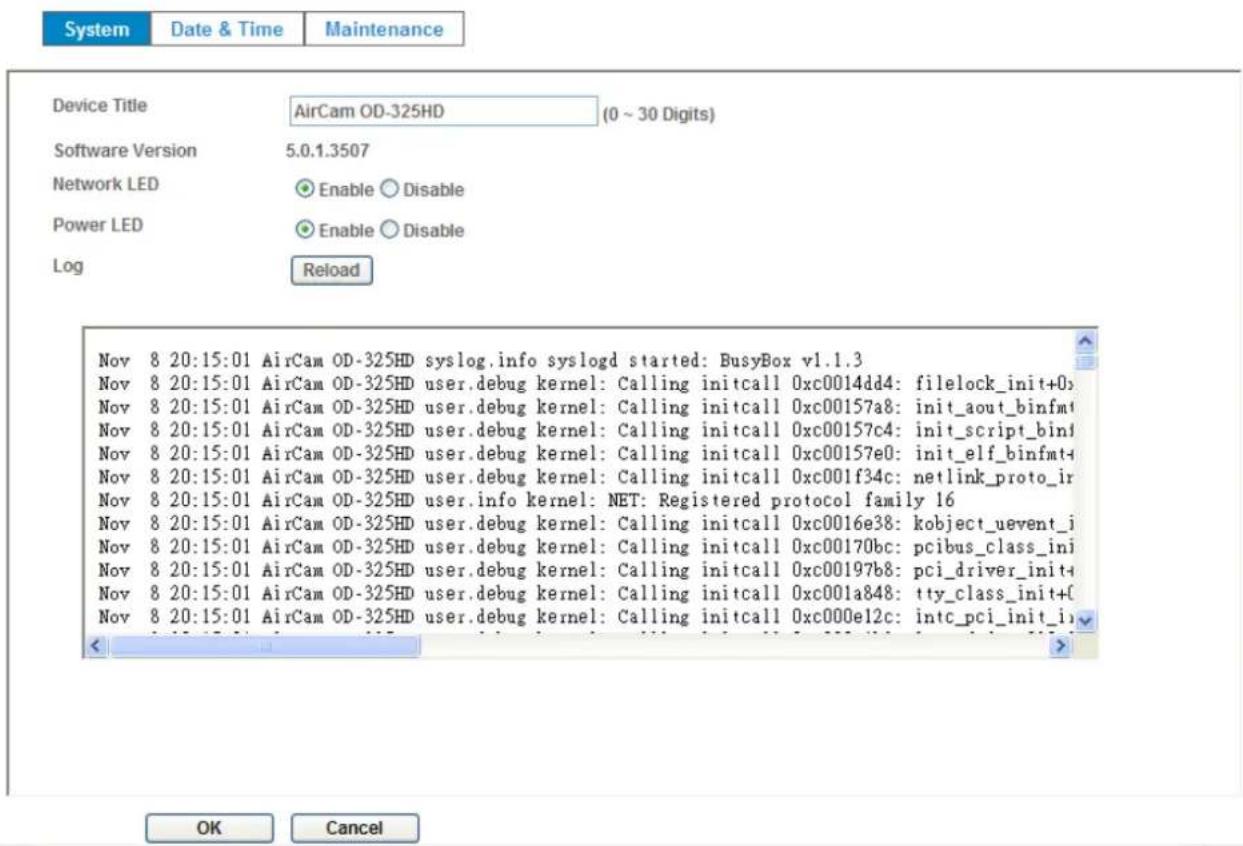

Refer to Setting → System → System page for detail DIPS information.

3.4 Access the device from the Internet Explorer for the first time

1. Start the web browser on the computer and type the IP address of the Network Camera you want to monitor as below:

Address http://192.168.1.100/ Go Links »

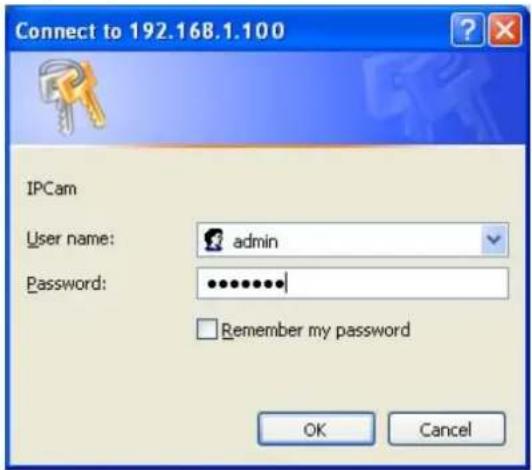

The Login Window of the Camera is prompted:

Connect to 192.168.1.100 IPCam User name: admin Password: ******** Remember my password OK Cancel

1. Type in your login name and password under "USERNAME" and "PASSWORD" textbox.

For the first time use (default value), input the

User Name: admin

Password: airlive

That's, type in "admin" on the "USERNAME" as a default name and leave PASSWORD textbox airlive. Click "OK" button to start the main menu.

1. According to your browser's security setting, the IE Web Page may prompt the "Security Warning" window. If so, select "Yes" to install and run the ActiveX control into your PC. Otherwise, the system will load the ActiveX silently.

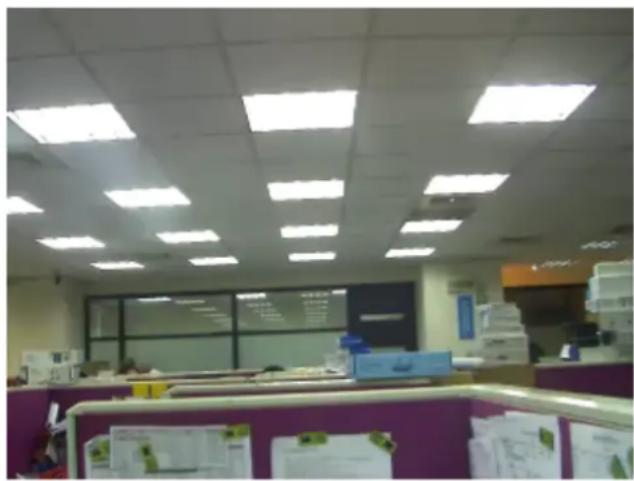

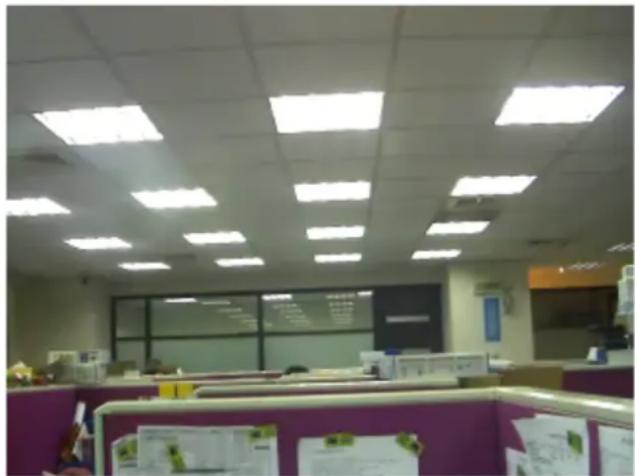

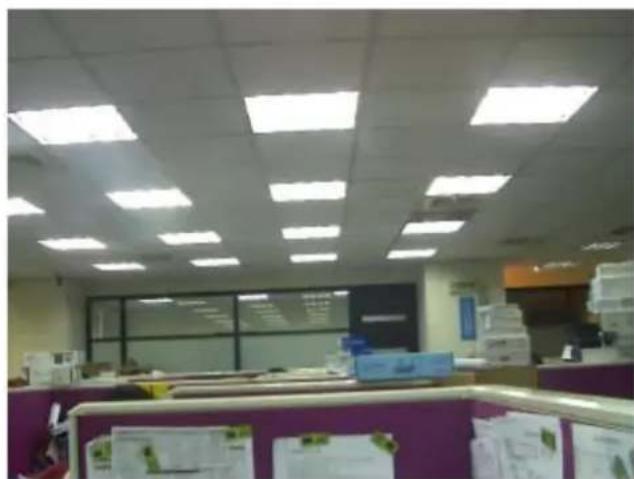

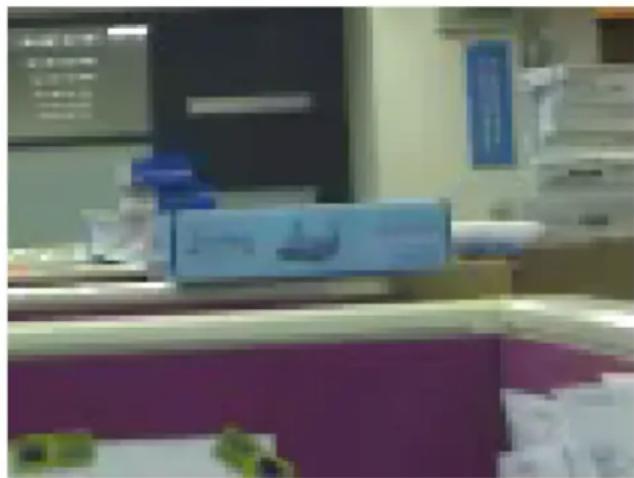

2. After the ActiveX control was installed and ran, the first image will be displayed.

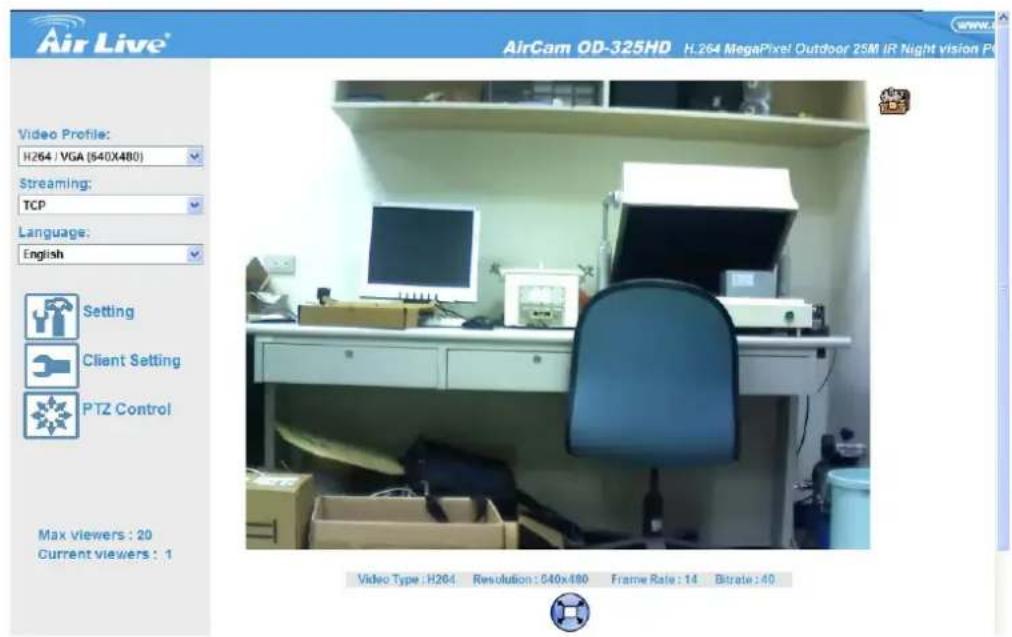

Air Live® AirCam OD-325HD H.264 MegaPixel Outdoor 25M IR Night vision P Video Profile: H264 / VGA (540X480) Streaming: TCP Language: English Setting Client Setting PTZ Control Max viewers : 20 Current viewers : 1 Video Type : H264 Resolution : 040x180 Frame Rate : 14 Bitrate : 40

Logging in as an User

If you log in the Camera as an ordinary User, "Setting" function will be not accessible.

Logging in as an Administrator

If you log in the Network Camera as the Administrator, you can perform all the settings provided within the device.

4

Operating the Network Camera

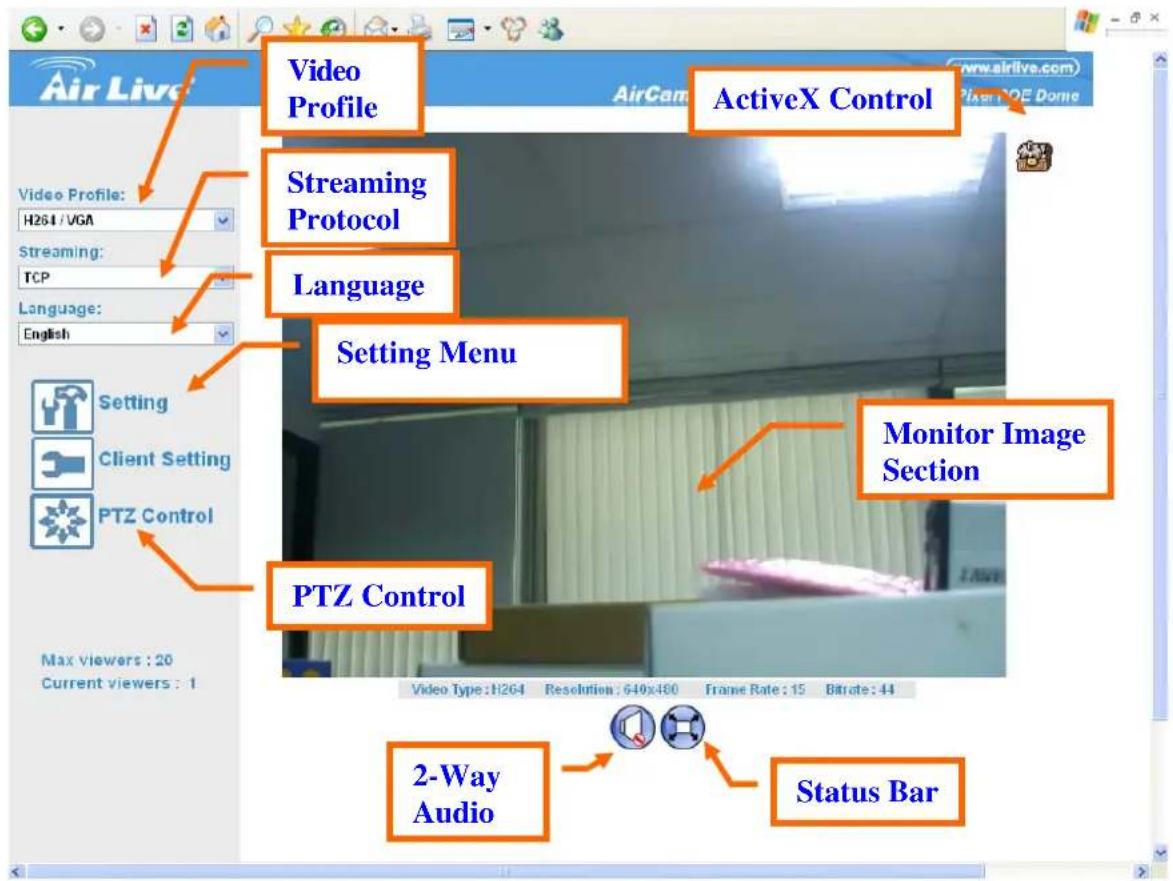

Start-up screen will be as follow no matter an ordinary users or an administrator.

Video Profile ActiveX Control Streaming Protocol Language Setting Menu Monitor Image Section PTZ Control PTZ Control 2-Way Audio Status Bar Max viewers : 20 Current viewers : 1 Video Type : H264 Resolution : 640x480 Frame Rate : 15 Bitrate : 44

Monitor Image Section

The image shot by the Network Camera is shown here. The date and time are displayed at the top of the window.

Video Profile

The Network Camera support multi-profile for both MEPG4 and JPEG simultaneously. User can chose the proper and/or preferred profile here.

Streaming Protocol

User can select proper streaming protocol according to networking environment.

Language

The device could provide multiple languages to meet customer's requirement.

2-Way Audio

The device supports 2-way audio function. User can chose to enable or disable this function by toggling the icon below.

: Disable audio uploading function.

: Enable audio uploading function.

Status Bar

Shows information of the connected device such as encoder format, image resolution, frame per second, and bitrate.

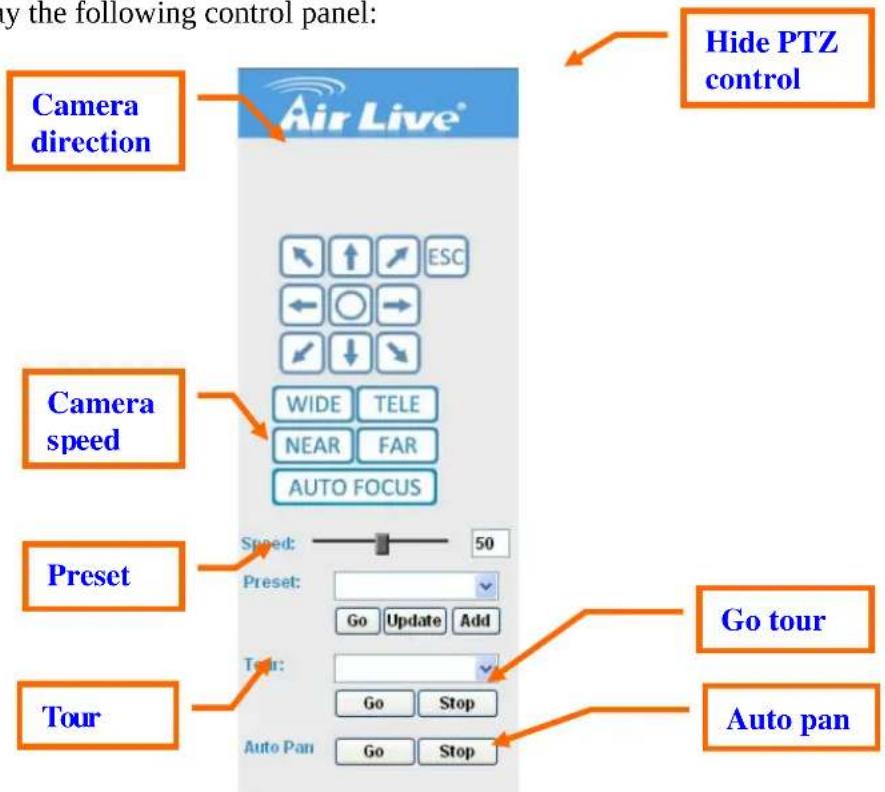

PTZ Control

Click to display the following control panel:

y the following control panel: Camera direction Air Live® Hide PTZ control Camera speed WIDE TELE NEAR FAR AUTO FOCUS Preset Speed: 50 Preset: Go Update Add Tour: Go Stop Auto Pan Go Stop Go tour Auto pan

Hide PTZ control:

Click the icon will hide the PTZ control function.

Camera direction:

Control camera up/down/left/right and home position.

Camera speed:

Choose the speed of Pan and Tilt.

Preset:

Add/Update the preset positions or go to one of these positions.

Tour:

Select one of the camera tours. Camera tour is comprised by series of preset locations.

Go tour:

Execute the selected camera tour.

Auto Pan:

Execute the auto pan of camera. While auto pan is running, the camera will swing the camera automatically. Note that the speed of auto pan is fixed and can not be adjustable.

ActiveX Control

The plug-in ActiveX control supports a lot of functions by clicking the left mouse button. Note that this feature only supports on the ActiveX control within Microsoft® Internet Explorer.

On the ActiveX control icon, click the LeftMouseButton, then a menu pop-up. This menu provides features that are unique to the ActiveX control. These features include:

• "Digital Zoom",
• "Record",
• "Snapshot",
  • "Voice",
• "Statistics",
• "About"

Interior view of an office cubicle with purple and white desks and recessed ceiling lights (no visible text or symbols)

Digital Zoom Snapshot Record Volume Statistics About

Digital Zoom

Interior view of a pharmacy counter with shelves, products, and staff (no visible text or signage)

Digital Zoom

Interior view of an office with ceiling lights and cubicles (no visible text or symbols)

Click Digital Zoom to active this function as above. User can drag or scale the box over the video to adjust zoom ratio and position.

Record

Interior view of an office with ceiling lights and cubicles (no visible text or symbols)

Record

Record

C:\Documents and

Browser

Click Record to activate this function. Press Record button to start recording. The video file is saved as ASF format into your local PC. While you want to stop it, press Stop to stop recording. Select Browser, the pop-up window to select the save path and file name prefix, select OK to continue.

After stop recording, list the files, this file is named as Video_yyyymmddhhmmss.avi

The ASF files can be displayed by the standard Windows Media Player, but it needs the DixectX 9.0 or later version to be installed.

Snapshot

Interior view of an office with ceiling lights and cubicles (no visible text or symbols)

1 Snapshot

Snapshot

C:\Documents and

Browser

Click Snapshot to activate this function. Press Snapshot button to take a picture. The image file is saved as JPEG format into your local PC. Select Browser, the pop-up window to select the save path and file name prefix, select OK to continue.

If you like to retrieve the saved image, select the file to display the saved image by using any one of graph editing tools.

Voice

Click Volume to activate this function. There are two control bars for speaker and microphone volume respectively. Scroll these control bars to adjust the audio attribute. Check the volume mute will mute the speaker output.

Interior view of an office cubicle with ceiling lights and stacked documents (no visible text or symbols)

1

Speaker

Microphone

Mute

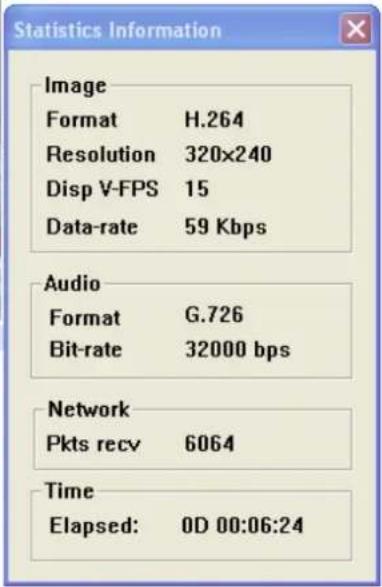

Statistics

Click Statistics to activate this function. A window will be popup to show the statistics information of the streaming status. Note that this information is the statistics between the device and your local PC.

Interior view of an office with ceiling lights, purple walls, and a counter (no visible text or symbols)

Video Type : H264 Resolution : 320x240 Frame Rate : 15

Statistics Information Image Format H.264 Resolution 320x240 Disp V-FPS 15 Data-rate 59 Kbps Audio Format G.726 Bit-rate 32000 bps Network Pkts recv 6064 Time Elapsed: 0D 00:06:24

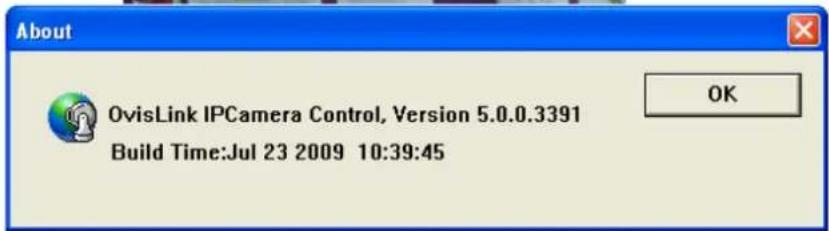

About

Interior view of a modern office or service center with ceiling lights and service counters (no visible text or symbols)

About OvisLink IPCamera Control, Version 5.0.0.3391 Build Time:Jul 23 2009 10:39:45 OK

Click About to show this ActiveX information.

5

Administrating the Device

5.1 System Setting

This function is only available for user logged into Network Camera as administrator.

Click on each menu name to display its setting page.

Item Action
Network Configure	Network settings such as DHCP, DDNS, 3GPP, PPPoE and UPnP
Camera Adjust camera parameters, day & night, position, and set camera tour
System Configure	system information, date & time, maintenance, and view system log file.
Video Configure bit rate and frame rate of video profiles
Audio Configure audio parameters
User Setup user name, password and login privilege
E-Mail Setup E-Mail configuration
Object Detection Setup Object detection
Event Server Setup FTP/TCP/HTTP server for event
Event Schedule Configure the schedule while event triggered

5.1.1 Network

This section provides the menu for connecting the device through Ethernet cable.

Network DDNS PPPoE Streaming UPnP IP Filter IP Notification MAC Address 00:4F:76:A0:02:0A Obtain IP address automatically (DHCP) IP Address 192.168.10.18 Test Subnet Mask 255.255.255.6 Gateway 192.168.10.254 Obtain DNS from DHCP Primary DNS 168.95.192.1 Secondary DNS 168.95.1.1 HTTP Port 80 (1 - 65535) OK Cancel

MAC address:

Displays the Ethernet MAC address of the device. Note that user can not change it.

Obtain an IP address automatically (DHCP):

DHCP: Stands for Dynamic Host Configuration Protocol.

Enable this checked box when a DHCP server is installed on the network to issue IP address assignment. With this setting, the IP address is assigned automatically. If this device can not get an IP address within limited tries, the device will assign a default IP address, 192.168.0.100, by itself as the default IP address.

IP address, Subnet mask, and Gateway:

If you do not select Obtain an IP address automatically, then you need to enter these network parameters manually.

Obtain DNS from DHCP:

DNS: Stands for Domain Name System.

Enable this checked box when a DHCP server is installed on the network and provide DNS service.

Primary DNS and Secondary DNS:

If you do not select Obtain DNS from DHCP, then you need to enter these parameters manually.

HTTP Port:

The device supports two HTTP ports. The first one is default port 80 and this port is fixed. This port is very useful for Intranet usage. The second HTTP port is changeable. Users could assign the second port number of http protocol, and the WAN users should follow the port number to login. If the http port is not assigned as 80, users have to add the port number in back of IP address. For example: http://192.168.1.100:8080.

Therefore, the user can access the device by either http://xx.xx.xx.xx/, or

http://xx.xx.xx.xx:xxxx/ to access the device.

If multiple devices are installed on the LAN and also required to be accessed from the WAN, then the HTTP Port can be assigned as the virtual server port mapping to support multiple devices.

Click "OK" to save and enable the setting.

DDNS service

DDNS: Stands for Dynamic Domain Name Server

Your Internet Service Provider (ISP) provides you at least one IP address which you use to connect to the Internet. The address you get may be static, meaning it never changes, or dynamic, meaning it's likely to change periodically. Just how often it changes, depends on your ISP. A dynamic IP address complicates remote access since you may not know what your current WAN IP address is when you want to access your device over the Internet. One of the possible solutions to the dynamic IP address problem comes in the form of a dynamic DNS service.

A dynamic DNS service is unique because it provides a means of updating your IP address so that your listing will remain current when your IP address changes. There are several excellent DDNS services available on the Internet. One such service you can use is www.DynDNS.org. You'll need to register with the service and set up the domain name of your choice to begin using it. Please refer to the home page of the service for detailed instructions or refer to Appendix G for more information.

If your device is connected to xDSL directly, you might need this feature. However, if your device is behind a NAT router, you will not need to enable this feature because your NAT router should take care of this job. As to xDSL environment, most of the users will use dynamic IP addresses. If users want to set up a web or a FTP server, then the Dynamic Domain Name Server is necessary.

Network DDNS PPPoE Streaming UPnP IP Filter IP Notification

DDNS Disable Enable Server Name dyndns.org DDNS Host (1 ~ 30 Digits) User Name (< 21 Digits) Password (< 21 Digits)

OK Cancel

DDNS:

To enable or disable the DDNS service here.

Server name:

Choose the built-in DDNS server.

DDNSHost:

The domain name is applied of this device.

User name:

The user name is used to log into DDNS.

Password:

The password is used to log into DDNS.

Streaming

PPPoE:

PPPoE: Stands for Point to Point Protocol over Ethernet

A standard builds on Ethernet and Point-to-Point network protocol. It allows your device with xDSL or cable connects with broadband network directly, then your device can dial up and get a dynamic IP address. For more PPPoE and Internet configuration, please consult your dealer or ISP.

The device can directly connect to the xDSL, however, it should be setup on a LAN environment to program the PPPoE information first, and then connect to the xDSL modem. Power on again, then the device will dial on to the ISP connect to the WAN through the xDSL modem.

The procedures are

- Connect to a LAN by DHCP or Fixed IP

- Access the device, enter Setting → Network → PPPoE as below

Network DDNS PPPoE Streaming UPnP IP Filter IP Notification PPPoE Disable Enable User Name (< 64 Digits) Password (< 64 Digits) IP Address Subnet Mask Gateway Status OK Cancel

PPPoE:

To enable or disable the PPPoE service here.

User name:

Type the user name for the PPPoE service which is provided by the ISP.

Password:

Type the password for the PPPoE service which is provided by the ISP.

IP address, Subnet mask, and Gateway (read only):

Shows the IP information got from PPPoE server site.

Status:

Shows the Status of PPPoE connection.

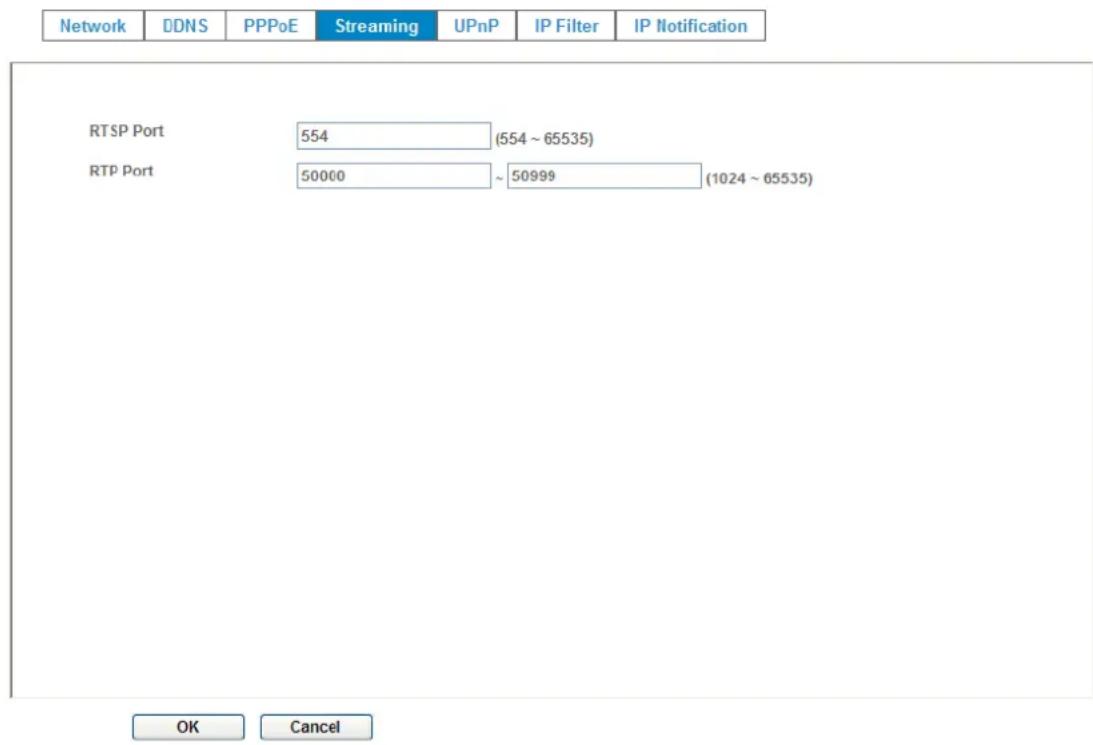

Streaming

RTSP is a streaming control protocol, and a starting point for negotiating transports such as RTP, multicast and Unicast, and for negotiating codecs. RTSP can be considered a "remote control" for controlling the media stream delivered by a media server. RTSP servers typically use RTP as the protocol for the actual transport of audio/video data.

RTSP Port:

Choose the RTSP port. The RTSP protocol allows a connecting client to start a video stream. Enter the RTSP port number to use. The default value is 554.

RTP Port:

Specify the range of transmission port number of video stream. The default range is 50000 to 50999. User can specify a number between 1024 and 65535.

Network DDNS PPPoE Streaming UPnP IP Filter IP Notification RTSP Port 554 (554 ~ 65535) RTP Port 50000 ~ 50999 (1024 ~ 65535) OK Cancel

UPnP

UPnP is short for Universal Plug and Play, which is a networking architecture that provides compatibility among networking equipment, software, and peripherals. This device is an UPnP enabled Video Server. If your operating system is UPnP enabled, the device will automatically be detected and a new icon will be added to “My Network Places.” If you do not want to use the UPnP functionality, it can be disabled.

In addition, this device also provides UPnP IGD function for NAT traversal easily. Use NAT traversal when your device is located on an intranet (LAN) and you wish to make it available from the other (WAN) side of a NAT router. With NAT traversal properly configured, all HTTP traffic to an external HTTP port in the NAT router will be forwarded to the device.

UPnP:

To enable or disable the UPnP service here.

Friendly Name:

Shows the friendly name of this device here.

UPnP NAT Traversal

When enabled, the device will attempt to configure port mapping in a NAT router on your network, using UPnP ^TM . Note that UPnP ^TM must be enabled in the NAT router first.

Port Range:

The port range will open in NAT router.

External IP address:

Show the IP address and port for WAN access through Internet. If NAT traversal is configured successfully, user can use this IP address and port to access this device. The external IP address is not shown in case NAT traversal function is failed.

Network DDNS PPPoE Streaming UPnP IP Filter IP Notification UPnP Disable Enable Friendly Name AirCam OD-325HD - 000EAEA1284C UPnP NAT Traversal Disable Enable Port Range 32768 ~ 65535 (1024 ~ 65535) External IP Address http://61.229.40.165:32771 (readonly) OK Cancel

IP Filter

You can enter different user's IP address which are allowing enter or denying by the device.

IP Filter:

To enable or disable the IP filter function here.

IP Filter Policy:

Choose the filter policy where is denying or allowing.

Network DDNS PPPoE Streaming UPnP IP Filter IP Notification IP Filter Disable Enable IP Filter Policy Deny Allow Save Filter IP List Filter IP Add Delete DeleteAll

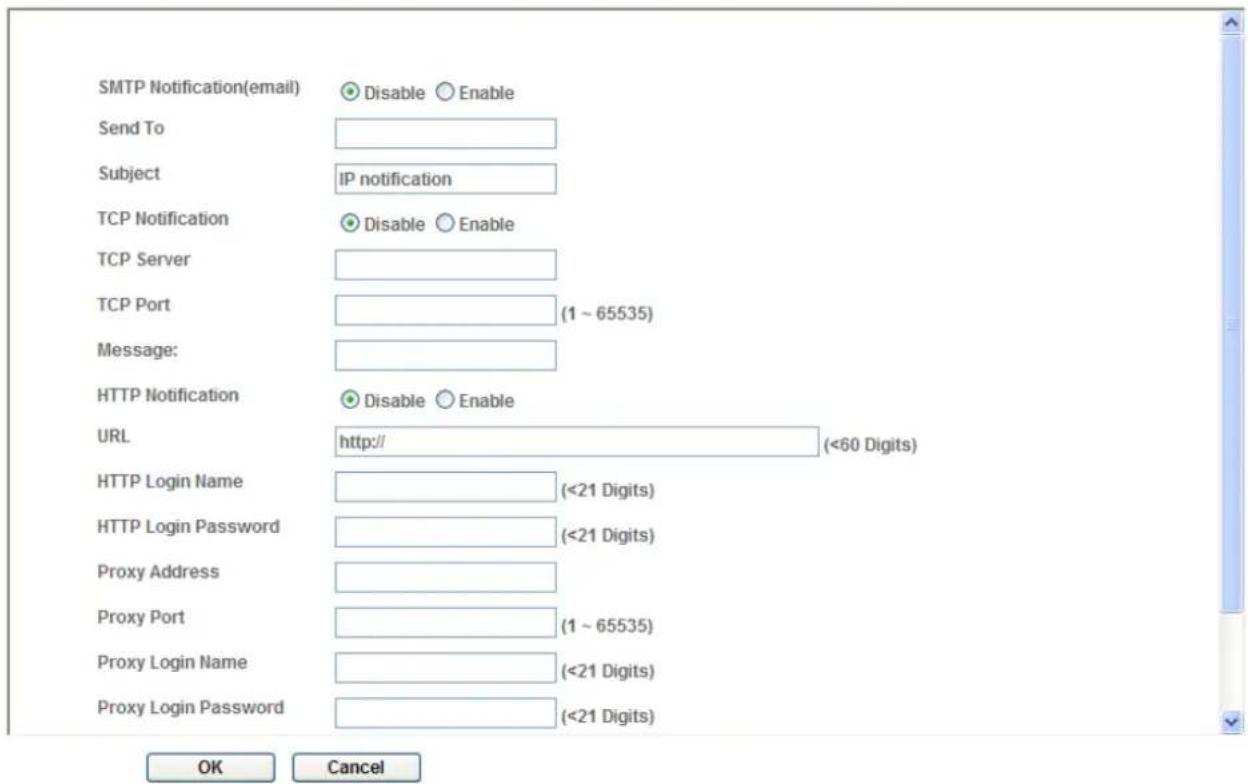

IP Notification

In case the IP address is changed, system is able to send out an email to alert someone if the function is enabled.

SMTP Notification (e-mail):

If enable this function, then the "Send to" and "Subject" fields need to be filled.

Send To:

Type the receiver's e-mail address. This address is used for reply mail.

Subject:

Type the subject/title of the E-mail.

Network DDNS PPPoE Streaming UPnP IP Filter IP Notification

SMTP Notification(email) Disable Enable Send To Subject IP notification TCP Notification Disable Enable TCP Server TCP Port (1 ~ 65535) Message: HTTP Notification Disable Enable URL http:// (<60 Digits) HTTP Login Name (<21 Digits) HTTP Login Password (<21 Digits) Proxy Address Proxy Port (1 ~ 65535) Proxy Login Name (<21 Digits) Proxy Login Password (<21 Digits) OK Cancel

TCP Notification:

If enable this function, then the "TCP Server", "TCP Port", and "Message" fields need to be filled.

TCP Server:

Type the server name or the IP address of the TCP server.

TCP Port:

Set port number of TCP server.

Message:

The message will be sent to FTP server.

HTTP Notification:

If enable this function, then the fields below need to be filled.

URL:

Type the server name or the IP address of the HTTP server.

HTTP Login name:

Type the user name for the HTTP server.

HTTP Login Password:

Type the password for the HTTP server.

Proxy Address:

Type the server name or the IP address of the HTTP Proxy.

Proxy Port:

Set port number of Proxy.

Proxy Login name:

Type the user name for the HTTP Proxy.

Proxy Login Password:

Type the password for the HTTP Proxy.

Custom parameter:

User can set specific parameters to HTTP server.

Message:

The message will be sent to HTTP server.

5.1.2 Camera : Adjust Camera parameters

Use this menu to set the functions of the camera parameters of the device.


Picture PTZ Setting Preset Setting Tour Setting Rotation Normal White Balance Auto Exposure Control Auto Hold Maximum Exposure Time 1/5 S Color Level 70 (0 ~ 100) Brightness 50 (0 ~ 100) Contrast 50 (0 ~ 100) Sharpness 50 (0 ~ 100) De-Noise None OK Cancel

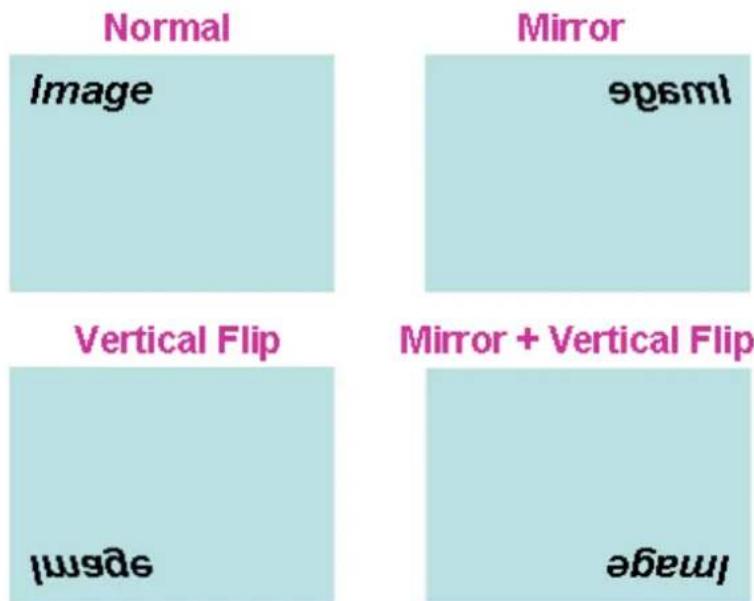

Rotation:

Turn the "Mirror" and "Vertical Flip" On or OFF. The image will be overturned as below.

Normal Image Mirror Inside Vertical Flip Mirror + Vertical Flip Image

White Balance:

Auto: will adjust the white balance automatically.

Hold: will hold the white balance.

Exposure Control:

Auto: will adjust the internal gain automatically.

Hold: will hold the internal gain.

Color Level:

Large value will be colorful.

Brightness:

Large value will brighten camera.

Sharpness:

Large value will sharpen camera.

Contrast:

Large value will contrast camera heavily.

Night Mode:

User can turn Auto or Off of the night mode. This function is very useful under low illumination environment.

De-Noise:

De-Noise can remove or lower unwanted noise and preserve fine details and edges.

PTZ Setting

Camera Protocol:

This device can connect to a PTZ camera or speed dome camera and controls them thru RS485 interface.

Camera Address:

This is the camera ID set in PTZ camera or speed dome camera. Note that please DO NOT change the default value if unnecessary. If so, user needs to check and set value properly for both sides.

Baud rate:

This is the communication speed between network module and P/T scanner.

Note If need to change these parameters, user needs to check and set value properly for both, network module and P/T scanner.

Picture PTZ Setting Preset Setting Tour Setting Camera Protocol Pelco-D Camera Address 1 Baud rate 9600 OK Cancel

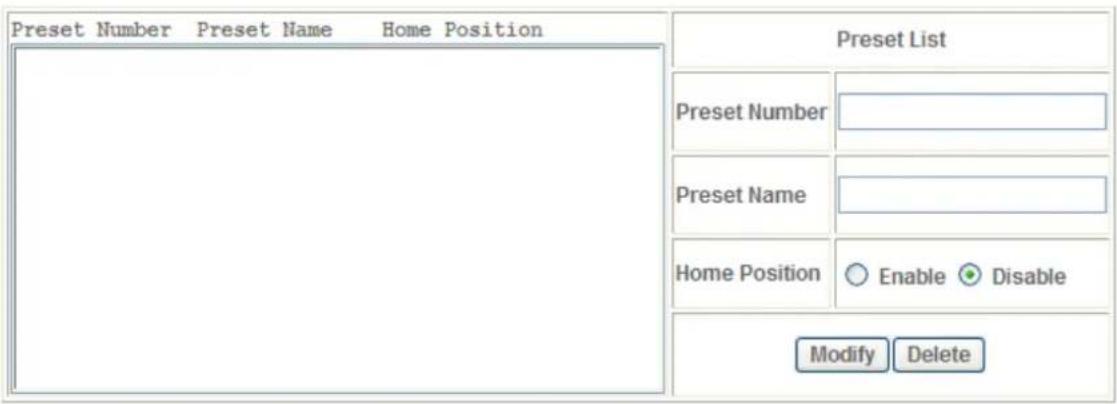

Preset Setting

This page provides the edit tool to modify or delete the "Preset Setting" item by item.


PTZ Setting

Preset Setting

Tour Setting

Preset Number Preset Name Home Position Preset List Preset Number Preset Name Home Position Enable Disable Modify Delete

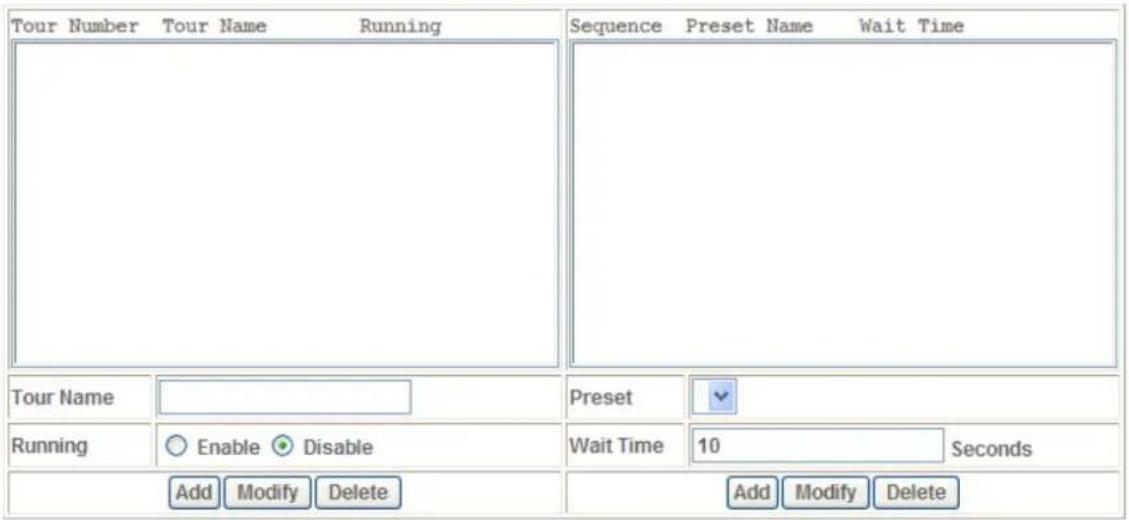

Tour Setting

Up to 128 positions can be preset, and the camera can be programming to move to the preset position sequentially.


PTZ Setting

Preset Setting

Tour Setting

Tour Number Tour Name Running Sequence Preset Name Wait Time Tour Name Preset Running Enable Disable Wait Time 10 Seconds Add Modify Delete Add Modify Delete

Tour Name:

The group name of the sequence of camera tour. The maximum number of camera tour is 16.

Running:

Enable or disable this camera tour.

Preset:

Set the sequence of the tour. Maximum 16 points can be assigned. The selected preset position is added in the Sequence list from 1 to 16.

Wait Time:

Type a period of time during which the camera is to stay at each preset point, between 0 to 36000 seconds.

To use the camera tour function, user must preset some camera positions first.

5.1.3 System : Configure and maintain system

Use this menu to perform the principal settings of the device.

System

System Date & Time Maintenance Device Title AirCam OD-325HD (0 ~ 30 Digits) Software Version 5.0.1.3507 Network LED Enable Disable Power LED Enable Disable Log Reload Nov 8 20:15:01 AirCam OD-325HD syslog.info syslogd started: BusyBox v1.1.3 Nov 8 20:15:01 AirCam OD-325HD user.debug kernel: Calling initcall 0xc0014dd4: filelock_init+0x Nov 8 20:15:01 AirCam OD-325HD user.debug kernel: Calling initcall 0xc00157a8: init_aout_binfmt Nov 8 20:15:01 AirCam OD-325HD user.debug kernel: Calling initcall 0xc00157c4: init_script_bint Nov 8 20:15:01 AirCam OD-325HD user.debug kernel: Calling initcall 0xc00157e0: init_elf_binfmt+ Nov 8 20:15:01 AirCam OD-325HD user.debug kernel: Calling initcall 0xc001f34c: netlink_proto_ir Nov 8 20:15:01 AirCam OD-325HD user.info kernel: NET: Registered protocol family 16 Nov 8 20:15:01 AirCam OD-325HD user.debug kernel: Calling initcall 0xc0016e38: kobject_uevent_i Nov 8 20:15:01 AirCam OD-325HD user.debug kernel: Calling initcall 0xc00170bc: pcibus_class_ini Nov 8 20:15:01 AirCam OD-325HD user.debug kernel: Calling initcall 0xc00197b8: pci_driver_init+ Nov 8 20:15:01 AirCam OD-325HD user.debug kernel: Calling initcall 0xc001a848: tty_class_init+ Nov 8 20:15:01 AirCam OD-325HD user.debug kernel: Calling initcall 0xc000e12c: intc_pci_init_i OK Cancel

Device Title:

You can enter the name of this unit here. It's very useful to identify the specific device from multiple units. The information will be shown on IPWizard II once the device is found.

Software Version:

This information shows the software version of the device.

Network LED:

To turn on or off Network LED.

Power LED (Wireless LED):

To turn on or off Power LED (wireless LED if WLAN model).

Log:

User can check the system log information of the device, including the Main Info, Appended Info, Operator IP, and so on ...

Reload:

Click this button; user can refresh the log information of the device.

Date & Time

You can setup the device or make it synchronized with PC or remote NTP server. Also, you may select your time zone in order to synchronize time locally.

Server Date & Time:

Displays the date and time of the device.

PC Time:

Displays the date and time of the connected PC.

Adjust:

- Synchronize with PC:

Click this option to enable time synchronization with PC time.

- Manual setting:

Click this option to set time and date manually.

- Synchronize with NTP:

Click this option if you want to synchronize the device's date and time with those of time server called NTP server (Network Time Protocol).

NTP Server: Type the host name or IP address or domain name of the NTP server.

NTP sync. Interval: Select an interval between 1 and 23 hours at which you want to adjust the device's time referring to NTP server

Time zone:

Set the time difference from Greenwich Mean Time in the area where the device is installed.

Daylight Saving:

Disable or enable the daylight saving adjustment.

Maintenance

Hard Factory Default (Include the network setting):

Recall the device hard factory default settings. Note that click this button will reset all device's parameters to the factory settings (including the IP address).

Factory Default (Except the network setting):

The unit is restarted and most current settings are reset to factory default values. This action will not reset the network setting.

Backup Setting:

To take a backup of all of the parameters, click this button. If necessary, it will then be possible to return to the previous settings, if settings are changed and there is unexpected behavior.

Restore Setting:

Click the "Browse" button to locate the saved backup file and then click the "Restore Setting" button. The settings will be restored to the previous configuration.

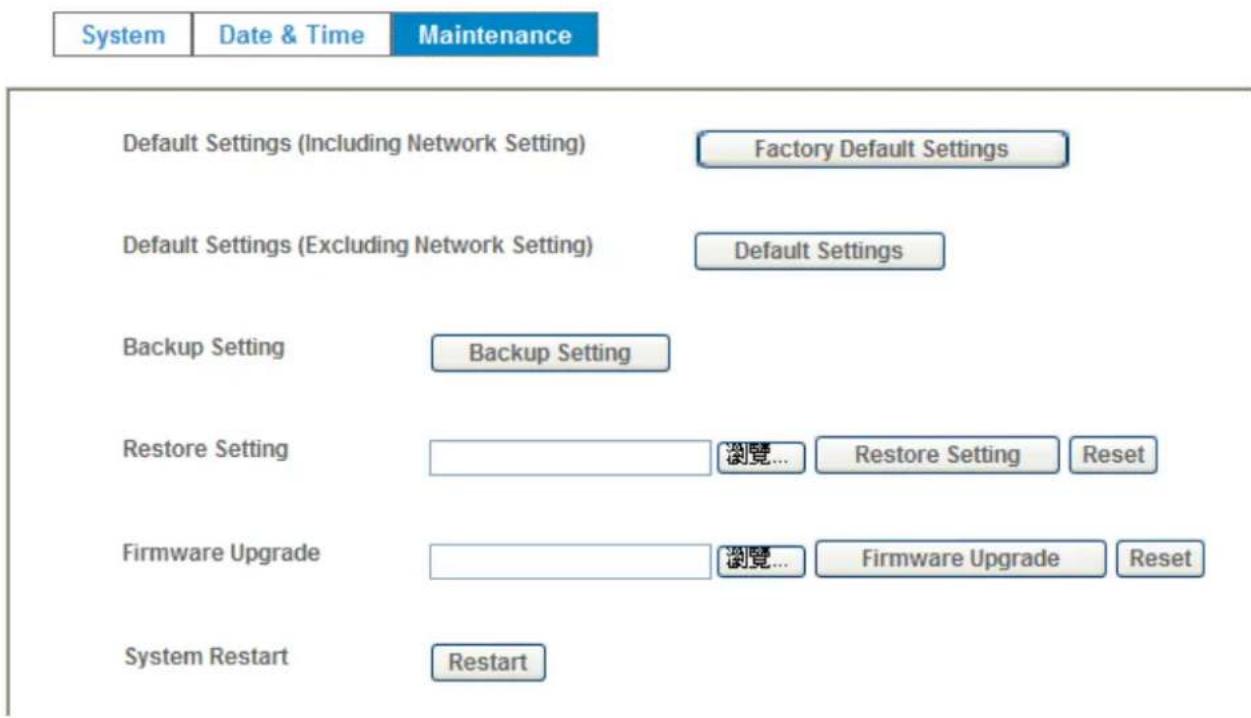

System Date & Time Maintenance Default Settings (Including Network Setting) Factory Default Settings Default Settings (Excluding Network Setting) Default Settings Backup Setting Backup Setting Restore Setting 浏览... Restore Setting Reset Firmware Upgrade 浏览... Firmware Upgrade Reset System Restart Restart

Firmware Upgrade:

The device supports new firmware upgrade (the software that controls the operation in the device). Please contact your dealer for the latest version if necessary.

Download the latest firmware file from our website or your dealer. Unzip this firmware file to binary file and store it into your PC. Then follow the steps as bellows carefully:

1. Close all other application programs which are not necessary for firmware update.
2. Make sure that only you access this device while firmware updating.
3. Disable Motion Detection function.
4. Click "Browse" button. Select the Firmware binary file. (Note that it must make sure that the Firmware only applies to this device, once update, it will be burned into FLASH ROM of system.)
5. Once the firmware file was selected, click "Firmware Upgrade" button.
6. The upgrade progress information will be displayed. Once the uploading process completed, the device will reboot the system automatically.
7. Please wait for timer countdown, and then you can use IPWizard II to search the device again.

Warning!!!

The download firmware procedure can not be interrupted. If the power and/or network connection are broken during the download procedure, it might possibly cause serious damage to the device.

Strongly suggest that DO NOT upgrade firmware via Wireless LAN due to high error rate possibly and don't allow any other clients to access this unit during updating procedure.

Be aware that you should not turn off the power during updating the firmware and wait for finish message.

Furthermore, the firmware upgrade procedure always is risk and do not try to upgrade new firmware if it's not necessary.

System Restart:

The device is restarted without changing any of the network settings. It means the IP address of the device will not change after firmware upgrade.

5.1.4 Video: Configure profile

This device provides 2 modes of video profile. The first one is Mega-pixel mode which supports video resolution up to Mega-pixel. However the maximum frame rate of this mode is up to 15fps only. The second one is VGA mode which supports video resolution up to VGA but frame rate can be up to 30fps. User only can select either Mega-pixel or VGA mode to operate the camera. Switching Mega-pixel and VGA, the device will take time to reboot system.

Common

Common Video Profile Text Overlay Setting Include Date Include Time Include Text (0 ~ 20 Digits) Video Profile VGA Multi-Profile Mega Multi-Profile

Text Overlay Setting:

There are some important information can be embedded into image, including date, time, and/or text.

Video Profile:

User can only choose either VGA Multi-profile or Mega Multi-profile mode. VGA Multi-profile mode can serve H.264, MPEG4, and JPEG streams up to VGA resolution simultaneously. On the other hand, Mega-pixel mode, in addition to VGA resolution, it can serve H.264/Mega and JPEG/Mega two more streams simultaneously.

H264

It's H.264 encoder mode in this profile.

Resolution:

There are four resolutions in this profile: SXGA, VGA, QVGA and QQVGA.

Rate Control:

Defines the rate control method of this profile. There are two options: Constant Bit Rate (CBR) or Variable Bit Rate (VBR). For CBR, the video bit rate is between low to high bandwidth based on different resolutions. User can set the desired bit rate to match the limitation of bandwidth. For VBR, user should choose the quality level to set the video quality rather than bit rate. The quality level is between 1 and 100. The higher value can reach the better quality but of course will consume higher bandwidth.

Common

Video Profile

Video Profile h264 / sxga vbr 75 3072 15 30 h264 / vga vbr 75 2048 15 30 h264 / qvga vbr 90 1024 15 30 h264 / qgvga vbr 90 256 15 30 mpeg1 / vga vbr 75 2048 15 30 mpeg1 / qvga vbr 90 1024 15 30 mpeg1 / qcvga vbr 90 512 15 30 mjpeg / sxga vbr 90 4096 15 30 mjpeg / vga vbr 90 2048 15 30 mjpeg / qvga vbr 90 1024 15 30 mjpeg / qcvga vbr 90 512 15 30 Video Type h264 Resolution sxga Rate Control ④ Quality 75 ▼ ○ Bitrate 3072 K bps (384 ~ 4096) Max Frame Rate 15 ▼ GOP Control 30 ▼

Max Frame Rate:

Defines the targeted frame rate of this profile. For example, set the frame rate to 15 fps, then the image will be updated for 15 frames per second as possible. User need to set reasonable max frame rate versus video quality under the limited bandwidth.

GOP Control:

Defines the Intra/Inter-frame (I/P) ratio of this profile. For example, set the GOP to 30, then the video stream will have one Intra-frame every 30 frames.

MPEG4

It's MPEG4 encoder mode in this profile.

Resolution:

There are three resolutions in this profile: VGA, QVGA and QQVGA.

Rate Control:

Defines the rate control method of this profile. There are two options: Constant Bit Rate (CBR) or Variable Bit Rate (VBR). For CBR, the video bit rate is between low to high bandwidth based on different resolutions. User can set the desired bit rate to match the limitation of bandwidth. For VBR, user should choose the quality level to set the video quality rather than bit rate. The quality level is between 1 and 100. The higher value can reach the better quality but of course will consume higher bandwidth.

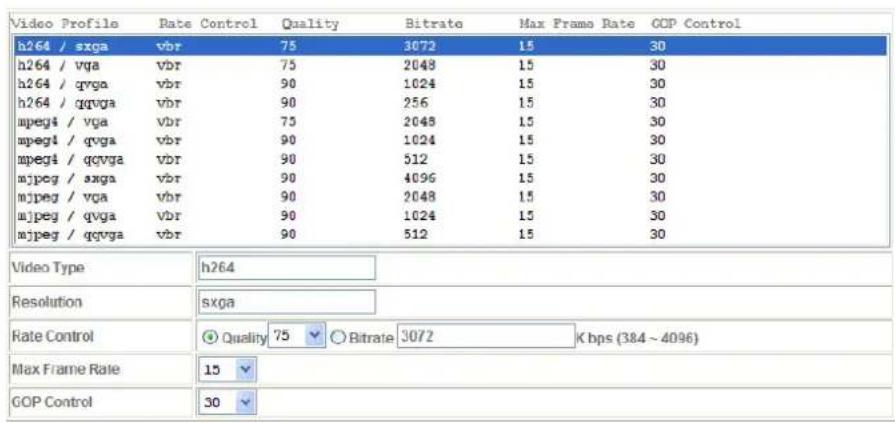

Common Video Profile

Video Profile	Rate Control	Quality	Bitrate	Max Frame Rate	GOP Control
h264 / sxga	vbr	75	3072	15	30
h264 / vga	vbr	75	2048	15	30
h264 / qvga	vbr	90	1024	15	30
h264 / qpvga	vbr	90	256	15	30
mpeg4 / vga	vbr	75	2048	15	30
mpeg4 / qvga	vbr	90	1024	15	30
mpeg4 / qcvga	vbr	90	512	15	30
mjpeg / sxga	vbr	90	4096	15	30
mjpeg / vga	vbr	90	2040	15	30
mjpeg / qvga	vbr	90	1024	15	30
mjpeg / qcvga	vbr	90	512	15	30

OK Cancel

Max Frame Rate:

Defines the targeted frame rate of this profile. For example, set the frame rate to 15 fps, then the image will be updated for 15 frames per second as possible. User need to set reasonable max frame rate versus video quality under the limited bandwidth.

GOP Control:

Defines the Intra/Inter-frame (I/P) ratio of this profile. For example, set the GOP to 30, then the video stream will have one Intra-frame every 30 frames.

MJPEG

It's MJPEG mode in this profile.

Resolution:

There are four resolutions in this profile: SXGA, VGA, QVGA and QQVGA.

Rate Control:

The quality level is between 1 and 100. The higher value can reach the better quality but of course will consume higher bandwidth.

Max Frame Rate:

Defines the targeted frame rate of this profile. For example, set the frame rate to 15 fps, then the image will be updated for 15 frames per second as possible. User need to set reasonable max frame rate versus video quality under the limited bandwidth.

Common

Video Profile

Video Profile	Rate Control	Quality	Bitrate	Max Frame Rate	GOP Control
h264 / siga	vbr	75	3072	15	30
h264 / vga	vbr	75	2048	15	30
h264 / qvga	vbr	90	1024	15	30
h264 / qgvga	vbr	90	256	15	30
mpeg4 / vga	vbr	75	2048	15	30
mpeg4 / qvga	vbr	90	1024	15	30
mpeg4 / qqvga	vbr	90	512	15	30
mjpeg / sxga	vbr	90	4096	15	30
mjpeg / vga	vbr	90	2049	15	30
mjpeg / qvga	vbr	90	1024	15	30
mjpeg / qqvga	vbr	90	512	15	30

OK Cancel

5.1.5 Audio: Audio parameters

Setting

Audio

Mute While PT

Audio Mode

Input Gain

Output Gain

○ Disable ● Enable

Disable Enable

Simplex Full duplex

Audio:

To enable or disable audio function

Audio Mode:

To select Simplex or Full duplex (2-way audio) mode

Input Gain:

To adjust gain of input audio

Output Gain:

To adjust gain of output audio

AirLive AirCam OD-325HD User's Manual

5.1.6 User: Manage user name, password and login privilege

Use this menu to add, update, or remove the usernames and passwords of the Administrator and viewer.

Viewer login:

Select "Anonymous" to allow any one viewing the video once connected. Otherwise, only users in database can view the video after login.

Access right:

Administrator can access every function in this device. However, Viewers only can view the video and access limited function.

Add, update, and remove of Users account:

Manage the user's account of viewer user.

Setting

Viewer Login

Anonymous Only users in database Save

User Name Access Right PTZ Control admin administrator yes User List User Name (1 ~ 20 Digits) Password (0 ~ 20 Digits) Verify Password (0 ~ 20 Digits) Access Right ○ Administrator ○ Viewer PTZ Control ○ Enable ○ Disable Add Modify Delete

5.1.7 E-Mail: Setup E-Mail configuration

You may setup SMTP mail parameters for further operation of Event Schedule. That's, if users want to send the alarm message out, it will need to configure parameters here and also add at least one event schedule to enable event triggering.

Setting

SMTP Server Test SMTP Port 25 SMTP Authentication Disable Enable Authentication User Name (< 64 Digits) Authentication Password (< 21 Digits) E-mail From E-mail To E-mail Subject (< 64 Digits)

SMTP Server:

Type the SMTP server name or the IP address of the SMTP server.

Test:

Send a test mail to mail server to check this account is available or not.

SMTP Port:

Set port number of SMTP service.

SMTP Authentication:

Select the authentication required when you send an e-mail.

Disable: if no authentication is required when an e-mail is sent.

Enable: if authentication is required when an e-mail is sent.

Authentication User name:

Type the user name for the SMTP server if Authentication is Enable.

Authentication Password:

Type the password for the SMTP server if Authentication is Enable.

E-mail To:

Type the receiver's e-mail address.

E-mail From:

Type the sender's E-mail address. This address is used for reply e-mails.

E-mail Subject:

Type the subject/title of the e-mail.

5.1.8 Object Detection : Setup Object detection

Use this menu to specify motion detection window 1 to window 10 and set the conditions for detection while observing a captured image.

Motion Detection Add Delete Included Excluded Name Object Size (0 ~ 100) Sensitivity (0 ~ 100) Save

Add and Del:

To add or delete the motion windows. User can specify up to 4 Included and/or Excluded windows to monitor the video captured by this device. By dragging mouse on the image, you can change the position and size of the selected motion window accordingly.

Included or Excluded Window:

These windows can be specified as Included or Excluded type.

Included windows target specific areas within the whole video image

Excluded windows define areas within an Include window that should be ignored (areas outside Include windows are automatically ignored)

Name:

Name of the specified motion window.

Object Size:

Defines the object size of motion detection. The higher object size will only larger objects trigger motion detection. The lower object size will even small objects trigger motion detection too. Generally speaking, the smaller size will be easier to trigger event.

Sensitivity

Defines the sensitivity value of motion detection. The higher value will be more sensitivity.

5.1.9 Event Server : Setup FTP/TCP/HTTP/SAMBA server configuration

FTP Server

You may setup FTP parameters for further operation of Event Schedule. That's, if users want to send the alarm message to an FTP server, it will need to configure parameters here and also add at least one event schedule to enable event triggering as SMTP.

FTP Server TCP Server HTTP Server SAMBA Server Name FTP Server FTP Port FTP Path Name (<21 Digits) FTP Server Test FTP Login Name (<21 Digits) FTP Login Password (<21 Digits) FTP Port 21 (1 ~ 65535) FTP Path (<64 Digits) FTP Passive Mode Disable Enable Add Modify Delete

Name:

User can specify multiple FTP paths as wish. Therefore, user needs to specify a name for each FTP setting.

FTP Server:

Type the server name or the IP address of the FTP server.

Test:

Check the FTP server whether this account is available or not.

FTP Login name:

Type the user name for the FTP server.

FTP Login Password:

Type the password for the FTP server.

FTP Port:

Set port number of FTP service.

FTP Path:

Set working directory path of FTP server.

FTP Passive Mode:

Select passive or active mode connecting to FTP server.

TCP Server

In addition to send video file to FTP server, the device also can send event message to specified TCP server.

Name TCP Server TCP Port Name (<21 Digits) TCP Server Test TCP Port (1 ~ 65535)

Name:

User can specify multiple TCP servers as wish. Therefore, user needs to specify a name for each TCP server setting.

TCP Server:

Type the server name or the IP address of the TCP server.

TCP Port:

Set port number of TCP server.

HTTP Server

The device also can send event message to specified HTTP server.

FTP Server TCP Server HTTP Server SAMBA Server

Name HTTP Server Proxy Address Name (<21 Digits) URL http:// (<60 Digits) Test HTTP Login Name (<21 Digits) HTTP Login Password (<21 Digits) Proxy Address Proxy Login Name (<21 Digits) Proxy Login Password (<21 Digits) Proxy Port (1 ~ 65535) Add Modify Delete

Name:

User can specify multiple HTTP servers as wish. Therefore, user needs to specify a name for each HTTP server setting.

URL:

Type the server name or the IP address of the HTTP server.

Test:

Check the HTTP server whether it is available or not.

HTTP Login name:

Type the user name for the HTTP server.

HTTP Login Password:

Type the password for the HTTP server.

Proxy Address:

Type the server name or the IP address of the HTTP Proxy.

Proxy Login name:

Type the user name for the HTTP Proxy.

Proxy Login Password:

Type the password for the HTTP Proxy.

Proxy Port:

Set port number of Proxy.

SAMBA Server

The device also can send video stream to specified SAMBA server.

User can specify multiple HTTP servers as wish. Therefore, user needs to specify a name for each HTTP server setting.

SAMBA Server:

Type the server name or the IP address of the SAMBA server.

Test:

Check the SAMBA server whether this account is available or not.

SAMBA Login name:

Type the user name for the SAMBA server.

Type the password for the SAMBA server.

SAMBA Path:

Set working directory path of SAMBA server.

5.1.10 Event Schedule: Configure the event schedule

Setting

This menu is used to specify the schedule of Event or Schedule Trigger and activate the some actions provided by this device. Where the Schedule Trigger will be activated by user-define interval without event happened.

Setting Record Name Enable Type Weekday Start Duration Trigger by Action Name Enable Yes No Type Event Trigger Schedule Trigger, Interval 1 (Minute) Enable Time Sun Mon Tue Wed Thu Fri Sat Start from 0 0 , Duration 24 0 ( max 168:00 hours ) Trigger by Sensor Active Motion Area Action Go Preset Tour Voice Alert, Duration 5 (Seconds) Alarm Out Duration 5 (Seconds) Send FTP Send TCP Send HTTP Send E-Mail Send Samba Add Modify Delete

Name:

Name of the Event or Schedule.

Enable:

Enable or disable this Event or Schedule.

Type:

Event trigger or Schedule trigger.

Enable Time:

Define the feasible time slot.

Trigger by:

Select the triggered sources.

Action:

Define the actions once event triggered.

Example 1:

Send file to FTP server by motion triggered always:

1. Select event trigger
2. Enable time: start from 00:00 to 24:00 every day
3. Trigger by: Motion Area (Added in Object Detection page)
4. Action : Send FTP (Add in Event Server -> FTP Server page)

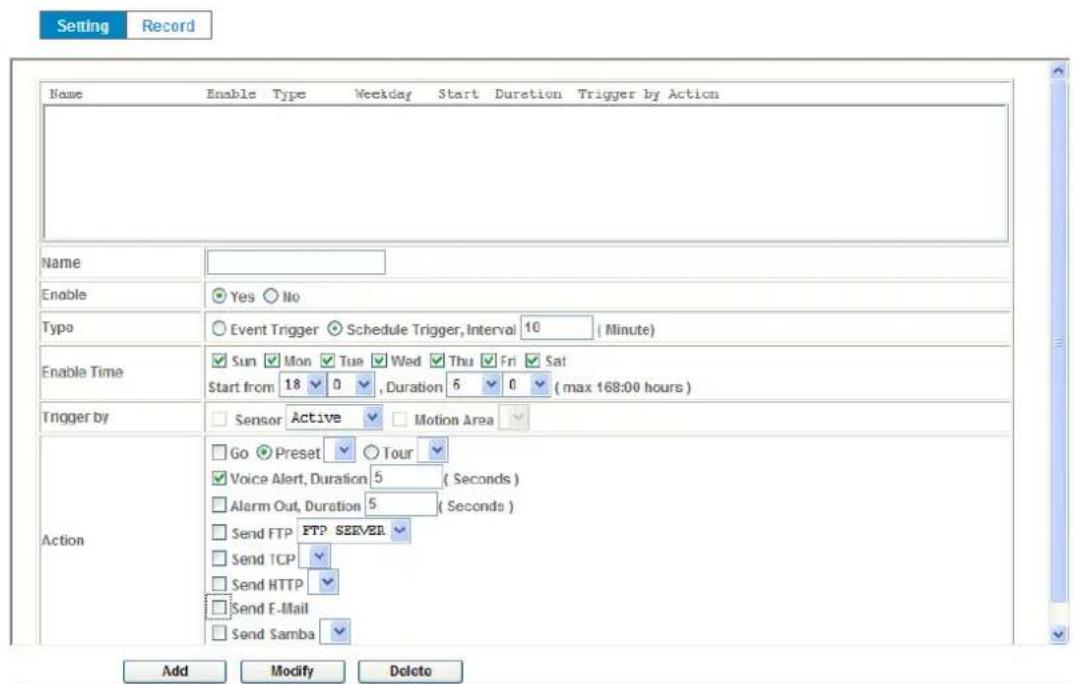

Setting Record Name Enable Type Weekday Start Duration Trigger by Action Name Enable Yes No Type Event Trigger Schedule Trigger Interval 1 (Minute) Enable Time Sun Mon Tue Wed Thu Fri Sat Start from 0 0 , Duration 24 0 (max 168:00 hours) Trigger by Sensor Active Motion Area Action Go Preset Tour Voice Alert, Duration 5 (Seconds) Alarm Out, Duration 5 (Seconds) Send FTP FTP SERVER Send TCP Send HTTP Send E-Mail Send Samba Add Modify Delete

Example 2:

Send file to E-Mail server by motion triggered from Friday 18:00 to Saturday 06:00

1. Select event trigger.
2. Enable time: start from Friday 18:00 and keep work in 12 hous, so it will stop on Saturday 06:00.
3. Trigger by : Motion Area (Added in Object Detection page)
4. Action : Send e-mail (Add in E-Mail page)
   i. To email address: You need to input the receiver email address.
   ii. Subject: You could specify the email subject.
   iii. Message: You could specify the email content.

Setting Record Name Enable Type Weekday Start Duration Trigger by Action Name Enable Yes No Type Event Trigger Schedule Trigger, Interval 1 (Minute) Enable Time Sun Mon Tue Wed Thu Fri Sat Start from 0 0 Duration 24 0 (max 168:00 hours) Trigger by Sensor Active Motion Area Action Go Preset Tour Voice Alert, Duration 5 (Seconds) Alarm Out, Duration 5 (Seconds) Send FTP FTP SERVER Send TCP Send HTTP Send E-Mail To email address [e-mail] Add Modify Delete

Example 3:

Enable Voice Alert every 10-minute during 18:00 to 24:00 from Monday to Friday.

1. Type: Select schedule trigger and interval is 10-minute.
2. Enable time: Select Monday to Friday, and set start time from 18:00 and keep work in 6 hous.
3. Trigger by: You do not need to choose it, because this will be triggered every minute
4. Action : Voice Alert

Setting Record Name Enable Type Weekday Start Duration Trigger by Action Name Enable Yes No Type Event Trigger Schedule Trigger, Interval 10 (Minute) Enable Time Sun Mon Tue Wed Thu Fri Sat Start from 18 0 , Duration 6 0 (max 168:00 hours) Trigger by Sensor Active Motion Area Action Go Preset Tour Voice Alert, Duration 5 (Seconds) Alarm Out, Duration 5 (Seconds) Send FTP FTP SERVER Send TCP Send HTTP Send F-Mail Send Samba Add Modify Delete

Record

User can choose the type of record file for event or schedule application.

Record File Type

Record File Prefix

JPEG Picture Numbers

AVI JPEG

Auto One

Record File Type:

Choose AVI or JPEG file format.

Record File Prefix:

Define the prefix of recorded filename.

JPEG Picture Numbers:

Define the picture numbers of JPEG to be sent out.

Appendix A : Alarm I/O Connector

Some features of the Camera can be activated by the external sensor that senses physical changes in the area Camera is monitoring. These changes can include intrusion detection or certain physical change in the monitored area. For examples, the external sensor can be a door switch or an infrared motion detector. These devices are customer provided, and are available from dealers who carry surveillance and security products. Electrically, they must be able to provide a momentary contact closure.

This Camera provides wires for general I/O terminal and RS485 interface as below:

Cable for I/O connectors:

Name	Cable	Color	Function
12VDC	Brown/White	DC	12V (50mA maximum)
GND	Blue/White		GND
D+	Purple/White		RS485 data +
D-	Gray		RS485 data -
DI Green	White	Digital signal input
DO	Orange/White		Digital signal output

User can refer to the schematic below to make a proper connection between I/O connector and external sensor and output device.

Explanation of External I/O Circuit Diagram:

I/O Interface 12V max 50mA 3.3V Digital Input Alarm Output RS485 D+ RS485 D-

CAUTION!

• THE LOW VOLTAGE/CURRENT CIRCUITS AND HIGH VOLTAGE/ CURRENT CIRCUITS ARE IN THE NETWORK CAMERA CIRCUIT. THE QUALIFIED ELECTRICIAN SHOULD DO THE WIRING NOT BY YOURSELF. INCORRECT WIRING COULD DAMAGE NWTWORK CAMERA. YOU COULD RECEIVE THE FATAL ELECTRIC SHOCK.
• THE EXTERNAL I/O IS NOT CAPABLE OF CONNECTING DIRECTLY TO DEVICES THAT REQUIRE LARGE AMOUNTS OF CURRENT. IN SOME CASES, A CUSTOM INTERFACE CIRCUIT (CUSTOMER PROVIDED) MAY HAVE TO BE USED. SERIOUS DAMAGE TO NETWORK CAMERA MAY RESULT IF A DEVICE IS CONNECTED TO THE EXTERNAL I/O THAT EXCEEDS ITS ELECTRICAL CAPABILITY.

Appendix B :Frequently Asked Questions

Question Answer or Resolution

Features
The video and audio codec is adopted in the device.	The device utilizes H.264, MPEG4 and JPEG triple compression to providing high quality images. Where H.264 and MPEG4 are standards for video compression and JPEG is a standard for image compression. The audio codec is defined as AMR for 3GPP and G.711/G.726 for RTSP streaming.
The maximum number of users access the device simultaneously.	The maximum number of users is limited to 20. However, it also depends on the total bandwidth accessed to this device from clients. The maximum data throughput of the device is around 20~25Mbps for UDP mode and 10Mbps for HTTP mode. Therefore, the actual number of connected clients is varying by streaming mode, settings of resolution, codec type, frame rate and bandwidth. Obviously, the performance of the each connected client will slow down when many users are logged on.
The device can be used outdoors or not.	The device is not weatherproof. It needs to be equipped with a weatherproof case for outdoors using. However, equipped with a weatherproof case might disable the audio function of the device.
Install this device
Status LED does not light up.	• Check and confirm that the DC power adaptor, included in packaged, is used. Secure the power connector and re-power it on again.• If the problem is not solved, the device might be faulty. Contact your dealer for further help.
The network cabling is required for the device.	The device uses Category 5 UTP cable allowing 10 and/or 100 Base-T networking.
The device will be installed and work if a firewall exists on the network.	If a firewall exists on the network, port 80 is open for ordinary data communication. The HTTP port and RTSP port need to be opened on the firewall or NAT router.
The username and password for the first time or after factory default reset	Username = admin and leave password airlive.Note that it's all case sensitivity.
Forgot the username and password	Follow the steps below.1. Restore the factory default setting by press pressing and holding down more than 3 seconds on the device.2. Reconfigure the device.
Forgot the IP address of the device.	Check IP address of device by using the IPWizard II program or by UPnP discovery.
IPWizard II program cannot find the device.	• Re-power the device if cannot find the unit within 1 minutes.• Do not connect device over a router. IPWizard II program cannot detect device over a router.• If IP address is not assigned to the PC which running IPWizard II program, then IPWizard II program cannot find device. Make sure that IP address is assigned to the PC properly.• Antivirus software on the PC might interfere with the setup program. Disable the firewall of the antivirus software during setting up thisdevice.• Check the firewall setting of your PC or Notebook.
Internet Explorer does not seem to work well with the device	Make sure that your Internet Explorer is version 6.0 or later. If you are experiencing problems, try upgrading to the latest version of Microsoft's Internet Explorer from the Microsoft webpage.
IPWizard II program fails to save the network parameters.	• Network may have trouble. Confirm the parameters and connections of the device.
UPnP NAT Traversal
Can not work with NAT router	• Maybe NAT router does not support UPnP function. Please check user's manual of router and turn on UPnP function.• Maybe UPnP function of NAT router is not compatible to the IP camera. Please contact your dealer to get the approval routers list.
Some IP cameras are working but others are failed	• Maybe too many IP cameras have been installed on the LAN, and then NAT router is out of resource to support more cameras. You could turn off and on NAT router to clear out of date information inside router.
Access this device
Cannot access the login page and other web pages of the Network Camera from Internet Explorer	• Maybe the IP Address of the Network Camera is already being used by another device or computer. To confirm this possible problem, disconnect the Network Camera from the network first, and then run the PING utility to check it out.• Maybe due to the network cable. Try correcting your network cable and configuration. Test the network interface by connecting a local computer to the Network Camera via a crossover cable.• Make sure the Internet connection and setting is ok.• Make sure enter the IP address of Internet Explorer is correct. If the Network Camera has a dynamic address, it may have changed since you last checked it.• Network congestion may prevent the web page appearing quickly. Wait for a while.The IP address and Subnet Mask of the PC and Network Camera must be in the same class of the private IP address on the LAN.• Make sure the http port used by the Network Camera, default=80, is forward to the Network Camera's private IP address.• The port number assigned in your Network Camera might not be available via Internet. Check your ISP for available port.• The proxy server may prevent you from connecting directly to the Network Camera, set up not to use the proxy server.• Confirm that Default Gateway address is correct.• The router needs Port Forwarding feature. Refer to your router's manual for details.• Packet Filtering of the router may prohibit access from an external network. Refer to your router's manual for details.• Access the Network Camera from the Internet with the global IP address of the router and port number of Network Camera.• Some routers reject the global IP address to access the Network Camera on the same LAN. Access with the private IP address and correct port number of Network Camera.• When you use DDNS, you need to set Default Gateway and DNS server address.·If it's not working after above procedure, reset Network Camera to default setting and installed it again. ·If the problem is not solved, the Network Camera might be faulty. Contact your dealer for further help.
Image or video does not appear in the main page.	·The first time the PC connects to Network Camera, a pop-up Security Warning window will appear to download ActiveX Controls. When using Windows XP, or Vista, log on with an appropriate account that is authorized to install applications. ·Network congestion may prevent the Image screen from appearing quickly. You may choose lower resolution to reduce the required bandwidth.
Check the device's ActiveX is installed on your computer	Go to C:\Windows\Downloaded Program Files and check to see if there is an entry for the file "IPCamera Control". The status column should show "Installed". If the file is not listed, make sure your Security Settings in Internet Explorer are configured properly and then try reloading the device's home page. Most likely, the ActiveX control did not download and install correctly. Check your Internet Explorer security settings and then close and restart Internet Explorer. Try to browse and log in again.
Internet Explorer displays the following message: "Your current security settings prohibit downloading ActiveX controls".	Setup the IE security settings or configure the individual settings to allow downloading and scripting of ActiveX controls.
The device work locally but not externally.	·Might be caused from the firewall protection. Check the Internet firewall with your system or network administrator. The firewall may need to have some settings changed in order for the device to be accessible outside your LAN. ·Make sure that the device isn't conflicting with any other web server running on your LAN. ·Check the configuration of the router settings allow the device to be accessed outside your local LAN. ·Check the bandwidth of Internet connection. If the Internet bandwidth is lower than target bit rate, the video streaming will not work correctly.
The unreadable characters are displayed.	Use the operating system of the selected language. Set the Encoding or the Character Set of the selected language on the Internet Explorer.
Frame rate is slower than the setting.	·The traffic of the network and the object of the image affect the frame rate. The network congestion causes frame rate slower than the setting. ·Check the bandwidth of Internet connection. If the Internet bandwidth is lower than target bit rate, the video streaming will not work correctly. ·Ethernet switching hub can smooth the frame rate.
Blank screen or very slow video when audio is enabled.	·Your connection to the device does not have enough bandwidth to support a higher frame rate for the streamed image size. Try reducing the video streaming size to 160x120 or 320x240 and/or disabling audio. ·Audio will consume 32 kbps. Disable audio to improve video. Your Internet connection may not have enough bandwidth to support streaming audio from the device.
Image Transfer on e-mail or FTP does not work.	·Default Gateway and DNS server address should be set up correctly. ·If FTP does not work properly, ask your ISP or network administratorabout the transferring mode of FTP server.
Pan/Tilt does not work.(including Click to Center and Preset Positioning)	Click [Refresh] on the Internet Explorer when the communication stops with the device. The image will refresh.Other clients may be operating Pan/Tilt.Pan/Tilt operation has reached the end of corner.
Pan/Tilt does not work smoothly.	There may be a slight delay when you are using the Pan/Tilt feature in conjunction with streaming audio and video. If you find that there is a significant delay while panning or tilting the camera, try disabling the audio streaming and/or reducing the video streaming size.
Video quality of the device
The focus on the Camera is bad.	The lens is dirty or dust is attached. Fingerprints, dust, stain, etc. on the lens can degrade the image quality.
The color of the image is poor or strange.	Adjust White Balance.To insure the images you are viewing are the best they can be, set the Display property setting (color quality) to 16bit at least and 24 bit or higher if possible within your computer.The configuration on the device image display is incorrect. You need to adjust the image related parameters such as brightness, contrast, hue and sharpness properly.
Image flickers. • Wrong	power line frequency makes images flicker. Make sure the 50 or 60Hz format of your device.If the object is dark, the image will flicker. Make the condition around the Camera brighter.
Noisy images occur.	The video images might be noisy if the device is located in a very low light environment. Make the condition around the camera brighter or turn the White-light LED on.
Miscellaneous
Can not play the recorded ASF file	Have installed Microsoft®’s DirectX 9.0 or later and use the Windows Media Player 11.0 or later to play the AVI filed recorded by the Device.

Appendix C: PING IP Address

The PING (stands for Packet Internet Groper) command is used to detect whether a specific IP address is accessible by sending a packet to the specific address and waiting for a reply. It's also a very useful tool to confirm Network Camera installed or if the IP address conflicts with any other devices over the network.

If you want to make sure the IP address of Network Camera, utilize the PING command as follows:

• Start a DOS window.
  ● Type ping x.x.x.x, where x.x.x.x is the IP address of the Network Camera.

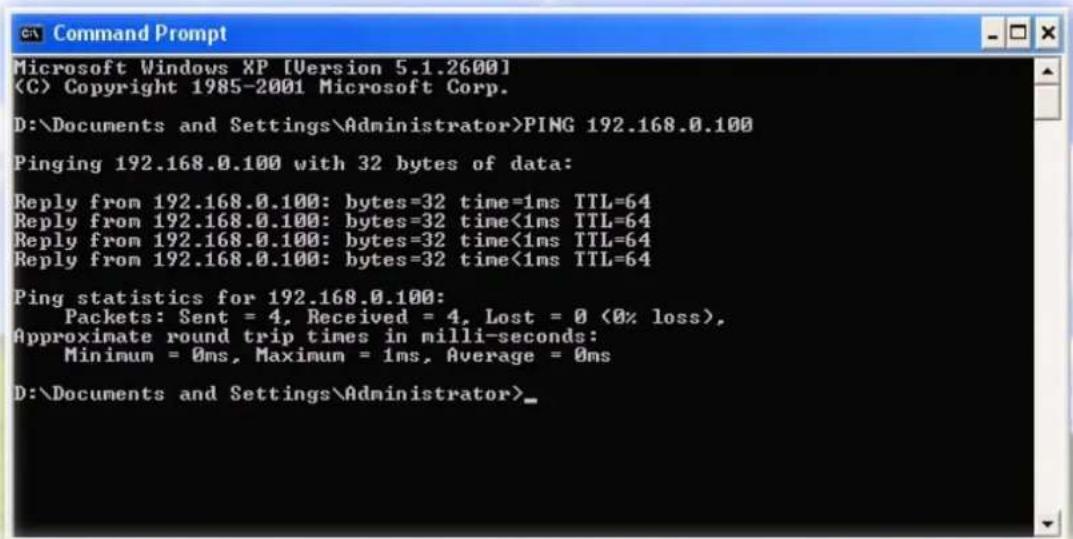

The replies, as illustrated below, will provide an explanation to the problem.

Microsoft Windows XP [Version 5.1.2600] (C) Copyright 1985-2001 Microsoft Corp. D:\Documents and Settings\Administrator>PING 192.168.0.100 Pinging 192.168.0.100 with 32 bytes of data: Reply from 192.168.0.100: bytes=32 time=1ms TTL=64 Reply from 192.168.0.100: bytes=32 time<1ms TTL=64 Reply from 192.168.0.100: bytes=32 time<1ms TTL=64 Reply from 192.168.0.100: bytes=32 time<1ms TTL=64 Ping statistics for 192.168.0.100: Packets: Sent = 4, Received = 4, Lost = 0 (0% loss), Approximate round trip times in milli-seconds: Minimum = 0ms, Maximum = 1ms, Average = 0ms D:\Documents and Settings\Administrator>

If you want to detect any other devices conflicts with the IP address of Network Camera, also can utilize the PING command but you must disconnect the Network Camera from the network first.

Appendix D : Bandwidth Estimation

The frame rate of video transmitted from the device depends on connection bandwidth between client and server, video resolution, codec type, and quality setting of server. Here is a guideline to help you roughly estimate the bandwidth requirements form your device.

The required bandwidth depends on content of video source. The slow motion video will produce smaller bit rate generally and fast motion will produce higher bit rate vice versa. Actual results generated by the device may be varying.

Image Resolution	Average range of data sizes for JPEG mode	Average bit rate for MPEG4 mode	Average bit rate for H.264 mode
160 x 120 (QQVGA)	3 ~ 6k byte per frame	64kbps~256kbps @ 30fps	32kbps~192kbps @ 30fps
320 x 240 (QVGA)	8 ~ 20k byte per frame	256kbps~768kbps @ 30fps	192kbps~512kbps @ 30fps
640 x 480 (VGA)	20 ~ 50K byte per frame	512kbps~2048kbps @ 30fps	384kbps~1536kbps @ 30fps
1280x1024 (SXGA)	100 ~ 200k byte per frame	NA	512kbps~3076kbps @ 15fps

Note: Audio streaming also takes bandwidth around 32kbps. Some xDSL/Cable modem upload speeds could not even reach up to 128 kbps. Thus, you may not be able to receive good quality video while also streaming audio on a 128 kbps or lower connection. Even though the upload speed is more than 128kbps, for optimal video performance, disabling audio streaming will get better video performance.

Appendix E : Specifications

Camera
Image Device	1.3 Mega-pixel image sensor
Effective Pixels	1280 x 1024 pixels
Sensitivity	1.0V/lux-sec (550nm)
Signal to Noise	44dB
Lens	F:1.8; f:4.3mm
Pan & Tilt
Pan Degree	355
Tilt Degree	-10~90°
Manual Pan Degree	180°/ second (max)
Manual Tilt Degree	120°/ second (max)
Preset Points	128 preset points (maximum)
Camera Tour	16 tours
IP Module
Video
Video Encoder	H.264, MPEG4 and Motion JPEG simultaneously (Tri-encoders)
Video Profile	11 profiles simultaneously- H.264 SXGA/ VGA / QVGA / QQVGA- MPEG4 VGA / QVGA / QQVGA- M-JPEG SXGA/ VGA / QVGA / QQVGA
Frame Rate	Mega-pixel mode: Up to 15fps for all 11 profilesVGA mode: Up to 30fps for all 9 profiles
Image Setting	De-noiseBrightness, sharpness, contrast, colorText, time and date overlay
Streaming	Simultaneously multi-profile streamingStreaming over UDP, TCP, or HTTPMulticast streamingM-JPEG streaming over HTTPSupports 3GPP mobile surveillanceControllable frame rate and bandwidthConstant and variable bit rate (MPEG4 / H.264)
Audio
Audio Encoder	RTSP: G.711 64kbps, G.726 32kbps3GPP: AMR
Audio Streaming	One-way or two-way
Microphone	External microphone input
Audio Output	Line level out
Network
Supported Protocols	TCP, UDP, HTTP, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP,Bonjour, UPnP, RTSP, RTP, RTCP, PPPoE, 3GPP, ICMP,IGMP, SAMBA
Security	Password protection, IP address filtering, user access log
Users	20 simultaneous unicast usersUnlimited users using multicast
Ethernet	10/100M auto negotiation
System Integration
Application Programming Interface	Open API for software integrationSDK
Alarm Triggers	Intelligent video motion detection and external input
Motion Detection	10-zone video motion detection
Alarm Events	File upload via FTP or emailNotification via email, HTTP, and TCPExternal output activationGo to PTZ preset positionAudio alerting output
Video Buffer	Pre- and post- alarm buffering
General
RAM	128MB
ROM	8MB
Power Supply	12V DC external power adapter
PoE	IEEE 802.3af (for wired model only)
Power Consumption	5W max
Connectors	RJ-45 10BaseT/100BaseTXDC jack1 alarm input and 1 outputAudio in/out
Indication LED	Two LEDs on the LAN socket
Protection Class	Indoor use
Construction	3-axis mechanical design
Operating Temperature	0°C to 40°C (32°F to 104°F)
Operating Humidity	20% ~ 80% (non-condensing)
Dimension	TBD
Viewing System
OS	Windows® XP, Vista
Browser	IE 6.0 or latter / Firefox 2.0 or later
Cell Phone	With 3GPP player
Video Player	VLC, Quick Time, Real Player
Software
Search & Installation	IPWizard II
Bundled NVR Program	CamPro Express 32 Channel

Appendix F : Configure Port Forwarding Manually

The device can be used with a router. If the device wants to be accessed from the WAN, its IP address needs to be setup as fixed IP address, also the port forwarding or Virtual Server function of router needs to be setup. This device supports UPnP traversal function.

Therefore, user could use this feature to configure port forwarding of NAT router first. However, if user needs to configure port forwarding manually, please follow the steps as below:

Manually installing the device with a router on your network is an easy 3-step procedure as following:

(1) Assign a local/fixed IP address to your device
(2) Access the Router with Your Web browser
(3) Open/Configure Virtual Server Ports of Your Router

(1) Assign a local/fixed IP address to your device

The device must be assigned a local and fixed IP Address that allows it to be recognized by the router. Manually setup the device with a fixed IP address, for example, 192.168.0.100.

(2) Access the Router with Your Web browser

The following steps generally apply to any router that you have on your network. The D-Link DI-624 is used as an example to clarify the configuration process. Configure the initial settings of the router by following the steps outlined in the router's Quick Installation Guide.

If you have cable or DSL service, you will most likely have a dynamically assigned WAN IP Address. 'Dynamic' means that your router's WAN IP address can change from time to time depending on your ISP. A dynamic WAN IP Address identifies your router on the public network and allows it to access the Internet. To find out what your router's WAN IP Address is, go to the Status screen on your router and locate the WAN information for your router. As shown on the following page the WAN IP Address will be listed. This will be the address that you will need to type in your web browser to view your camera over the Internet. Be sure to uncheck the Reset IP address at next boot button at the top of the screen after modifying the IP address. Failure to do so will reset the IP address when you restart your computer.

Air Live® www.airlive.com WN-300R Wireless 11N Broadband Router Router Setup Status Internet Connection Method: PPPoE Connection Status: Active Internet IP Address: 61.229.42.196 Wan MAC Address: 00:c0.02.ff.c8.15 Connection Details LAN IP Address: 192.168.10.254 Network Mask: 255.255.255.0 DHCP Server: On MAC Address: 00:C0:02.FF:C8:14 Wireless Region: South America Channel: 13 Wireless AP: enable SSID1 Name (SSID1): airlive300R Broadcast Name: enable MAC Address: 00:C0:02.FF:C8:14 SSID2 Name (SSID2): Guest

Your WAN IP Address will be listed here.

Note: Because a dynamic WAN IP can change from time to time depending on your ISP, you may want to obtain a Static IP address from your ISP. A Static IP address is a fixed IP address that will not change over time and will be more convenient for you to use to access your camera from a remote location. If you could not get a Static IP address from your ISP, the DIPS™ or DDNS is a solution alternatively. Please refer to Appendix G for more information.

(3) Open/set Virtual Server Ports to enable remote image viewing

The firewall security features built into the router and most routers prevent users from accessing the video from the device over the Internet. The router connects to the Internet over a series of numbered ports. The ports normally used by the device are blocked from access over the Internet. Therefore, these ports need to be made accessible over the Internet. This is accomplished using the Virtual Server function on the router. The Virtual Server ports used by the camera must be opened through the router for remote access to your camera. Virtual Server is accessed by clicking on the Advanced tab of the router screen.

Follow these steps to configure your router's Virtual Server settings

• Click Enabled.
• Enter a unique name for each entry.
• Select Both under Protocol Type (TCP and UDP)
• Enter your camera's local IP Address (e.g., 192.168.1.100, for example) in the Private IP field
• If you are using the default camera port settings, enter 80 into the Public and Private Port section, click Apply.
• Scheduling should be set to Always so that the camera images can be accessed at any time.

A check mark appearing before the entry name will indicate that the ports are enabled

Important: Some ISPs block access to port 80. Be sure to check with your ISP so that you can open the appropriate ports accordingly. If your ISP does not pass traffic on port 80, you will need to change the port the camera uses from 80 to something else, such as 8080. Not all routers are the same, so refer to your user manual for specific instructions on how to open ports.

Air Live® www.airlive.com WN-300R Wireless 11N Broadband Router Router Setup Single Port Forwarding Setup Wizard LAN Mode Password Status + Wireless - Advanced - Internet - Access Control - Dynamic DNS - Options - Schedule - Port Trigger - Single Port Forwarding - Port Range Forwarding - QoS Application External Port Internal Port Protocol IP Address Enabled http 80 80 TCP 192.168.10.1 ✓ http 8080 8080 TCP 192.168.10.1 ✓ TCP 192.168.10.1 □ TCP 192.168.10.1 □ TCP 192.168.10.1 □ TCP 192.168.10.1 □ TCP 192.168.10.1 □ TCP 192.168.10.1 □ TCP 192.168.10. 192.168.10.1 □ TCP 192.168.10.1 □ TCP 192.168.10.1 □ TCP 192.168.10.1 □ TCP 192.168.10.1 □ TCP 192.168.10.1 ▢ TCP 192.168.10.1 ▢

Enter valid ports in the Virtual Server section of your router. Please make sure to check the box on this line to enable settings. Then the device can be access from WAN by the router's WAN IP Address.

By now, you have finished your entire PC configuration for this device.

Appendix G : DDNS Application

1. Preface

If you have a Cable modem or xDSL, this is a great way to host your own Networked Device or other TCP/IP Service. Get your own domain like www.yourname.com, www.yourname.com.tw etc. (Note: This domain must be registered with Internic via registration authorities such as Network Solutions, DirectNIC, Register.com etc). Your domain name's dynamic IP address is automatically tracked by a DDNS server.

Host your own Networked Device and much more no matter what your computer's IP address may be and even if you have dialup, DSL or cable modem internet connection where your computer's IP address changes all the time!! DDNS service supports all top level domain names including but not limited to .com, .net, .org, .to, .uk etc.

2. Ethernet Network Environment

Normally, DDNS service is only necessary for the users that could only obtain dynamic IP addresses. As to the users that could obtain the static valid IP address, they do not usually have to apply the DDNS service. Before we decide if DDNS is necessary for the users, we have to check what kind of Ethernet network environment we have to install our Networked Device on.

(1) Environment of Fixed Valid IP Network

If users could obtain valid IP addresses, they could save the effort to apply DDNS service. Because the IP address in this environment is fixed, users could input the IP address or domain name of demo site directly in the IE browser.

(2) Environment of Dynamic IP Network

If users is under an environment of dynamic IP network (Dial-up xDSL), they have to apply a domain name in advance. Then apply DDNS service. Finally setup the necessary information of DDNS and PPPoE of the Networked Device in order to let the outside administrator be able to access through internet.

3. Application Steps—DDNS & Domain Name

(1). Visit the following web site: http://www.dyndns.org/
(2). Click "Account"

http://www.dyndns.com/ DynDNS User: About Services Account Suppl A NEW WINDOW TO YOUR WORLD All-new DynDNS Updater for Windows, now available Learn more...

(3). After the columns show up at the left side, click "Create Account"

DynDNS About Services My Account Login Create Account Account Login Login Username: Lost Password? Search Search

(4). Fill the application agreement and necessary information.

a. Username
b. E-mail address and confirmation
c. Password and confirmation
d. Submit all the input information and finish creating an account

DynDNS About Services Account Supp My Account Create Your DynDNS Account Create Account Login Lost Password? Search Search User Information Username: Email Address: Confirm Email Address: Password: Confirm Password: -About You (optional) Please complete the form to create your free DynDNS Account. Instructions to Your password not choose a p

-Terms of Service

Please read the acceptable use policy (AUP) and accept it prior to creating your account. Also acknowledge that you may only have one (1) free account, and that creation of multiple free accounts will result in the deletion of all of your accounts.

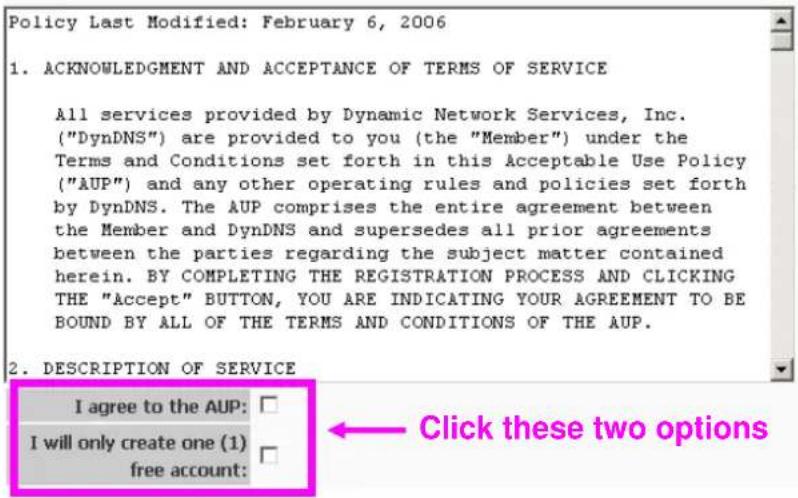

Policy Last Modified: February 6, 2006 1. ACKNOWLEDGMENT AND ACCEPTANCE OF TERMS OF SERVICE All services provided by Dynamic Network Services, Inc. ("DynDNS") are provided to you (the "Member") under the Terms and Conditions set forth in this Acceptable Use Policy ("AUP") and any other operating rules and policies set forth by DynDNS. The AUP comprises the entire agreement between the Member and DynDNS and supersedes all prior agreements between the parties regarding the subject matter contained herein. BY COMPLETING THE REGISTRATION PROCESS AND CLICKING THE "Accept" BUTTON, YOU ARE INDICATING YOUR AGREEMENT TO BE BOUND BY ALL OF THE TERMS AND CONDITIONS OF THE AUP. 2. DESCRIPTION OF SERVICE I agree to the AUP: I will only create one (1) free account: Click these two options

-Next Step

After you click "Create Account", we will create your account and send you an e-mail to the address you provided. Please follow the instructions in that e-mail to confirm your account. You will need to confirm your account within 48 hours or we will automatically delete your account. (This helps prevent unwanted robots on our systems)

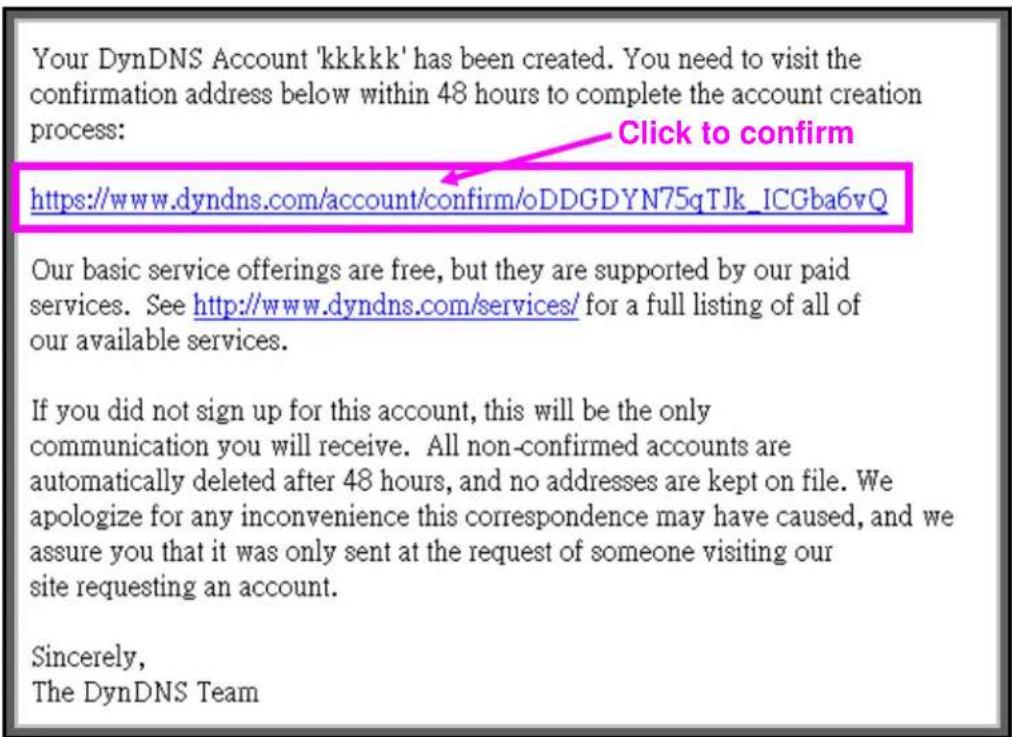

(5). Check your e-mail mailbox. There will be an e-mail with a title "Your DynDNS Account Information". Click the hyperlink address to confirm the DDNS service that you just applied. Then DDNS you applied activated.

Your DynDNS Account 'kkkkk' has been created. You need to visit the confirmation address below within 48 hours to complete the account creation process: Click to confirm https://www.dyndns.com/account/confirm/oDDGDYN75qTJk_ICGba6vQ Our basic service offerings are free, but they are supported by our paid services. See http://www.dyndns.com/services/ for a full listing of all of our available services. If you did not sign up for this account, this will be the only communication you will receive. All non-confirmed accounts are automatically deleted after 48 hours, and no addresses are kept on file. We apologize for any inconvenience this correspondence may have caused, and we assure you that it was only sent at the request of someone visiting our site requesting an account. Sincerely, The DynDNS Team

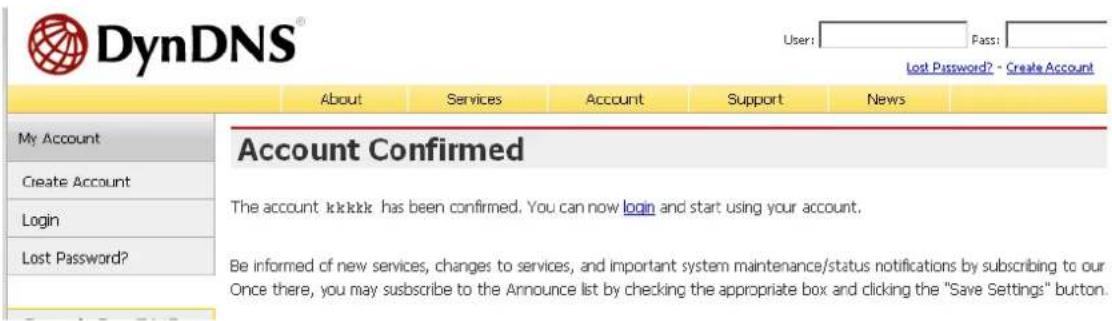

DynDNS® User: Fass: Lost Password? - Create Account About Services Account Support News My Account Create Account Login Lost Password? Account Confirmed The account lkkkkk has been confirmed. You can now login and start using your account. Be informed of new services, changes to services, and important system maintenance/status notifications by subscribing to our Once there, you may subscribe to the Announce list by checking the appropriate box and clicking the "Save Settings" button.

(6). Enter the web page http://www.dyndns.org/ again. Input your username and password that you just applied to login administration interface of DDNS server.

Input your account DynDNS User: Pass: Login Lost Password? - Create Account About Services Account Support News A NEW WINDOW TO YOUR WORLD All-new DynDNS Updater for Windows, now available New to DynDNS? Take a tour and see what we do DNS Services DNS for static and dynamic IP address Mail-Hop Services Ensure reliable email delivery Learn more... Search

(7). If the correct username and password are input, you can see the following picture at the top-right of the login page.

(8). Click the "Services".

DynDNS Logged In User: ivankk My Services - My Cat - Log Out About Services Account Support News My Account My Services Account Settings Billing My Cart

Items

Account Summary for ivankk My Services View, modify, purchase, and delete your services. My Zones Billing Update your billing information, complete a purchase, and view invoices. View Shopping Cart Account Settings Update your email address, set preferences, and delete your account. Change Email Address

(9). Click the “Dynamic DNS”.

DynDNS About Services Account Support News Services DNS Services Domain Registration SSL Certificates MailHop Services Network Monitoring URL Forwarding Pricing My Cart DNS Services Search Search Services We offer you superior domain name services (DNS), high quality domain management, world-class e-mail services, web redirection, and network monitoring. All of our services include free technical support by e-mail or phone where you speak to a highly trained engineer rather than a call center reading a script off of a screen. Why DynDNS - why you should choose us Technology Overview - a peak behind the curtain DNS Services Dynamic DNS A free DNS service for those with dynamic IP addresses. Custom DNS Our dynamic and static DNS management tool for your own domain. Recursive DNS Ensure DNS resolution for your DNS queries. Secondary DNS Add reliability to your own name servers.

(10). Click the "Get Started".

Dynamic DNS

Dynamic DNS (DDNS) allows you to create a hostname that points to your dynamic IP or static IP address or URL. We also provide an update mechanism which makes the hostname work with your dynamic IP address. We continue to offer this service free to the Internet community as we have done so for nearly 10 years.

Capabilities and Features

• Get five (5) hostnames in 88 available domains for free.
- Create wildcard CNAME *.yourhost.dyndns.org for yourhost.dyndns.org.
- Forward web requests or mark host offline for maintenance or downtime.
- Configure MX records for flexible mail routing.
- Update host using ddns update clients for a wide variety of platforms.
- Modify DNS TTL values for fast propagation or reliable static IP caching.
- Deliver your DNS records to 5 DNS servers in 5 tier-1 datacenters around the globe.
• Query volume up to 648,000 queries/month

Get Started Manage Hosts

Screenshot

Our free industry-leading e-mail support is ready to help you setup your dynamic or static DNS so you can host a website, remotely connect to your machine, and run a mail server. We also offer other premium features with our Account Upgrade service.

(11). We could create a domain name without any charge at this step. First, we input the host name. (Pink No.1) Then we pick a domain that is easy to remember. (Pink No.2) "Step 3" to click "Offline Hostname" from Service Type. (Pink No.3) Finally, click the "Create Host" to submit the domain name information and finish DDNS application. (Pink No.4)

Add New Hostname

↑ Host Services

Note: You currently don't have Account Upgrades in your account. You cannot use some of our Host Service features. Please consider buying Account upgrade that make this form full-functional and will add several other features. Learn More...

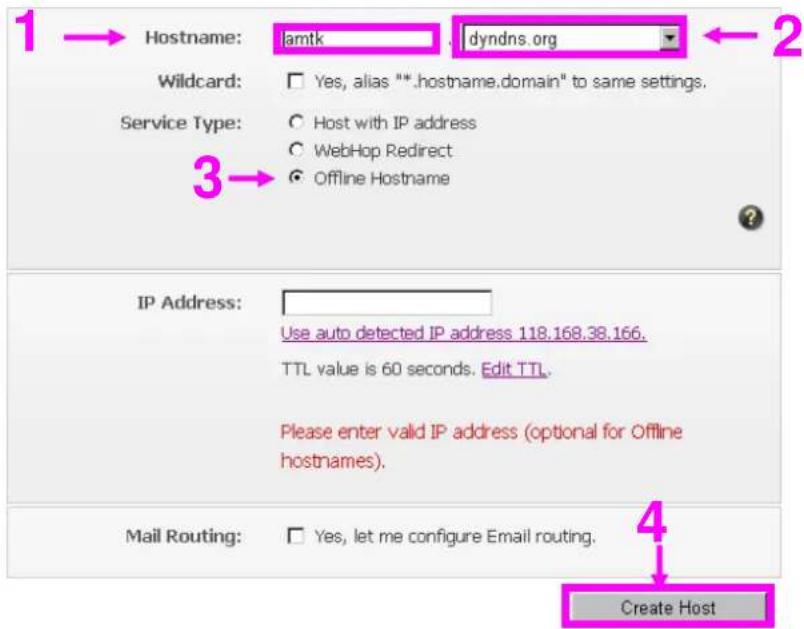

1 → Hostname: lamtk dyndns.org ← 2 Wildcard: Yes, alias "*.hostname.domain" to same settings. Service Type: Host with IP address WebHop Redirect Offline Hostname 3 → IP Address: Use auto detected IP address 118.168.38.166. TTL value is 60 seconds. Edit TTL. Please enter valid IP address (optional for Offline hostnames). Mail Routing: Yes, let me configure Email routing. 4 Create Host

4. Setup the DDNS and PPPoE of Networked Device

At last, users have to enter the web page of Networked Device and setup the necessary information of DDNS and PPPoE after the application of DDNS service. Please check the user manual to access the DDNS and PPPoE pages. After saving the modification, restart the device. Then the external users could browse the Networked Device by the input of their domain name.

Appendix H : Power Line Frequency

COUNTRY	VOLTAGE	FREQUENCY	COMMENTS
Argentina	220V	50 Hz	*Neutral and line wires are reversed from that used in Australia and elsewhere.
Australia	230V*	50 Hz	*Outlets typically controlled by adjacent switch. Though nominal voltage has been officially changed to 230V, 240V is within tolerances and commonly found.
Austria	230V	50 Hz
Brazil	110/220V*	60 Hz	*127V found in states of Bahia, Paran?(including Curitiba), Rio de Janeiro, S 綾 Paulo and Minas Gerais (though 220V may be found in some hotels). Other areas are 220V only, with the exception of Fortaleza (240V).
Canada	120V	60 Hz
China, People's Republic of	220V	50 Hz
Finland	230V	50 Hz
France	230V	50 Hz
Germany	230V	50 Hz
Hong Kong	220V*	50 Hz
India	230V	50 Hz
Italy	230V	50 Hz
Japan	100V	50/60 Hz*	*Eastern Japan 50 Hz (Tokyo, Kawasaki, Sapporo, Yokohoma, and Sendai); Western Japan 60 Hz (Osaka, Kyoto, Nagoya, Hiroshima)
Malaysia	240V	50 Hz
Netherlands	230V	50 Hz
Portugal	230V	50 Hz
Spain	230V	50 Hz
Sweden	230V	50 Hz
Switzerland	230V	50 Hz
Taiwan	110V	60 Hz
Thailand	220V	50 Hz
United Kingdom	230V*	50 Hz	*Outlets typically controlled by adjacent switch. Though nominal voltage has been officially changed to 230V, 240V is within tolerances and commonly found.
United States of America	120V	60 Hz

Appendix I : 3GPP

To use the 3GPP function, in addition to previous section, you might need more information or configuration to make this function work.

Note that to use the 3GPP function, it strongly recommends to install the Networked Device with a public and fixed IP address without any firewall protection.

RTSP Port:

Port 554 is the default for RTSP service. However, sometimes, some service providers change this port number for some reasons. If so, user needs to change this port accordingly.

Dialing procedure:

1. Choose a verified player (PacketVideo or Realplayer currently)
2. Use the following URL to access:

rtsp://host/mpeg4/media.3gp

Where host is the host name or IP address of the camera.

Compatible 3G mobile phone:

Please contact your dealer to get the approved list of compatible 3G phone.

Appendix J :Enable UPnP of Windows XP

Use the following steps to enable UPnP settings only if your operating system of PC is running Windows XP.

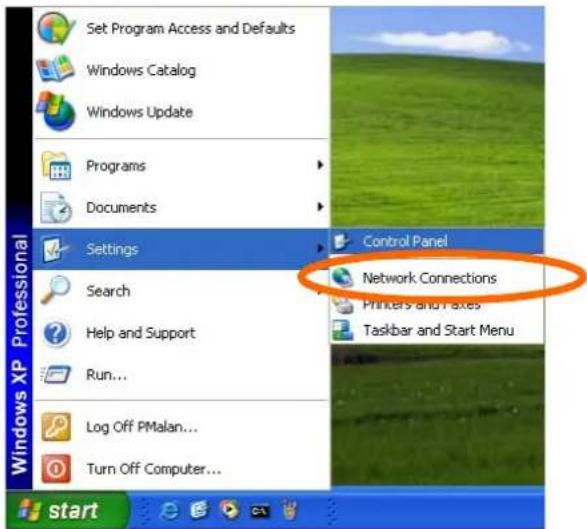

Set Program Access and Defaults Windows Catalog Windows Update Programs Documents Settings Search Help and Support Run... Log Off PMalan... Turn Off Computer... Control Panel Network Connections Printers and Axes Taskbar and Start Menu start

Go to Start > Settings

Click Control Panel

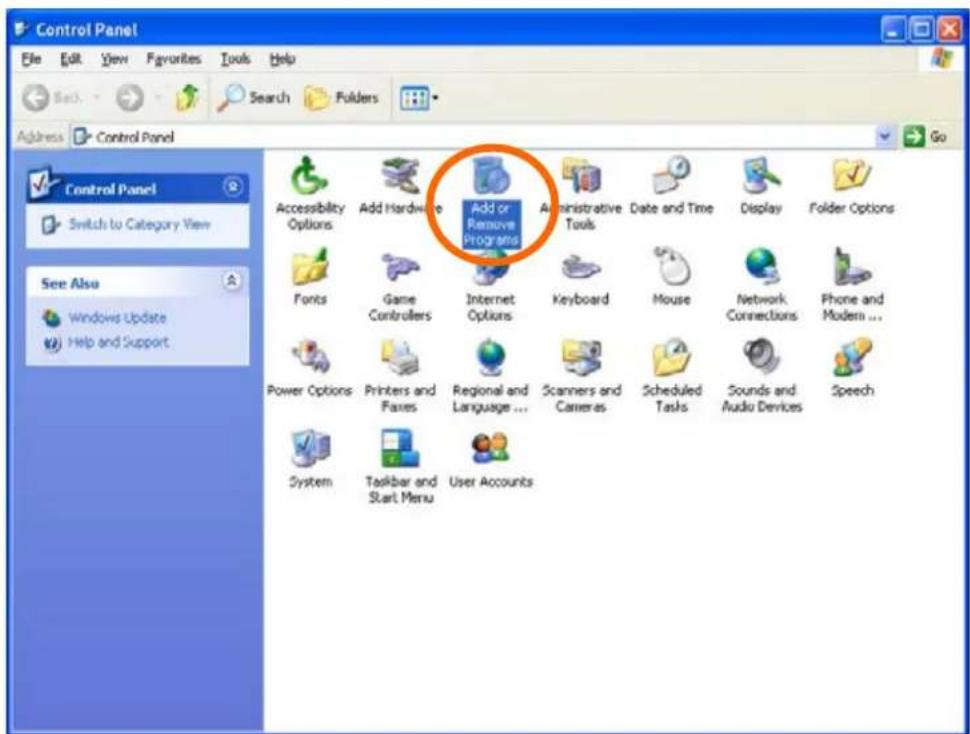

Control Panel File Edit View Favorites Tools Help Back Search Folders Address Control Panel Control Panel Switch to Category View See Also Windows Update Help and Support Accessibility Options Add Hardware Add or Remove Programs Administrative Tools Date and Time Display Folder Options Fonts Game Controllers Internet Options Keyboard Mouse Network Connections Phone and Modern ... Power Options Printers and Fares Regional and Language ... Scanners and Cameras Scheduled Tasks Sounds and Audio Devices Speech System Taskbar and Start Menu User Accounts

Click Add or Remove Programs

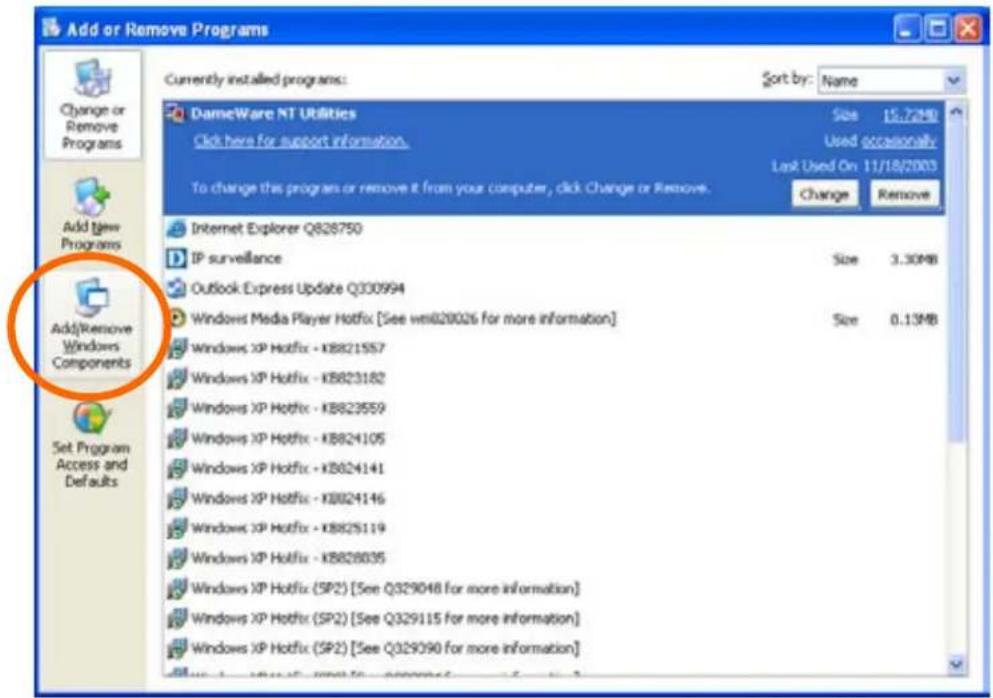

Add or Remove Programs Currently installed programs: Sort by: Name DameWare NT Utilities Size 15.72MB Used occasionally Last Used On 11/18/2003 Change Remove Add new Programs Add/Remove Windows Components Set Program Access and Defaults Internet Explorer Q828750 IP surveillance Size 3.30MB Outlook Express Update Q300994 Windows Media Player Hotfix [See wml620026 for more information] Size 0.13MB Windows XP Hotfix - KB821557 Windows XP Hotfix - KB823182 Windows XP Hotfix - KB823559 Windows XP Hotfix - KB824105 Windows XP Hotfix - KB824141 Windows XP Hotfix - KB824146 Windows XP Hotfix - KB825119 Windows XP Hotfix - KB828035 Windows XP Hotfix (SP2) [See Q329048 for more information] Windows XP Hotfix (SP2) [See Q329115 for more information] Windows XP Hotfix (SP2) [See Q329090 for more information]

Click Add/Remove Windows Components

The following screen will appear:

Windows Components Wizard Windows Components You can add or remove components of Windows XP. To add or remove a component, click the checkbox. A shaded box means that only part of the component will be installed. To see what's included in a component, click Details. Components: Message Queuing 0.0 MB MSN Explorer 13.2 MB Networking Services 0.3 MB Other Network File and Print Services 0.0 MB Outlook Express 0.0 MB Description: Contains a variety of specialized, network-related services and protocols. Total disk space required: 54.7 MB Space available on disk: 1926.8 MB Details... < Back Next > Cancel

Select Networking Services

Click Details

Networking Services To add or remove a component, click the check box. A shaded box means that only part of the component will be installed. To see what's included in a component, click Details. Subcomponents of Networking Services: Internet Gateway Device Discovery and Control Client 0.0 MB RIP Listener 0.0 MB Simple TCP/IP Services 0.0 MB Universal Plug and Play 0.2 MB Description: Allows you to find and control Internet connection sharing hardware and software that uses Universal Plug and Play. Total disk space required: 54.7 MB Space available on disk: 1926.8 MB Details... OK Cancel

Select Universal Plug and Play

Click Ok

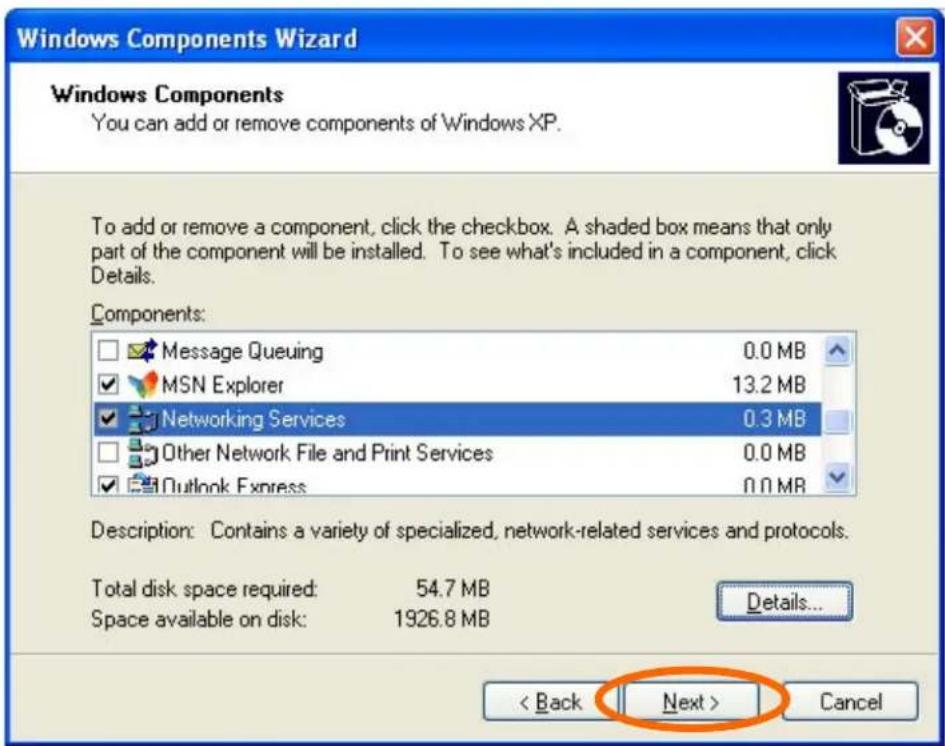

Windows Components Wizard Windows Components You can add or remove components of Windows XP. To add or remove a component, click the checkbox. A shaded box means that only part of the component will be installed. To see what's included in a component, click Details. Components: Message Queuing 0.0 MB MSN Explorer 13.2 MB Networking Services 0.3 MB Other Network File and Print Services 0.0 MB Outlook Express 0.0 MB Description: Contains a variety of specialized, network-related services and protocols. Total disk space required: 54.7 MB Space available on disk: 1926.8 MB Details... < Back Next > Cancel

Click Next

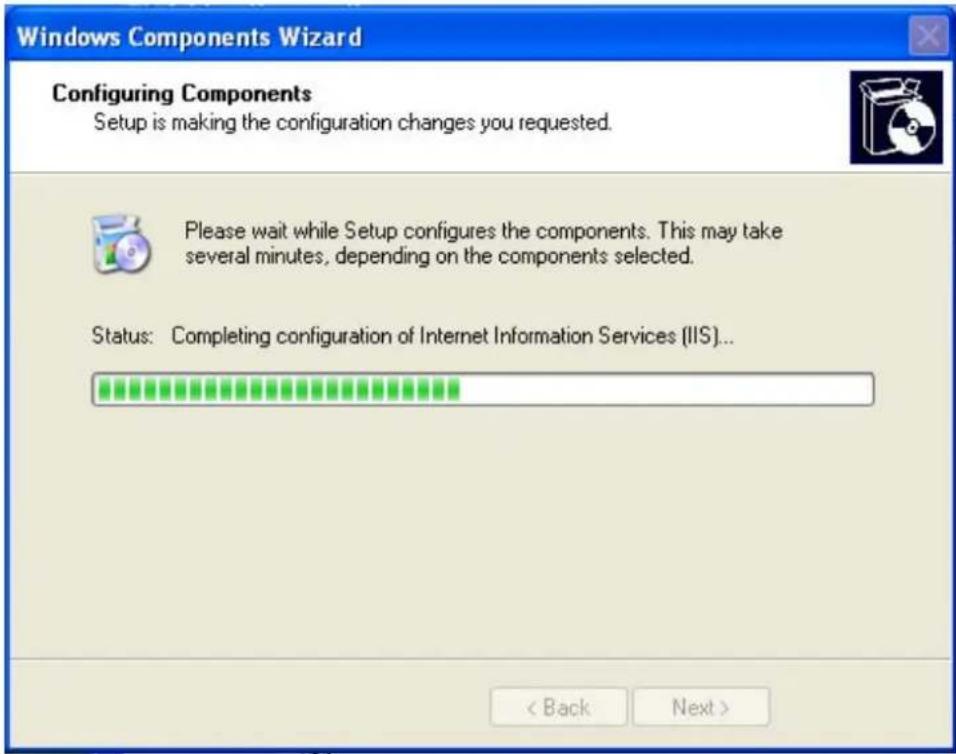

Windows Components Wizard Configuring Components Setup is making the configuration changes you requested. Please wait while Setup configures the components. This may take several minutes, depending on the components selected. Status: Completing configuration of Internet Information Services (IIS)... < Back Next >

Please wait while Setup configures the components.

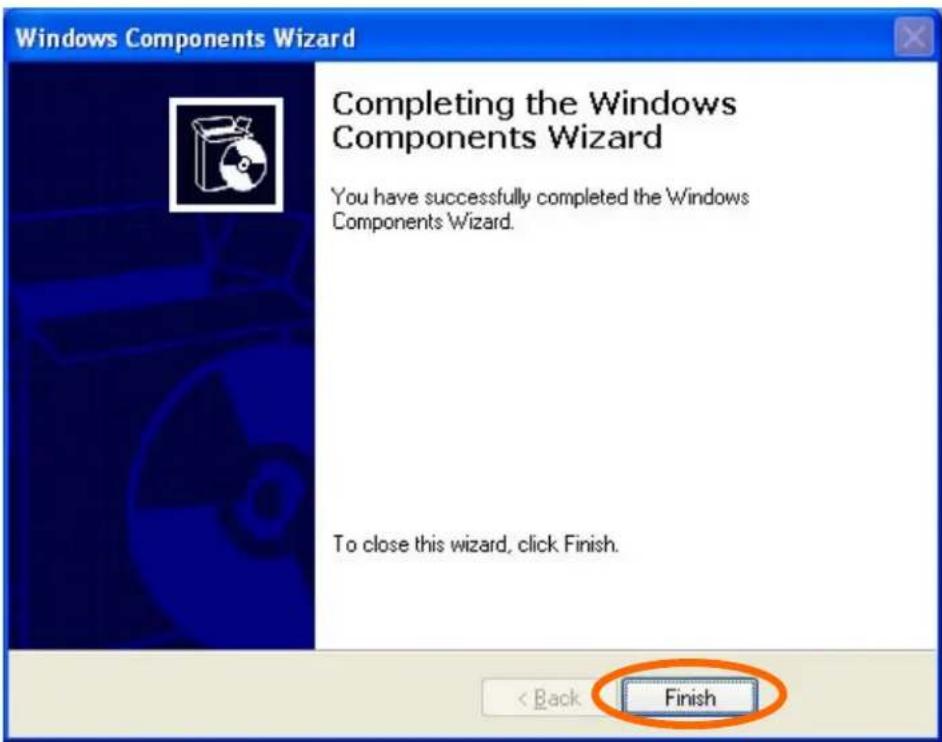

Windows Components Wizard Completing the Windows Components Wizard You have successfully completed the Windows Components Wizard. To close this wizard, click Finish. < Back Finish

Click Finish
