USER MANUAL Masterzone 77 Hybrid Klarstein

COOKINGCO COOKINGCO KINGCOOKING KINGCOOKING COOKINGCO KINGCOOKING KINGCOOKING KINGCOOKING

KLARSTEIN

www.klarstein.com

QR code image containing encoded data, no visible human-readable text

INHALT

Simple line drawing of a cooking pot with a U-shaped tube attached to its side (no text or symbols)

Three identical cooking pots with crossed-out X marks, shown in a row (no text or symbols)

Diagram showing two cooking pots with crossed arrows indicating opposing pressure or movement, likely illustrating a cooking or heating concept.

SPEZIELLE FUNKTIONEN

Überhitzungsschutz

9:0C 9:10 88 9:0C 9:10

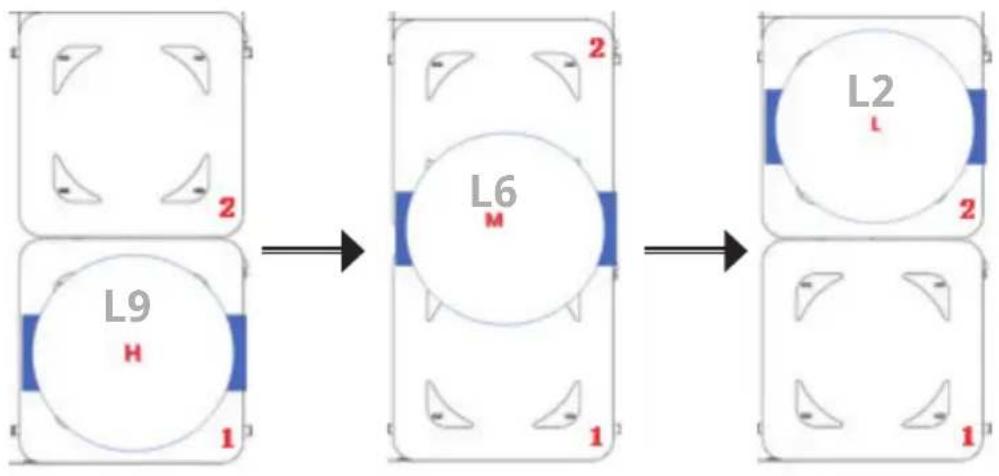

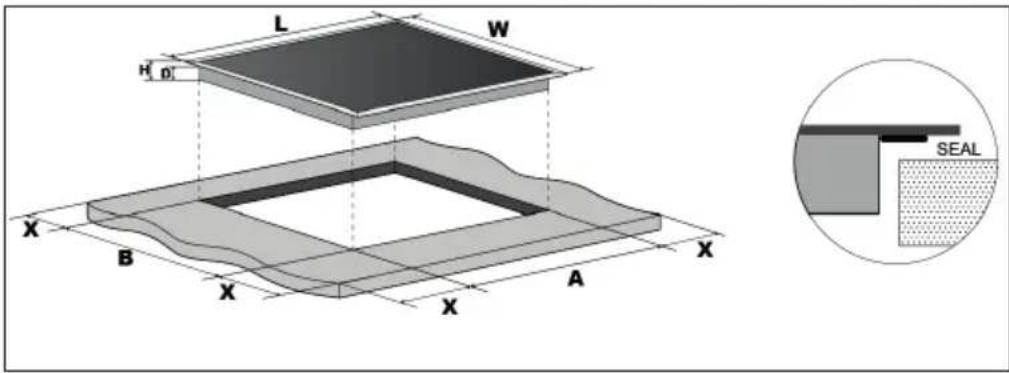

L W H D X B X A X SEAL

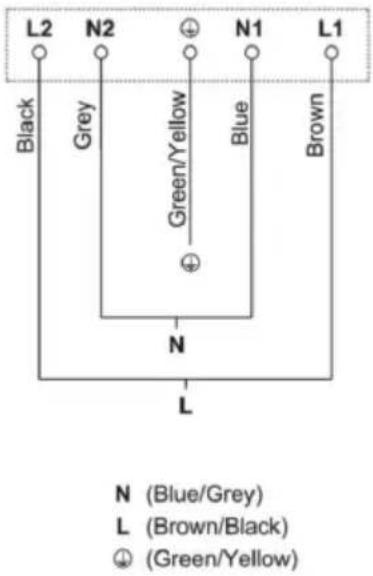

L2 N2 N1 L1 Black Grey Blue Brown Green/Yellow N L

N (Blue/Grey)
L (Brown/Black)
(Green/Yellow)

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Dear Customer,

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Contents 31

Safety Instructions 32

Instructions on Use and Maintenance 33

Operating Principle 35

Special functions 37

Product Overview 38

Control Panel 40

Use 41

Flexible Area 45

Smart Flex Function 46

Error Codes and Inspection 49

Installation 50

Disposal Considerations 56

Manufacturer & Importer (UK) 56

TECHNICAL DATA

Article number	10045781, 10045782, 10045783, 10045784, 10045792, 10045793, 10045794, 10045795, 10045796, 10045797, 10045798, 10045799
Power supply 220-240 V ~ 50/60 Hz

SAFETY INSTRUCTIONS

Electrical Shock Hazard

• Disconnect the device from the power supply before any maintenance or repairs are carried out on the device.
• Connection to a good earth wiring system is essential and mandatory.
• Alterations to the domestic wiring system must only be made by a qualified electrician.
• Failure to follow this advice may result in electrical shock or death.

CAUTION

Risk of injury! Panel edges are sharp. Failure to use caution could result in injury or cuts.

General Instructions

• Read these instructions carefully before installing or using this appliance.
• No combustible material or products should be placed on this appliance at any time.
• Please make this information available to the person responsible for installing the appliance as it could reduce your installation costs.
• In order to avoid a hazard, this appliance must be installed according to these instructions for installation.
• This appliance is to be properly installed and earthed only by a suitably qualified person.
• This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply.
• Failure to install the appliance correctly could invalidate any warranty or liability claims.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

WARNING

Risk of electric shock! To reduce the risk of electric shock, switch off the appliance immediately if the surface (hob surface made of glass ceramic or similar material that protects live parts) is cracked.

• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
• Do not use a steam cleaner to clean your cooktop.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• The cooking process has to be supervised. A short term cooking process has to be supervised continuously.
• Never leave the appliance unattended while cooking, as cooking with oil or fat in particular can be dangerous and result in the outbreak of a fire. Never try to extinguish a grease fire with water! Instead, switch off the appliance and cover the flame with a fire blanket or a pot lid.

WARNING

Risk of fire! Do not store other items on the cooking surfaces, except pans and pots.

INSTRUCTIONS ON USE AND MAINTENANCE

Electrical Shock Hazard

• Do not cook on a broken or cracked cooktop. If the cooktop surface should break or crack, switch the appliance off immediately at the mains power supply (wall switch) and contact a qualified technician.
• Switch the cooktop off at the wall before cleaning or maintenance.
• Failure to follow this advice may result in electrical shock or death.

Health Hazard

• This appliance complies with electromagnetic safety standards.
• However, persons with cardiac pacemakers or other electrical implants (such as insulin pumps) must consult with their doctor or implant manufacturer before using this appliance to make sure that their implants will not be affected by the electromagnetic field.
• Failure to follow this advice may result in death.

CAUTION

Risk of burns! During use, accessible parts of this appliance will become hot enough to cause burns. Do not let your body, clothing or any item other than suitable cookware contact the Induction glass until the surface is cool.

• Keep children away.
• Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that are on.
• Keep handles out of reach of children.
• Failure to follow this advice could result in burns and scalds.

WARNING

Risk of injury! The razor-sharp blade of a cooktop scraper is exposed when the safety cover is retracted. Use with extreme care and always store safely and out of reach of children. Failure to use caution could result in injury or cuts.

General Instructions

• Never leave the appliance unattended when in use. Boilover causes smoking and greasy spillovers that may ignite.
• Never use your appliance as a work or storage surface.
• Never leave any objects or utensils on the appliance.
• Do not place or leave any magnetisable objects (e.g. credit cards, memory cards) or electronic devices (e.g. computers, MP3 players) near the appliance, as they may be affected by its electromagnetic field.
• Never use your appliance for warming or heating the room.
  • After use, always turn off the cooking zones and the cooktop as described in this manual (i.e. by using the touch controls).
• Do not rely on the pan detection feature to turn off the cooking zones when you remove the pans.
• Do not allow children to play with the appliance or sit, stand, or climb on it.
• Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured.
• Do not leave children alone or unattended in the area where the appliance is in use.

• Children or persons with a disability which limits their ability to use the appliance should have a responsible and competent person to instruct them in its use. The instructor should be satisfied that they can use the appliance without danger to themselves or their surroundings.
- Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be done by a qualified technician.
- Do not place or drop heavy objects on your cooktop.
- Do not stand on your cooktop.
- Do not use pans with jagged edges or drag pans across the Induction glass surface as this can scratch the glass.
- Do not use scourers or any other harsh abrasive cleaning agents to clean your cooktop, as these can scratch the Induction glass.
- This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
• The appliance and its accessible parts become hot during use.
- Care should be taken to avoid touching heating elements.
• Children less than 8 years of age shall be kept away unless continuously supervised.

OPERATING PRINCIPLE

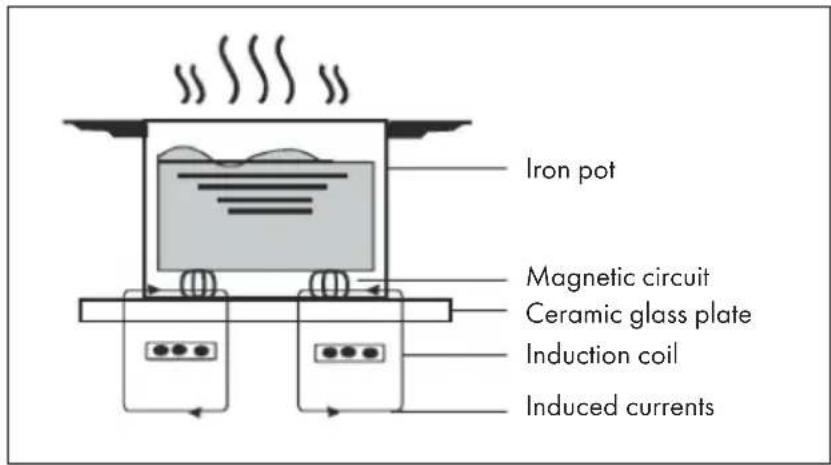

Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up.

Iron pot Magnetic circuit Ceramic glass plate Induction coil Induced currents

Touch Controls

• The controls respond to touch, so you don't need to apply any pressure.
• Use the ball of your finger, not its tip.
• You will hear a beep each time a touch is registered.
  • Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a cloth) covering them. Even a thin film of water may make the controls difficult to operate.

Choosing the right Cookware

Note: Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the pan.

You can check whether your cookware is suitable by carrying out a magnet test. Move a magnet towards the base of the pan. If it is attracted, the pan is suitable for induction.

Simple line drawing of a cooking pot with a U-shaped tube attached to its side (no text or symbols)

If you do not have a magnet:

1. Put some water in the pan you want to check.
2. If U does not flash in the display and the water is heating, the pan is suitable.

Cookware made from the following materials is not suitable: pure stainless steel, aluminium or copper without a magnetic base, glass, wood, porcelain, ceramic, and earthenware. Do not use cookware with jagged edges or a curved base.

Three identical cooking pots with crossed-out X marks on their bases, placed horizontally on a flat surface (no text or symbols)

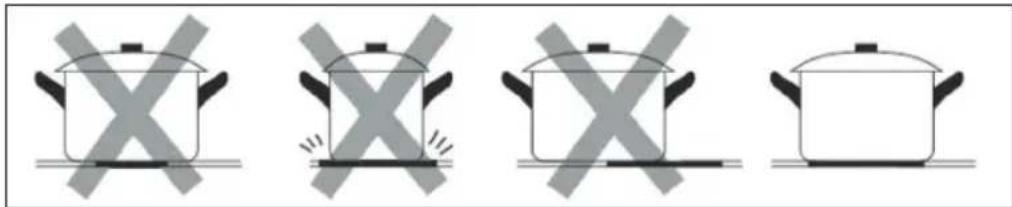

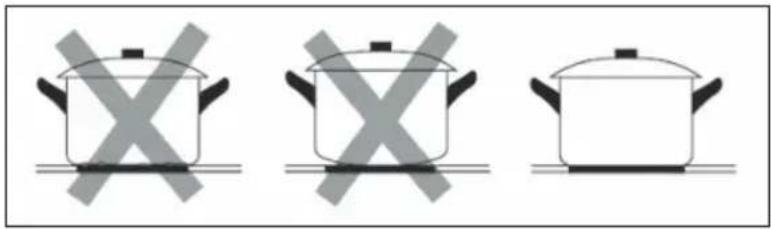

Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Use pans whose diameter is as large as the graphic of the zone selected. Using a pot a slightly wider energy will be used at its maximum efficiency. If you use smaller pot efficiency could be less than expected.

Four identical cooking pots with crossed-out X marks, shown in sequence (no text or symbols)

Pot less than 140 mm could be undetected by the hob. Always centre your pan on the cooking zone.

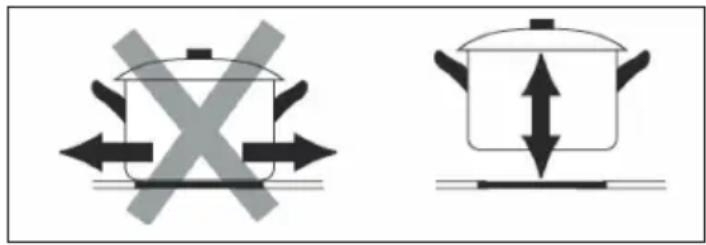

Always lift pans off the Induction hob - do not slide, or they may scratch the glass.

Diagram showing two cooking pots with opposing directional arrows, indicating heating or cooling conditions.

SPECIAL FUNCTIONS

Over-Temperature Protection

A temperature sensor equipped can monitor the temperature inside the Induction hob. When an excessive temperature is monitored, the Induction hob will stop operation automatically.

Detection of Small Articles

When an unsuitable size or non-magnetic pan (e.g. aluminium), or some other small item (e.g. knife, fork, key) has been left on the hob, the hob automatically go on to standby in 1 minute. The fan will keep cooking down the induction hob for a further 1 minute.

Auto Shutdown Protection

Auto shut down is a safety protection function for your induction hob. It shut down automatically if ever you forget to turn off your cooking. The default working times for various power levels are shown in the below table:

Power level 1-3 4-6 78 9
Default working timer (min)	360 180 120 90

When the pot is removed, the induction hob can stop heating immediately and the hob automatically switch off after 2 minute.

⚠️ People with a heart pace maker should consult with their doctor before using this unit.

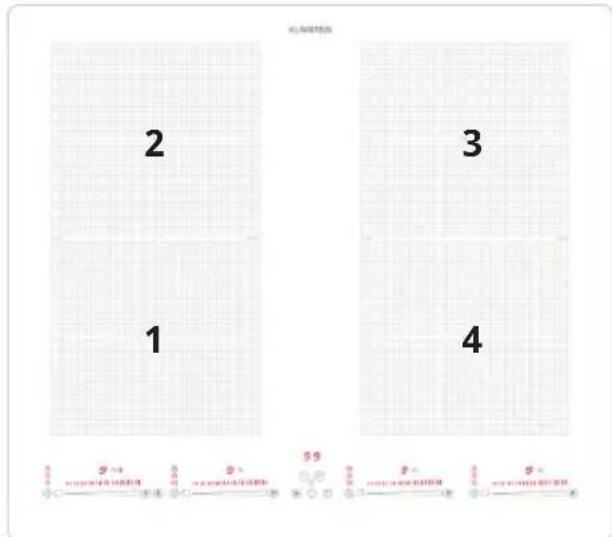

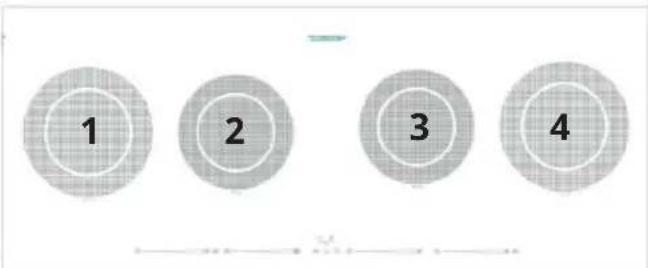

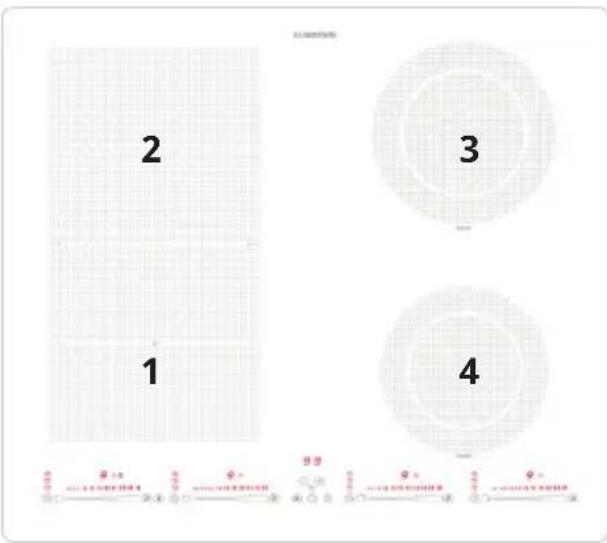

PRODUCT OVERVIEW

10045781 & 10045782 10045783 & 10045784

2 1 3 4 59 59 59

2 1 3 4

10045792 & 10045793 10045794 & 10045795

2 1 3 4

2 1 5 3 4 3.1 3.1 3.1 3.1 3.1 37

10045796 & 10045797 10045798 & 10045799

1 2 3 4

1 2 3 4

Heating Zone 10045781, 10045782 10045783, 10045784
1 190×190 mm,	2000/2800 W 190×190 mm, 2000/2800 W
2 190×190 mm,	1500/2000 W 190×190 mm,1500/2000 W
3 190×190 mm,	2000/2800 W 180 mm, 1500/2000 W
4 190×190 mm,	1500/2000 W 160 mm,1200/1500 W
Flexzone 1/2 190 mm	×375 mm,3000/3600 W 190 mm×375 mm, 3000/3600 W
Frequency 50/60 Hz~	50/60 Hz~
Total 7400 W 7400 W

Heating Zone 10045792, 10045793 10045794, 10045795
1 190×190 mm	200 W / 2800 W 190×190 mm 2000 W / 2800 W
2 190×190 mm	1500 W / 2000 W 190×190 mm 1500 W / 2000 W
3 280 mm 2300	W / 3000 W 280 mm 2300 W / 3000 W
4 160 mm, 1200	W / 1500 W 190×190 mm 2000 W / 2800 W
5 N/A 190 mm	1500 W / 2000 W
Flexzone 1/2 190 mm	×375 mm, 3000/3600 W	3000/3600 W
Frequency 50/60 Hz~	50/60 Hz~
Total 7200 W 9300 W

Heating Zone 10045796, 10045797 10045798, 10045799
1 160 mm 1200×1500 W	190×190 mm	2000 W / 2800 W
2 1200 W / 2000 W	190×190 mm	1500 W / 2000 W
3 210 mm 1800 W / 2100 W 190×190 mm 2300 W / 3000 W
4 160 mm, 1200 W / 1500 W 190×190 mm 2000 W / 2800 W
Frequency 50/60 Hz~ 50/60 Hz~
Total 7200 W 7200 W

CONTROL PANEL

9℃ 9 88 9 70 9 50

Reference Description
	ON/OFF key
	Child lock key
	Pause key
	Timer control keys &Timer setting indicator
	Power regulating slider
	Boost control key
	Cooking functions key
	Timer setting indicator
	Power level indicator
	Timer Indicator
	Cooking functions indicator

USE

To start cooking

1. Touch the ON/OFF key (A) for 3 seconds.After power on, the buzzer beeps once, all displays show “-”, indicating that the induction hob has entered the state of standby mode.
2. Place a suitable pan on the cooking zone that you wish to use.Make sure the bottom of the pan and the surface of the cooking zone are clean and dry.
3. Depending on the heating zone where the pan is placed, adjust heat setting by touching the slider regulating key(E) control.
If you don’t choose a heat setting within 20 seconds, the induction hob will automatically switch off. You will need to start again at step 1.You can modify the heat setting at any time during cooking.

If the display flashes ✉ alternately with the heat setting this means that

• you have not placed a pan on the correct cooking zone or,
• the pan you're using is not suitable for induction cooking or,
• the pan is too small or not properly centred on the cooking zone.

No heating takes place unless there is a suitable pan on the cooking zone.

The display will automatically turn off after 1 minutes if no suitable pan is placed on it.

When you have finished cooking

1. Touching the slider regulating key(E) to decrease the power to "0" level.
2. Beware of hot surfaces

"H" will show which cooking zone is hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat further pans, use the hotplate that is still hot.

Using the Boost function

Activated the boost function

1. Touching the relevant zone boost control key P for 1 sec, the zone indicator show "P1".
2. If you want to enter Max power, pls touch and hold P for 3 sec. The zone indicator shows "P2" and the power reach Max.

Cancel the Boost function

Touching the slider regulating key(E) to cancel the Boost function, then the cooking zone will revert to the power level you wish.

• The function can work in any cooking zone.
• The cooking zone returns to level 9 after 5 minutes automatic.

Using Cooking Functions

You can choose 3 handy cooking functions by pressing the cooking functions key

each time moves from one function to the other.

Power level indication Cooking function indication	Function
A
b
c
d N/A Fry, oil temperature will	keep about 210 °C.
E N/A Automatic boiling function.	(About 100 °C)

Using Child Lock Function

• You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on).
• When the controls are locked, all the controls except the OFF control are disabled.

To lock the controls

Touch the child lock key for 3 seconds. The indicator above the child lock key will be on and the timer indicator will show "Lo"

To unlock the controls

1. Touch and hold the keylock control for a while.
2. You can now start using your Induction hob.

When the hob is in the lock mode, all the controls are disable except OFF, you can always turn the hob off with the OFF control in an emergency, but you shall unlock the hob first in the next operation.

Using the Timer

You can use the timer in two different ways:

• You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up.
• You can set it to turn one cooking zone off after the set time is up.
• You can set the timer for up to 99 minutes.

Using the Timer as an alarm

1. After selecting the cooking zone and the power level required. The dot next to power level indicator will flash for 5 seconds.
2. When the dot stops flashing, touch the timer control key 📋, yo can realize the setting of timing from 1 to 99 minutes.

Hint: Touch the “-” or “+” control of the timer once to decrease or increase by 1 minute. Touch and hold the “-” or “+” control of the timer to decrease or increase by 10 minutes.

1. When the time is set, it will begin to count down immediately. The display will show the remaining time 📋 and the dot next to timer indicator will keep on flashing.

66

1. Buzzer will bips and the timer indicator will turn off when the setting time finished.

Setting the timer to switch off zones

1. Selecting the relevant cooking zone by touching the power slider regulating key to set the power lever you required the dot next to power level indicator will flash for 5 seconds.
2. Before the dot stops flashing, touch the timer control key ☐ or ☑ you can realize the setting of timing from 1 to 99 minutes.

Hint: Touch the "-" or "+" control of the timer once will decrease or increase by minute. Touch and hold the "-" or "+" control of the timer will decrease or increase by 10 minutes.

1. When the time is set, it will begin to count down immediately. The timer setting indicator will show the remaining time and the timer indicator will flash for 5 seconds.

2. After that, if the indicator will keep on flashing meaning that the timer setting indicator shows the relevant zone remaining time until the timer expires; or else the indicator will keep on lighting until the timer expires.

3. When cooking timer expires, the corresponding cooking zone will be switch off automatically. Other cooking zone will keep operating if they are turned on previously.

4. When using "the timer as an alarm" and "the timer to switch off the zones" together, the timer setting indicator will show the remaining time of alarm as first priority. Press power slider regulating key(E) of relevant cooking zone to show the remaining time of switch off timer.

Using the Pause function

The hob have a handy restart function to pause and restart the cooking process if you're interrupted.

1. When the hob is on and working, press the pause key(C), all burner will stop working, and all LED indicator will show the symbol “=” .

2. Press the pause key(C) again, all setting will restart at the previous setting.

FLEXIBLE AREA

• This area can be used as a single zone, accordingly to the cooking needs anytime.
• Flexible area is made of two independent inductors that can be controlled separately. When working as a single zone, a cookware is moved from one zone to the other one within the flexible area keeping the same power level of the zone where the cookware originally was placed, and the part that is not covered by cookware is automatically switched off.

Important: Make sure to place the cookwares centered on the single cooking zone. The ideal recipe is an oval or rectangular saucepan, or a saucepan.

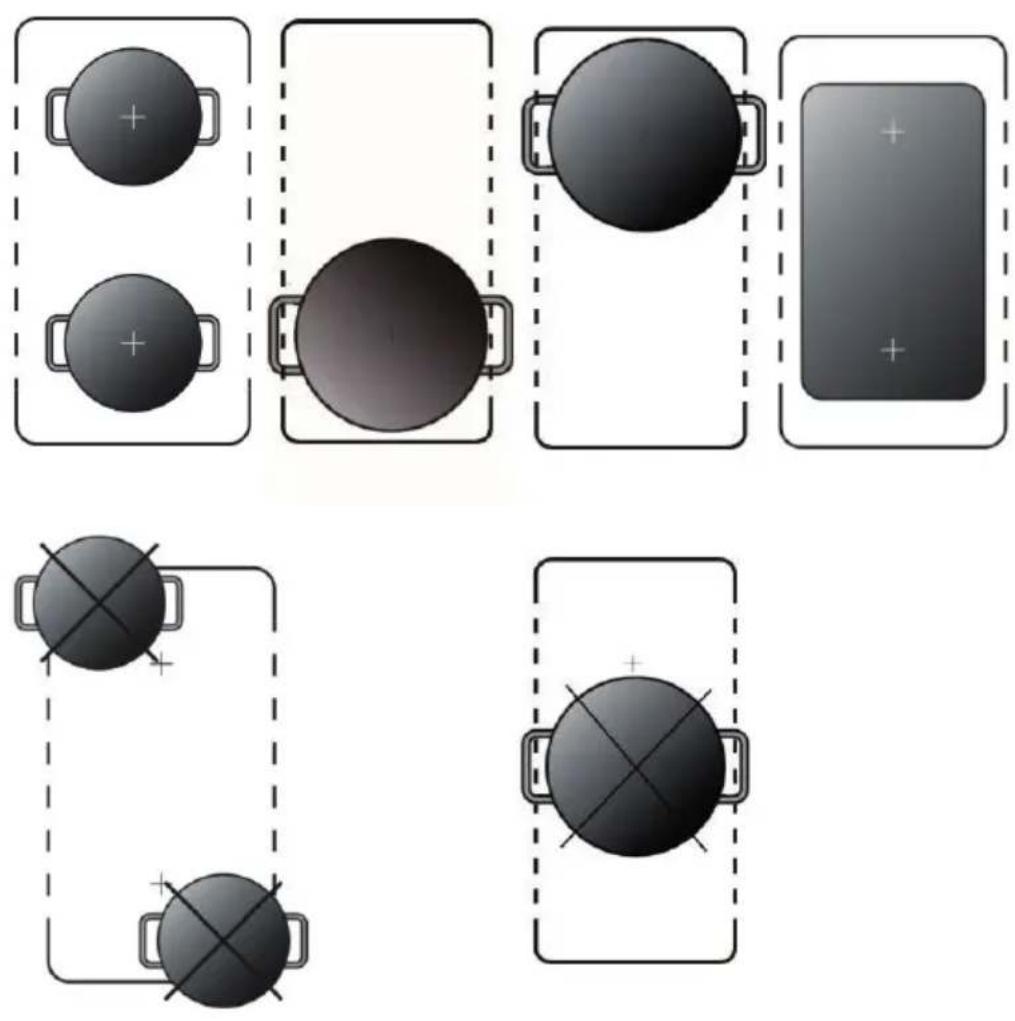

Examples of good pot placement and bad pot placement

SMART FLEX FUNCTION

To activate the smart flex function:

1. When the hob is ON, press flex zone button and simultaneously to activate the flex zone function.
2. When the flex zone function is activated, the hob will enter into smart flex mode without any further manual control in 5 sec.
3. 3.If smart flex function been deactivated accidentally, please follow step 1 to

Reactivate the smart flex function.

A) With only one pan/pot been put on the flex area:

• When the pan/pot is put at the front of flex zone area, the hob will turn on automatically and set the power at level 9 for fast heating.
• When the pan/pot is put at middle of flex zone area, the hob will turn on automatically and set the power at level 6 for stewing.
• When the pan/pot is put at rear flex zone area, the hob will turn on automatically and set the power at level 2 for warm keeping.

B) With two pans/pots been put on the flex area

1. When two pan/pot been put on the flex area within 5 seconds, the hob will turn on automatically and set the power at level 6.

L6 L Pan A 2 L6 H Pan B 1

1. When one pan/pot been put on the front or rear of flex zone area, once the second pan/pot been put on the flex area 5 seconds after the first pot been put on, the hob will turn on automatically and set the power at level 9 for front area and level 2 for rear area.

L2 L Pan A 2 L9 H Pan B 1

To deactivate the smart flex function:

1. When the smart flex function is working/ active, press the flex zone button for 3 sec.and adjust the power manually. Then the smart flex function will be deactivated and the hob will work under normal flex zone function with same power level for all flex zone area.
2. Or you can press any slider to change the power level, it will simultaneously to deactivate smart flex function, the hob will work on individual burner and flex function is OFF.

Normal Flex Zone Function:

To activate the normal flex zone function:

□

1. Press the flex zone button simultaneously to

Activate the smart flex zone function.

1. Adjust the power manually by slider then the smart flex function will be deactivated and the hob will work under normal flex zone function with same power level for all flex zone area.

POWER DOWN

To use the flex zone Function

1. To activate the flexible area as a single big zone, press the flex zone button for 3 sec.
2. The digital tube shows
3. According to the heating zone where the pan is placed, adjust heat setting by

slider.

- + POWER DOWN

1. If the pot is moved from the front to the rear part (or viceversa), the flexible area detects automatically the new position, keeping the same power.

ERROR CODES AND INSPECTION

If an abnormality comes up, the induction hob will enter the protective state automatically and display corresponding protective codes:

Error Message	Possible Cause What to do
U	No pot or pot not suitable Replace the pot;
ER03 Water	or pot on the glass over the control Clean the user interface
F1E The connection between the display board and the left mainboard is fail (the cooking zone which indicator showing “E”)		1. Connection cable not correctly plugged or defective.2. Replace the mainboard.
F3E Coil temperature sensor failure. (the cooking zone which indicator showing “E”)		Replace the coil sensor.
F4E Mainboard temperature sensor failure. (the cooking zone which indicator showing “E”)		Replace the mainboard.
E1E Temperature sensor of the ceramic glass plate is high		Please restart after the induction hob cools down.
E2 E Temperature sensor of the IGBT is high Please restart after the induction hob cools down.
E3 E Abnormal supply voltage (too high) Please inspect whether power supply is normal. Power on after the power supply is normal.
E4 E Abnormal supply voltage (too low) Please inspect whether power supply is normal. Power on after the power supply is normal.
E5 E Temperature sensor failure (the cooking zone which indicator showing “E”)		Connection cable not correctly plugged or assemble defective.

The above are the judgment and inspection of common failures.

Please do not disassemble the unit by yourself to avoid any dangers and damages to the induction hob and please contact the supplier.

INSTALLATION

Selection of installation equipment

Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole. Be sure the thickness of the work surface is at least 30 mm. Please select heat-resistant and insulated work surface material (Wood and similar fibrous or hygroscopic material shall not be used as work surface material unless impregnated) to avoid the electrical shock and larger deformation caused by the heat radiation from the hotplate. As shown below.

Note: The safety distance between the sides of the hob and the inner surfaces of the worktop should be at least 3 mm.

L W H D X B X A X SEAL

Note: The dimensions given in the table are "mm".

Model L W H D A B X
10045781,10045782	590	520	58	54	565	495	min. 50
10045783,10045784	590	520	58	54	565	495	min. 50
10045792,10045793	700	520	60	54	754	495	min. 50
10045794,10045795	900	520	60	54	875	495	min. 50
10045796,10045797	900	350	60	54	875	325	min. 50
10045798,10045799	900	350	60	54	875	325	min. 50

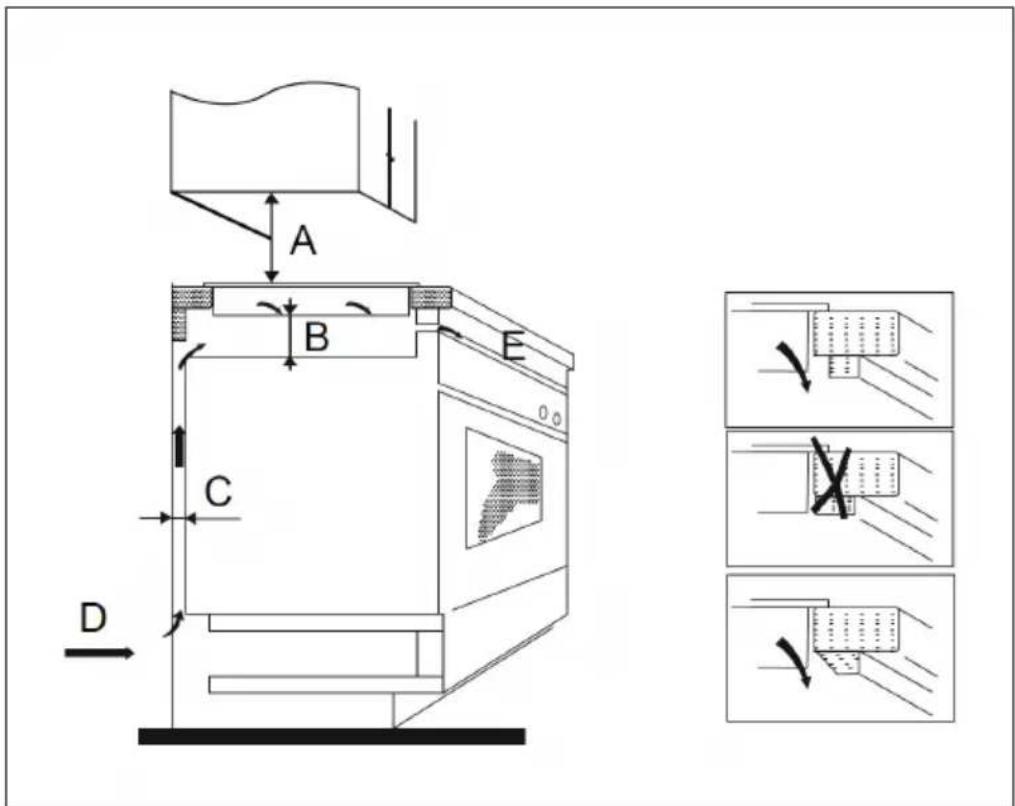

Under any circumstances, make sure the Induction cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the induction cooker hob is in good work state.

Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760 mm.

A B C D E

Note: The dimensions given in the table are "mm".

A B C D E
760 min.	50 min. 20 Air intake Air exit 5 mm

Before Installing the Hob

Make sure that:

• The work surface is square and level, and no structural members interfere with space requirements.
• The work surface is made of a heat-resistant and insulated material.
• If the hob is installed above an oven, the oven has a built-in cooling fan.
• The installation will comply with all clearance requirements and applicable standards and regulations.
• A suitable isolating switch providing full disconnection from the mains power supply is incorporated in the permanent wiring, mounted and positioned to comply with the local wiring rules and regulations.
• The isolating switch must be of an approved type and provide a 3 mm air gap contact separation in all poles (or in all active [phase] conductors if the local wiring rules allow for this variation of the requirements).
• The isolating switch will be easily accessible to the customer with the hob installed.
• You consult local building authorities and by-laws if in doubt regarding installation
• You use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the wall surfaces surrounding the hob.

After Installing the Hob

Make sure that:

• The power supply cable is not accessible through cupboard doors or drawers.
• There is adequate flow of fresh air from outside the cabinetry to the base of the hob.
• If the hob is installed above a drawer or cupboard space, a thermal protection barrier is installed below the base of the hob.
• The isolating switch is easily accessible by the customer.

Before locating the fixing brackets

The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob.

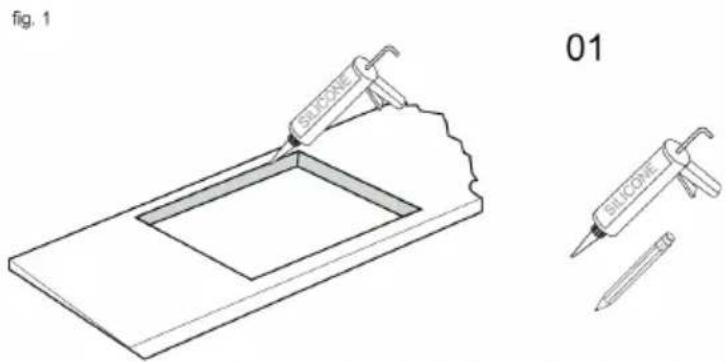

fig. 1 01

Cut out worktop to supplied dimensions shown (fig 1) with suitable equipment. Seal the cut edge of the worktop using silicone or PTFE and allow to dry prior to fitting the hob.

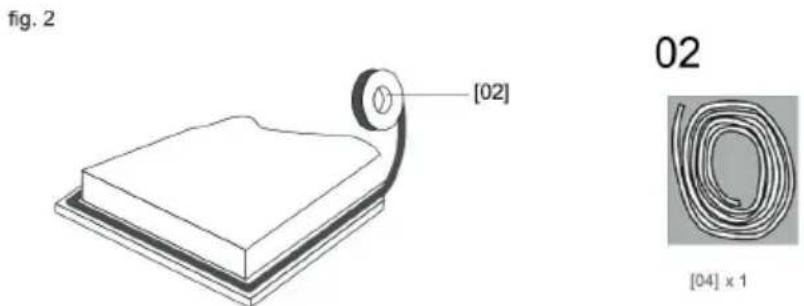

fig. 2 [02] 02 [04] x 1

Stretch out the supplied seal along the underside edge of the hob ensuring the ends overlap.

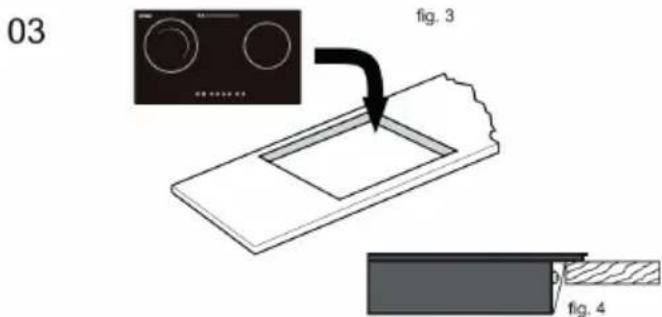

03 fig. 3 fig. 4

Do not use adhesives to fix the hob into the worktop. Once the seal is fitted pision the hob inot the cutour in the worktop. Apply gentle downward pressure.

Cautions

WARNING

Risk of injury! The induction hotplate must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself.

• The hob will not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer, as the humidity may damage the hob electronics.
• The induction hotplate shall be installed such that better heat radiation can be ensured to enhance its reliability.
• The wall and induced heating zone above the table surface shall withstand heat.
• To avoid any damage, the sandwich layer and adhesive must be resistant to heat.
• A steam cleaner is not to be used.

Connecting the Hob to the Mains Power Supply

WARNING

Risk of injury! This hob must be connected to the mains power supply only by a suitably qualified person.

Before connecting the hob to the mains power supply, check that:

• The domestic wiring system is suitable for the power drawn by the hob.
• The voltage corresponds to the value given in the rating plate
• The power supply cable sections can withstand the load specified on the rating plate.

To connect the hob to the mains power supply, do not use adapters, reducers, or branching devices, as they can cause overheating and fire. The power supply cable must not touch any hot parts and must be positioned so that its temperature will not exceed 75 °C at any point.

Note: Check with an electrician whether the domestic wiring system is suitable without alterations. Any alterations must only be made by a qualified electrician.

L2 N2 N1 L1 Black Grey Blue Brown Green/Yellow N L N (Blue/Grey) L (Brown/Black) ⊕ (Green/Yellow)

• If the cable is damaged or to be replaced, the operation must be carried out the by after-sale agent with dedicated tools to avoid any accidents.
• If the appliance is being connected directly to the mains an omnipolar circuit-breaker must be installed with a minimum opening of 3mm between contacts.
• The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations.
  • The cable must not be bent or compressed.
• The cable must be checked regularly and replaced by authorised technicians only.
  • This appliance requires a 32 Amp Miniature Circuit Breaker.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Cher client, chère cliente,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Simple line drawing of a cooking pot with a U-shaped magnet (no text or symbols)

Three identical cooking pots with crossed-out X marks, shown in a row (no text or symbols)

Diagram showing two cooking pots with crossed arrows indicating opposing pressure or movement, likely symbolizing heating or cooking resistance.

FONCTIONS SPÉCIALES

9:0C 9:10 88 9:0C 9:10

L W H D X B X A X SEAL

L2 N2 ⊕ N1 L1 Black Grey Blue Brown Green/Yellow N L

N (Blue/Grey)
L (Brown/Black)
(Green/Yellow)

Symbol of a trash bin with crossed lines indicating no waste, and a solid rectangle below (no text or labels)

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Gentile cliente,

QR code image containing encoded data, no visible human-readable text

INDICE

Simple line drawing of a cooking pot with a U-shaped magnet attached (no text or symbols)

Three identical cooking pots with crossed-out X symbols, no text or labels present

Diagram showing two cooking pots with crossed arrows indicating opposing pressure or flow directions.

FUNZIONI SPECIALI

9:0C 9:0C 88 9:0C 9:0C

L W H p X B X A X SEAL

L2 N2 ⊕ N1 L1 Black Grey Blue Brown Green/Yellow N L

N (Blue/Grey)
L (Brown/Black)
(Green/Yellow)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

CONTENIDO

Simple line drawing of a cooking pot with a U-shaped magnet (no text or symbols)

Three identical cooking pots with crossed-out X symbols, no text or labels present

Diagram showing two cooking pots with crossed arrows indicating opposing pressure or movement, likely symbolizing heating or cooking resistance.

9:0C 9:10 88 9:0C 9:10

L W H D X B X A X SEAL

L2 N2 ⊕ N1 L1 Black Grey Blue Brown Green/Yellow N L

N (Blue/Grey)
L (Brown/Black)
(Green/Yellow)

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

Reino Unido

KLARSTEIN
