Product Type	Wall-mounted kitchen faucet
Model	Clearwater K-7856-4
Brand	Kohler
Dimensions (estimated)	Height ≈ 30 cm, projection ≈ 20 cm
Weight (estimated)	Approximately 4 kg
Power supply	None (mechanical faucet)
Main functions	Hot and cold water distribution, pull-out sprayer (depending on version), swivel spout
Material	Chrome-plated brass
Maintenance and cleaning	Clean with a soft cloth and soapy water. Avoid abrasive products.
Safety	Turn off water supply before installation. Follow local plumbing codes. Check for leaks after installation.
Spare parts and repairability	Eccentric nipples, coupling nuts, washers, aerator, and gaskets available as spare parts.
General information	Installation manual included. Kohler limited warranty (see conditions).

Frequently Asked Questions - Clearwater K-7856-4 KOHLER

What tools are needed to install the Clearwater K-7856-4 faucet?

You will need an adjustable wrench, a 7/16 inch basin wrench, and a fork wrench.

How to install the eccentric nipples?

Slide a coupling nut and a flange onto each eccentric nipple. Measure and install the nipple: the female threads should protrude 3/8 to 1/2 inch from the wall; the male threads should be flush with the wall. Screw each nipple onto the fitting and tighten the flange against the wall.

How to level the faucet body?

After inserting the faucet and partially tightening the coupling nuts, check the leveling. If necessary, rotate the eccentric nipples with a 7/16 inch basin wrench, then tighten the nuts.

How to install the soap dispenser?

For installation with a dispenser, slide a nut onto the stem assembly, insert it into the hole at the base of the spout, tighten, then place the dispenser. Without dispenser, install the spout stem cap.

How to flush the faucet after installation?

Remove the aerator by turning it counterclockwise, open the water supply and let the water run for one minute to flush out debris. Clean the aerator then reinstall it.

What to do if there is a leak at the connections?

Check that all coupling nuts are tight. If the leak persists, inspect washers and gaskets. Replace them if necessary.

How to reverse hot and cold water if connections are reversed?

The eccentric nipples allow adjustment. You can swap the water supplies at the wall connections or adjust the nipples after installation.

How to maintain the chrome finish?

Clean with a soft cloth and soapy water. Avoid abrasive, acidic, or ammonia-based cleaners to prevent damaging the chrome.

Can I use the faucet with a tankless water heater?

Yes, but ensure that the pressure and flow rate are compatible. Consult the water heater specifications.

Where can I find spare parts for this faucet?

Contact Kohler customer service or visit the official website. Common parts include eccentric nipples, coupling nuts, washers, and aerator.

USER MANUAL Clearwater K-7856-4 KOHLER

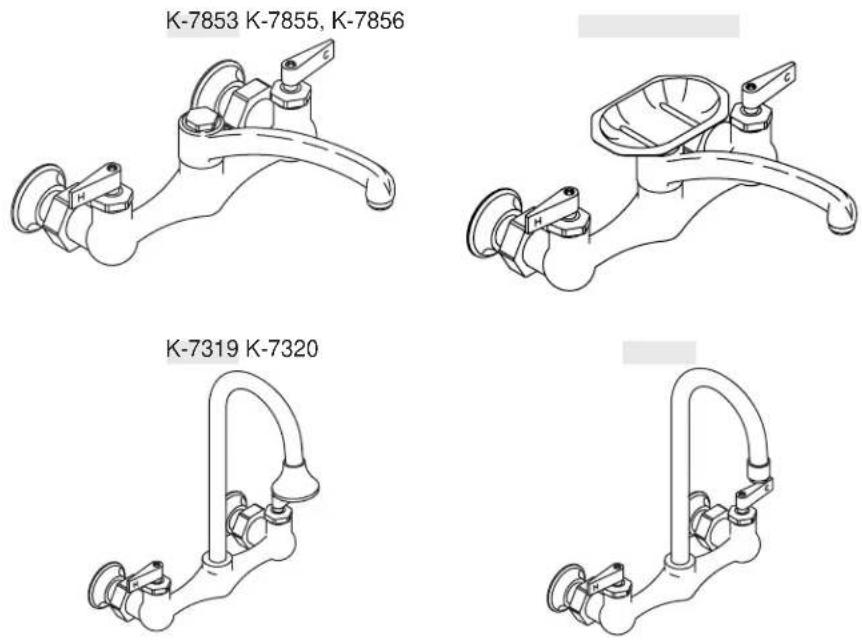

Wall Mount Kitchen Faucets

M product numbers are for Mexico (i.e. K-12345M)

Thank You For Choosing Kohler Company

We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before you start installation. If you encounter any installation or performance problems, please don't hesitate to contact us. Our phone numbers and website are listed on the back cover. Thanks again for choosing Kohler Company.

Tools and Materials

Adjustable Wrench

7/16" Seat Wrench

Open End Wrench

Before You Begin

NOTE: Use two-hole straps or drop-ear ells and screws to secure the water supplies within the wall.

□ Observe all local plumbing and building codes.
□ Shut off the main water supply.
□ Carefully inspect waste and supply tubing for any sign of damage.
□ Replace waste or supply tubing if necessary.
☐ Kohler Co. reserves the right to make revisions in the design of faucets without notice, as specified within the Price Book.

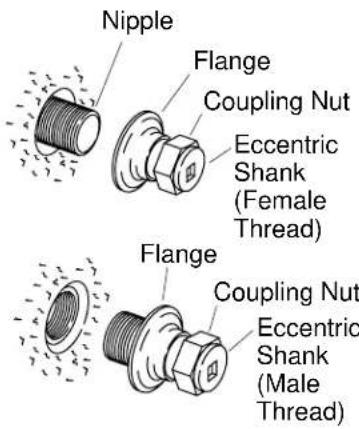

Nipple Flange Coupling Nut Eccentric Shank (Female Thread) Flange Coupling Nut Eccentric Shank (Male Thread)

1. Install the Eccentric Shank

☐ Slide one coupling nut and one flange onto each cold and hot eccentric shank.
☐ Measure and install the nipple. If the eccentric shank has female threads, the nipples should extend 3/8" (1 cm) to 1/2" (1.3 cm) from the front of the wall. If the eccentric shank has male threads, the nipple should be flush with the front of the wall.
☐ Thread one eccentric shank assembly onto each cold and hot nipple. Ensure that each flange is snug against the finished wall.

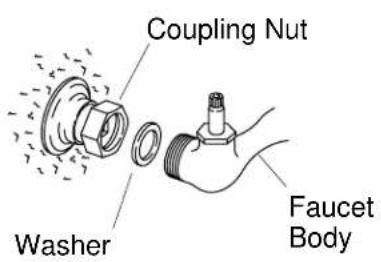

Coupling Nut Washer Faucet Body

Eccentric Shank Seat Wrench

2. Install the Faucet Assembly

NOTE: The cold and hot faucet shanks are eccentric to allow adjustment.

☐ Insert one washer into each cold and hot coupling nut.
□ Align and then insert the faucet assembly into each cold and hot faucet shank.
☐ Partially thread each cold and hot coupling nut onto the faucet assembly threads until tight.
□ Check to see that the faucet assembly is level.
☐ If the faucet assembly is not level, turn each cold and hot eccentric shank with a 7/16" seat wrench.
□ After adjustment, securely tighten each cold and hot coupling nut.

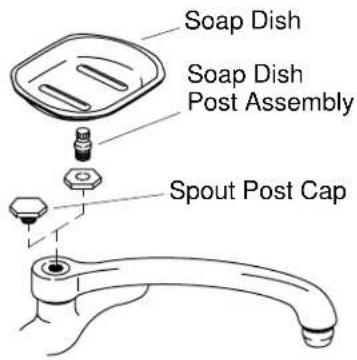

Soap Dish Soap Dish Post Assembly Spout Post Cap

3. Install the Soap Dish

Foraninstallationwithasopdish:

☐ Slide a nut onto the soap dish post assembly.
☐ From the top of the faucet, insert the soap dish post assembly into the hole at the base of the spout. Tighten until secure.
□ Place the soap dish on the top of the soap dish post assembly.

For an installation without a soap dish:

□ Install the spout post cap into the hole at the base of the spout. Tighten until secure.

4. Installation Checkout

□ Ensure that all connections are tight.
□ Open the drain.
□ Turn on the main water supply.
□ Twist the aerator counterclockwise until it is removed from the spout.
□ Open both hot and cold valves.
□ Run water through the spout for approximately one minute to remove debris. Check for leaks.
□ Remove any debris from the aerator and reinstall.
