USER MANUAL Enchant Speaker HARMAN KARDON

Line drawing of a cylindrical device with a flat top and side panel (no text or symbols)

ENCHANT SPEAKER

WHAT'S IN THE BOX

Line drawing of a cylindrical device with a speaker grille and control buttons (no text or symbols)

Simple line drawing of a U-shaped plug with a port, labeled 1.5m/5ft (no text or symbols on the diagram itself)

* Power cord quantity and plug type vary by regions.

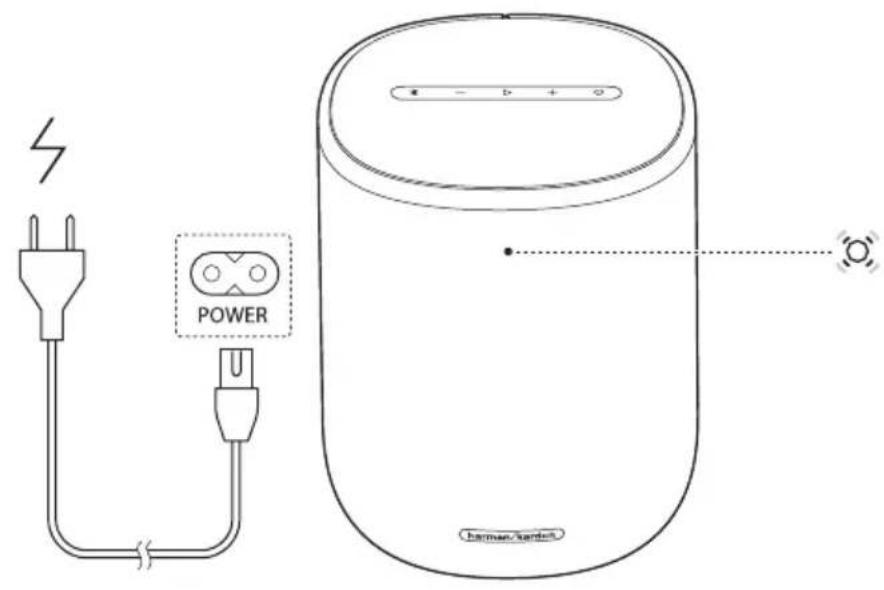

POWER ON

POWER Darmen, cardel

WI-FI SETUP

Nariman-Bandem ONE

On an Android™ or iOS device, add the speaker to your home Wi-Fi network through the Harman Kardon One app. Follow the app instructions to complete setup.

* Some features require subscriptions or services not available in all countries.

Illumina Center ONE

Line drawing of a cylindrical device with a flat top and side buttons (no text or symbols)

Harman Kardon One

GETTON

Google Play

Download on the

App Store

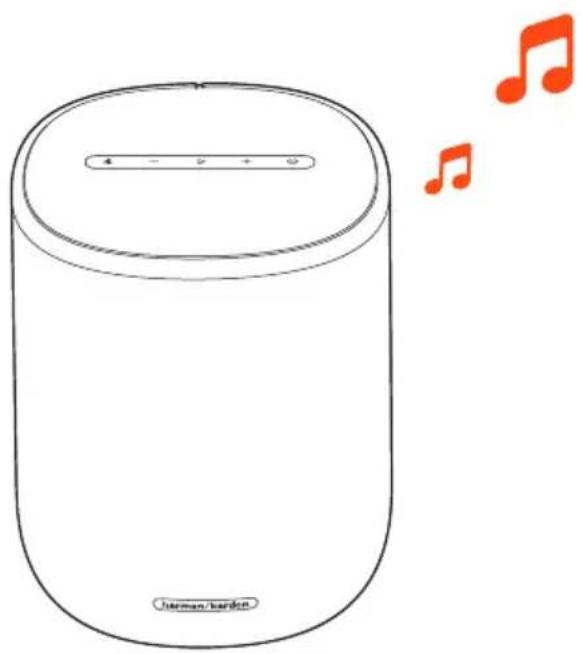

MUSIC STREAMING

harman/kardon ONE

Stream music through the Harman Kardon One app or supported music services.

Chromecast built-in

Works with Apple AirPlay

Spotify

Line drawing of a modern cylindrical speaker with musical notes floating nearby (no text or symbols on the device itself)

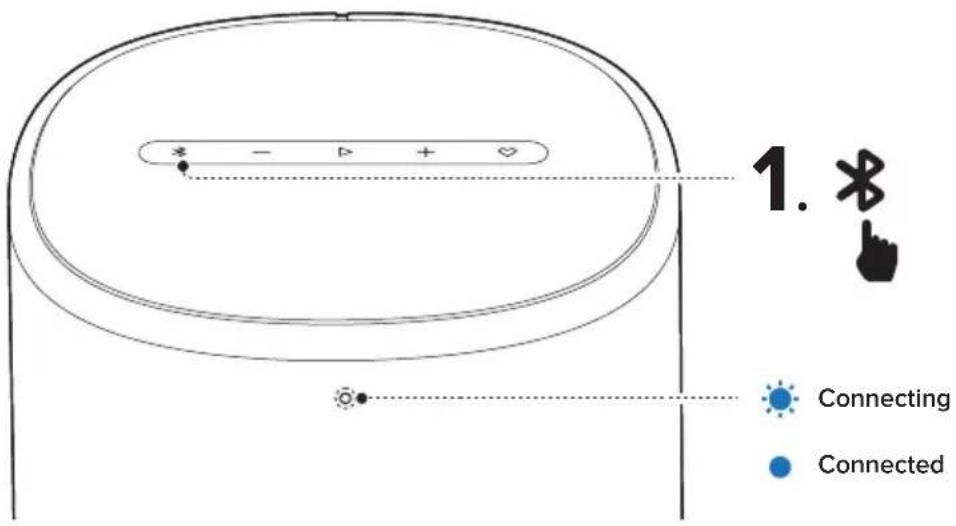

BLUETOOTH PAIRING

1. * Connecting Connected

Music streaming through Bluetooth will pause when you start music streaming through Wi-Fi.

2

SETTINGS DEVICES

Bluetooth

3.

Enchant Speaker

Connected

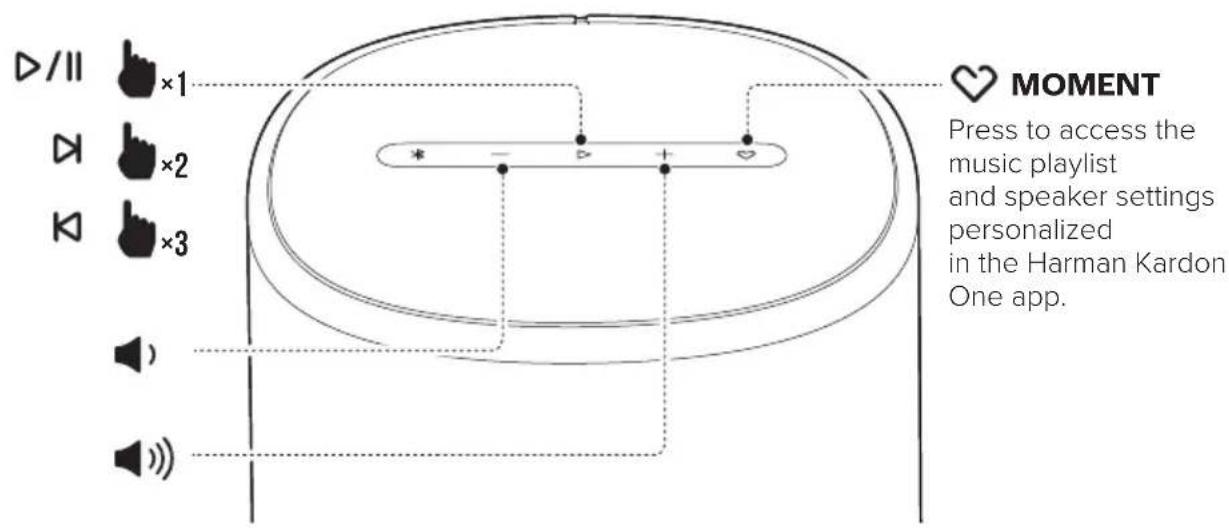

BUTTON CONTROL

MOMENT Press to access the music playlist and speaker settings personalized in the Harman Kardon One app.

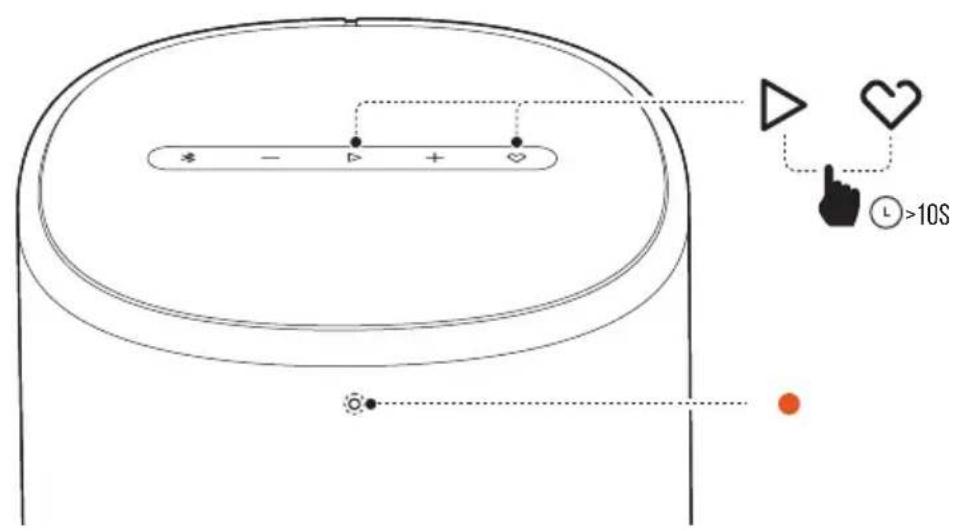

FACTORY RESET

Diagram showing a circular object with control points and directional arrows, including symbols like heart, finger, and time limit indicator.

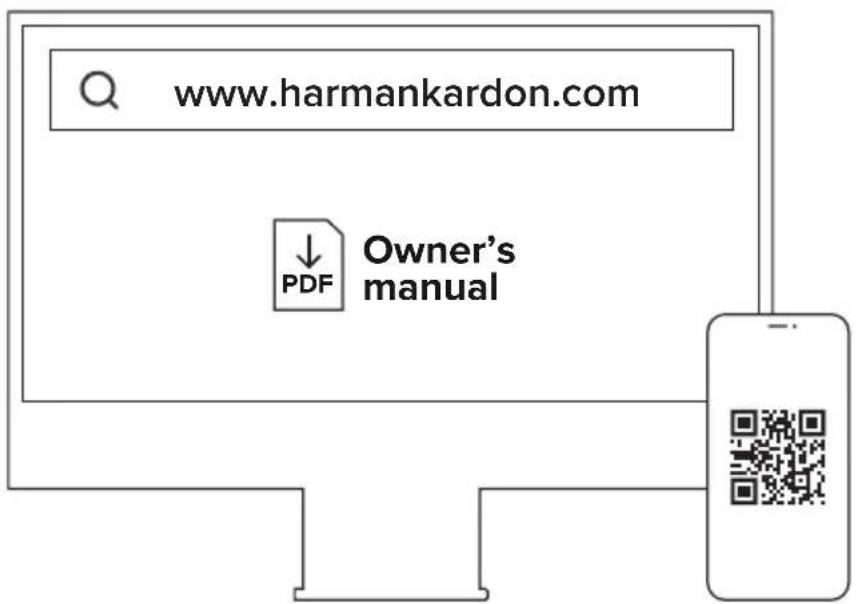

ONLINE SUPPORT

www.harmankardon.com PDF Owner's manual

TECH SPEC

General Specification

• Model: Enchant Speaker
• Power supply: 100 – 240 V AC, \~ 50/60 Hz
- Total speaker power output (RMS @ THD 1%): 90 W
• Transducer: 1x 25 mm tweeter, 1x 92 mm woofer, 2x 50 mm full-range drivers
• Networked standby power: < 2.0 W
- Operating temperature: 0 °C – 45 °C

Audio Specification

• Frequency response: 55 Hz – 20 kHz (-6 dB)

Wireless specification

• Bluetooth version: 5.3
• Bluetooth profile: A2DP 1.3.2, AVRCP 1.5
• Bluetooth transmitter frequency range: 2400 MHz – 2483.5 MHz
• Bluetooth transmitter power: <13 dBm (EIRP)
  • Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)

• 2.4G Wi-Fi transmitter frequency range: 2412 – 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)

• 2.4G Wi-Fi transmitter power: < 20 dBm (EIRP)

- 5G Wi-Fi transmitter frequency range: 5.15 – 5.35 GHz, 5.470 – 5.725 GHz, 5.725 – 5.825 GHz

- 5G Wi-Fi transmitter power: 5.15 – 5.25 GHz < 23 dBm, 5.25 – 5.35 GHz < 20 dBm, 5.470 – 5.725 GHz < 20 dBm, 5.725 – 5.825 GHz < 14 dBm

Dimensions

• Dimensions (W x H x D): 163 x 205 x 163 mm / 6.4" x 8.0" x 6.4"
  • Weight: 2.16 kg / 4.76 lbs
• Packaging dimensions (W x H X D): 212 x 318 x 212 mm / 8.35" x 12.52" x 8.35"
  • Packaging weight: 3.05 kg / 6.72 lbs

Enchant Speaker complies with European Commission Regulation (EC) No 1275/2008 and (EU) No 801/2013 as a networked equipment.

- Bluetooth/Wi-Fi wireless mode Consumers can stream Bluetooth/Wi-Fi audio to the speaker. When the product is connected through Bluetooth/Wi-Fi, the Bluetooth/Wi-Fi connection must remain active at all times to ensure proper operation. The product will enter networked standby after 10 minutes without operation. The power consumption in standby mode is less than 2.0 Watts, after which it can be re-activated via Bluetooth/Wi-Fi connection.

- Bluetooth/Wi-Fi disconnection mode The product will enter standby mode after 10 minutes without operation. The power consumption in standby mode is less than 0.5 Watts.

FR DA

CONTENU DE LA BOÎTE

HVAD ER DER I AESKEN

- Consumo in standby di rete: < 2,0 W

• Temperatura d'esercizio: 0 °C - 45 °C

Specifiche audio

• Transducer: 1x 25 mm tweeter, 1x 92 mm woofer, 2x 50 mm full-range drivers

- 5G Wi-Fi-senderens frekvensrekkevidde: 5,15–5,35 GHz, 5,470–5,725 GHz, 5,725–5,825 GHz

- Effekt for 5G Wi-Fi sender: 5,15–5,25 GHz < 23 dBm, 5,25–5,35 GHz < 20 dBm, 5,470–5,725 GHz < 20 dBm, 5,725–5,825 GHz < 14 dBm

Mål

• Mål (B × H × D):
  163×205×163 mm/6.4"×8.0"×6.4"
  • Vekt: 2,16 kg / 4,76 pund
• Emballasjemäl (B x H x D):
  212 x 318 x 212 mm / 8,35" x 12,52" x 8,35"
• Emballasjevekt: 3,05 kg / 6,72 pund

(EC) Enchant Speaker

הכלהה, iOS is Android

This device complies with Part 15 of the FCC rules and Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAN ICES-3 (B) / NMB-3 (B).

IC Caution:

User should also be advised that:

(i) the device for operation in the band 5150 - 5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems;

(ii) the maximum antenna gain permitted for devices in the bands 5250 - 5350 MHz and 5470 - 5725 MHz shall comply with the e.i.r.p. limit: and

(iii) the maximum antenna gain permitted for devices in the band 5725 - 5825 MHz shall comply with the e.i.r.p. limits specified for point-to-point and

non point-to-point operation as appropriate.

(iv) Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the bands 5250 - 5350 MHz and 5650 - 5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and/or damage this device. No configuration controls are provided for this wireless equipment allowing any change in the frequency of operations outside the FCC grant of authorization for US operation according to Part 15.407 of the FCC rules.

Use Restriction: This device is restricted to indoor use when operating in the 5150 to 5350 MHz frequency range in following countries:

	BE	EL	LT	PT
	BG	ES	LU	RO
	CZ	FR	HU	SI
	DK	HR	MT	SK
	DE	IT	NL	FI
	EE	CY	AT	SE
	IE	LV	PL	UK(NI)

Belgium (BE), Greece (EL), Lithuania (LT), Portugal (PT), Bulgaria (BG), Spain (ES), Luxembourg (LU), Romania (RO), Czech Republic (CZ), France (FR), Hungary (HU), Slovenia (SI), Denmark (DK), Croatia (HR), Malta (MT), Slovakia (SK), Germany (DE), Italy (IT), Netherlands (NL), Finland (FI), Estonia (EE), Cyprus (CY), Austria (AT), Sweden (SE), Ireland (IE), Latvia (LV), Poland (PL), United Kingdom (UK) and Northern Ireland (UK (NI)).

This product contains open source software licensed under GPL. For your convenience, the source code and relevant build instruction are also available at https://harman-webpages.s3.amazonaws.com/Harman_One_OS_package_license_list.htm

Please feel free to contact us at:

[e-mail]_if you have additional question regarding the open source software in the product.

ANATEL

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.

CERTIFIED

Wi-Fi CERTIFIED 6 ^™ and the Wi-Fi CERTIFIED 6 ^™ Logo are trademarks of Wi-Fi Alliance ^® .

Dolby Atmos

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved.

works with Google Home

Chromecast built-in

Google, Android, Google Play, Chromecast built-in, and Google Home are trademarks of Google LLC. Google Assistant is not available in certain languages or countries.

Works with Apple AirPlay

Use of the Works with Apple badge means that an accessory has been designed to work specifically with the technology identified in the badge and has been certified by the developer to meet Apple performance standards. Apple, and AirPlay are trademarks of Apple Inc., registered in the U.S. and other countries and regions.

To use AirPlay with Harman Kardon Enchant Speaker, the latest version of iOS, iPadOS, or macOS is recommended.

Spotify

Use your phone, tablet or computer as a remote control for Spotify. Go to spotify.com/connect to learn how.

The Spotify Software is subject to third party licenses found here: https://www.spotify.com/connect/third-party-licenses.

ENCHANT SPEAKER

harman/kardon HARMAN

MIX

Paper | Supporting responsible forestry

FSC™ C010953

HA_HK Enchant Speaker_OSG_Global_SOP_V22
