USER MANUAL Milano MLWC82ZG BORETTI

Exterior view of a modern kitchen appliance with black shelves and ventilation grilles (no visible text or symbols)

MANUAL MANUAL

MLWC82GR/MLWC82ZGMLWC82GR/MLW

EN | USER MANUAL

Congratulations! You are the official owner of a Boretti wine cabinet. In the years to come you will discover that the use of a Boretti wine cabinet gives a new dimension to cooling. We advise you to read this manual carefully before taking the cabinet in use to get to know all the ins and outs of this beautiful appliance. Please inform us if you have any questions. You are welcome to visit our Experience Center anytime, we are happy to inspire and help with your questions.

We wish you a lot of cooling pleasure! Enjoy the aperitivo's and dinners like never before!

Boretti

Product Registration

To register ownership, please ensure you complete the online registration form www.boretti.com.

Contents

* 1. Important safety issues....6
* 2. Installation....11
* 3. Usage of product....16
* 4. Care & Cleaning .... 22
* 5. Troubleshooting....23

1. Important safety issues

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
  • Children aged from 3 to 8 years are allowed to load and unload the appliance provided that they have been properly instructed.
  • Children of less than 3 years of age should be kept away from the appliance unless continuously supervised

1.1 Safe installation

1.1.1 WARNING: Risk of Electric Shock

Incorrect installation is dangerous.

• Connect and operate the appliance only in accordance with the specifications on the rating plate.
• Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.
• The protective conductor system of the domestic electrical installation must be properly installed.
• Never equip the appliance with an external switching device, e.g. a timer or remote control.
• When the appliance is installed, the mains plug of the power cord must be freely accessible. If free access is not possible, an isolating switch must be integrated into the permanent electrical installation according to the installation regulations.
• When installing the appliance, check that the power cable is not trapped or damaged.

If the insulation of the power cord is damaged, this is dangerous.

- Never let the power cord come into contact with heat sources.

1.1.2 WARNING: Risk of Fire

It is dangerous to use an extended power cord and non-approved adapters.

• Do not use extension cables or multiple socket strips.
• Only use adapters and power cords approved by the manufacturer.
• If the power cord is too short and a longer one is not available, please contact an electrician to have the domestic installation adapted.

Portable multiple socket strips or portable power supply units may overheat and cause a fire.

- Do not place portable multiple socket strips or power supply units on the back of the appliance

1.1.3 WARNING: Risk of explosion

If the appliance's ventilation openings are sealed, a leak in the refrigeration circuit may result in a flammable mixture of gas and air.

- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

1.2 Safe use

1.2.1 WARNING: Risk of electric shock

An ingress of moisture can cause an electric shock.

• Only use the appliance in enclosed spaces.
• Never expose the appliance to intense heat or humidity.
• Do not use steam- or high-pressure cleaners to clean the appliance.

1.2.2 WARNING: Risk of suffocation

Children may put packaging material over their heads or wrap themselves up in it and suffocate.

• Keep packaging material away from children.
• Do not let children play with packaging material.

Children may breathe in or swallow small parts, causing them to suffocate.

• Keep small parts away from children.
• Do not let children play with small parts.

1.2.3 WARNING: Risk of explosion

If the cooling circuit is damaged, flammable refrigerant may escape and explode.

• To accelerate the defrosting process, do not use any other mechanical devices or means other than those recommended by the manufacturer.
- If food is stuck to the freezer compartment, loosen it with a blunt implement such as the handle of a wooden spoon.

Products which contain flammable propellants and explosive substances may explode, e.g. spray cans.

- Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance.

1.2.4 WARNING: Risk of fire

Electrical devices within the appliance may cause a fire, e.g. heaters or electric ice makers.

- Do not operate electrical devices within the appliance.

1.2.5 WARNING: Risk of Injury

Injury to the eyes caused by escaping flammable refrigerant and hazardous gases.

- Do not damage the tubes of the refrigerant circuit or the insulation.

1.3 Damaged appliance

1.3.1 WARNING: Risk of Electric Shock

If the appliance or the power cord is damaged, this is dangerous.

• Never operate a damaged appliance.
• Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
• If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.
• Call customer services.

Incorrect repairs are dangerous.

- Repairs to the appliance should only be carried out by trained specialist staff.

- Only use genuine spare parts when repairing the appliance.

- If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk

1.3.2 WARNING: Risk of Fire

If the tubes are damaged, flammable refrigerant and harmful gases may escape and ignite.

• Keep naked flames and ignition sources away from the appliance.
• Ventilate the room
• Switch off the appliance.
• Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.
• Call after-sales service.

1.4 Environmental protection

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. This appliance is marked according to the European directive on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent

Symbol of a trash bin crossed out by two diagonal lines, with no text or numbers present.

potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local council, your household waste disposal service or the retailer where you purchased the product.

CE declaration of confirmity

Hereby, Boretti B.V. declares that this appliance has been manufactured to the standards of the CE guidelines and directives applicable for CE conformity.

Warranty

Your new wine cabinet is covered by warranty. Registration can be completed online by visiting www.boretti.com. Spare parts are only available from Boretti Service department and spare part authorized resellers.

Technical fiche

This appliance conforms to all current and applicable energy regulations. To view the Technical Fiche that supports the energy labelling data, please visit the product page on our website www.boretti.com. Or scan the QR-code to contact the EPREL database.

MLWC82GRAN

MLWC82GRZW

MLWC82ZGAN

MLWC82ZGZW

2. Installation

2.1 Before use

Before connecting the wine cabinet to the power source, let it stand upright for at least 6 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.

Clean the interior surface with lukewarm water using a soft cloth.

Read the instructions supplied with the appliance – failure to install or use of the appliance in accordance with the instructions may invalidate any warranty.

Boretti does not accept any liability for damage caused through improper use, or incorrect installation. Do not install this appliance if it has been damaged during transportation. This includes the plug and supply cord.

Please keep these instructions in a safe place for future reference.

2.2 Installation of the wine cabinet

1. Place you wine cabinet on a flat floor that is strong enough to support it when it is fully loaded.
2. This appliance uses flammable refrigerant. Never damage the cooling pipework during transportation and installation.
3. Locate the wine cabinet away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly.
4. Avoid locating the unit in moist areas.
5. Put the plug of the wine cabinet into an appropriate socket. Should the plug require changing, get help from a qualified service technician.
6. Ensure the product is correctly ventilated (See section 1.3).
7. Plug the wine cabinet into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) pin from the plug. Any questions concerning power and/or grounding should be directed toward a certified electrician or Customer Service Boretti.

2.3 Ventilation

The MLWC82ZG and MLWC82GR is already equipped with a vent slot on the front side. This model is also recessed to fit a kitchen plinth. If fitting a kitchen plinth is desired, please remove the air grid by removing both screws in front. A 55mm high vent slot is required in the plinth to ensure air is able to ventilate properly. See the diagram below.

Failure to include this vent slot will invalidate the guarantee. Please note that the appliance doesn't come with a grille which slots-onto the kitchen plinth.

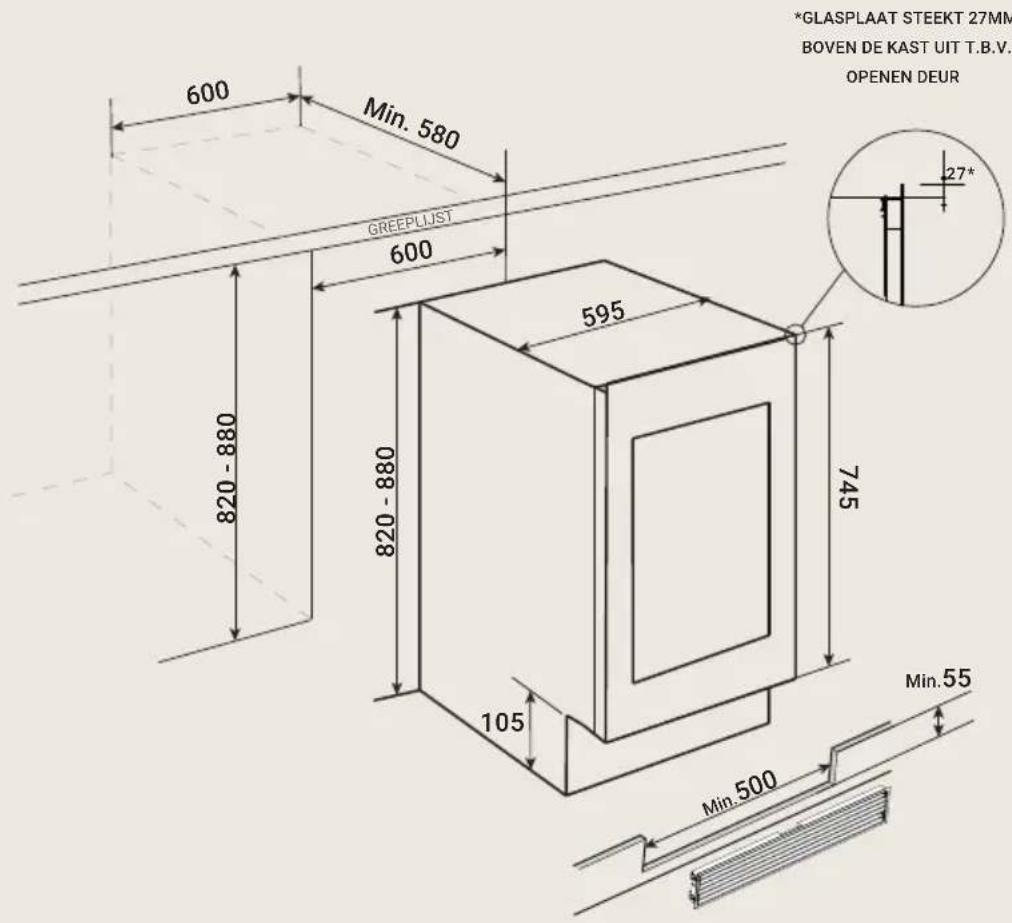

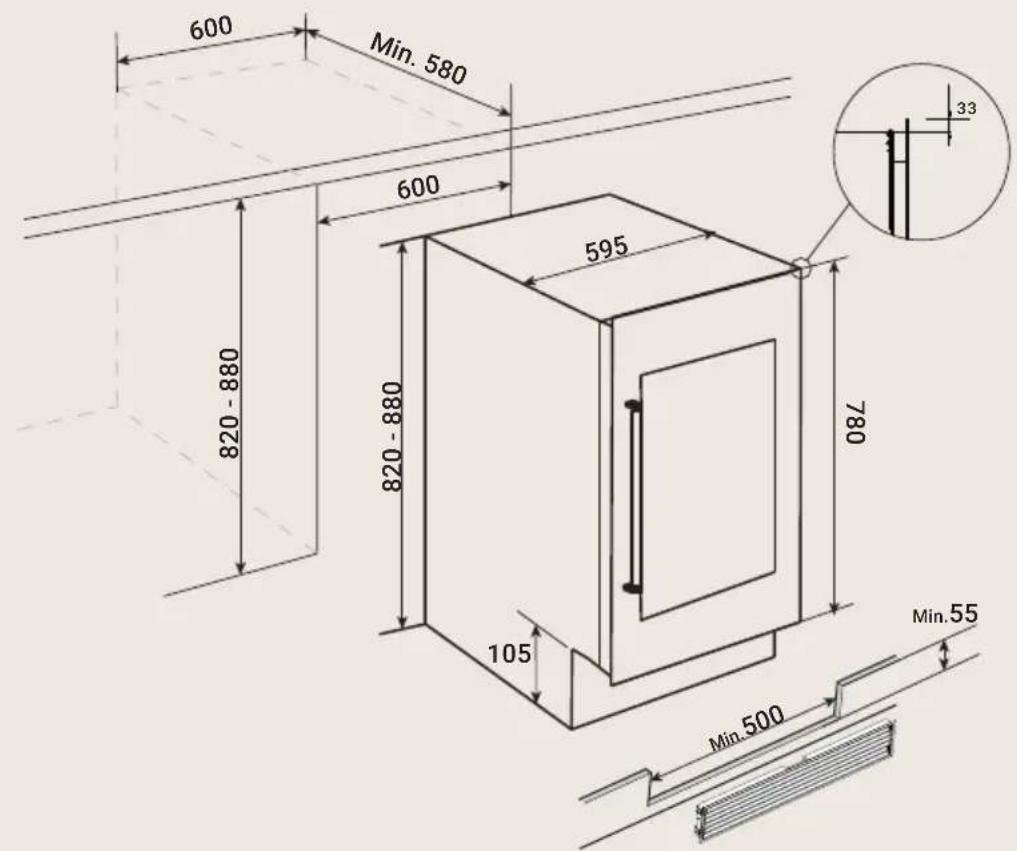

2.4 Appliance dimensions

600 Min. 580 600 820 - 880 820 - 880 595 780 105 Min.500 33 Min.55

MLWC82GR

600 Min. 580 GREEPLIJST 600 820-880 820-880 595 745 105 Min.500 *GLASPLAAT STEEKT 27MM BOVEN DE KAST UIT T.B.V. OPENEN DEUR 27*

MLWC82ZG

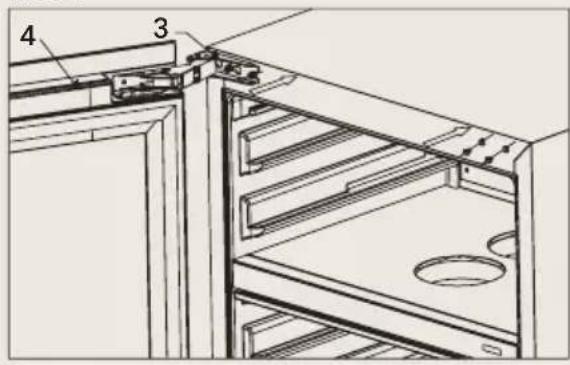

2.5 How to change the door opening MLWC82ZG (No handle)

Technical diagram of a refrigerator interior with labeled parts 3, 4, and 5

FIG. B

Technical diagram of a refrigerator interior with labeled parts 3 and 5

FIG. C

Technical diagram of a refrigerator interior with labeled parts 3 and 4

FIG. D

1 2 3 4

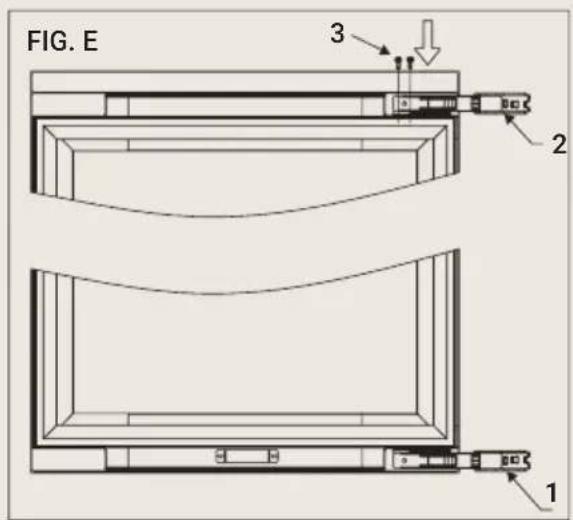

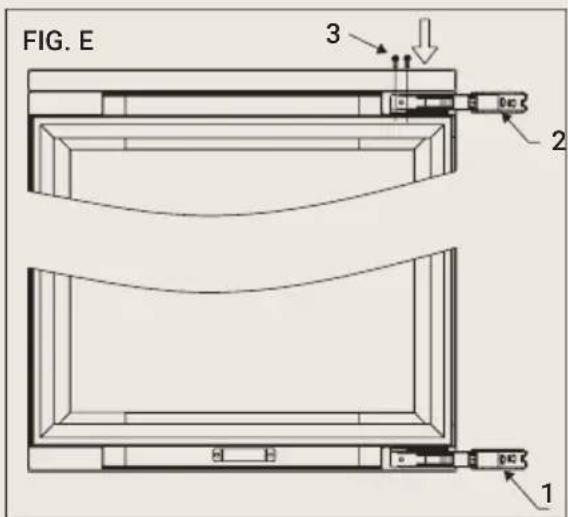

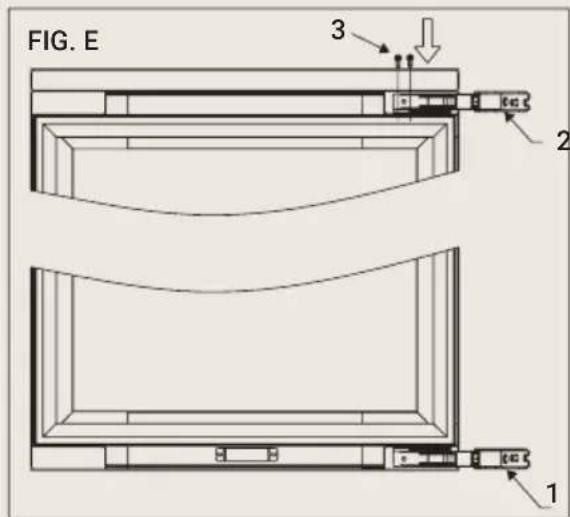

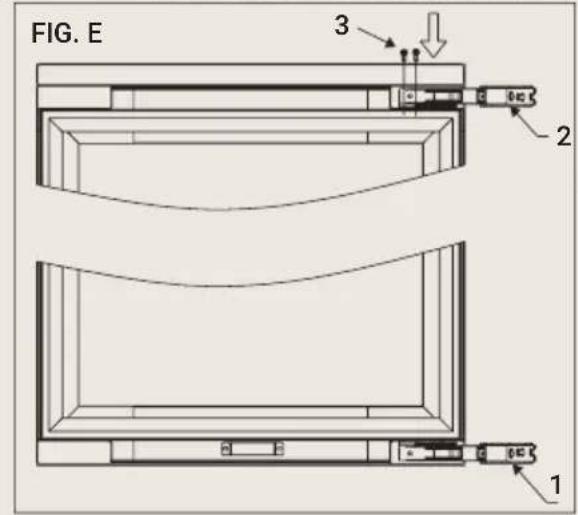

FIG. E 3 2 1

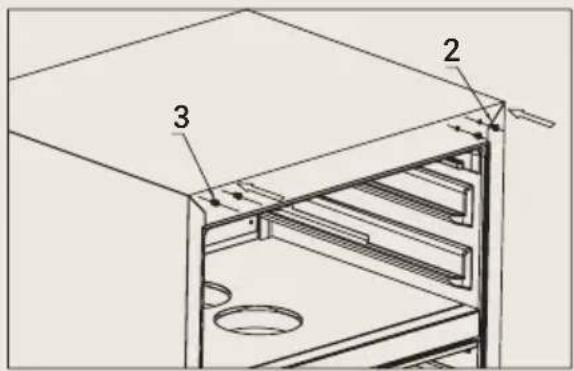

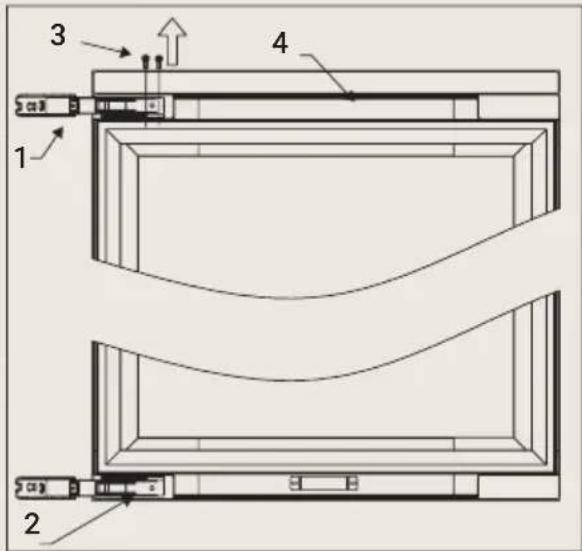

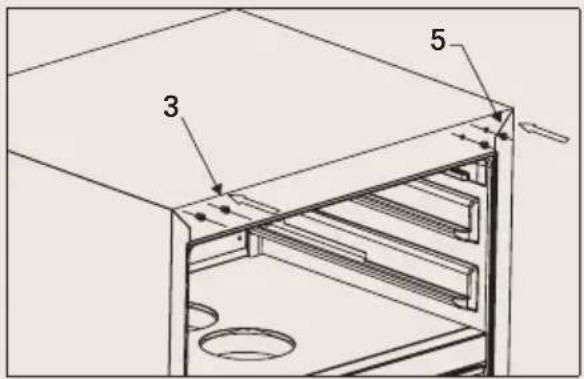

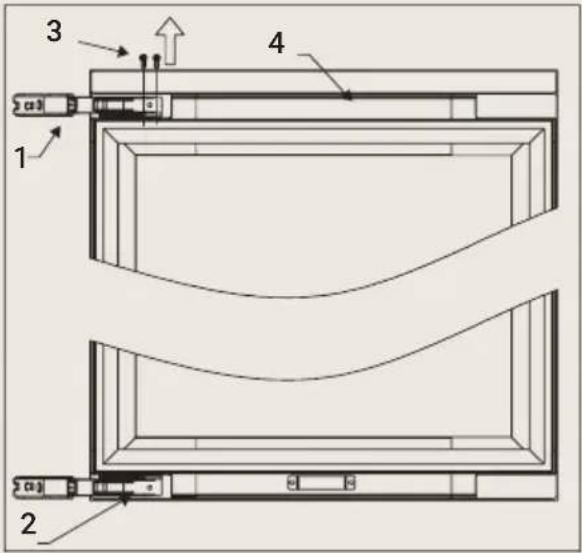

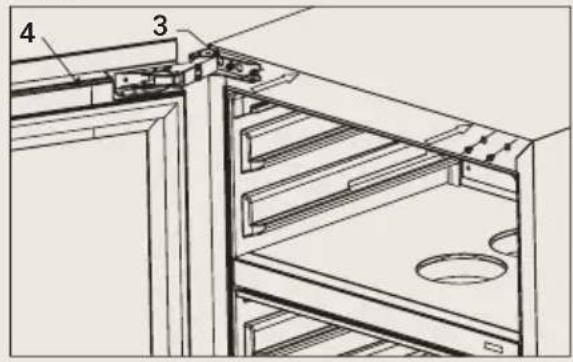

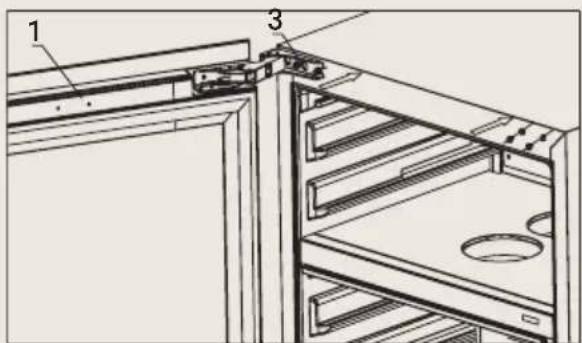

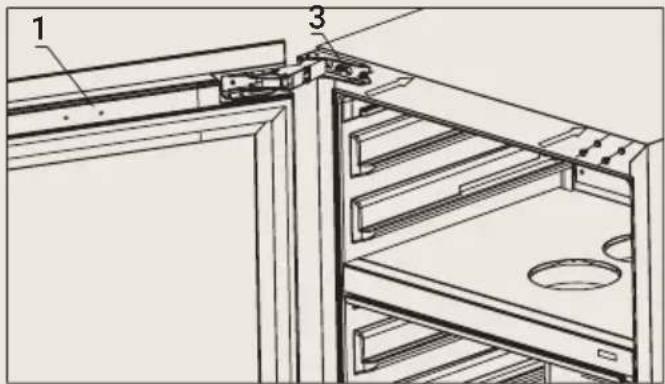

1. Open the door and remove the decorative nail (5) on the left side (Fig.A).

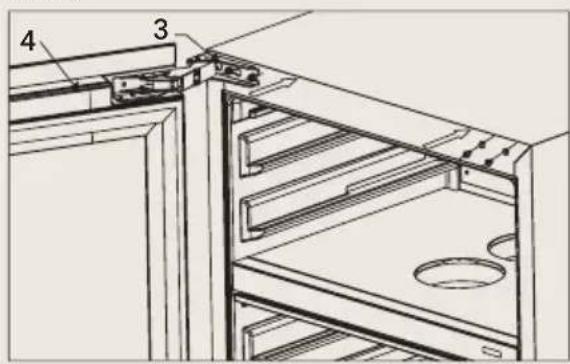

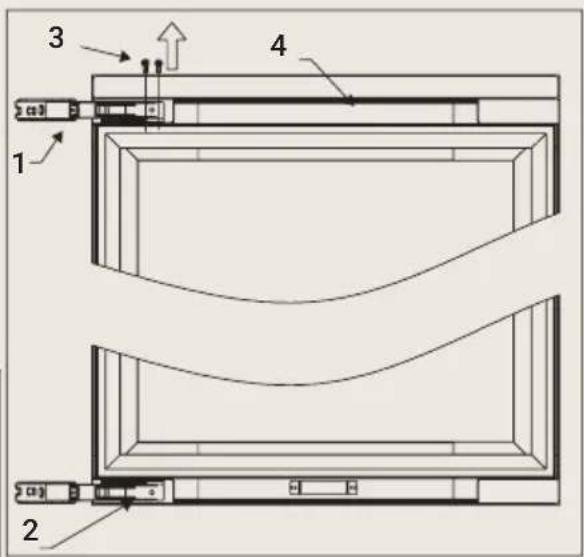

2. Remove all screws from the upper and lower hinge, and then remove the door (Fig.A).
3. Install the door hinge removal in the lower left corner of the door, and the lower hinge removal in the upper left corner of the door (Fig.D, E).

4. Fix the screw in the upper left corner of the case, and be careful not to tighten it (Fig.B).

5. Put the door hinge into the screw in the upper left corner, align with the slot, and tighten the screw to ensure that the door hinge is tight (Fig.C).

6. Install the decorative nail (5) in the upper right corner of the box (Fig.C).

2.6 How to change the door opening MLWC82GR (with handle)

1. Door

2. Decorative nails

3.Screws

4/5. Hinges

1. Door lamp tablet

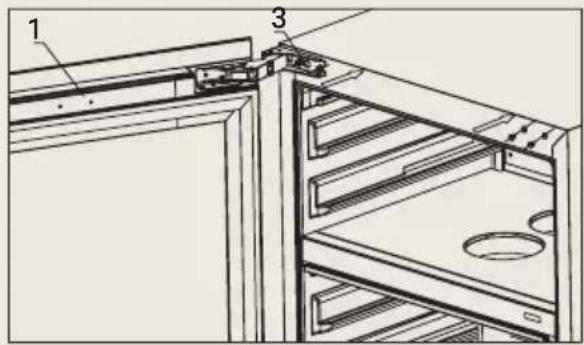

FIG. A

Technical diagram of a refrigerator interior with labeled components 1, 2, and 3

FIG. B

Technical diagram of a cabinet or rack system with labeled components 1, 2, and 3

FIG. C

Technical diagram of a cabinet or rack system with labeled components 1, 2, and 3

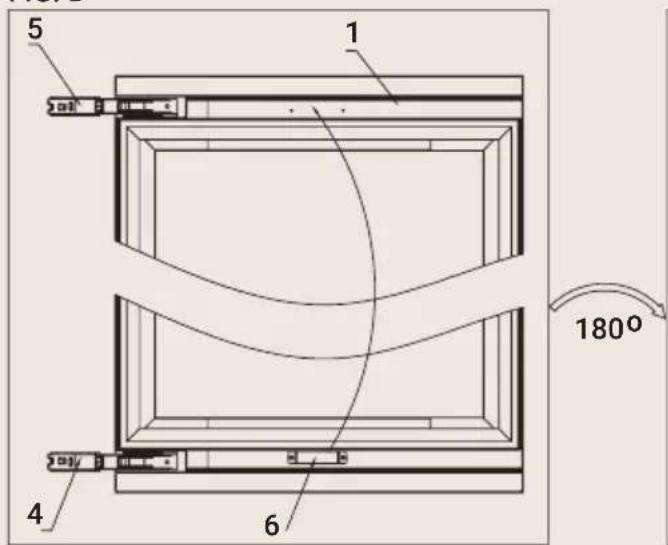

FIG. D

5 1 4 6 180°

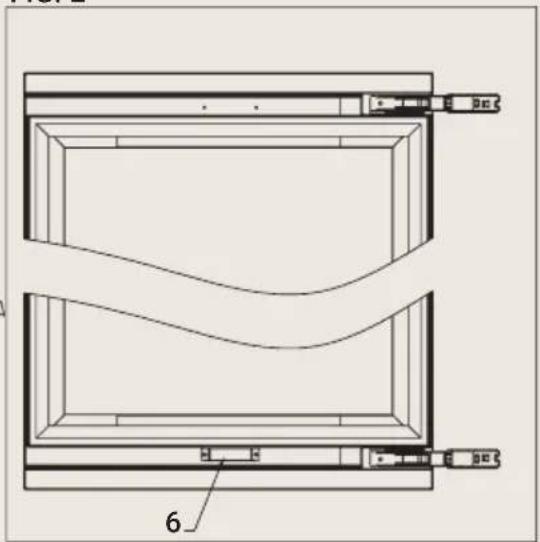

FIG. E

Technical line drawing of a mechanical component with labeled parts (no text or symbols)

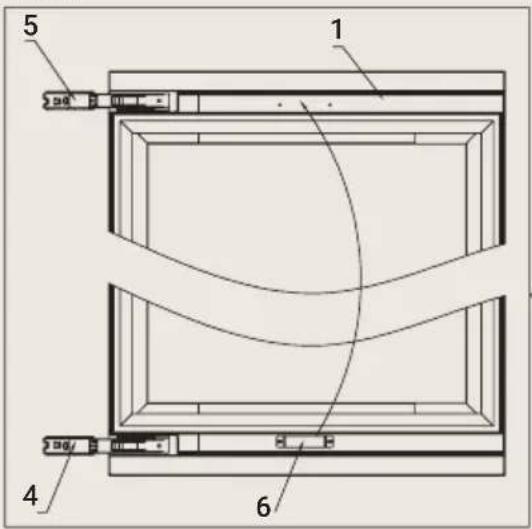

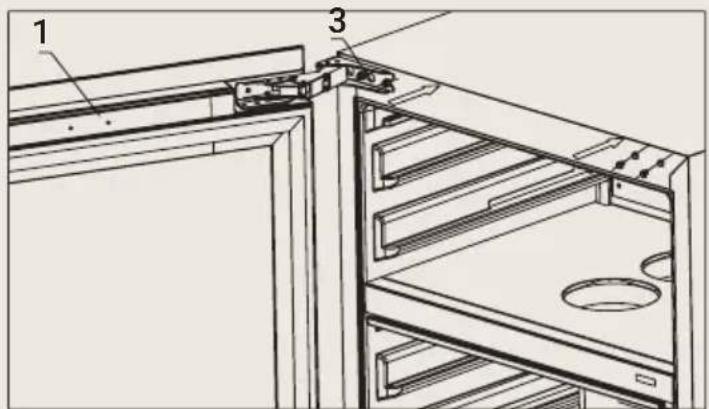

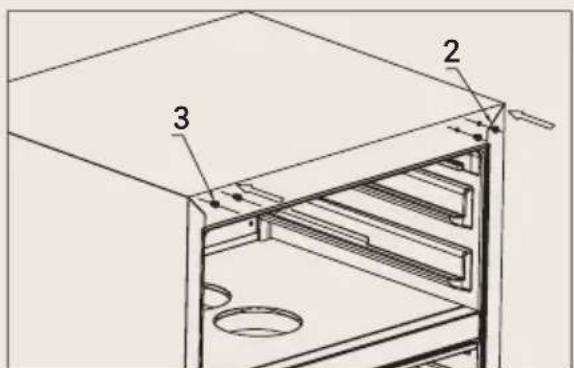

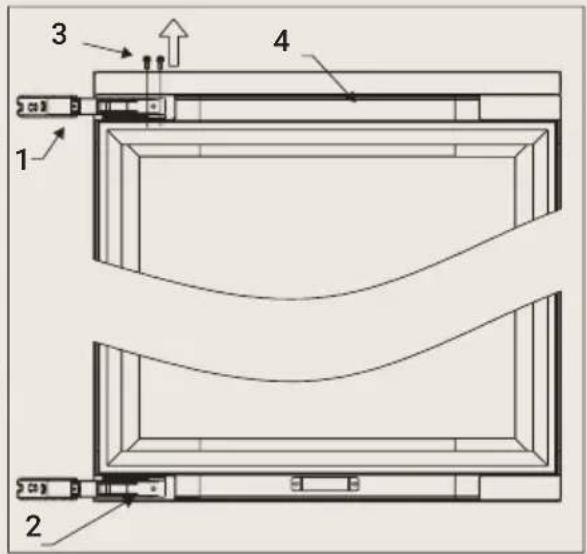

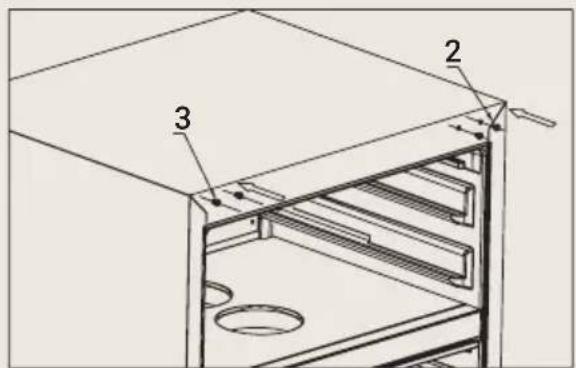

1. Open the door and remove the decorative nail (2) on the left side (Fig.A)
2. Remove all screws from the upper and lower hinge, and then remove the door (Fig.A).

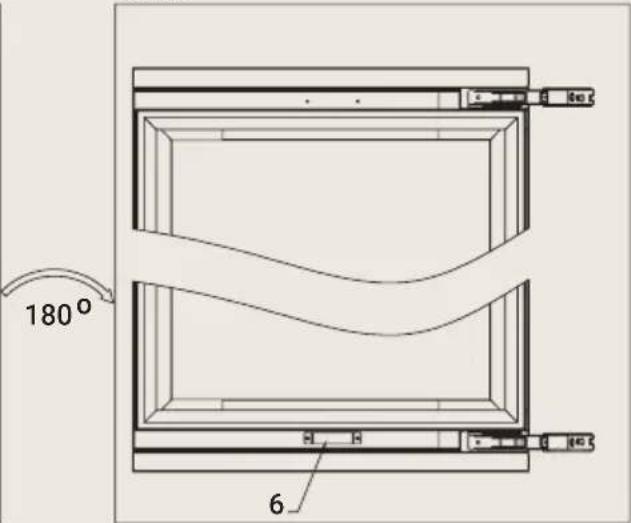

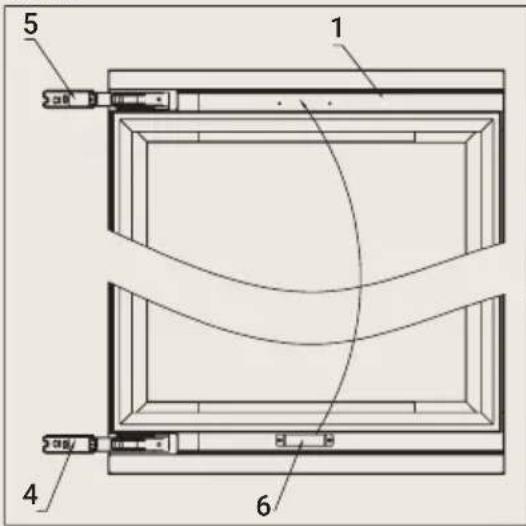

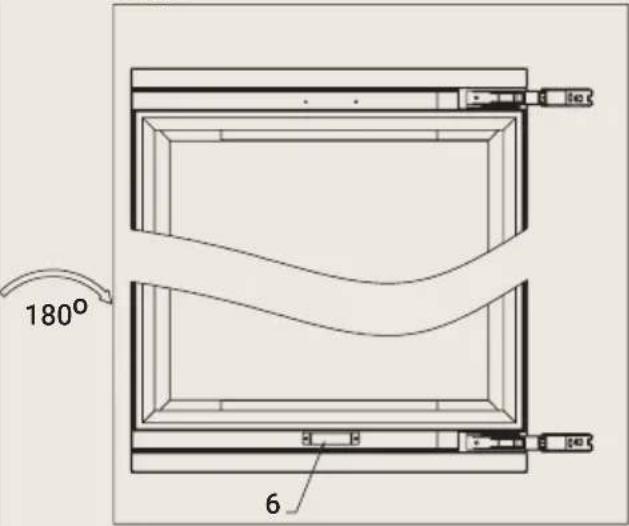

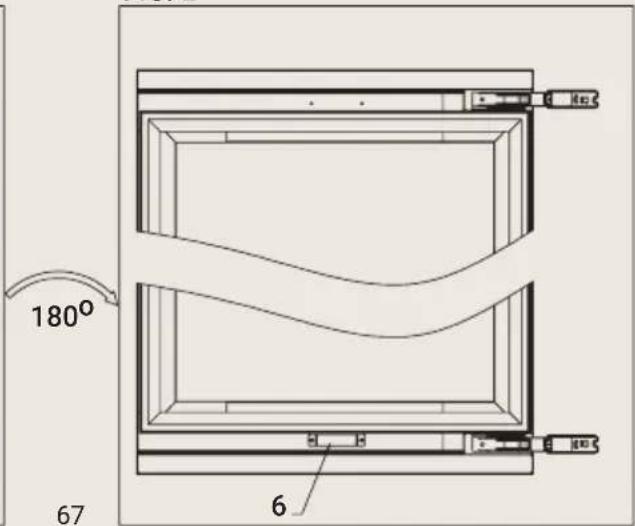

3. Press the door lamp tablet (6) Remove and install it on the upper door frame, and then rotate the door 180 degrees (Fig.D, E).
4. Fix the screw in the upper left corner of the case, and be careful not to tighten it (Fig.B).
5. Put the door hinge into the screw in the upper left corner, align with the slot, and tighten the screw to ensure that the door hinge is tight (Fig.C).
6. Install the decorative nail (2) in the upper right corner of the box (Fig.C).

2.7 Installing the appliance

Place you wine cabinet on a floor that is strong enough to support it when it is fully loaded. The kitchen unit must be aligned horizontally and vertically.

You will need to install a furniture door frame to the front of the wine cabinet once wine cabinet has been installed.

The furniture door frame can be custom made (by the kitchen reseller) to line up with your other furniture doors in the kitchen. The door must be finished on both sides in order to prevent warping.

Steps

1. If you want to adjust the height over 820mm, please install the product using the foot sliders provided. These are provided to help prevent the feet catching on the floor when sliding the appliance into the aperture.

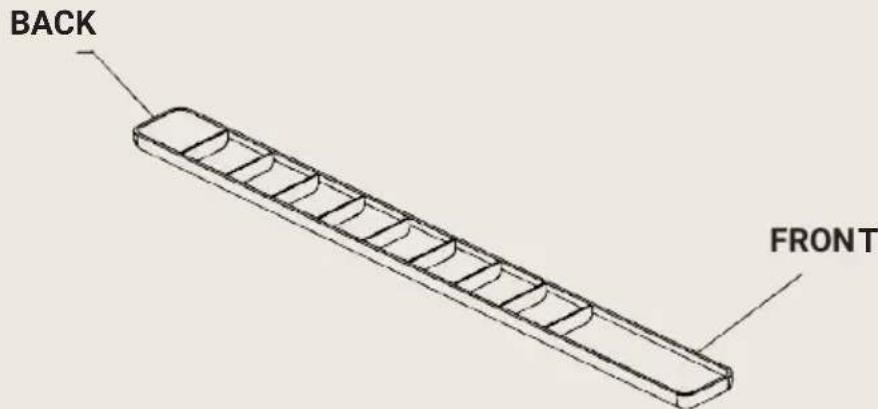

BACK FRONT

1. To level your wine cabinet, adjust the front and back by leveling adjustable legs at the bottom of the cabinet (to 4mm less than the recess or handlebar height). Ensure it's perfectly leveled, as this will minimize any vibrations and noises.
2. Slide in the appliance until the front surface of the appliance door is behind

the cabinet fronts. Place the furniture door frame on the cabinet to determine the right installation depth. Please make sure when sliding in the appliance, that the power supply cord is not damaged.

1. The included bracket will keep the product secure and help prevent it moving when in use. Line the fixing bracket with the two holes at the top of the wine cabinet. Use the screws to secure into position. Use the screws to secure the bracket to the side of the kitchen cabinet.

2.8 Permitted room temperature

The permitted room temperature depends on the appliance's climate class. The climate class can be found on the rating plate.

Climate Class Permitted room temperature
SN 10°C - 32°C
N 16°C - 32°C
ST 16°C - 38°C
T 16°C - 43°C
SN-ST 10°C - 38°C
SN-T 10°C - 43°C

The appliance is fully functional within the permitted room temperature. If an appliance with climate class SN is operated at colder room temperatures, the appliance will not be damaged up to a room temperature of 5^ C.

3. Usage of product

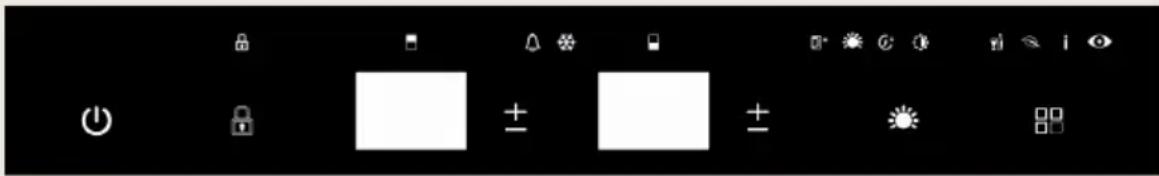

3.1 Touch control keys and symbols

User interface toolbar with icons for zoom, lock, balance, and display functions

To switch the wine cabinet on/off. Press and hold this button for approximately 1 second to turn the wine cabinet on. Press and hold this button for approximately 3 seconds to turn the wine cabinet off.

To turn the lock function on/off. Press and hold this button for approximately 3 seconds to activate/deactivate. When activated the symbol will illuminate.

+/- Press this button to raise the temperature in 1 °C increments. Once the temperature reaches the highest temperature value for the upper zone or lower zone, it will revert back to its lowest temperature value.

■ Upper zone = 5 -10°C

☐ Lower zone = 10 -18°C

Once the required temperature is selected, the LED display will temporarily flash for 5 seconds, then reverts back to the normal display, and the temperature is now set.

Note

Press and hold +/- for 3 seconds, to change the display from °C to °F.

This button is used to toggle between the different light functions. When selected, the relevant symbol will illuminate:

The internal light will switch on when the door is opened, and off when the door is closed.

The internal light is continuously on. However after 3 minutes the light will dim.

The internal light will remain on for 10 minutes once the door is closed and then turn off.

This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until crashes. Then use the +/- keys to adjust

the brightness of the internal light.

This Button is used to toggle between the different operational functions. When selected the relevant symbol will illuminate:

Standard Mode – Select this function to operate the wine cabinet in standard mode.

ECO Mode – An energy saving mode where both the inner light and control panel lights are off. The LED display is also switched off, until you change the temperature using the +/- and +/- keys, this will be displayed for 5 seconds and then switch off again. The compressor is also delayed 5 minutes in order to save energy.

Intelligent mode – In Intelligence mode, the wine cabinet will adjust the fan speed according to the ambient temperature. This will reduce noise levels and save money.

DEMO Mode – When Demo mode is selected, the compressor and PTC heater will be disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is also disabled during DEMO mode.

The cooling symbol will illuminate to show when the wine cabinet is currently cooling.

The alarm symbol will illuminate to show the alarm is on. This will activate when either the door has been left open for a long period of time, or the temperature has fluctuated too high or low (HI or LO will also show in display to confirm this).

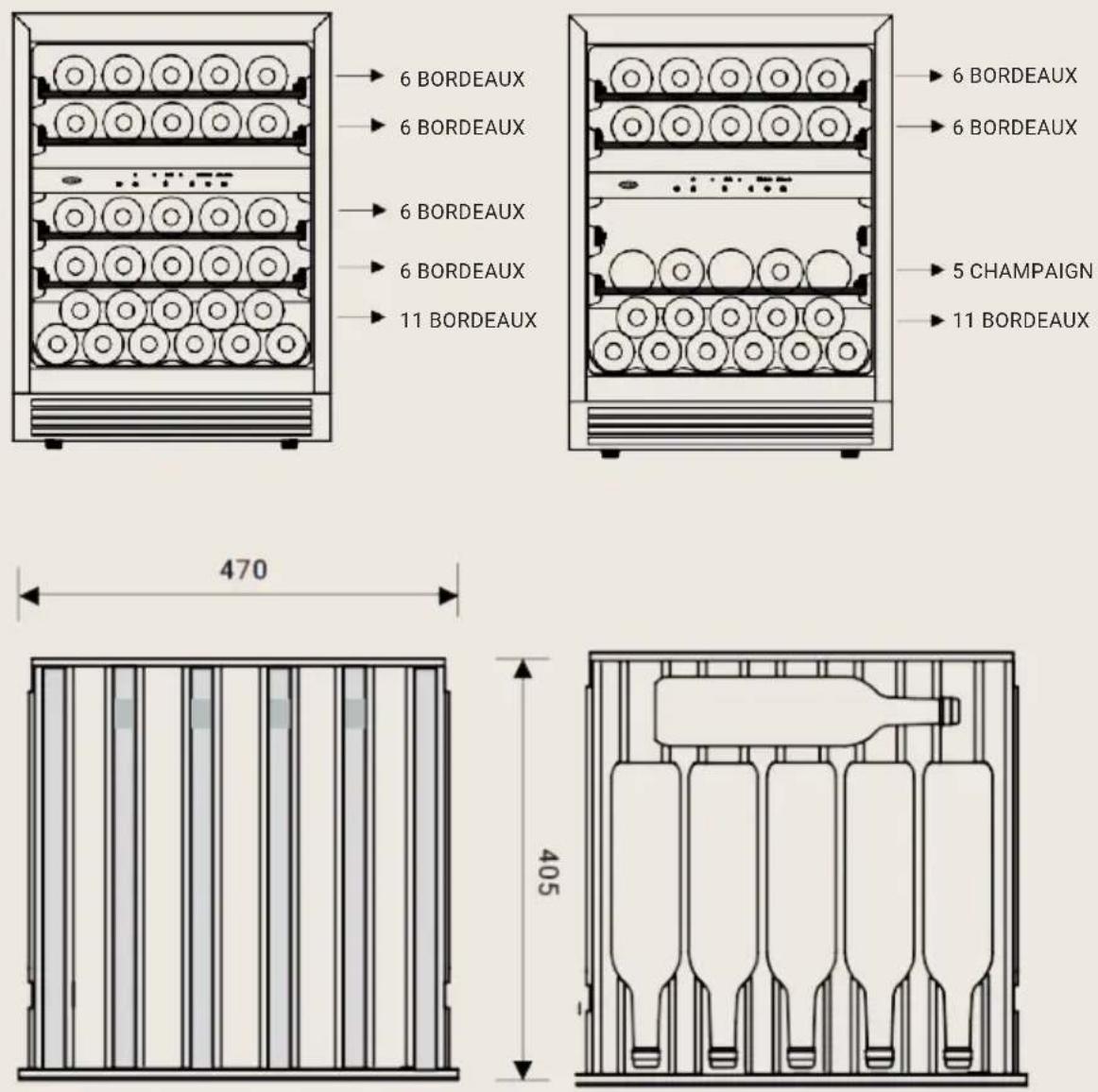

3.2 Bottle Staking / Loading graphics

The maximum storage capacity for Bordeaux style of bottles (0,75L) is 35 bottles. It is possible to store Champaign / Magnum size bottles. To make this possible, the upper rack in the lowest zone needs to be removed. Please see section 2.4 how storage racks can be removed.

Note:

If you wish to store other type of bottles, the maximum storage capacity will be less than as shown above.

3.3 Bottle Staking / Loading graphics

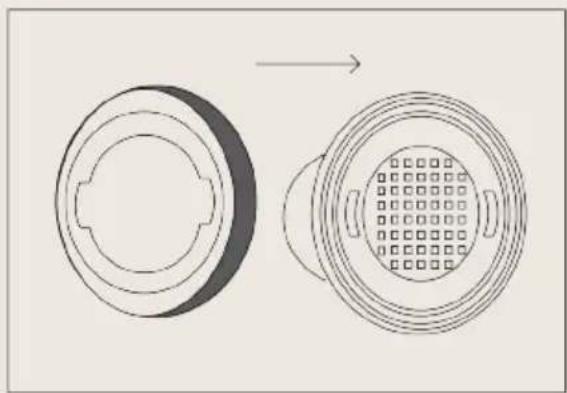

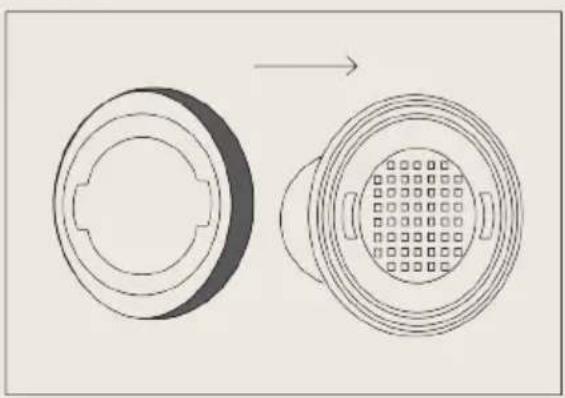

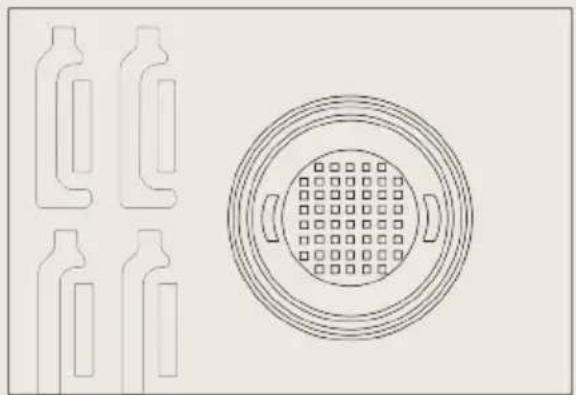

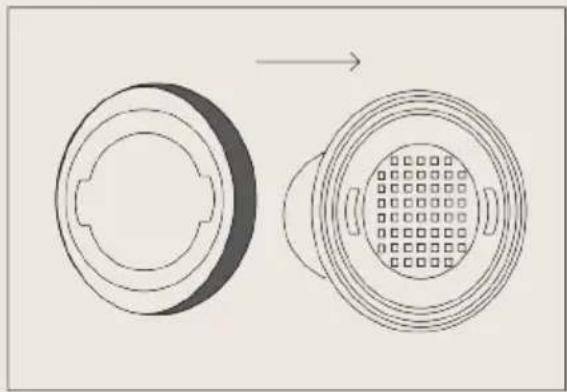

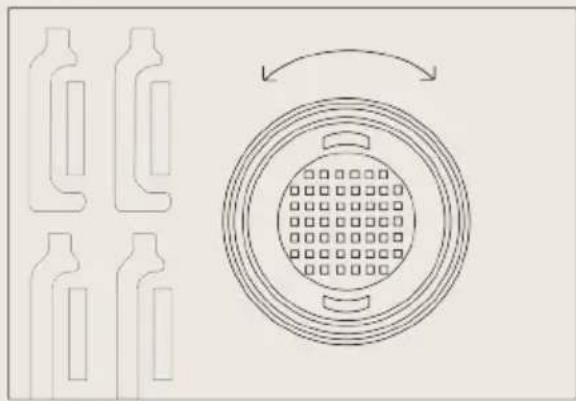

All MLWC82 models are fitted with a charcoal filter, which ensure optimum air quality within the appliance. The charcoal filter should be replaced every 6-9 months depending on the unit's exposure level to odour.

1. Open the door and remove the top 2 shelves (see removing the shelves).
2. Turn the filter as per Fig A.
3. As per Fig B, the filter should line up with the notches as shown.
4. Pull filter out as per Fig. C.
5. Insert replacement filter and twist as per Fig. A to lock into position.
6. Re-install the shelves.

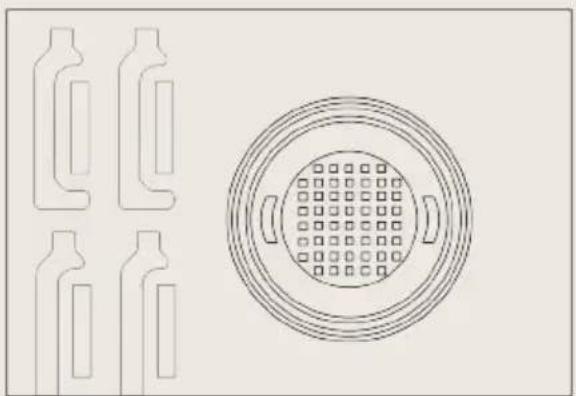

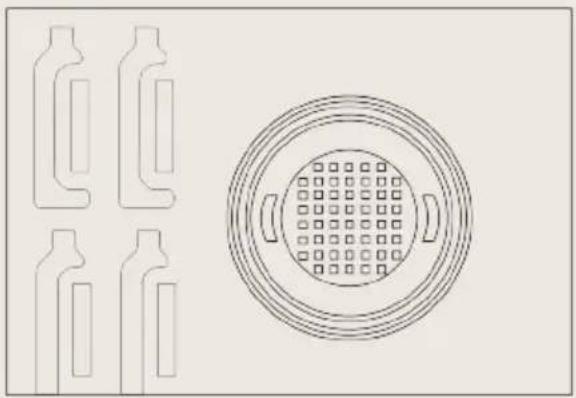

FIG. A

Diagram showing plastic bottle shapes and a circular pipe with grid pattern, no text or symbols present

FIG. B

Technical line drawing of a circular component with grid pattern, flanked by four plastic bottle outlines (no text or symbols)

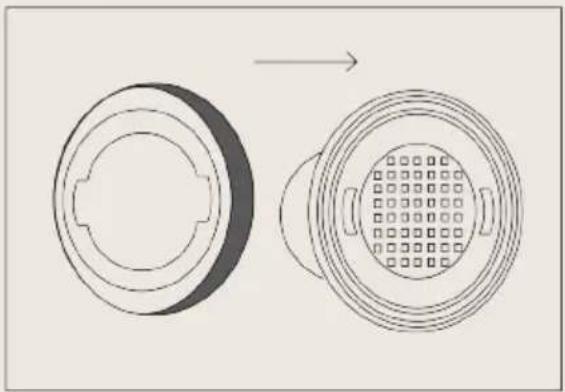

FIG. C

Diagram showing a circular component being converted into a grid-patterned circular component (no text or symbols)

3.4 Using and removing the bottle racks

To prevent damaging the door gasket, make sure to have the door opened fully when pulling shelves out of the rail compartment. The shelves are attached to telescopic rail system for easy stacking or pulling out bottles.

Glass shelves are available if you wish to store cans or smaller bottles in your wine cabinet. These can be purchased directly from www.boretti.com

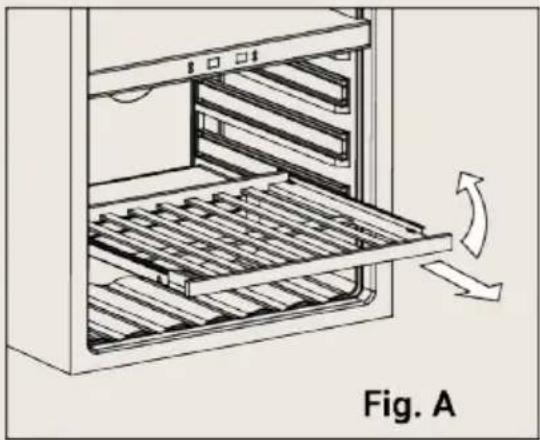

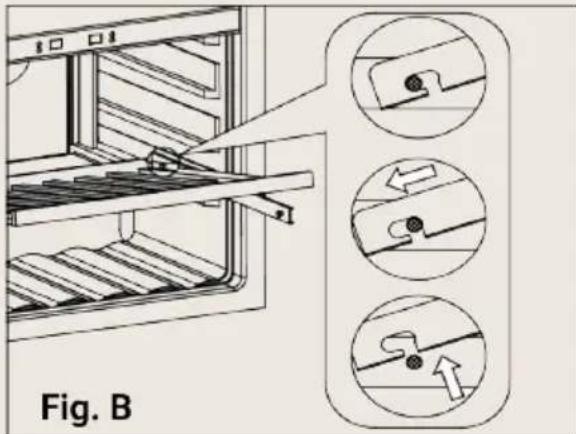

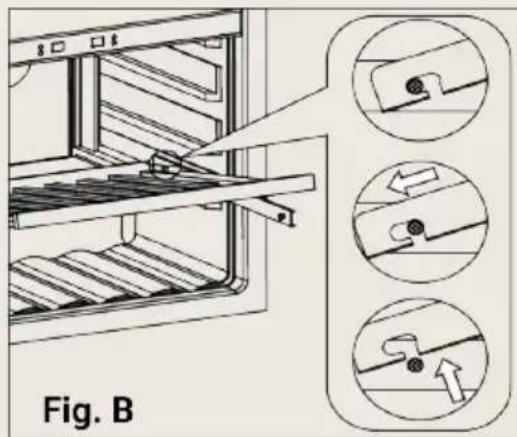

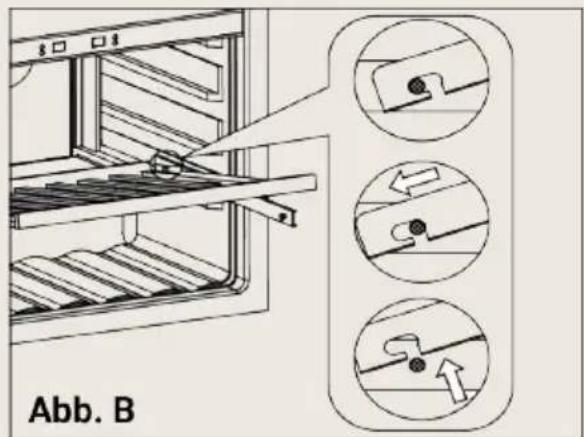

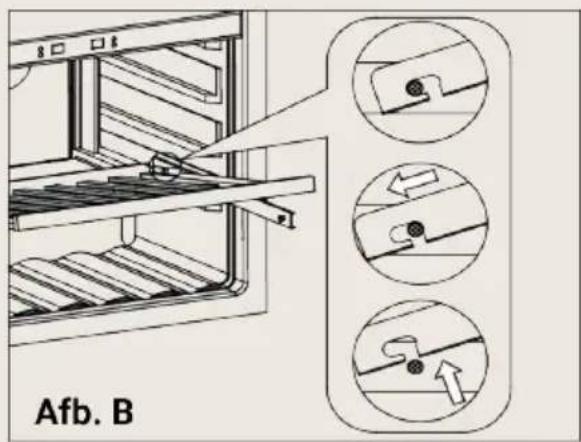

Removing the shelf

1. Fully extend the shelf you wish to remove
2. Lift the front of the shelf up to remove from the front clips. As fig. A.
3. Holding onto the shelf runner, push the shelf in and then pull up at the back to release from the rear clips. As Fig. B.

Diagram of a refrigerator interior showing internal shelves and a door, with no text or symbols present.

Fig. B

3.4 Ideal storage climate wines

There are four points that ensures a perfect climate to preserve wines in an optimal condition.

Constant Temperature

Boretti wine cabinets maintain precise temperatures between 5 °C to 18 °C. Minimizing the temperature variance is most important when it comes to long term storage to ensure wine matures correctly.

The ideal long term storage temperature for wine is between + 10 °C and + 12 °C. It is critical that the temperature is kept as constant as possible because this is the only way that a wine's natural harmony will be preserved.

The lower zone can be used to store wine for longer terms. The upper zone has a temperature range from 5 °C till 10 °C and is ideal to keep wines on serving temperatures.

\* Sparkling wines;

• Champaign (8°C)
  • Prosecco, (7-8°C)
• Muscat (7-8°C)
  • Cava (5-6°C)

\* White wines:

• Pinot Grigio (8°C)
• Pinot Blanc (8°C)
• Sauvignon Blanc (9°C)
• Chardonnay (10°C)
  • Full-bodied Chardonnay (12°C)

\* Light-to-medium bodied reds:

• Chianti (15°C)
• Pinot Noir (16°C)
• Merlot (16°C)
• Rioja (16°C)
• Bordeaux (16°C)

\* Full-bodied reds:

• Cabernet Sauvignon (17°C)
• Red Burgundy (17°C)
- Barolo (17°C)
- Brunello (17°C)
• Grand Cru Bordeaux (18°C)

Vibration Free

To prevent wine from being disturbed all compressors are mounted on isolation blocks designed to absorb any vibration.

UV Protection

All Boretti glass door wine cabinet are tinted and double glazed to prevent harmful ultraviolet rays causing discoloration to labels and unwanted reactions to your wine.

Perfect Air Quality

The MLWC82 wine cabinet has an charcoal filter to assist in maintaining perfect air quality which is vital for preserving and maturing wine.

4. Care & Cleaning

4.1 Cleaning your wine cabinet

* Turn off the power, unplug the appliance, and remove all items including shelves and rack.
* Wash the inside surfaces with a warm water and natural mild soap solution.
* Wash the shelves with a mild detergent solution.
* Wring excess water out of the sponge or cloth when cleaning area of the controls. Do not clean electrical parts, like the fans.

4.2 Power failure

Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your contents.

4.3 Power failure

Short Holidays: Leave the wine cabinet operating during holidays of less than three weeks.

Long Holidays: If the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior thoroughly. To prevent odour and mould growth, leave the door open slightly (blocking it open if necessary).

4.4 Moving your wine cabinet

* Remove all items.
* Securely tape down all loose items (shelves) inside your appliance.
* Turn the adjustable leg up to the base to avoid damage.
* Tape the door shut.
* Be sure the appliance stays secure in the upright position during transportation. Also protect the outside of appliance with a blanket, or similar item.

4.4 Defrosting & condensation

Your wine cabinet is designed with an "Auto-cycle" defrost system. When the RUN cycle is OFF, the refrigerated surface of the wine cabinet (interior rear wall) defrosts automatically. The defrosted water is channeled into a drain pan which is located at the back of the cabinet next to the compressor from where it evaporates.

5. Troubleshooting

5.1 Problem solving

You can solve many common wine cabinet problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling Boretti Service department.

PROBLEM POSSIBLE CAUSE
Wine cooler does not operate.	* Not plugged in.* The appliance is turned off.* The circuit breaker tripped or a blown fuse.
Wine cooler is not cold enough.	* Check the temperature control setting.* External environment may require a higher setting.* The door is opened too often.* The door is not closed completely.* The door gasket does not seal properly.
Turns on and off frequently.	* The room temperature is hotter than normal.* A large amount of contents has been added to the Wine cooler.* The door is opened too often.* The door is not closed completely.* The temperature control is not set correctly.* The door gasket does not seal properly.
The light does not work.	* Not plugged in.* The circuit breaker tripped or a blown fuse.* The bulb has burned out.* The light button is “OFF”.
Vibrations.	* Check to assure that the Wine cooler is level.
The Wine cooler seems to make too much noise.	* The rattling noise may come from the flow of the refrigerant, which is normal.* As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your Wine cooler.* Contraction and expansion of the inside walls may cause popping and crackling noises.* The Wine cooler is not level.
The door will not close properly.	* The Wine cooler is not level.* The door was reversed and not properly installed.* The gasket is dirty.* The shelves are out of position.

If the above table has not solved the problem please contact Boretti Service Center by phone on or by email [e-mail]. The product model name is displayed on the side of your Wine Cabinet. Or see paragraph 4.2.

Humidity system

The wine cabinet is equipped with a system for maintaining the correct level of humidity. If humidity is too low, insert the small plastic reservoir on to the top shelf. Fill this reservoir 3/4 full with water. Check the water level occasionally and refill as necessary.

5.2 Error code list

Code Representation Solution
E1	Upper compartment sensor open circuit	Contact the Boretti Service Department.
E2	Upper compartment sensor short circuit	Contact the Boretti Service Department.
E3	Lower compartment sensor open circuit	Contact the Boretti Service Department.
E4	Lower compartment sensor short circuit	Contact the Boretti Service Department.
E7	Defrost sensor open circuit	Contact the Boretti Service Department.
E8	Defrost sensor short circuit	Contact the Boretti Service Department.
HI Inner temperature too high		Shut off the Cabinet for 1 hour. If the problem repeats, please contact the Boretti Service Department.
LO/CL Inner temperature too low		Shut off the Cabinet for 1 hour. If the problem repeats, please contact the Boretti Service Department.

	2017		2016
	金额	占总资产比例(%)	金额	占总资产比例(%)
一、营业收入	3,584,968.00	69.99	3,584,968.00	69.99
二、营业成本	3,418,855.00	66.99	3,418,855.00	66.99
三、营业利润	-1,172,327.00	15.11	-1,172,327.00	15.11
四、净利润	-1,172,327.00	15.11	-1,172,327.00	15.11

BORETTI

Passione in Cucina

HANDLEIDING HANDLEIDING MLWC82ZG/MLWC82GRMLWC82ZG/MLW

1.1.2 WAARSCHUWING: Kans op brand

1.2.3 WAARSCHUWING - Kans op explosie

1.2.4 WAARSCHUWING - Kans op brand

1.2.5 WAARSCHUWING - Kans op letsel

1.3.2 WAARSCHUWING: Kans op brand

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Technical diagram of a cabinet or rack assembly with numbered components labeled 3, 4, and 5.

FIG. B

Technical diagram of a refrigerator interior with labeled parts 3 and 5

FIG. C

Technical diagram of a refrigerator interior with labeled parts 3 and 4

FIG. D

1 2 3 4

FIG. E 3 2 1

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, and 3

FIG. B

Technical diagram of a cabinet or storage unit with labeled components 1, 2, and 3

FIG. C

Technical diagram of a refrigerator interior with labeled components 1, 2, and 3

FIG. D

1 2 3 4 5 6

FIG. E

180° 6

User interface toolbar with icons for zoom, lock, zoom, and display tools

Technical line drawing of a circular component with internal grid pattern and directional arrow (no text or symbols)

AFB. B

Technical line drawing of a circular component with grid pattern, flanked by two plastic bottles (no text or symbols)

AFB. C

Diagram showing a circular component being converted into a multi-layered circular device with grid patterns (no text or symbols)

Diagram of a refrigerator interior showing internal shelves and a door, with no text or symbols present.

Afb. B

1.1 Sichere Installation

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

Technical diagram of a refrigerator interior with numbered components labeled 3, 4, and 5

FIG. B

Technical diagram of a refrigerator interior with labeled parts 3 and 5

FIG. C

Technical diagram of a refrigerator interior with labeled parts 3 and 4

FIG. D

1 2 3 4

FIG. E 3 2 1

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, and 3

FIG. B

Technical diagram of a cabinet or storage unit with labeled components 1, 2, and 3

FIG. C

Technical diagram showing a cabinet or rack structure with labeled components 1, 2, and 3.

FIG. D

1 2 3 4 5 6

FIG. E

180° 67 6

User interface toolbar with icons for zoom, lock, balance, and display tools

Diagram showing plastic bottle shapes and a circular component with grid pattern, no text or symbols present

ABB. B

Technical line drawing of a circular component with internal grid pattern, flanked by four plastic bottle outlines (no text or symbols)

ABB. C

Diagram showing a circular component being converted into a grid-patterned circular component (no text or symbols)

Diagram of a refrigerator interior showing internal shelves and a door, with no text or symbols present.

Abb. B

MANUEL MANUEL MLWC82ZG/MLWC82GRMLWC82ZG/MLW

FR | NOTICE D'UTILISATION

www.boretti.com

Introduction

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Technical diagram of a refrigerator interior with numbered components labeled 3, 4, and 5

FIG. B

Technical diagram of a refrigerator interior with labeled parts 3 and 5

FIG. C

Technical diagram of a refrigerator interior with labeled parts 3 and 4

FIG. D

1 2 3 4

FIG. E 3 2 1

Technical diagram of a cabinet or rack assembly with numbered components labeled 1, 2, and 3.

FIG. B

Technical diagram of a cabinet or storage unit with labeled components 1, 2, and 3

FIG. C

Technical diagram of a cabinet or rack system with labeled components 1, 2, and 3

FIG. D

Technical diagram of a multi-panel device with numbered components and internal structure annotations

FIG. E

180° 6

User interface toolbar with icons for zoom, lock, zoom, and display tools

Technical line drawing of a door with circular opening and plastic bottle outlines (no text or symbols)

FIG. B

Technical line drawing of a circular component with grid pattern, flanked by two plastic bottles (no text or symbols)

FIG. C

Diagram showing a circular component before and after transformation, with no text or symbols present.

Diagram of a refrigerator interior showing internal structure and airflow direction (no text or symbols)

Fig. B
