USER MANUAL MH-60VBOA-GFA-A Master

Exterior view of a master portable air purifier (MH-60VBOA-GFA 30-60,000 BTU) with black handle and base mount (no additional text or symbols visible)

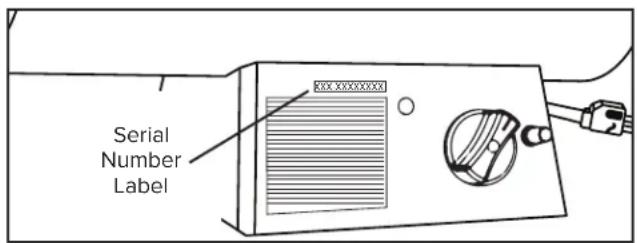

Locating Your Serial Number:

Your serial number can be found on a white label on the right side cover of your heater. It will begin with the letter "G" followed by 9 digits. For Example: G123456789. Have your Serial Number ready before calling customer service at 800-641-6996.

⚠️ DANGER

GENERAL HAZARD WARNING:

FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUCTIONS PROVIDED WITH THIS HEATER, CAN RESULT IN DEATH, SERIOUS

BODILY INJURY AND PROPERTY LOSS OR DAMAGE FROM HAZARDS OF FIRE, EXPLOSION, BURN. ASPHYXIATION, CARBON MONOXIDE POISONING AND / OR ELECTRIC SHOCK.

ONLY PERSONS WHO CAN UNDERSTAND AND FOLLOW THE INSTRUCTIONS SHOULD USE OR SERVICE THIS HEATER. IF YOU NEED ASSISTANCE OR HEATER INFORMATION SUCH AS AN INSTRUCTIONS MANUAL, LABEL, ETC. CONTACT THE MANUFACTURER.

WARNING

FIRE, BURN, INHALATION, AND EXPLOSION HAZARD. KEEP SOLID COMBUSTIBLES, SUCH AS BUILDING MATERIALS, PAPER

OR CARDBOARD, A SAFE DISTANCE AWAY FROM THE HEATER AS RECOMMENDED BY THESE INSTRUCTIONS. NEVER USE THE HEATER IN SPACES WHICH DO OR MAY CONTAIN VOLATILE OR AIRBORNE COMBUSTIBLES, OR PRODUCTS SUCH AS GASOLINE, SOLVENTS, PAINT THINNERS, DUST PARTICLES OR UNKNOWN CHEMICALS.

Factory ID: 500

PINNACLE

CLIMATE TECHNOLOGIES™

Sauk Rapids, MN 56379 USA • Toll Free [phone]

Fax: [phone] • Web: www.masterindustrialproducts.com • Email: [e-mail]

TABLE OF CONTENTS

Safety Information....2-5

Unpacking......5

Specifications....6

Features......6

What's in the Box....6

Operation....7-9

Ventilation....9

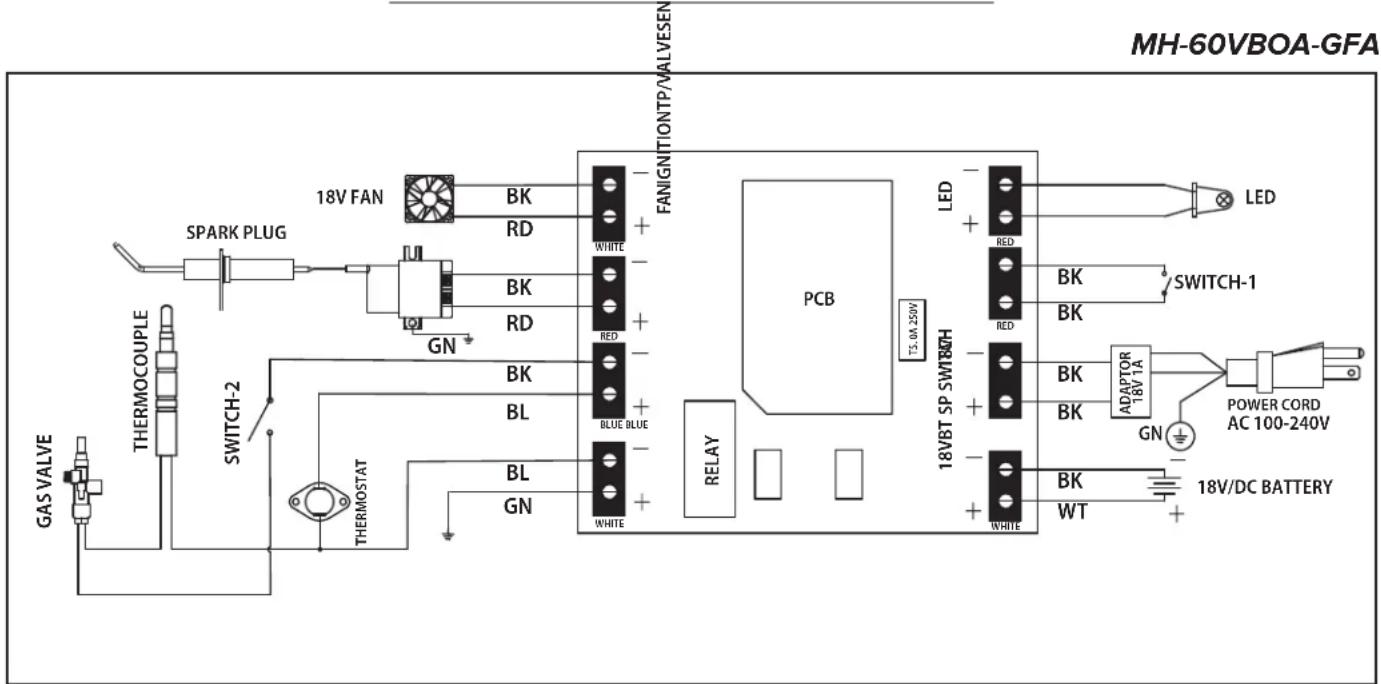

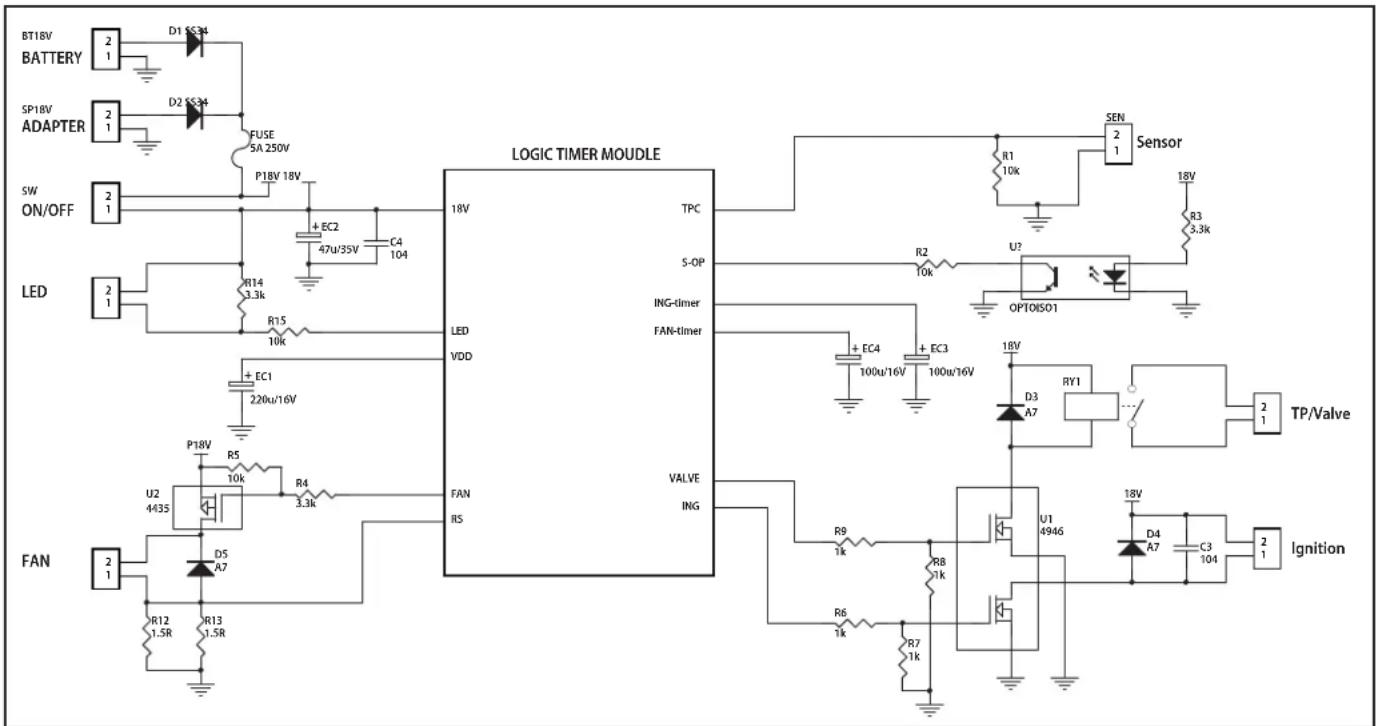

Wiring Diagrams....10

Storage/Maintenance....11

Troubleshooting Guide....11

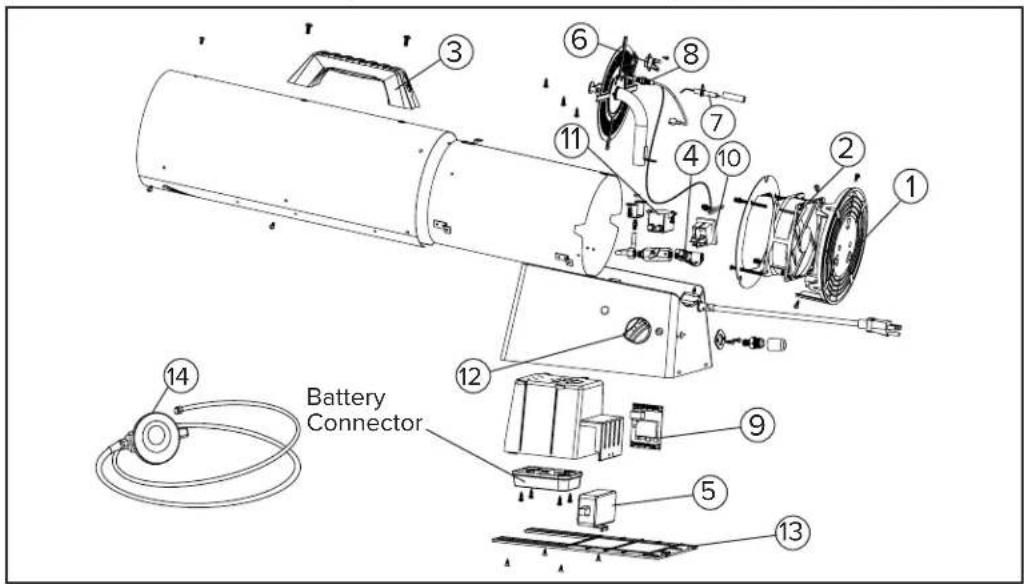

Exploded View....12

Parts List....12

Limited Warranty....13

SAFETY INFORMATION

⚠️ DANGER

Carbon Monoxide Hazard This heater produces carbon monoxide, which has no odor. Burning the heater in an enclosed space can kill you. Never use the heater in enclosed spaces such as a tent, a camper, any vehicle or recreational vehicle (RV), enclosed shelter, or any other enclosed areas.

! DANGER

If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

⚠️ DANGER

Not for use in residential living areas or in non-adequately ventilated enclosed spaces. Never bring or store a propane cylinder indoors.

WARNING

NOT FOR HOME OR RECREATIONAL VEHICLE USE.

WARNING

DO NOT OPERATE THIS HEATER UNTIL YOU HAVE READ AND THOROUGHLY UNDERSTAND THESE SAFETY AND OPERATING INSTRUCTIONS.

Failure to comply with the precautions and instructions provided with this heater can result in death, serious bodily injury, property loss or damage from the hazards of fire, explosions, burns, asphyxiation or carbon monoxide poisoning. Only persons who can read and understand these instructions should use or service this heater.

WARNING

This is an un-vented portable heater. It uses air (oxygen) from the area in which it is used. Adequate combustion and ventilation air must be provided. Refer to VENTILATION on Page 9.

WARNING: This product can expose you to chemicals, including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

This heater is designed and approved for use as a construction heater in accordance with the standard for Gas-Fired Construction Heaters ANS Z83.7 • CSA 2.14-2017. CHECK WITH YOUR LOCAL FIRE SAFETY AUTHORITY IF YOU HAVE ANY QUESTIONS ABOUT APPLICATIONS. Other standards govern the use of fuel gasses and heating products for specific uses. Your local authority can advise you about these.

SAFETY INFORMATION (CONT.)

WARNING

RISK OF INDOOR AIR POLLUTION!

The products described in this manual are propane direct-fired, forced air heaters. Propane forced air heaters are primarily intended for use for temporary heating of buildings under construction, alteration or repair. Direct-fired means that all of the combustion products of the heater enter the heated space. This appliance is rated at 98% combustion efficiency, but does produce small amounts of carbon monoxide.

⚠️ DANGER

CARBON MONOXIDE POISONING MAY LEAD TO DEATH!

Carbon monoxide is toxic. Humans can tolerate only small amounts of carbon monoxide and so precautions should be taken to provide proper ventilation. Failure to provide proper ventilation in accordance with the instructions in this manual can result in death.

People with breathing problems should consult a physician before using this heater. Early signs of carbon monoxide poisoning resemble the flu. Symptoms of improper ventilation / carbon monoxide poisoning are:

Headache · Dizziness · Nausea · Dry Mouth Sore Throat · Burning of Nose and Eyes

If you experience any of these symptoms: GET FRESH AIR AT ONCE! Have your heater serviced and check for proper ventilation. Some people are more affected by carbon monoxide than others. These include: pregnant women, those with heart or lung problems, anemia or those under the influence of alcohol or at high altitudes.

FOR INDOOR USE PERMITTED ONLY FOR: The temporary heating of adequately ventilated buildings or structures under construction, alteration or repair! Provide at least a three square foot (2,800 sq. cm) opening of outside air for every 100,000 BTU / Hr (29 kW) heater rating. Refer to “Ventilation” on page 8 for further instructions.

DANGER

• DO NOT attempt to light the heater.
  – Extinguish any open flame.
• Shut off gas to heater.
• If odor continues, contact your local gas supplier or fire department.
• DO NOT touch or use any electric switch or any electric device that can cause a spark.
  – Immediately call your gas supplier from a neighbors phone. Follow the gas suppliers instructions.
• If you can not reach your gas supplier, call the fire department.
  – Service must be done by a qualified service agency.

⚠ WARNING

RISK OF BURNS, FIRE AND EXPLOSION!

NEVER store or use gasoline or other flammable vapors and liquids in the vicinity of this heater.

NEVER store a propane (LP) cylinder not connected to this heater in the vicinity of this heater.

NEVER connect heater to an unregulated gas supply.

NEVER obstruct the flow of combustion and ventilation air. (The front and rear of heater).

NEVER use duct work in front or rear of heater.

NEVER modify this heater or operate a heater that has been modified.

NEVER service, move or handle heater while still hot or operating

Keep all combustible materials away from this heater.

The appliance are be kept clear and free from combustible materials, gasoline and other flammable vapors and liquid.

Minimum Clearance From Combustibles
Sides Top Front Rear
24 in. 36 in. 72 in. 24 in.
61 cm 92 dm 183 cm 61 cm

ALWAYS use the electrical power (voltage and frequency) specified on the model plate of the heater.

ALWAYS use only 14 AWG or better extension cord. ALWAYS unplug the heater when not in use.

WARNING

CAUTION! HOT

WHILE IN OP-

ERATION. DO NOT

TOUCH. KEEP CHILDREN, ANIMALS, CLOTHING AND COMBUSTIBLES AWAY FROM HEATER.

SAFETY INFORMATION (CONT.)

▲WARNING AIR QUALITY HAZARD

• Do not use this heater for heating human living quarters
• Use of direct-fired heaters in the construction environment can result in exposure to levels of CO, CO2 , and NO2 considered to be hazardous to health and potentially life threatening

– Do not use in unventilated areas

- Know the signs of CO and CO_2 poisoning

• Headaches, stinging eyes
• Dizziness, disorientation
- Difficulty breathing, feels of being suffocated

- Proper ventilation air exchange (OSHA 29 CFR 1926.57) to support combustions and maintain acceptable air quality shall be provided in accordance with OSHA 29 CFR Part 1926.154, ANSI A10.10 Safety Requirements for Temporary and Portable Space Heating Devices and Equipment used in the Construction Industry or the Natural Gas and Propane Installation Codes CSA B149.1

- Periodically monitor levels of CO, CO_2 and NO_2 existing at the construction site – at the minimum at the start of the shift and after 4 hours.

- Provide ventilation air exchange, either natural or mechanical, as required to maintain acceptable indoor air quality

- Ensure that the flow of combustion and ventilation air exchanges cannot become obstructed

- As the building “tightens up” during the construction phase ventilation may need to be increased

USA 8-Hr Time weighted average

(OSHA 29 CFR 1926.55 App A)

CO 50 ppm 25 ppm

CO_2 5000 ppm 5000 ppm

NO_2 3 ppm (Reg 833)

USA – Ceiling Limit

(Short Term Exposure Limit = 15 minutes)

CO 100 ppm

CO_2

NO_2 5 ppm

Canada 8-hr time weighted average WorkSafe BC OHS Guidelines Part 5.1 and Ontario Workplaces Reg 833

Canada STEL (15 minutes Reg 833/1 hour WSBC) WorkSafe BC OHS Guidelines Part 5.1 and Ontario Workplaces Reg 833

15000 ppm (WSBC)

30000 ppm (Reg 833)

1.0 ppm (WorkSafeBC)

5.0 ppm (Reg 833)

SAFETY INFORMATION (CONT.)

WARNING

RISK OF ELECTRIC SHOCK!

WARNING

Electrical Grounding Instructions: This appliance is equipped

with a three-prong (grounding) plug for your protection against shock hazard and should be plugged directly into a properly grounded three-prong receptacle.

WARNING

For use with propane (LP) gas only.

ALWAYS install the heater so that it is not directly exposed to water spray, rain, dripping water, or wind.

• Use heater in accordance with all local codes. In the absence of local codes, refer to The National Fuel Code, ANSI A223.1/NFPA 54.
• This heater is shipped from the factory for use with propane (LP) gas only. Do not convert to any other gas. Installation must conform to local codes, or in their absence, with the standard for the Storage and Handling of Liquefied Petroleum Gases ANSI/NFPA 58 and the Natural Gas and Propane Installation Code CSA B149.1.
  – Gas supply connections should be checked by using a 50/50 soap and water solution. Never use a

flame to check for gas leaks.

• Locate LP cylinder at least 6 ft. (183 cm) (10 ft./305 cm in Canada) from the heater, and do not direct heater discharge towards the LP cylinder unless it is at least 20 feet (610 cm) from the heater.
• Use only the regulator and hose assembly provided with this heater. Inspect the regulator/hose assembly prior to each use of the heater. If there is excessive abrasion or wear, or if the hose is cut, replace it with the proper assembly shown in the parts list, prior to using the heater.
• The hose assembly shall be visually inspected prior to each use of the heater. If it is evident there is excessive abrasion or wear, or the hose is cut, it shall be replaced prior to the heater being put into operation. The replacement hose assembly shall be that specified by the manufacturer.

Manifold, Minimum, and Maximum Inlet Pressure

	MH-60VBOA-GFA
Man.	5 PSI 138” (3,515 mm)
Min. 15 PSIG
Max. Bottle Pressure

⚠ WARNING

The hose assembly shall be pro tected from traffic, build-

ing material and contact with hot surfaces both during use and while in storage.

WARNING

RISK OF FIRE! DO NOT POSITION HEATER IN A DOWNWARD ANGLE. ALWAYS LOCATE HEATER ON A STABLE AND LEVEL SURFACE (SEE FIGURE 1)!

Figure 1

Simple line drawing of a hand holding a cylindrical device and a checkmark symbol (no text or labels)

Technical line drawing of a cylindrical device with attached components and an arrow indicating direction (no text or symbols)

UNPACKING

1. Remove all packing items applied to heater for shipment. Keep plastic cover caps attached to inlet connector and hose / regulator assembly for storage.
2. Remove all items from carton
3. Check all items for shipping damage. If the heater is damaged, promptly inform dealer where you purchased the heater.

CAUTION

The Propane (LP) gas pressure regulator and hose as-

sembly supplied with the heater must be used without alteration.

SPECIFICATIONS

Model #	MH-60VBOA-GFA
BTU/ Hr (Min.-Max.) 30,000–60,000
Fuel Consumption - Lb./hr (kg/hr) 1.6/2.8 (0.7/1.27)
Maximum Operating Hours 10.5
Required Cylinder Capacity [Lb. (kg)] and Size - in. 20	(9) – 18" x 12"
Fuel Type Propane
Heating Area - Ft. ^2 (m ^2 ) 1500 (139)
Air Flow (CFM) 130
Max Outlet Temp - °F (°C) 1150 (621)
Volts: AC/Hz 120-240VAC 50/60Hz
Amps 0.35 A
Battery Power Consumption 0.63 W
Volts/Amps 18V DC nominal / 0.35A
Expected Run Time on 2AH, 40 Wh Battery (Hours)	5.7

Specifications subject to change without notice.

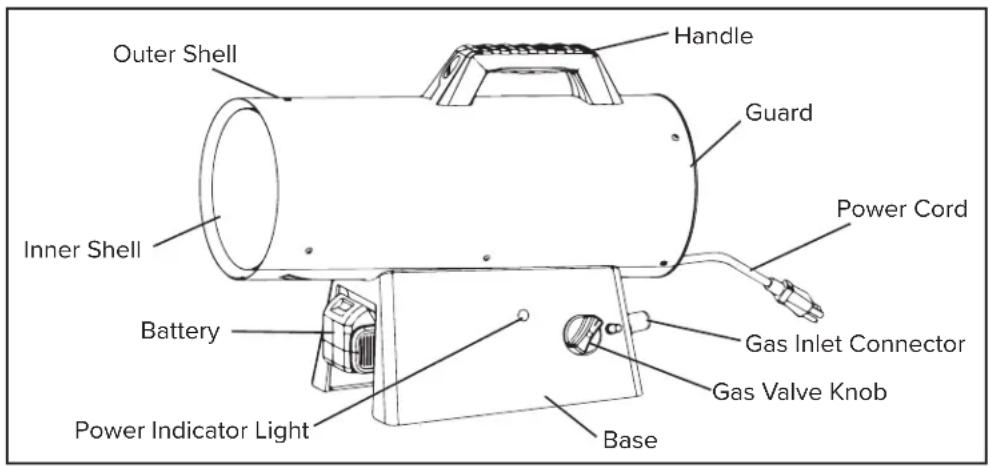

FEATURES

Outer Shell Handle Guard Inner Shell Power Cord Battery Gas Inlet Connector Gas Valve Knob Power Indicator Light Base

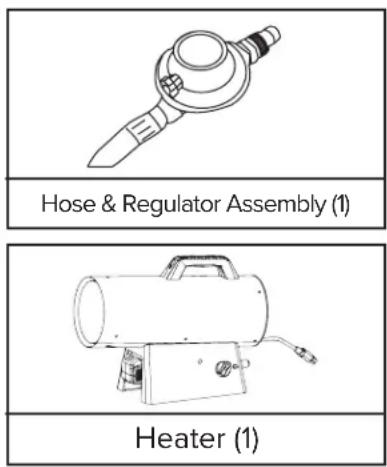

WHAT'S IN THE BOX

Hose & Regulator Assembly (1) Heater (1)

OPERATION

Propane Supply / Information:

Propane (LP)

This heater is not supplied with a propane cylinder. Use only an approved propane cylinder.

LP Characteristics

• Flammable, explosive under pressure, heavier than air and pools in low areas.
  – In its natural state, propane has no odor, but for your safety an odor that smells like rotten eggs has been added.
• Contact of propane (LP) gas with the skin can cause freeze burns.
• Heater is manufactured for use with propane gas only. DO NOT attempt to convert to any other gas. Such modifications are dangerous and will void the warranty.
• When heater is not in use, LP Cylinder must be turned OFF.
• Be sure that the LP Cylinder is located on a level and stable surface.
• DO NOT use this heater in a basement or below ground level. Propane is heavier than air and will always seek the lowest level. If you suspect a leak, shut off the valve at the LP Cylinder immediately.

The Propane (LP) cylinder must also be equipped with the following:

– A collar to protect the gas valve.
- A shut-off valve terminating a LP cylinder valve outlet as specified in the American National Standard for Compressed Gas Cylinder Valve Outlets and Inlets Connections.
- A safety relief valve having direct communications with the vapor space of the LP cylinder.
- The heater must operate on vapor withdrawal from the operating cylinder.

The amount of Propane (LP) used with this heater varies. Both factors are:

– The amount of gas in the cylinder of LP.
- The temperature of the LP tank and its surroundings.

Minimum Number of LP Cylinders
Average Temp(°F / °C)	MH-60VBOA-GFA100 lb. (45 kg) cylinder
32° / 0° 1
20° / -7° 1
10° / -12° 1
0° / -18° 1
-10° / -23° 2
-20° / -29° 2

The table above shows the minimum number of 100 lb. (45 kg) LP cylinders required in cold weather. Your local LP dealer will help you select the proper LP supply system.

CAUTION

Propane is safe to use when properly handled. Careless

handling of the LP cylinder could result in a fire and or an explosion.

– Always keep LP cylinder fastened and upright.
- Avoid tipping the LP cylinder on its side when connected to a regulator, since this may cause damage to diaphragm in the regulator.
- Handle valves with care.
- Never connect an unregulated LP cylinder to a construction heater.
- DO NOT subject LP cylinder to excessive heat.
- Tightly close the gas shutoff valve on the LP cylinder after each use.
– All fittings must be protected when disconnected from the LP cylinder.
– Never store an LP cylinder inside a building or in the vicinity of an gas burning appliances.

Installation of this appliance at altitudes above 2000 ft (610 m) shall be in accordance with local codes, or in the absence of local codes, the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or National Standard of Canada, Natural Gas and Propane Installation Code, CSA B149.1. At elevations above 2000 ft (610m), derate the input 4 percent per 1000 ft (305 m) above sea level.

OPERATION (CONT.)

Pre-Lighting Instructions:

Charge the Battery

Ensure battery is fully charged for best run time. Follow battery manufactures instructions for use, charging and storing.

Over Discharge Protection

Heater has a built in battery protection circuit that will shut the heater off to protect the battery from over discharging.

CAUTION

Use only Master approved batteries —CONTACT YOUR

LOCAL SERVICE CENTER OR CALL 800-641-6996 FOR MORE INFORMATION

Connecting the LP Cylinder

ALL NEW LP CYLINDERS MUST BE PURGED BEFORE THE FIRST FILLING.

• Turn heater gas valve knob and LP cylinder valve to OFF position.
• LP cylinder valve equipped with old style fitting has LEFT HANDED THREADS. Turn fitting CLOCKWISE to loosen. Protect this fitting when disconnected from LP cylinder.
• Have your LP cylinder filled by your local propane gas supplier.

⚠ WARNING

Purging and filling of the LP cylinders must be performed

by personnel who have been thoroughly trained in accepted LP gas industry procedures. Failure to follow these instructions may result in explosion, fire, severe personal injury or death.

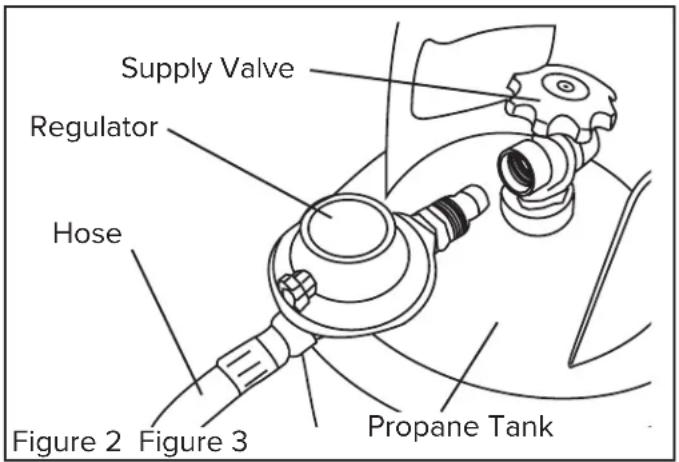

Supply Valve Regulator Hose Figure 2 Figure 3 Propane Tank

• Some LP cylinders have a bleed-OFF valve. This valve should be inspected for leaks after each filling of the LP cylinder. Turn the valve clockwise to close.
• Fasten full propane tank and connect proper fitting to LP cylinder valve by turning COUNTER-CLOCKWISE (See Figure 2 & 3).
• With heater gas valve knob still in OFF position turn ON the LP cylinder valve and check for leaks with soap solution.

Checking For Leaks

• To check for leaks, make up a 50/50 solution of dish soap and water. Apply this solution to all gas connections. If bubbles appear, there is a leak. If a leak is found, turn off the gas supply, and reconnect the leaking connection. If the leak persists after several tries, contact Pinnacle Customer Service at 800-641-6996.
• The installation of this heater must meet all local codes and/or gas utility requirements. In the absence of local codes, the National Fuel Code ANSI Z223.1/NFPA 54 should be followed.
• The minimum clearances to any combustible construction materials must be maintained at all times (See Page 3).
• Inspect the heater before each use, and at least annually by a qualified service person.

CAUTION

The disconnected tank must never be stored in a building,

garage or any other enclosed area.

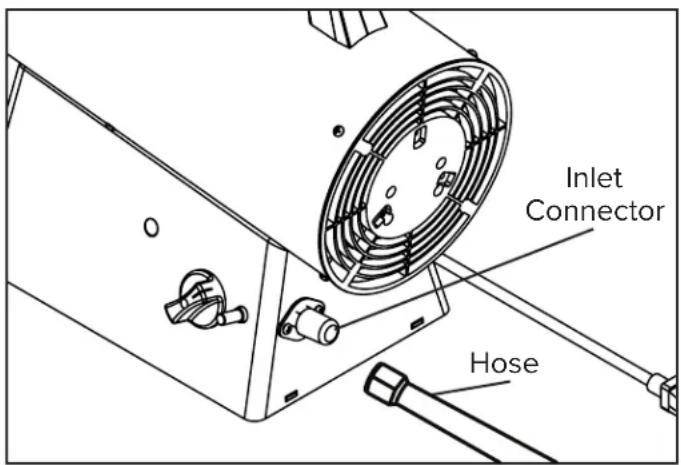

Inlet Connector Hose

OPERATION (CONT.)

Lighting Instructions:

Starting the Heater (Ignition)

1. Fully insert battery into the battery connector or connect the heater to a three prong (grounded) power source. You must use a three prong (grounded) extension cord that is at least 6 feet long is a minimum of 14 AWG rating.
2. Connect heater to a proper LP cylinder.

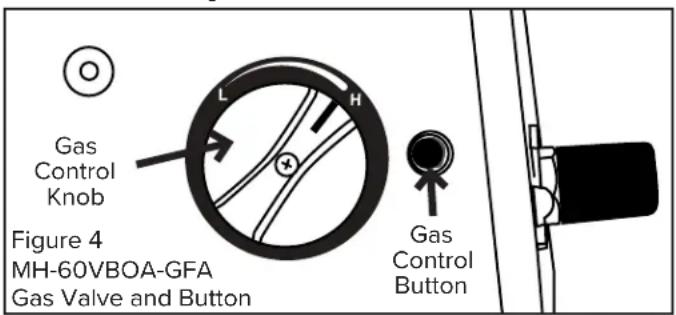

3. Turn gas control knob COUNTERCLOCKWISE to "L" position.
4. Wait five (5) minutes for any gas to clear. Smell for gas, if you do not smell gas, go to step 5.
5. Turn gas supply ON by turning the LP cylinder valve COUNTERCLOCKWISE to OPEN.
6. Turn power switch to on position and push in gas control button. This will light the burner. If needed, keep pressing control button until the burner lights (See Figure 4).
7. Keep the gas control button depressed for at least 30 seconds after lighting the burner. After 30 seconds, release the control button.
8. If the burner doesn't stay lit, repeat lighting procedures.
9. When burner stays lit, turn gas control knob to desired setting.

Gas Control Knob Figure 4 MH-60VBOA-GFA Gas Valve and Button Gas Control Button

⚠️ DANGER

RISK OF FIRE! Never transport heater with battery attached

Shutdown Instructions

To Shut Off the Heater:

1. Turn gas control knob COUNTERCLOCKWISE to "L" (OFF) position (See Figure 4).
2. Turn gas supply OFF by turning the LP cylinder valve CLOCKWISE to close. (Always turn gas off at the propane supply cylinder(s) when the heater is not in use)
3. Move power switch to "OFF" position.
4. Disconnect heater from power supply, and disconnect regulator from the fuel supply cylinder.
5. Remove battery from the battery connector.

Test Firing the Heater

Test fire your construction heater following the lighting instructions applicable to the gas control system employed.

Leak test all gas connections with 50/50 soap and water solution prior to start-up. Soap bubbles indicate a gas leak. DO NOT use a match or flame to test for gas leaks.

NOTE: Heater surface temperature must be cold before initiating service, cleaning with recommended cleaning agents if necessary, or storage.

RISK OF FIRE! REMOVE BATTERY FROM HEATER WHEN NOT IN USE CARBON MONOXIDE POISONING MAY LEAD TO DEATH! Not for use in residential living areas or in non-adequately ventilated enclosed spaces.

VENTILATION

– Risk of indoor air pollution and Carbon Monoxide Poisoning. Use heater only in well ventilated areas.
– Refer to Safety Information on pages 2-3 for information about Carbon Monoxide Poisoning.
- ALWAYS provide a fresh air opening in the heated space of at least three square feet (2,800 sq. cm) for each 100,000 BTU / Hr (29 kW). of heater output. Provide a larger opening if more heaters are being used.

Minimum Ventilation Opening NeededMH-60VBOA-GFA

1.8 ft. ^2

1670 cm ^2

WIRING/SCHEMATIC DIAGRAMS

BT18V BATTERY SP18V ADAPTER SW ON/OFF LED FAN LOGIC TIMER MOULLE TPC S-OP ING-timer FAN-timer LED VDD VALVE ING R1 10k SEN 2 1 Sensor R3 3.3k U2 OPTOISO1 + EC4 100u/16V + EC3 100u/16V 18V D3 A7 RY1 TP/Valve 18V D4 A7 C3 104 Ignition R9 1k RB 1k R6 1k R7 1k R12 1.5R R13 1.5R P18V R5 10k R4 3.3k P18V 18V + EC2 47u/35V C4 104 R14 3.3k R15 10k R12V 18V FUSE 5A 250V 21 21

Always disconnect the heater from the LP cylinder before putting the heater into storage. If for any reason the heater is to be stored indoors, the tank MUST be disconnected from the LP cylinder, and the cylinder stored outdoors in a well-ventilated area, out of the reach of children, and in accordance with the Standard for Storage and Handling of Petroleum Gases, ANSI/NFPA 58 - latest edition and Natural Gas and Propane Installation Code, CSA B149.1. The plastic valve plug or valve cover supplied with the cylinder must be re-installed on the valve to protect the fitting from damage.

⚠️ DANGER

Never store an LP cylinder inside of a building or near any

other gas or oil burning appliances.

NOTE: Installation and repair of this heater should be done by a qualified service person.

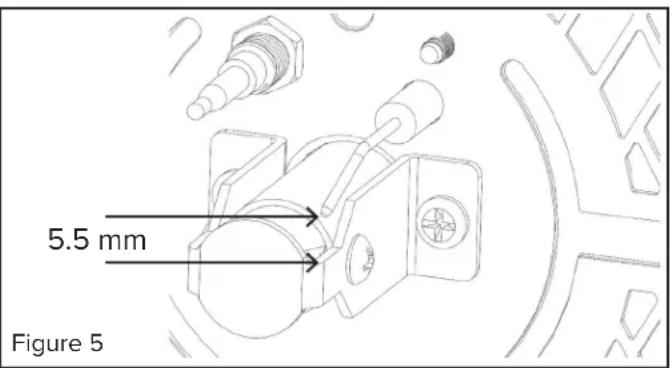

ALWAYS be sure to follow proper maintenance procedures. This should include cleaning the inside of the heater once a month and checking the spark gap at least once a heating season. Re-gap the terminals to 0.216" (5.5mm). See Figure 5.

5.5 mm Figure 5

TROUBLESHOOTING GUIDE

Problem Possible Cause(s) Solution
Fan does not turn when electricity is connected.	1. No electric power to heater.2. Blades of fan in contact with heater housing.3. Fan blades bent.4. Fan motor defective.	1. Check voltage at outlet. If voltage is correct, inspect extension and power cords for cuts, frays or breaks2. Check housing for damage. Be sure there are no dents in the housing obstructing the fan.3. Straighten all fan blades.4. Replace motor assembly.
Heater will not fire (ignite).	1. No spark at module.2. Corroded electrode.	1. Inspect module wire. Re-attach or tighten if loose. Inspect spark module and replace if necessary. Inspect all other electrical components.2. Replace spark plug.
Heater stops running by itself.	1. Temperature inside heater is too high, causing thermal switch to shut down operation.2. Damaged control valve.3. Dust or debris accumulated in heater.	1. If the heater input or output is restricted, the inside temperature can become too hot. Keep the areas in front and behind heater clear of obstructions.2. Replace control valve.3. Clean inside of heater.

EXPLODED VIEW

Battery Connector

PARTS LIST

Item # Description MH-60VBOA-GFA
1 FAN	GUARD ASM-00135
2 COOLING FAN EL-00015
3 HANDLE ASSEMBLY ASM-00026
4 GAS CONTROL VALVE EL-00036
5 POWER ADAPTER GC-00075
6 HIGH LIMIT THERMAL SWITCH 01.04.71.015010129
7 SPARK PLUG ASM-00042
8 THERMOCOUPLE ASSEMBLY		ASM-00053
9 PCB		EL-00048
10	POWER SWITCH	EL-00052
11	SPARK MODULE	EL-00054
12	OUTPUT CONTROL KNOB	GC-00087
13	BASE COVER	GC-00017
14	HOSE AND REGULATOR	GC-00527

LIMITED WARRANTY

Pinnacle Climate Technologies, Inc. warrants this heater to the original retail purchaser only, to be free from defects in material and workmanship for a period of one (1) year from the date of initial purchase. This product must be properly installed, maintained and operated in accordance with the instructions provided.

Pinnacle Climate Technologies, Inc. requires reasonable proof of your date of purchase from an authorized retailer or distributor. Therefore, you should keep your sales slip, invoice or cancelled check from the original purchase. This Limited Warranty shall be limited to the repair or replacement of parts, which prove defective under normal use and service within the warranty period, and which Pinnacle Climate Technologies, Inc. shall determine at its reasonable discretion.

This warranty does not apply to products purchased for rental use.

This Limited Warranty does not cover any failures or operating difficulties due to normal wear and tear, accident, abuse, misuse, alteration, misapplication, improper installation or improper maintenance and service by you or any third party. Failure to perform normal and routine maintenance on the heater, shipping damage, damage related to insects, birds or animals of any kind, and damage due to weather conditions are also not covered.

In addition, the Limited Warranty does not cover damage to the finish, such as scratches, dents, discoloration, rust or other weather damage, after purchase.

All transportation costs for the return of damaged product or parts will be the responsibility of the purchaser. Upon receipt of damaged item, Pinnacle Climate Technologies, Inc. will examine the item and determine if defective. Pinnacle Climate Technologies, Inc. will repair or replace and return the item, freight pre-paid.

If Pinnacle Climate Technologies, Inc. finds the item to be in normal operating condition, or not defective the item will be returned freight collect. This Limited Warranty is in lieu of all other express warranties. Pinnacle Climate Technologies, Inc. disclaims all warranties for products that are purchased from sellers other than authorized dealers or distributors.

AFTER THE PERIOD OF THE ONE (1) YEAR EXPRESS WARRANTY EXPIRES, Pinnacle Climate Technologies, Inc. DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR APPLICATION. FURTHER, Pinnacle Climate Technologies, Inc. SHALL HAVE NO LIABILITY WHATSOEVER TO PURCHASER OR ANY THIRD PARTY FOR ANY SPECIAL, INDIRECT, PUNITIVE INCIDENTAL, OR CONSEQUENTIAL DAMAGES. Pinnacle Climate Technologies, Inc. assumes no responsibility for any defects caused by third parties. This Limited Warranty gives the purchaser specific legal rights; a purchaser may have other rights depending upon where he or she lives. Some states do not allow the exclusion or limitation of special, incidental or consequential damages, or limitations on how long a warranty lasts, so the above exclusion and limitations may not apply to you.

Pinnacle Climate Technologies, Inc. does not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return or replacement of its equipment, and no such representations are binding on Pinnacle Climate Technologies, Inc.

Always be sure to specify the model number and serial number when making any claim with Pinnacle Climate Technologies, Inc. For your convenience, use the space provided below to list this information.

Locating Your Serial Number:

Your serial number can be found on a white label on the right side cover of your heater. It will begin with the letter "G" followed by 9 digits. For Example: G123456789. Have your Serial Number ready before calling customer service at 800-641-6996.

Model #:

Serial #:

Date of Purchase:

Serial Number Label

Exterior view of a master portable air purifier (no signage or text on body)

1,0 ppm (WorkSafeBC)

5,0 ppm (règl. 833)

CONSIGNES DE SÉCURITÉ (SUITE)

▲ AVERTISSEMENT

RISQUE DE CHOC ÉLECTRIQUE!

▲ AVERTISSEMENT

Simple line drawing of a utility pole with a checkmark and a cylindrical device (no text or symbols)

Technical line drawing of a cylindrical device with attached components and an arrow indicating direction (no text or symbols)

DÉBALLAGE

White MASTER MH-60VBOA-GFA 30-60,000 BTU portable flash unit with black handle and base (no visible text or symbols on device body)

1.0 ppm (WorkSafeBC)

5.0 ppm (Reg. 833)

Simple line drawing of a hand holding a cylindrical device with a checkmark and a separate sketch of a device (no text or symbols)

Technical line drawing of a portable device with attached components and an upward arrow indicator (no text or symbols)

DESEMPAQUE

© 2021, Pinnacle Climate Technologies, Inc.

Conector de entrada Manguera
