HCSB75BK - Cooker HomeCraft - Free user manual and instructions

Brand	HomeCraft
Model	HCSB75BK
Product Type	Single Burner Hot Plate
Power Supply	120V, 60Hz, 750W
Dimensions (L x W x H)	Approximately 30.5 x 30.5 x 7.6 cm
Weight	Approximately 2.0 kg
Housing Material	Black Metal
Cooking Surface	Die-cast Hot Plate
Number of Burners	1
Temperature Settings	5 Positions (Low to High) with Indicator Light
Non-Slip Feet	Yes, Rubber
Power Cord	Short, with Polarized Plug (One Blade Wider)
Usage	Indoor, Household Use Only
Maintenance	Clean with Damp Cloth and Non-Abrasive Detergent
Safety	Do Not Immerse, Hot Surface, Do Not Leave Unattended
Warranty	1 Year Limited (USA and Canada)
Included Accessories	None
Repairability	Repair by Certified Technician Only
Recommended Clearance	25 to 30 cm from Walls
Plug Type	Polarized 120V AC
Manufacturer/Distributor	Nostalgia Products LLC

Frequently Asked Questions - HCSB75BK HomeCraft

How to clean the HomeCraft HCSB75BK hot plate?

After unplugging the appliance and allowing it to cool completely, clean the housing with a damp cloth and a non-abrasive household detergent. The cooking plate can be cleaned with household cleaning powder. Do not immerse the appliance in water and do not use abrasive cleaners.

Can I use an extension cord with this hot plate?

Yes, but with caution. The extension cord must have electrical ratings at least 750W and should not drape over the counter to avoid tripping hazards. Use only an extension cord suitable for 120V.

What is the required voltage?

The appliance operates only on a 120V AC, 60Hz outlet. The plug is polarized (one blade wider) and should only be plugged into a matching outlet. Do not use a converter or transformer.

Can I use glass or uneven-bottomed pots?

It is not recommended to use pots with uneven bottoms as this reduces efficiency and may damage the plate. Preferably use cookware with a bottom diameter matching the hot plate.

What to do if the appliance does not heat?

Check that the temperature knob is not set to 'OFF' and that the appliance is plugged into a working outlet. If the problem persists, do not attempt to repair it yourself. Contact customer service at [phone] or via www.nostalgiaproducts.com.

Is the hot plate dishwasher safe?

No, no parts of this appliance are dishwasher safe. Clean it only by hand with a damp cloth.

How to adjust the temperature?

Turn the temperature control knob to one of the 5 positions: settings 1-2 for simmering, 2-3 for medium cooking, 4-5 for searing or boiling. An indicator light shows that the appliance is on.

Can I leave the appliance unattended while in use?

No, never leave the appliance unattended while it is operating or plugged in. Unplug it after use and allow it to cool completely before storing.

What if the plug does not fit into the outlet?

The plug is polarized: try turning it over. If it still does not fit, do not modify it. Contact a qualified electrician to check the outlet. Do not use an adapter that would defeat the polarization.

What is the warranty of the appliance?

HomeCraft offers a one-year limited warranty from the date of purchase, covering defects in materials and workmanship. The warranty is valid only in the United States and Canada. Keep your sales receipt as proof of purchase.

USER MANUAL HCSB75BK HomeCraft

All products are trademarks of Nostalgia Products LLC.

Worldwide design & utility patented or patents pending.

© 2023 Nostalgia Products LLC.

www.nostalgiaproducts.com

(rev. 11/27/23 NW)

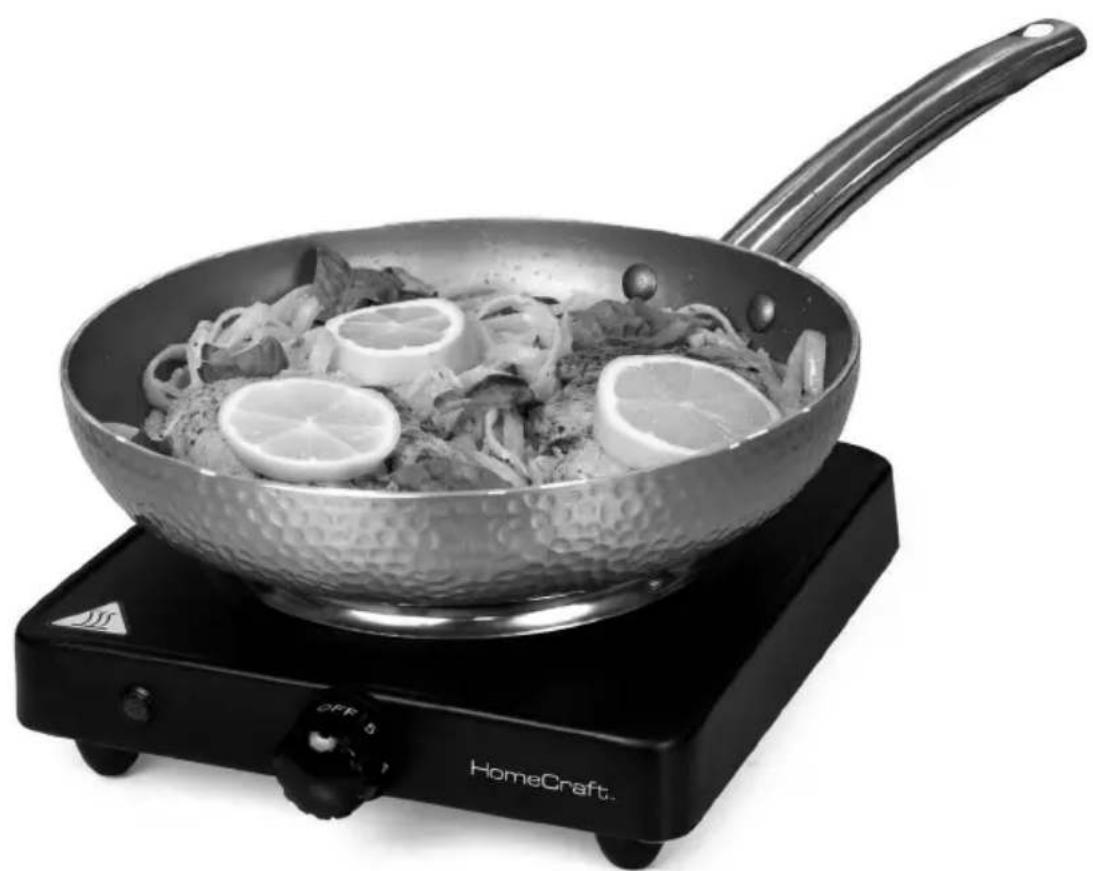

Black and white photo of a frying pan on an electric heating power (no text or symbols visible)

Countertop Single Burner Hot Plate Plaque de cuisson à brûleur simple pour comptoir Anafe con quemador único para encimera

Instructions and Recipes

Make every day a party!

Visit www.nostalgiaproducts.com for more fun products.

CONTENTS

SAFETY 2

IMPORTANT SAFEGUARDS 3

ADDITIONAL IMPORTANT SAFEGUARDS 3

INTRODUCTION 4

PARTS & ASSEMBLY 5

HOW TO OPERATE 5

HELPFUL TIPS 6

CLEANING & MAINTENANCE 6

RETURNS & WARRANTY 7

SAFETY

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can cause serious injury to you and others.

All safety messages will follow the safety alert symbol.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

Appliance Specifications:

120 Volts, 60 Hertz, 750 Watts

THIS PRODUCT IS FOR USE IN 120V AC OUTLET ONLY.

Refer to www.nostalgiaproducts.com/user-manuals/ for the most updated manual.

IMPORTANT SAFEGUARDS

A person who has not read and understood all operating and safety instructions is not qualified to operate this appliance. All users of this appliance must read and understand this Instruction Manual before operating or cleaning this appliance.

When using electrical appliances, basic safety precautions should always be followed, including:

1. Read all instructions before operating this appliance.
2. DO NOT TOUCH the hot surfaces. Use handles or knobs.
3. This appliance is NOT A TOY.
4. Unsupervised young children and cognitively challenged individuals should never operate this appliance.
5. Close supervision is necessary when any appliance is used by or near children.
6. To protect against electrical shock do not immerse cord, plug or any part of this unit in water or other liquids.
7. Unplug from outlet when not in use, before removing parts and before cleaning. Allow to cool before putting on or taking off any parts, and before cleaning.
8. DO NOT operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or if the appliance has been damaged in any manner. Return the appliance to the nearest repair shop for examination, repair or adjustment.
9. The manufacturer does not recommend the use of accessory attachments other than what is provided by the manufacturer. Use of attachments may cause injuries.
10. DO NOT use the appliance for other than its intended use.
11. DO NOT use outdoors. FOR HOUSEHOLD USE ONLY.
12. DO NOT place on or near a hot gas or electric burner, or in a heated oven.
13. DO NOT let cord hang over edge of table or counter, or touch hot surfaces.
14. NEVER leave unit unattended while in use or when plugged into an outlet.
15. Extreme caution must be used when moving an appliance containing hot food.

ADDITIONAL IMPORTANT SAFEGUARDS

Operating Safety Precautions

1. Prior to plugging appliance into the wall outlet, ensure temperature control switches are set to "OFF" position. To disconnect completely, set temperature control slide to "OFF" and unplug the hot plate.
2. When in use, keep hot plate a minimum of 10-12 inches away from walls.
3. Place on a stable, heat-resistant surface and in a well-ventilated area. Place the appliance on a dry and horizontal surface.
4. A fire may occur if the hot plate is covered or touching flammable material, such as curtains, draperies, walls and the like, while in operation.
5. Do not place any flammable materials in or on the hot plate, such as paper, cardboard, plastic, etc.
6. To ensure an optimum performance life for the hot plate,

avoid dropping any food on the heating element.

1. Always pull the plug out from the wall outlet. Never pull the cord.
2. If the electric circuit in use is overloaded with other appliances, this appliance may not operate properly. The appliance should be operated on a separate electrical circuit from other operating appliances.
3. Clean the appliance regularly, as a build-up of grease poses a fire hazard.
4. Always allow the appliance to cool completely before cleaning.
5. Do not attempt to move the appliance with cookware on top.

Instructions for the Electrical Cord and Plug

1. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electrical shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
2. A short power supply cord is provided to reduce the risk resulting from becoming entangled or tripping over a long cord.

3. If a long detachable power-supply cord or extension cord is used:

4. Extension cords can be used if care is exercised in their use.

5. The marked electrical rating of the cord or extension cord should be at least as great as the electrical rating of the appliance.

6. When using a longer cord or extension cord, make sure that the cord does not drape over a countertop or tabletop where it can be pulled on or tripped over unintentionally.

7. The manufacturer does not recommend using this machine in countries that do not support 120V AC even if a voltage adapter, transformer, or converter is in use.

SAVE THESE INSTRUCTIONS!

INTRODUCTION

Thank you for purchasing the SINGLE BURNER HOT PLATE from HomeCraft! This 750-watt hot plate is the perfect addition in and away from home. Easily transport from home, to the office, a dorm, or a camper for home cooked meals made anywhere.

• Perfect for homes, dorms, offices, entertaining, traveling, outdoors, campers/RVs
• Burner has a 5-setting temperature control with warm setting & indicator light
  • Durable large die-cast 750-watt heating plate
• Black metal housing
• Nonslip rubber feet for stability
• 750 watts

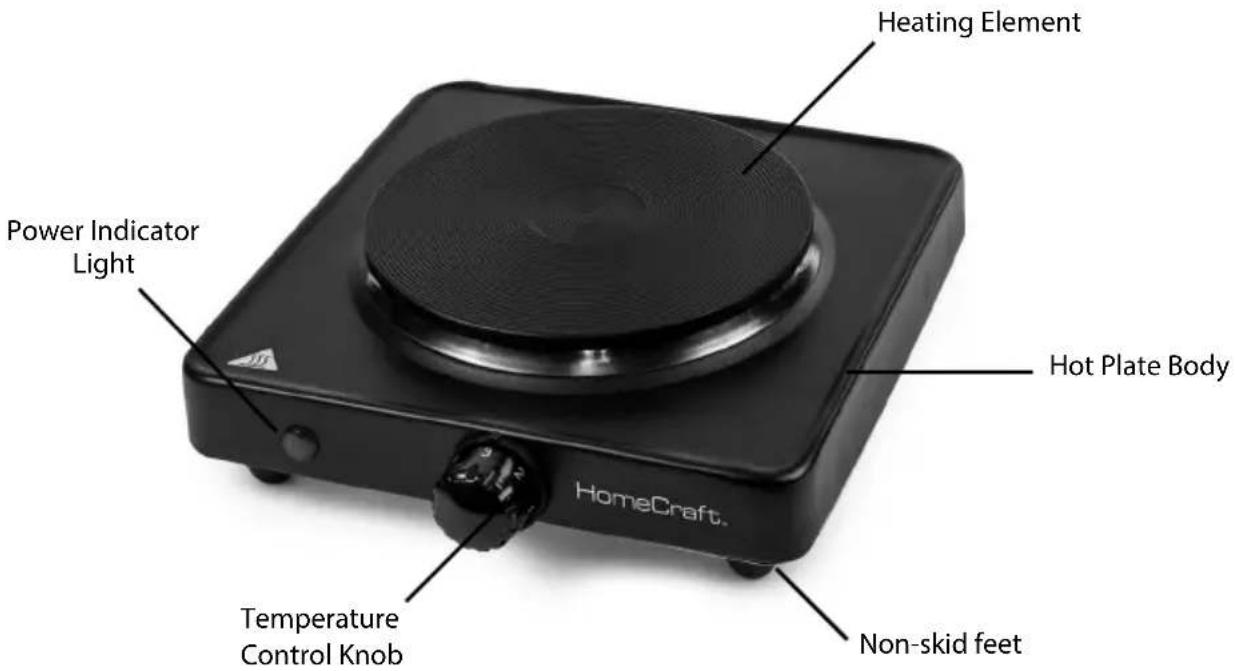

PARTS & ASSEMBLY

Heating Element Power Indicator Light Hot Plate Body HomeCraft. Temperature Control Knob Non-skid feet

HOW TO OPERATE

Before first use, place the hot plate on a flat, sturdy and heat-resistant surface.

NOTE: It is also recommended to turn the hot plates on the highest heat setting and heat up for several minutes. This will burn off any residue left from manufacture. Some odor and smoke could develop during this process, ensure good ventilation and it should disappear after few minutes of use.

1. Place the unit on a clean, dry and level surface near an electrical outlet. Allow about eight inches of clear space all around the exterior of the unit.
2. Make sure temperature control knob is set to the "OFF" position.
3. Plug into a wall outlet.
4. For most efficient operation, select a pot or pan that has a bottom diameter that fits the heating plate. NOTE: When trying to boil water or wanting to get maximum heat, it's best if using a thin pot or pan for better transfer of heat. It's also recommended to use a lid to keep the heat inside.
5. Place the pot or pan onto the hot plate and use the temperature guide below to cook the food as instructed by the recipe. NOTE: The hot plate will automatically turn on and off (light turns on and off) when the temperature reaches maximum temperature so it doesn't overheat and melt internal components. This will not affect cooking temperature or time
6. After cooking is finished, turn the temperature control knob to the "OFF" position.

LOW (1-2)	Use the low settings for simmering, stewing, slow cooking, poaching, braising and applying gentle heat to foods that can burn easily.
MEDIUM (2-3)	The medium settings are ideal for pan frying, deep frying foods and it's perfect for cooking soups.
HIGH (4-5)	Use high settings when sauteing or stir frying, bringing water to a boil, in preparation for soups or stock or for steaming foods such as vegetables.

HELPFUL TIPS

⚠️ NEVER leave the appliance unattended while operating.

• Do not touch the heating element or the body of the hot plate while in operation as it will be extremely hot.
• The hot plate heating element will remain hot for some time, even after it has been turned to the "OFF" position. Always wait for the hot plate to cool completely before cleaning or storing.
• Avoid dripping liquids on the surface of the hot plate while cooking.
• Do not use pots and pans with uneven bottoms for cooking on the hot plate.
• Never heat food directly on the hot plate as doing so will pose a risk of fire or electric shock.
• The hot plate must be turned to "OFF" position and disconnected from power when not in use.
• The pots and pans to be used on the hot plate should not extend beyond the hot plate itself or prevent access to the temperature control knob.

CLEANING & MAINTENANCE

Please take care of your SINGLE BURNER HOT PLATE by following these simple instructions.

1. Turn the temperature control knob to the OFF position.
2. Unplug from the wall outlet.
3. Make sure the appliance is cool before cleaning.
4. Clean the body of the hot plate with a damp cloth using a non-abrasive household detergent. Wipe it thoroughly clean.
5. Clean the cooking plate with household cleaning powder and wipe clean with a damp cloth. Let it dry before its next use.

NOTE:

• Do not use harsh or abrasive cleaners
• Do not immerse any part of appliance or power cord in water or any other liquid.
• The electric burner is not dishwasher safe.
• Any other servicing should be by a certified technician.

RETURNS & WARRANTY

SHOULD YOUR UNIT NOT WORK OR IF DAMAGED WHEN YOU FIRST TAKE IT OUT OF THE BOX, PLEASE RETURN IT TO THE PLACE OF PURCHASE IMMEDIATELY.

SINGLE BURNER HOT PLATE / HCSB75BK

Should you have any questions, please contact us via email or at the customer service number listed below between the hours of 9:00 AM and 4:00 PM, Monday through Friday, Central Standard Time.

Distributed by:

Nostalgia Products LLC

1471 Partnership Dr.

Green Bay, WI 54304-5685

Customer Service

Phone: [phone]

Web: www.nostalgiaproducts.com

Customer Service Inquiry

To submit a Customer Service inquiry, go to www.nostalgiaproducts.com and fill out the Customer Service Inquiry form and click the Submit button.

A representative will contact you as soon as possible.

Product Warranty Terms

Nostalgia Products LLC (the "Company") hereby warrants that for a period of one (1) year from the date of original purchase, this product will be free of defects in material and workmanship under normal home use, provided that the product is operated and maintained in accordance with the operating instructions. As the sole and exclusive remedy under this warranty, the Company will at its discretion either repair or replace the product found to be defective, or issue a refund on the product during the warranty period. This warranty is only available to the original retail purchaser of the product from the date of initial retail purchase, and is only valid with the original sales receipt, as proof of purchase date is required to obtain warranty benefits. All warranty claims must be brought to the attention of the Company within the warranty period and no later than 30 days of the failure to perform. This warranty does not cover normal wear or damage caused by shipping, mishandling, misuse, accident, alteration, improper replacement parts, or other than ordinary household use. You may be required to return the product (with shipping prepaid by you) for inspection and evaluation. Return shipping costs are not refundable. The Company is not responsible for returns damaged or lost in transit. Unless otherwise specifically permitted by the operating instructions, this warranty applies to indoor household use only. In order to obtain service under this warranty, please contact the Company at the telephone number listed above or by filling out the Customer Service Inquiry Form located at www.nostalgiaproducts.com. Warranty valid only in USA and Canada.

This warranty is in lieu of all other warranties, expressed or implied, including warranties of merchantability and fitness for a particular purpose, which are hereby excluded to the extent permitted by law. In no event shall the Company be liable for any indirect, incidental, consequential, or special damages arising out of or in connection with this product or the use thereof. Some states, provinces or jurisdictions do not permit the exclusion or limitation of incidental or consequential damages, so the foregoing exclusion or limitation may not apply to you.

This warranty does not apply to re-manufactured merchandise.

Please read the operating instructions carefully. Failure to comply with the operating instructions will void this warranty.

For more information, visit us online at www.nostalgiaproducts.com.

Like us on Facebook at www.facebook.com/NostalgiaElectrics.

Follow our boards on Pinterest at www.pinterest.com/nostalgiaelctrx.

Tweet along with us on Twitter at www.twitter.com/NostalgiaElctrx.
