LSB3 - Electric cooking appliance HomeCraft - Free user manual and instructions
Find the device manual for free LSB3 HomeCraft in PDF.
| Product Type | 3-in-1 Rotating Electric Buffet Server with Warmer |
| Brand | HomeCraft |
| Model | LSB3 |
| Power Supply | 120 V~, 60 Hz, 800 W |
| Plug | Polarized (one blade wider) |
| Power Cord | Short and detachable |
| Use Modes | 4-station buffet, serving pan, warmer with heating stone |
| Accessories Included | 4 buffet trays (1 quart / 0.95 L each), 4 lids, serving pan with handles, rotating ring, warmer with stone |
| Main Material | Stainless steel and heat-resistant plastic |
| Rotating Function | Lazy Susan base for 360° rotation |
| Maximum Temperature | Reached after 15-20 minutes of preheating |
| Cordless Keep Warm | About 60 minutes after unplugging |
| Recommended Serving Temperature | Minimum 140 °F (60 °C) to avoid food poisoning |
| Maximum Holding Time | 3 to 4 hours (beyond that, food dries out) |
| Cleaning | Hand wash only, do not immerse the electric base |
| Dishwasher | Not recommended for any parts |
| Safety | Do not use outdoors, do not leave unattended, hot surfaces |
| Intended Use | Indoor household use only |
| Warranty | 1 year from date of purchase (USA and Canada) |
Frequently Asked Questions - LSB3 HomeCraft
User questions about LSB3 HomeCraft
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Electric cooking appliance in PDF format for free! Find your manual LSB3 - HomeCraft and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. LSB3 by HomeCraft.
USER MANUAL LSB3 HomeCraft
All products are trademarks of Nostalgia Products LLC.
Worldwide design & utility patented or patents pending.
© 2018 Nostalgia Products LLC.
www.nostalgiaproducts.com
(rev. 05/30/18 YD)

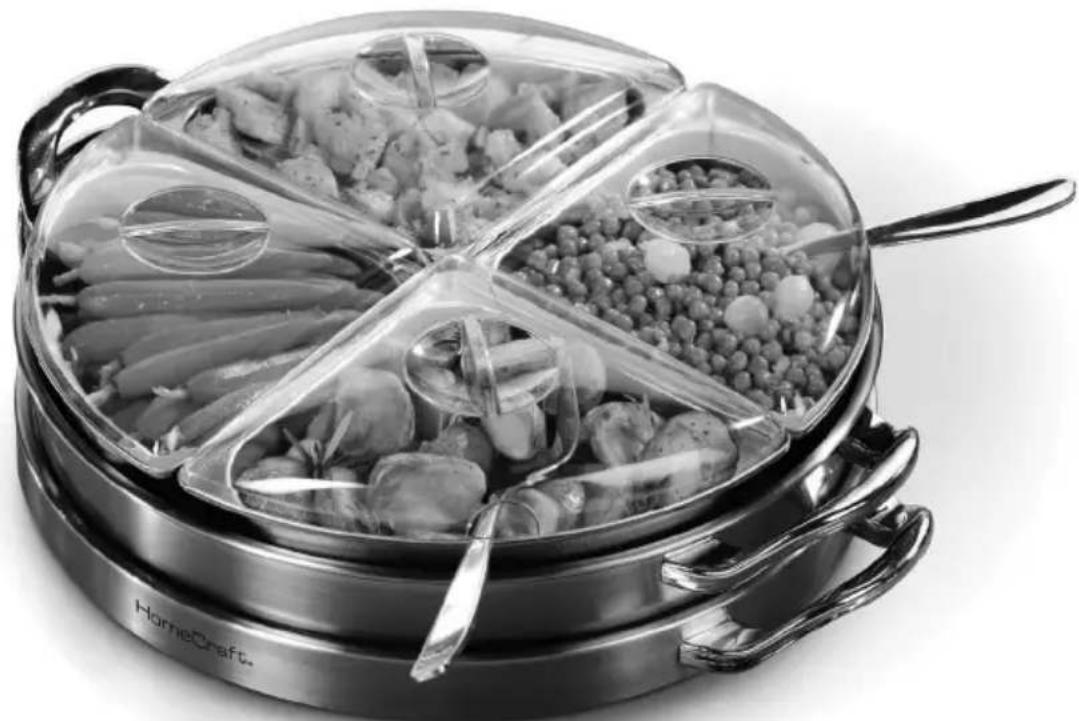

Visit www.nostalgiaproducts.com for more fun products.
CONTENTS
SAFETY 2
IMPORTANT SAFEGUARDS 3
ADDITIONAL IMPORTANT SAFEGUARDS 3
INTRODUCTION 4
PARTS & ASSEMBLY 5
HOW TO OPERATE 6
HELPFUL TIPS 8
CLEANING & MAINTENANCE 8
RECIPES 8
RETURNS & WARRANTY 9
SAFETY
Your safety and the safety of others is very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can cause serious injury to you and others.
All safety messages will follow the safety alert symbol.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.
Appliance Specifications:
120 Volts, 60 Hz, 800 Watts
THIS PRODUCT IS FOR USE IN 120V AC OUTLET ONLY.
Intertek
Refer to www.nostalgiaproducts.com/user-manuals/ for the most updated manual.
IMPORTANT SAFEGUARDS
A person who has not read and understood all operating and safety instructions is not qualified to operate this appliance. All users of this appliance must read and understand this Instruction Manual before operating or cleaning this appliance.
When using electrical appliances, basic safety precautions should always be followed, including:
- Read all instructions before operating this appliance.
- DO NOT TOUCH the hot surfaces. Use handles or knobs. Always use hot pads or potholders until unit cools.
- This appliance is NOT A TOY.
- Unsupervised young children and cognitively challenged individuals should never operate this appliance.
- Close supervision is necessary when any appliance is used by or near children.
- To protect against electrical shock do not immerse cord, plug or any part of this appliance in water or other liquids.
- Unplug from outlet when not in use, before removing parts and before cleaning. Allow to cool before putting on or taking off any parts, and before cleaning.
- DO NOT operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or if the appliance has been damaged in any manner. Return the appliance to the nearest repair shop for examination, repair or adjustment.
- The manufacturer does not recommend the use of accessory attachments other than what is provided by the manufacturer. Use of attachments may cause injuries.
- DO NOT use the appliance for other than its intended use.
- DO NOT use outdoors. FOR HOUSEHOLD USE ONLY.
- DO NOT place on or near a hot gas or electric burner, or in a heated oven.
- DO NOT let cord hang over edge of table or counter, or touch hot surfaces.
- NEVER leave unit unattended while in use or when plugged into an outlet.
- Extreme caution must be used when moving an appliance containing hot food.
- Always attach plug to appliance first, then plug cord in the wall outlet. To disconnect, turn any control to "off," then remove plug from wall outlet.
ADDITIONAL IMPORTANT SAFEGUARDS
Operating Safety Precautions
- Always be sure the feet of the Warming Tray are resting on a table or countertop. Using the appliance upside down may cause fire or burns.
- DO NOT use plastic dishes or plastic wrap on Warming Tray.
Instructions for the Electrical Cord and Plug
-
This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electrical shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
-
A short power supply cord is provided to reduce the risk resulting from becoming entangled or tripping over a long cord.
-
If a long detachable power-supply cord or extension cord is used:
-
Extension cords can be used if care is exercised in their use.
- The marked electrical rating of the cord or extension cord should be at least as great as the electrical rating of the appliance.
-
When using a longer cord or extension cord, make sure that the cord does not drape over a countertop or tabletop where it can be pulled on or tripped over unintentionally.
-
The manufacturer does not recommend using this machine in countries that do not support 120V AC even if a voltage adapter, transformer, or converter is in use.
SAVE THESE INSTRUCTIONS!
INTRODUCTION
Congratulations on your purchase of the highly versatile ELECTRIC 3-IN-1 STAINLESS STEEL LAZY SUSAN BUFFET! Great for any special event, this buffet allows you to serve food three different ways. Use the 4-section 1-quart serving trays to piece together a four course meal, fill the serving pan with an excellent one-pot meal to share, or keep several dishes warm on the heat-retaining stone layer. Best of all, the lazy-Susan design means you don't have to reach far to fill up with your favorite foods. The ELECTRIC 3-IN-1 STAINLESS STEEL LAZY SUSAN BUFFET is perfect for entertaining large groups in style!
Features Include:
- 3 ways to serve: 4-station buffet server, serving pan or warming tray
• 4 (1-quart) buffet-style serving trays - Large serving pan has side handles for easy transport
• Each 1-quart serving tray includes heat resistant lid with built-in spoon slot and knob
• Electric warming tray with heat-retaining stone core keeps dishes warm - Uplug the electric heat-retaining stone core to keep food warm for over an hour
- Lazy-Susan design makes it easy rotate the base to reach any of your favorite foods
- Stay-cool side handles
- Removable electric cord
PARTS & ASSEMBLY
Your LAZY SUSAN BUFFET should be put together as shown below. Be sure to remove all packing materials and protective coverings before assembly.
Before you begin, decide how you would like to use your LAZY SUSAN BUFFET and follow the usage directions under that section.
4-STATION BUFFET SERVER
- Assemble all layers of the unit as shown under PARTS & ASSEMBLY, and place on a flat, level surface. Connect the appropriate ends of the Power Cord to the AC Input and a nearby electrical outlet, then flip the Power Switch to the ON (-) position.
- Allow 15-20 minutes for the unit to reach maximum temperature. NOTE: If desired, after 20 minutes of the charging, the unit can be unplugged from the electrical outlet - making it cordless.
- Place desired food into each one of the Buffet Trays, then place the lids onto each tray. NOTE: Never place the Lids or any non-heat proof items directly onto the hot surface of the Serving Pan or Warming Tray, or you risk deforming the Lids.
- The trays can keep foods hot for a long period of time, but it is not recommended to exceed 3 to 4 hours. After that point, the foods begin to dry out and/or the flavor begins to change. When unplugged, the Buffet Trays will continue to give off heat for approximately 60 minutes before needing to be plugged in again.
- Do not leave food in Buffet Trays. Remove food and liquid for easy clean up and preparation for next use.
- When done using, flip the Power Switch to the OFF (O) position.
- Allow the unit to cool before removing parts for cleaning.
SERVING PAN
- Assemble the Warming Tray, Turntable Ring and Serving Pan layers of the unit as shown under PARTS & ASSEMBLY, and place on a flat, level surface. Set aside the Buffet Trays and Lids. Connect the appropriate ends of the Power Cord to the AC Input and a nearby electrical outlet, then flip the Power Switch to the ON (-) position.
- Allow 15-20 minutes for the unit to reach maximum temperature. NOTE: If desired, after 20 minutes of the charging, the unit can be unplugged from the electrical outlet - making it cordless.
- Place desired food into the Serving Pan. NOTE: Never place the Lids or any non-heat proof items directly onto the hot surface of the Serving Pan or Warming Tray, or you risk deforming the Lids.
- The Serving Pan can keep foods hot for a long period of time, but it is not recommended to exceed 3 to 4 hours. After that point, the foods begin to dry out and/or the flavor begins to change. When unplugged, the Buffet Trays will continue to give off heat for approximately 60 minutes before needing to be plugged in again.
- Do not leave food in Buffet Trays. Remove food and liquid for easy clean up and preparation for next use.
- When done using, flip the Power Switch to the OFF (O) position.
- Allow the unit to cool before removing parts for cleaning.
WARMING TRAY WITH STONE CORE
- Place the Warming Tray on a flat, level surface. Set aside the Turntable Ring, Serving Pan, Buffet Trays and Lids. Connect the appropriate ends of the Power Cord to the AC Input and a nearby electrical outlet, then flip the Power Switch to the ON (-) position.
- Allow 15-20 minutes for the unit to reach maximum temperature.
NOTE: If desired, after 20 minutes of the charging, the unit can be unplugged from the electrical outlet - making it cordless.
- Place the foods to be warmed into a heat-safe serving dish, then place onto the Warming Tray. Most silver, china, pottery, ovenware, glass and metal serving dishes are appropriate for use with the Warming Tray. DO NOT use plastic dishware or place food directly onto the Warming Tray.
NOTE: Never place the Lids or any non-heat proof items directly onto the hot surface of the Serving Pan or Warming Tray, or you risk deforming the Lids. - The Warming Tray can keep foods hot for a long period of time, but it is not recommended to exceed 3 to 4 hours. After that point, the foods begin to dry out and/or the flavor begins to change. When unplugged, the Warming Tray will continue to give off heat for approximately 60 minutes before needing to be plugged in again.
PRO TIP: To keep foods from drying out, cover each dish with aluminum foil until serving time. - When done using, flip the Power Switch to the OFF (O) position.
- Allow the unit to cool before removing parts for cleaning.
HELPFUL TIPS
NEVER leave the unit unattended while operating.
SMOKING
During first use, you may notice slight smoking or a slight odor; this is normal with most new appliances. Allow the appliance to preheat until smoke and odor no longer exists.
SERVING TIPS
To keep foods from drying out, cover each dish with aluminum foil until serving time.
It is important to maintain all cooked foods at a minimum of 140^ F ( 60^ C) over an extended period of time to prevent any food borne illness. It is recommended to periodically check the temperature of the food with a food thermometer while serving.
All foods have different consistencies so depending on what you are serving you may have to adjust the temperature lower or higher to maintain a minimum temperature of 140^ F ( 60^ C).
Temperatures may fluctuate as the food is being served and the contents of the buffet server, serving pan and / or warming tray are emptied.
CLEANING & MAINTENANCE
Please take care of your LAZY SUSAN BUFFET by following these simple instructions.
- Unplug the Power Cord from the electrical outlet and allow the unit to cool completely.
- Wash the Lids, Buffet Trays, Serving Pan and Turntable Ring with hot, soapy water. Rinse well and wipe dry with a non-abrasive cloth.
- Wipe the Warming Tray base with a dry, non-abrasive cloth or sponge to remove food and liquid, preparing it for the next use.
- NEVER place any parts in the dishwasher. Always wash by hand.
RECIPES
With the LAZY SUSAN BUFFET you can enjoy a variety of meals for any occasion! Here are a few great ideas on how to use your LAZY SUSAN BUFFET:
- Have a taco night or nacho night and fill each station of the Buffet Server with hot toppings and fillings like refried beans, rice, meat and nacho cheese.
- Cook up your favorite one-skillet meal and keep it warm using the Serving Pan.
- Round out a delicious meal with a variety of hot desserts, like bread pudding, apple crisp and peach cobbler, using the Warming Tray.
With a little imagination, you can come up with special uses for your buffet. Be creative, eat good food, and enjoy!
RETURNS & WARRANTY
SHOULD YOUR UNIT NOT WORK OR IF DAMAGED WHEN YOU FIRST TAKE IT OUT OF THE BOX, PLEASE RETURN IT TO THE PLACE OF PURCHASE IMMEDIATELY.
ELECTRIC 3-IN-1 LAZY SUSAN BUFFET / LSB3
Should you have any questions, please contact us via email or at the customer service number listed below between the hours of 8:00 AM and 5:00 PM, Monday through Friday, Central Standard Time.
Distributed by:
Nostalgia Products LLC
1471 Partnership Dr.
Green Bay, WI 54304-5685
Customer Service
Phone: (920) 347-9122
Web: www.nostalgiaproducts.com
Customer Service Inquiry
To submit a Customer Service inquiry, go to www.nostalgiaproducts.com and fill out the Customer Service Inquiry form and click the Submit button.
A representative will contact you as soon as possible.
Product Warranty Terms
Nostalgia Products LLC (the "Company") hereby warrants that for a period of one (1) year from the date of original purchase, this product will be free of defects in material and workmanship under normal home use, provided that the product is operated and maintained in accordance with the operating instructions. As the sole and exclusive remedy under this warranty, the Company will at its discretion either repair or replace the product found to be defective, or issue a refund on the product during the warranty period. This warranty is only available to the original retail purchaser of the product from the date of initial retail purchase, and is only valid with the original sales receipt, as proof of purchase date is required to obtain warranty benefits. All warranty claims must be brought to the attention of the Company within the warranty period and no later than 30 days of the failure to perform. This warranty does not cover normal wear or damage caused by shipping, mishandling, misuse, accident, alteration, improper replacement parts, or other than ordinary household use. You may be required to return the product (with shipping prepaid by you) for inspection and evaluation. Return shipping costs are not refundable. The Company is not responsible for returns damaged or lost in transit. Unless otherwise specifically permitted by the operating instructions, this warranty applies to indoor household use only. In order to obtain service under this warranty, please contact the Company at the telephone number listed above or by filling out the Customer Service Inquiry Form located at www.nostalgiaproducts.com. Warranty valid only in USA and Canada.
This warranty is in lieu of all other warranties, expressed or implied, including warranties of merchantability and fitness for a particular purpose, which are hereby excluded to the extent permitted by law. In no event shall the Company be liable for any indirect, incidental, consequential, or special damages arising out of or in connection with this product or the use thereof. Some states, provinces or jurisdictions do not permit the exclusion or limitation of incidental or consequential damages, so the foregoing exclusion or limitation may not apply to you.
This warranty does not apply to re-manufactured merchandise.
Please read the operating instructions carefully. Failure to comply with the operating instructions will void this warranty.
For more information, visit us online at www.nostalgiaproducts.com.
Like us on Facebook at www.facebook.com/NostalgiaElectrics.
Follow our boards on Pinterest at www.pinterest.com/nostalgiaelctrx.
Tweet along with us on Twitter at www.twitter.com/NostalgiaElctrx.
Nostalgia Products LLC
1471 Partnership Dr.
Green Bay, WI 54304-5685
Nostalgia Products LLC
1471 Partnership Dr.
Green Bay, WI 54304-5685
