HCMF4BK - Milk frother HomeCraft - Free user manual and instructions

Brand	HomeCraft
Model	HCMF4BK
Product Type	4-in-1 Milk Frother
Functions	Hot thick foam, hot fine foam, hot milk, cold foam
Minimum Capacity	3 oz (89 ml) for all functions
Maximum Capacity (Hot Foam)	5 oz (148 ml)
Maximum Capacity (Hot Milk)	10 oz (295 ml)
Cycle Time (Hot Foam)	50 to 90 seconds
Cycle Time (Hot Milk)	185 seconds
Cycle Time (Cold Foam)	120 seconds
Power	120 V, 60 Hz
Base Type	Cordless 360° with connector
Material	Double-walled insulated with ergonomic handle
Included Accessories	Removable frothing whisk, transparent lid
Indicator Light	LED indicator with auto shut-off
Care and Cleaning	Wipe clean with a damp cloth. Do not submerge. Do not put in dishwasher.
Safety	Auto shut-off, overheat protection (rest time required between cycles)
Warranty	1 year (United States and Canada)
Usage	For household use only

Frequently Asked Questions - HCMF4BK HomeCraft

What functions does the HomeCraft HCMF4BK milk frother offer?

It offers 4 functions: hot thick foam, hot fine foam, hot milk, and cold foam.

What is the maximum milk capacity for hot foam?

The maximum capacity is 5 oz (148 ml). The minimum capacity is 3 oz (89 ml).

How long does it take to make hot foam?

The hot foam cycle lasts between 50 and 90 seconds, depending on the amount and type of milk.

Can I use plant-based milk?

Yes, all types of milk can be used: whole, semi-skimmed, skimmed, soy, almond, rice. Skimmed milk produces the thickest foam.

How do I clean the milk frother?

Unplug the appliance and let it cool. Wash the lid and frothing whisk by hand with warm water and mild detergent. Wipe the inside and outside of the pitcher with a damp cloth. Never submerge the base or cord.

Can I put the lid in the dishwasher?

No, the lid is not dishwasher safe. Wash it by hand.

What should I do if the appliance stops and the light flashes?

This indicates that the appliance needs to cool down. Let it rest for at least 3 minutes before starting another cycle.

Can I heat hot chocolate or coffee in the frother?

It is not recommended to use anything other than milk. Flavorings or chocolate may damage the appliance. If you do, clean immediately.

Is the frother cordless?

The pitcher is cordless and sits on a base that plugs into an electrical outlet. It swivels 360 degrees on the base.

What is the product warranty?

The warranty is one year from the date of purchase, valid in the United States and Canada. Keep your receipt as proof of purchase.

USER MANUAL HCMF4BK HomeCraft

All products are trademarks of Nostalgia Products LLC.

Worldwide design & utility patented or patents pending.

© 2021 Nostalgia Products LLC.

www.nostalgiaproducts.com

(rev. 02/24/21 DL)

Black home-coated water heater with glass mug and side dish, no visible text or symbols on main subject

HCMF4BK

4-in-1 Milk Frother

IMPORTANT SAFEGUARDS ....3

ADDITIONAL IMPORTANT SAFEGUARDS....3

INTRODUCTION 4

PARTS & ASSEMBLY 5

HOW TO OPERATE....6

HELPFUL TIPS....8

CLEANING & MAINTENANCE 8

RETURNS & WARRANTY 9

SAFETY

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can cause serious injury to you and others.

All safety messages will follow the safety alert symbol.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

Appliance Specifications:

120 Volts, 60 Hz, 600 Watts

THIS PRODUCT IS FOR USE IN 120V AC OUTLET ONLY.

Refer to www.nostalgiaproducts.com/user-manuals/ for the most updated manual.

IMPORTANT SAFEGUARDS

A person who has not read and understood all operating and safety instructions is not qualified to operate this appliance. All users of this appliance must read and understand this Instruction Manual before operating or cleaning this appliance.

When using electrical appliances, basic safety precautions should always be followed, including:

1. Read all instructions before operating this appliance.
2. DO NOT TOUCH the hot surfaces. Use handles or knobs.
3. This appliance is NOT A TOY.
4. Keep out of reach of children.
5. Unsupervised young children and cognitively challenged individuals should never operate this appliance.
6. Close supervision is necessary when any appliance is used by or near children.
7. To protect against electrical shock do not immerse cord, plug or any part of this unit in water or other liquids.
8. Do not operate this appliance when parts are missing or broken.
9. Unplug from outlet when not in use, before removing parts and before cleaning. Allow to cool before putting on or taking off any parts, and before cleaning.
10. DO NOT operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or if the appliance has been damaged in any manner. Return the appliance to the nearest repair shop for examination, repair or adjustment.
11. The manufacturer does not recommend the use of accessory attachments other than what is provided by the manufacturer. Use of attachments may cause injuries.
12. DO NOT use the appliance for other than its intended use.
13. DO NOT use outdoors. FOR HOUSEHOLD USE ONLY.
14. DO NOT place on or near a hot gas or electric burner, or in a heated oven.
15. DO NOT put any parts of this appliance in dishwasher.
16. DO NOT let cord hang over edge of table or counter, or touch not surfaces.
17. NEVER leave unit unattended while in use or when plugged into an outlet.
18. Extreme caution must be used when moving an appliance containing hot food.
19. Always attach plug to appliance first, then plug cord in the wall outlet. To disconnect, turn any control to "off," then remove plug from wall outlet.

ADDITIONAL IMPORTANT SAFEGUARDS

Operating Safety Precautions

1. The attached base can not be used for other than intended use.
2. Do not operate the appliance without anything in it to avoid damaging the heat elements.
3. Do not let the cord hang over the edge of a table or counter or touch a hot surface.
4. Do not place on or near a hot gas or electric burner or in a heated oven.

5. Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the blender.

6. Do not touch the hot surface. Use the handle or the button.

7. Extreme caution must be used when moving an appliance containing hot milk.
8. The use of attachments not recommended or sold by manufacturer may cause fire, electric shock or injury.
9. The appliance only used for frothing and heating milk. Do not use the appliance for other than intended use.
10. Always operate the appliance with cover in place.
11. Scalding may occur if the lid is removed during the brewing cycles.

Instructions for the Electrical Cord and Plug

1. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electrical shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
2. A short power supply cord is provided to reduce the risk resulting from becoming entangled or tripping over a long cord.

3. If a long detachable power-supply cord or extension cord is used:

4. Extension cords can be used if care is exercised in their use.

5. The marked electrical rating of the cord or extension cord should be at least as great as the electrical rating of the appliance.

6. When using a longer cord or extension cord, make sure that the cord does not drape over a countertop or tabletop where it can be pulled on or tripped over unintentionally.

7. The manufacturer does not recommend using this machine in countries that do not support 120V AC even if a voltage adapter, transformer, or converter is in use.

SAVE THESE INSTRUCTIONS!

INTRODUCTION

Congratulations on your purchase of the HomeCraft Milk Frother! Enjoy the rich taste of barista-styled froth! This milk frother has four functions - Warm & Thick Foam, Warm & Thin Foam, Warm Milk and Cold Foam! Perfect for making cappuccinos, coffee, macchiatos, lattes, hot chocolate & espresso!

Features include:

• Perfect for making cappuccinos, coffee, macchiatos, lattes, hot chocolate, espresso
• Simple warm/cold milk froth in 40 seconds
• Detachable froth paddle for easy cleaning
  • 360-degree cordless design
• Double wall insulated with ergonomic handle
  • LED indicator light with automatic shutoff
• Removable transparent lid

PARTS & ASSEMBLY

Your MILK FROTHER requires little assembly. Prior to use, wipe down the outside of the unit with a damp cloth and dry.

Do not attempt to assemble parts while the unit is running. Always assemble parts while unit is unplugged.

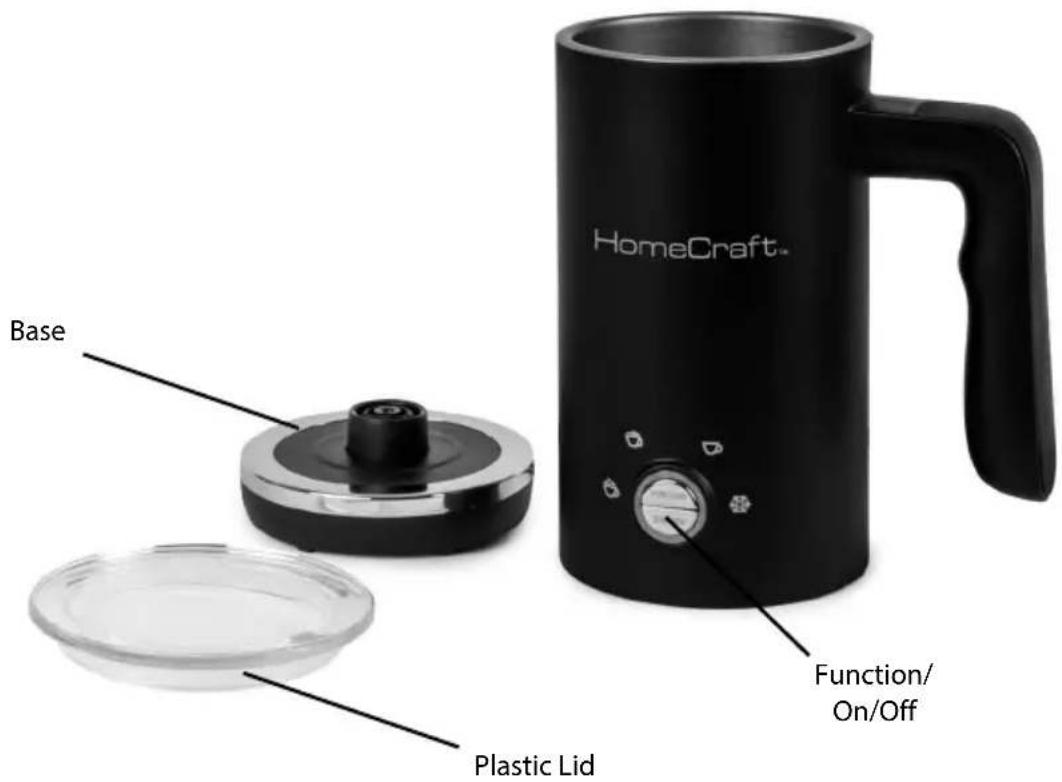

HomeCraft- Base Plastic Lid Function/ On/Off

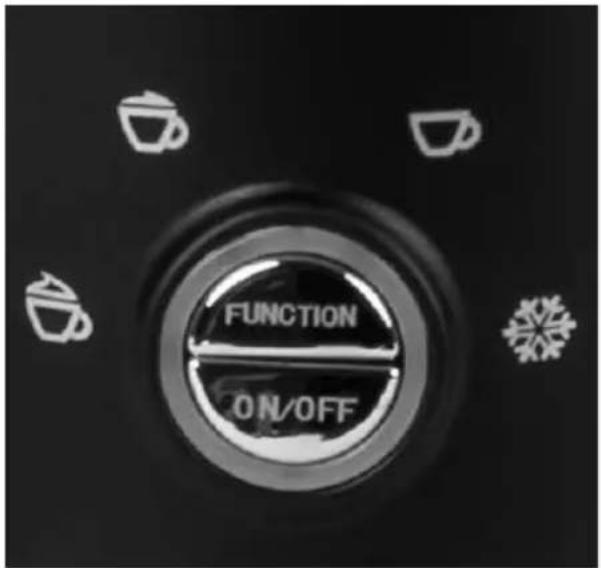

FUNCTION ON/OFF

FUNCTIONS:

WARM & THICK FOAM

WARM & THIN FOAM

WARM MILK

COLD FROTH

HOW TO OPERATE

Before first use, carefully unpack your MILK FROTHER, remove all packaging materials, and then follow the cleaning instructions under the CLEANING & MAINTENANCE section.

WARM AND THICK FOAM

1. Place the milk frother upright on a dry, sturdy and heat-resistant surface near an electrical outlet.
2. Take the lid off and insert the frothing paddle onto the shaft on the bottom of the frother.
3. Fill the jar with the desired amount of milk and put the lid on.

NOTE: Minimum milk capacity for WARM & THICK FOAM is 3 oz. Max capacity is 5 oz. Refer to chart to decide how much milk to put in - type of milk used may vary.

1. Connect the plug into an electrical outlet and place frother onto base.
2. Press the FUNCTION button once and the WARM & THICK FOAM indicator light will illuminate.
3. Press the ON/OFF button to begin frothing process.

NOTE: This setting will take approximately 50 to 90 seconds. The frother will turn off automatically when cycle is finished. If you want to stop the frothing process at any moment, press ON/OFF button once.

1. Take frother off base, remove lid and pour out warm froth and enjoy.

CAUTION: Minimum 3 minutes rest time must be maintained between cycles otherwise frother will stop and will flash, indicating that it needs to cool down.

WARM AND THIN FOAM

1. Place the milk frother upright on a dry, sturdy and heat-resistant surface near an electrical outlet.
2. Take the lid off and insert the frothing paddle onto the shaft on the bottom of the frother.
3. Fill the jar with the desired amount of milk and put the lid on.

NOTE: Minimum milk capacity for WARM & THIN FOAM is 3 oz. Max capacity is 5 oz.

Refer to chart to decide how much milk to put in - type of milk used may vary.

1. Connect the plug into an electrical outlet and place frother onto base.
2. Press the FUNCTION button twice and the WARM & THIN FOAM indicator light will illuminate.
3. Press the ON/OFF button to begin frothing process.

NOTE: This setting will take approximately 50 to 90 seconds. The frother will turn off automatically when cycle is finished. If you want to stop the frothing process at any moment, press ON/OFF button once.

1. Take frother off base, remove lid and pour out warm froth and enjoy.

CAUTION: Minimum 3 minutes rest time must be maintained between cycles otherwise frother will stop and will flash, indicating that it needs to cool down.

WARM MILK

1. Place the milk frother upright on a dry, sturdy and heat-resistant surface near an electrical outlet.
2. Take the lid off and insert the frothing paddle onto the shaft on the bottom of the frother.
3. Fill the jar with the desired amount of milk and put the lid on.

NOTE: Minimum milk capacity for WARMING MILK is 3 oz. Max capacity is 10 oz. Refer to chart to decide how much milk to put in - type of milk used may vary.

1. Connect the plug into an electrical outlet and place frother onto base.

2. Press the FUNCTION button three times and the WARMING MILK indicator light will illuminate.

3. Press the ON/OFF button to begin process.

NOTE: This setting will take approximately 50 - 135 seconds. The frother will turn off automatically when cycle is finished. If you want to stop the frothing process at any moment, press ON/OFF button once.

1. Take frother off base, remove lid and pour out warm milk and enjoy.

CAUTION: Minimum 3 minutes rest time must be maintained between cycles otherwise frother will stop and will flash, indicating that it needs to cool down.

COLD FROTH

1. Place the milk frother upright on a dry, sturdy and heat-resistant surface near an electrical outlet.
2. Take the lid off and insert the frothing paddle onto the shaft on the bottom of the frother.
3. Fill the jar with the desired amount of milk and put the lid on.

NOTE: Minimum milk capacity for COLD FROTH is 3 oz. Max capacity is 5 oz. Refer to chart to decide how much milk to put in - type of milk used may vary.

1. Connect the plug into an electrical outlet and place frother onto base.

2. Press the FUNCTION button four times and the COLD FROTH indicator light will illuminate.

3. Press the ON/OFF button to begin process.

NOTE: This setting will take approximately 2 minutes. The frother will turn off automatically when cycle is finished. If you want to stop the frothing process at any moment, press ON/OFF button once.

1. Take frother off base, remove lid and pour out the froth and enjoy.

CAUTION: Minimum 3 minutes rest time must be maintained between cycles otherwise frother will stop and will flash, indicating that it needs to cool down.

FROTH CHART

NOTE: These are approximate times only. Using different types of milk may vary.

FUNCTION MIN/MAX CAPACITY TIME FROTH PRODUCED
WARM & THICK FOAM 3	OZ. MIN	50 SECONDS	10 OZ.
	5 OZ. MAX	90 SECONDS	16 OZ.
WARM & THIN FOAM 3	OZ. MIN	50 SECONDS	8 OZ.
	5 OZ. MAX	90 SECONDS	14 OZ.
WARMING ONLY 3 OZ.	MIN	50 SECONDS	3 OZ.
	10 OZ. MAX	135 SECONDS	10 OZ.
COLD FROTH 3 OZ. MIN		2 MINUTES	7 OZ.
	5 OZ. MAX		12 OZ.

HELPFUL TIPS

• Iff adding frothed milk to a hot drink, prepare the beverage while frother is in use. Serve immediately for best flavor.
• All kinds of milk can be used with this appliance (Whole, 2%, 1%, skim, soy milk, almond milk, rice milk). Skim milk will produce the thickest, most stable froth. Soy milk will produce froth with somewhat larger bubbles, but the froth is not as stable.
• Do not use anything other than milk in the frother. Other items like flavoring, coffee, or hot chocolate may damage the unit. If you do use any of these products be sure to clean immediately.

CLEANING & MAINTENANCE

1. Always disconnect the appliance from the power outlet and allow it cooling down before cleaning.
2. CAUTION: Never immerse the jar, power cord in water, or allow moisture to contact with these parts.
3. Wash lid with water and mild detergent. The lid is not dishwasher safe component. Rinse thoroughly and dry.
4. Remove the mixing paddle or frothing paddle, and wash them completely in warm water.
5. Wash the inner of jar with a combination of a mild detergent and water and then wipe clean with a soft damp cloth.
6. Wipe the appearance of jar with a soft damp cloth or cleaner, never use a poisonous cleaner. Any other servicing should be performed by an authorized service representative.

NOTE: Do not use chemical, steel, wooden or abrasive cleaners to clean the outside of the appliance to prevent the gloss loss.

RETURNS & WARRANTY

SHOULD YOUR UNIT NOT WORK OR IF DAMAGED WHEN YOU FIRST TAKE IT OUT OF THE BOX, PLEASE RETURN IT TO THE PLACE OF PURCHASE IMMEDIATELY.

HOMECRAFT MILK FROTHER / HCMF4BK

Should you have any questions, please contact us via email or at the customer service number listed below between the hours of 8:00 AM and 5:00 PM, Monday through Friday, Central Standard Time.

Distributed by:

Nostalgia Products LLC

1471 Partnership Dr.

Green Bay, WI 54304-5685

Customer Service

Phone: [phone]

Web: www.nostalgiaproducts.com

Customer Service Inquiry

To submit a Customer Service inquiry, go to www.nostalgiaproducts.com and fill out the Customer Service Inquiry form and click the Submit button.

A representative will contact you as soon as possible.

Product Warranty Terms

Nostalgia Products LLC (the "Company") hereby warrants that for a period of one (1) year from the date of original purchase, this product will be free of defects in material and workmanship under normal home use, provided that the product is operated and maintained in accordance with the operating instructions. As the sole and exclusive remedy under this warranty, the Company will at its discretion either repair or replace the product found to be defective, or issue a refund on the product during the warranty period. This warranty is only available to the original retail purchaser of the product from the date of initial retail purchase, and is only valid with the original sales receipt, as proof of purchase date is required to obtain warranty benefits. All warranty claims must be brought to the attention of the Company within the warranty period and no later than 30 days of the failure to perform. This warranty does not cover normal wear or damage caused by shipping, mishandling, misuse, accident, alteration, improper replacement parts, or other than ordinary household use. You may be required to return the product (with shipping prepaid by you) for inspection and evaluation. Return shipping costs are not refundable. The Company is not responsible for returns damaged or lost in transit. Unless otherwise specifically permitted by the operating instructions, this warranty applies to indoor household use only. In order to obtain service under this warranty, please contact the Company at the telephone number listed above or by filling out the Customer Service Inquiry Form located at www.nostalgiaproducts.com. Warranty valid only in USA and Canada.

This warranty is in lieu of all other warranties, expressed or implied, including warranties of merchantability and fitness for a particular purpose, which are hereby excluded to the extent permitted by law. In no event shall the Company be liable for any indirect, incidental, consequential, or special damages arising out of or in connection with this product or the use thereof. Some states, provinces or jurisdictions do not permit the exclusion or limitation of incidental or consequential damages, so the foregoing exclusion or limitation may not apply to you.

This warranty does not apply to re-manufactured merchandise.

Please read the operating instructions carefully. Failure to comply with the operating instructions will void this warranty.

For more information, visit us online at www.nostalgiaproducts.com.

Like us on Facebook at www.facebook.com/NostalgiaElectrics.

Follow our boards on Pinterest at www.pinterest.com/nostalgiaelctrx.

Tweet along with us on Twitter at www.twitter.com/NostalgiaElctrx.

TABLE DES MATIÈRES

SÉCURITÉ ....10

PRÉCAUTIONS IMPORTANTES ..... 11

PRÉCAUTIONS IMPORTANTES ADDITIONNEL....12

INTRODUCTION 13

PIÈCES ET ASSEMBLAGE....14

COMMENT FAIRE FONCTIONNER ..... 15

CONSEILS UTILES 17

NETTOYAGE ET ENTRETIEN .....17

RETOURS ET GARANTIE 18

SÉCURITÉ

120 Volts, 60 Hz, 600 Watts

CE PRODUIT EST DESTINÉ POUR UNE PRISE DE 120V AC UNIQUEMENT.

CONSERVEZ CES INSTRUCTIONS!

INTRODUCTION

Nostalgia Products LLC

1471 Partnership Dr.

Green Bay, WI 54304-5685

Nostalgia Products LLC

1471 Partnership Dr.

Green Bay, WI 54304-5685

Servicio al cliente
