Product Type	Electric cooking appliance (buffet warmer)
Brand	HomeCraft
Model	DCBS15
Dimensions (LxWxH)	Approximately 50 x 30 x 20 cm
Weight	Approximately 5 kg
Power Supply	120 V, 60 Hz, 800 W
Capacity	3 pans of 1.5 quart (1.42 L) each
Material	Stainless steel base with copper accents, aluminum pans, tempered glass lids
Main Functions	Cooking and keeping warm with 3 independent zones
Temperature Ranges	Low: 95-150°F (35-66°C), Medium: 150-165°F (66-74°C), High: 165-212°F (74-100°C)
Control	3 temperature adjustment knobs with LED indicator lights
Side Handles	Stay cool to the touch
Lids	Tempered glass with cool-touch knobs and steam vents
Care and Cleaning	Pans and lids washable in warm soapy water; wipe base with a non-abrasive cloth; do not immerse base
Safety	Polarized plug, short cord, supervision required, hot surfaces, do not leave unattended
Replacement Parts and Repairability	Contact customer service via www.nostalgiaproducts.com; repairs by qualified technicians only
Warranty	1 year (USA and Canada), upon presentation of receipt
Usage	Domestic use only, do not use outdoors
Included Accessories	3 pans, 3 lids, base

Frequently Asked Questions - DCBS15 HomeCraft

How to use the DCBS15 buffet warmer?

Place the appliance on a flat, heat-resistant surface. Plug it in, then turn the temperature knobs to the desired setting. Place food in the pans and cover. The indicator lights turn on during heating and turn off when temperature is reached.

What temperature ranges are available?

Three settings: Low (95-150°F / 35-66°C) for keeping warm, Medium (150-165°F / 66-74°C) for reheating, High (165-212°F / 74-100°C) for cooking.

Can I leave the appliance unattended?

No, it is imperative to never leave the appliance unattended while in operation, due to hot surfaces and fire hazards.

How to clean the DCBS15 buffet warmer?

Allow it to cool completely. Wash the pans and lids in warm soapy water, rinse and dry. Wipe the base with a non-abrasive cloth. Never immerse the base in water or put it in the dishwasher.

Can I use metal utensils?

No, never use metal utensils as they would scratch the stainless steel finish. Use wooden, silicone, or heat-resistant plastic utensils instead.

What if smoke is emitted during first use?

This is normal for new appliances. Let it preheat without food until the smoke and odor disappear. If it persists, unplug and contact customer service.

How long can I keep food warm?

It is recommended not to exceed 3 to 4 hours to prevent drying or flavor alteration. Maintain a temperature of at least 140°F (60°C) to prevent health risks.

Is the appliance under warranty?

Yes, a one-year warranty covers material and workmanship defects for normal domestic use. Valid only in the United States and Canada upon presentation of the receipt.

Where can I find replacement parts?

Contact Nostalgia Products customer service via www.nostalgiaproducts.com. Repairs must be carried out by a qualified technician.

Can I use an extension cord?

Yes, with caution. Use an extension cord with a power rating at least equal to that of the appliance (800 W). Make sure it does not hang over the countertop to avoid tripping.

USER MANUAL DCBS15 HomeCraft

All products are trademarks of Nostalgia Products LLC.

Worldwide design & utility patented or patents pending.

© 2019 Nostalgia Products LLC.

www.nostalgiaproducts.com

(rev. 04/11/19 NG)

Modern kitchen grater with three rectangular dishes containing various food items, no visible text or labels on the dish itself.

Make every day a party!

Visit www.nostalgiaproducts.com for more fun products.

CONTENTS

SAFETY 2

IMPORTANT SAFEGUARDS 3

ADDITIONAL IMPORTANT SAFEGUARDS 3

INTRODUCTION 4

PARTS & ASSEMBLY 5

HOW TO OPERATE 6

HELPFUL TIPS 7

CLEANING & MAINTENANCE 7

RETURNS & WARRANTY 8

SAFETY

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can cause serious injury to you and others.

All safety messages will follow the safety alert symbol.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

Appliance Specifications:

120 Volts, 60 Hz, 1500 Watts

THIS PRODUCT IS FOR USE IN 120V AC OUTLET ONLY.

Intertek

Refer to www.nostalgiaproducts.com/user-manuals/ for the most updated manual.

IMPORTANT SAFEGUARDS

A person who has not read and understood all operating and safety instructions is not qualified to operate this appliance. All users of this appliance must read and understand this Instruction Manual before operating or cleaning this appliance.

When using electrical appliances, basic safety precautions should always be followed, including:

1. Read all instructions before operating this appliance.

2. DO NOT TOUCH the hot surfaces. Use handles or knobs. Always use hot pads or potholders until unit cools.

3. This appliance is NOT A TOY.
4. Unsupervised young children and cognitively challenged individuals should never operate this appliance.
5. Close supervision is necessary when any appliance is used by or near children.
6. To protect against electrical shock do not immerse cord, plug or any part of this appliance in water or other liquids.
7. Unplug from outlet when not in use, before removing parts and before cleaning. Allow to cool before putting on or taking off any parts, and before cleaning.
8. DO NOT operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or if the appliance has been damaged in any manner. Return the appliance to the nearest repair shop for examination, repair or adjustment.
9. The manufacturer does not recommend the use of accessory attachments other than what is provided by the manufacturer. Use of attachments may cause injuries.
10. DO NOT use the appliance for other than its intended use.
11. DO NOT use outdoors. FOR HOUSEHOLD USE ONLY.
12. DO NOT place on or near a hot gas or electric burner, or in a heated oven.
13. DO NOT let cord hang over edge of table or counter, or touch hot surfaces.
14. NEVER leave unit unattended while in use or when plugged into an outlet.
15. Extreme caution must be used when moving an appliance containing hot food.
16. Always attach plug to appliance first, then plug cord in the wall outlet. To disconnect, turn any control to "off," then remove plug from wall outlet.

ADDITIONAL IMPORTANT SAFEGUARDS

Operating Safety Precautions

1. Always use unit on a heat-resistant table or countertop.
2. Unplug from outlet when not in use and before removing parts for cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.
3. Unit gets VERY HOT! Always wear oven mitts or use potholders when operating this unit while it is turned on.
4. Extreme caution must be used when opening and closing the Lids on this unit. Use an oven mitt or potholder when opening and closing the Lids for safety.

Instructions for the Electrical Cord and Plug

1. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electrical shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
2. A short power supply cord is provided to reduce the risk resulting from becoming entangled or tripping over a long cord.

3. If a long detachable power-supply cord or extension cord is used:

4. Extension cords can be used if care is exercised in their use.

5. The marked electrical rating of the cord or extension cord should be at least as great as the electrical rating of the appliance.

6. When using a longer cord or extension cord, make sure that the cord does not drape over a countertop or tabletop where it can be pulled on or tripped over unintentionally.

7. The manufacturer does not recommend using this machine in countries that do not support 120V AC even if a voltage adapter, transformer, or converter is in use.

SAVE THESE INSTRUCTIONS!

INTRODUCTION

Thank you for purchasing the DELUXE COOK & SERVE BUFFET! Now you can entertain for a large crowd with ease! Three separate temperature control dials makes it easy to cook or warm three different meals at a time. Each 1.5-quart station of the buffet has a separate temperature control dial and heat indicator light, allowing you to cook or keep warm three individual dishes. Each chafing dish has a 1.5 qt. capacity and includes a glass lid with steam vent. The classic, stainless steel construction makes this unit stylish for serving even the most discriminating guest.

Features:

• Cooks or warms
  • 3 (1.5 quart) removable non-stick aluminum trays
• 3 adjustable thermostat dials with LED indicator lights
• Stay-cool side handles
• Tempered glass lids with cool-touch knobs
• Stainless steel base with copper accents

PARTS & ASSEMBLY

Your unit comes fully assembled. Parts should be put together as shown below. Always rest the feet of the appliance evenly on a heat-resistant table or countertop.

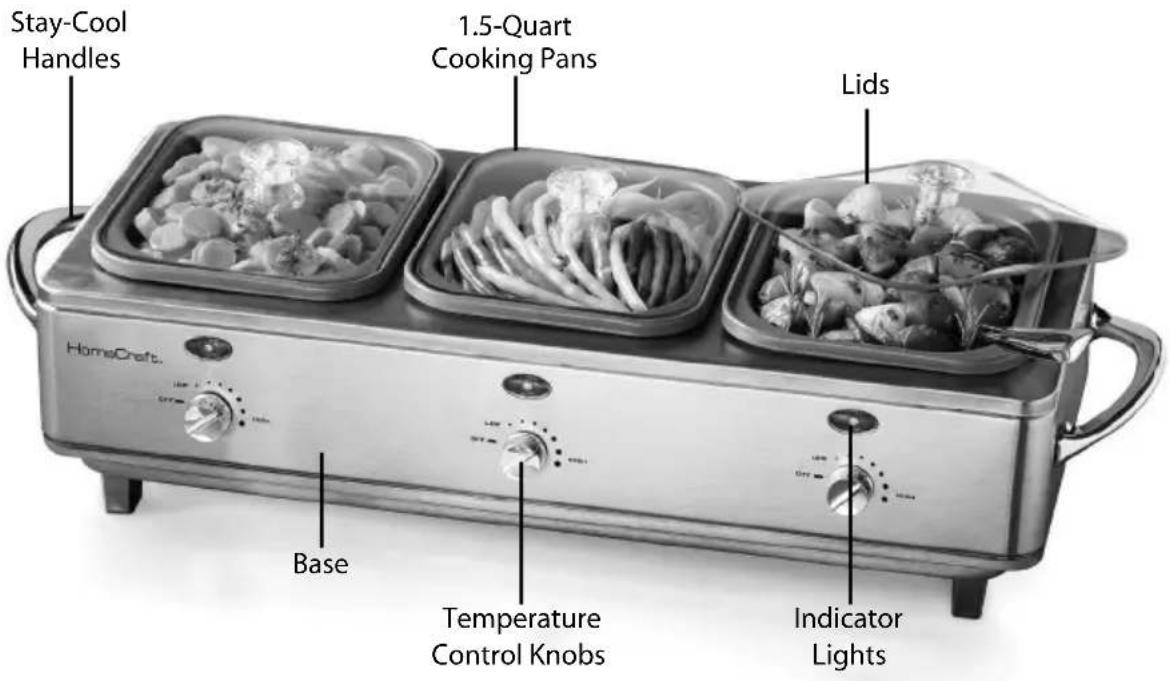

Parts

Stay-Cool Handles 1.5-Quart Cooking Pans Lids HomeCraft. Base Temperature Control Knobs Indicator Lights

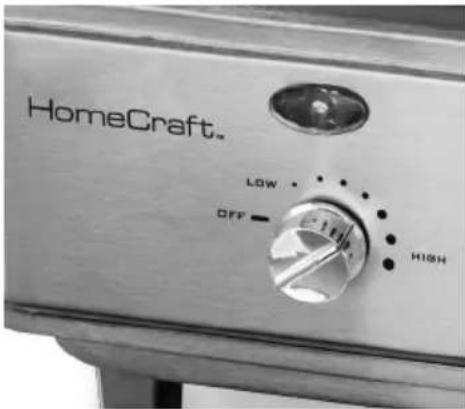

Temperature Control Knobs and Indicator Lights

HomeCraft.. LOW OFF HIGH

Turn Counterclockwise:

LOW (95°F - 150°F)

Middle:

MED (150°F - 165°F)

Turn Clockwise:

HIGH (165°F - 212°F)

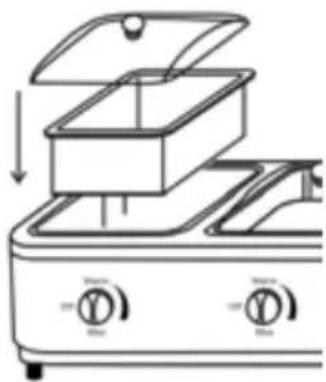

Assembly

• The Cooking Pans fit inside the heating wells of the Base. Make sure each Cooking Pan fits securely and evenly in the heating wells.
• Place Lids on top of each individual Cooking Pan. Make sure each Lid fits securely without gaping.

Line drawing of a portable stove with two control switches and a lid (no text or symbols)

HOW TO OPERATE

1. Before first use, remove all packaging materials and wash Cooking Pans and Lids in warm, soapy water. Rinse each well and dry thoroughly with a soft, non-abrasive cloth. Wipe down Base with a dry, non-abrasive cloth.

2. Find a stable, heat-resistant surface near an electrical outlet and plug in the appliance. Make sure the Temperature Control Knobs are all turned to the OFF position until ready to cook or keep food warm.

3. Place food in each one of the Cooking Pans. Adjust temperature knob to desired heat for your food contents.

Choose temperature settings: Low temperature 95^ - 150^ F Middle temperature 150^ - 165^ F High temperature 165^ - 212^ F

1. If placing cooked food into the Cooking Pans, use a middle to low setting to keep the food warm until ready to serve.

NOTE: The Indicator Lights turn on while the Cooking Pans are warming up. The lights will turn off when the desired temperature is reached. The lights will turn off and on intermittently as the temperature is being maintained. IMPORTANT: Never use metal utensils with this unit as it will ruin the stainless steel finish.

1. The food trays can keep food hot for a long period of time, but it is not recommended to exceed 3 to 4 hours. At that point the food will begin to dry out and/or the flavor begins to change.

2. Do not leave food in trays. Remove food and liquid for easy clean up and preparation for next use.

3. The Lids have been designed with vent escape holes. This allows the built up steam to release slowly as the Buffet maintains temperature and keeps your food warm. Keep hands and face away from the steam as it is hot and can cause burns.

4. When the amount of food in the Cooking Pans is low or if a pan is empty, be sure to turn each Temperature Control Knob to the off position. If food remains and is covered it will maintain heat for a short period of time.

5. Each Temperature Control Knob should be turned to the OFF position when you are no longer using the Cooking Pan.

6. Always unplug the unit before cleaning. Allow the unit to cool down completely before putting on or taking off parts for cleaning.

HELPFUL TIPS

NEVER leave the unit unattended while operating.

SMOKING

During first use, you may notice slight smoking or a slight odor; this is normal with most new appliances. Allow the appliance to preheat until smoke and odor no longer exists.

SERVING TIPS

To keep foods from drying out, cover each dish with aluminum foil until serving time.

It is important to maintain all cooked foods at a minimum of 140^ F ( 60^ C) over an extended period of time to prevent any food borne illness. It is recommended to periodically check the temperature of the food with a food thermometer while serving.

All foods have different consistencies so depending on what you are serving you may have to adjust the temperature lower or higher to maintain a minimum temperature of 140^ F ( 60^ C).

Temperatures may fluctuate as the food is being served and the contents of the buffet server, serving pan and / or warming tray are emptied.

Never use metal utensils with this unit as it will ruin the stainless steel finish.

CLEANING & MAINTENANCE

Please take care of your DELUXE COOK & SERVE BUFFET by following these simple instructions and precautions.

• After allowing the unit to cool completely, remove the Cooking Pans and Lids. These items can be submerged in soapy water. Rinse well and wipe dry with a soft, non-abrasive cloth or towel.
• Wipe the Base with a dry, non-abrasive cloth or sponge to remove food and liquid, preparing your buffet for the next use.
• NEVER use an abrasive sponge, cloth or scouring pad on this unit as it will damage the stainless steel finish.
• NEVER submerge the Base in water or put in a dishwasher.

- If there is any breakdown or damage, the appliance must be repaired by authorized technicians. Non-authorized technicians are not permitted to dismantle the appliance.

RETURNS & WARRANTY

SHOULD YOUR UNIT NOT WORK OR IF DAMAGED WHEN YOU FIRST TAKE IT OUT OF THE BOX, PLEASE RETURN IT TO THE PLACE OF PURCHASE IMMEDIATELY.

DELUXE COOK & SERVE BUFFET / DCBS15

Should you have any questions, please contact us via email or at the customer service number listed below between the hours of 8:00 AM and 5:00 PM, Monday through Friday, Central Standard Time.

Distributed by:

Nostalgia Products LLC

1471 Partnership Dr.

Green Bay, WI 54304-5685

Customer Service

Phone: [phone]

Web: www.nostalgiaproducts.com

Customer Service Inquiry

To submit a Customer Service inquiry, go to www.nostalgiaproducts.com and fill out the Customer Service Inquiry form and click the Submit button.

A representative will contact you as soon as possible.

Product Warranty Terms

Nostalgia Products LLC (the "Company") hereby warrants that for a period of one (1) year from the date of original purchase, this product will be free of defects in material and workmanship under normal home use, provided that the product is operated and maintained in accordance with the operating instructions. As the sole and exclusive remedy under this warranty, the Company will at its discretion either repair or replace the product found to be defective, or issue a refund on the product during the warranty period. This warranty is only available to the original retail purchaser of the product from the date of initial retail purchase, and is only valid with the original sales receipt, as proof of purchase date is required to obtain warranty benefits. All warranty claims must be brought to the attention of the Company within the warranty period and no later than 30 days of the failure to perform. This warranty does not cover normal wear or damage caused by shipping, mishandling, misuse, accident, alteration, improper replacement parts, or other than ordinary household use. You may be required to return the product (with shipping prepaid by you) for inspection and evaluation. Return shipping costs are not refundable. The Company is not responsible for returns damaged or lost in transit. Unless otherwise specifically permitted by the operating instructions, this warranty applies to indoor household use only. In order to obtain service under this warranty, please contact the Company at the telephone number listed above or by filling out the Customer Service Inquiry Form located at www.nostalgiaproducts.com. Warranty valid only in USA and Canada.

This warranty is in lieu of all other warranties, expressed or implied, including warranties of merchantability and fitness for a particular purpose, which are hereby excluded to the extent permitted by law. In no event shall the Company be liable for any indirect, incidental, consequential, or special damages arising out of or in connection with this product or the use thereof. Some states, provinces or jurisdictions do not permit the exclusion or limitation of incidental or consequential damages, so the foregoing exclusion or limitation may not apply to you.

This warranty does not apply to re-manufactured merchandise.

Please read the operating instructions carefully. Failure to comply with the operating instructions will void this warranty.

For more information, visit us online at www.nostalgiaproducts.com.

Like us on Facebook at www.facebook.com/NostalgiaElectrics.

Follow our boards on Pinterest at www.pinterest.com/nostalgiaelctrx.

Tweet along with us on Twitter at www.twitter.com/NostalgiaElctrx.

120 Volts, 60 Hz, 1500 Watts
