Elite U7 - Indoor bike trainer Horizon Fitness - Free user manual and instructions

Product Type	Indoor Bike (indoor cycling trainer)
Brand	Horizon Fitness
Model	Elite U7
Power Supply	Mains via power cord
Display	LCD screen displaying time, distance, speed, calories, RPM, watts, level, laps, heart rate
Resistance	Electronically adjustable with + and - keys, multiple levels, quick resistance keys
Training Programs	Manual, Distance (5 km to 20 miles), Calories (100 to 900 cal), Performance (intervals, constant power, target HR, % target HR), Custom programs (Custom 1 and 2)
Connectivity	Built-in Wi-Fi, Passport connection (Virtual Active), USB port, audio input, headphone output, speakers
Fan	Personal conditioning fan with low, medium, high settings
Media Support	Magazine/book holder, phone/media player compartment
Heart Rate	Contact hand grip heart rate + compatible wireless chest strap
Users	Up to 4 user profiles with xID account
Energy Saving Mode	Sleep mode after 15 minutes of inactivity (adjustable)
Adjustments	Adjustable seat, bike leveling, easy mobility
Maintenance	Clean the console with a soft cloth, remove the protective film from the screen

Frequently Asked Questions - Elite U7 Horizon Fitness

How to start a workout quickly?

Simply press the Start/Pause key (▶II) to start a quick workout. Resistance starts at level 1.

How to connect the bike to Wi-Fi?

Press and hold the Wi-Fi key (M) for 3 to 5 seconds until 'ACTIVATED' appears. On your computer, select the network corresponding to the model name, then connect to your Wi-Fi network.

How to use distance programs?

Select the DISTANCE program on the console. Choose from 10 preset distances (5 km, 5 miles, etc.). Set the starting resistance and press Start.

What to do if heart rate is not displayed?

Make sure both hands are on the heart rate grips. If using a chest strap, check that it is properly positioned. Heart rate is displayed when contact is made.

How to create an xID account?

Go to www.viafitness.com, select CONNECT YOUR EQUIPMENT and follow the instructions to create your xID account with a 10 to 14 digit number.

Can I plug in my headphones?

Yes, plug your headphones into the AUDIO OUTPUT/HEADPHONE JACK (P) on the console. The speakers will be muted.

How to adjust the music volume?

Enter engineer mode by holding the +∞ and ∞ keys for 3 to 5 seconds. Navigate to 'ENCG', press √, then adjust the volume with the + keys. Exit by holding √.

What to do if the screen stays in sleep mode?

The Energy Saver mode may be enabled. To disable it, enter the engineering menu (hold - and - keys for 3-5 seconds), navigate to 'FONCTION DE COMMUTATION', select 'ENERGY SAVE OFF'.

How to sync the console with a Passport player?

Use the arrows on the Passport remote to reach the setup screen, then follow the instructions by pressing the Enter key (☑) on the console. A success message will appear.

How to clean and maintain the bike?

Clean the console and surfaces with a soft, dry cloth. Avoid abrasive products. Ensure ventilation slots are not blocked. Store the device in a dry place.

USER MANUAL Elite U7 Horizon Fitness

Two black silhouette figures of stationary exercise bikes, one seated and one standing (no text or symbols)

ELITE R7

U7

OPERATION GUIDE

GUIDE D'UTILISATION

This section explains how to use your bike's console and programming.

The BASIC OPERATION section in the BIKE GUIDE has instructions for the following:

• LOCATION OF THE BIKE
• POWER/GROUNDING INSTRUCTIONS
- SEAT POSITIONING
- MOVING THE BIKE
• LEVELING THE BIKE
• USING THE HEART RATE FUNCTION

HORIZON 136 1342 100 97 10 167 M A H G B E D Q R L J K P N

4

H2'4_03_Ele_Rt_Lr_Fem_Sins 4:5

CONSOLE OPERATION

Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.

A) LCD DISPLAY WINDOW: time, distance, speed, calories, RPM, Watts, level, laps and heart rate.

B) (START/PAUSE KEY): press to start workout and pause workout.

C) STOP KEY): press to stop workout. Hold to reset console.

D) ENTER KEY). press to confirm selection during programming setup. Hold to reset console.

E) CHANGE DISPLAY): press to change display feedback during workout

F) (AN KEY) press to turn fan on and off

G) RESISTANCE ☑ - ☐ + ∞ KEYS: press to adjust resistance level.

H) RESISTANCE QUICK KEYS: used to reach desired resistance level quickly.

I) FAN: personal workout fan

J) SPEAKERS: plays music through speakers when connected to your media player.

K) READING RACK: holds reading material.

L) PHONE/MEDIA PLAYER POCKET: holds phone or media player

M) WI-FI CONNECT & SYNC: press to reset and connect your wireless internet connection. See Page 8 for more info.

N) PASSPORT CONNECT & SYNC: press to reset and connect your Passport box for Virtual Active programming.

O) AUDIO IN JACK: plug your media player into the console using the included audio adaptor cable

P) AUDIO OUT/HEADPHONE JACK. plug your headphones into the console to use them instead of the console speakers.

Q) ENERGY SAVER LIGHT: indicates if machine is in Energy Saver mode.

R) USB PORT: used for software updates or to charge devices less than 1 amp.

5

9474 450PM

H2'4_03_Ele_Rt_Jr_Pev1_Sinsol 6.79574 450 PM

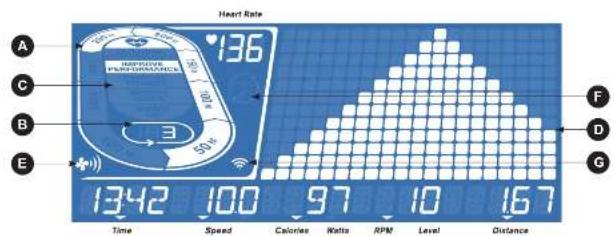

DISPLAY WINDOW

• TIME: Shown as minutes : seconds. View the time remaining or the time elapsed in your workout.

- SPEED: Shown as MPH. Indicates how fast the foot pads is moving.

• CALORIES: Total calories burned or remaining for your workout.

• DISTANCE: Shown as miles. Indicates distance traveled or distance remaining during your workout.

• RPM. Rotations Per Minute.

• WATTS: Displays current user power output

• LEVEL: Shows the current level of resistance

• HEART RATE: Shown as BPM (beste per minute). Used to monitor your heart rate (displayed when contact is made with

both pulse gnps

A) TRACK: Follows progress around a simulated track. Segments light up with every 50 meters completed.

B) LAPS: Shows how many laps have been completed. One lap is 400 meters (¼ mile).

C) HEART RATE ZONE: Displays what activity zone you are in during your workout (displayed when contact is made with both

pulse grips or when using a wireless heart rate strap).

- WARM OP: 0-50 % of maximum heart rate - WEIGHT LOSS: 50.70% of maximum heart rate

• IMPROVE FITNESS: 70.80% of maximum heart rate

• IMPROVE PERFORMANCE: 80-90% of maximum head rate

• MAXIMUM PERFORMANCE: 90-100% of maximum heart rate

D) PROGRAM PROFILE: Represents the resistance profile of the program being used.

E) FAN. Indicates fan setting flow, medium, high.

F) PASSPORT: Indicates Passport box connection is present.

G) WI-Fl: Indicates wireless connection is present and the strength (low, medium, high).

SET UP XID ACCOUNT FOR VIA FIT" CONNECTIVITY

Creating an xID account will allow you to save and share workout data using the Via Fit WI-FI. Up to four users can be saved on a machine. This process is the first step in connecting your equipment. It must be done from a computer, tablet, or mobile device.

1) Visit the web site: www.ViaFitness.com

2) Once at the web site, select the CONNECT YOUR EQUIPMENT option on the top menu bar.

3) The first step in connecting your equipment will be creating your xID account. This will be your login to Via Fit.

4) Enter your phone number or another easy-to-remember 10-14 digit number. This will be your account number.

5) Fill in your profile information to finish the xID account set up process. You will be asked to provide an email address not associated with any other xID account. Check your email after the set-up process for a link to validate your account.

CONNECT WI-FI

Once you have created your xID account, you will be able to move on to activating the Wi-Fi on your equipment. Reminder, this requires you to use your computer tablet, or mobile device that is connected to the internet.

1) Press and hold 3-5 seconds until you see the message ACTIVATED on your screen.

2) On your computer or other device, go to your Wi-Fi settings. You should select the network with your model name. Doing this enables you to connect your equipment to your wireless network.

3) A new window will pop up with the list of wireless networks your equipment can see. Select your home Wi-Fi network and connect.

4) The remaining step is to reconnect your computer or other device back to your Wi-Fi network. Go to your settings again and connect as you normally would.

Congratulations! You are now connected and ready to get started.

8

H2'4_03_Ele_Rt_Jr_Pev1_Sind 6:19:54 4:50 PM

GETTING STARTED

1) Check to make sure no objects are nearby that will hinder the movement of the bike.

2) Plug in the power cord.

3) Select your xID account, User, Guest, or Edit a User using △ and press

4) When you log in for the first time as User 1-4, you will be prompted to enter your xID information.

a) Enter your ID account number using √+∞ and press ☑ in select the numbers. Press ☑ after each

input to move to the next digit. After the final input, press

b) Enter your poscode using - 7+x to select the numbers. Press × after each input to move to the next

digit. After the final input, press

c). If you know the incorrect number at any point while entering your xID or postcode press and hold ☑ for 3-5

seconds to clear the selection and begin again.

A) QUICK START

Simply press Hi to begin working out. Time will count up from 0:00.

The resistance level will default to level 1.

B) SELECT A PROGRAM

1) Select a PROGRAM using /+ / and press ☑

2) Set workout program information using √+∞ and press □filter each selection

3) Press. No begin workout

NOTE: You can adjust the resistance level during your workout.

When your workout is complete, your workout information will stay displayed on the console for 30 seconds and then is automatically saved to the user profile if xID Terms and Conditions were accepted.

TO CLEAR CURRENT SELECTION

To clear the current program selection or screen, press and hold ■ for 3 seconds.

9

PROGRAM INFORMATION

MANUAL: Adjust your resistance manually during your workout. User sets time and resistance level
DISTANCE: Push yourself and go further during your workout with 10 distance workouts. Choose from 5k, 5 miles, 10k, 8 miles, 15k, 10 miles, 20k, half marathon, 15 miles and 20 miles goals. User sets starting resistance level
CALORIES. Set goals for burning calories with nine workouts. Choose from 100, 200, 300, 400, 500, 600, 700, 800 and 900 calorie burn workouts. User inputs weight and sets starting resistance level. Calories burned are calculated using weight input with the resistance level of the workout.
PERFORMANCE: Challenge yourself with targeted performance workouts intent on helping you improve specific training elements. Choose from Intervals. Constant Watts, Target Heart Rate and % Target Heart Rate workout programs.
CUSTOM: 1) Select CUSTOM 1 or CUSTOM 2 using anti-press. 2) Set the workout time using and press. 3) Use To set the RESISTANCE level for each segment. Press to confirm. 4) Press hit begin workout.

TARGET HEART RATE

The first step in knowing the right intensity for your training is to find out your maximum heart rate (max HR = 220 – your age). The age-based method provides an average statistical prediction of your max HR and is a good method for the majority of people, especially those new to heart rate training. The most precise and accurate way of determining your individual max HR is to have it clinically tested by a cardiologist or exercise physiologist through the use of a maximal stress test. If you are over the age of 40, overweight, have been sedentary for several years, or have a history of heart disease in your family, clinical testing is recommended.

This chart gives examples of the heart

rate range for a 30 year old exercising at 5 different heart rate zones. For example, a 30-year-old's max HR is 220 - 30 = 190 bpm and 90% max HR is 190 × 0.9 = 171 bpm.

TARGET HEART RATE NOTES:

• Warm-up and cool-down each last 4 minutes.
  • After 4 minutes, the resistance will automatically adjust to bring you near your specified heart rate.
• If there is no heart rate detected, the unit will not change the resistance.
  • If your heart rate is 25 beats over your target zone, the program will decrease resistance to 0.

Target Heart Rate Zone	Workout Duration	Example THR Zone (age 30)	Your THR Zone	Recommended For
VERY HARD50 - 100%	<5 cm	171	169 cm	For persons and for athletic training
HARD80- 50%	2 - 10 cm	162	171 cm	Screeter workouts
MODERATE70- 20%	10-40 cm	133	152 cm	Moderately long workouts
LIGHT60 - 70%	40- 90 cm	114	133 cm	Longer and frequently repeated in the exercise level
VERY LIGHT50 - 60%	20-40 cm	104	114 cm	Weight management and active recovery

PROGRAM CHARTS

INTERVALS
WARMUP PROGRAM SEGMENTS REFLECTIVE COM
Seaco#s	06/08	12/09	13/10	14/11	15/12	16/13	17/14	18/15	19/16	20/17	21/18	22/19	23/20	24/21	25/22	26/23	27/24	28/25	29/26
Loo#	1.34	4.97	8.10	11.12	12.4	13.6	15.17	16.18	20
1/1	2.7	5.16	7.09	11.16	13.2	14.1
2/1	3.1	12.88	24.22	5.88	3.2	2.7
3/1	4.7	3.77	7.73	3.73	7.7	4.2	4.1
4/1	5.7	4.8	8.04	4.8	6.5	7.2	7.1
5/1	6.5	5.9	9.05	5.5	9.8	6.5	6.2
6/1	7.9	8.6	10.5	8.0	10.0	11.7	13.2
7	2	3	4	4	7	7	4	4	7	7	4	4	4	4	4	4	4	4	4
8	3.6	12.0	3.7	12.3	2.8	12.3	3.5	3.2
9	3.0	3.2	5.4	3.4	3.2	4.3	4.0	3.3
10.4	8.1	11.6	20.9	7.4	10.1	14.1	10.2	14.4	10.8	8.3
11	3	8	10	12	15	15	11	11	15	15	11	15	11	15	11	12	10	8	3
12.1	1.06	1.07	1.26	1.57	1.71	1.71	1.71	1.71	1.71	1.71	1.71	1.71	1.71	1.71	1.71	1.71	1.71	1.71	1.71
13.5	10.8	14.7	19.9	1.71	1.78	1.71	1.71	1.71	1.71	1.71	1.71	1.71	1.71	1.71	1.71	1.71	1.71	1.71	1.71
14.4	10.3	15.4	18.4	1.81	1.9	1.9	1.7	1.71	1.71	1.71	1.71	1.71	1.71	1.71	1.71	1.71	1.71	1.71	1.71
15.5	10.3	15.8	19.9	1.95	2.1	16.2	15.8	16.2	16.2	16.2	16.2	16.2	16.2	16.2	16.2	16.2	16.2	16.2	16.2
16.5	10.3	12.0	16.8	2.02	2.6	16.2	16.2	16.2	16.2	16.2	16.2	16.2	16.2	16.2	16.2	16.2	16.2	16.2	16.2

H2'4_03_Ele_Rt_Uz_Pev1_Sinsl 12:13

USING YOUR MEDIA PLAYER

1) Connect the included AUDIO ADAPTOR CABLE to the AUDIO IN JACK on the left of the console and the headphone jack on your media player.
2) Use your media player buttons to adjust song settings.
3) Remove the AUDIO ADAPTOR CABLE when not in use.

ADJUSTING THE VOLUME

To enter the engineering menu, press and hold the + key and - key for 3-5 seconds. Use the +- keys to navigate to ENG6 and press. Use the < -> keys to set Volume. Press and hold the for 3-5 seconds to exit ENG6 and hold again for 3-5 seconds to exit engineering mode.

ENERGY SAVER (STANDBY MODE)

This machine has a special feature called Energy Saver™ mode. This mode is NOT automatically activated. When Energy Saver mode is activated, the display will automatically enter standby mode (Energy Saver mode) after 15 minutes of inactivity. This feature saves energy by disabling most power to the machine until a key is pressed on the console. This feature can be turned on or off in the engineering menu.

To enter the engineering menu, press and hold the ▼→▼ key and ▼→▼ key for 3-5 seconds. Use ▼→▼ → to navigate to SWITCH FUNCTION and press ▼. Press ▼ to select Energy Saver mode, use ▼→▼ → to select ENERGY SAVE ON or OFF. Press and hold ■ (STOP) for 3-5 seconds to exit SWITCH FUNCTION. Press and hold ■ (STOP) again for 3-5 seconds to exit the engineering menu.

1312

9414 450PM

PASSPORT™ MEDIA PLAYER

The Passport player, featuring Virtual Active® technology, is a high-definition experience that uses real destination footage and matching ambient sounds from stunning destinations around the world. The ultimate in workout entertainment. Passport lets you escape the confines of a regular workout routine while enjoying a dynamic experience.

A Passport player is available for purchase separately from your Horizon Fitness retailer. Additional courses are available from your Horizon Fitness retailer.

For more information, go to: www.passportplayer.com www.horizonfitness.com

SYNCING CONSOLE WITH PASSPORT

1) Use the arrow keys on the Passport remote to scroll to the setup icon and press select.
2) Follow the on-screen prompts to press (pn) the equipment console.
5) The message displayed on screen will notify you if the sync was a success or failure.
NOTE: See PASSPORT OWNER'S MANUAL for more information.

H2'4_03_Eltv_Rt_Ur_Pcr1_Sinsl 14-15-04/14 450 FM

FRANÇAIS

FONCTIONNEMENT DU VÉLO

H2'4_03_Ele_Rt_Uz_Pex1_Sincl 16-19

FONCTIONNEMENT DE LA CONSOLE

H2'4_03_Ele_Rt_Jr_Pev1_Sinsol 20-21 04/14 459 FM

FENÊTRE D'AFFICHAGE

SE CONNECTER AU RÉSEAU WI-FI

H2'4_03_Ele_Rt_Uz_Pex1_Sincl 28-2r

UTILISATION DU LECTEUR MULTIMÉDIA

H2'4_03_Eliu_Rt_Jr_Pcr1_Sincl 28-29/4/14 450 FM

2926

ESPAÑOL

H2'4_03_Ele_Rt_Uz_Pet1_Sincl 32:59

H2'4_00_Eltv_Rt_Jr_Pev1_Sind 38Sr24n14 450PM

INICIO

H2'4_03_Ele_Rt_Uz_Pcr1_Sincl 40-41

H2'4_03_Eltv_Rt_17_Pcr1_Sincl 404354914 450 FM

NOTE: REMARQUE: NOTA:

If a question or problem arises please see INFORMATION CARD for contact information.
