T203 - Treadmills Horizon Fitness - Free user manual and instructions

Product type	Treadmill
Brand	Horizon Fitness
Model	T203
Usage	Home
Maximum speed	16 km/h (estimated)
Maximum incline	12% in 0.5% increments
Motor	2.5 CH (continuous)
Running surface	140 x 50 cm (estimated)
Maximum user capacity	130 kg
Dimensions (L x W x H)	180 x 80 x 130 cm (estimated)
Net weight	90 kg (estimated)
Power supply	220-240 V, 50/60 Hz, 10 A
Display	Time, distance, speed, incline, calories, heart rate
Workout programs	Manual, Intervals, Hills, Weight loss, Custom (CUSTOM 1 and 2)
Connectivity	iPod/iPhone via docking station, Nike+ compatible, MP3 audio input
Audio	Built-in speakers, headphone jack
Fan	Built-in personal fan
Included accessories	Safety key, audio adapter cable, silicone lubricant, assembly tools
Safety	Safety key, on/off switch, circuit breaker
Warranty	Lifetime frame and motor, 2-year electronics and parts, 1-year labor
Maintenance	Deck lubrication, belt tension and centering

Frequently Asked Questions - T203 Horizon Fitness

How to assemble the Horizon Fitness T203 treadmill?

Follow the assembly steps in the manual: attach the console uprights to the frame, connect the cables, attach the console. Use the included tools (Allen keys) and progressively tighten all screws. After assembly, lubricate the deck before first use.

How to use the console and programs?

Insert the safety key, then press START for quick start. For a program, choose a target with SELECT TARGET (time, distance, calories) and a workout with SELECT WORKOUT (manual, intervals, hills, weight loss, custom). Use the SPEED and INCLINE keys to adjust.

How to lubricate the treadmill deck?

Use the provided silicone lubricant. Apply a thin layer to the deck under the belt, following the maintenance guide instructions. Lubricate after the first 50 hours of use, then every 3 months or 150 hours.

How to adjust belt tension and alignment?

Use the adjustment bolts at the rear of the treadmill. For tension, turn both bolts equally. For alignment, if the belt drifts left, turn the left bolt clockwise; if right, turn the right bolt clockwise. Consult the treadmill guide for details.

What to do if the treadmill does not start?

Check that the safety key is fully inserted into the console and the power cord is plugged into a working outlet. Ensure the on/off switch is in the 'I' position. If the problem persists, see the troubleshooting section of the manual or contact technical support.

How to use the safety key?

Attach the key clip to your clothing, then insert the key into the console. The treadmill only operates when the key is in place. If you move away, the key is pulled out and the treadmill stops immediately for your safety.

How to connect an iPod or MP3 player?

For an iPod, place it in the dedicated docking station. For an MP3 player, use the included audio adapter cable: connect it to the console's audio input jack and to the player's headphone output. Sound will play through the built-in speakers. You can also plug headphones into the audio output jack.

How to clean and maintain the treadmill?

Unplug the unit before cleaning. Wipe the console and surfaces with a damp, lint-free cloth. Do not use abrasive products. Regularly clean under the belt to remove dust. Check and tighten bolts monthly.

What is the maximum user weight capacity?

The Horizon Fitness T203 supports a maximum weight of approximately 130 kg (standard estimation). For safety and durability, do not exceed this limit.

How to contact Horizon Fitness customer service?

For any questions or missing parts, do not return the unit to the store. Contact technical support by phone, email, or via the website. Have the serial number (on the white sticker on the front stabilizer) and model number ready.

USER MANUAL T203 Horizon Fitness

Read the TREADMILL GUIDE before using this OWNER'S MANUAL.

There are several areas during the assembly process that special attention must be paid. It is very important to follow the assembly instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the treadmill could have parts that are not tightened and will seem loose and may cause irritating noises. To prevent damage to the treadmill, the assembly instructions must be reviewed and corrective actions should be taken.

Before proceeding, find your treadmill's serial number located on a white barcode sticker near the on/off power switch and power cord and enter it in the space provided below. ENTER YOUR SERIAL NUMBER AND MODEL NAME IN THE BOXES BELOW:

SERIAL NUMBER: TM MODEL NAME: Horizon TrEADMiLL

Refer to the SERIAL NUMBER and MODEL NAME when calling for service.

SEIAL NUMBER Location

IPOD/NP3 PLAYER POCKET READING RACK SPEAKERS TOUCH PAD PANEL AND DISPLAY WINDOWS CONSOLE FAN CONSOLE GRIP FULSE HANGRAILS WATER BOTTLE HOLDER ON/OFF SWITCH SAFETY KEY PLACEMENT CIRCUIT BREAKER POWER CORD CHAFTING/CONTINUATION CAPTURES FOOT LOCK LATCH (UNDERNEATH DECK) RUNNING BELT / RUNNING DECK MOTOR COVER TRANSPORT WHEEL SIDE RAIL ROLLER END CAP REAR ROLLER TENSION/ALIGNMENT BOLTS FOOT LOCK LATCH DECAL UNDERNEATH FOOT LATCH 4

T202-T203-CT:1-085nm1.4mmol 4-5-6570 8:32 AM

TooLS inCLUDED:

6 mm T.Wrench

5 mm L-Wrench

4 mm T Wrench

PARTS inCLUDED:

1. Convolve Assumption

a. Cereels Meet

1 Audio Adapter Cable

1 Bottle of Silicone Lubricant

(2 applications)

2/1203:

4 Potlock Insert

1. Pock Rubber Plug

nEED HELP?

If you have questions or

there are our missing parts.

gustlant Cullamur Tech

Current Context information

is located on the background

of this manual

PrE ASSEMBLY

UnPACKinG

Please the treadmill carton on a level flat surface. It is recommended that you place a protective covering on your floor. Take CAUTION when handling and transporting this unit. Never open box when it is on its side. Once the banding straps have been removed, do not lift or transport the unit unless it is fully assembled and in the upright locked position, with the lock latch secure. Unpack and assemble the unit where it will be used. The enclosed treadmill is equipped with high pressure shocks and may spring open if mishandled. Never grab hold of any portion of the incline frame and attempt to lift or move the treadmill.

Warning

DO NOT ATTEMPT TO LIFT THE TREADMILL! Do not move or lift treadmill from packaging until specified to do so in the assembly instructions. You may remove the plastic wrap from console masts.

Warning

FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY

NOTE: During each assembly stop, ensure that ALL nuts and bolts are in place and partially threaded in before completely tightening any ONE bolt.

NOTE: A light application of grease may aid in the installation of hardware. Any grease, such as lithium bike grease is recommended.

ASSEMBLY STEP 1

CONSOLE MAST BOLTS (a) CONSOLE MAST BRACKET

HARDWARE BAG 1 CONTENTS

BOLT (A)
10 mm
Qty: 8

A. Cut the yellow banding strape and lift the RUNNING DECK upward until the FOOT LATCH locks. Remove all contents from underneath the running deck.
B Open HARDWARE BAG 1
C Attach CONSOLE MAST BRACKETS to the CONSOLE MASTS using 8 BOLTS (A).

ASSEMBLY STEP 2

HARDWARE BAG 2 CONTENTS : BOLT1(B) 20 mm Op:4 SPRING WASHER (C) 15 mm Op:4 FLAT WASHER (D) 15 mm Op:4 RUNNING DECK LEFT CONSOLE NAST FOOT LATCH BASE FRAME FLAT WASHERS (E) SPRING WASHERS (C) BOLTS (E)

A Open HARDWARE BAG 2.
B With the RUNNING DECK in the raised position, attach the LEFT CONSOLE MAST to the BASE FRAME using 4 BOLTS (B), 4 SPRING WASHERS (C) and 4 FLAT WASHERS (D).

6

T202-T203-CT:1.065nm1.4mm 6/7 9570 8:32 AM

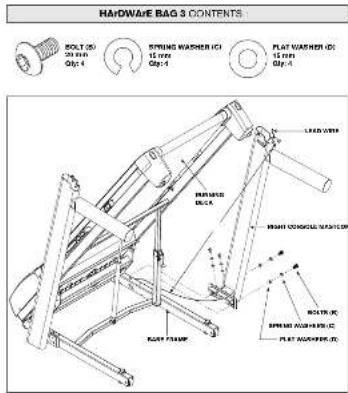

ASSEMBLY STEP 3

HARDWARE BAG 3 CONTENTS BOLT (5) 30 mm Qty: 4 SPRING WASHER (1) 15 mm Qty: 4 PLAT WASHER (1) 15 mm Qty: 4 LEAD WITH SPRING WASHER (2) 15 mm BLEND WITHWASHER (3) SPRING WASHER (4) PLAT WASHER (5)

A Open HARDWARE BAG 3.
B Pull LEAD WIRE through RIGHT CONSOLE MAST. After pulling the lead wire through the mast, the top of the CONSOLE CABLE should be located at the top of the mast. Dotach and discard the lead wire.
C With the RUNNING DECK in the raised position, attach the RIGHT CONSOLE MAST to the BASE FRAME using 4 BOLTS (B), 4 SPRING WASHERS (C) and 4 FLAT WASHERS (D).
NOTE: Be careful not to pinch any wires while assembling the right console mast.

T202-T203-CT:1-085nm1.4mmol 6-9

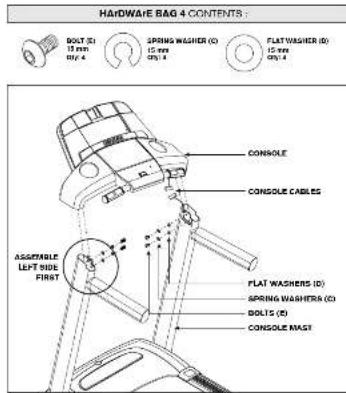

ASSEMBLY STEP 4

HARDWARE BAG 4 CONTENTS : BOLT (S) 15 mm 0Hz 4 SPRING WASHER (C) 15 mm 0Hz 4 FLAT WASHER (D) 15 mm 0Hz 4 CONSOLE CONSOLE CABLES ASSEMBLE LEFT SIDE FIRST FLAT WASHERS (D) SPRING WASHER (C) BOLTS (E) CONSOLE MAST

A Disengage the DECK LOCK LATCH with your foot to lower the RUNNING DECK.
B Open HARDWARE BAG 4.
C Gently place the CONSOLE on top of the CONSOLE MASTS. Attach the LEFT SIDE first using 2 BOLTS (E). 2 SPRING WASHERS (C) and 2 FLAT WASHERS (D).
D Connect the CONSOLE CABLES, carefully tucking wires in masts to avoid damage.
E Attach the RIGHT SIDE of the CONSOLE using 2 BOLTS (E), 2 SPRING WASHERS (C) and 2 FLAT WASHERS (D).
NOTE: Be careful not to pinch any wires while assembling the masts.
F Before the first use, lubricate the treadmill deck by following the instructions in the MAINTENANCE section in the TREADMILL GUIDE.
YOU ARE FINISHED!

AS10 63249

TREADMILL OPERATION

This section explains how to use your treadmill's console and programming. The BASIC OPERATION section in the TREADMILL GUIDE has instructions for the following:

• Location of THE TREADMILL
• USinG THE SAFETY KEY
• FoLDing THE TREADMILL
• MoVinG THE TREADMiLL
• LEVELing THE TREADMILL
• TEnSioninG THE rUnninG BELT
• CEnTErinG THE rUnninG BELT
• USInG THE HEArT rATE FUnCTlon

N U C D A O B E M Q L P S P 0500 0500 您要设置请勿更改位置 T T V J H F W R G I K

T202-T203-CT:1-05nx1.4-val 12-13

T202 ConSoLE oPErATion

Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.

A) DISPLAY WinDoWS: time, distance, calories, heart rate, speed, incline and workout profiles.

B) ALPHAnUMERIC DISPLAY: displays goal and program information.

C) SELECT TARGET: press to select your desired target.

D) SELECT WORKOUT: press to select your desired workout.

E) GOAL CENTER™: press to set or view your goal.

F) START: press to begin exercising, start your workout, or resume exercising after pause.

G) SToP: press to pause/end your workout. Hold for 3 seconds to reset the console.

H) InCLInE ▲/▼KEYS: used to adjust incline in small increments (0.5% increments)

I) SPEED + / · KEYS: used to adjust speed in small increments (0.1 MPH increments).

J) inCLInE quick keys: used to reach desired incline more quickly.

K) SPEED QUICK KEYS: used to reach desired speed more quickly

L) CHANGE DISPLAY: press to change display feedback during workout.

M) ENTER: used to confirm target and workout settings.

n) FAn KEY: press to turn fan on and off.

o) FAn: personal workout fan.

P) SPEAKERS: music plays through speakers when your CD / MPS player is connected to the console.

q) AUDIO in JACK: plug your CD / MP3 player into the console using the included audio adaptor cable.

r) AUDIO OUT / HEADPHON E JACK: plug your headphones into this jack to listen to your music through the headphones. Note: when headphones are plugged into the headphone jack the sound will no longer come out through the speakers.

S) iPod * DoCKing STATION: used to dock and charge your iPod (not included).

T) WATER BOTTLE POCKETS: holds personal workout equipment.

U) rEADING rACK: holds reading material.

V) SAFETY KEY POSITION: enables treadmill when safety key is inserted.

W) iPod * ControLS: press to adjust your attached iPod audio settings. See page 23 for more info.

AS10 63249

U C D A O B E M Q W P S P T T V J N H F X R G I L K

T202-T203-CT:1-085nx1.4-val 14-15

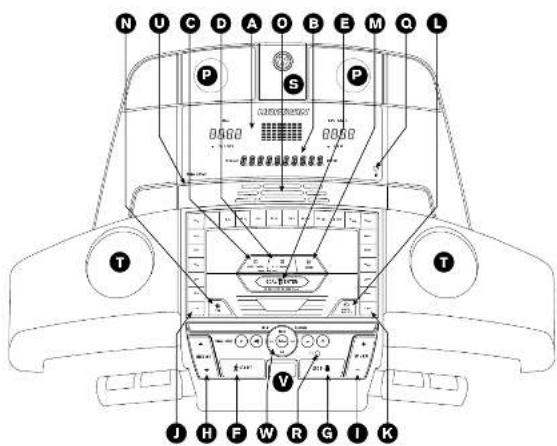

T203 ConSoLE oPErATion

Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.

A) DISPLAY WinDoWS: time, distance, calories, heart rate, speed, incline and workout profiles.

B) ALPHAnUMErlC DISPLAY: displays goal and program information.

C) SELECT TARGET: press to select your desired target.

D) SELECT WORKOUT: press to select your desired workout.

E) GOAL CEnTER™: press to set or view your goal.

F) START: press to begin exercising, start your workout, or resume exercising after pause.

G) STOP: press to pause/end your workout. Hold for 3 seconds to reset the console.

H) InCLInE ▲/▼KEYS: used to adjust incline in small increments (0.5% increments).

i) SPEED + / - KEYS: used to adjust speed in small increments (0.1 MPH increments).

J) InCLInE QUICK KEYS. used to reach desired incline more quickly.

K) SPEED QUICK KEYS: used to reach desired speed more quickly.

L) CHANGE DISPLAY: press to change display feedback during workout.

M) EnTER: used to confirm target and workout settings.

n) FAn KEY: press to turn lan on and off.

e) FAN: personal workout fan

P) SPEAKERS: music plays through speakers when your CD / MP3 player is connected to the console.

d) AUDIO In JACK: plug your CD / MP3 player into the console using the included audio adaptor cable.

r) AUDIO pUT / HEADPHoE JACK: plug your headphones into this jack to listen to your music through the headphones.

Note: when headphones are pushed into the headphone isck the sound will no longer come out through the speakers.

S) iPod * DoCKinG STATION: used to dock and charge your iPod (not included).

T) WATER BOTTLE POCKETS: holds parsnal workout equipment.

U) rEADING rACK holds reading material.

V) SAFETY KEY Position: enabling treadmill when safety key is inserted.

W) CUSToM 1 or 2 KEY: press to select Custom 1 or Custom 2 program.

X) IPoD * Controls: press to adjust your attached iPod audio settings. See page 23 for more info.

AS10 63249

U C D A O B E M Q N P S P 0500 0500 - 整重设定安装或安装 T T 10L/10V 2 V J H F L R G I K

T202-T203-CT:1-05nx1.4xnd 18-17

CT7.1 ConSoLE oPErATion

Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.
A) DISPLAY WinDoWS: time, distance, calories, heart rate, speed, incline and workout profiles.
B) ALPHAnUMERIC DISPLAY: displays goal and program information.
C) SELECT TARGET: press to select your desired target.
D) SELECT WORKOUT: press to select your desired workout.
E) GOAL CENTER™: press to set or view your goal.
F) START: press to begin exercising, start your workout, or resume exercising after pause.
G) SToP: press to pause/end your workout. Hold for 3 seconds to reset the console.
H) InCLInE ▲/▼KEYS: used to adjust incline in small increments (0.5% increments)
I) SPEED + / · KEYS: used to adjust speed in small increments (0.1 MPH increments).
J) inCLInE quick keys: used to reach desired incline more quickly.
K) SPEED QUICK KEYS: used to reach desired speed more quickly
L) CHANGE DISPLAY: press to change display feedback during workout.
M) ENTER: used to confirm target and workout settings.
n) FAn KEY: press to turn len on and off.
o) FAn: personal workout fan.
P) SPEAKERS: music plays through speakers when your CD / MPS player is connected to the console.
q) AUDIO In JACK: plug your CD / MP3 player into the console using the included audio adaptor cable.
r) AUDIO OUT / HEADPHONE JACK: plug your headphones into this jack to listen to your music through the headphones. Note: when headphones are plugged into the headphone jack the sound will no longer come out through the speakers.
S) MP3 PLAYER PoCKET: used to store your MP3 player.
T) WATER BOTTLE POCKETS: holds paracanal workout equipment.
U) rEADING rACK: holds reading material.
V) SAFETY KEY POSITION: enables treadmill when safety key is inserted.

AS10 63249

T202 & CT7.1 DISPLAYS

TIME DISTANCE 18:32 2.04 CURRED TIME VOLUME 15 6.3

T203 DISPLAYS

START 15 P BAS. % 18:32 20:4 SOLD 6.3

DISPLAY WinDoWS

• TIME: Shown as minutes : seconds. View the time remaining or the time elapsed in your workout.
• DISTANCE: Shown as miles. Indicates distance traveled or distance remaining during your workout.
- SPEED: Shown as MPH. Indicates how last your walking or running surface is moving.
- InCLInE: Shown as percent. Indicates the incline of your walking or running surface.
• CALORIES: Total calories burned or calories remaining left to burn during your workout.
- HEART RATE: Shown as BPM (beats per minute). Used to monitor your heart rate (displayed when contact is made with both pulse grips).
- ProGram ProFILES: Represents the profile of the program being used (speed during speed based programs and incline during incline based programs).
• TARGETS: Will be displayed in the alphanumeric window on the bottom of the display.
- WorKoUTS: Will be displayed in the alphanumeric window on the bottom of the display.

GETTING STARTED

1) Check to make sure no objects are placed on the belt that will hinder the movement of the treadmill.
2) Plug in the power cord and turn the treadmill ON. (The ON/OFF switch is next to the power cord.)
3) Stand on the side rails of the treadmill.
4) Attach the safety key clip to part of your clothing making sure that it is secure and will not become detached during operation.
5) Insert the safety key into the safety keyhole in the console.
6) You have two options to start your workout

A) quick START UP

Simply press the GO/START key to begin working out. Time, distance, and calories will all count up from zero.
OR...

B) SELECT A TARGET AND WORKOUT

1) Select GUEST, USER 1 or USER 2 using ARROW keys and press ENTER.
2) Select a TARGET using the SELECT TARGET key.
3) Adjust the TARGET settings using the ARROW keys.
4) Press ENTER to advance.
5) Select a WORKOUT using the SELECT WORKOUT key.
6) Press START to begin workout.

NOTE: If no TARGET or WORKOUT is selected, the program will function as a MANUAL program. All charges in speed and incline will need to be from the user in this setting.

CHANGlnG YoUr TArGET MID-WorKoUT

You can change your Target "on-the-fly" without losing your current workout stats.
Anytime during your workout, press the SELECT TARGET key until you have selected the new TARGET you would like.
Use the ▲ I ▼or + I = keys to enter in the value of your new TARGET and press ENTER. All previous workout statistics will be rolled into the new TARGET, so you'll never miss a beat.
NOTE: If you accidentally press the SELECT TARGET key during a workout, if no buttons are pressed after 5 seconds, the current target will resume.

CHAnGinG YoUr WorKoUT MID-WorKoUT

You can change your workout while you are in a program.
Anytime during your workout, press the SELECT WORKOUT key until you have selected the new WORKOUT you would like Press ENTER.
New WORKOUT will begin at the first segment after warm up and all workout statistics will roll over.
NOTE: If you accidentally press the SELECT WORKOUT button during a workout, if no buttons are pressed after 5 seconds the current program will resume.

TARGET ProFILES

TARGET 1 - TIME: Allows user to set a target based on how long they would like to workout. Time targets can range from 15:00 - 99:00. TIME will count down. DISTANCE and CALORIES will count up from zero.
TARGET 2 - DISTANCE: Allows user to set a target based on distance they would like to complete. Distance target can range from 0.25 - 26.25 miles. DISTANCE will count down. TIME and CALORIES will count up from zero.
TARGET 3 - CALORIES: Allows user to set a target based on the number of calories they would like to burn. Calories target can range from 20 - 950 calories. CALORIES will count down. TIME and DISTANCE will count up from zero.
no TARGET: Allows user to select a workout profile that has no specified time, distance, or calorie target. TIME, DISTANCE, and CALORIES will all count up from zero.

WorKoUT ProFILES

1) MANUAL: Adjust your speed and incline manually during your workout.
2) InTErVALS: Improves your strength, speed and endurance by increasing and decreasing the speed and incline throughout your workout to involve your heart and other muscles.

Segment Warm-Up 12Time 4:00 min 80 sec 30 sec				Segments 1 & 2repeat until target acomplete
Spared 1 1.5 2 4
Indine 1 1.5 0.5 1 5

NOTE: Adjusting the speed and/or incline during your workout will affect the program intensity resulting in the speed and incline changing accordingly for each program segment.

3) HILLS: Simulates running up and down hills to improve stamina by increasing and decreasing incline.

Segment Warm Up 1 2 3 4 5 6 7 8								Segments 1-9 repeat until target is complete
Time 4:00 min 30 sec 30 sec 50 sec 30 sec 50 sec	30 sec 50 sec 30 sec
Insins 1 1.5 2 2.5 3 3.5 4 3.5 3 2.5

4) WEIGHT LOSS: Promotes weight loss by increasing and decreasing the speed and incline, while keeping you in your fat burning zone.

Segment Warm Up 12345679
Time 4:00 min			80 sec	80 sec	80 sec	80 sec	80 sec	80 sec	80 sec	Segments 1-9 input until bengal to complete
Speed	1	1.5	2	2.5	3	3.5	4	3.5	3	2.5
Induce	0	0.5	1.5	1.5	1	0.5	0.5	0.5	1	1.5

NOTE: Adjusting the speed and/or incline during your workout will affect the program intensity resulting in the speed and incline changing accordingly for each program segment.

USinG CUSToM WorKoUTS (T203 onLY)

1) Select GUEST, USER 1 or USER 2 using ARROW keys and press ENTER.
2) Press the CUSTOM 1 OR 2 key to select a custom workout.
3) Press SELECT TARGET key to select a time, distance, or calories target. Press ENTER to select desired target.
4) Set each speed profile by using the ▲/▼ or + / = keys and press ENTER. Repeat for all 15 speed profiles.
5) Set each incline profile by using the ▲/▼ or + / - keys and press ENTER. Repeat for all 15 incline profiles.
6) Press START to begin.

GoAL CEnTEr™

Research shows that those who create and track their fitness goals, on average, achieve greater success than those who do not. Because your new treadmill is equipped with Horizon's exclusive GOAL CENTER® Performance Tracker, you've taken an important step towards achieving your fitness goals. GOAL CENTER® is innovative new software, integrated into your treadmill console, that will allow you to track your fitness goals over time, without the need for paper journals or logs. Read further to learn about how GOAL CENTER® can help motivate you to enhance your performance.

GoAL CEnTER™ SETUP

1) Select USER 1 or USER 2 using the ▲/▼or + / - keys and press ENTER.
2) Press and hold GOAL CENTER ^™ for approximately five seconds.
3) Press SELECT TARGET key to select time, distance or calorie goal.
4) Use ▲/▼or + / = keys to select goal value and press ENTER.
5) Use the ▲ /▼or + / = keys to select the NUMBER OF DAYS to complete the goal.
6) Press ENTER again to exit the setup mode.
NOTE: These steps can also be used to erase an existing goal and set a new one.

VIEWING GOAL PROGRESS

When logged into your user profile, you can view progress toward your goal by pressing the GOAL CENTER™ key. The console will scroll the remaining time, distance or calories, depending on the goal selected and will also scroll the time remaining to achieve that goal.

note: For workout data to accumulate towards a user's goal, you MUST first select that user before beginning a workout.

To rESET THE ConSoLE

Hold STOP key for 3 seconds.

FiniSHinG YoUr WorKoUT

When your workout is complete, the monitor display will flash "FINISHED" and hoop. Your workout information will stay displayed on the console for 30 seconds and then reset.

CLEAR CUrrEnT SELECTION

To clear the current program selection or screen, hold the STOP button for 3 seconds.

USinG YoUr CD / MP3 PLAYER

1) Connect the included AUDIO ADAPTOR CABLE to the AUDIO IN JACK on the top right of the console and the headphone jack on your CD / MPS player.
2) Use your CD / MP3 player buttons to adjust song settings.
3) Remove the AUDIO ADAPTOR CABLE when not in use.
4) If you don't want to use the SPEAKERS, you can plug your headphones into the AUDIO OUT JACK at the bottom of the console.

T202 T203

Nike + iPod

READY

Connect your Nike Plus compatible device to the built-in Made for iPod connector on Nike + iPod compatible fitness equipment.

SET

Full console controls and built-in SonicSurround® speakers make it easy to exercise to your favorite workout playlist.

Go

Start walking or running. Your pace, distance, time, and calories burned are recorded as you go. It's all automatically saved on your iPod or iPhone.

SYNC

When you're done with your workout, connect your iPod or iPhone to your computer. iTunes syncs your workout data to nikeplus.com. Every workout and every run is there, ready for you to review.

"Made for Pod" means Just an electronic accessory has been designed to continue, specifically to Pod and has been enrolled by the developer to meet Apple performance standards. Apple is not responsible for the extension of its device or its compliance with safety and regulatory standards. Pod is a trade mark of Apple Inc., registered in the U.S. and other countries.

T202-T203-CT:1.085m×1.4mm 24-25 65°C 8:32 AM

niKE + oPErATion

rEQUIREMENTS

Nike Plus - compatible iPod or iPhone (Sea www.apple.com/nikaplus for more information).

Before syncing your Apple device to your computer, you must first create a free Nike Plus account at www.nikerunning.com and download the latest iTunes software (www.apple.com/tunes).

GETTING STARTED

1) Before connecting your Apple device to the treadmill, you must first turn on Nike Plus on the device.
2) Dock your Apple device and wait for authentication to complete. This may take up to 10 seconds. After authentication is complete, your iPod-specific console controls will be active (see next page).
3) See Console Operation on page 13 and start your workout.
4) If your iPod or iPhone is Nike Plus compatible, your workout will begin recording automatically to your Nike Plus compatible device. The console will display. *RECORDING WORKOUT TO IPOD.*
5) When your workout is complete, the display will verify by displaying "CONGRATULATIONS WORKOUT RECORDED. CONNECT YOUR IPOD TO YOUR COMPUTER AND SEE YOUR WORKOUT AT NIKEPLUS.COM." If you happen to stop your workout before your workout is complete, press and hold stop for 6 seconds. This will record your data to your Nike Plus-compatible device.
6) Remove your Nike Plus compatible device and sync with iTunes.
7) Log into your Nike Running account to review and track your workouts.

iPoD \* DoCKinG STATION

The iPod docking station is the entertainment solution for your workouts. Various iPod models with a dock connector can fit this dock. iPhone must be set to Airplane Mode to use the docking station.

USinG THE iPod DoCKinG STATION

(IPoD not INCLUDED)

1) Remove the rubber plug from bottom of the clocking station.
2) Plug in your iPod by matching the dock connector pin on the treadmill with the dock connector on your iPod. NOTE: Once you have connected the iPod to the docking station, please allow 10 seconds for docking station to authenticate the iPod before it will be fully functional.

3) You can use your iPod dial to adjust song settings. Or you can adjust your volume and song settings using the iPod control keys on the treadmill console. NOTE: If you don't want to use the speakers, you can plug your headphones into the audio cut jack at the bottom of the console.

Replace the rubber plug into the bottom of the docking station when the station is not in use.
NOTE: iPod audio will not play through speakers if audio adaptor cable is plugged in while iPod is in the docking station.

LEWELBO Figs Dish (mm)

DOCK HEDDY MCCD-SCREWING STATION RUBBELL PLUG DOCK CONDUCTOR PIN ASSETS FOR NON-POD PLATIONS

LIMITED HOME-USE WARRANTY

WEIGHT CAPACITY

T202, CT7.1 = 325 lbs (147 kilograms)

T203 = 350 lbs (159 kilograms)

FRAME·LIFETIME

Horizon Fitness warrants the frame against defects in workmanship and materials for the lifetime of the original owner, so long as the device remains in the possession of the original owner. (The frame is defined as the welded metal base of the unit and does not include any parts that can be removed.)

MOTOR • LIFETIME

Horizon Fitness warrants the motor against defects in workmanship and materials for the lifetime of the original owner, so long as the device remains in the possession of the original owner. Labor or installation of motor is not covered under the motor warranty.

ELECTRONICS & PARTS • 1 YEAR (T203 = 2 YEAR)

Horizon Fitness warrants the electronic components, finish and all original parts for a period of one year (T203 - two years) from the date of original purchase, so long as the device remains in the possession of the original owner.

LABOR·1 YEAR

Horizon Fitness shall cover the labor cost for the repair of the device for a period of one year from the date of the original purchase, so long as the device remains in the possession of the original owner.

EXCLUSIONS AND LIMITATIONS

Who IS covered:

• The original owner and is not transforable.

What IS covered:

- Repair or replacement of a defective motor, electronic component, or defective part and is the sole remedy of the warranty.

What IS NOT covered:

- Normal wear and tear, improper assembly or maintenance, or installation of parts or accessories not originally intended or compatible with the equipment as sold.

- Damage or failure due to accident, abuse, corrosion, discoloration of paint or plastic, neglect, theft, vandalism, fire, blood, wind, lightning, freezing, or other natural disasters of any kind, power reduction, fluctuation or failure from whatever cause. unusual atmospheric conditions, collision, introduction of foreign objects into the covered unit, or modifications that are unauthorized or not recommended by Horizon Fitness.

- Incidental or consequential damages. Horizon Fitness is not responsible or liable for indirect, special or consequential damages, economic loss, loss of property, or profits, loss of enjoyment or use, or other consequential damages of whatsoever nature in connection with the purchase, use, repair or maintenance of the equipment. Horizon Fitness does not provide monetary or other compensation for any such repairs or replacement parts

costs, including but not limited to gym membership fees, work time lost, diagnostic visits, maintenance visits or transportation.

- Equipment used for commercial purposes or any use other than a single family or Household, unless endorsed by Horizon Fitness for coverage.

- Equipment owned or operated outside the US and Canada. - Delivery, assembly, installation, setup for original or replacement units or labor or other costs associated with removal or replacement of the covered unit.

- Any attempt to repair this equipment creates a risk of injury. Horizon Fitness is not responsible or liable for any damage, loss or liability arising from any personal injury incurred during the course of, or as a result of any repair or attempted repair of your fitness equipment by other than an authorized service technician. All repairs attempted by you on your fitness equipment are undertaken AT YOUR OWN RISK and Horizon Fitness shall have no liability for any injury to the person or properly arising from such repairs.

- If you are out of the manufacturer's warranty but have an extended warranty, refer to your extended warranty contract for contact information regarding requests for extended warranty service or repair.

SERVICE/RETURNS

• In-home service is available within 150 miles of the nearest authorized Service Provider (Mleage beyond 150 miles from an authorized service center is the responsibility of the consumer).
• All returns must be pre-authorized by Horizon Fitness.
• Horizon Fitness' obligation under this warranty is limited to replacing or repairing, at Horizon Fitness' option, the same or comparable model.
• Horizon Fitness may request defective components be returned to Horizon Fitness upon completion of warranty service using a prepaid return shipping label. If you have been advised to return parts and did not receive a label, please contact Customer Tech Support.
• Replacement units, parts and electronic components reconditioned to as-new condition by Horizon Fitness or its vendors may sometimes be supplied as warranty replacement and constitute fulfillment of warranty terms.
• This warranty gives you specific legal rights, and your rights may vary from state to state.

FRANÇAIS

T202-T203-CT7.1-085-mv1.Airval 50-31 B5/10 8:32 AM

AVErTiSSEMEnT

U C D A O B E M Q W P S P T T V J N H F X R G I L K

T202-T203-CT:1-05nx1.4x9 42-43

FONCTIONNEMENT DE LA CONSOLE DU MODÈLE T203

Fin D'UnE SéAnÇE D'EnTrAïnEMEnT

T202 T203

Nike + iPod

À VoS MARGUES!

T202-T203-CT:1.085mm1.4mm 52.53.65°C 8:32 AM

SOCLE DE SYNCHRONISATION iPOD ^1

I recommend a system construction advanced power and infrastructure MP2

GARANTIE LIMITÉE – USAGE DOMESTIQUE

PoiDS MAXiMAL DE L'UTILISATEUR

T202, CT7.1 = 147 kg (325 lb)

T203 = 159 kg (350 lb)

EXCLUSIONS ET LiMiTATIONS

Qui EST couvert :

(fora 2 aploscorees)

202/T203
□ 4 pagatos para iPod
□ 4 maslos para il do □ Inscrito de número para il do

U C D A O B E M Q W P S P T T V J N H F X R G I L K

T202-T203-CT:1-05nx1.4x9d 70-71

FUNCIONAMIENTO DE LA CONSOLA EN EL MODELO T203

T202 T203

Nike + iPod

En SUS MARCAS

T202, CT7.1 = 325 lb (147 kg)

T203 = 350 lb (159 kg)

BASTIDor • DE Por VIDA

PIEzAS Y CoMPonEnTES ELECTrOniCoS · 1 AÑo (T203 = 2 AÑoS)

if you have any problems during assembly or if parts are missing.

For fast and friendly service, please contact one of our trained customer technicians via phone, email or our website.

We want to know if you have a problem and we want to have an opportunity to correct it for you. NOTE: Please read the TROUBLESHOOTING section in the TREADMILL GUIDE before contacting Customer Tech Support. Additional product information is available on our website.

www.horizonfitness.com

Horizon Fitness

1600 Landmark Drive,

Cottage Grove WI, 53527

T202, T203, CT7.1 Rev. 1.4 | © 2010 Horizon Fitness
