USER MANUAL Motion LX16 Martin Logan

Abstract black ink brushstroke design on gray horizontal stripes (no text or symbols)

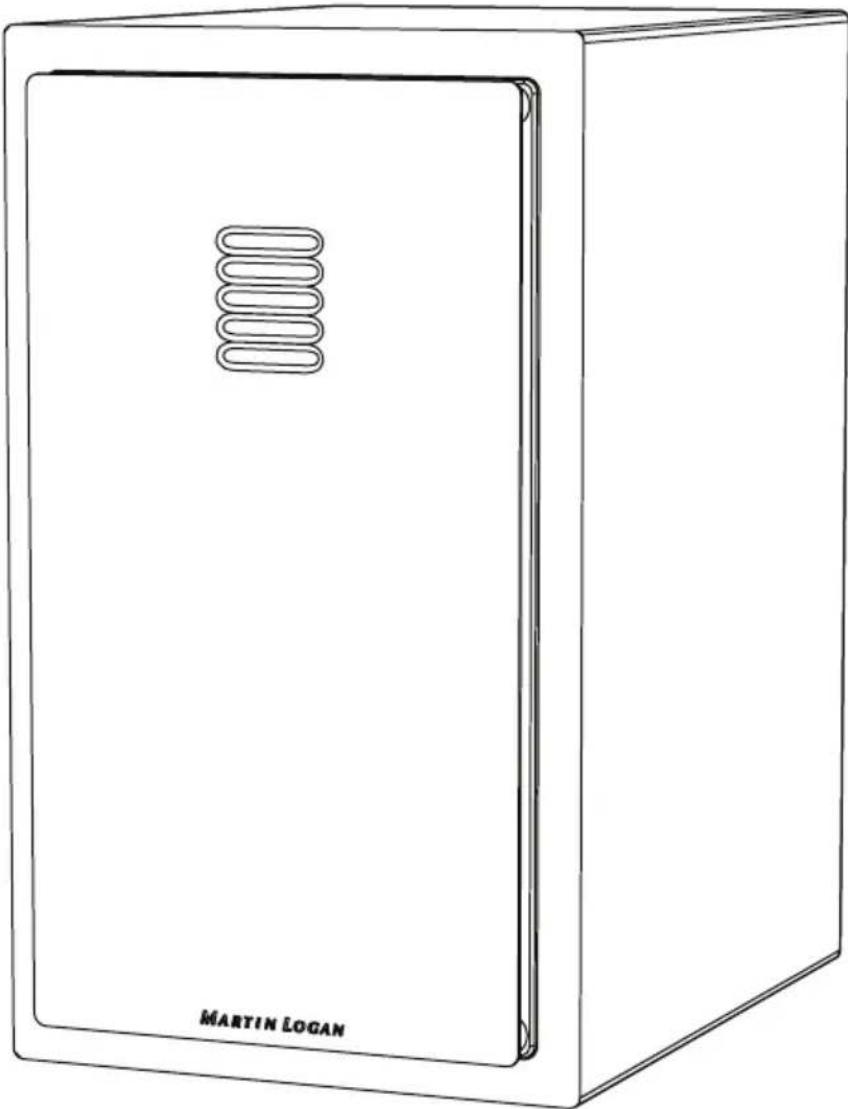

Motion® MARTIN LOGAN LX16

user's manual

Line drawing of a rectangular electronic device labeled 'MARTIN LOGAN' with a three-tiered top panel (no additional text or symbols)

The Great American Speaker Company

WARNING!

• Refer servicing to a qualified technician.
• To prevent fire or shock hazard, do not expose this module to moisture.
- Turn amplifier off should any abnormal conditions occur.
- Do not drive speaker beyond its rated power.

The lightning bolt flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of potentially "dangerous voltage" within the product's enclosure that may be sufficient to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

In accordance with the European Union WEEE (Waste Electrical and Electronic Equipment) directive effective August 13, 2005, we would like to notify you that this product may contain regulated materials which upon disposal, according to the WEEE directive, require special reuse and recycling processing. For this reason Martin Logan has arranged with our distributors in European Union member nations to collect and recycle this product at no cost to you.

To find your local distributor please contact the dealer from whom you purchased this product, email [e-mail] or visit the distributor locator at www.martinlogan.com.

Please note, only this product itself falls under the WEEE directive. When disposing of packaging and other related shipping materials we encourage you to recycle these items through the normal channels.

Connection
Installation.
Break In 4
Installing On A Flat Surface ..... 4

Stand and Wall Mounting . . . . . . . . . . .

Frequently Asked Questions. . . . . . . . . . .

Troubleshooting

General Information.

Warranty Information 6

Serial Number....6

Service 6

Contacting Customer Service . . . . . . . . . . .

Specifications

Dimensional Drawings . . . . . . . . . . . .

Serial Number:

Record your serial number here for easy reference. You will need this information when filling out your warranty registration. The serial number is located near the binding posts and on the product carton.

CONNECTION

WARNING! Turn your amplifier off before making or breaking any signal connections!

Use the best speaker cables you can. The length and type of speaker cable used in your system will have an audible effect. Under no circumstance should a wire of gauge higher (thinner) than #16

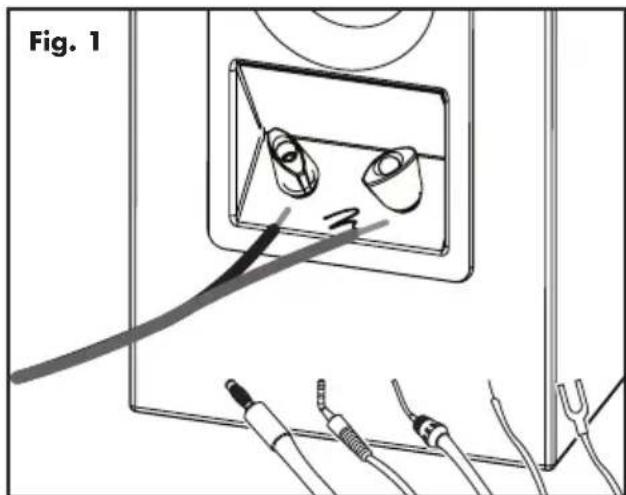

Fig. 1

be used. In general, the longer the length used, the greater the necessity of a lower gauge, and the lower the gauge, the better the sound, with diminishing returns setting in around #8 to #12.

Connections are done at the signal input section on the rear electronics panel of the LX16. Use spade connectors for optimum contact and ease of installation. Hand tighten the binding posts, but do not overtighten—do not use a tool to tighten the binding posts.

Be consistent when connecting the speaker cables to the signal input terminals. Take care to assign the same color cable lead to the (+) terminal on both the left and right channel speakers. If bass is nonexistent and you cannot discern a tight, coherent image, you may need to reverse the (+) and (−) leads on one speaker to bring the system into proper polarity.

INSTALLATION

WARNING! Installation other than that described in the body of this document requires specific documentation from MartinLogan.

Line drawing of a hand inserting a component into a rectangular box labeled Fig. 2 (no text or symbols on the diagram itself)

BREAK IN

Allow approximately 72 hours of break-in at 90 dB (moderate levels) before any critical listening.

INSTALLING ON A FLAT SURFACE

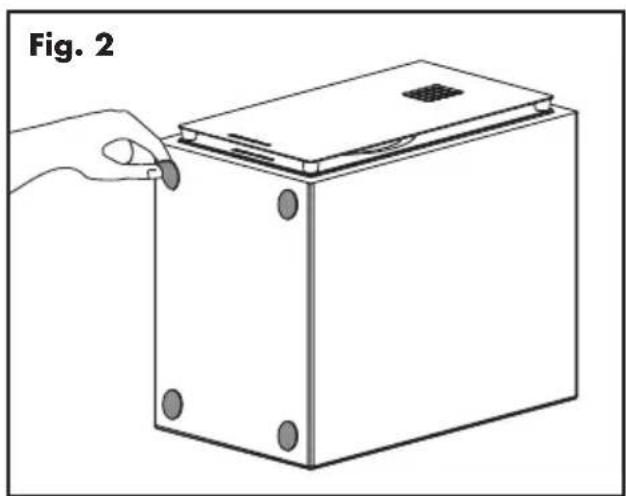

If you have a surface that provides a wide, level, and stable platform, the speaker can be placed directly on top. When using the speaker in this configuration, affix the pads to the bottom of the speaker at the rear contact points (fig. 2). Note: This speaker is not magnetically shielded and therefore should not be placed directly beside or atop a CRT television.

Toe-In: When installed on a surface and used as front channels we recommend aiming your speakers towards the primary listening position.

STAND AND WALL MOUNTING

A 3/18-16 threaded insert is located on the back of the Motion LX16 to accommodate installations where stand or wall mounting is desired. A variety of after market stands and brackets are available. Dealers are always the best source for information when purchasing such accessories.

PLEASE NOTE: When using an after market stand or bracket be sure to follow the mounting instructions included with the stand or bracket.

FREQUENTLY ASKED QUESTIONS

How do I clean my speakers?

Use a dust free cloth (such as a micro fiber cloth) or a soft brush to remove dust from your speakers.

Do not spray any kind of cleaning agent on or in close proximity to the drivers.

Could you suggest a list of suitable electronics and cables ideal for MartinLogan speakers?

We have no favorites and use electronics and cables quite interchangeably. We would suggest listening to a number of brands—and above all else—trust your ears. Dealers are always the best source for information when purchasing additional audio equipment.

Is there likely to be any interaction between my speakers and the television in my A/V system?

Yes. These speakers are not shielded and should be kept at least 2 feet away from a CRT television.

Will exposure to sunlight affect the life or performance of my speakers?

We recommend against placing any loudspeaker in direct sunlight. Ultraviolet (UV) rays from the sun can cause deterioration of cabinet, speaker cones, etc. Small exposures to UV will not cause a problem. Filtering of UV rays through glass will greatly reduce the negative effects.

TROUBLESHOOTING

No Output

• Check that all system components are turned on and source material is playing.
• Check speaker wires and connections.
• Check all interconnecting cables.
• If you are unable to resolve your problem, please contact your dealer or MartinLogan customer service (see below).

GENERAL INFORMATION

WARRANTY INFORMATION

Your speakers are provided with an automatic Limited 90 Day Warranty coverage. You have the option, at no additional charge, to receive a Limited 5 Year Warranty coverage. To obtain the Limited 5 Year Warranty coverage you need to complete and return the Certificate of Registration to MartinLogan within 30 days of purchase. For your convenience MartinLogan also offers online warranty registration at www.martinlogan.com.

MartinLogan may not honor warranty service claims unless we have a completed Warranty Registration card on file! If you did not receive a Certificate of Registration with your new speakers you cannot be assured of having received new units. If this is the case, please contact your authorized MartinLogan dealer.

SERIAL NUMBER

Serial number is located on back of the speaker, directly beneath the binding posts. The serial number may also be found on the product carton.

SERVICE

Should you use your MartinLogan product in a country other than the one in which it was originally purchased, we ask that you note the following:

1 The appointed MartinLogan distributor for any given country is responsible for warranty servicing only on units distributed by or through it in that country in accordance with its applicable warranty.

2 Should a MartinLogan product require servicing in a country other than the one in which it was originally purchased, the end user may seek to have repairs performed by the nearest MartinLogan distributor, subject to that distributor's local servicing policies, but all cost of repairs (parts, labor, transportation) must be borne by the owner of the MartinLogan product.

3 If, after owning your speaker for six months, you relocate to a country other than the one in which you purchased your speaker, your warranty may be transferable. Contact MartinLogan for details.

CONTACTING CUSTOMER SERVICE

MartinLogan customer service is available Monday–Friday between the hours of 8am–5pm (central time) by calling [phone] or by emailing [e-mail].

SPECIFICATIONS\*

Frequency Response . . . . . . . . . . . 60-25,000.Hz±3 dB . . .

Dispersion. 80^×80^

Sensitivity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92.dB @.2.83.volts/.meter. . . . .

Impedance . . . . . . . . . . . . . . . 5 Ohms. Compatible with 4, 6, or 8. Ohm rated amplifiers.

Crossover Frequency. 2,700 Hz.

High Frequency Driver . . . . . . . . . . . 1" x 1.4"(2.6cm x 3.6cm) Folded Motion Transducer with 5.25" x 1.75"(13.3cm x 4.4cm) diaphragm.

Low Frequency Driver . . . . . . . . . . . . . . 5.25" (13.3cm) aluminum cone with cast basket. Non-resonant asymmetrical chamber format. Rigid structured dust cap to reduce cone break-up modes.

Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ported.

Components . . . . . . . . . . . Custom air core coil and low DCR steel laminate inductors. Polypropylene film capacitors in series and low DF electrolytic capacitors in parallel. Overall system thermal/current protection.

Recommended Amp Power . . . . . . . . 20-200 watts . . .

Binding Post Inputs . . . . . . . . . . Custom 5-way binding posts . .

Weight. 12 lbs. (5.4 kg)

Dimensions (HxWxD) . . . . . . . . . . . . . . . 11." x.6.5" x 9.5". . . . (28cm x 16.5cm x 24.2cm)

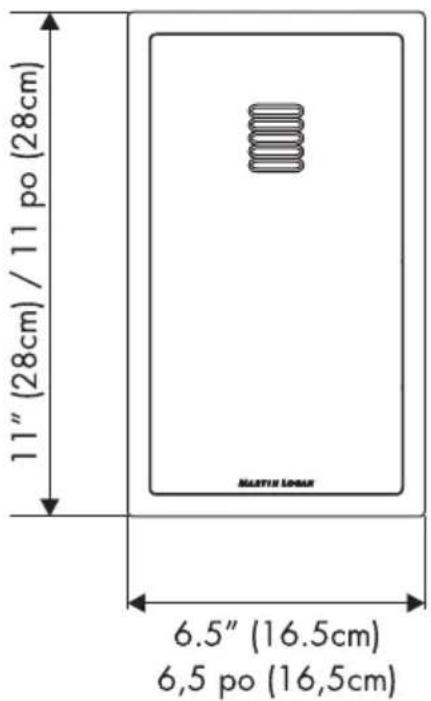

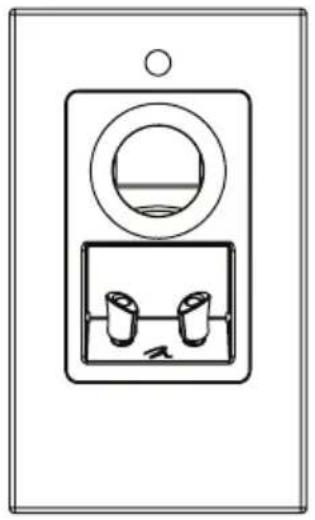

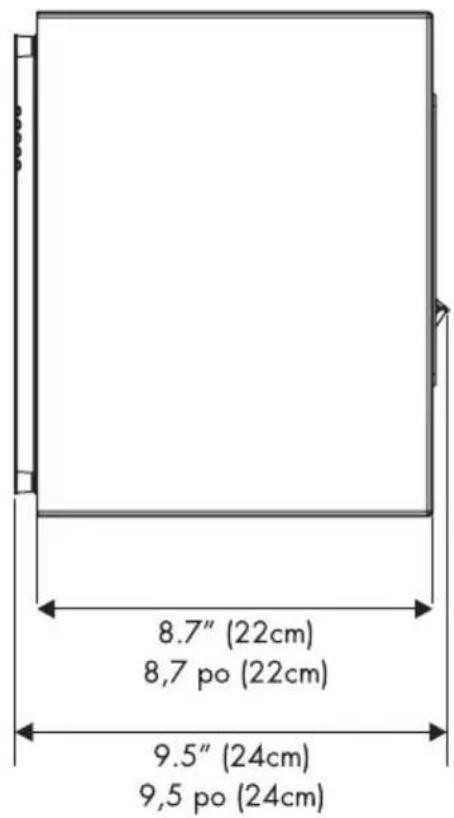

DIMENSIONAL DRAWINGS

11" (28cm) / 11 po (28cm) MUSTIN LOGAN 6.5" (16.5cm) 6,5 po (16,5cm)

8.7" (22cm) 8,7 po (22cm) 9.5" (24cm) 9,5 po (24cm)

Simple line drawing of a wall-mounted device with two circular components and a handle (no text or symbols)

n

MARTIN LOGAN®

The Great American Speaker Company

Lawrence, Kansas, USA tel [phone] fax [phone] www.martinlogan.com
