USER MANUAL Oceanair Rollerblind DOMETIC

Child safety devices

EN Child safety devices

Installation Manual....9

© 2024 Dometic Group. The visual appearance of the contents of this manual is protected by copyright and design law. The underlying technical design and the products contained herein may be protected by design, patent or be patent pending. The trademarks mentioned in this manual belong to Dometic Sweden AB. All rights are reserved.

h	mm
0-600	B1 = 70
601-1200	B2 = 140
1201-1800	B3 = 210
1801-2400	B4 = 280
2401-3000	B5 = 350

2

Technical line drawing of a mechanical component with a flanged base and cylindrical head (no text or symbols)

Technical line drawing of a mechanical bracket component (no text or symbols)

1

i

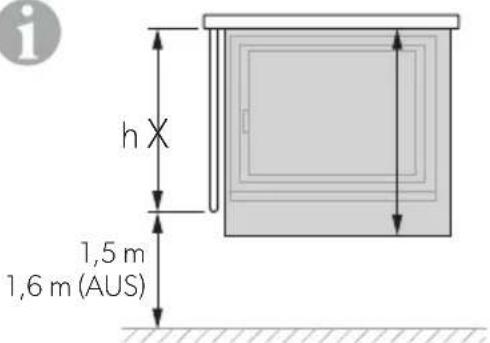

i h X 1,5 m 1,6 m (AUS)

X	h
<2,5m	>1m
>2,5m	>1,5m

!

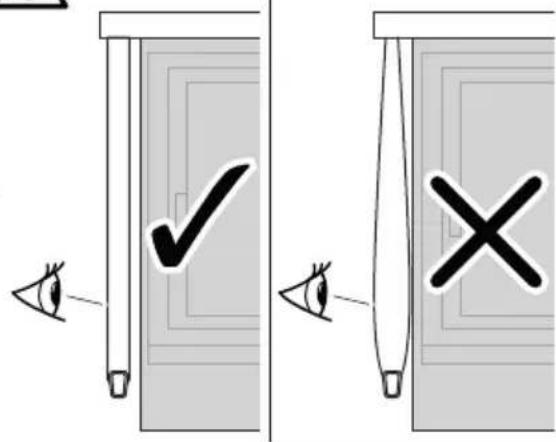

Diagram showing two views of a door with checkmark and cross symbols, one pointing to the left side and the other to the right.

2. 2x 3. 1.

Technical diagram showing two mechanical components with labeled parts and directional arrows indicating assembly or alignment.

3

1 2

A

Cross-sectional diagram of a mechanical device showing two views of internal components with no text or symbols

B

Pure mechanical diagram showing two cross-sectional views of a cylindrical device with internal coils and shafts (no text or symbols)

A

Diagram of a mechanical device with a curved component and directional arrow (no text or symbols)

B

Diagram of a mechanical device with a curved component and a tool inserted, showing no text or symbols.

A

Pure technical line drawing of a cylindrical capacitor with two leads (no text or symbols)

B

Pure technical line drawing of a cylindrical component with internal curved lines and two vertical rods (no text or symbols)

4

1 2

A

Two identical mechanical components with coiled springs, shown from top and side views (no text or symbols)

B

Pure electrical circuit lines without any symbols

A

Diagram of a mechanical device with a curved component and directional arrow indicating motion (no text or symbols)

B

Diagram of a mechanical device with a curved component and a lever mechanism (no text or symbols)

A

Pure technical line drawing of a cylindrical capacitor with two leads (no text or symbols)

B

Pure technical line drawing of a cylindrical component with internal curved lines and two vertical rods (no text or symbols)

5

Simple line drawing of a cylindrical object with a handle and label '1' (no text or symbols on the object itself)

A

Technical line drawing of two cross-sectional views of a mechanical device with internal components (no text or symbols)

B

Cross-sectional diagram of a mechanical device showing internal components and housing (no text or labels)

A

Diagram of a mechanical device with a rotating arm and base, showing no text or symbols

B

Diagram of a mechanical device with a rotating shaft and clamped parts (no text or symbols)

A

Simple line drawing of a cylindrical object with two vertical rods extending outward (no text or symbols)

B

Pure technical line drawing of a cylindrical component with vertical lines, no text or symbols present

Please read these instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in order to ensure that you install, use, and maintain the product properly at all times. These instructions MUST stay with this product.

By using the product, you hereby confirm that you have read all instructions, guidelines, and warnings carefully and that you understand and agree to abide by the terms and conditions as set forth herein. You agree to use this product only for the intended purpose and application and in accordance with the instructions, guidelines, and warnings as set forth in this product manual as well as in accordance with all applicable laws and regulations. A failure to read and follow the instructions and warnings set forth herein may result in an injury to yourself and others, damage to your product or damage to other property in the vicinity. This product manual, including the instructions, guidelines, and warnings, and related documentation, may be subject to changes and updates. For up-to-date product information, please visit documents.dometic.com.

Child safety device according to EN 13120

Contents

1 Explanation of symbols....9
2 Safety instructions....10
3 Labels on the device....11
4 Intended use .... 11
5 Installation....12
6 Warranty ....13
7 Disposal....15

1 Explanation of symbols

WARNING!

Safety instruction: Indicates a hazardous situation that, if not avoided, could result in death or serious injury.

CAUTION!

Safety instruction: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

NOTICE!

Indicates a situation that, if not avoided, can result in property damage.

2 Safety instructions

WARNING! Failure to obey these warnings could result in death or serious injury.

Health hazard

• This device can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved.
  • Children shall not play with the device.
• Cleaning and user maintenance shall not be made by children without supervision.
• Blinds should be stowed before maneuvering to ensure no restriction of the driver vision.

Strangulation hazard

• Young children can be strangled by loops in pull cords, chains, tapes and inner cords that operate the product.
• To avoid strangulation and entanglement, keep cords out of the reach of young children. Cords may become wrapped around a child's neck.
• Move beds, cots and furniture away from window covering cords.
• Do not tie cords together. Ensure that cords do not twist and create a loop.
• For blinds with safety device (e.g. fixed retaining device or break-away system): Children can strangle if this safety device is not installed. Always use this device to keep cords or chains out of the reach of children.
• For blinds with safety device (e.g. breakaway system) for accessible inner cords: Children can strangle if this safety device is not installed and adjusted. Read carefully the instructions and install accordingly.
• Blinds must be installed in such a way that a loose cord or chain cannot form a loop 220 mm or longer. The cords or chains must be at a height above floor level of at least 1500 mm (1600 mm for Australia).

Suffocation hazard

• This device contains small parts. Keep it away from children under 3 years.
• The packaging includes plastic bags. Keep them away from children under 3 years.

CAUTION! Failure to obey these cautions could result in minor or moderate injury.

Risk of injury

• The device must only be installed, removed or repaired by qualified or competent person using suitable fastening material.
  • Take reasonable precaution when installing the blind and wear appropriate personal protective equipment.
• Only for boats and yachts: If the blind is in front of an open window, then the blind should be stowed when driving at more than 10 knots or in a sea state of more than moderate, as this can cause damage to the blind. Parts that come loose may injure persons in the vicinity.

NOTICE!

Damage hazard

• Blinds should be stowed completely when boat or vehicle is under way.
• Use screws and plugs suitable for the wall construction to fix the blind.
• Ensure that you do not drill through the wall.
• Ensure that your hands are clean or wear suitable gloves to avoid marking the fabric.

3 L a b e l s o n

The product must identify the manufacturer name or the trademark, which can be attached internal to the blind. All warning labels must be left on the product. Product instructions must be left with the customer or end user.

4 Intended use

These safety devices are used for making cords or chains for operating the blind or accessible inner cords of the blind safe for young children. The safety devices provided with the blind must be fixed securely.

This product is only suitable for the intended purpose and application in accordance with these instructions.

This manual provides information that is necessary for proper installation and/or operation of the product. Poor installation and/or improper operating or maintenance will result in unsatisfactory performance and a possible failure.

The manufacturer accepts no liability for any injury or damage to the product resulting from:

• Incorrect assembly or connection, including excess voltage
• Incorrect maintenance or use of spare parts other than original spare parts provided by the manufacturer
  • Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in this manual

Dometic reserves the right to change product appearance and product specifications.

5 Installation

The parts described in this chapter are safety devices.

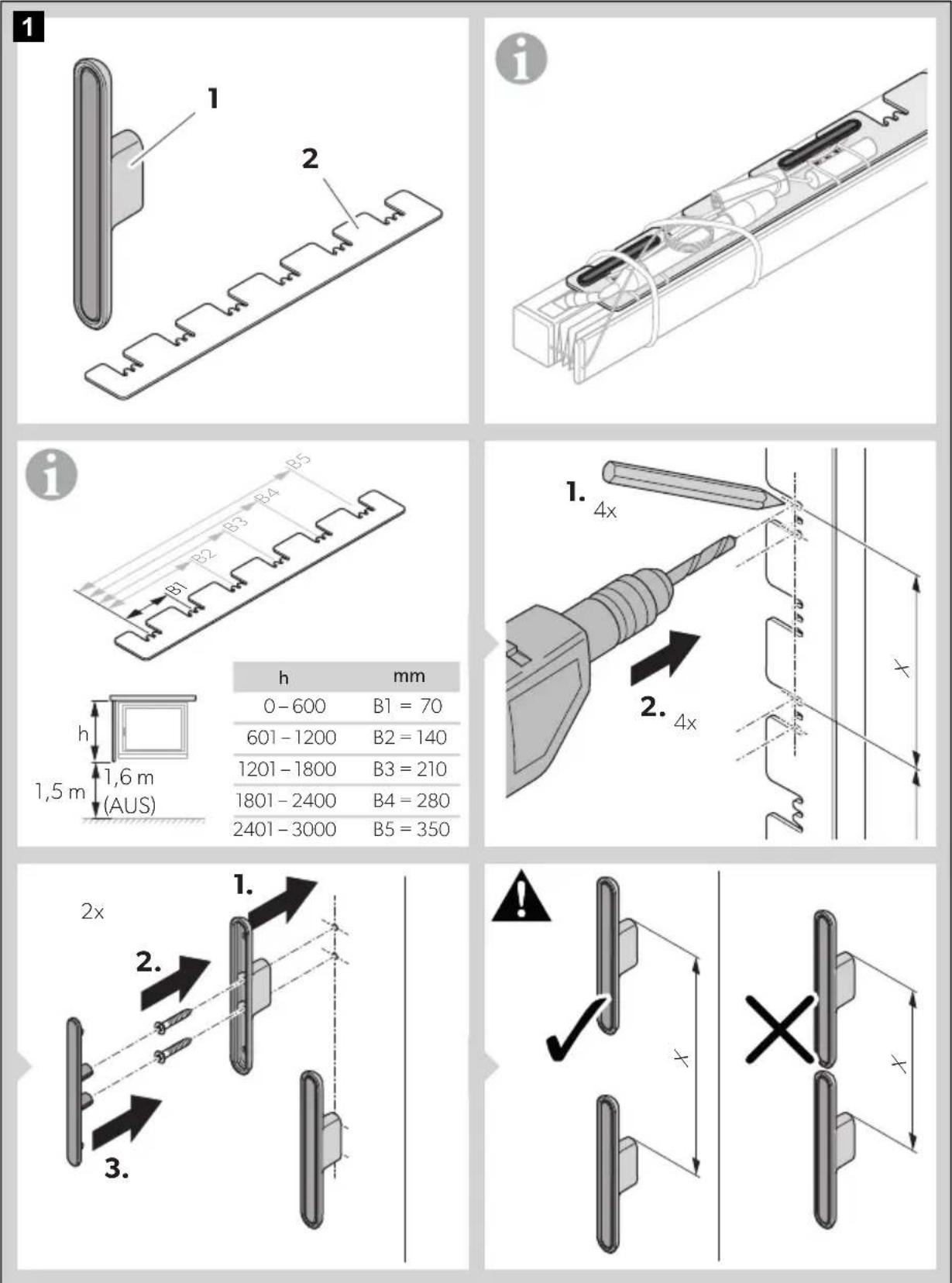

5.1 Cleat

A cleat must be fitted with cord operated blinds. A second cleat must be installed above the first if it is not possible to store all the cord on one cleat when the blind is fully raised. The distance of the cleats must be as supplied. Cleats must be securely fitted at least 1.5 m (1.6 m AUS) from the floor.

▶ To install the cleat, proceed as shown in fig. 1, page 3.

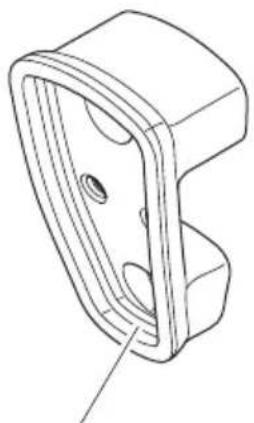

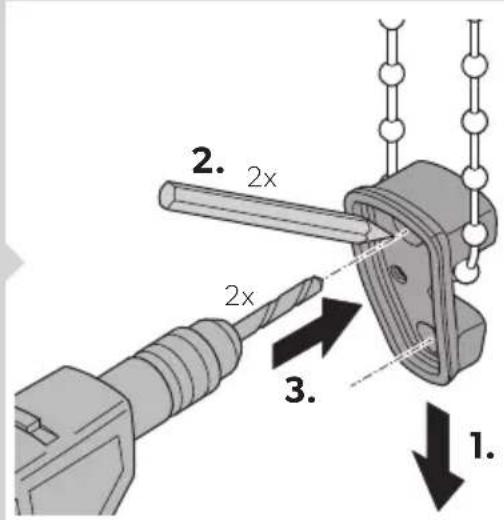

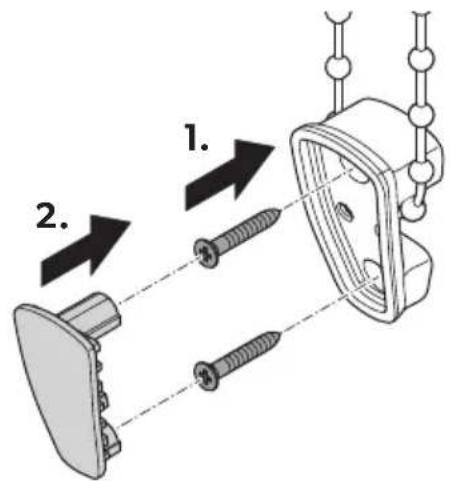

5.2 Cord tidy

A cord tidy must be fitted with cord or chain loop operated blinds.

▶ To install the cord tidy, proceed as shown in fig. 2, page 4.
▶ Ensure that the chain or cord is under tension when the cord tidy is fitted.

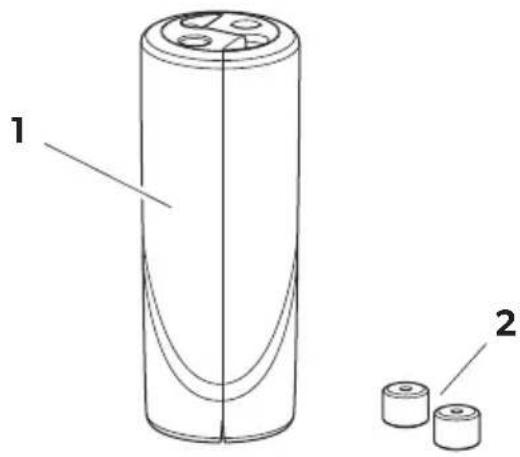

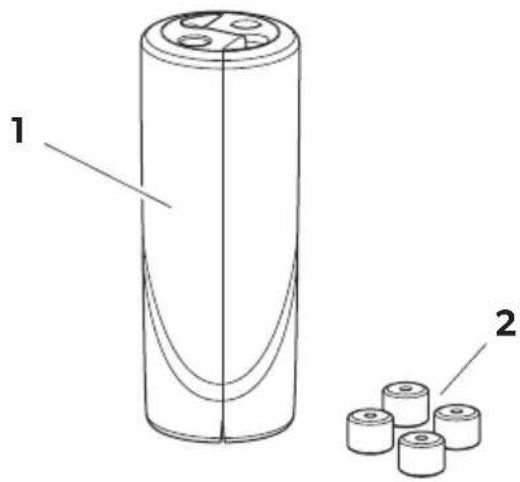

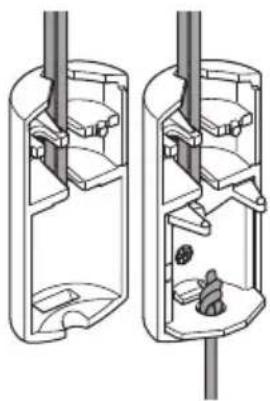

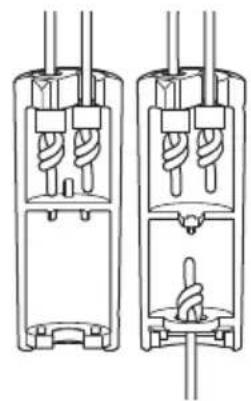

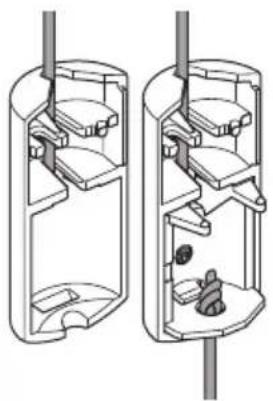

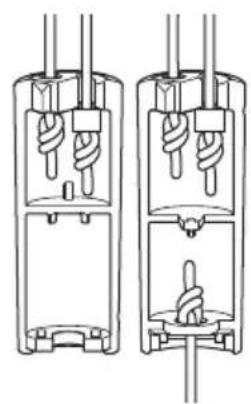

5.3 Cord breakaway connector

Cord breakaway connectors designed are used with the cords of the following blind types:

• Roman blind
• Skyvenetian
• Skysol Classic/Honeycomb

If the blinds are powered by a motor, do not operate the blind without first reconnecting the safety device.

The blinds are already equipped with cord breakaway connectors at delivery. In case that a cord breakaway connector gets loose it has to be reconnected.

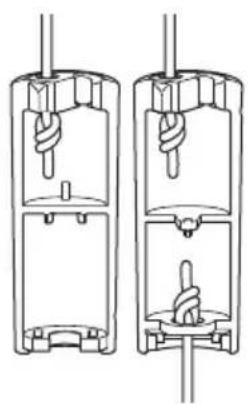

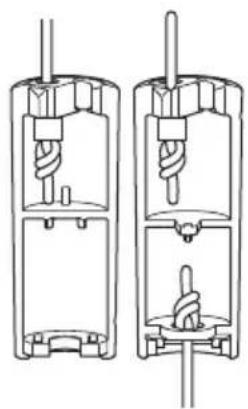

▶ To reconnect the cord breakaway connector, proceed as shown:

• for cord thickness of 0.9 mm (2 lift cords, 3 – 5 lift cords, used on Skysol Classic/Honeycomb only): fig. 3, page 5
• for cord thickness of 1.2 mm to 1.4 mm (2 lift cords, 3 – 5 lift cords, used on Romanblind and Skyvenetian only): fig. 4, page 6
• for cord thickness of 1.7 mm to 2.8 mm (2 lift cords, 3 – 5 lift cords, used on Romanblind and Skyvenetian only): fig. 5, page 7

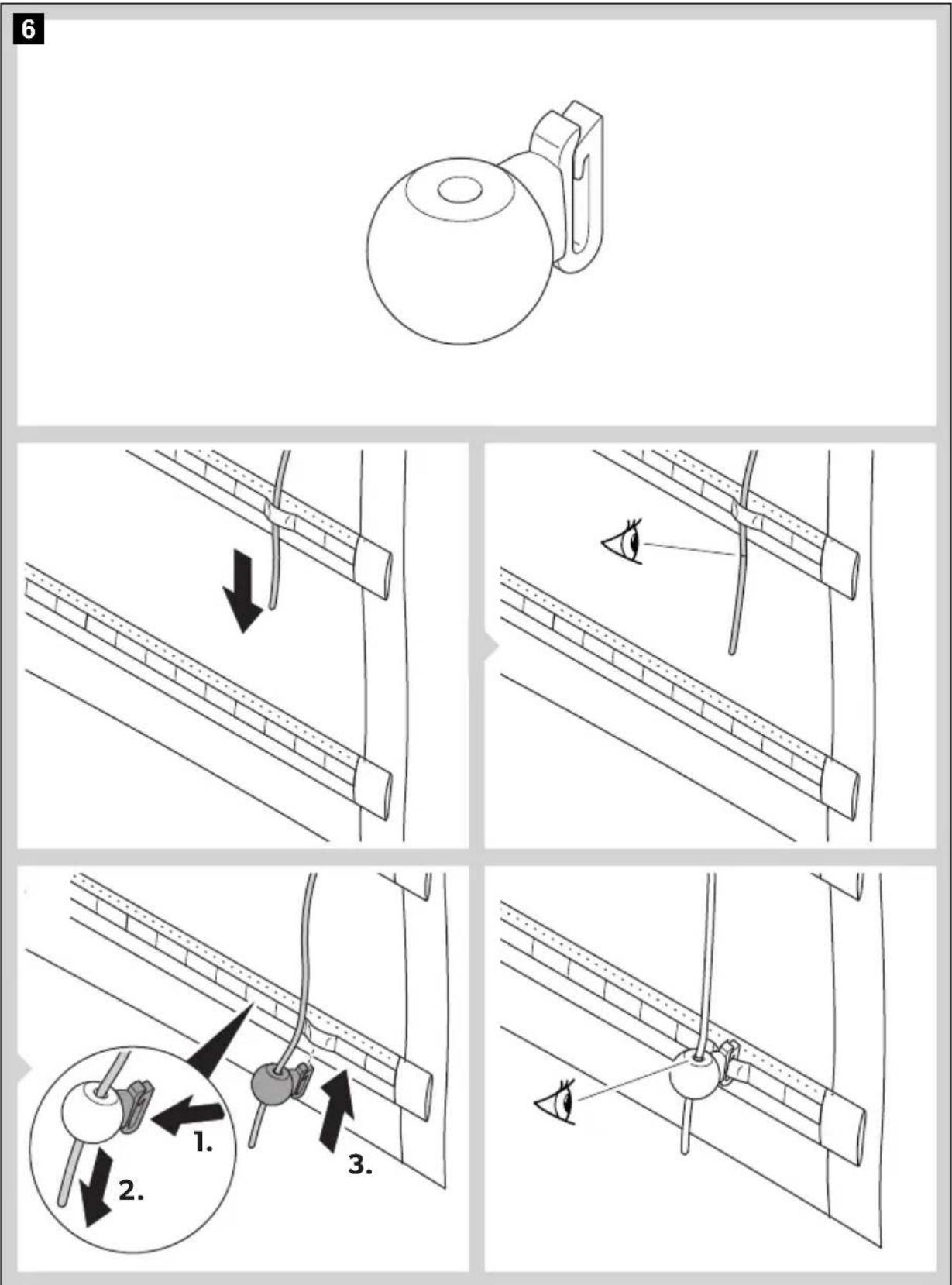

5.4 Cord stopper

Cord stoppers are used on Romanblind fabric only.

The blinds are already equipped with cord stoppers at delivery. In case that a cord stopper gets loose it has to be reconnected.

▶ To reconnect the cord stopper, proceed as shown in fig. 6, page 8.

6 W a r r a n t y

Refer to the sections below for information about warranty and warranty support.

6.1 Australia and New Zealand

If the product does not work as it should, please contact your retailer or the manufacturer's branch in your country (see dometic.com/dealer). The warranty applicable to your product is 1 year(s).

For repair and warranty processing, please include the following documents when you send in the device:

• A copy of the receipt with purchasing date
- A reason for the claim or description of the fault
- The number on the product label with details on the dimensions and material specifications

Australia only

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

New Zealand only

This warranty policy is subject to the conditions and guarantees which are mandatory as implied by the Consumer Guarantees Act 1993(NZ).

Local support

Please find local support at: dometic.com/dealer

6.2 United States and Canada

LIMITED WARRANTY AVAILABLE AT DOMETIC.COM

IF YOU HAVE QUESTIONS, OR WANT TO OBTAIN A COPY OF THE LIMITED WARRANTY FREE OF CHARGE, CONTACT:

DOMETIC CORPORATION CUSTOMER SUPPORT CENTER 5155 VERDANT DRIVE ELKHART, INDIANA 46516 1-800-544-4881 [e-mail]

6.3 All Other Regions

The statutory warranty period applies. If the product is defective, please contact the manufacturer's branch in your region (dometic.com/dealer) or your retailer.

For repair and warranty processing, please include the following documents when you send in the device:

• A copy of the receipt with purchasing date
- A reason for the claim or description of the fault
- The number on the product label with details on the dimensions and material specifications

Note that self-repair or nonprofessional repair can have safety consequences and might void the warranty.

7 D i s p o s a l

Place the packaging material in the appropriate recycling waste bins wherever possible.
Consult a local recycling center or specialist dealer for details about how to dispose of the product in accordance with the applicable disposal regulations.
The product can be disposed free of charge.
