USER MANUAL VIWLF128-B2 SANUS

Technical line drawing of a mechanical assembly with two vertical supports and a multi-panel frame (no text or symbols)

Person holding a play button with a white play symbol, standing on a dark surface (no text or symbols visible)

Want to watch a video that shows how easy this is?

Hight Finder Recommended placement

Get it right the first time. HeightFinder™ shows you where to drill.

Group of employees in a modern office environment, one wearing a headset, others seated in the background (no visible text or symbols)

Our live install experts are standing by to help.

Watch it now at: SANUS.com/3151

Use it now: SANUS.com/2567

Call us at: US: [phone] EMEA: [phone] UK: [phone]

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ MANUAL PRIOR TO USE - SAVE THESE INSTRUCTIONS

WARNING: Avoid potential personal injuries and property damage!

• DO NOT INSTALL THIS MOUNT IN A FIREWALL (The wall between a garage and a living space, or the wall between two condominiums or occupancies sharing a wall). Contact your local building inspector before cutting a hole in the drywall if unsure.
• This product is designed ONLY to be installed into wood stud walls—DO NOT INSTALL INTO DRYWALL ALONE
• Do not use this product near water; such as a bath tub, wash bowl, kitchen sink, laundry tub, swimming pool, or in a wet basement.
• Equipment shall be installed in accordance with ANSI/NFPA 70, National Electrical Code (NEC), NFPA 72, CAN-ULC-S540, Canadian Electrical Code, and/or other applicable sections of ANSI/IEEE C2 & National Electrical Safety Code (NESC). Equipment intended for installation in information technology equipment (computer) rooms should be installed in accordance with NFPA 75, Standard for the Fire Protection of Information Technology Equipment.
  ● Installation shall be completed by a professional electrical contractor or low voltage technician.
• Do not use this product for any purpose not explicitly specified by manufacturer
  ● Manufacturer is not responsible for damage or injury caused by incorrect assembly or use

Please read through these instructions completely to be sure you're comfortable with this easy install process.

Check your TV owner's manual to see if there are any special requirements for mounting your TV.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service: [US]: [phone] [EMEA]: [phone] [UK]: [phone].

TV Weight Limit

(including accessories)

DO NOT EXCEED

135 lbs. (61.2 kg)

If your TV (plus accessories) weighs MORE, this mount is NOT compatible.

Visit SANUS.com or call customer service to find a compatible mount.

Wall Construction

ONLY install on wood stud wall.

CAUTION:

DO NOT install in drywall alone

Drywall alone will NOT hold the weight of your TV.

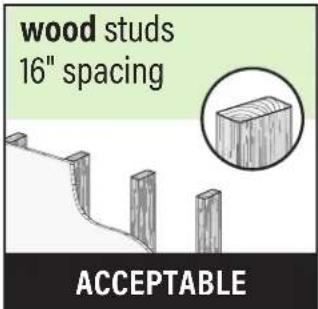

wood studs 16" spacing ACCEPTABLE

Unsure

Call Customer Service:

[US]: [phone]

[EMEA]: [phone]

[UK]:[phone]

Tools Needed

Tape Measure

Pencil

Stud Finder

Awl

Level

Tape

Screwdriver

Electric Drill

Drill Bit

Dimensions

TV INTERFACE

3.9 [100.0] 23.6 [600.0] 15.7 [400.0] 3.9 [100.0]

3-D

Technical line drawing of a structural frame assembly (no text or symbols)

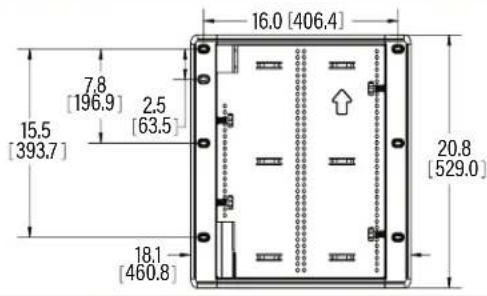

WALL PLATE

16.0 [406.4] 7.8 [196.9] 2.5 [63.5] 15.5 [393.7] 18.1 [460.8] 20.8 [529.0]

TOP VIEW - EXTENDED

SIMULATED 65" FLAT SCREEN TV

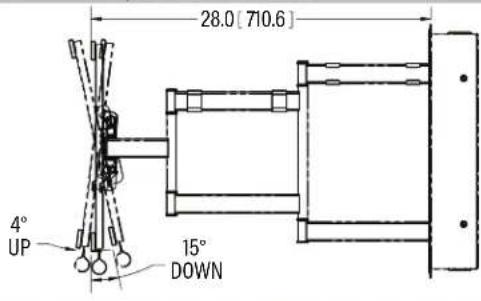

SIDE VIEW - EXTENDED

28.0 [710.6] 4° UP 15° DOWN

FULLY ASSEMBLED MOUNT

24.9 [632.6]

TOP VIEW - RETRACTED

14.0 [355.6]

SIDE VIEW RETRACTED

0.5 [13.5] 3.9 [98.0] 19.3 [490.9]

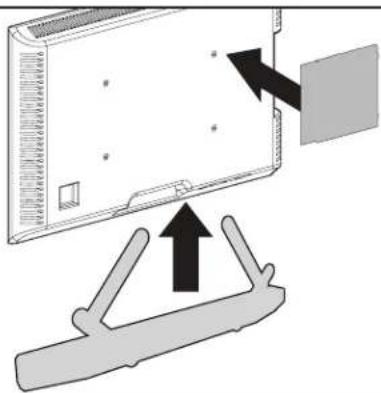

BEFORE YOU BEGIN

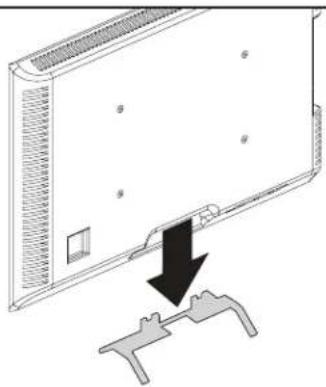

Remove the stand

from your TV — if attached.

Diagram showing a device with a black arrow pointing to a mechanical component (no text or symbols present)

Install any accessories

you may have purchased, if they require TV removal prior to assembly. The TV is removable for future accessory purchases.

Diagram showing a device with an arrow pointing to a component, and a separate bracket with an upward arrow (no text or symbols present)

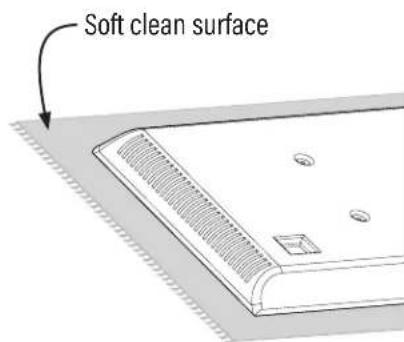

Protect the face

of your TV when laying it down for installation.

Soft clean surface

Supplied Parts and Hardware

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

NOTE: Not all hardware included will be used.

STEP 1 01 TV Screws (qty. 4 each) [Only one size fits your TV] M6 M6 x 25mmM6 x 12mm M8 M8 x 16mm M8 x 30mm M8 x 20mm M8 x 40mm M8 x 50mm 02 Washers (qty. 4) M6/M8 03 Spacers (qty. 4 each) 2.5mm 5mm 04 TV Bracket Horizontal (qty. 2) 05 TV Bracket Vertical (qty. 1) M5 x 11 mm TV Interface Screw 06 (qty. 4)

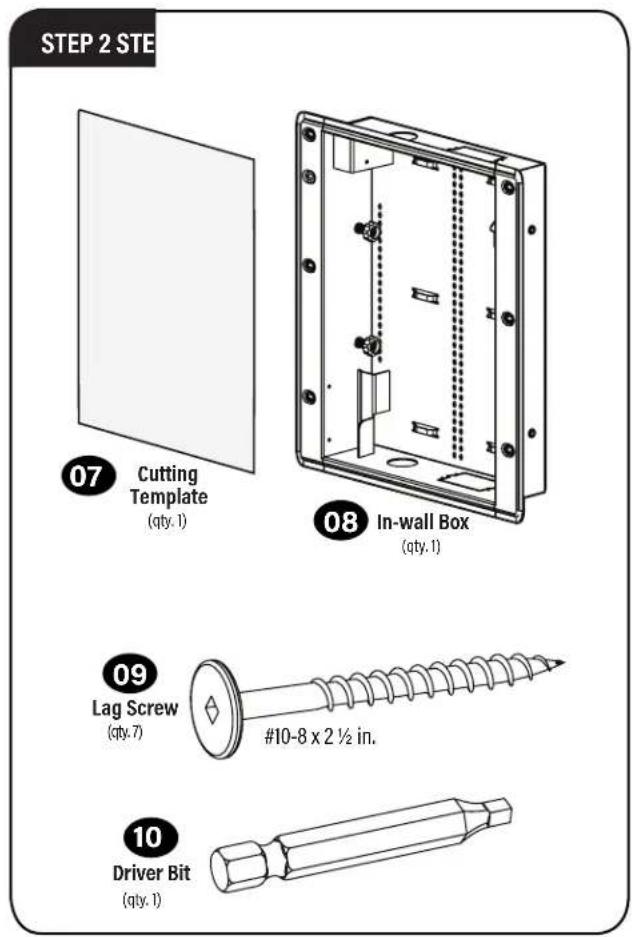

STEP 2 STE 07 Cutting Template (qty. 1) 08 In-wall Box (qty. 1) 09 Lag Screw (qty. 7) #10-8 x 2 ½ in. 10 Driver Bit (qty. 1)

12 Install Screw (qty. 4) 1/4-20 x 3/8 in. 13 Locking Screw (qty. 1) 10-32 x 3/8 in. 14 5/32" Hex Key (qty. 1) 11 Arm Assembly (qty. 1) MISC 15 Cable Clip (qty. 4) 16 Rubber Grommet (qty. 2) 17 Straps (qty. 2) 18 3/16" Hex Key (qty. 1)

STEP 1 Attach TV Brackets to TV

Only one screw size fits your TV.

M6

O

M8

[NO TEXT]

01

Diagram showing a hand using a screwdriver to press a component, with an inset magnified view highlighting the mechanical setup.

NOTE: If your TV
included inset spacers or adapters, use them UNDER the mount hardware.

1

1-2 Select TV Screw Length and Spacers 1-1 Select TV Screw Diameter

A

NO SPACER SPACER NEEDED

- Flat Back TV

[TV brackets lay flat on your TV]

Use short TV screws 01, Spacers 03 not needed.

Diagram of a device with a green arrow pointing to a component, showing no text or symbols.

B

- Flat Back TV with extra space needed [for deep inset holes or cable interference]

- Rounded or Irregular Back TV [TV brackets NOT resting flat on your TV]

Use long TV screws 01 and spacers 03 to create extra space between the TV and TV bracket.

Diagram illustrating device port positioning and mounting features, with labeled arrows indicating movement directions.

CAUTION: Verify adequate thread engagement with your screw 01, washer 02, spacer 03 combination AND TV bracket 04.

— Too short will not hold your TV. — Too long will damage your TV.

Safety warning symbols for mechanical components, including no protection, head protection, and safety symbols with arrows

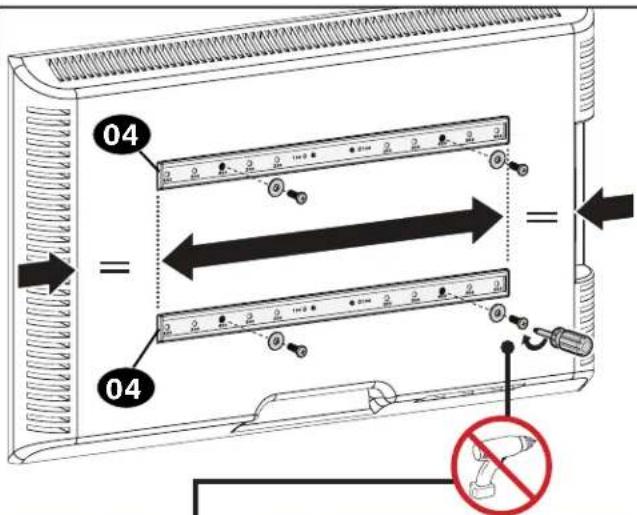

1-3 Attach TV Brackets to Your TV

1

04 = 04

A NO SPACER 01 02

B SPACER NEEDED 03 300 400 500 600 02 01

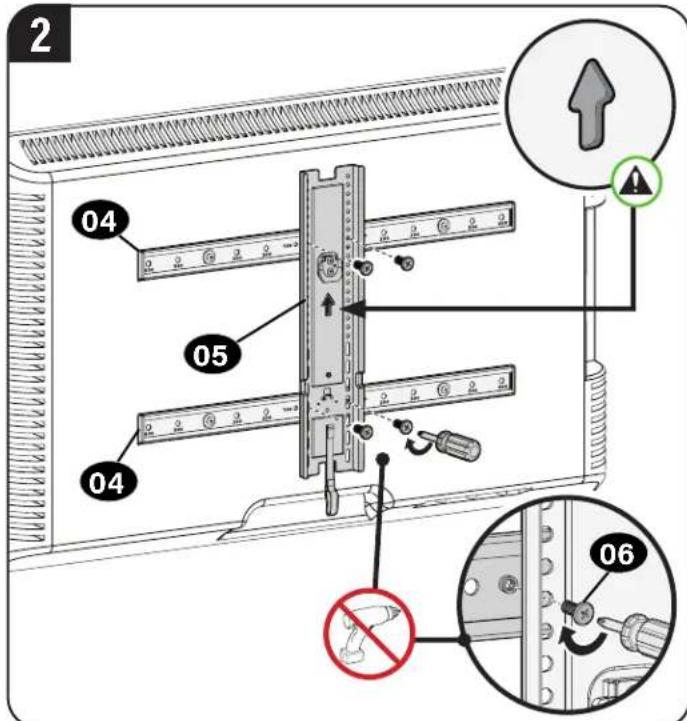

2 04 05 04 06

CAUTION: Avoid potential personal injuries and property damage! DO NOT use power tools for this step. Tighten the screws 01 and 06 only enough to secure the TV brackets to the TV.

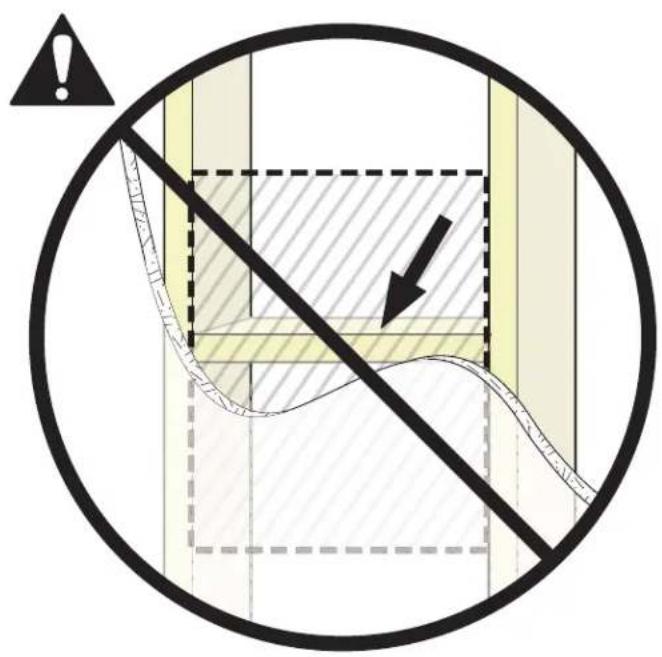

CAUTION: Avoid potential personal injury or property damage!

• Drywall covering the wall must not exceed 5/8 in. (16 mm)
● Minimum wood stud size: nominal 2 x 4 in. (51 x 102 mm) actual 1½ x 3½ in. (38 x 89 mm)
- Spacing between studs: 14 in. to 15 in. (356 mm to 381 mm)
• Minimum depth into wall cavity: 3.9 in (99 mm)
- Verify there are no obstructions in the wall cavity, behind the area you intend to install.

Safety warning symbol showing no protection, with a diagonal line and shaded area indicating hazard or failure.

1 Max. 5/8 in. (16 mm) Min. 14 in. (356 mm) Max. 15 in. (381 mm) Min. 3.9 in. (99 mm)

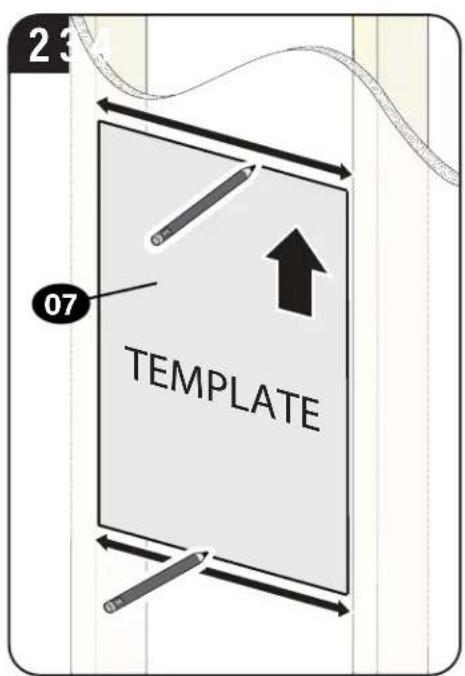

23 07 TEMPLATE

Diagram of a mechanical or electrical setup with two tool holders and directional arrows, no visible text or symbols.

Diagram showing two screwdrivers inside a square frame with directional arrows, no text or symbols present

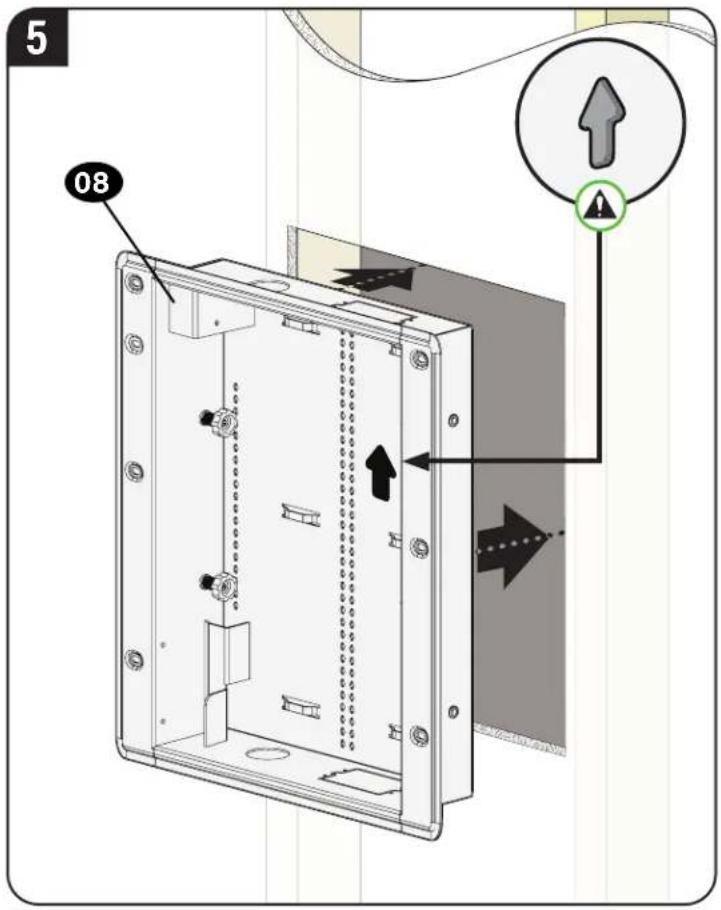

5 08

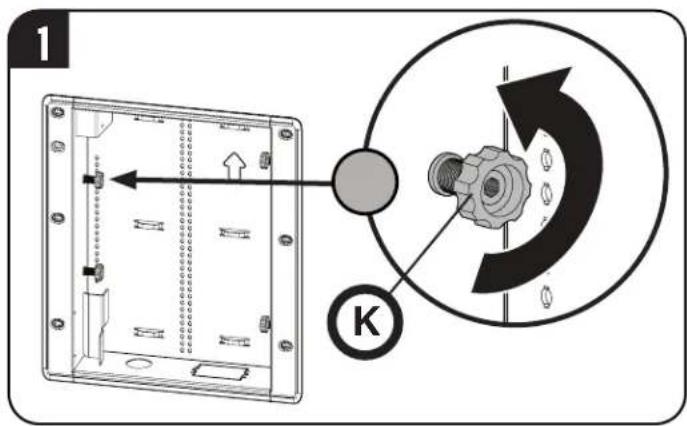

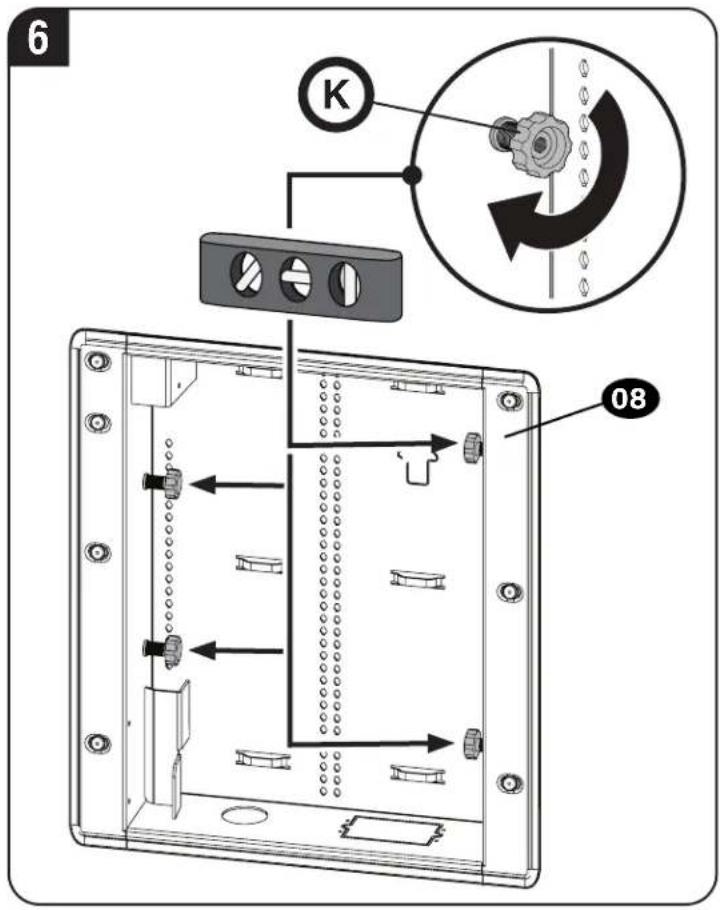

6 K 08

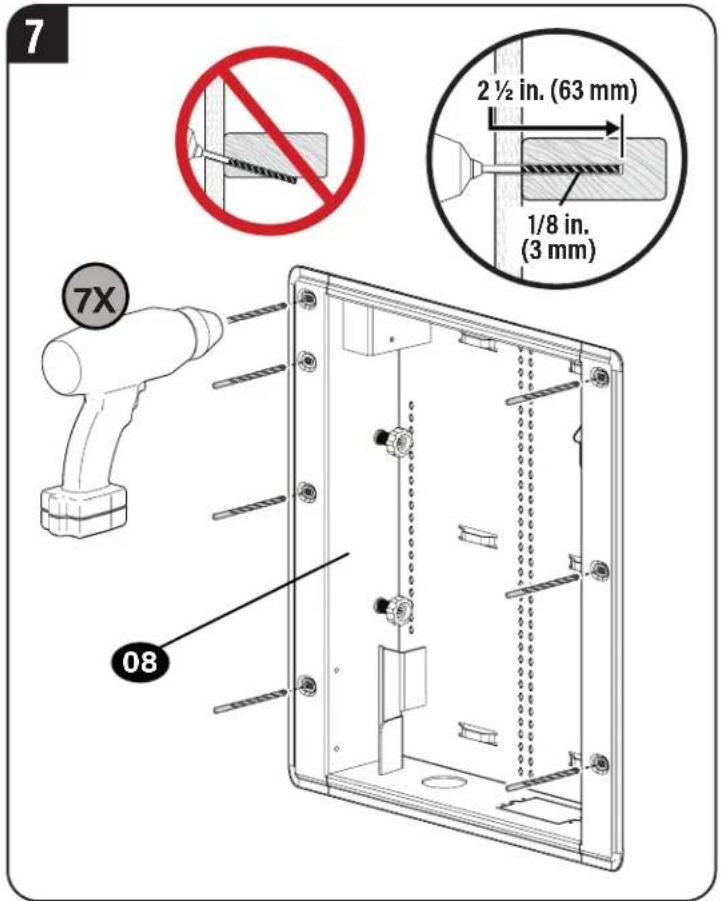

7 7X 08 2 ½ in. (63 mm) 1/8 in. (3 mm)

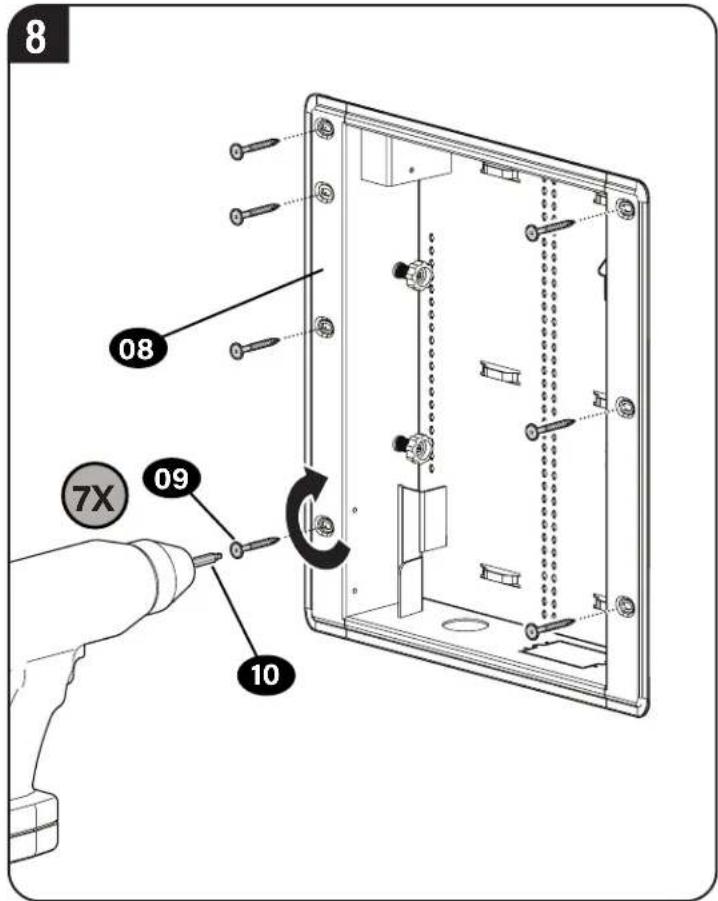

8 08 7X 09 10

STEP 3 Hang your TV onto The In-wall Box

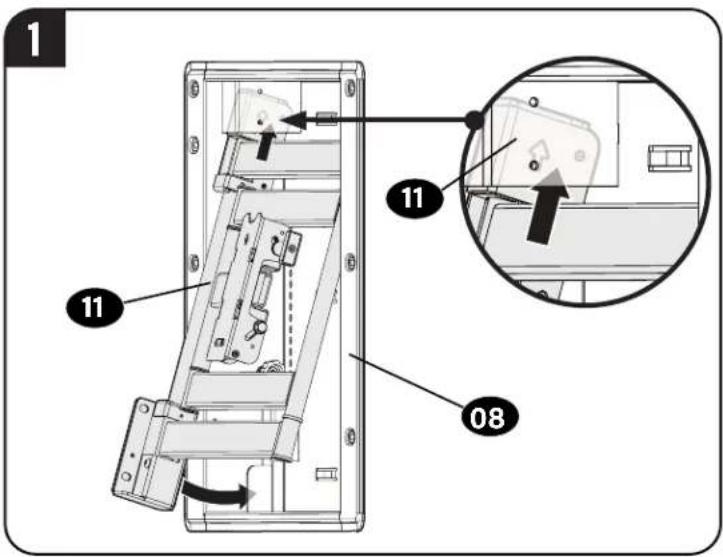

3-1 Attach Arm Assembly to the In-wall Box

1 11 11 08

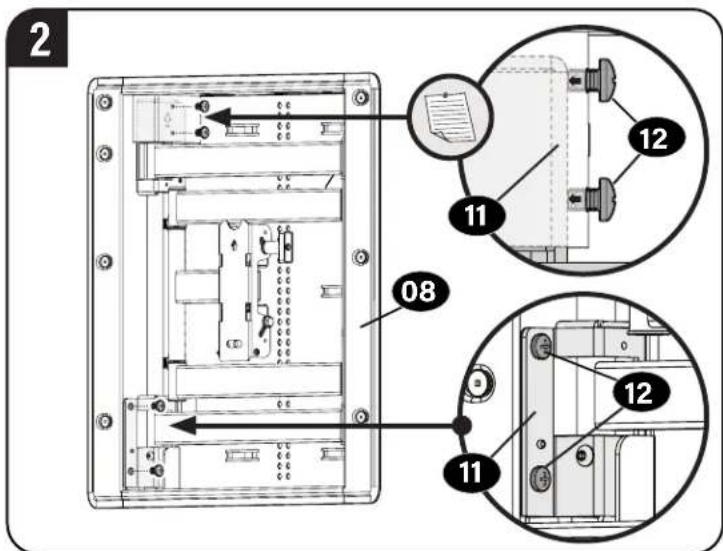

2 12 11 08 12 11

NOTE: The top two screws 12 will not seat fully - tighten until snug.

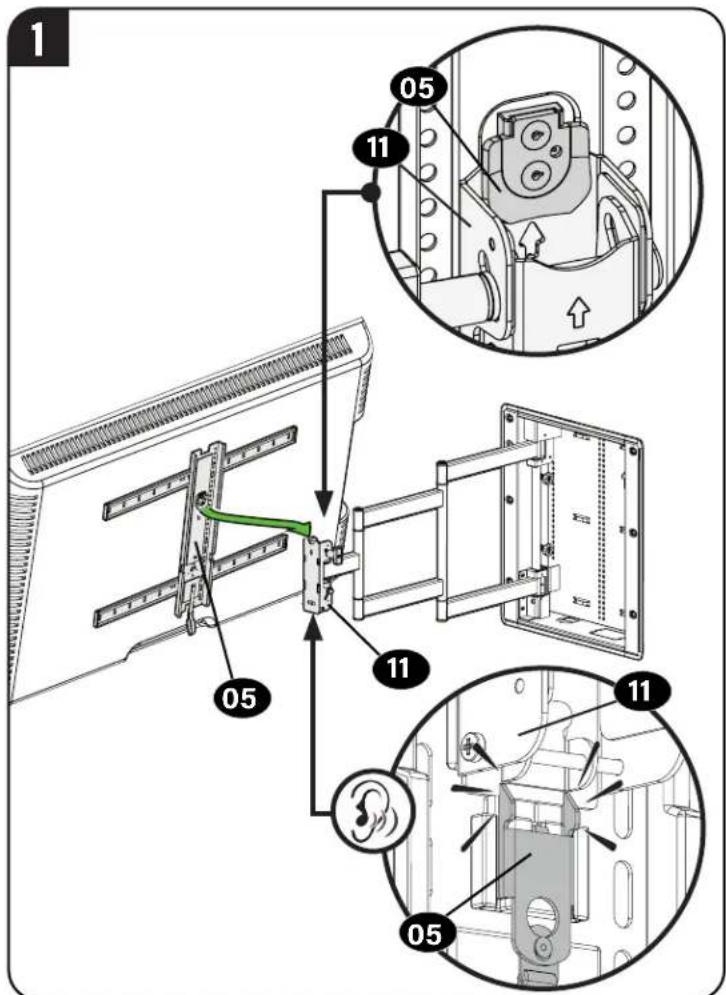

3-2 Attach TV to Arm Assembly

HEAVY! You may need assistance with this step.

1 05 11 05 11 11 05 11

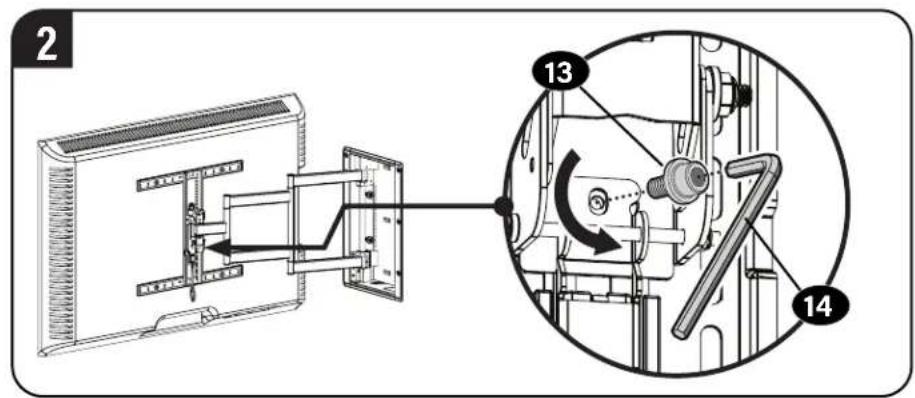

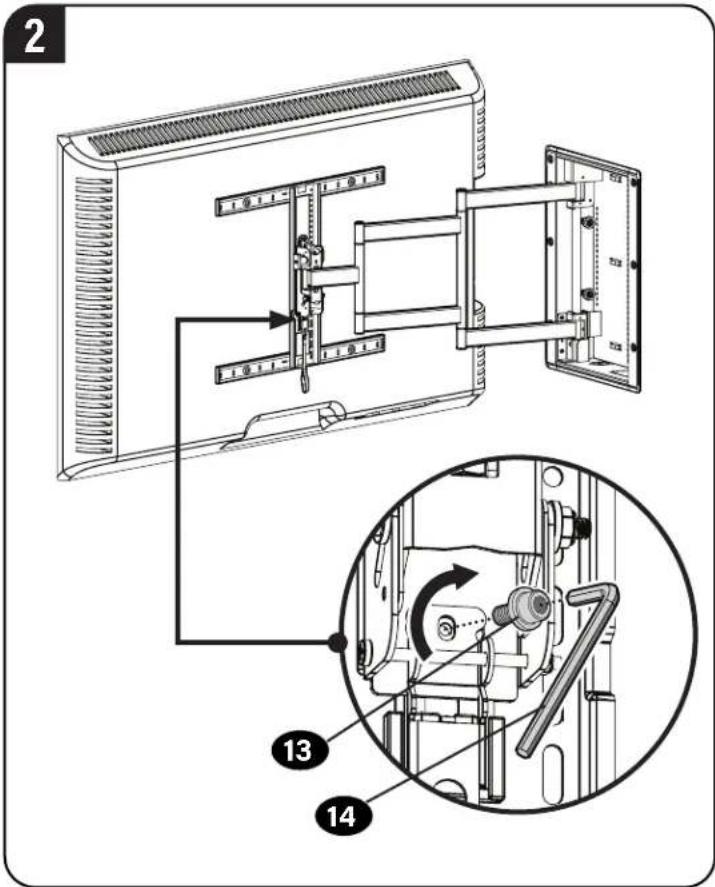

2 13 14

CAUTION: Avoid potential injuries or property damage!

Locking screw 13 MUST be installed to secure the TV mount and the arm assembly.

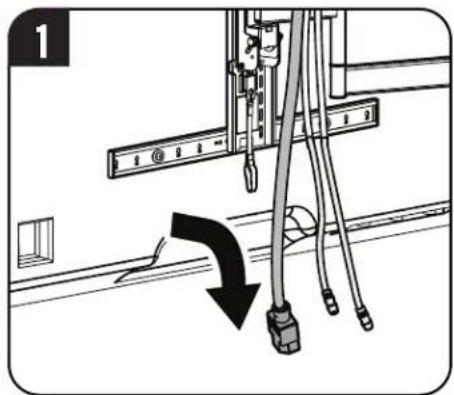

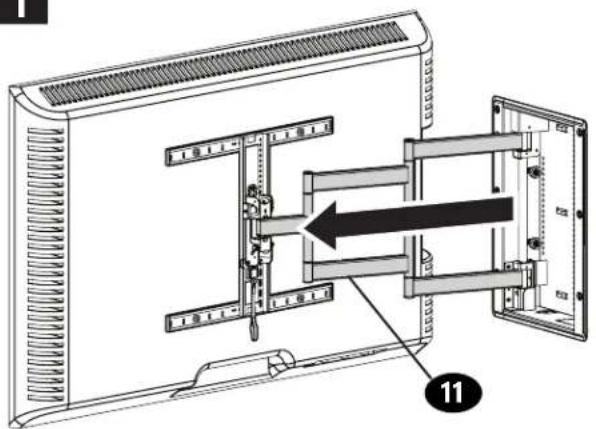

Manage Cables

1

Technical diagram of a computer monitor with labeled components and directional arrow indicating movement or assembly.

IMPORTANT: Fully extend arm assembly 11 to ensure enough slack in cables. Route your cables through the arm assembly
IMPORTANT: Be sure cables are not in a position to be pinched when mount is in motion.

2 15

11 and secure with clips 15

Install Components

Junction Box (Not Included)

WARNING: Electric Shock Hazard! Avoid potential serious injuries or. Consult a qualified electrician for proper installation.

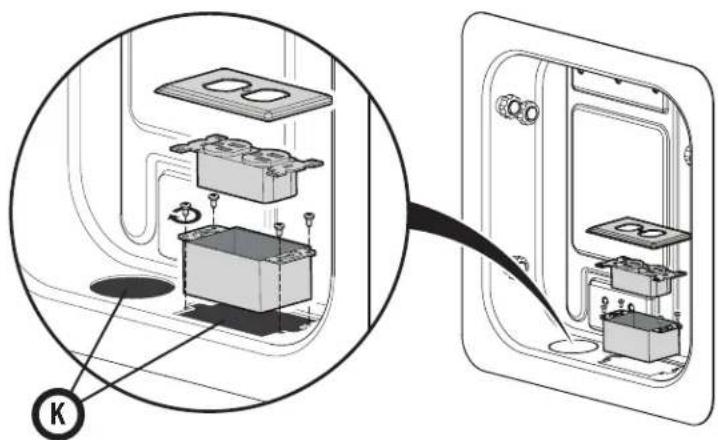

NOTE: Knock-outs K are provided for the installation of a UL Listed ical junction box (not included) and UL Listed receptacle (not included).

CAUTION: If installing a junction box, follow all instructions included with L Listed electrical junction box and UL Listed receptacle.

Diagram of a device interior showing internal components and wiring, with no visible text or symbols.

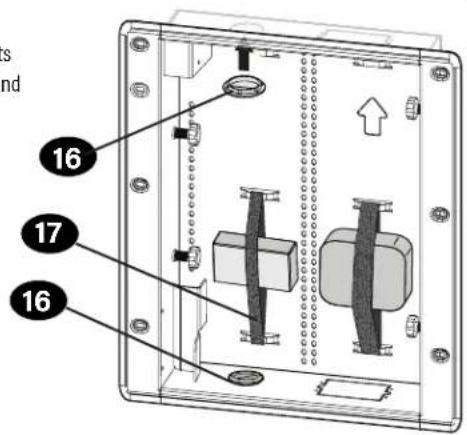

Secure components with straps 17 and hole plugs 16.

16 17 16

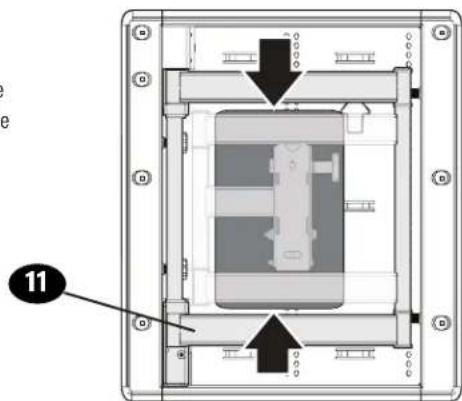

NOTE: Install ponents so they t interfere with the s 11 when in the e position.

Technical diagram of a mechanical assembly with labeled components and arrows indicating movement (no readable text or symbols)

TV Adjustments

TILT ADJUSTMENT

Your TV should adjust easily when moved, then stay in place.

If your TV is too loose or too tight, adjust the side tension knob (T)

NOTE: Once your TV is in place, tighten the tension knob Ⓣ to prevent unwanted movement.

NOTE: Additional tension can be applied using hex key 18.

Technical diagram showing cable installation and mechanical assembly with labeled parts T and 18

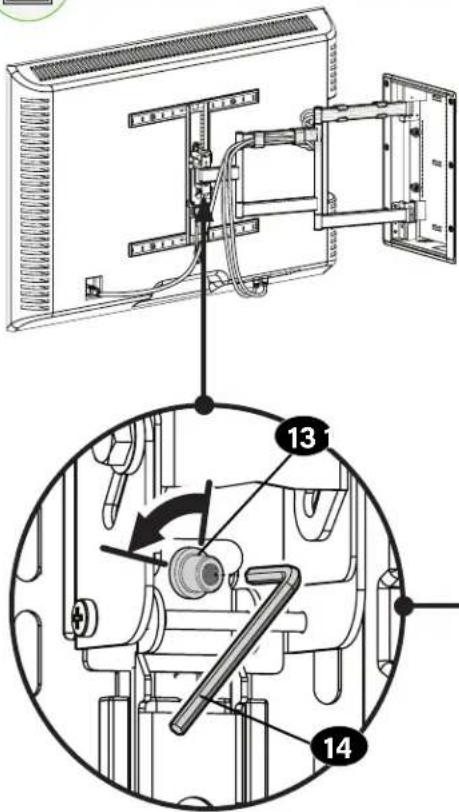

LEVEL ADJUSTMENT

Technical diagram showing mechanical assembly with labeled parts 13 and 14, including a magnified view of the internal components.

UTION:

Screw 13 MUST be loosened before turning

screw S

CAUTION: Avoid potential personal injury or property damage!

Always make sure your securement screw 13 is tightened, so the TV is securely fastened to the arm assembly.

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or movement.

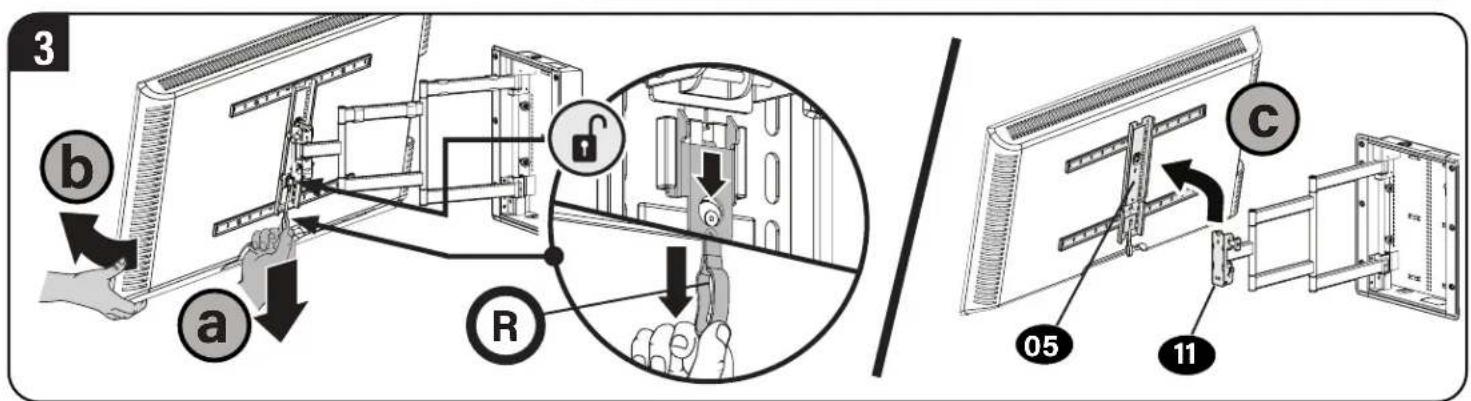

REMOVING THE TV

HEAVY! You may need assistance with this step.

Diagram showing a mechanical assembly with wires and a black arrow indicating direction (no text or symbols)

2 13 14

3 b a R c 05 11

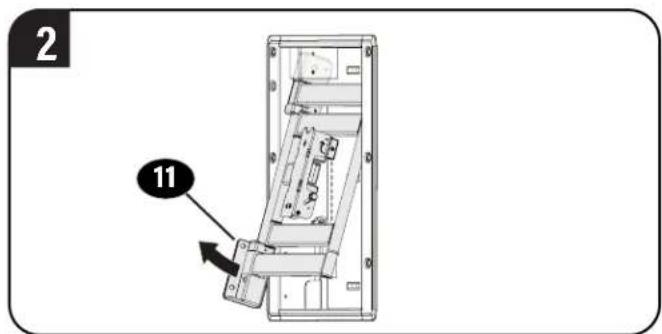

REMOVING THE ARM REMOVING THE BOX

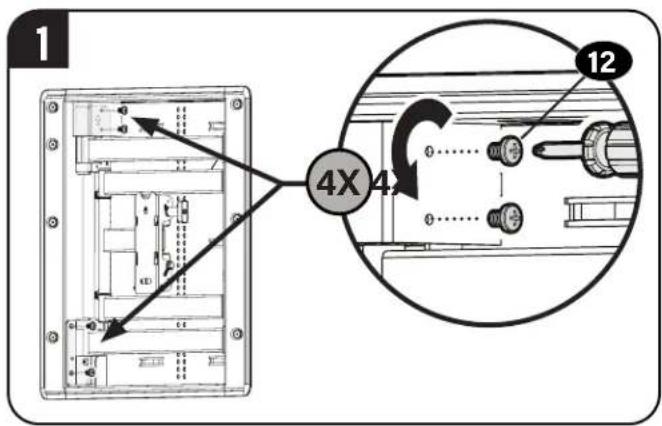

1 4X 4 12

1 K

2 11

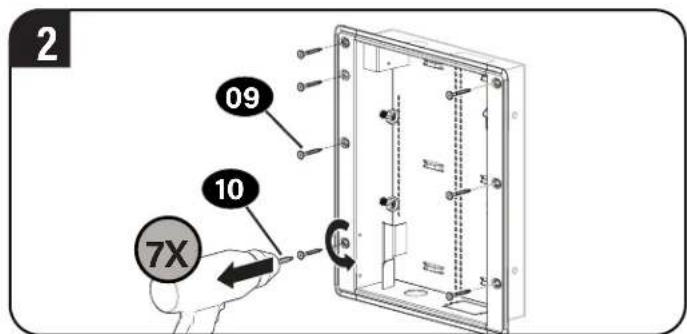

2 09 10 7X
