USER MANUAL BW600BK ALECTO

Black Alacto baby blender with blue lid and white foam, no visible text or symbols on the device itself

Simple line drawing of a cylindrical container with a side port and an arrow pointing to the top section (no text or symbols)

FUNCTIES FLESSENWARMER

UIT

Two blue icons: a snowflake with a droplet and a baby bottle, both without any text or symbols.

Simple line drawing of a cylindrical object with internal components and an arrow pointing to a hole (no text or symbols)

FONCTIONS CHAUFFE-BIBERON

Éteindre

Two blue icons: a snowflake with a droplet and a baby bottle, both without any text or symbols.

Technical line drawing of a mechanical component with no visible text or symbols

FUNKTIONEN DES FLASCHENWÄRMERS

Aus

Two blue icons: a snowflake with a droplet and a baby bottle, both without any text or symbols.

This appliance is intended to be used in household and similar applications. This appliance should not be used for direct commercial purposes or operated in moving vehicles. When using electrical appliances, basic safety precautions should always be

followed including the following:

• Read this safety information through carefully before using the appliance and keep it in a safe place.
• This device may be used by children 3 years of age and older and by persons with reduced physical, sensory or mental capacity or lack of experience provided they are supervised or instructed in the safe use of the device and have understood the resulting hazards.
  • Children may not play with the device.
• Children may not carry out cleaning and user maintenance tasks unless they are aged over 8 and are under supervision.
• Children under the age of 3 should be kept away from the appliance and the power supply cable.
• Do not use the baby bottle warmer in the event of obvious defects on the appliance, cable or connector.
• If the mains cable is damaged, it should be replaced by the manufacturer, its customer service department or a similarly qualified person in order to prevent hazards.
• Mains voltage must match the voltage quoted on the underside of the appliance.
• Never use the bottle warmer without water in it.
• Do not move an appliance containing hot liquid.
• Periodically take the bottle/jar out of the bottle warmer and shake the milk or stir the food to distribute the temperature evenly.
• Discard the water from the bottle warmer each time after heating a bottle or jar and use fresh water in the next food preparation.
• Do not warm baby food for too long. For food hygiene reasons, do not exceed one hour.
• Bottles or jars may not be tightly sealed during heating in the baby bottle warmer otherwise excessive pressure may build up (risk of explosion/material damage).
• Do not immerse the appliance in water or any other liquids.
• Do not use it outdoors.
• The appliance may not be operated with an external timer or a separate remote control system like a remote control socket, for example, because the appliance should never leave unsupervised during operation, so that you can intervene in good time if it malfunctions.
• Only use the appliance for warming baby food in a domestic environment. Incorrect use involves potential hazards to the user.
• Set up the baby bottle warmer so that it is steady and level and so that your child cannot tip it over or pull it off the table or kitchen counter by its cable.
• The appliance should never be placed in the vicinity of hot surfaces, in heated ovens or in the vicinity of gas or electrical appliances, as this may cause damage to the appliance.
• To protect you against an electric shock, the cable should not come into contact with water or cooker hotplates.

• After warming, stir the contents of the jar. Before feeding your baby, check on the inside of your wrist whether the temperature of the food is safe for your baby. A sensible temperature is around 37^ C, which is the same as your own body temperature.
• After use unplug the appliance from the mains to prevent it from being inadvertently switched on.

SAVE THE INSTRUCTIONS

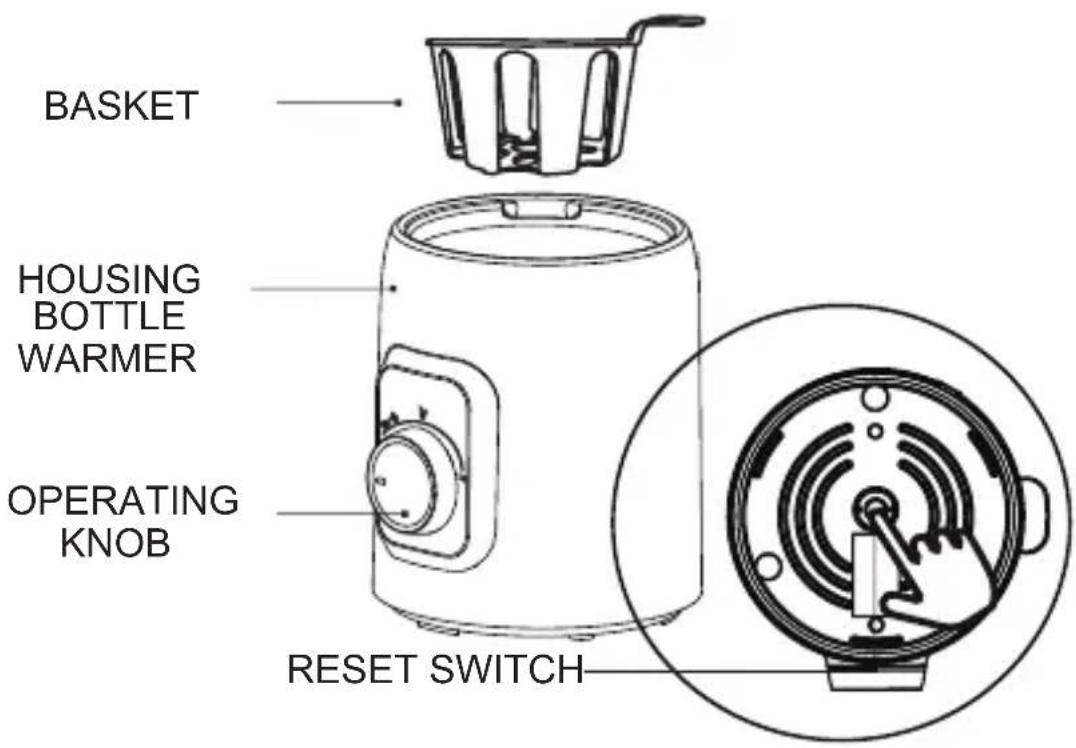

PARTS INFORMATION BOTTLE WARMER

BASKET HOUSING BOTTLE WARMER OPERATING KNOB RESET SWITCH

The reset switch is used to shut off the power to prevent overheating when the water dries up. Wait 10 minutes or pour cold water into the bottle warmer to cool it down and then press the reset switch (until you hear a clicking sound) to turn the power back on. Then select the function as needed for warming up the baby food.

Note:

Remember to wait for the bottle warmer to cool down before pressing the reset switch, otherwise the power cannot be turned on.

Note:

When filling the bottle warmer with water, the water must not exceed the MAX level indicated in the inner rim!

MAX level

Technical line drawing of a mechanical component with a cylindrical body and two curved ends (no text or symbols)

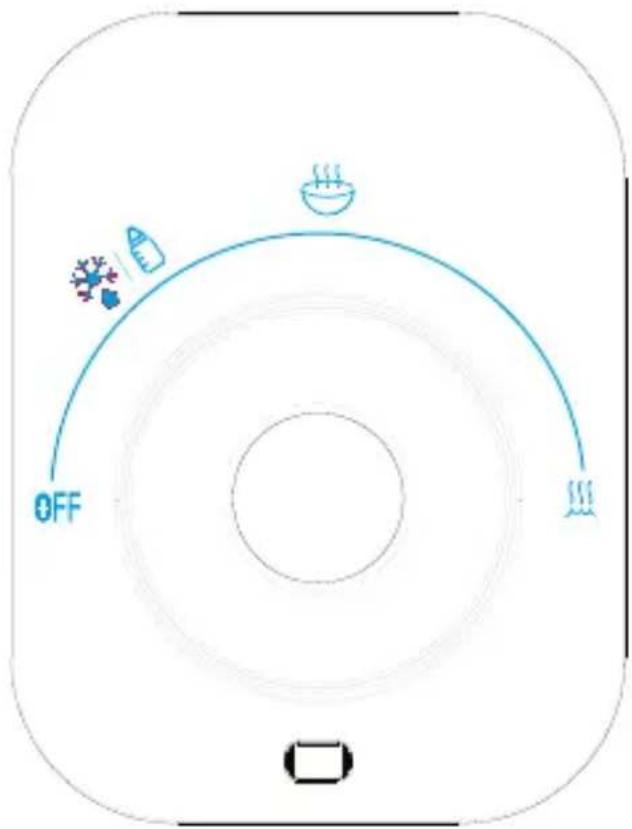

FUNCTIONS BOTTLE WARMER

OFF

The bottle warmer is switched off and the light is off. On every other setting, the appliance is switched on and the light is on.

Two blue icons: a snowflake with a droplet and a baby bottle, both without any text or symbols.

Defrost/milk warming (stay-warm function):

Fill the bottle warmer with water until the level of the milk in the bottle. Regardless of the amount of milk/food, the water should not exceed the MAX level, indicated in the inner rim. This function is used to defrost milk/food and/or to keep milk warm.

OFF ON

Food warming:

Fill the bottle warmer with water to the level of the food in the jar. Regardless of the amount of food, the water should not exceed the MAX level indicated in the inner rim. This function is used to warm up food.

Fast warming function:

Fill the bottle warmer with water until the level of the milk in the bottle. Regardless of the amount of milk, the water should not exceed the MAX level, indicated in the inner rim. The fast warming function will warm the milk in around 3 minutes.

Remark:

The final temperature of the milk or food is determined by the amount of water in the bottle warmer. If the temperature is too high, it is recommended to use less water in the bottle warmer. In case the temperature is too low, use more water. It is advised to regularly take out the bottle or pot and shake or stir well for an even heating of the content.

Remark:

There is no auto-shut off function on this bottle warmer when you are using the fast warming function. Please note to count the time on your own and take the bottle/jar out in time to prevent overheating.

Defrost/milk warming:

1. Always place the basket into the bottle warmer first before adding a bottle/jar. Do never place the bottle/jar directly onto the heating element.
2. Fill the bottle warmer with water until the level of the milk in the bottle or the nutrition in the jar. Regardless of the amount of milk/food, the water should not exceed the MAX level, indicated in the inner rim. It is recommended to use distilled water, in connection with possible scale formation.
3. Turn the knob to select the function. The power light is alternately on and off. The frozen milk or food is ready after about half an hour/hour, depending on the type of food, quantity and material in which it is heated. The final temperature may also vary slightly due to different milk or formula volumes and the material of the bottle or jar.

Note: It is normal that the indicator will alternately turn "on and off". The bottle warmer itself will automatically adjust the temperature to ensure the heating milk/food evenly.

Note: To defrost completely, shake the bottle or stir the food from time to time.

Note: The milk/food after defrosting should not be fed immediately.

1. Note there is no timer on the BW600BK. So count the time yourself and remove the bottle/jar from the bottle warmer after the indicated time has run out.
2. Gently shake the bottle or basket and check the temperature before you are feeding the baby. Check the temperature by sprinkling a few drops on the inside of your wrist. Or taste of feel the food when it's not too hot.

Tip: When you find the milk/food is not warm enough, place the bottle/jar back into the basket for maximum 0,5 min/1 min for extra warming. (Fill a small amount of water into the bottle warmer when the water has dried out and then restart). This will cause a slightly warmer result but without overheating.

Caution: If you leave the bottle/jar into the bottle warmer longer than one hour, the milk/food may become overheated. Cool before feeding.

Note: If you use overheated breast milk or nutrition, valuable nutrients and vitamins may be lost.

1. When the defrosting is completed, turn the knob to OFF.

Caution: The water in the bottle warmer may be hot after finishing the defrosting. Be careful the water can causes serious burns. If you do not turn the knob into to OFF function, the water keeps heating up and will reach a very high temperature.

1. If the water has dried out, the reset switch will be triggered to shut off the power. Wait 10 minutes to cool down and then press the reset switch (until you hear a clicking sound) restart the warming.
2. Before defrosting a second bottle or jar, it is best to wait 10 minutes for the bottle warmer to cool to prevent overheating or pour cold water into the bottle warmer.

Food warming:

1. Always place the basket into the bottle warmer first before adding a jar. Do never place the jar directly onto the heating element.
2. Fill the bottle warmer with water until the level of the nutrition in the jar. Regardless of the amount of food, the water should not exceed the MAX level, indicated in the inner rim. It is recommended to use distilled water, in connection with possible scale formation.
3. Turn the knob to select the function. The power light will alternately turn on and off. The food is ready after about half an hour. It may take longer or shorter, depending on the type of food, volume and material in which it is heated. The final temperature may also vary slightly due to different types of food, volumes and the material of the jar.

Note: It is normal that the indicator will alternately turn "on and off". The bottle warmer itself will automatically adjust the temperature to ensure the heating food evenly.

Note: To warm completely, make sure to stir the food from time to time.

Note: The food after warming should not be fed immediately.

1. Note there is no timer on the BW600BK. So count the time yourself and remove the bottle from the bottle warmer after the indicated time has run out.
2. Gently stir the food and check the temperature before you are feeding the baby. Check the temperature by feeling or tasting the food.

Tip: When you find the food is not warm enough, place the food back into the basket for maximum 0.5 min/1 min for extra warming. (Fill a small amount of water into the bottle warmer when the water has dried out and then restart). This will cause a slightly warmer result but without overheating.

Caution: If you leave the jar into the bottle warmer longer than one hour, the food may become overheated. Cool the food before feeding.

Note: If you use overheated food, valuable nutrients and vitamins may be lost.

1. When the warming is completed, turn the knob to OFF.

Caution: The water in the bottle warmer may be hot after finishing the warming. Be careful the water can causes serious burns. If you do not turn the knob into to OFF function, the water keeps heating up and will reach a very high temperature.

1. If the water has dried out, the reset switch will be triggered to shut off the power. Wait 10 minutes to cool down and then press the reset switch (until you hear a clicking sound) restart the warming.
2. Before warming a second jar, it is best to wait 10 minutes for the bottle warmer to cool to prevent overheating or pour cold water into the bottle warmer.

Fast warming:

1. Always place the basket into the bottle warmer first before adding a bottle. Do never place the bottle directly onto the heating element.

2. Fill the bottle warmer with water until the level of the milk in the bottle. Regardless of the amount of milk, the water should not exceed the MAX level, indicated in the inner rim. It is recommended to use distilled water, in connection with possible scale formation.

3. Turn the knob to select the function. The power light is on. See the fast warming chart to check how long the milk needs to be warmed.

Note: The speed of warming milk depends on the amount of the milk warmed and on it's initial temperature like room temperature (20°C) or fridge temperature (4°C).

1. Note there is no timer on the BW600BK. So count the time yourself and remove the bottle from the bottle warmer after the indicated time has run out.

2. Gently shake the bottle or milk storage basket and check the temperature before you are feeding the baby. Check the temperature by sprinkling a few drops on the inside of your wrist. Tip: When you find the milk is not warm enough, place the bottle back into the basket for maximum 0.5 min/1 min for extra warming. (Fill a small amount of water into the bottle warmer when the water has dried out and then restart). This will cause a slightly warmer result but without overheating.

Caution: If you leave the bottle into the bottle warmer longer than the indicated time on the chart, the milk may become overheated. Cool the milk before feeding.

Note: If you use overheated breast milk, valuable nutrients and vitamins may be lost.

1. When the warming is completed, turn the knob to OFF.

Caution: The water in the bottle warmer may be hot after finishing the fast warming. Be careful the water can causes serious burns. If you do not turn the knob into to OFF function, the water keeps heating up and will reach a very high temperature.

1. If the water has dried out, the reset switch will be triggered to shut off the power. Wait 10 minutes to cool down and then press the reset switch (until you hear a clicking sound) restart the warming.

2. Before warming up a second bottle, it is best to wait 10 minutes for the bottle warmer to cool to prevent overheating or pour cold water into the bottle warmer.

Recommended fast warming time (minutes)
		Milk volume
Bottle Temp. 60 ml	120 ml 180 ml 240 ml
Glass	4°C 3 min 4 min 5 min 6 min
	20°C 2 min 3 min 3,5 min 4 min
Plastic	4°C 4 min 5,5 min 6 min 6,5 min
	20°C 3 min 4 min 4,5 min 5 min

NOTE: These times are approximate and depend on the material of the bottle, the exact starting temperature of the milk, the amount of milk and the amount of water. Use these times as a guide only.

MAINTENANCE

Cleaning:

Disconnect the bottle warmer from the mains socket and allow it to cool down. Clean the inside and the outside of the bottle warmer with a damp cloth. Never immerse the bottle warmer in water. Do not use cleaning or scouring agents.

Decalcify:

It is recommended to descale the bottle warmer once a month to ensure it continues to keep working efficiently. Hard water deposits must be removed. To do this use 50 ml of white vinegar with 100 ml of destillated water to descale the bottle warmer. Select the milk warming function and wait for 10 minutes. Leave the solution in the bottle warmer until all scale has dissolved. Rinse well and wipe with a damp cloth.

Warning:

If a fault occurs, consult the Alecto service centre at www.alecto.com

Under no circumstances should you try to repair the bottle warmer yourself; do not dismantle. Servicing should be performed by qualified service personnel only.

TECHNICAL SPECIFICATIONS

Power supply: 220-240V AC \~ 50-60 HZ

Power consumption: 210 Watts

Operational ambient temperature: between +7°C and +37°C

24 months guarantee

ENVIRONMENT

At the end of the product lifecycle, you should not throw this product into the normal household garbage but bring the product to a collection point for the recycling of electrical and electronic equipments.
