USER MANUAL ShirtButler Deluxe Klarstein

Shirt and Trouser Dryer

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom

SICHERHEITSHINWEISE

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 12

Product Overview 13

Assembly 14

Troubleshooting 16

Hints on Disposal 17

TECHNICAL DATA

Item number 10034022
Power supply 220-240 V ~ 50/60 Hz
Power consumption 1250 W

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom

SAFETY INSTRUCTIONS

• Keep the appliance away from water and fire. Place it on a level, stable surface in a well-ventilated place.
• Only wipe the appliance with a soft cloth and do not clean it with water.
• Use the appliance to dry spun laundry only, not wet laundry that is still dripping.

CAUTION

Risk of burns! Never touch the surface of the dryer during use to avoid burns.

The maximum load is 10kg
- Children from 8 years of age, mentally, sensory and physically impaired persons may only use the appliance if they have been thoroughly familiarised with the functions and safety precautions by a supervisor responsible for them and understand the associated risks.
- Ensure that children do not play with the device.
Children over the age of 8 are only allowed to clean the device under supervision.
- Never cover the air inlet or outlet.
- Unplug the appliance from the wall outlet before assembly.
- If the power cord or plug is damaged, it must be replaced by the manufacturer, an authorized service center, or a similarly qualified person.
- This equipment is intended for drying textiles such as blouses and shirts. Sensitive textiles such as wool or similar materials must not be dried with this device.
- The appliance is not intended for commercial use, but only for household and similar environments. This includes kitchens in offices, farms, hotels, motels and facilities offering Bed & Breakfasts.

Note: This appliance is intended for drying washed textiles only.

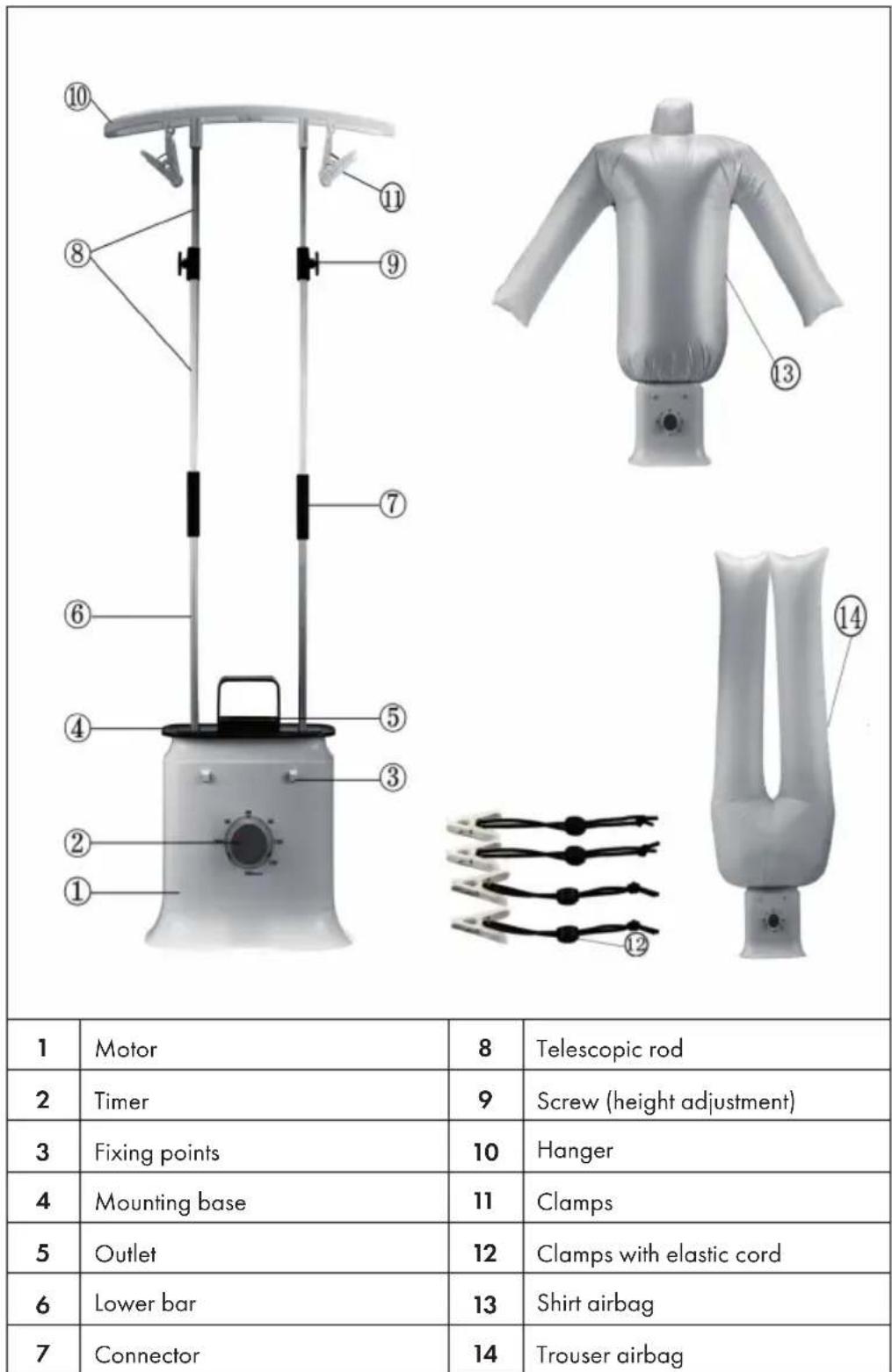

Components

Designation Stk.
Motor 1
Lower bar 2
Telescopic rod 2
Hanger 1
Clamps 4
Clamps with elastic cord 4
Shirt airbag 1
Trouser airbag 1

ASSEMBLY

1	Pull the mains plug out of the back of motor unit.

Drying Shirts

2	Install the two lower rods into the corresponding holes of the motor unit. Insert the two telescopic rods with lower rods. Set the height you want. To do this, open the screw, pull out the telescopic rod and then close the screw again. Place the hanger with 4 clips onto the telescopic rods.
3	Put on the shirts air bag, and pull the elastic cord at the bottom over the mounting flange.
4	Wear the garments on the shirts air bag and turn on the motor
5	Connect the clips with elastic cord on the fixed points of motor unit. Stretch the clips along the bottom of the garment to make it smoother

Drying Trousers

6	Install the two lower rods into the corresponding holes of the motor unit. Insert the two telescopic rods with lower rods. Set the height you want. To do this, open the screw, pull out the telescopic rod and then close the screw again.
7	Put on the pants air bag; pull the elastic cord at the bottom over the mounting flange.
8	Wear the pants on the pants air bag and turn on the motor.

Using the Timer

1. Insert the power plug into power socket.
2. Turn the timer knob clockwise until the machine starts to work, the power indicator will illuminate.
3. Rotate the knob to preset the timer. When the set time elapses, the device switches off automatically. The drying/pressing process can be interrupted at any time by turning the timer to the starting position.

TROUBLESHOOTING

Problem Possible cause and suggested solution

The device is not running. The LED does not light up.

·Is the mains plug inserted in the plug socket correctly? Correct the fit of the mains plug. ·Is the plug socket defective? Try another plug socket. ·Check the fuse of the mains connection. ·Is the device switched on? Set the timer to a time.

Unusual noises. ·Are the wind outlet covered up or blocked? Free up the outlet vent.

The unit goes out suddenly.

·Are the wind outlet covered up or blocked? Free up the outlet vent. ·The device has an automatic safety switch-off function. It switches off automatically if it overheats. Allow the device to cool down and switch it on again.

Odour. ·You might notice a slight odour caused by production residues the first time you use the device. However, this is harmless and will cease as you use the device.

HINTS ON DISPOSAL

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
