USER MANUAL Mount Everest Klarstein

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

SICHERHEITSHINWEISE

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 12

Device Overview 15

Assembly 16

Operation 17

Cleaning and Care 18

Disposal Considerations 18

TECHNICAL DATA

Item number 10035783, 10035784
Power supply 220-240 V ~ 50/60 Hz
Power 40 W

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

SAFETY INSTRUCTIONS

- Remove the packaging and make sure that the appliance is intact. If in doubt, do not use it and contact qualified personnel only.

- Packaging materials (plastic bags, polystyrene, staples etc.) Must be kept out of the reach of children as they could be hazardous.

- This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

- Before connecting the appliance, check that the appliance rating corresponds to the mains rating.

- This appliance must only be used for the purpose for which it has been manufactured. As a stand fan. The manufacturer is not responsible for any damage caused by improper or incorrect use.

- The installation/assembly of the device will be made according to the indications of the manufacturer. A wrong procedure may cause damages to persons, animals or objects, for which the manufacturer cannot be considered responsible

- Before cleaning or carrying out maintenance on the appliance, disconnect it from the electrical mains by removing the plug from the electrical outlet or by switching off the system switch.

- If the appliance is faulty and/or operating incorrectly, switch it off without tampering with it. If the above is disregarded, the safety of the appliance may be compromised.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not power the device using multiple sockets.
• Do not use adapters and/or extension cable
• The device must not be switched on using external timers and/or other remote control devices which are not specified in this manual.
• Do not use or store the device near heat sources (heaters, stoves).
• Do not dip the device in water or other liquids; in case the accidental fall in the water do not try to take it out, but first of all unplug immediately the power cable from the socket.
• If you use the device for the first time, make sure to remove any label or protective sheet which blocks its proper functioning.
• Plug and unplug the power cable with dry hands and hold it firmly.
• Before plugging the plug into a wall outlet, make sure that the unit is switched off.
• Always unplug the power cable to avoid the overheating and avoid stretching it.
• Make sure that all air intakes and outlets are free and not covered so that the unit does not overheat.
• Avoid placing the power cable on abrasive or sharp surfaces or in positions where it can be damaged easily.
• Do not hang the fan on the wall or ceiling unless this type of installation is provided and explained in this manual.
• Place the device at a proper distance from the objects or surrounding walls making sure that its functioning will not cause accidental damages.

- Do not use the device near gas stoves or open flames in general.

- Do not use the device near curtains or textiles.

- Do not cover the device during functioning.

- Do not expose yourself for a long period to the air flow generated by the device because it can cause damage to the health

- If the fan must be stored for a long period and is not used regularly, place the fan in its original packaging in a dry place.

- Always remember to unplug the power cable of the device if it is not used for a long period, before storing, cleaning or performing any maintenance operation.

- Do not use the appliance in the presence of potentially flammable or explosive liquids or gases.

- This product is intended for household use only and not for commercial / industrial or outdoor use.

DEVICE OVERVIEW

1	Housing	7	On/Off
2	Mounting	8	Power plug
3	Timer	9	Stand
4	Speed	10	Screws
5	Mode	11	Remote control
6	Swing

ASSEMBLY

1	2

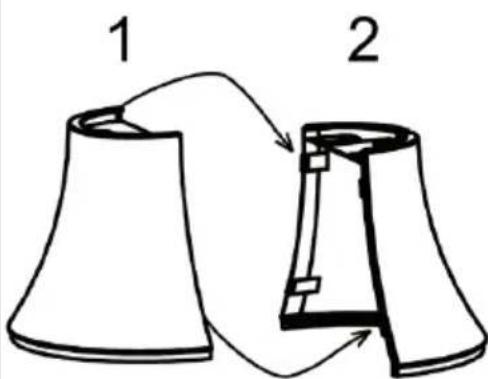

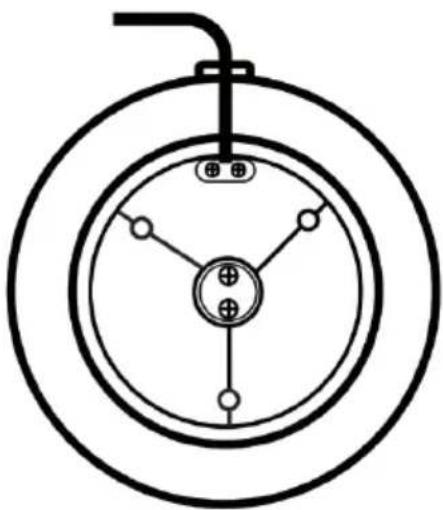

Remove all parts of the device from the packaging and remove all packaging materials and inserts. Turn the blower upside down so that you can look at the holder (2).	Connect the two stand parts.
3	4

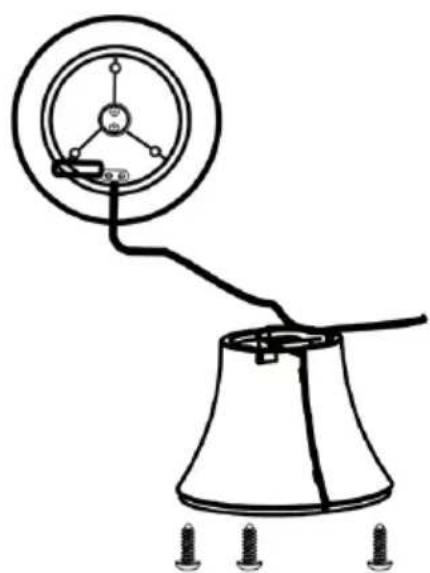

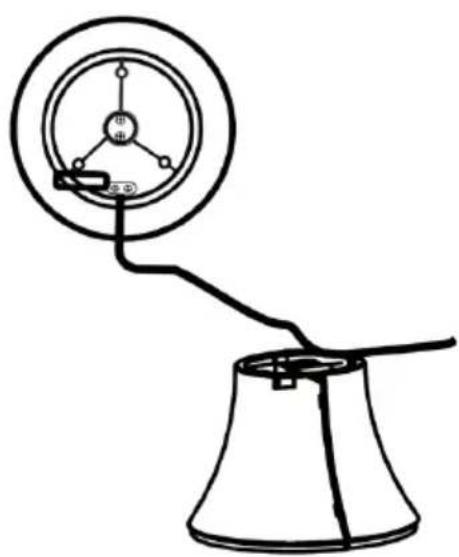

Pass the power cord through the outlet of the stand (9).	Fasten the stand (9) to the holder (2) with screws (10).

OPERATION

On/Off

Press the ON/OFF button (7) to turn the machine on and off.

Adjust the speed

• Press the ON/OFF button (7) to turn the power on.
• Press the speed button (4) to adjust the fan speed.
• Select one of the 3 speeds: Low > Medium > High.

Select Mode

• Press the ON/OFF button (7) to turn the power on.
• Press the MODE button (5) to select the fan mode.
• Select one of the 3 modes: Normal > Natural > Sleep.
• The default mode is NORMAL. If you select SLEEP or NATURAL as the mode, the corresponding indicator lights.

Set Timer

• Press the ON/OFF button (7) to turn the power on.
• Press the TIMER button (3) to select the desired time period (0.5-7.5 hours).
• The appliance will now remain in operation until the selected time period has elapsed.
  • After the timer has expired, the unit will turn off.

Swing function

• Press the ON/OFF button (7) to turn the power on.
• Press the SWING button (6), the machine swings from left to right.

Remote control

All above mentioned functions can also be set by remote control

CLEANING AND CARE

• Disconnect the plug from the socket before cleaning.
  • To avoid scratches, do not use scouring pads or hard objects for cleaning.
• Do not use thinner, alcohol, scouring powder, or hard brushes to clean the components.
• Use a soft cloth for cleaning. If necessary, use a little soapy water to remove stubborn dirt from the surface. Wring the cloth well before use and wipe with a dry cloth afterwards.
  • After cleaning, check that all parts have been correctly reassembled.
• If you will not be using the unit for a long time, remove the batteries from the remote control (if present).

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.
