USER MANUAL AC Venezia 18K Duo WOOD'S

AIR CONDITIONER AC Venezia Silver 18K Duo Revision date: 2022-12-19 Visit woods.se for more information and updated instruction manuals. For extended warranty register your product at warranty-woods.com Visit our website, www.woods.se, for the latest updated owners manual. OPERATING INSTRUCTIONS FOR: Operating Instructions

Operating Instructions Visit our website to: Get usage advice, updated brochures, troubleshooting and service information Register your product for additional services: www.warranty-woods.com

CUSTOMER CARE AND SERVICE

Always use original spare parts. When contacting our authorised service centre, ensure that you have the following data available: Model number, receipt and serial number. The refrigerant used in portable air conditioner is the environmentally friendly hydrocarbon R290. This refrigerant is odorless, and compared to the alternative refrigerant, the R290 is an ozone-free refrigerant. Warning / Caution-Safety information. General information and tips. Environmental information. Subject to change without notice. 1GB

OPERATING INSTRUCTIONS English Swedish Norwegian Danish German French Spanish Dutch Polish Romanian Finnish Lithuanian Latvian Estonian Greek Icelancic 12-19 20-26 27-34 35-42 43-50 51-58 59-66 67-74 75-83 84-91 92-99 100-107 108-115 116-123 124-132 133-140 Table of Contents 1GB

Operating Instructions

Operating Instructions

Operating Instructions PRODUCT DESCRIPTION

Operating Instructions PRODUCT DESCRIPTION

Operating Instructions

Operating Instructions

Operating Instructions

Operating Instructions

Operating Instructions

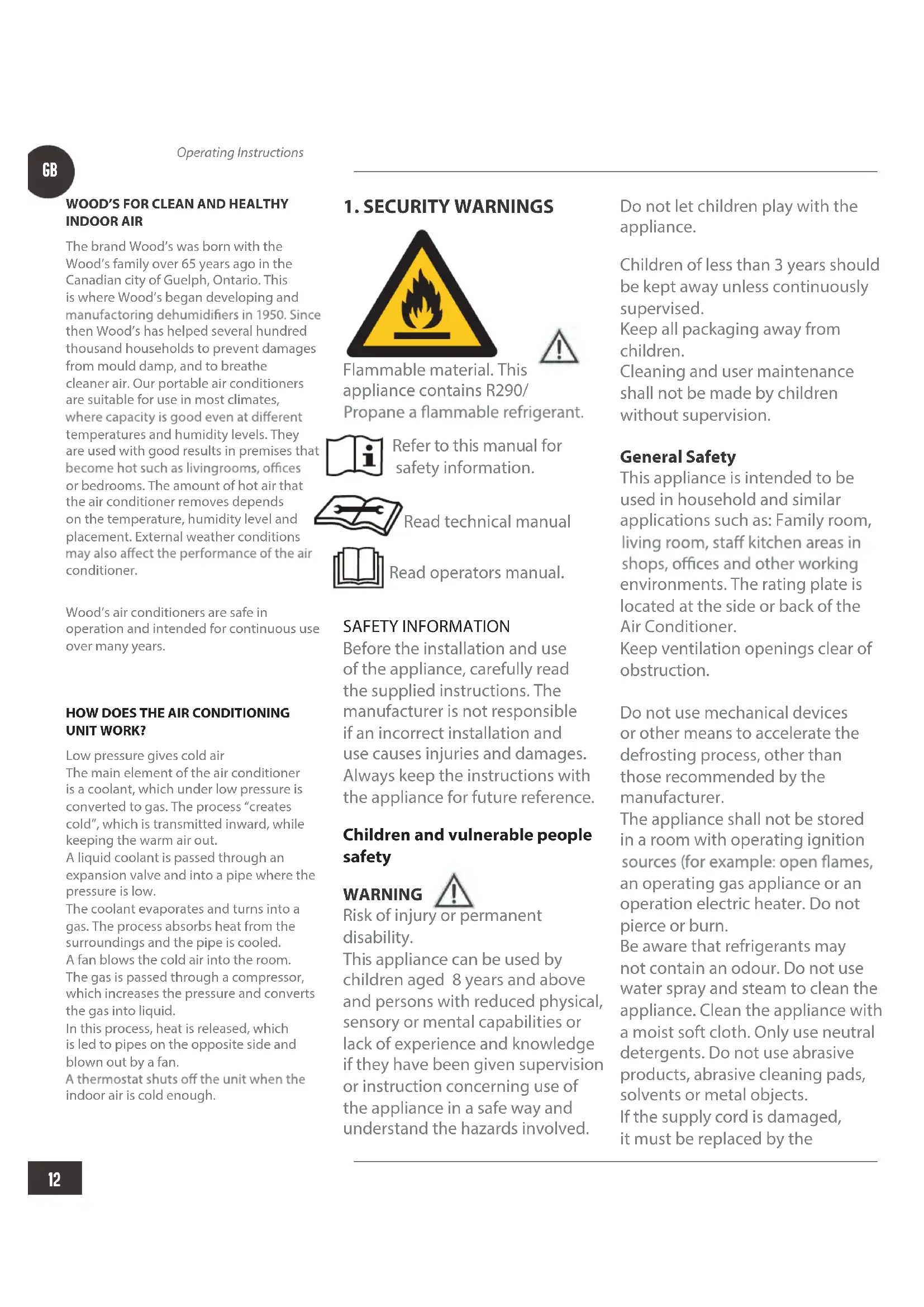

WOOD’S FOR CLEAN AND HEALTHY

INDOOR AIR The brand Wood’s was born with the Wood’s family over 65 years ago in the Canadian city of Guelph, Ontario. This is where Wood’s began developing and then Wood’s has helped several hundred thousand households to prevent damages from mould damp, and to breathe cleaner air. Our portable air conditioners are suitable for use in most climates, temperatures and humidity levels. They are used with good results in premises that or bedrooms. The amount of hot air that the air conditioner removes depends on the temperature, humidity level and placement. External weather conditions conditioner. Wood’s air conditioners are safe in operation and intended for continuous use over many years.

HOW DOES THE AIR CONDITIONING

UNIT WORK? Low pressure gives cold air The main element of the air conditioner is a coolant, which under low pressure is converted to gas. The process “creates cold”, which is transmitted inward, while keeping the warm air out. A liquid coolant is passed through an expansion valve and into a pipe where the pressure is low. The coolant evaporates and turns into a

s. The process absorbs heat from the surroundings and the pipe is cooled. A fan blows the cold air into the room. The gas is passed through a compressor, which increases the pressure and converts the gas into liquid. In this process, heat is released, which is led to pipes on the opposite side and blown out by a fan. indoor air is cold enough.

1. SECURITY WARNINGS

Flammable material. This appliance contains R290/ Refer to this manual for safety information. Read technical manual Read operators manual. SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference. Children and vulnerable people safety WARNING Risk of injury or permanent disability. Thi s appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Do not let children play with the appliance. Children of less than 3 years should be kept away unless continuously supervised. Keep all packaging away from children. Cleaning and user maintenance shall no t be made by children without supervision. General Safety This appliance is intended to be used in household and similar applications such as: Family room, environments. The rating plate is located at the side or back of the Air Conditioner. Keep ventilation openings clear of obstruction. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. The appliance shall not be stored in a room with operating ignition an operating gas appliance or an operation electric heater. Do not pierce or burn. Be aware that refrigerants may not contain an odour. Do not use water spray and steam to clean the appliance. Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects. If the supply cord is damaged, it must be replaced by the 1GB

Operating Instructions manufacturer, its Authorised Service Centre or similarly qualied persons in order to avoid a hazard. SAFETY INSTRUCTIONS Installation WARNING Only a qualied person must install this appliance. Remove all the packaging. Do not install or use a damaged appliance. The appliance shall be installed, operated and stored in a room with a oor area larger than 15 m². Obey the installation instruction supplied with the appliance. Always be careful when you move the appliance because it is heavy. Always wear safety gloves.

aware that refrigerants may not contain an odour. Make sure the air can circulate around the appliance. Wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to ow back in the compressor. Do not install the appliance close to radiators or other heat sources. Do not install the appliance where there is direct sunlight. Electrical connection WARNING Risk of re and electrical shock. The appliance must be connected to a grounded outlet. Make sure that the electrical information on the rating plate matcheswith the power supply. If not, contact an electrician. Always use a correctly installed shockproof socket. Do not use multi-plug adapters and extension cables. Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable). Contact the Authorised Service Centre or an electrician to change the electrical components. The mains cable must stay below the level of the mains plug. Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation. Do not pull the mains cable to disconnect the appliance. Always pull at the mains plug. Use WARNING Risk of injury, burns, electrical shock or re. Do not change the specication of this appliance. Be careful not to cause damage to the refrigerant circuit. It contains propane (R290), a natural gas with a high level of environmental compatibility. This gas is ammable. If damage occurs to the refrigerant circuit, make sure that there are no ames and sources of ignition in the room. Ventilate the room. Do not put ammable products or items that are wet with ammable products near or on the appliance. Disposal WARNING Risk of injury. Disconnect the appliance from the mains supply. Cut o the mains cable and discard it. The refrigerant circuit of this appliance is ozone-friendly. Contact your municipal authority for information on how to discard the appliance correctly. Do not cause damage to the part of the cooling unit that is near the heat exchanger. 1GB

Operating Instructions

Important1. This air conditioner may be moved around indoor conveniently; keep the unit in upright position while moving it. The air-conditioner shall be placed at a at surface.Do not install or operate this air-conditioner in a bathroom or other wet environment. Since a portable air conditioner is on wheels, it is easy to change positions. When the heat turns on, you just move your portable air conditioner into the room and can quickly get started cooling the space. Air conditioner must be operated in anenclosed area to be most eective.Close all doors, windows, and otheroutside openings to the room. Theeectiveness of the Air Conditionerdepends on the temperature and humidity level.2. Place the air conditioner in a location thatdoes not restrict airow through thefront of the unit.3. An Air Conditioner operating in aroom will have little or no eectin drying an adjacent enclosed storagearea, such as a closet, unless thereis adequate circulation of air in andout of the area. A portable Air Conditioner evacuates the heat from the unit with a ventilation hose through a window or exhaust air valve.4. There should be a minimum of30 cm distance between Air Conditioner and closest object. See picture for reference.

SET UP AIR CONDITIONER FOR INSTALLATION

1Hose- Press the “ SPEED” button to select fan speedGB

Operating Instructions FUNCTION OF THE OPERATION MODES AND INSTALLATION DESCRIPTIONS Water drainage instruction Empty the water tankUnscrew the drain cover and remove the water stopper. Empty the water tank and reattache the water stopper and drain cover. Notes: Move the unit carefully to avoid leakage. Tilt the unit slightly backwards when draining. Block the drain hole as soon as possible before the tray is full if it cannot hold all water in the unit to prevent the water leakage and wet the oor or carpet. Water stopper and drain cover must be tightly installed, to avoid new conden-sate to wet the oor or carpet when the unit re-starts working.Connecting a water hose for continu-ous drainageUnscrew the drain cover and remove the water stopper. Attach a 13 mm water hose to the pipe on the unit. Lead the other end of the water hose to a drain. Make sure that the water can be drained downwards.Notes: Drain hose must be installed when there’s no water in the tray. It is suggested that not to use con-tinuous drainage when unit is in COOL mode, to ensure enough water recycle in the unit to enhance the system cool-ing eects. Put the drain hose in an inaccessible place, not higher than drainage hole and keep drain hose straight without any exure. Keep the drain cover and its stopper properly when continuous drainage is adopted. The air lter The air lter prevents dust and dirt from entering the machine, prolonging its life expectancy. It is important the lter is cle-aned regularly. otherwise the unit may be seriously damaged. Therefore, clean the lters at least once every two weeks.Filter cleaning Remove the lter. Wash it with warm water and a mild cleansing agent. Alternatively the lter may be vacuum cleaned. Let the lter dry and put it back.Filter installationAim the end of the lter toward slot then push lter gently into slot. Notes: Be sure to install the lter to side panel then for the lter to back panel. Install the lter with opposite direction of removal. Install the lter into place gently to avoid any damage to lter. Storage instructions Remote Control Storage Insert remote controller into built-in compartment in left side of unit. Press the lower part of built-in compart-ment gently to open it and take out remote controller. End of Season Storage Screw o the drain cover and pull out the stopper to drain condensate water completely. Keep unit running in fan mode for half day to dry inside of unit completely to prevent from going moldy. Turn o the unit, pull out plug then wrap the power cord around the wi-re-winding pillar, insert the plug into the universal xing hole at the back pa-nel of the unit, install the water stopper and drain cover. Remove the heat exhaust hose assem-bly, clean and keep it properly.Notes: Hold the exhaust hose assembly with both hands when removal. Push the fasteners aside on exhaust air outlet using your thumbs, then pull out exhaust hose assembly. Pack the air-conditioner properly with soft plastic bag and put it in dry place with appropriate dust-proof measures, and keep the unit away from children. Take out the batteries from the remote control and keep it properly.Note: Assure the unit is stored in a dry place. All accessories of the unit shall be pro-tected together properly. Maintenance Read more about how to clean your unit at woods.se Clean the unit with a soft moist cloth. Do not use solvents or strong cleaners as this might damage the surface of the unit. Service If the Air Conditioner requires servicing, you must rst contact your local retailer. Proof of purchase is required for all war-ranty claims. FUNCTION OF THE OPERATION MODES AND INSTALLATION DESCRIPTIONS It is very important that the lter is cleaned regularly; otherwise the air conditioner might lose capacity and even be seriously damaged. 1GB

Operating Instructions

PROBLEM CAUSE REMEDY

Unit does not startwhen pressing on/obuttonWater full indicator lamp blinks and water tank is full. Dump the water out of the water tank.Room temperature is higher than the setting temperature (Electric heating mode)Reset the temperatureRoom temperature is lower than the setting temperature. (Cooling mode)Reset the temperatureNot cool enoughThe doors or windows are not closed. Make sure all the windows and doors are closed.There are heat sources inside the room. Remove the heat sources if possibleExhaust air hose is not connected or blocked. Connect or clean the exhaust air hose.Temperature setting is too high. Reset the temperatureAir inlet is blocked. Clean the air inlet.High noise levelThe ground is not level or not at enough Place the unit on a at, level ground if possibleThe sound comes from the owing of the refrigerant inside the air conditionerIt is normal.If you are having trouble with your dehumidier, please refer to below trouble shooting. If nothing of the below works, please contact your retailer for servicing of your Air Conditioner.

ERROR CODES CAUSE REMEDY

E0 CodeRoom temperature sensor failedReplace room temperature sensor (the unit can also work without replacement.)E2 CodeWater tank full when cooling Take o rubber stopper and empty the water.E3 CodeEvaporator temperature sensor failed Replace evaporator temperature sensor 1GB

Operating Instructions *This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your us device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. *Used batteries must not be disposed of through household garbage,since they might contain toxic elements and heavy metals that can be harmful to the environment and human health. Return empty batteries to an appropriate recycling facility. te .w ad et

.w .s fo Recommended limits for use The best operating ambient temperature for cooling is 18-35 °C. The unit runs up to +43° C .Fuse Parameter: φ3.6x10mm 3.15A, 250Vac.
