USER MANUAL MRD25GW WOOD'S

DEHUMIDIFIER Revision date: 2021-09-21Dehumidier # MRD20GW/MRD25GW Visit woods.se for more information and updated instruction manuals. For extended warranty register your product at warranty-woods.com Visit our website, www.woods.se, for the latest updated owners manual. Art number: MRD20GW MRD25GW OPERATING INSTRUCTIONS FOR: Operating Instructions

Notkunarleiðbeiningar ISVisit our website to: Get usage advice, updated brochures, troubleshooting, and service information. Register your product for additional services: www.warranty-woods.com

CUSTOMER CARE AND SERVICE

Always use original spare parts. When contacting our authorised service centre, ensure that you have the following data available: Model number, receipt and serial number. Warning / Caution-Safety information. General information and tips. Environmental information. Subject to change without notice. 2CONTENTS: PAGE NO. English Swedish Norwegian Danish German French Spanish Dutch Polish Romanian Finnish Lithuanian Latvian Estonian Greek Icelandic 4-13 14-20 21-27 28-34 35-41 42-48 49-55 56-62 63-69 70-76 77-83 84-90 91-97 98-104 105-111 112-118 Table of Contents

3Operating Instructions

D.Operating Instructions

Supplier model numbers Woods Production Sweden AB

YL-2P25A MRD25GWOperating Instructions

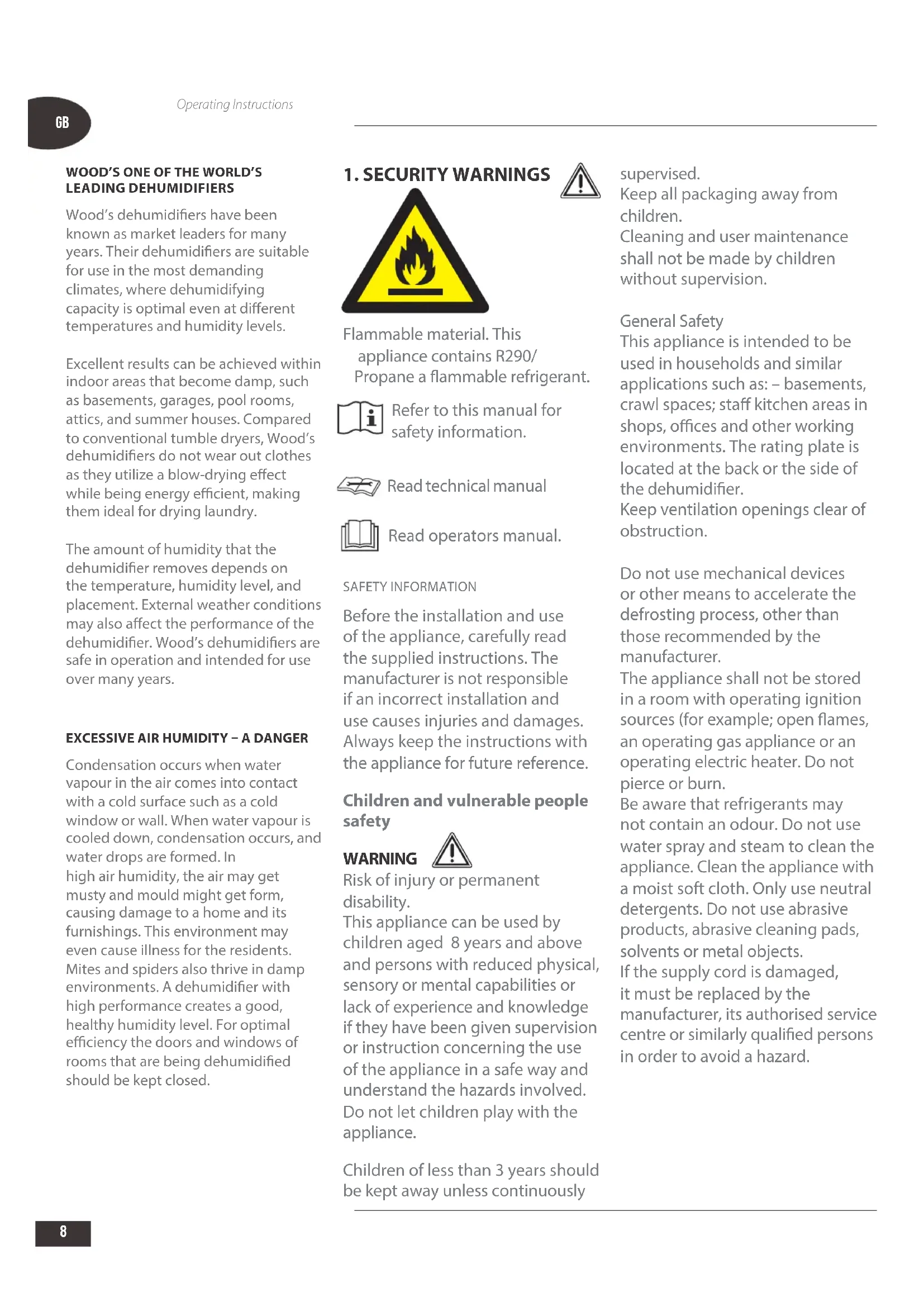

GB GB WOOD’S ONE OF THE WORLD’S LEADING DEHUMIDIFIERS Wood’s dehumidiers have been known as market leaders for many years. Their dehumidiers are suitable for use in the most demanding climates, where dehumidifying capacity is optimal even at dierent temperatures and humidity levels. Excellent results can be achieved within indoor areas that become damp, such as basements, garages, pool rooms, attics, and summer houses. Compared to conventional tumble dryers, Wood’s dehumidiers do not wear out clothes as they utilize a blow-drying eect while being energy ecient, making them ideal for drying laundry. The amount of humidity that the dehumidier removes depends on the temperature, humidity level, and placement. External weather conditions may also aect the performance of the dehumidier. Wood’s dehumidiers are safe in operation and intended for use over many years.

EXCESSIVE AIR HUMIDITY – A DANGER

Condensation occurs when water vapour in the air comes into contact with a cold surface such as a cold window or wall. When water vapour is cooled down, condensation occurs, and water drops are formed. In high air humidity, the air may get musty and mould might get form, causing damage to a home and its furnishings. This environment may even cause illness for the residents. Mites and spiders also thrive in damp environments. A dehumidier with high performance creates a good, healthy humidity level. For optimal eciency the doors and windows of rooms that are being dehumidied should be kept closed.

1. SECURITY WARNINGS

Flammable material. This appliance contains R290/ Propane a ammable refrigerant. Refer to this manual for safety information. Read technical manual Read operators manual. SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference. Children and vulnerable people safety WARNING Risk of injury or permanent disability. This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Do not let children play with the appliance. Children of less than 3 years should be kept away unless continuously supervised. Keep all packaging away from children. Cleaning and user maintenance shall not be made by children without supervision. General Safety This appliance is intended to be used in households and similar applications such as: – basements, crawl spaces; sta kitchen areas in shops, oces and other working environments. The rating plate is located at the back or the side of the dehumidier. Keep ventilation openings clear of obstruction. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. The appliance shall not be stored in a room with operating ignition sources (for example; open ames, an operating gas appliance or an operating electric heater. Do not pierce or burn. Be aware that refrigerants may not contain an odour. Do not use water spray and steam to clean the appliance. Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects. If the supply cord is damaged, it must be replaced by the manufacturer, its authorised service centre or similarly qualied persons in order to avoid a hazard.Operating Instructions GB GB

SAFETY INSTRUCTIONS Installation WARNING Only a qualied person must install this appliance. Remove all the packaging. Do not install or use a damaged appliance. The appliance shall be installed, operated and stored in a room with a oor area larger than 2 m². Obey the installation instruction supplied with the appliance. Always be careful when you move the appliance because it is heavy. Always wear safety gloves. Make sure the air can circulate around the appliance. Wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to ow back in the compressor. Do not install the appliance close to radiators or other heat sources. Do not install the appliance where there is direct sunlight. Electrical connection WARNING Risk of re and electrical shock. The appliance must be connected to a grounded outlet. Make sure that the electrical information on the rating plate matcheswith the power supply. If not, contact an electrician. Always use a correctly installed shockproof socket. Do not use multi-plug adapters and extension cables. Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable). Contact the Authorised Service Centre or an electrician to change the electrical components. The mains cable must stay below the level of the mains plug. Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation. Do not pull the mains cable to disconnect the appliance. Always pull at the mains plug. Use WARNING Risk of injury, burns, electrical shock or re. Do not change the specication of this appliance. Be careful not to cause damage to the refrigerant circuit. It contains propane (R290), a natural gas with a high level of environmental compatibility. This gas is ammable. If damage occurs to the refrigerant circuit, make sure that there are no ames and sources of ignition in the room. Ventilate the room. Do not put ammable products or items that are wet with ammable products near or on the appliance. Disposal WARNING Risk of injury. Disconnect the appliance from the mains supply. Cut o the mains cable and discard it. The refrigerant circuit of this appliance is ozone-friendly. Contact your municipal authority for information on how to discard the appliance correctly. Do not cause damage to the part of the cooling unit that is near the heat exchanger.Operating Instructions

Let the machine stand for 4 hours before use Selecting a Location Important 1.Dehumidier must be operated in an enclosed area to be most eective. Close all doors, windows, and other openings to the room. The eectiveness of the dehumidier depends on the rate at which new moisture-laden air enters the room. 2.Place the dehumidier in a location that does not restrict airow through the front of the unit. 3.A dehumidier operating in a room will have little or no eect in drying an adjacent enclosed storage area, such as a closet, unless there is adequate circulation of air in and out of the area. lt may be necessary to install a second dehumidier in the enclosed area for satisfactory drying. 4.Ensure that the unit is placed on a stable and at surface. If the surface is not kept stable, there is a risk that it may cause excessive vibration, allowing water to be released. 5.The dehumidier must have at least 20 cm free space around the entire dehumidier. 6)Fuse for PCB: F1: 2010 Serie(s), AC250V, T, 2.0A; F2: 2010 Serie(s), AC250V, T, 5.0A/6.3A

2. Continuous drain pipe

D Picture D (Picture of symbols on control panel)

ne to work under dry mode or dehumidica- tion mode.(during dry mode, it dehumidies continuously under the highest speed)

3. Humidity button: During dehumidi-

cation mode, this button can set die- rent desired humidity and the range is 50-55-60-65-70-Co-40-45-50-55-60-65- 70%RH.

ne to work under low speed or high speed.

6. Swing button: This button can set machine

to swing or not swing automatically.

8. Water bucket full

9. Child lock: If press timer button for 3 secunds

it can set child lock function on or o. During child lock function, only timer and on/o butons can be set. Just press this button for 3 seconds again to switch o child lock function.

1. Sketch on the top and underneath the

1. The dehumidier must have at least 20 cm

free space around the entire dehumidier.

1. The dehumidier must have at least 20 cm

free space around the entire dehumidier.

1. Based on combining the same mo-

del with or without WIFI, the unit’s humidity settings and display are Co, 40%,45%,50%,55%,60%,65%, and 70% RH, while the app’ssettings and display are 35%, 40%, 45%, 50%, 55%, 60%, 65%, and 70% RH. Also note, the unit’s display shows humidity from LO, 30, 31, 32…79,80, and HIGH, but the app just can

2. During “dry mode”, both the product and

app cannotset the fan speed, as it works only on the highest fan setting. PRODUCT DESCRIPTIONOperating Instructions

- The dehumidifier should not be placed near radiators or other heat sources or exposed to direct sunlight, as it will reduce performance. - Ideal is to put it in the centre of the room / area. NOTE: When placed in a shower room or bathing area, the dehumidier should be xed in place. It is compulsory to check and respect your local bathroom electrical regulations before use.

USING THE DEHUMIDIFIER

If the dehumidier is transported horizontally, let the dehumidier stand for 4 hours before being used. It is very important that the oil runs back into the compressor, otherwise, the dehumidier may be seriously damaged.

1. Check that the water reservoir is correctly

2. Connect the dehumidifier to a grounded

3. Set the desired humidity level by using

the humidity control. See the section on humidity control. NOTE: The ambient relative humidity can be simply measured with the dehumidier. OPERATION MANUAL

1. Power Button: This button can control

the machine on and o.

2. Humidity button: To set the desired

humidity. press Humidity button for 5s, it shows ambient temperature (0~40°C) for 5s; if you press and hold the Humidity button, it shows ambient temperature all the time. If you don´t press again it automatically show the NTC sensor temperature for 5 seconds then, shows ambient humidity.

3. Humidity Settings: Open the air outlet

set humidity between 40%, 50%, 60%, or continuous mode.

4. Timer: When the appliance is on, press

the Timer 2H/4H/6H to operate a countdown.

5. During operation, it shows ambient

humidity from 30,31,32···79,80. If it is < 30%RH, it shows LO; if it is > 80%RH, it shows HI.

6. In Dehumidication mode, you can

set humidity level and fan speed 2 levels. MEMORY FUNCTION

1. Press the on/o button (plugged

into a power socket) and then press the on/o button again to go back to following previous the timer, but timer and child lock function have no memory.

2. No power when operation equals to

plug o all of a sudden the machine works automatically when there is power and it memories previous setting, but child lock function has no memory.

3. The unit will automatically turn

on and operates in last setting after power returns. It works under initial default setting during dehumidication mode and works under humidity setting by 50%RH on high speed.

COMPRESSOR PROTECTION FUNCTION

The unit is equipped with compressor protection function—that is, compressor has ve minutes period between starts operation and shut down. WATER DRAINAGE When the water reservoir is full, the dehumidier is shut o automatically. Once the water reservoir is emptied the unit will automatically restart.

1. Disconnect the dehumidier from the

3. Put the empty water reservoir back

and check that the oat moves freely.

4. Connect the dehumidier to the

power source. Direct water drainage Connect a water hose to the pipe on the back of the dehumidier. Lead the other end to a drain. Make sure that the water can be drained downwards. AIR FILTER The air lter prevents dust and dirt from entering the machine, prolonging its life expectancy. It is important the lter is cleaned regularly. Filter cleaning:

2. Wash it with warm water and a mild

cleansing agent. Alternatively, the lter may be vacuum cleaned.

3. Let the lter dry and put it back.

DEFROSTING OPERATION During the defrosting operation, the dehumidification function may intermit. Please don’t turn off the switch or pull out the power plug of the dehumidifier during the defrosting operation. This dehumidifier can’t be applicable to keep extremly low temperature. The purpose of this dehumidifier is to remove moisture from the indoor environement, but not at extremely low temperatures. The room temperature increases during the operation. This dehumidifier doesn’t have colling function. It will produce heat during the operation and increase the room temperature to 1 to 4°C. In addition, the door and windows are closed and other appliances in the room can give out heat as well as the radiation of the sun can raise the room temperature.Operating Instructions GB GB

MAINTENCANCE AND CLEANING

For its casing is made of plastic, do not place it in direct sunlight. Remove the water tank with care. If not using the unit for a long time. Please Switch o and unplug the unit, empty the water reservoir, keep it in dry and ventilated place. Only use a soft clean cloth for all cleaning purpose. Do not use gasoline, paint thinner or other chemicals to clean the unit. Cleaning mesh lter: Remove the lter use a vacuum cleaner or water to clean, then put it in ventilated place until it’s dry. SERVICE If the dehumidier requires servicing, you must rst contact your local retai- ler. Proof of purchase is required for all warranty claims. STORAGE Before storage of the unit, please follow these steps:

1. Make sure the water tank is empty.

When the unit is switched on, make sure the unit work at Ventilation mode for at least 30 minutes to remove the water inside the unit.

2. Collect and bundle the power cord.

4. Store in a clean, dry environment.

Proof of purchase is required for all warranty claims. HINTS When the dehumidier is used in extremely damp environments or when the temperature is below +5˚C, the dehumidier may stop working. A large amount of ice builds up on the cooling coil. Turn o the dehumidier and place it a little above oor level so that the ice will melt away. Sometimes it may be useful to use a frost guard or heater fan to make sure that the temperature does not fall below +10˚C. Even if the MRD20GWGW/25 work down to temperatures as low as +5°C, its capacity will increase at higher temperatures as warm air carries more water. The hydrostat has a margin of error of approx. +/- 5-10%. At lower temperatures, the margin of error might increase further. For maximum dehumidifying power in a room, it is recommended that the air supply from outside and from adjoining rooms is minimized – close doors and ventilators. Expect higher dehumidication capacity during Autumn / Summer because the outside air is warmer and more humid. IMPORTANT! - Wood’s dehumidier must be connected to an grounded power source. The power source should be 220V-240V 50Hz

PROBLEM CAUSE REMEDY

Dehumidier does not work The power is not connected Check that dehumidier is connected to electricity and that fuse has not blown. Check that the water reservoir is empty and correctly placed in the dehumidier. Does not dehumidify The water container is full. The water container has not been replaced correctly. The air lter is clogged. The temperature or relative humidity in the room where the device is operating too low. Remove the water from the container. Place the water container in the correct position. Clean the air lter. Check that air can ow freely through the dehumidier. The front grid and air lter should be clean and the dehumidier should stand 20cm from wall. The dehumidier works, but reduces the relative humidity insuciently. The room is too large. There are too many sources of humidity. There is too much ventilation We recommend using a dehumidier with a larger capacity. We recommend using a dehumidier with a larger capacity. Reduce ventilation(e.g close windows and shut doors) If you are having trouble with your dehumidier, please refer to the troubleshooting section. If none of these works, please contact your retailer for servicing of your dehumidier.Operating Instructions

GB GB MRD20GW Max. working area 70m Air flow 175m /h±10%Dehumidifying at 30˚C and 80% r.h. 20 l/24hPower at 30˚C and 80% r.h. 280 W±10%Tank volume 3,8 litersRefrigerant R290Charge R290 60 g Voltage 220-240VNoise level in decibels 48dBWeight 15,5 kgDimensions in mm, L x Bx H 355x252x567 TECHNICAL DATA *Technical changes and improvements may occur. All values are approximate and may vary due to external circumstances such as temperature, ventilation and humidity. *This marking indicates that the product should not be disposed of with other household waste throughout the EU. To prevent damage to the environment and people from uncontrolled waste management, recycle the product responsibly to support the sustainable reuse of resources. To return the product, please contact your dealer. NOTE! Register at www.warranty-woods.com and read about how to get extended warranty. Please visit www.woods.se for more information. Recommended limits for use Temp. +5˚C to +35˚C Relative humidity: 30% to 90% Recommended humidity level: appr. 50% RH Guarantees 2 years consumer warranty against production faults. Please note that the warranty is only valid upon producing the receipt. The warranty is only valid if the product is used in accordance with the instructions and security warnings expressed in this manual. The warranty does not cover any damages caused by improper handling of the product. NOTE: The 2 years warranty only applies for consumers and not for commercial use of the unit. MRD25GW Max. working area 120m Air flow 180m /h±10% Dehumidifying at 30˚C and 80% r.h. 25 l/24hPower at 30˚C and 80% r.h. 380 W±10%Tank volume 3,8 litersRefrigerant R290Charge R290 85 gVoltage 220-240VNoise level in decibels 48dBWeight 16kgDimensions in mm, L x Bx H 355x252x567S Bruksanvisning

1. VEILIGHEIDSWAARSCHUWINGEN

PROBLEMĂ CAUZĂ SOLUȚIE

Wood’s is marketed and distributed by: Woods Production Sweden AB. Box 356 441 27, Alingsås Sweden. woods.se info@woods.se +46 317613610
