USER MANUAL KKS4178 ETNA

Installation et raccordement

Safety instructions 5

Installation and connection

Selecting the location 11

Connecting the appliance 12

Changing the side on which the door opens /

building the appliance into a cupboard 12

Before first use

Before you use the appliance for the first time 13

Energy-saving advice 13

Description of the appliance

Appliance 14

Control panel 14

Operating the appliance

Switching the appliance on 15

Setting the temperature 15

Switching the appliance off 15

Intensive cooling 16

High temperature alarm 16

CONTENTS

Storing food

Recommended distribution 17

Avoid contamination of food 17

Storing fresh food in the refrigerator 18

Maintenance

Defrosting the appliance 19

Cleaning the appliance 19

Faults

Faults table 20

Environmental aspects

Disposal of packaging and appliance 22

Pictograms used

Important information

Tip

Warning; risk of fire / flammable materials

Introduction

Congratulations on choosing this Etna refrigerator. This product is designed with simple operation and optimum comfort in mind.

These instructions for use explain how you can make best use of this appliance. These instructions contain information about the operation of the appliance and background information that may be of help to you during its use.

Read the safety instructions before using the appliance!

Read these instructions thoroughly before you first use the appliance, and keep the instructions for future use.

A section of the installation instructions is supplied separately.

Link to the EU EPREL database

The QR code on the energy label supplied with the appliance provides a web link to the registration of this appliance in the EU EPREL database. Keep the energy label for reference together with the user manual and all other documents provided with this appliance.

It is possible to find information related to the performance of the product in the EU EPREL database using the link https://eprel.ec.europa.eu and the model name and product number that you can find on the rating plate of the appliance.

For more detailed information about the energy label, visit www.theenergylabel.eu.

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

Safety of children and vulnerable people

• The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Keep all packaging away from children.

For European markets only

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

General safety

• The lamp in this household appliance is only suitable for illumination of this appliance. The lamp is not suitable for household room illumination.

• WARNING! This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;

• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;

• catering and similar non-retail applications.

• WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• WARNING! Do not damage the refrigerant circuit.
• WARNING! Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• WARNING! Do not use water spray and steam to clean the appliance.
• WARNING! Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• WARNING! Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• WARNING! If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Installation

• WARNING! This appliance should only be connected by a registered installer.
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied with the appliance.
• Always be careful when you move the appliance because it is heavy. Always wear safety gloves.
• Make sure the air can circulate around the appliance.
• Wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to flow back in the compressor.
• Do not install the appliance close to radiators or cookers, oven or hobs.
• Do not install the appliance where there is direct sunlight.
• Do not install this appliance in areas that are too humid or too colds, such as the construction appendices, garages or wine cellars.
• When you move the appliance, lift it by the front edge to avoid scratching the floor.
• WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

Electrical connection

• WARNING! Risk of fire and electrical shock.
• The appliance must be earthed.
• All electrical connections should be made by a qualified electrician.
• Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable, compressor). Contact the Service or an electrician to change the electrical components.
• The mains cable must stay below the level of the mains plug.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• WARNING! Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• If a stationary appliance is not fitted with a supply cord and a plug, or with other means for disconnection from the supply mains having a contact separation in all poles that provide full disconnection under overvoltage category III conditions, the means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules. Using an omnipolar switch with a contact separation of at least 3mm fitted in the supply cable will fulfill this requirement.

Use

• WARNING! Risk of injury, burns, electrical shock or fire.
• Do not change the specification of this appliance.
• Do not put electrical appliances (e.g. ice cream makers) in the appliance unless they are stated applicable by the manufacturer.
• Be careful not to cause damage to the refrigerant circuit. It contains isobutene (R600a), a natural gas with a high level of environmental compatibility. This gas is flammable.
• If damage occurs to the refrigerant circuit, make sure that there are no flames and sources of ignition in the room. Ventilate the room.
• Do not let hot items to touch the plastic parts of the appliance.
• Do not store flammable gas and liquid in the appliance.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not touch the compressor or the condenser. They are hot.

Care and cleaning

• WARNING! Risk of injury or damage to the appliance.
• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• This appliance contains hydrocarbons in the cooling unit. Only a qualified person must do the maintenance and the recharging of the unit.
• Regularly examine the drain of the appliance and if necessary, clean it. If the drain is blocked, defrosted water collects in the bottom of the appliance.

Disposal

• WARNING! Risk of injury or suffocation
• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children and pets to be closed inside of the appliance.
• The refrigerant circuit and the insulation materials of this appliance are ozone friendly.
• The insulation foam contains flammable gas. Contact your municipal authority for information on how to discard the appliance correctly.
• Do not cause damage to the part of the cooling unit that is near the heat exchanger.

Selecting the location

• Do not place the appliance near a source of heat, such as a gas cooker, radiator or boiler, etc., and do not expose it to direct sunlight.
• Place the appliance in a dry and well aired room. The permitted ambient temperature range for the appliance depends on the appliance's climate class, which is shown on the type plate.

Description Class Ambient temperature range °C Relative humidity
Extended temperate SN	+10 to +32	≤ 75%
Temperate N +16 to +32
Subtropical ST +16 to +38
Tropical T +16 to +43

Do not place the appliance in a room where the temperature can fall below the lowest permitted ambient temperature: the appliance may not work properly!

Do not place the appliance in a room where the temperature can fall below 5^ : the appliance may become defective!

The appliance is not suitable for outdoor use and may not be exposed to rain.

Place the appliance in a room with a sufficient volume of air. The room must have a volume of at least 1m^3 of air for every 8 grams of refrigerant. The quantity of refrigerant is shown on the type plate on the inside of the appliance.

• The appliance must be placed at a distance of at least 5cm from an electrical or gas cooker and at least 30cm from a radiator or heater. An insulation panel must be fitted when these distances cannot be kept.
• The appliance must be placed at a distance of about 5cm from the wall, back and sides of a cupboard. A kitchen cupboard above the appliance must have a gap of at least 5cm between the back of the cupboard and the wall. This is needed to make sure that there is sufficient cooling air for the condenser.
• The plug of the installed appliance must remain accessible!
• The kitchen unit in which the appliance is to be built in must have an opening of at least 200cm^2 in its base to allow sufficient air to circulate.
• The appliance's air outlet is at the top. Make sure that the outlet is not blocked. Blocking the outlet can result in damage to the appliance.

Warning:

An anti-condensation accessory must be installed before built-in appliances are installed next to each other in a cupboard or surround. For safety reasons, this must be installed by a recognized installer!

Connecting the appliance

• Connect the appliance to the power supply with a plug. The socket must be earthed. The nominal voltage and frequency required for the appliance are shown on the appliance's type plate/label with basic information.
• The appliance must be connected to the mains and earthed in accordance with the prevailing standards and regulations. The appliance can withstand small variations in the mains voltage to a maximum of plus or minus 6% .

When you are not going to use the appliance for a longer period then switch it off with the appropriate key and disconnect it from the mains. Empty, defrost and clean the appliance, and leave the door ajar.

Freeze burn hazard

To avoid freeze burn, never put frozen food in your mouth and do not touch frozen food.

Changing the side on which the door opens / building the appliance into a cupboard

Information about changing the side on which the door opens and building the appliance into a cupboard is enclosed in separate installation instructions.

Before you use the appliance for the first time

Do not connect the appliance to the mains until you have carefully read the instructions for the correct and safe use of the appliance. As these instructions are for various types and models, it is possible that the instructions for use refer to settings or parts that are not available on your appliance. We recommend that you keep these instructions for future use. If you sell the appliance, enclose them with the appliance.

Inspect the appliance for damage and/or irregularities. If the appliance is damaged, contact the store that sold you the appliance.

Allow the appliance to stand upright for at least 4 hours before you connect the appliance to the mains. This reduces the risk of malfunctions resulting from transport effects on the refrigerant unit.

Before using the appliance for the first time, the interior and all internal accessories should be cleaned with lukewarm water and a neutral cleaning agent. Wipe the cleaned parts with a cloth with clean water and then dry them thoroughly.

If you use the appliance for the first time, do not put food into the appliance until the temperature has decreased to the set temperature.

Energy-saving advice

• Install the appliance as stated in the instructions for use.
• Do not open the door more than necessary.
• Never cover or obstruct the ventilation openings.
• Replace a door seal that is damaged or no longer seals properly as quickly as possible.
• Store food in well-sealed containers or suitable packaging.
• Allow food to cool to room temperature before you put it in the appliance.
• Defrost food in the refrigerator compartment.
• Space the shelves evenly in the refrigerator compartment. Place the food so that the air can circulate freely in the appliance (follow the recommendations for the location of foods enclosed in the instructions).
• When the appliance is equipped with a fan then make sure that the ventilation openings are kept clear.
• The lower the set temperature, the higher the power consumption.

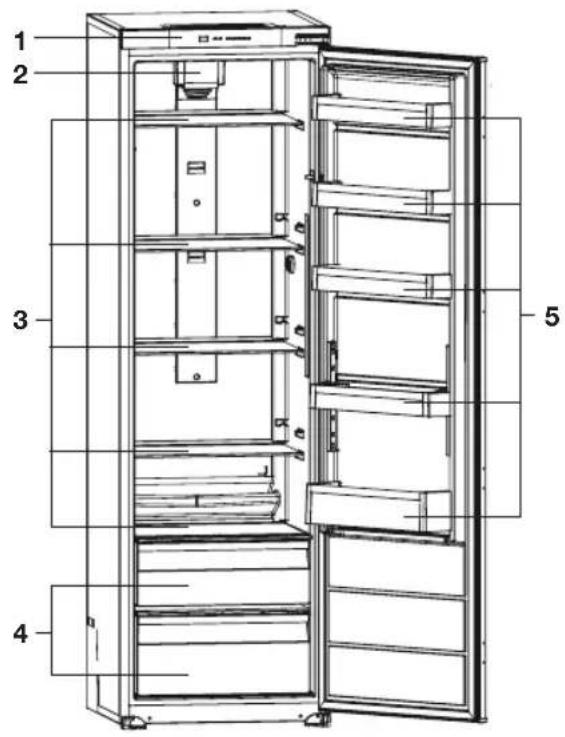

Appliance

1. Control panel
2. MultiFlow
3. Glass shelves
4. Vegetable drawers
5. Door compartments The bottom door compartment is suitable for bottles.

MultiFlow

This system creates optimal air circulation to keep the temperature constant throughout the entire refrigerator compartment. The openings around the fan may never be covered or obstructed.

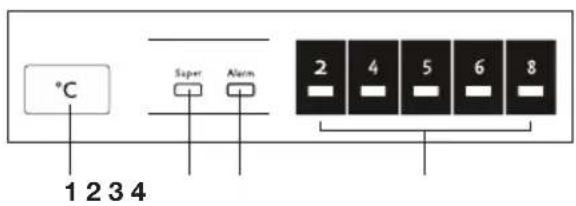

Control panel

1. On/Off button, setting the temperature and function button
2. 'Intensive cooling' indicator light
3. Alarm indicator for high temperature
4. Temperature indicator lights

Switching the appliance on

Push and hold the On/Off button for 5 seconds to switch the appliance on.

The temperature is set to 2^ ; indicator light 2 comes on.

Attention; each time the appliance is switched on again, it takes a while to reach the correct temperature. As long as the temperature has not yet been reached (and is therefore too high), the alarm indicator for high temperature flashes.

Setting the temperature

Push the On/Off button (several times) to choose a temperature.

The corresponding indicator light comes on.

• The temperature of the refrigerator compartment can be set to between +2^ and +8^ .
• The recommended temperature of the refrigerator compartment is 4^ .

Switching the appliance off

1. First set the temperature to 2^ .
2. Then push and hold the On/Off button for 5 seconds.

All lights flash three times and the lighting goes off; the appliance is now switched off

(standby).

If the On/Off button is pushed again or pushed too short, all lights will flash three times to indicate that the appliance is in standby.

Intensive cooling

This appliance has an intensive cooling function. This function decreases the temperature in the refrigeration compartment as quickly as possible. This is ideal for cooling products that have just been put into the refrigerator. Use this function when you put a large quantity of food in the appliance.

Switch on the intensive cooling function

Push (several times) the function button until the corresponding indicator light comes on.

The intensive cooling function is switched on.

Switch off the intensive cooling function

Push (several times) the function button until the corresponding indicator light goes off.

The intensive cooling function is switched off.

When the intensive cooling function is not switched off manually, the function will be switched off automatically after about six hours.

High temperature alarm

The alarm indicator for high temperature flashes when the temperature in the appliance is too high.

A high temperature can be caused for several reasons:

• The appliance has been switched on for the first time.
• The door has been opened for too long or too frequently.
• The door does not seal properly.
• Too much fresh food has been put in at the same time.
• The appliance has been switched on again (for example after a lengthy power failure).

The alarm indicator will continue to flash as long as the temperature is still too high.

Attention; if after 24 hours the alarm indicator still flashes, contact the service department.

Recommended distribution

Sections of the refrigeration compartment

• Upper section: canned food, bread, wine and pastas, etc.
• Middle section: dairy products, ready-to-cook meals, desserts, soft drinks, beer and cooked food, etc.
• Lower section: meat, meat products, delicatessen products.
• Vegetable drawer: vegetables and fresh fruit.

Store food that spoils rapidly at the back of a shelf or at the back of the drawer at the lowest temperature.

Do not store fruit (bananas, pineapples, papaya, citrus fruits) and vegetables (courgettes, tomatoes, aubergines, cucumber, sweet peppers and potatoes) that are sensitive to low temperatures in the refrigerator.

Sections of the door

• Top/middle door compartment: eggs, butter, cheese and sauscs, etc.
• Bottom door compartment: drinks, cans and bottles, etc.

Avoid contamination of food

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Regularly clean surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Storing fresh food in the refrigerator

Important recommendations for storing fresh food

To ensure the quality of fresh food, it is important that:
the food is well-packaged;
the appliance is at the correct temperature;
the appliance is clean.
- Take good note of the use-by date stated on the food packaging.
- Put food in the refrigerator in sealed containers or in suitable packaging. This will prevent the food from picking up or spreading odours and will keep it dry.
- If droplets form on the glass shelf above the vegetable drawer, open the vent and dry off the shelf. This will reduce the humidity.
- Do not store flammable, unstable or explosive materials in the refrigerator.
- Store bottles that have been opened upright and close them tightly.
- Some organic solutions, such as essential oils, in the skin of lemons and oranges, and butyric acid, that come into long-term contact with plastics can eat into the material and cause premature ageing.
- A disagreeable odour is an indication that the appliance is not clean or that it contains food that has spoiled (see the chapter 'Maintenance').
- Take perishable foods out of the refrigerator when you will be away from home for a longer time.

MAINTENANCE

Defrosting the appliance

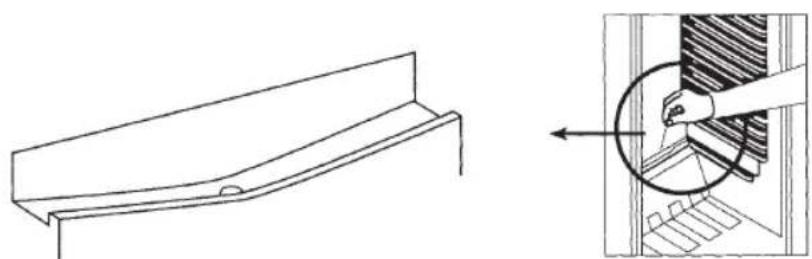

Automatic defrost of the refrigeration compartment

The refrigeration compartment defrosts automatically from time to time. The presence of water drops on the back wall at the inside of the refrigerator indicates that the appliance is busy defrosting automatically. The defrost water runs through the drainage spout to a receptacle where it evaporates.

Ensure that the drain outlet is clean. You can clean a clogged drain with a satay stick, for example.

Cleaning the appliance

Switch off the appliance and disconnect it from the mains before you start cleaning it.

Do not use abrasive cleaning agents, as they can damage the surface.

• Regularly clean the interior of the appliance with lukewarm water. If so required, add a neutral cleaning agent or special refrigerator cleaner to the water. Clean all surfaces with a soft cloth. Wipe the cleaned parts with a cloth with clean water and then dry them thoroughly.
• Do not put parts of the appliance in a dishwasher: this could damage them.
• Dry the inside of the unit, plug on the mains, and set the thermostat knob to the lowest temperature setting. After 24 hours, set the thermostat to the normal position.

When you are not going to use the appliance for a longer period then switch it off and disconnect it from the mains. Empty, defrost and clean the appliance, and leave the door ajar.

Faults table

When you have any doubts about whether your appliance is working properly you should not immediately assume that it is defective. We recommend that you should in any case check the points in the following table.

Symptom Possible cause Solution
The appliance emits a slight odour when used for the first time.	New appliance. This is normal and disappears when the appliance starts cooling.
The appliance does nothing; the lighting does not come on.	Plug not in socket. Insert the plug in the socket.
	Thermostat off. Adjust the thermostat to the correct setting.
Temperature inside the appliance too high or too low.	Thermostat setting incorrect. Adjust the thermostat properly.
	The door seals are dirty or the seals are damaged.	Clean the door seals. Call the service centre if the door seals are damaged.
The alarm indicator flashes. The appliance is switched on for the first time.		If after 24 hours the alarm indicator still flashes, contact the service department.
Water runs from the refrigerator.	Defrost water drain clogged. Clean defrost water drain (see "Defrosting the appliance").
Appliance makes a noise. Incorrect positioning of food in the appliance.		Place foods in the proper manner in the appliance.

FAULTS

Symptom Possible cause Solution
The LED lighting does not work.	LED-lamp faulty. Call an authorized service technician. Do not attempt to replace the LED lighting by yourself.

Note

It is normal for the cooling circuit to make gurgling or expansion noises.

If you are unable to solve the problem then contact the service centre. When you do so, state the type, model and serial number shown on the type plate or label on the inside of the appliance.

Disposal of packaging and appliance

This appliance is made from sustainable materials. This appliance must be disposed of in a responsible manner at the end of its service life. Contact the local authorities for information about the method.

See also the chapter 'Disposal' in the Safety instructions.

The packaging of the appliance is recyclable. The following materials may have been used:

• Cardboard.
  Polyethylene foil (PE).
  CFC-free polystyrene (hard PS foam).

These materials must be disposed of in a responsible manner and in accordance with government regulations.

The appliance is marked with a crossed out wheeled bin symbol to draw your attention to the requirement for the separate disposal of domestic electrical appliances. This means that the appliance may not be disposed of in unsorted household waste at the end of its service life. The appliance must be taken to a special municipal waste processing location for separated waste or to a dealer who provides this service.

Collecting and disposing of domestic appliances separately avoids detrimental consequences for humans and the environment. This ensures that the materials used to make the appliance can be recovered and that substantial savings in the use of energy and raw materials can be achieved.

Declaration of conformity

We hereby declare that our products conform to the applicable European Directives, Regulations and requirements, as well as all requirements in the standards to which reference is made.
