USER MANUAL DSC50FM WOOD'S

Revision date: 5-FEB, 2018# SW18

Kasutusjuhend Get 6 years warranty! Register and follow the instructions at warranty-woods.comCONTENTS: PAGE NO. Table of Contents

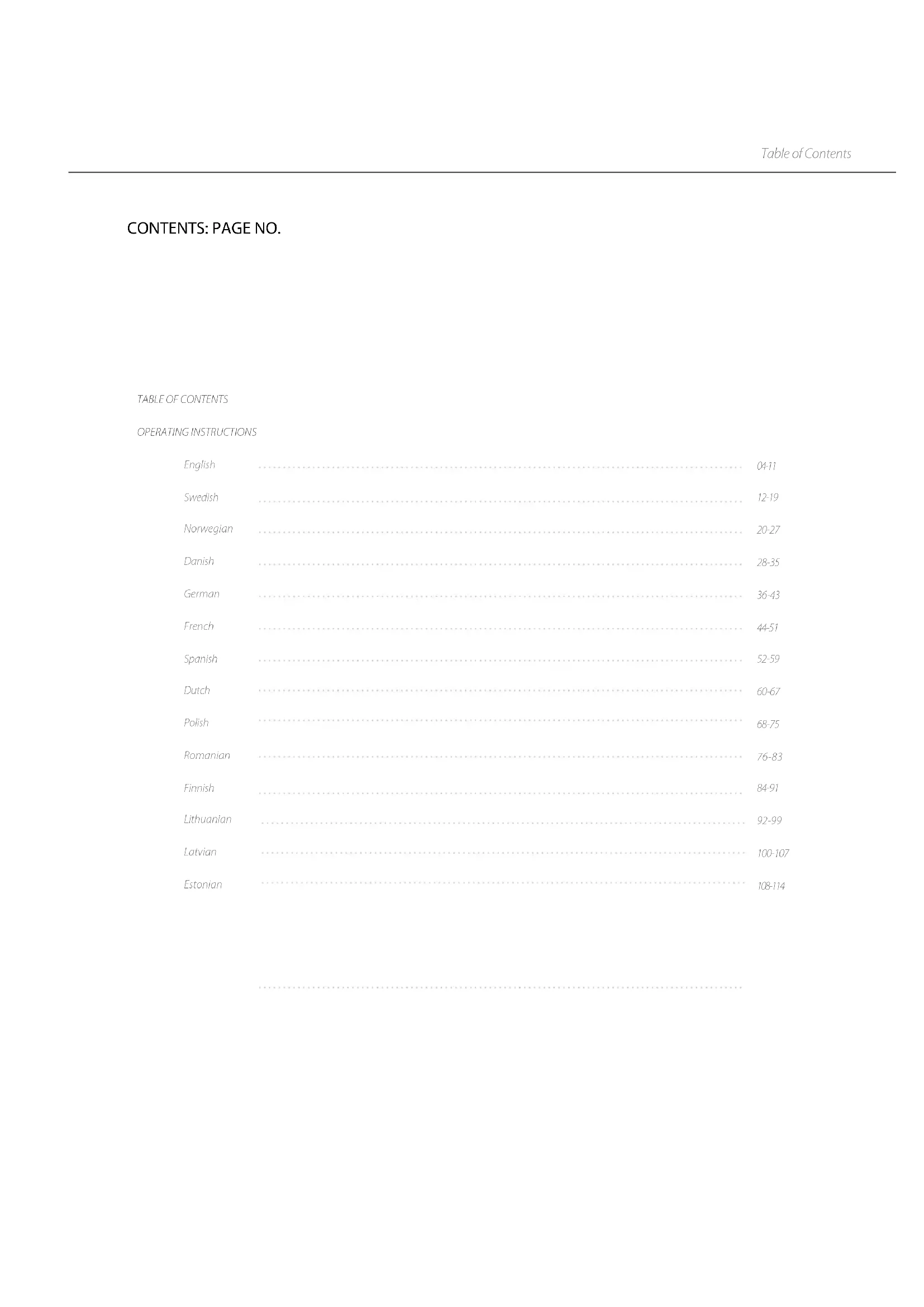

OPERATING INSTRUCTIONS English Swedish Norwegian Danish German French Spanish Dutch Polish Romanian Finnish Lithuanian Latvian Estonian 04-11 12-19 20-27 28-35 36-43 44-51 52-59 60-67 68-75 76-83 84-91 92-99 100-107 108-114GB

Operating Instructions Flammable material. This appliance contains R290/Propane a flammable refrigerant. Refer operators manual. Read technical manual Read operators manual. SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference. Children and vulnerable people safety WARNING Risk of injury or permanent disability. This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Do not let children play with the appliance. Children of less than 3 years should be kept away unless continuously supervised. Keep all packaging away from children. Cleaning and user maintenance shall not be made by children without supervision. General Safety This appliance is intended to be used in household and similar applications such as: – basements, crawl spaces; staff kitchen areas in shops, offices and other working environments. The rating plate is located behind the water tank of the dehumidifier. Keep ventilation openings clear of obstruction. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. The appliance shall not be stored in a room with continously operating ignition sources (for example; open flames, an operating gas appliance or an operation electric heater. Do not pierce or burn. Be aware that refrigerants may not contain an odour. Do not use water spray and steam to clean the appliance. Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects. If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard. SAFETY INSTRUCTIONS Installation WARNING Only a qualified person must install this appliance. Remove all the packaging. Do not install or use a damaged appliance. The appliance shall be installed, operated and stored in a room with a floor area larger than 4m². Obey the installation instruction supplied with the appliance. Always be careful when you move the appliance because it is heavy. Always wear safety gloves. Make sure the air can circulate around the appliance. Wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to flow back in the compressor. Do not install the appliance close to radiators or other heat sources. Do not install the appliance where there is direct sunlight.GB

Operating Instructions

Electrical connection WARNING Risk of fire and electrical shock. The appliance must be connected to a grounded outlet. Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician. Always use a correctly installed shockproof socket. Do not use multi-plug adapters and extension cables. Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable). Contact the Authorised Service Centre or an electrician to change the electrical components. The mains cable must stay below the level of the mains plug. Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation. Do not pull the mains cable to disconnect the appliance. Always pull at the mains plug. Use WARNING Risk of injury, burns, electrical shock or fire. Do not change the specification of this appliance. Be careful not to cause damage to the refrigerant circuit. It contains propane (R290), a natural gas with a high level of environmental compatibility. This gas is flammable. If damage occurs to the refrigerant circuit, make sure that there are no flames and sources of ignition in the room. Ventilate the room. Do not put flammable products or items that are wet with flammable products near or on the appliance. Disposal WARNING Risk of injury. Disconnect the appliance from the mains supply. Cut off the mains cable and discard it. The refrigerant circuit of this appliance is ozone-friendly. Contact your municipal authority for information on how to discard the appliance correctly. Do not cause damage to the part of the cooling unit that is near the heat exchanger.GB

Operating Instructions

A DEHUMIDIFIER IN THE CRAWL SPACE

Wood’s DSC50FM fits open crawl spaces where the temperature doesn’t fall below +2°C. Thanks to its powerful airflow, the DSC50FM will provide you with a safe and reliable protection against mould, damp, mildew and moisture. Use a water hose for direct drainage. Use a hygrometer to set the dehumidifier and to monitor the humidity level from your house. Close all ventilators in the house foundation. Open ventilators means that moist air can enter the crawl space from outside, causing the dehumidifier to work unnecessarily often. In many cases it is beneficial to cover the ground with construction plastic in order to minimize moisture from the ground. Keep a relative humidity level between 50-60% to prevent damp and mould problems! The dehumidifier will turn off if the temperature drops below +2°C. At such low temperatures the air doesn’t hold as much moisture and by shutting it off you avoid icing of the dehumidifier. DSC50FM is very easy to install and use, and can easily circulate the air and dry out the entire crawl space. DSC50FM is a dehumidifier for crawl spaces and is an easy, inexpensive and efficient way to prevent moisture problems in your crawl space or house foundation. NOTE: It is important that the float moves freely, since its purpose is to respond to the water level and ensure that the dehumidifier is turned off when it is high. A wrongly placed float may allow the water reservoir to flood.GB

Operating Instructions Voltage 230VFrequency 50HzCurrent 1,1 AIP Code X1Dimensions in mm, L x Bx H 495x345x527 DSC50FM Max. working area 100m Air flow step 1 256m3/hAir flow step 2 520m3/hDehumidifying at 20˚C and 70% r.h. 8,0 L/ 24hDehumidifying at 30˚C and 80% r.h. 13,5 l/24hPower at 20˚C and 70% r.h. 145 WPower consumption at 20˚C and 70% r.h. 3,5kWh/24 hRefrigerant R290Charge 100 gWeight 22kg TECHNICAL DATA *Technical changes and improvements may occur. All values are approximate and may vary due to external circumstances such as temperature, ventilation and humidity. PROBLEM SOLUTION Dehumidifier does not start - Check that dehumidifier is connected to electricity and that fuse has not gone - If the warning light is on, check that the water reservoir is empty and correctly placed in the dehumidifier. Check that float is free - Check that hygrostat is working. Dehumidifier should start when hygrostat is in Maximum position Does not dehumidify - Check that fan is spinning - Check that air can flow freely through the dehumidifier. Front grid and air filter should be clean and dehumidifier should stand 20-30cm from wall - Listen for sound of compression, but bear in mind that the dehumidifier may be in a dehumidifying cycle, when the compression stops. Wait initially for about 35 minutes. - Check that a thick coating of ice has not formed on the cooling coils. High noise level - Increase distance between dehumidifier and surrounding surfaces - Cooling coils may be in contact with one another and cause vibration. Disconnect dehumidifier from electricity and separate coils Ice formation on cooling coils - Remove air filter at rear of dehumidifier and check that no dust or fluff is obstructing passage of air through machine The Led is flashing in green - To low temperature- increase room temperature. If none of the above works, you should contact your nearest retailer for checking and possible overhaul of dehumidifierGB

Operating Instructions

DEHUMIDIFIERS Wood’s dehumidifier products have been known as market leaders for many years. Their dehumidifiers are suitable for use in the most demanding climates, where dehumidifying capacity is good even at lower temperatures and humidity levels. They are used with good results in premises that become damp such as cellars, garages, crawl spaces or summer house. They are also excellent for drying washing, attics, pool rooms and laundry. Being efficient and low on energy consumption. Does not wear out clothes. The amount of humidity that the dehumidifier removes depends on temperature, humidity level and placement. External weather conditions may also affect the performance of the dehumidifier. In cold weather the absolute humidity decreases and thus the extraction of humidity from the air by the dehumidifier is reduced. (The relative humidity might still be on a high level.) The dehumidifier is suitable for use in the temperature range +2˚C to +35˚C. Wood’s dehumidifiers are safe in operation and intended for continuous use over many years.

EXCESSIVE AIR HUMIDITY – A DANGER

Condensation occurs when water vapour in the air comes into contact with a cold surface such as cold window or wall. When water vapour is cooled down, condensation occurs, and water-drops are formed. In high air humidity, the air may get musty and mould might get formed, causing damage to a house and its furnishings. This environment may even cause illness for the residents. Mites and spiders also thrive in a damp environment. A dehumidifier with high performance creates a good, healthy humidity level. For greatest efficiency the doors and windows of rooms that are being dehumidified should be kept closed. Removes odours, dries wood and removes moisture from sportsware outdoors equipment. A dehumidifier may be used in cellars, washrooms, garages, crawl spaces, caravans, summer-houses and on boats. If the humidifier is kept in colder environments, you should study the Hints at the end of the manual.

PLACEMENT OF DEHUMIDIFIER

Wood’s dehumidifiers are easy to move around, all you need to have is a power source for 220/240V, but bear in mind the following: - The dehumidifier should not be placed near radiators or other heat sources or exposed to direct sunlight, as it will reduce performance. - It is beneficial to use a radiator or heating fan to keep the temperature above +2˚C. - The dehumidifier should stand at least 25cm from a wall or other obstruction, for maximum air flow. - Ideal is to put it in the center of the room / area. NOTE: When placed in a shower or bathing area, the dehumidifier should be fixed in place. It is compulsory to check and respect your local bathroom electrical regulations before use.

USING THE DEHUMIDIFIER

If the dehumidifier is transported horizontally, oil may have run out of the compressor and into the closed piping system. In such a case, let the dehumidifier stand for a few hours before being used. It is very important that the oil runs back into the compressor, otherwise the dehumidifier may be seriously damaged.

1. Check that the hose is correct installed.

2. Connect the dehumidifier to an grounded

4. Set the desired humidity level by means of

the humidity control. See the section on the humidity control. NOTE: When the dehumidifier is turned off, it will take 5 minutes before the dehumidifier is restarted, the built-in automatic functions are deactivated, during this period.GB

Operating Instructions

The dehumidifier is fitted with a hose connection. By attaching a hose to the dehumidifier the condensed water can be drained directly away. Using the hose:

1. Disconnect the dehumidifier from the

power source and give access to the drip tray.

2. Attach the hose coupling to the thread on

the dehumidifier and lead the hose to a drainage outlet. Check that the hose is not above the level of the drip tray.

3. Connect the dehumidifier to the power

source. Without hose, direct to a drain outlet:

1. Disconnect the dehumidifier from the

drain so that the dehumidified water can drip through the hole at the base of the dehumidifier and into the drain.

3. Connect the dehumidifier to the power

source. HUMIDITY CONTROL Wood’s dehumidifier is fitted with a built in humidity control, which is set to the desired level of humidity. The control registers the current level of humidity and ensures that the dehumidifier is turned on and off automatically. How to set the humidity control:

1. Set the humidity control knob to the

3. When the desired level of humidity is

reached, the hygrostat knob is turned counterclockwise until the dehumidifier is turned off. NOTE: The ambient relative humidity is most simply measured with a Wood’s hygrometer, and the most suitable range is between 50% and 60%.

The air filter at the rear of the dehumidifier ensures that the cooling coils are kept free from dust. It is important that the filter is kept clean so that air can flow freely through the dehumidifier. The filter should thus be changed when required. Your dehumidifier is equipped with a SMF-filter that enhances the capacity of the dehumidifier and cleanses the air further. Please refer to the separate filter leaflet for installation and maintenance instructions. AUTOMATIC DEFROSTING Wood’s dehumidifiers are fitted with a control unit which ensures that the cooling coils are defrosted automatically when needed. The control shuts down the compressor, which causes the cooling of the coils to stop. The fan continues to draw the air at room temperature through the dehumidifier and thus melts the ice, and the water runs down into the reservoir. This defrosting system means that the dehumidifier works at temperatures as low as +2˚C. FAN The fan ensures that air flows through the dehumidifier. Moist air is sucked in from the rear and goes via the cooling coil and the vaporizer to come out dry and warm at the front of the dehumidifier. Wood’s dehumidifiers are fitted with two fan speeds.

• Position II – gives a high air flow with maximum dehumidifying of air.

• Position I – gives a lower air flow which causes quieter operation and somewhat lower dehumidifying capacity.GB

Operating Instructions

CLEANING AND MAINTENANCE

Wood’s dehumidifiers require cleaning and change of filter, to maintain their high dehumidifying capacity. - The front grid can be vacuum-cleaned or cleaned with a brush. - The cooling coils are best cleaned with a rag and warm water-be careful - The fan motor is permanently lubricated and requires no maintenance. NOTE: Always disconnect the cord before cleaning. HINTS: - Sometimes it may be useful to use a frost guard or heater fan to make sure that the temperature does not fall below +2˚C. - For maximum dehumidifying power in a room, it is recommended that the air supply from outside and from adjoining rooms is minimized – close doors and ventilators. - Put in the center of the room - Increase temp. for faster dehumidification ( warm air carries more water.) - Use frost guard if temperature falls below +2°C - Higher dehumidification in autumn / summer because outside air is warm and humid. (Absolute humidity is normally higher).

WHEN THE DEHUMIDIFIER REQUIRES

SERVICING If the dehumidifier requires servicing, you must first contact the retailer. Proof of purchase is required for all guarantee claims. GUARANTEES 2 year´s guarantee against faults in manufacture. Note that the guarantee is only valid for reciept of receipt. NOTE! Get a 6-years warranty! Register at warranty-woods.com and replace the SMF-filter at least once a year. Please visit woods.se for more information. Recommended limits for use Temp. DSC +2˚C to +35˚C Relative humidity: 30% to 90% Recommended humidity level: appr. 50% RH IMPORTANT! - Wood’s dehumidifiers must be connected to an grounded power source. The power source sould be 220V-240V 50HzGB

Operating Instructions 6 YEARS WARRANTY In order to extend the warranty from 2 to 6 years, please follow these steps:

1. Register your dehumidifier after your purchase

at warranty-woods.com

2. Replace the SMF filter in your dehumidifier

regularly, at least once a year. If you want, we’ll send you a reminder when a filter change is due. The reminder is, of course, free of charge. You can find filters at your local retailer, or distributor. Please visit woods.se to locate your closest Wood’s distributor. Note! There is no obligation to purchase filters when you register your dehumidifier at warranty- woods.com Save your receipts! These will be required for any warranty claim during the period. NOTE: Always disconnect the cord before cleaning. NOTE! Get a 6-years warranty! Register at warranty-woods.com and replace the SMF-filter at least once a year. Please visit woods.se for more information. 07S

NOTE: It is important that the float moves freely, since its purpose is to respond to the water level and ensure that the dehumidifier is turned off when it is high. A wrongly placed float may allow the water reservoir to flood.F

cumpărarea dvs. la warranty-woods.com

ROWood’s is marketed and distributed by: TES Scandinavia AB. Maskingatan 2-4 441 27, Alingsås Sweden. woods.se info@woods.se +46 317613610
