Brand	Whirlpool
Model	WDT975SAHZ
Product Type	Dishwasher
Capacity	10 place settings
Programs	Sensor, Heavy, Normal, 1-Hour Wash, Soak & Clean, Download & Go
Options	Delay Start (1-24 h), High Temp Wash, Heat Dry, Extended Dry, Sani Rinse, Control Lock
Filtration Technology	Two-level filtration system (upper and lower filter)
Cutlery Basket	AnyWare™ removable, attaches to door or lower rack
Detergent Dispenser	Integrated, compatible with pre-measured tablets
Rinse Aid Dispenser	Integrated, adjustable (levels 1-4)
Drying	Heat Dry, Extended Dry, requires rinse aid
Progress Indicator	Door LED (blue wash/rinse, red drying, white done)
Connectivity	Internet (on select models) via Whirlpool® Connect
Exterior Material	Stainless steel
Power Supply	120 V, 60 Hz, 15 A
Water Consumption	Variable by program (2.4 to 7.9 gallons / 9.1 to 29.8 liters)
Warranty	1 year limited
Maintenance	Regular filter cleaning, recommended use of affresh® cleaner
Safety	Control Lock, grounding required
Repairability	Whirlpool authorized service, replacement parts available

Frequently Asked Questions - WDT975SAHZ WHIRLPOOL

How to clean the dishwasher filters?

Remove the upper and lower filters. Rinse them under running water until debris is removed. Use a soft brush if necessary. Do not use metal objects. Do not operate the dishwasher without the filters properly installed.

Why is my dishes not completely dry?

Use a rinse aid and select the Heat Dry or Extended Dry option. Plastic and non-stick items dry less well. Load items tilted properly to avoid water pooling.

The dishwasher does not start. What to do?

Check that the door is closed and latched. Press Start and close the door within 4 seconds. Check the power supply (fuse/circuit breaker) and water supply. If the motor stopped due to overload, wait a few minutes.

How to use the delay start option?

Select a program and desired options. Press Delay to choose the number of hours (1-24). Then press Start to begin the countdown. If the door is opened, press Start again to resume.

What type of detergent to use?

Use high-quality pre-measured tablets or packs for best results. Liquids, powders, and gels also work. Use only automatic dishwasher detergent. Add detergent just before starting the cycle.

Why are there spots or a white film on my dishes?

Use a liquid rinse aid to reduce spots. Adjust detergent amount. If spots persist, soak an item in white vinegar for 5 minutes; if they disappear, water is hard. Use the High Temp Wash and Sani Rinse options.

What do the LED indicator colors on the door mean?

The indicator turns blue during wash and rinse, red during drying, and white when the cycle is complete. If the Sani Rinse option is selected, the Sanitized indicator lights up at the end of the cycle.

How to lock the controls to prevent unintended use?

Press and hold Control Lock for 3 seconds. An indicator light turns on. Buttons are now disabled. To unlock, press and hold Control Lock again for 3 seconds until the indicator turns off.

The dishwasher does not drain. What to check?

Make sure the cycle is finished (indicator Clean is on). If not, close the door and press Start. Check that the drain hose is not kinked or clogged. If connected to a garbage disposal, remove the knockout plug. Inspect the filter for obstructions.

How to maintain the interior of the dishwasher?

Monthly, use an affresh® cleaner tablet to remove limescale and odors. Clean filters regularly. For prolonged non-use, shut off water supply and power. For winter, have the appliance winterized by a professional.

USER MANUAL WDT975SAHZ WHIRLPOOL

QR code image containing encoded data, no visible human-readable text

LEARN MORE

In an effort to conserve natural resources, this dishwasher includes a condensed User Guide. A complete User Instructions can be downloaded at www.whirlpool.com/manuals.

For future reference, please make a note of your product model and serial numbers. You can find them on the label located near the door on the right-hand or left-hand side of the dishwasher interior.

Model Number ____ Serial Number ____

Register your dishwasher at www.whirlpool.com. In Canada, register your dishwasher at www.whirlpool.ca.

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

! DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using the dishwasher, follow basic precautions, including the following:

• Read all instructions before using the dishwasher.
  ■ Use the dishwasher only for its intended function.
  ■ Use only detergents or rinse agents recommended for use in a dishwasher, and keep them out of the reach of children.
  ■ When loading items to be washed:
  1) Locate sharp items so that they are not likely to damage the door seal; and
  2) Load sharp knives with the handles up to reduce the risk of cut-type injuries.
• Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.
  ■ Do not touch the heating element during or immediately after use.
  ■ Do not operate the dishwasher unless all enclosure panels are properly in place.

■ Do not tamper with controls.
■ Do not abuse, sit on, or stand on the door, lid, or dish racks of the dishwasher.
■ To reduce the risk of injury, do not allow children to play in or on the dishwasher.
■ Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the dishwasher turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.
■ Remove the door or lid to the washing compartment when removing an old dishwasher from service or discarding it.

SAVE THESE INSTRUCTIONS

State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.

WARNING

Tip Over Hazard

Do not use dishwasher until completely installed.

Do not push down on open door.

Doing so can result in serious injury or cuts.

GROUNDING INSTRUCTIONS

■ For a grounded, cord-connected dishwasher:

The dishwasher must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. The dishwasher is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

WARNING: Improper connection of the equipment-grounding conductor can result in a risk of electric shock.

Check with a qualified electrician or service representative if you are in doubt whether the dishwasher is properly grounded. Do not modify the plug provided with the dishwasher; if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

■ For a permanently connected dishwasher:

The dishwasher must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the dishwasher.

SAVE THESE INSTRUCTIONS

KEY USAGE TIPS

Filtration system and maintenance

Your dishwasher has the latest technology in dishwasher filtration. This filtration system minimizes sound and optimizes water and energy conservation while providing superior cleaning.

The filter system consists of two parts, an upper filter assembly and lower filter.

IMPORTANT: To avoid damage to dishwasher, do not operate your dishwasher without filters properly installed. Be sure lower filter is securely in place and upper filter assembly is locked into place. If upper assembly turns freely, it is not locked into place.

The filters may need to be cleaned when:

■Visible objects or soils are on upper filter assembly.

■Dishes feel gritty to the touch.

See "Filtration System" in the full User Instructions for complete removal and maintenance schedule.

IMPORTANT: Do not use a wire brush or a scouring pad, etc., as they may damage the filters.

Rinse filter under running water until soils are removed. If you have hard to remove soils or calcium deposits because of hard water, a soft brush may be required.

Upper filter assembly

Lower filter

Internet connectivity (on some models)

Use the Internet Connectivity Guide included in your literature pack to get connection and operation instructions. You can also find these and additional information at www.whirlpool.com/connect. If you have any problems or questions, call the Whirlpool Connected Appliance Team at 1-866-333-4591. In Canada, visit www.whirlpool.ca/en_CA and click on the Whirlpool® Connected Appliances link.

Drying – Rinse aid is essential

You must use a drying agent such as a rinse aid for good drying performance. Rinse aid along with the Heat Dry option will provide best drying and avoid excessive moisture in dishwasher interior.

Illustration of a hand holding a camera with a blue cable, no text or symbols present

Energy efficiency

Energy efficiency is gained by extending cycle time and reducing the amount of wattage and water used during your dishwasher's cycle. For exceptional cleaning, cycles are longer due to the soak and pauses.

Efficient dishwashers run longer to save water and energy, just as driving a car slower saves on gas. Your first cycle will run longer to calibrate the optical water sensor.

Press Start every time you add a dish

IMPORTANT: If anyone opens the door, such as for adding a dish (even during the Delay option), Start must be pressed each time.

Push door firmly closed within 4 seconds of pressing Start. If door is not closed within 4 seconds, the Start button LED will flash, an audible tone will be heard, and cycle will not start.

OPERATING YOUR DISHWASHER

1. Prepare and load the dishwasher

Technical line drawing of a mechanical assembly with multiple cylindrical components and grid lines (no text or symbols)

Technical line drawing of a multi-layered mechanical component with circular and oval features (no text or symbols)

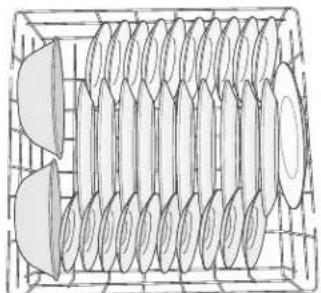

10-place load - upper rack 10-place load - lower rack

IMPORTANT: Remove leftover food, bones, toothpicks, and other hard items from dishes. Remove labels from containers before washing.

■ Make sure when dishwasher door is closed, no items are blocking detergent dispenser.
Items should be loaded with soiled surfaces facing down and inward to the spray as shown in the graphics above. This will improve cleaning and drying results. Angle dirtiest dish surface downward, allowing space for water to flow up through rack and between dishes.
■ Avoid overlapping items, like bowls or plates, that may trap food.

■Place plastics, small plates, and glasses in upper rack.

■Wash only items marked "dishwasher safe."

■ To avoid thumping/clattering noises during operation, load dishes so they do not touch one another. Make sure lightweight load items are secured in racks.
■ Use slots in the covers and suggested loading patterns to keep your silverware separated for optimum wash.

Cross-sectional diagram of a multi-tiered food storage unit with plastic cans and dish holders (no text or labels)

NOTES:

■The AnyWare™ Silverware Basket can sit in the door or on the outside front of the lower rack for completely usable rack space, letting you fit more items in the rack. It can also go in your lower rack to fit your needs.
■Silverware basket may vary by model.

If your silverware does not fit into the designated slots, lift and slide covers off to remove them and mix silverware types to keep them separated.

■ When loading silverware, always place sharp items pointing down and avoid "nesting" as shown.

2. Check that all arms spin freely

Items in the rack can block the spray arms.

Technical diagram of a mechanical device with internal components and directional arrows (no text or labels)

3. Add detergent

Premeasured Detergents

High-quality premeasured tablets and packs are recommended for improved performance.

Quality tablets and packs have been proven better than powder, liquid, or gel detergents at reducing filming on dishes. Using tablets and packs over time will start to reduce or eliminate white film. They are suitable for all water hardness and soil levels. Also, by using a rinse aid, you can minimize repeat buildup of white film (not all packs and tablets contain rinse aid). Always place premeasured detergents in main compartment and close lid.

Pre Wash A LEC OPEN Air based meals, or Chancera Palmers and Chancera New Kit

NOTE: Follow instructions on the package when using other dishwasher detergent types. See the complete owners manual for more details about powders, liquids, and gels.

■ Use automatic dishwasher detergent only. Add detergent just before starting a cycle.
■ Fresh automatic dishwasher detergent results in better cleaning. Store tightly closed detergent container in a cool, dry place.

Pre Wash OPEN For best results, and Oscute plumour and Oscute Line Aid LIFT

Pre Wash SLIDE For best results. Wash SLIDE OPEN

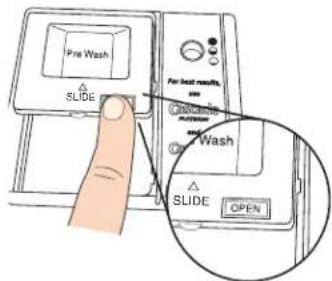

Place selected detergent in the dispenser. Place finger, as shown, and slide lid closed. Press firmly until it clicks.

Push OPEN, as shown, and the lid will slide open.

4. Add rinse aid

• Your dishwasher is designed to use rinse aid for good drying performance. Without rinse aid, your dishes and dishwasher interior will have excessive moisture. The heating and drying options will not perform as well without rinse aid.
  ■ Rinse aid keeps water from forming droplets that can dry as spots or streaks. It also improves drying by allowing water to drain off of dishes after final rinse. Rinse aid does not adhere to dishware, and when used, it is dispensed during each cycle.

■ To add rinse aid, open the dispenser lid by gently pushing in the center of the lid with your thumb while lifting up on the edge.

Illustration of a hand inserting a component into a device (no text or symbols visible)

■ Pour rinse aid into the opening until the indicator level shows that it is full.

Illustration of a hand inserting a device into a device with a blue cap (no text or symbols visible)

■Close dispenser by pushing down gently on the lid.

NOTE: For most water conditions, the factory setting will give good results.

If you are experiencing poor drying performance, you may want to try a higher setting. Turn the arrow adjuster to a higher number to increase the amount of rinse aid.

5. Select a cycle

Efficient dishwashers run longer to save water and energy, just as driving a car slower saves on gas. Typical cycle time is approximately 2^1/2 hours but can take less or more time to complete depending on selections.

6. Select options

You can customize your cycles by pressing the options desired. If you change your mind, press the option again to turn off the option. Not all options are available for every cycle. If an invalid option is selected for a given cycle, the lights will flash. Adding options may increase the cycle time.

7. Follow the progress of your dishwasher

The indicator LED on the front right corner of the door panel will glow blue for washing/rinsing, red for drying, and white for complete.

Some models indicate cycle progress with LEDs on the control panel such as Add Dish, Washing, Drying, Clean, and Sanitized.

Simple line drawing of a corner joint with a sun symbol (no text or labels)

8. Start or resume a cycle

NOTE: If needed, run hot water at the sink nearest your dishwasher until the water is hot. Turn off water.

Push door firmly closed within 4 seconds of pressing Start. If door is not closed within 4 seconds, the Start button LED will flash, an audible tone will be heard, and cycle will not start.

IMPORTANT: If the door is opened for any reason after the cycle is started (even during the Delay option), the Start button must be pressed again.

CYCLE GUIDE

This information covers several different models. Your dishwasher may not have all of the cycles and options described.

IMPORTANT: The sensor in your dishwasher monitors the soil level. Cycle time and/or water usage can vary as the sensor adjusts the cycle for the best wash performance. If the incoming water is less than the recommended temperature or food soils are heavy, the cycle will automatically compensate by adding time, heat, and water as needed.

	CYCLES ESTIMATED	WASH TIME W/O OPTIONS	WATER USAGE GALLONS (LITERS)
■ Sensor	This cycle senses the load size, soil amount, and toughness of soil, to adjust the cycle for improved cleaning, using only the amount of water and energy needed. The Sensor cycle is automatically selected if you first press the Start button.*	2:10 to 3:15 3.38 to 7.4(12.8 to 28.0)
■ Heavy	Use for hard-to-clean, heavily soiled pots, pans, casseroles, and regular tableware. 2:45 to 3:25 7.4 (28.0)
■ Normal	This cycle is recommended for daily, regular, or typical use to completely wash and dry a full load of normally soiled dishes. This dishwasher's government energy certifications were based on the Normal cycle with only the Heated Dry option selected.**	2:00 to 3:10 2.4 to 7.4(9.09 to 28.0)
■ 1-Hour Wash	For fast results, the 1-Hour Wash will clean dishes using slightly more water and energy. For improved drying, select the Heat Dry option.NOTE: Some detergents are not recommended for short wash cycles, please refer to your detergent packaging for more information.	0:55 to 1:05 7.87 (29.8)
■ Soak & Clean	This cycle quietly soaks dishes with an extended prewash which eliminates the need to presoak dishes, saving personal time and effort. For optimal cleaning results during the Soak & Clean cycle, add prewash detergent. Use this cycle for loads with heavy amounts of dried-on or hard to clean baked-on food.	6:45 to 7:25 7.4 (28.0)
■ Download & Go■ Remote Enable Hold 3 sec(on some models)	This is a specialty cycle that you select from the Whirlpool® app and download to your dishwasher. Your dishwasher remembers this cycle until you replace it by downloading another cycle from the Whirlpool® app.	Variable Variable up to 7.87 (29.8)

*The government energy certifications are not based on this cycle. See the Normal cycle description for the government energy certification cycle. Using the Sensor cycle may increase your energy usage.
**No other washing and drying temperature options were selected, and it was not subject to truncated testing. Rinse aid was not used, and there was no detergent used in the prewash.

	OPTIONS CAN BE	SELECTED WITH	WHAT IT DOES ADDED TIME TO CYCLE	ADDED WATER GALLONS (LITERS)
1-24 Hr Delay	Delay displays how many hours before the cycle will begin.To delay the start:1. Select a wash cycle and options.2. Press DELAY. Each time you press Delay, it will display the next available delay time.3. Press START to begin the delay countdown.NOTE: If the door is opened, such as to add a dish, the Start button must be pressed to resume the delay countdown.	Available with any cycle	Delays start of a cycle up to 24 hours (on some models).
2-4-8 Hr Delay(varies by model)
Hi Temp Wash	Raises the main wash temperature to improve cleaning for loads containing tough, baked-on food.	Sensor Heavy Normal Soak & Clean	Raises the main wash temperate to135°F (57°C).	0:05 to 0:13 0 - 3.9(0 - 14.6)
Heat Dry	Dries dishes with heat. This option, with the use of rinse aid, will provide the best drying results. Plastic items are less likely to deform when loaded in the top rack. Use Heat Dry for optimum drying performance. For air dry, both Heat Dry and Extended Dry LEDs are off.	Sensor Heavy Normal 1-Hour Wash Soak & Clean	Uses a heating element to speed drying times. Heat Dry option defaults to On when any cycle is selected, except for 1-Hour Wash.
Extended Dry	Uses heat and additional time to dry dishes. For the very best drying performance, use rinse aid and the Extended Dry option.	Sensor Heavy Normal 1-Hour Wash Soak & Clean
Sani RinseSanitized	Sanitizes dishes and glassware in accordance with NSF International NSF/ANSI Standard 184 for Residential Dishwashers. Certified residential dishwashers are not intended for licensed food establishments. Only sanitizing cycles have been designed to meet the requirements of the NSF/ANSI 184 performance standard for soil removal and for sanitization efficacy. There is no intention, either directly or indirectly, that all cycles on a NSF/ANSI 184 certified dishwasher meet the NSF/ANSI 184 performance standard for soil removal and for sanitization efficacy.The Sani Rinse indicator glows at the end of the cycle if the Sani Rinse option was successfully completed. If the indicator does not activate, it is probably due to the cycle being interrupted.	Sensor Heavy Normal	Raises the main wash temperate to135°F (57°C) and the final rinse temperature to (156°F (69°C).	0:05 to 1:06 0 - 3.9(0 - 14.6)
Control LockHold 3 sec	Use the Control Lock option to avoid unintended use of dishwasher between cycles, or cycle and option changes during a cycle. To turn on Control Lock, press and hold CONTROL LOCK for 3 seconds. Control Lock light will stay on for a short time, indicating that it is activated. When the Lock indicator is lit, all buttons are disabled. If you press any button while your dishwasher is locked, the light flashes 3 times. The dishwasher door can still be opened/closed while the controls are locked. To turn off Control Lock, press and hold CONTROL LOCK for 3 seconds. Control Lock light turns off.

Control Purpose Comments
	Press to start or resume a wash cycle.	If the door is opened during a cycle or the power is interrupted, the Start/Resume button LED flashes. Cycle will not resume until Start is pressed and door is closed. Push door firmly closed within 4 seconds of pressing Start.
	Press to cancel wash cycle.	Close the door firmly. Press and hold CANCEL-DRAIN for 3 seconds. The dishwasher starts a 2-minute drain (if needed). Let dishwasher drain completely.
	To follow progress of your dishwasher cycle.	The indicator LED on the front right corner of the door panel glows white when a cycle is finished. If you select the Sani Rinse option, when the cycle is finished, the Sanitized indicator on the control panel glows. If your dishwasher did not properly sanitize your dishes, the Sanitized indicator flashes at the end of the cycle. This can happen if the cycle is interrupted or if water could not be heated to required temperature. The light goes off when you open and close door or press CANCEL.

Control Purpose Comments

Affresh ■(on some models)

The affresh® LED lights up to recommend that you run a cycle using an affresh® dishwasher cleansing tablet.

affresh® tablets are recommended monthly for the removal and prevention of hard water filming.

DISHWASHER CARE

Cleaning the Exterior

Clean the exterior of dishwasher with a soft, damp cloth and mild detergent. If your dishwasher has a stainless steel exterior, a stainless steel cleaner, such as affresh ^9† Stainless Steel Cleaner is recommended. Avoid using abrasive cleaning products on the exterior of the dishwasher.

Cleaning and Maintaining the Interior

Many detergents may leave white spots or a white residue on dishware and on the interior of the dishwasher. Over time this residue can become unsightly and could affect dishwasher performance. Use of a dishwasher cleaning product such as affresh® Dishwasher Cleaner can help to remove the residue. Monthly use of affresh® Dishwasher Cleaner is recommended to help maintain the dishwasher. Follow package directions.

NOTE: Whirlpool recommends the use of high-quality, premeasured detergent tablets or packs and the use of rinse aid for dishwasher cleaning and daily care.

If you have a drain air gap, check and clean it if the dishwasher isn't draining well.

To Reduce Risk of Property Damage During Vacation or Extended Time Without Use:

■When you will not be using the dishwasher during the summer months, turn off the water and power supply to the dishwasher.

Illustration of a kitchen sink with a faucet and a cylindrical water dispenser, showing a green arrow indicating the drop (no text or symbols present)

■ Make sure the water supply lines are protected against freezing conditions. Ice formations in the supply lines can increase water pressure and cause damage to your dishwasher or home. Damage from freezing is not covered by the warranty.

■ When storing your dishwasher in the winter, avoid water damage by having your dishwasher winterized by authorized service personnel.

†® affresh is a registered trademark of Whirlpool, U.S.A.

TROUBLESHOOTING

First try the solutions suggested here. If you need further assistance or more recommendations that may help you to avoid a service call, refer to the warranty page in this manual and scan the code with your mobile device or visit https://www.whirlpool.com/product_help. In Canada, visit http://www.whirlpool.ca.

Contact us by mail with any questions or concerns at the address below:

In the U.S.A.:

Whirlpool Brand Home Appliances

Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

In Canada:

Whirlpool Brand Home Appliances

Customer eXperience Centre

200 - 6750 Century Ave.

Mississauga, Ontario L5N 0B7

Please include a daytime phone number in your correspondence.

If you experience Recommended solutions

Dishwasher does not run or stops during a cycle	It is normal for certain cycles to repeatedly pause for several seconds during the main wash. Is the door closed tightly and latched?Is the right cycle selected?Is there power to the dishwasher? Has a household fuse blown or has a circuit breaker tripped? Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician.Has the motor stopped due to an overload? The motor automatically resets itself within a few minutes. If it does not restart, call for service.Is the water shut-off valve (if installed) turned on?
The Clean indicator is flashing	Check the following:■ Is the overfill protection float able to move up and down freely? Press down to release.■ Be sure the water supply is turned on to the dishwasher. (This is very important following the new installation of your dishwasher.)■ Check for suds in the dishwasher. If foam or suds are detected by the dishwasher sensing system, the dishwasher may not operate properly or may not fill with water.Suds can come from:■ Using the incorrect type of detergent, such as laundry detergent, hand soap, or dish detergent, for hand washing dishes.■ Forgetting to replace the rinse aid dispenser cap after filling (or refilling) the rinse aid.■Using an excessive amount of dishwasher detergent.
If you experience Recommended solutions
Dishes do not dry completely	NOTE: Plastic and items with nonstick surfaces are difficult to dry because they have a porous surface which tends to collect water droplets. Towel drying may be necessary.Use of rinse aid along with the Heat Dry option is needed for proper drying.Proper loading of items can affect drying.Glasses and cups with concave bottoms hold water. This water may spill onto other items when you are unloading the dishwasher.■Unload the bottom rack first.■ For improved results, place these items on the more slanted side of the rack.
Noise	NOTE: Common noises:■ Surging sounds can occur periodically throughout the cycle while the dishwasher is draining.■Normal water valve hissing may be heard periodically.■ A normal snap sound may be heard when the detergent dispenser opens during the cycle or when the door is opened at the end of the cycle.■Improper installation will affect noise levels.Be sure the filters are properly installed.A thumping sound may be heard if items extend beyond the racks and interfere with the wash arms. Readjust the dishware and resume the cycle.
Spotting/Filming	Liquid rinse aid is necessary for drying and to reduce spotting.Use the correct amount of detergent.Confirm that the cloudiness is removable by soaking the item in white vinegar for 5 minutes. If the cloudiness disappears, it is due to hard water. Adjust the amount of detergent and rinse aid. See the “Dishwasher Care” section. If it does not come clear, it is due to etching.Be sure the incoming water temperature is set at 120°F (49°C).Try using the Hi-Temp Wash or Sani Rinse options.To remove spotting, run a vinegar rinse through the dishwasher.■ Wash and rinse the affected dishware and load into dishwasher. Remove all silverware and metal items.Put 2 cups (500 mL) of white vinegar in a glass measuring cup in the lower rack. Run a Normal cycle with the Heat Dry option turned off. No detergent is needed. See “Dishwasher Care” section in full User Instructions.
Dishwasher does not clean completely	Be sure the dishwasher is loaded correctly. Improper loading can greatly decrease the washing performance.See the “Operating Your Dishwasher” section.Check filter to ensure it is properly installed. Clean it if needed. See the “Filtration System” section in the full User Instructions for details.Select the proper cycle for the type of soils. The Sensor or Heavy wash cycles can be used for tougher loads.Be sure the incoming water temperature is at least 120°F (49°C).Use the proper amount of fresh detergent. More detergent is needed for heavier-soiled loads and hard water conditions.Scrape food from dishes prior to loading (do not prerinse).If foam or suds are detected by the dishwasher sensing system, the dishwasher may not operate properly or may not fill with water.Suds can come from:■ Using the incorrect type of detergent, such laundry detergent, hand soap, or dish detergent, for hand washing dishes.■ Not replacing the rinse aid dispenser cap after filling (or refilling) the rinse aid dispenser.■Using an excessive amount of dishwasher detergent.
Dishwasher does not drain	Be sure the cycle has been completed (the Clean light is on). If it has not, you will need to resume the cycle by closing the door and pressing Start.If dishwasher is connected to a food waste disposer, be sure the knockout plug has been removed from the disposer inlet.Check for kinks in the drain hose.Check for food obstructions in the drain or disposer.Check your house fuse or circuit breaker.

ACCESSORIES

Whirlpool Corporation also offers a variety of accessories for your dishwasher. In the U.S.A., visit www.whirlpool.com/accessories to order. In Canada, visit www.whirlpoolparts.ca to order.

WHIRLPOOL® MAJOR APPLIANCE LIMITED WARRANTY

ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE.

Please have the following information available when you call the Customer eXperience Center:

■Name, address and telephone number
■Model number and serial number
■A clear, detailed description of the problem
■Proof of purchase including dealer or retailer name and address

IF YOU NEED SERVICE:

1. Before contacting us to arrange service, please determine whether your product requires repair. Some questions can be addressed without service. Please take a few minutes to review the Troubleshooting or Problem Solver section of the Use and Care Guide, scan the QR code on the right to access additional resources, or visit www.whirlpool.com/product_help.
2. All warranty service is provided exclusively by our authorized Whirlpool Service Providers. In the U.S. and Canada, direct all requests for warranty service to:

Whirlpool Customer eXperience Center

In the U.S.A., call 1-800-253-1301. In Canada, call 1-800-807-6777.

If outside the 50 United States or Canada, contact your authorized Whirlpool dealer to determine whether another warranty applies.

www.whirlpool.com/product_help

ONE YEAR LIMITED WARRANTY

WHAT IS COVERED WHAT IS NOT COVERED

For one year from the date of purchase, when this major appliance is installed, operated and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP (hereafter "Whirlpool") will pay for Factory Specified Replacement Parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased, or at its sole discretion replace the product. In the event of product replacement, your appliance will be warranted for the remaining term of the original unit's warranty period.

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. Service must be provided by a Whirlpool designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.

1. Commercial, non-residential, multiple-family use, or use inconsistent with published user, operator or installation instructions.
2. In-home instruction on how to use your product.
3. Service to correct improper product maintenance or installation, installation not in accordance with electrical or plumbing codes or correction of household electrical or plumbing (i.e. house wiring, fuses or water inlet hoses).
4. Consumable parts (i.e. light bulbs, batteries, air or water filters, preservation solutions, etc.).

5. Defects or damage caused by the use of non-genuine Whirlpool parts or accessories.

6. Conversion of products from natural gas or L.P. gas.

7. Damage from accident, misuse, abuse, fire, floods, acts of God or use with products not approved by Whirlpool.

8. Repairs to parts or systems to correct product damage or defects caused by unauthorized service, alteration or modification of the appliance.

9. Cosmetic damage including scratches, dents, chips, and other damage to the appliance finishes unless such damage results from defects in materials and workmanship and is reported to Whirlpool within 30 days.

10. Discoloration, rust or oxidation of surfaces resulting from caustic or corrosive environments including but not limited to high salt concentrations, high moisture or humidity or exposure to chemicals.

11. Food or medicine loss due to product failure.

12. Pick-up or delivery. This product is intended for in-home repair.

13. Travel or transportation expenses for service in remote locations where an authorized Whirlpool servicer is not available.

14. Removal or reinstallation of inaccessible appliances or built-in fixtures (i.e. trim, decorative panels, flooring, cabinetry, islands, countertops, drywall, etc.) that interfere with servicing, removal or replacement of the product.

15. Service or parts for appliances with original model/serial numbers removed, altered or not easily determined.

The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY

Whirlpool makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask Whirlpool or your retailer about buying an extended warranty.

LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

QR code image containing encoded data, no visible human-readable text

EN SAVOIR PLUS

Illustration of two hands using a tool to clean or wash the surface of a kitchen sink (no text or symbols present)

Illustration of a hand holding a camera lens next to a device with a tray and control panel (no text or symbols visible)

Économies d'énergie

3D wireframe diagram of a mechanical assembly with multiple cylindrical components arranged in a grid (no text or labels)

Technical line drawing of a mechanical component with repeating circular features and internal channels (no text or symbols)

Cross-sectional diagram of a multi-tiered food processor with multiple kitchen utensils and a central tool (no text or labels)

REMARQUES :

Technical diagram of a kitchen appliance with labeled components and directional arrows (no text or symbols)

Pre Wash a Clearing at 100 gm and Clearing at 100 gm

Pre Wash OPEN For best results, and Oncadie Alumina and Oncadie Elma Aid LIFT

Pre Wash SLIDE For best meals. Wash SLIDE OPEN

Hand inserting a card into a device (no text or symbols visible)

Illustration of a hand holding a camera lens next to a device case (no text or symbols visible)

Plein

Ajouter

Pure geometric lines forming an L-shape with a small sun icon (no text or symbols)

Illustration of a kitchen sink with a faucet and a cylindrical sink, showing a green arrow indicating direction (no text or symbols)

Customer eXperience Centre

200 - 6750 Century Ave.

Mississauga, Ontario L5N 0B7
