Product Type	LED Television
Brand	LG
Model	49SM8500PLA
Screen Size	49 inches (diagonal)
Resolution	4K Ultra HD (3840 x 2160)
Backlight	LED
Dimensions (without stand)	Approximately 1100 x 650 x 50 mm (estimate)
Weight (without stand)	Approximately 13 kg (estimate)
Power Supply	100-240 V, 50/60 Hz, ~120 W (estimate)
VESA Standard	200 x 200 mm (M6, 4 screws)
Connectivity	HDMI (x3), USB (x2), Ethernet, Wi-Fi 802.11ac, Bluetooth, CI+
Smart Functions	Smart TV, webOS, Magic Remote compatible, voice recognition
Supported Audio Formats	Dolby Digital, DTS, PCM
Maintenance and Cleaning	Unplug before cleaning, use a soft dry cloth, avoid chemicals
Safety	Do not expose to rain/humidity, do not open the casing, keep away from children for mounting
Spare Parts and Repairability	Use only LG-approved accessories, contact customer service for repair
General Information	Keep the manual for future reference, serial number on the back

Frequently Asked Questions - 49SM8500PLA LG

How to connect the TV to Wi-Fi?

Press the Settings button on the remote, select All Settings > Connection > Wi-Fi Connection, choose your network and enter the security key.

What to do if the Magic Remote doesn't work?

Check the batteries (AA type), ensure there are no obstacles, and move the remote closer to the sensor. If the problem persists, re-pair it: press the Home and Back buttons simultaneously for 5 seconds, then re-pair.

How to clean the screen without damaging it?

Unplug the TV. Use a soft dry cloth to wipe gently. Never use chemicals, alcohol, or benzene. For stubborn stains, slightly dampen the cloth with water and wring it well before cleaning.

Why does the image stay fixed (burn-in)?

Prolonged display of a static image can cause burn-in. Avoid leaving a static image for hours. Activate screen savers or turn off the TV when not in use.

How to install the wall mount?

Use a VESA 200x200 mm compatible wall mount with M6 screws. Remove the stand if present. Attach the brackets to the wall and the TV following the kit instructions. Make sure the wall is solid and call a professional if needed.

What to do if the TV does not turn on?

Check that the power cord is properly plugged in and the outlet works. Try pressing the power button under the screen. If nothing happens, unplug for 30 seconds then plug back in. If the problem persists, contact LG customer service.

How to update the firmware?

Go to Settings > All Settings > General > About This TV > Update. You can enable automatic updates or check manually.

Can I connect a Bluetooth headset?

Yes, if your TV is Bluetooth compatible (model with wireless module). Enable Bluetooth on the TV in the connection settings, then pair your headset. Make sure the headset is in pairing mode.

How to use the voice search function?

Press and hold the voice recognition key (microphone) on the Magic Remote. When the voice bar appears on screen, speak your command out loud. An internet connection is required.

What do the cracking noises from the TV mean?

Cracking noises are normal and due to thermal expansion of plastics when the TV heats up or cools down. They do not affect performance. If you hear electrical hums, they come from the power supply and are also normal.

USER MANUAL 49SM8500PLA LG

MANUEL D'UTILISATION

Sécurité et ↔

Téléviseur LED*

• Image shown may differ from your TV.
• Image shown on a PC or mobile phone may vary depending on the OS(Operating System).
• App icon positions may vary on the platform, depending on the software version.

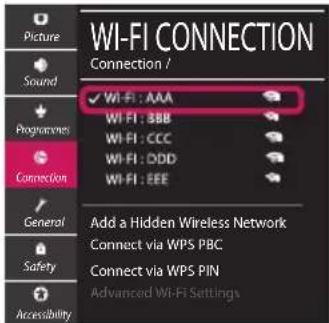

Network Settings

1 Press the Settings) on the remote to access the settings menu. Point the [Settings] icon and select by pressing the Wheel (OK) button on the remote.

4 If the connection is successful, the "[Connected to Internet]" is displayed.

2 Select the [Connection] [Wired Connection(Ethernet)] or [Wi-Fi Connection].

You can check the status of connection in [Advanced Wi-Fi settings].

3 The device automatically tries to connect to the network available (wired network first). When you select the [Wi-Fi Connection], the network list available is displayed. Choose the network you wish to use.

For wireless AP (Router) that have the symbol, you need to enter the security key.

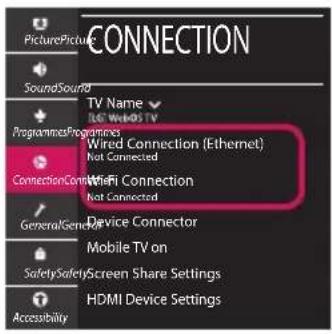

Troubleshooting Network Problems

1 Press the Settings) on the remote to access the settings menu. Point the [A] Settings] icon and select by pressing the Wheel (OK) button on the remote.

2 Select the [Connection] [Wired Connection (Ethernet)] or [Wi-Fi Connection] [Advanced Wi-Fi Settings].

→

Follow the instructions below that correlate to your network status.

Check the TV or the AP (Router).

When X appears next to TV:

1 Check the connection status of the TV, AP (Router).
Power off and power on the TV, AP (Router).
If you are using a static IP, enter the IP directly.
Contact internet service provider or AP (Router) company.

Check the AP (Router) or consult your Internet service provider.

When X appears next to Gateway:

Unplug the power cord of the AP (Router) and try to connect after 5 seconds.
2 Initialize (Reset) the AP (Router).
Contact internet service provider or AP (Router) company.

When X appears next to DNS:

Unplug the power cord of the AP (Router) and try to connect after 5 seconds.
Initialize (Reset) the AP (Router).
Check that the MAC address of the TV/AP (Router) is registered with your Internet service provider. (The MAC address displayed on the right pane of the network status window should be registered with your Internet service provider.)
Check the AP (Router) manufacturer's website to make sure your router has the latest firmware version installed.

SmartShare Connection to Smartphone

1 Check that Wi-Fi is enabled on your smartphone. To use SmartShare, both devices must on the same local network.
2 Install/run the app for sharing content on your smartphone (It's called LG TV Plus on LG phones).
3 Enable your smartphone to share content files with other devices.
4 Select the file type you want to play (movie, audio or photo).
5 Select a movie, music or photo file to play on the TV.
6 Play the media file to view and enjoy it on your TV.

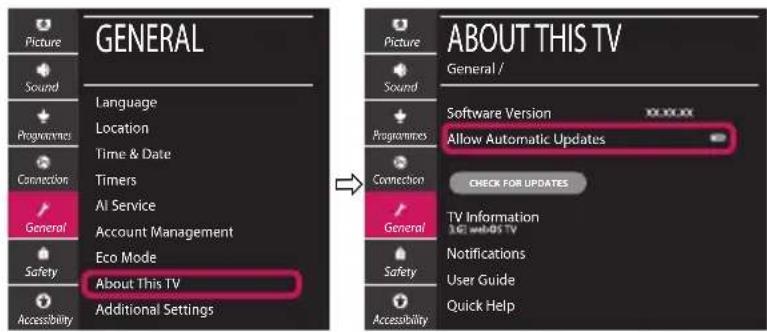

Updating the TV Firmware

• If the TV is turned on for the first time after it was shipped from the factory, initialization of the TV may take a few minutes.

1 (Settings) [All Settings] [General] [About This TV] [CHECK FOR UPDATES]
2 After checking the version of the software, update it. If you check the "[Allow Automatic Updates]", you can update the software automatically.
