Technical Specifications	Klarstein Zap Dry clothes dryer, drying capacity of 10 kg, power of 2000 W, energy class B
Drying Modes	5 drying programs, including delicate, normal, and quick
Dimensions	Compact dimensions: 60 x 60 x 85 cm
Weight	Net weight: 37 kg
Usage	Easy to use with an intuitive control panel and LED display
Maintenance	Removable lint filter for easy cleaning, water tank to be emptied after each use
Safety	Overheat protection, child safety lock
General Information	Ideal for small spaces, quiet operation, 2-year warranty

Frequently Asked Questions - Zap Dry Klarstein

The Klarstein Zap Dry dryer won't start, what should I do?

Check that the appliance is properly plugged in and that the power outlet is working. Also make sure the dryer door is properly closed.

The dryer is not heating enough, what should I do?

Check that the lint filter is clean and the water tank is empty. A full filter or tank can reduce drying efficiency.

The dryer is making an unusual noise, what should I check?

Listen carefully to identify the source of the noise. Check if there are foreign objects in the drum or if the dryer is level.

How do I clean the lint filter of the Klarstein Zap Dry?

Remove the lint filter from the appliance and clean it under running water. Make sure it is completely dry before putting it back in place.

Clothes are still damp after the cycle, what should I do?

Try not to overload the drum. If clothes are too tightly packed, air will not circulate properly. Reduce the load and run another cycle.

The dryer displays an error code, what does it mean?

Consult the user manual to understand the meaning of the displayed error code. It may indicate a specific problem requiring special attention.

How can I optimize the energy consumption of the Klarstein Zap Dry?

Use the appropriate drying mode for the fabric type and avoid running the dryer empty. Dry full loads to maximize energy efficiency.

The dryer emits an unpleasant odor, what should I do?

Check if the lint filter is clean and the water tank is emptied. Clean the inside of the drum with a damp cloth and some white vinegar.

USER MANUAL Zap Dry Klarstein

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 12

Features and Device Description 13

Setup/Operation14

Cleaning and Care 16

Troubleshooting (for Service Personnel) 16

Disposal Considerations 17

Manufacturer & Importer (UK) 17

TECHNICAL DATA

Item number 10033625, 1003	3626, 10035142, 10035143
Power supply 220-240 V~ 50/60 Hz
Power input 820 W
Capacity 50 l
Dimensions 40 x 40 x 74.5 cm

Temperature of the dryer programs

TOWEL 75 °C
UNDERWEAR / BABY CLOTHES 65 °C
DEHUMIDIFY / DEODORIZE 55 °C

SAFETY INSTRUCTIONS

Read the user manual carefully before installing and operating the unit, and retain it for future reference.

• This appliance is only suitable for drying textiles washed in water.
• The device is not suitable for drying footwear or gloves.
• Children over the age of 8 and persons with reduced mental or physical or lack of experience and knowledge may only use the device if they are instructed on how to do so by a person responsible for their safety, or if they are supervised and understand the hazards associated with the use of the device.
  Supervise children so they do not play with the unit.
• The cleaning and maintenance of the device should not be carried out by children unless they are under supervision.
• If the power cord is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person to avoid danger.
• The foam packaging must be removed before using the device. To prevent blockage of the air intake through the bottom of the device, do not place the tumble dryer on soft surfaces such as carpets.
• Covering the gap between the frame and the air outlet is prohibited.
• Do not place clothing directly on the air outlet, as this will impair the drying effect.
• To avoid work accidents, do not put control clothing directly in the tumble dryer.
• To avoid danger, do not allow the device to be operated by small children.

Important operating note: Spin the clothes before putting them into the machine, this will save a lot of time and energy. Hang the clothes on a hanger so that the moist air can drain quickly.

FEATURES AND DEVICE DESCRIPTION

• A new design structure and the exterior use of engineering plastics result in an elegant appearance and durability. The interior of the unit is made of stainless steel, which provides a clean and healthy alternative.
  The device offers a variety of drying methods, which allows conscientious care.
• Through the hanging drying process, clothes will not wrinkle easily.
• The drying process is controlled by a microchip, so that it performs optimally, even under difficult conditions. The buttons on the device are easy to use.
• The built-in circuit breaker in the device makes the use of the device safe and reliable.
• The drying time can be set so that the machine automatically turns off after the drying time has elapsed.
• The clothes can be dried with scent in the aroma container to give the clothes a certain fragrance.

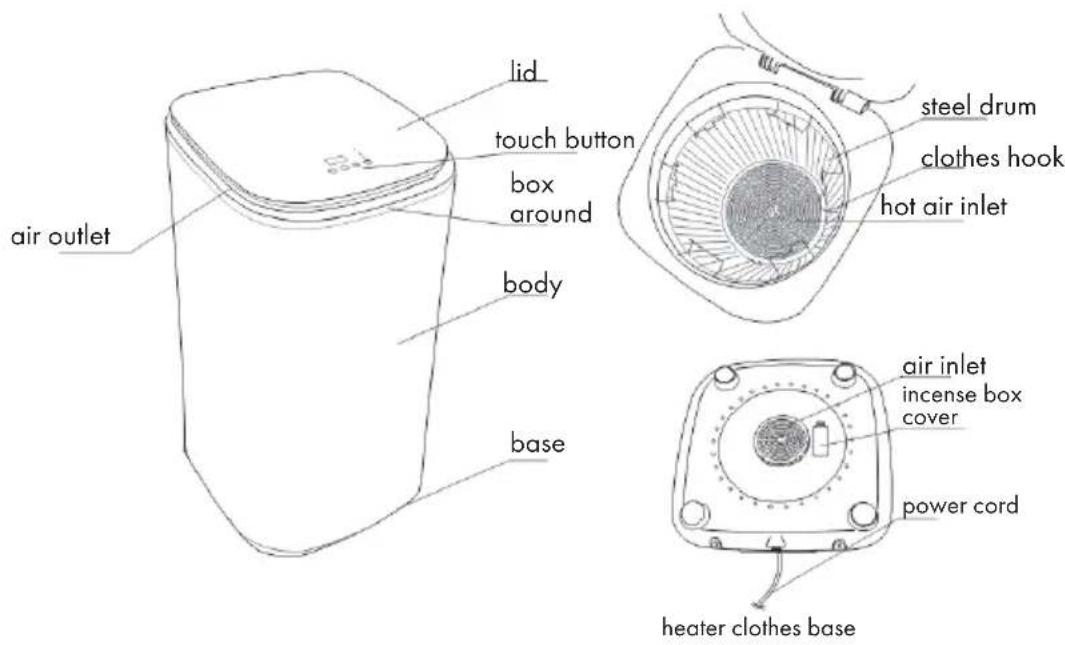

Overview

SETUP/OPERATION

Before first use

1. Remove the operating instructions and other accessories from the inside of the tumble dryer and remove all packaging materials. Place the tumble dryer on a flat, hard surface. The lint control is carefully adjusted, so do not place the unit on soft surfaces such as carpets, as this could block the air inlet, which could result in a fire hazard.
2. The tumble dryer dries through the gap between the cover and the surroundings. This gap must never be blocked, as the drying effect could be impaired and fire may occur.
3. Spin the laundry in the washing machine or wring it by hand so that it no longer drips. Wet local control clothing must not be placed directly in the tumble dryer.
4. Hang the clothes on the clothes hooks. Try to hang the clothes loosely as this will improve the drying effect. Do not place clothing directly on the air outlet as it will block the wind and impair the drying effect.

Use of the tumble dryer

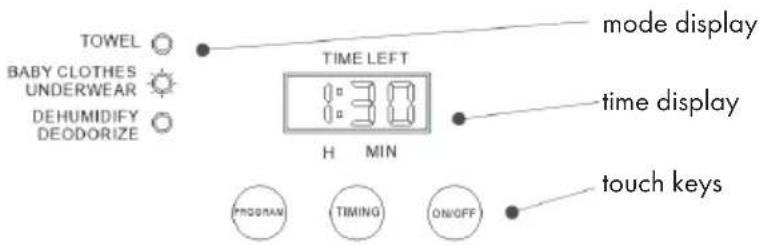

1. The tumble dryer is operated by a microcomputer. Press the key. The device has the following function keys and indicator displays:

Button Function
ON/OFF Touch to power on and off
TIMER You can set your own drying time. Press and increase 10 minutes drying time. The maximum can be set at 5 hours.
Program Select TOWEL, UNDERWEAR BABY CLOTHES, or DEHUMIDY/DEODORIZE.

1. When the power plug is plugged into the outlet, the unit will perform a self-test and all indicator lights will flash. After the self-test, the device will automatically switch to standby mode.
2. Press the switch button to start. The factory default function is UNDERWEAR BABY CLOTHES. At this time, the display window will display "1:30" for two seconds. The unit will start to warm up, the UNDERWEAR BABY CLOTHES indicator will flash and the time display will start to count down. As soon as the countdown has ended, the device will switch off automatically. The cooling fan should then continue to run for a minute to release the excess heat.
3. The preset drying times are: TOWEL 3 hours; UNDERWEAR BABY CLOTHES 1 hour 30 minutes; DEHUMIDY/DEODORIZE 30 minutes. The drying time of each program can be adjusted according to individual needs. Each time the TIMER button is pressed, the drying time is adjusted. Each press of this button increases the drying time by 10 minutes. A maximum of 5 hours can be set. If you try to set more than 5 hours, the timer will automatically start again at 10 minutes.
4. You can choose from the following 3 programs:

Programme Application
TOWEL For drying cotton or thick fabric
UNDERWEAR BABY CLOTHES Drying of soft fabric
DEHUMIDIFY / DEODORIZE Dehumidifying and adding scent

1. Aroma function: drop one or two drops of fragrance on the sponge and place the sponge in the aroma container (underneath the unit). Close the cover. During the drying process, the fragrance will be released into the laundry drum and the clothes will absorb the scent.

CLEANING AND CARE

Good maintenance will ensure normal operation of the device and extend its operational life.

1. Rub down the dryer with a soft cloth.
2. If the dryer is particularly dirty, use a damp cloth with a mild soap solution to wipe down the dryer. Never pour water, thinner, kerosene or volatile oils directly onto the device.
3. Periodic maintenance of the laundry drum may extend the life of the appliance.
4. To avoid hazards, do not use heaters near the unit.

TROUBLESHOOTING (FOR SERVICE PERSONNEL)

1. The device features automatic troubleshooting.

Error display Cause Solution
E1 Temperature sensor defective		Replace the temperature sensor
E2 Abnormal temperature - Check if the air inlets and outlets are blocked and if there are drops of water in the laundry drum.		Clean the air inlets and outlets. If necessary, replace the fan. Remove water. Turn off and restart the device.

1. If the unit does not heat up or only heats up slowly: replace the heating device and check whether the wind control is blocked.
2. The device cannot be operated. The buttons do not respond. Check if the power plug has been inserted. If not, insert it and try again.

Tips

1. Remove the foam before use. Use of the device on carpets is prohibited.
2. Never block the air outlet between the top cover and the frame during operation.
3. Hang the clothes in the unit as far as possible.
4. The hanging of dripping clothes is prohibited.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom
