USER MANUAL 10026970 Klarstein

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

CONTENT

Safety Instructions 22

Indicator Lights 25

Product Description 2.5

Control Panel 26

Installation 26

Use and Operation 27

Drying Tips 31

Drying Hints 32

Drying Programmes 33

Care and Cleaning 34

Troubleshooting 35

Hints on Disposal 37

DECLARATION OF CONFORMITY

C E

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European

Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

Regulation (EU) 932/2012

TECHNICAL DATA

Item number 10026970
Dryer Capacity 8 kg
Power supply 230 V ~ 50 Hz
Rated power 2500 W
Weight 40.5 kg
Measures (H) x (W) x (D) 85.0 cm x 59.5	cm x 63.0 cm
Power (left-on mode) 0.68 W
Power (left-off mode) 0 W
Energy consumption at full load 4.79 kWh
Energy consumption at partial load 2.5 kWh
Programme time at full load 159 min

SAFETY INSTRUCTIONS

Read an understant thoroughly this safety instructions before use. Any failure and losses caused by ignoring the above mentioned items and cautions mentiones in the operation and installation instructions are not covered by our warranty and any liability.

Possible electric shocks

• Disassembly, reparation or modification cannot be carried out by people other than professional maintenance staff.
• The household electrical supply system (the currant, the voltage, the cable) such as a fuse with suitable specifications should be provided ans should meet requirements of the dryer under normal load.
• The power plug must be connected to a three-core socket with an earth wire and is grounded properly and reliably.
• If the supply cord is damaged, it must be replaced by an authorized specialist or similarly qualified persons in order to avoid a hazard.
• Do not disconnect the power plug by pulling the supply cord. Hold the power plug with your hand.
• Do not use the supply cord when connection of the power plug and the supply cord is loose.
• Do not touch the power plug with wet hands. Wipe dust or water drops over the power plug off with dry cloth.
• Do not over-bend the supply cord or put it under heavy weight.
• Do not use the supply cord / socket / power plug if it is damaged or broken.

Possible explosions

• Do not put combustible liquid such as gasoline, petrol and alcohol into the appliance or nearby.
• Do not put clothes with that liquid into the appliance.
• Do not connect / disconnect the power plug when leakage of gas or other combustible gas occurs.

Fire accidents / short circuit or electric leakage may occur

• Do not install the appliance close to fire sources or heat sources.
• Do not rest any burning candles or cigarettes on the appliance.
• Do not install the appliances in places with high dampness or extreme wetness, lest igniting damages or other accident occur easily due to gathered water drops on electrical components.
• Do not install the dryer in places under direct sunshine, lest the plastic components and rubber components become aged.
• Do not use water shooting at the appliance when cleaning it.
• In order to avoid danger of fires caused by excessive drying, do not use the appliance to dry the following items: Cushions, quilts and the like (these items accumulate heat).
• Items that have been spotted or soaked with vegetable or cooking oil constitute a fire hazard and should not be placed in the tumble dryer.
• If you have washed your laundry with stain remover, you must execute an extra rinse cycle before loading your tumble dryer.
• Please make sure that no gas lighters or matches have accidentally been left in pockets of garments to be loaded into appliance.

Note: Never stop the tumble dry before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

Danger of injury

• This machine is not intended for use by young children or infirm persons without supervision.
• The package materials may be dangerous to children. Put all package materials (e.g. the plastic bag) to places unreachable to children.
• Do not touch laundries in the drying drum till dryer stops working completely.
• Do not keep children or pets nearby when the dryer is working for they may be trapped into the dryer. Please check carefully the drum before closing.

Other instructions

• This appliance is designed for domestic use. It must not be used for purposes other than those for which it was designed.
• Only wash fabrics which are designed to be machine dryed. Follow the instructions on each garment label.
• If the machine is situated on a carpeted floor, please adjust the feet in order to allow air to circulate freely under the appliance.
• Do not climb onto the dryer or rest heavy objects / heating devices or items with water or liquid leakage on the dryer, lest deformation of the face panel and the plastic component occur.
• Any objects such as coins, safety pins, nails, screws, stones or other hard, sharp material can cause extensive damage and must not be placed into the machine.
• After having installed the appliance, check that it is not pressing or standing on its electrical supply cable or vent hose.
• Items such as rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
  Always unplug the appliance after use, clean and maintenance.
• So not overload the appliance. See the relevant section in the user manual.
• Clothes which are dripping wet should not be placed in the dryer.
• Garments which have been in contact with volatile petroleum products should not be machine dried. If volatile cleaning fluids are used, care should be taken to ensure that the fluid is removed from the garment before placing in the machine.
• Never use the tumble dryer if the power supply cable, the control panel, the working surface or the base are damaged so that the inside of the tumble dryer is accessible.
• The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
• The lint must not be allowed to accumulate around the tumble dryer.
• Do not dry unwashed items in the tumble dryer.
• Fabric softeners or similar products should be used as specified by the fabric softener instructions.
• The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.
• That exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.
• That the appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to hat of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.

Note: Place the tumble dryer on an even and safe surface. If the floor is uneven use the adjustable leg. The hot air emitted by the tumble dryer can reach temperature of up to 60^ . The appliance must therefore not be installed on floors which are not resistant to high temperatures.

INDICATORLIGHTS

It comes on after each load, which remind you to clean the condenser. It is recommended to clean the condenser three or four times per year.

It comes on when the condensed water container is full, which remind you to empty the water container. Note! Empty the water container after each load to avoid the alarm when use the next time.

It comes on after each load to remind you to clean the fl uff fi lter. If you do not clean the fi lter, the machine perform well for the next use, but the drying efficiency will be influenced if not clean the fi lter for many times.

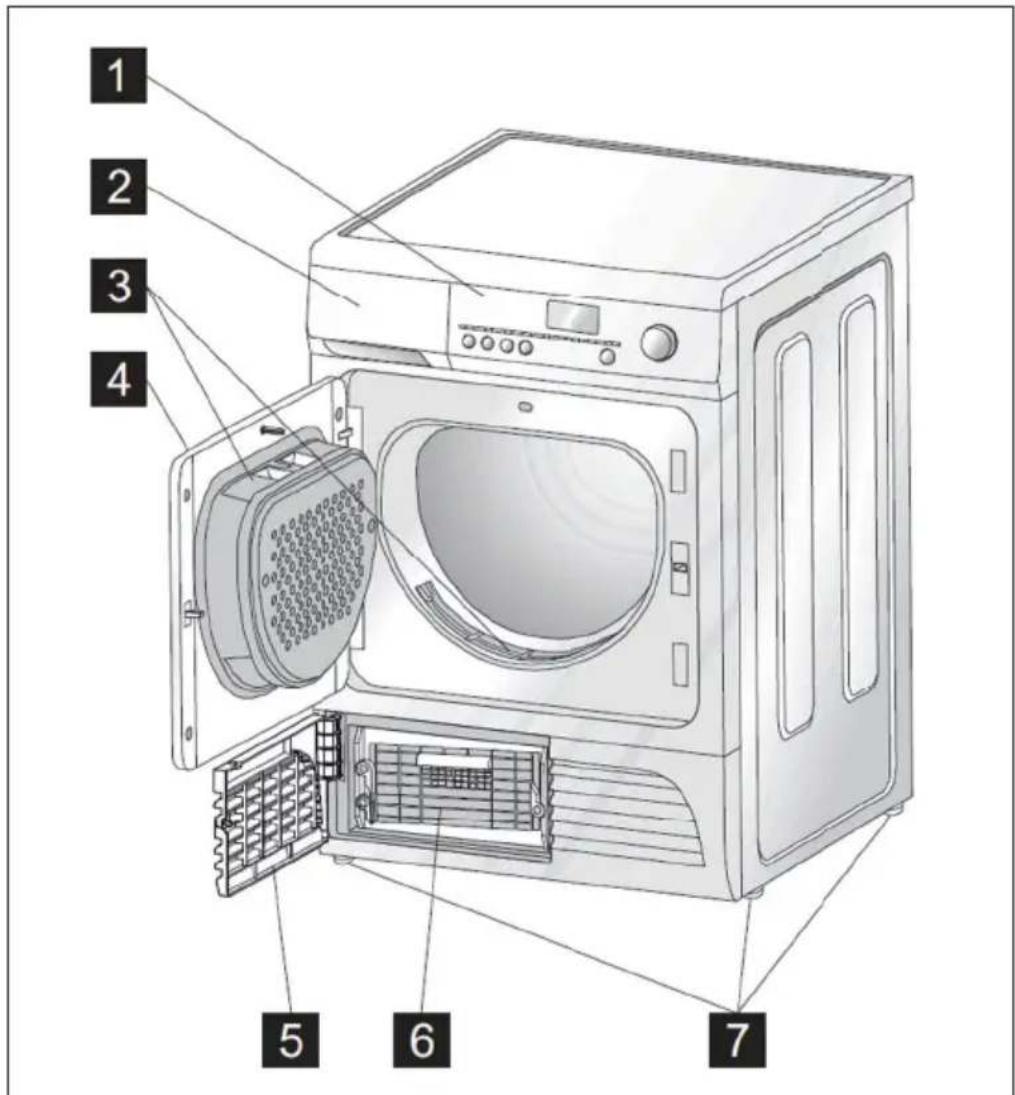

PRODUCTDESCRIPTION

1 Control Panel
2 Drainage container
3 Fluff filter
4 Door
5 Condenser cover
6 Condenser
7 Adjustment leg

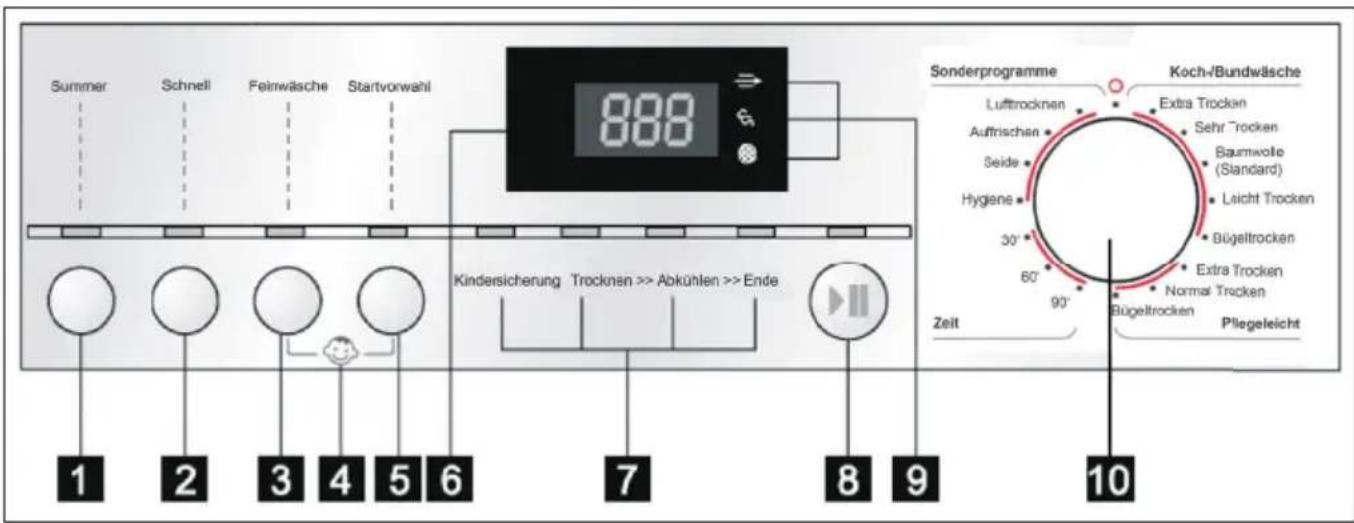

CONTROLPANEL

1 Buzzer 5 Delay start 9 Indicator lights
2 Quick 6 LED-Display 10 Program selector dial
3 Delicate 7 Indicator lights
4 Child lock 8 Start/Pause

INSTALLATION

• This appliance must be earthed. In case of failure or damage, earth can provide a minimum resistance to reduce the possibility of electric shock. The power cord has grounding wire with device and power cord with plug. Plug must be inserted into a properly installed and grounded socket (in accordance with all local rules and standards).
• A separate earth is required by some local rules. In that case, you need buy grounding wire, clips and screws.
• Adjust the level to avoid vibration and noise. Machine must be placed in a clean place, no water, ice and combustible materials there. To keep vibration and noise to a minimum when the dryer is in use, it should be placed on a firm, level surface.
• If the tumble dryer is not completely leveled, need to adjust the front feet up: to lower the dryer by turning anti-clockwise and to ascend it by turning clockwise till the appliance will not shake.

It's not necessary to discharge the condensed water to the tank, it can be drained out directly.

Change Drainpipe

Pull out the water pipe by means of the arrow direction, Then install the drainpipe. Such as the pilers can be used if it is difficult to do.

USE AND OPERATION

First use

• Ensure that the electrical connections comply with the installation instructions.
• Remove the polystyrene block and any material from the drum.
• Before using your tumble dryer for the first time, we recommend that you place a few damp cloths inside the appliance and dry for 30 minutes. There may be dust inside a brand new tumble dryer.

Connect the appliance

• Open the door
• Place the laundry in the drum, one item at a time, shaking them out as much as possible.
• Close the door. Please check the laundry does not get caught between the door and fi lter.

Select the required programme

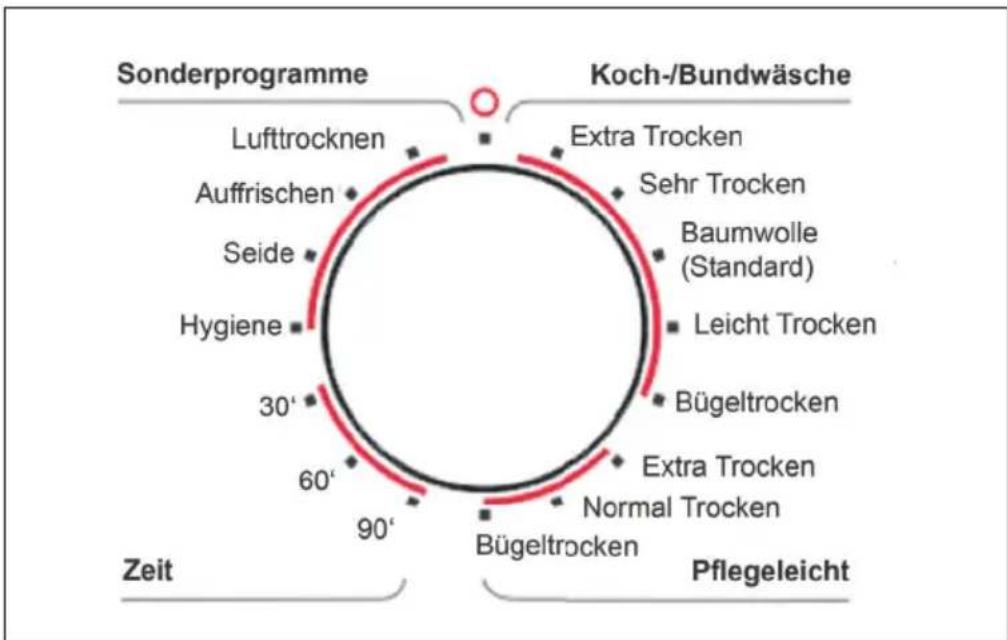

Turn the programme selector dial to the required programme. The Start/Pause light starts to flash. The programme will be switched off if you have not pressed any button for 10 minutes.

The selector dial is devided into the following sections:

Cotton
Synthetics
Time
Special

Automatic controlled drying

You can choose different programme base on your different clothes materials. The device has the function with sensor the moisture in order to automatically adjust the drying time for optimal drying. This drying system is fit for cottons, synthetics sections and Anti-Bacterial, silk programme.

Time controlled drying

Can be used to finish off drying if necessary. Select the 90 or 60 minute programme for cottons or the 30 minute programme for cottons or the 30 minute programme for synthetics. To cancel a programme which is running, turn the programme selector dial to O. At the end of dying, turn the selector dial to O to switch the machine off before removing the laundry.

Program Option buttons

Depending on the programme, different functions can be combined. These must be selected after choosing the desired programme and before depressing the Start/Pause button. e.g. choosing the "Heavy" programme, "Buzzer" function and "Quick" function can be combined. When these buttons are pressed, the corresponding pilot lights comes on. When they are pressed again, the pilot lights go out.

Select the buzzer

After turning on the appliance, the buzzer is off if you do none operation. The buzzer can be turned on or be turned off during the process. When the buzzer is on, if you press the "buzzer" button once more, the buzzer will be switched off.

Select the Quick button

The option can be selected in the following programme: "Heavy", "Strong", "Standard cotton". By depressing this button the drying time will be reduced by 10 minutes. The corresponding light illuminates. this option cannot be selected together with "Delicate Option".

Select Delicate

The option can be selected in the following sections: "Cottons", "Synthetics", "Time". Pressing the button allows drying to be performed at a lowertemperature, for delicate items. This option can slo be used for time controlled drying. This function cannot be used with QUICK DRYING.

Selected Delay start

• This button allows you to delay the starting of the programme by 24 hours max.
• This option must be selected after having selected the programme and before pressing Start/Pause to start the programme. Every time the button is pressed, the time is increased by 1 hour.

• It can be selected in both cases before and after selecting programme (Buzzer, Quick, Delicate).
• The countdown begins after you have pressed the Start/Pause button and the corresponding light illuminates. The display shows the remaining time. The remaining time is displayed hour by hour.

Incorrect option selection

• If you select an option that is not compatible with the programme you have selected, the display shows ErS (Error).
• If you select other programme because of incorrect operation while the programme is running, the display shows Ers(error).

Indicator lights

• The "Child Lock" light indicates that the appliance is locked.
• The "Drying" light light indicates that the appliance is in the drying phase.
• The "Cooling" light indicates that the appliance is in the cooling phase. At the end of drying, there is a 10 minutes cooling phase to cool the laundry.
• The "End" light is on during the anti-creasing phase after the cooling phase.

Select the Start/Pause

Press this button to start the dryer after having selected the programme on the options. If the door of the appliance is opened while the programme is running, this button must be pressed again after closing the door in order to restart the programme from the point at which it was interrupted. In this case the light of the Start/Pause button flashes to remind you that the start button needs to be pressed again.

At the end of the programme

• All drying programs end with 10 minutes cooling phase. If the laundry is not removed at the end of the cycle, the dryer performs an anti-creasing phase (duration: 30 minutes maximum).
• If you do not remove the laundry, the machine will stop automatically at the end of the anti-creasing phase. The display shows "End" and the buzzer sounds for 15 seconds if you have selected the buzzer.
• Turn the program selector dial to O, all the lights go off.

• When the machine is on, press meantime "Delicate" ans "Delay start" button for several seconds, the system will lock all the buttons. Then all buttons are invalid.
• If you want to make the appliance to return the normal state, then press „Delicate“ ans „Delay start“ button for several seconds meantime again.
• The function will release in the following cases: open door during operation, take out condenser during operation and full watertank.

After each use

• Remove the power plug
  Water container emptied
  Clean lint trap

Note: If the drying programme has to be stopped before it reaches the end, first turn the dial to O and then to "Air Dry" and depress the Start button. Wait until the end of this cooling phase before removing the laundry. This will avoid a built-up of heat inside the appliance.

DRYINGTIPS

Always follow the instructions on garment labels:

may be tumble dried

normal drying (high temperature) delicate drying (low temperature) do not tumble dry

• Do not over-dry laundry, this avoids creasing an saves energy.

• Avoid drying dark clothes with light colored fl ufty items such as towels as they could attract fl uff

• To avoid a static charge when drying is completed, use either a fabric softener when are washing the laundry or fabric conditioner specifically for tumble dryers.
• If individual items are still damp after drying, set a brief post-drying time, but at least 30 minutes. This will be necessary particularly for multilayer items (e.g. collars, pockets, etc.).

DRYING HINTS

• Make sure that no metal objects are left in the laundry (e.g. hair clips, safety pins, pins)
• Button up pillowcases, close zip fasteners, hooks and poppers. Tie any belts or long tapes.
• Close zips, button up duvet covers und tie loose ties or ribbons (e.g. of aprons).
• Turn items with double-layered fabrics inside out (e.g. with cottonlined anoraks, the cotton layer should be outermost). These Fabrics will then dry better.

Maximum loads

Recommendles loads are indicated in the programme charts. General rules:

Cotton, linen: recommended loads are not too tightly packed.
Synthetics:drum no more than half full.
Delicate fabrics and woollens: drum no more than quarter full.
- Try to load the maximum capacity of the machine as small loads are uneconomical.
- For easy wrinkle-clothes, slightly reduce the laundry.

Laundry weights

Bathrobe 1600 g night dress 265 g
napkin 130 g ladies' brief 130 g
quilt cover 930 g men's work shirt 800 g
sheet 665 g men's shirt	265 g
pillow case	266 g men's pyjamas 130 g
tablecloth	330 g blouse	665 g
towelling towel	265 g	men's underpants	130 g
tea cloth	130 g

DRYING PROGRAMMES

Section Course Max.		load	Description of programme
Cottons Heavy 8 kg Jeans, work clothes and so on.
Strong 8 kg Jeans, work clothes and so on.
Standard cotton 8 kg Drying shirt, T-shirt, cotton trousers
Damp 8 kg Drying knitted items, cotton shirt
Iron 8 kg Drying sheet, bed linen, table linen, starched laundry
Synthetics Extra 4 kg For sheet, tablecloth, synthetic
Cupboard 4 kg For synthetic items
Iron 4 kg Fir knitted itoms, shirt
Time 30', 60', 90' 8 kg Drying thick or multi-layered textiles, e.g. terry toweling items. For drying individual items of laundry or for small volumes.
Freshen-up 4 kg For men's underpants, pantywaist, winter clothing
Specials	Silk	2 kg For silk items
	Anti-Bacterial	4 kg For men's underpants, shirts
	Air Dry	8 kg For men's underpants, shirt, T-shirts, cotton trousers, etc.

CARE AND CLEANING

NOTE: You must DISCONNECT the appliance from the electric supply, before you can carry out any cleaning or maintenance work.

External cleaning

• Use only soap water an then dry thoroughly.
• Important: do not use menthylated spirit, diluents or similar products

Cleaning the door

Clean periodically the interior part of the door to remove any fluff. Accurate cleaning ensure correct drying.

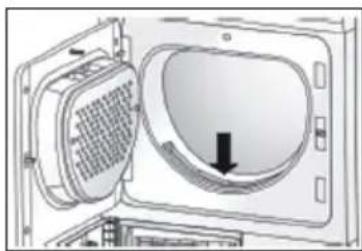

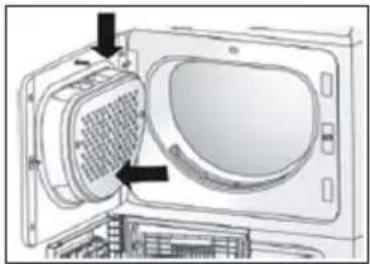

Cleaning the fiter

Your dryer will only function well if the fi liter is cleaned. The fi liter collects all the fluff which accumulates during drying, to operate at optimum effciency. Filter indicator light reminds you, they must therefore be cleaned. The fi liter must be removed for cleaning. When drying, all fi bre clothing are unhairing, dryer through the fi liter collects all the fluff. When this phenomenon happened, please use brush and dipped warm water to clean fi liter

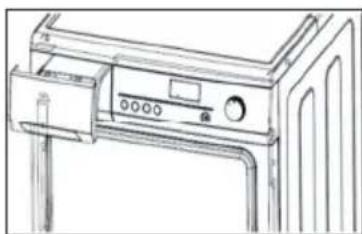

Cleaning the condenser

Water container collects all of the water from condenser. Water container need to be emptied after every drying cycle. If the water container is full, an active programme will break off the light will comes on and the buzzer sounds automatically. In order to continue the programme, the water container must first be emptied.

1. Pull out water container
2. Tip water into pool
3. Pull the water container in dryer
4. Press the Start/Pause button

Humidity sensor

In the movement process, this device is used for induction clothing humidity, it means that it must be carried on cleaning. Major cause of clean is must scour out the calcium oxide boiler which on the sensor surface up. Clean the sensor in the tumbler.

Lamp replace

1. Open the door, put your hand into the drum of a clothes dryer, use screw driver

unscrew two pieces of screw and take out lamp screen.

1. Take out the bulb by turning counterclockwise. Be carefully.

2. According to installs new bulb with its reverse direction's process.

3. Catch the lamp screen by hand and hard push counterclockwise, until the bulb has loosened.

TROUBLESHOOTING

Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Centre, please carry out the checks listed underneath.

During machine operation it is possible that the Start/Pause pilot light flashes to indicate that the machine is not working. Once the problem has been eliminated, press the Start/ Pause button to restart the programme. If after all checks, the problem persists, contact your local Service Center.

Malfunction Possible	Cause Solution
Dryer does not work	Main plug is not plugged in.	Plug in all main sockets.
	Loading door is open. Close	loading door.
	Start button hasn't been pressed.	Press the Start button again.
Drying results unsatisfactory	Wrong programme selected.	Select a different programme the next time you dry.
	Filter clogged. Clean lint filter.
	Incorrect volume of laundry.	Observe recommended loading volumes.
	The sediment on humidity sensor.	Washed humidity sensor surface.
Drum light does not work	Light bulb is defective. Replace light bulb.
Drying cycle ends shortly after programme starts	Not enough washing loaded	Load more washing.
	Washing loaded is too dry for selected programme.	Select higher lower level (e.g. Heavy instead of Strong)
Drying cycle lasts an unusually long time	Load volume is too big. Reduce load volume
Trommelbeleuch-tung funktioniert nicht	Birne ist defekt Birne ausweichsehn
Trocknungsvorgang endet kurz nach Programmstart, Ende leuchtet auf	Nicht genügend Wäsche im Gerät	Mehr Wäsche einfllen
	Wäsche ist zu trocken für den Trockenvorgang	Niedrigere Trockenstufe wahren (Baumwollestatt Extra Trocken)
Trocknungsvorgang dauert ungewöhnlich lang	Die Maschine ist zu voll beladen	Teil der Wäsche enthalten

Note: If you are unable to identify or solve the problem, contact your local Service centre. Before telephoning, make a note of the model, serial number and purchase date of your machine, the Servie Center will require this information.

HINTS ON DISPOSAL

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Cher client,
